◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#81912) — 638 parça

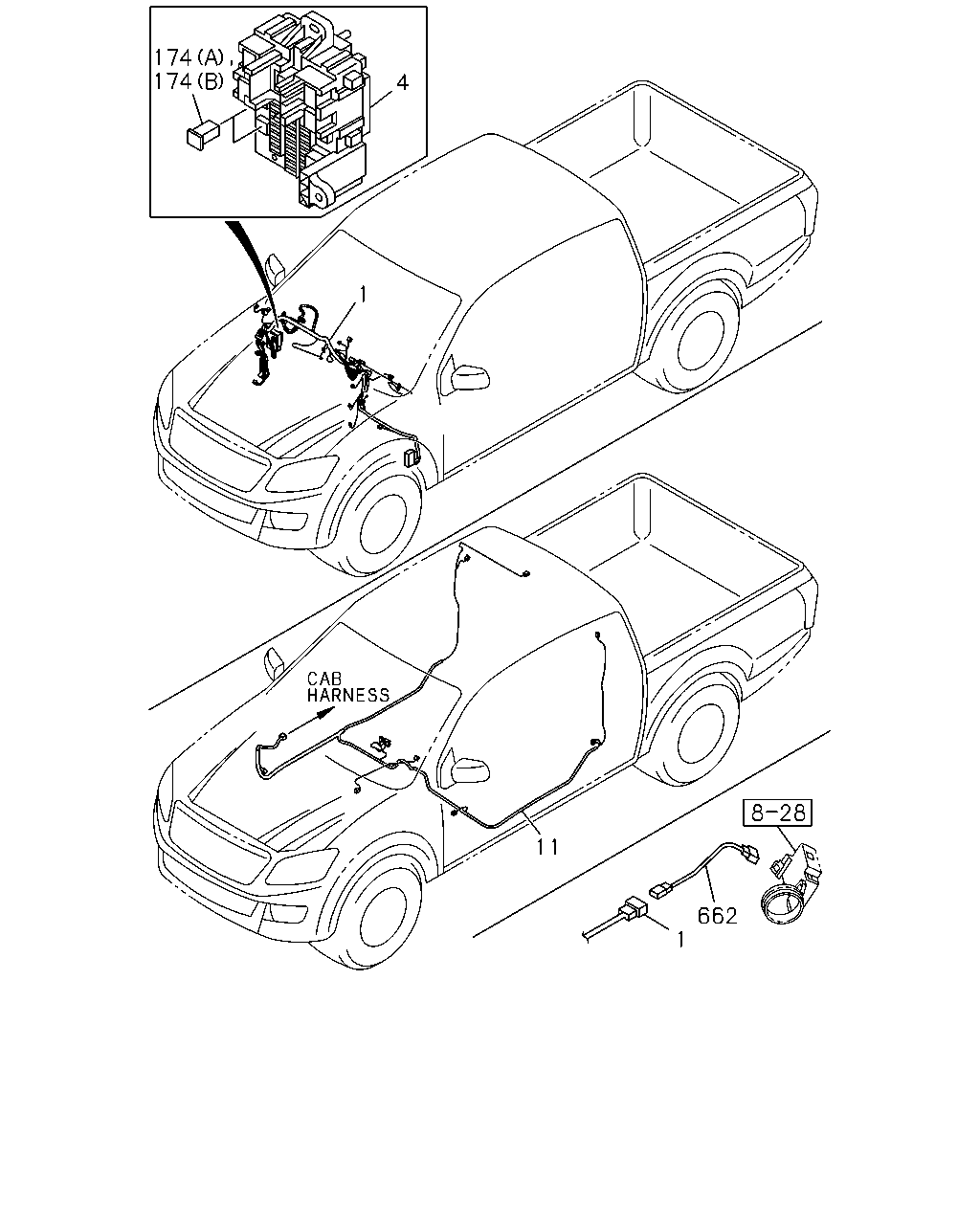

çizim 136017
174 174 4 1 11 662 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-481-1 01 1 1206- ● ●
1 02.480 HARNESS; CAB
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-482-1 01 1 1206- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-458-5 01 1 1206-1210 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-458-7 01 1 1211- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-463-6 01 1 1206-1210 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-463-6 01 1 1211-1302 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-463-8 01 1 1303- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98160-455-5 01 1 1206-1210 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98160-455-7 01 1 1211-1302 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98160-455-7 01 1 1303- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-462-5 01 1 1206-1210 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-462-7 01 1 1211-1302 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-462-7 01 1 1303- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98185-261-4 01 1 1205-1205 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98185-261-4 01 1 1206-1210 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98185-261-6 01 1 1211- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98160-468-5 01 1 1205-1205 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-468-5 01 1 1206-1210 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-468-7 01 1 1211- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> 		8-98160-470-4 01 1 1205-1205 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-470-4 01 1 1206-1210 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-470-5 01 1 1211- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98160-460-5 01 1 1205-1205 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98160-460-5 01 1 1206-1210 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98160-460-7 01 1 1211- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98160-465-5 01 1 1205-1205 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-465-5 01 1 1206-1210 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-465-7 01 1 1211- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-751-0 01 1 1205- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-558-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-557-2 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> 		8-98160-597-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-589-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-590-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-591-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-614-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-615-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-607-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUN T STOP LAMP<TS6> 		8-98160-608-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> 		8-98160-643-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98160-644-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> 		8-98160-627-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-628-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> 		8-98160-645-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REAR DEFOGGER<C49>,HIGH MOUNT STOP LAMP<TS6> 		8-98185-301-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-629-7 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98185-302-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> 		8-98160-592-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-593-4 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-594-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-595-4 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-609-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-610-4 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-611-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUN T STOP LAMP<TS6> 		8-98160-612-4 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> 		8-98160-640-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1> 		8-98160-630-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REAR DEFOGGER<C49> 		8-98160-641-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-631-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> 		8-98160-568-7 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98160-570-5 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> 		8-98160-572-6 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. REAR DEFOGGER<C49>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-574-5 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> 		8-98160-569-5 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98160-571-3 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> 		8-98160-573-4 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. REAR DEFOGGER<C49>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-575-3 01 1 1206- ●
11 02.480 HARNESS; BODY 8-98160-567-7 01 1 1205-1205 ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98160-567-7 01 1 1205-1205 ●
11 02.480 HARNESS; BODY 8-98160-567-7 01 1 1206- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> 		8-98160-567-7 01 1 1206- ●
11 02.480 HARNESS; BODY 8-98160-559-6 01 1 1205-1205 ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98160-559-6 01 1 1206- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> 		8-98160-642-8 01 1 1205-1205 ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HEATER FRT SEAT<KA1> 		8-98160-642-8 01 1 1206- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1> 		8-98160-626-8 01 1 1205-1205 ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. HEATER FRT SEAT<KA1> 		8-98160-626-8 01 1 1206- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1> 		8-98160-596-8 01 1 1205-1205 ● ●
11 02.480 HARNESS; BODY
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. HEATER FRT SEAT<KA1> 		8-98160-596-8 01 1 1206- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-613-8 01 1 1205-1205 ● ●
11 02.480 HARNESS; BODY
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-613-8 01 1 1206- ● ●
174 08.965 FUSE; SLOW BLOW
(C) 80A BLACK 		8-94388-305-1 AR 1 1206- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-98079-192-0 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-98079-193-0 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1205- ● ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
4JJ1-TCX ENG(LS0) 		8-98163-074-0 01 1 1205-1205 ● ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) IMMOBILIZER SYSTEM<7KC> 		8-98163-074-0 01 1 1206-1210 ● ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) IMMOBILIZER SYSTEM<7KC> 		8-98163-074-0 01 1 1211- ● ● ● ● ● ●

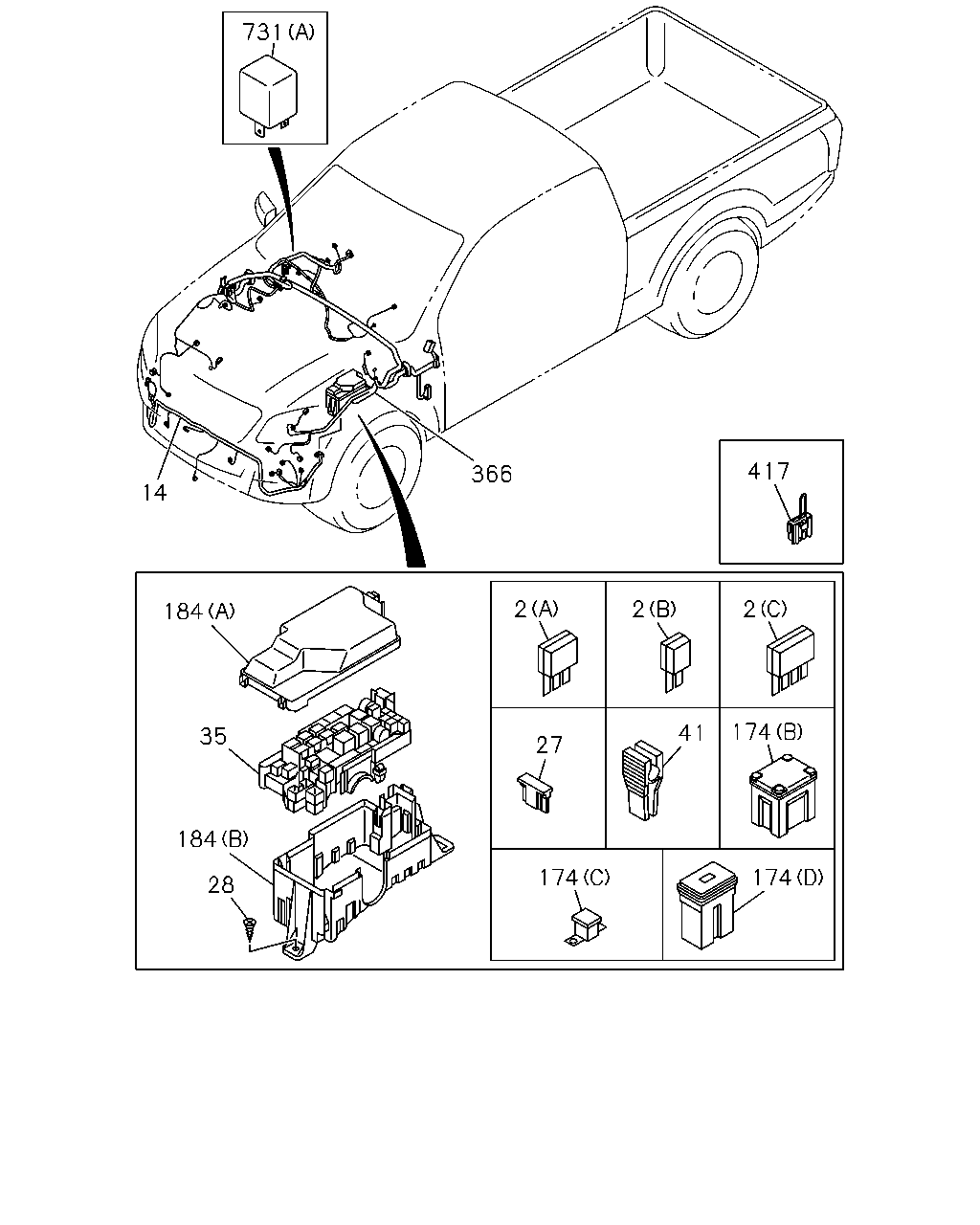

çizim 136275
731 14 366 417 2 2 2 174 174 41 27 174 28 184 35 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 4P-1.5A 		8-94381-730-0 AR 1 1205- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1205- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1205- ● ● ● ● ● ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> 		8-98159-342-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECT OR BEAM<8LH> 		8-98159-342-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-353-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-352-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98159-351-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-350-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98159-349-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-349-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-341-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-341-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98159-347-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98159-347-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEAD LAMP LEVELING MANUAL<T92>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-339-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-339-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP 8-98159-338-1 01 1 1205-1205 ● ● ●
14 02.727 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-338-1 01 1 1205-1205 ● ● ●
14 02.727 HARNESS; HEADLAMP 8-98159-338-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98159-338-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECTOR BEA M<8LH> 		8-98159-338-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECT OR BEAM<8LH> 		8-98159-338-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-348-1 01 1 1205-1205 ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-348-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-348-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-340-1 01 1 1205-1205 ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> EXC. HEAD LAMP LEVELING MANUAL<T92>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-340-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-340-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98159-346-1 01 1 1205-1205 ● ● ●
14 02.727 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-346-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-346-1 01 1 1206- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1205- ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1205- ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1205- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 1205- ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1205- ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 80A BLACK 		8-94388-305-1 AR 1 1206- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-98079-192-0 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-98079-193-0 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1205- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1205- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-98113-098-0 01 1 1205- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-98113-099-0 01 1 1205- ● ● ● ● ● ●

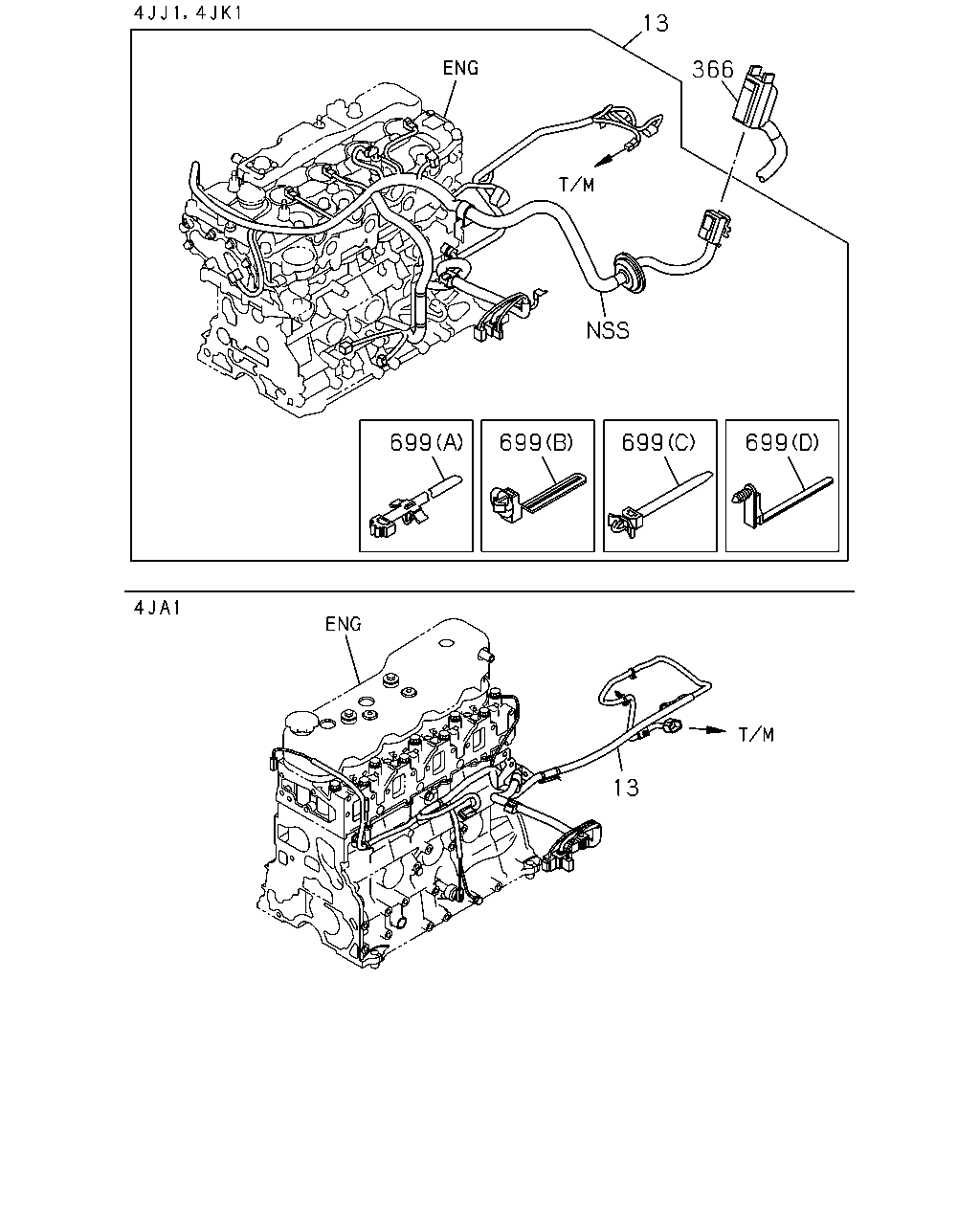

366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-219-0 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-219-2 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-217-0 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-217-2 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-544-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-544-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-527-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-527-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-556-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-556-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-550-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-550-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-907-4 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-907-4 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-555-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-555-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-547-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-547-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-906-4 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-906-4 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-497-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-497-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-058-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-058-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-498-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-498-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-059-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-059-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-588-6 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-588-8 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-541-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-541-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-533-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-533-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-905-4 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-905-4 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-536-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-536-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-530-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-530-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-886-4 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-886-4 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-586-6 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-586-8 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98188-421-7 01 1 1205-1205 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98188-421-7 01 1 1205-1205 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-421-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-421-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98188-420-7 01 1 1205-1205 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-420-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-420-7 01 1 1211- ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-97362-918-0 01 1 1206- ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
COOLER W/FRESH AIR(C65) 		8-97362-918-0 01 1 1206- ● ● ●
731 02.483 RELAY; DRL
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 02.485 (A) 12V YAZAKI 		8-97309-292-0 01 1 1206-1208 ● ● ● ●
731 02.483 RELAY; DRL
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 02.485 (A) 12V YAZAKI 		8-97309-292-0 01 1 1209- ● ● ● ●
731 02.483 RELAY; DRL
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 09.778 (B) 12V YAZAKI 		8-97309-293-0 01 1 1206-1208 ● ● ● ●
731 02.483 RELAY; DRL
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 09.778 (B) 12V YAZAKI 		8-97309-293-0 01 1 1209- ● ● ● ●

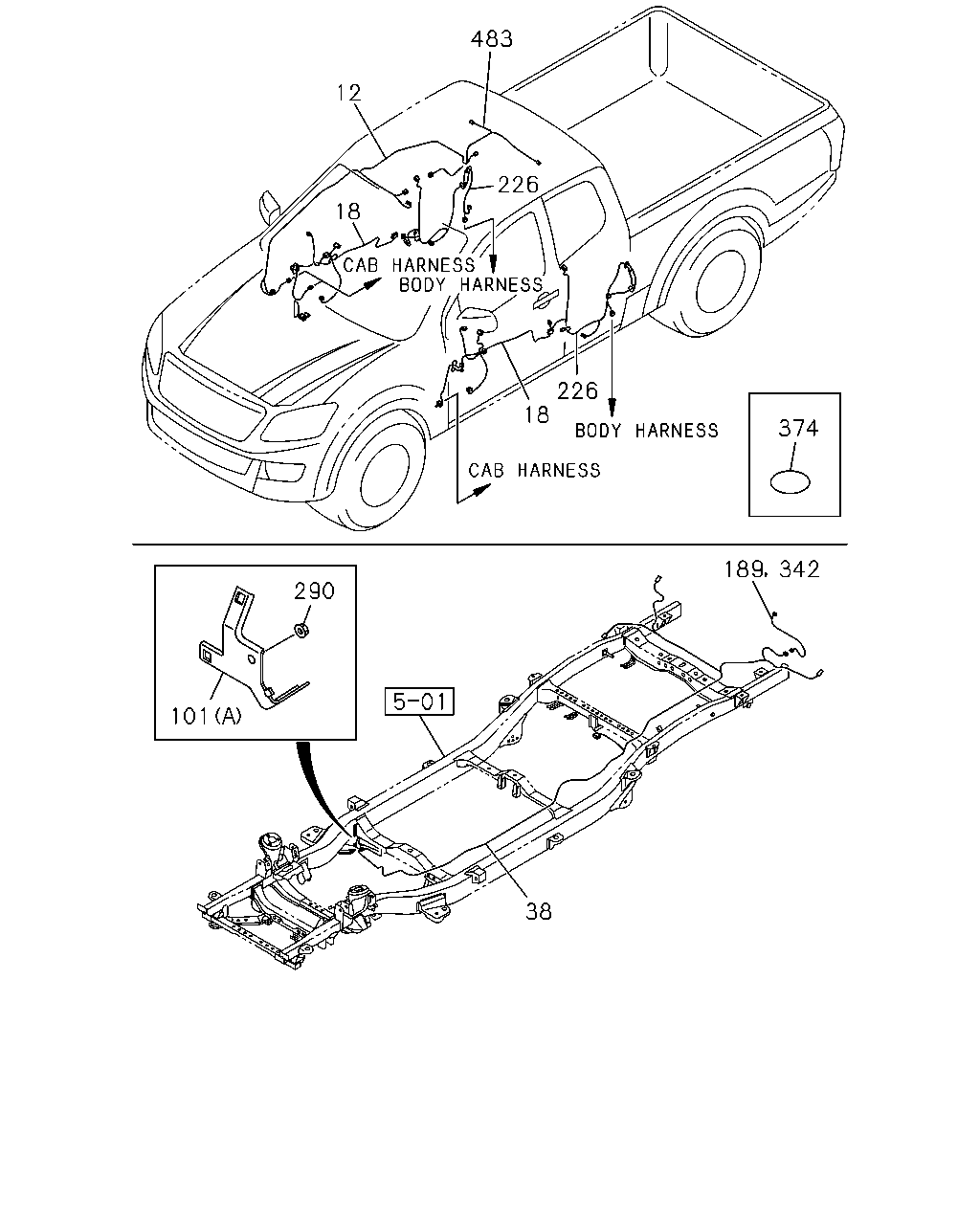

çizim 136545
483 12 18 226 226 18 374 342 189 290 101 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98275-273-0 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98275-273-0 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS> 		8-98275-273-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EQUIPMENT IMPACT<EPS> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98275-273-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98275-273-0 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-272-0 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-272-0 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-272-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EQUIPMENT IMPACT<EPS> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-272-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-272-0 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98275-275-0 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98275-275-0 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>,EQUIPMENT IMPACT<EPS> 		8-98275-275-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EQUIPMENT IMPACT<EPS> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98275-275-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98275-275-0 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-274-0 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-274-0 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,EQUIPMENT IMPACT<EPS>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-274-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EQUIPMENT IMPACT<EPS> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-274-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-274-0 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-271-0 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-271-0 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-271-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EQUIPMENT IMPACT<EPS> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-271-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-271-0 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH MOUNT STOP LAMP<TS6> 		8-98159-332-0 01 1 1206- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98159-331-0 01 1 1206- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-477-3 01 1 1206-1403 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6>,SINGAPORE EQUIPMENT(2G0) 		8-98159-477-3 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6> 		8-98159-477-3 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0) 		8-98159-477-3 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6> 		8-98159-477-3 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-476-2 01 1 1206-1403 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,SINGAPORE EQUIPMENT(2G0) 		8-98159-476-2 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-476-2 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS>,6-SPEAKER SYSTEM CUSTOM<UW6>,S INGAPORE EQUIPMENT(2G0) 		8-98159-476-2 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-476-2 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-479-3 01 1 1206-1403 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,SINGAPORE EQUIPMENT(2G0) 		8-98159-479-3 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),MAP LAMP<C74> 		8-98159-479-3 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,EQUIPMENT IMPACT<EPS> ,SINGAPORE EQUIPMENT(2G0) 		8-98159-479-3 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),MAP LAMP<C74> 		8-98159-479-3 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-478-2 01 1 1206-1403 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6>,SINGAPORE EQUIPMENT(2G0) 		8-98159-478-2 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. AUSTRALIA EQUIPMENT(B13),MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-478-2 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,EQUIPMENT IMPACT<EPS> ,6-SPEAKER SYSTEM CUSTOM<UW6>, SINGAPORE EQUIPMENT(2G0) 		8-98159-478-2 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. AUSTRALIA EQUIPMENT(B13),MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-478-2 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-475-2 01 1 1206-1403 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,HEADER CONSOLE<DK6>,6 -SPEAKER SYSTEM CUSTOM<UW6>, SINGAPOREEQUIPMENT(2G0) 		8-98159-475-2 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-475-2 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,HEADER CONSOLE<DK6>,E QUIPMENT IMPACT<EPS>,6-SPEAKER SYSTEMCUSTOM<UW6>,SINGAPORE EQUIPMENT(2G0) 		8-98159-475-2 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-475-2 01 1 1410- ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> 		8-98159-481-4 01 1 1205-1205 ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-481-4 01 1 1205-1205 ● ● ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> 		8-98159-481-4 01 1 1206- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-481-4 01 1 1206- ● ● ●
12 02.480 HARNESS; ROOF
EXC. MAP LAMP<C74> 		8-98159-480-4 01 1 1205-1205 ●
12 02.480 HARNESS; ROOF
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-480-4 01 1 1205-1205 ● ● ●
12 02.480 HARNESS; ROOF
EXC. MAP LAMP<C74> 		8-98159-480-4 01 1 1206- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-480-4 01 1 1206- ● ● ●
12 02.480 HARNESS; ROOF 8-98159-333-4 01 1 1205-1205 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HIGH MOUNT STOP LAMP<TS6> 		8-98159-333-4 01 1 1206- ● ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-482-5 01 1 1205-1205 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-482-5 01 1 1206- ● ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-484-5 01 1 1205-1205 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-484-5 01 1 1206- ● ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-483-4 01 1 1205-1205 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-483-4 01 1 1206- ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-504-5 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-488-4 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-490-3 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-492-3 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-510-4 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-506-5 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-508-5 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-505-3 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-507-2 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-486-4 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98159-502-5 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98200-117-1 01 1 1206- ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98200-072-3 01 1 1206- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98200-116-2 01 1 1206- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98200-071-2 01 1 1206- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98159-487-4 01 1 1205-1205 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98159-487-4 01 1 1205-1205 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-487-4 01 1 1206- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98164-851-3 01 1 1205-1205 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98164-851-3 01 1 1205-1205 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98164-851-3 01 1 1206- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> 		8-98159-489-3 01 1 1205-1205 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-489-3 01 1 1206- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> 		8-98159-521-2 01 1 1205-1205 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-521-2 01 1 1206- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-491-4 01 1 1205-1205 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-491-4 01 1 1206- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-509-3 01 1 1205-1205 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-509-3 01 1 1206- ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,REAR ST EP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98159-319-2 01 1 1206-1210 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,REAR ST EP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-319-2 01 1 1206-1210 ●
38 02.480 HARNESS; CHAS
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,REAR ST EP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98159-319-2 01 1 1211-1301 ●
38 02.480 HARNESS; CHAS
AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,REAR ST EP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-319-2 01 1 1211-1301 ●
38 02.480 HARNESS; CHAS
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,REAR ST EP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-319-2 01 1 1302- ●
38 02.480 HARNESS; CHAS
AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,REAR ST EP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-319-2 01 1 1302- ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RI DE SUSPENSION(7YC) 		8-98159-320-2 01 1 1206-1210 ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,REAR ST EP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-320-2 01 1 1206-1210 ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98159-320-2 01 1 1206-1210 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98159-320-2 01 1 1206-1210 ● ● ●
38 02.480 HARNESS; CHAS
AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RI DE SUSPENSION(7YC) 		8-98159-320-2 01 1 1211-1301 ● ●
38 02.480 HARNESS; CHAS
AUSTRALIA EQUIPMENT(B13) REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,REAR ST EP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-320-2 01 1 1211-1301 ● ●
38 02.480 HARNESS; CHAS
AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98159-320-2 01 1 1211-1301 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98159-320-2 01 1 1211-1301 ● ● ●
38 02.480 HARNESS; CHAS
AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,HIGH RI DE SUSPENSION(7YC) 		8-98159-320-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
AUSTRALIA EQUIPMENT(B13) REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,REAR ST EP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-320-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98159-320-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98159-320-2 01 1 1302- ● ● ●
38 02.480 HARNESS; CHAS
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) REAR BODY FLAT BED(E39) EXC. AUSTRALIA EQUIPMENT(B13), ELECTRONIC TRACTION CONTROL<NW9> 		8-98198-446-1 01 1 1206- ●
38 02.480 HARNESS; CHAS
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98159-318-2 01 1 1206-1210 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-318-2 01 1 1206-1210 ●
38 02.480 HARNESS; CHAS
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98159-318-2 01 1 1211-1301 ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-318-2 01 1 1211-1301 ●
38 02.480 HARNESS; CHAS
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-318-2 01 1 1302- ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-318-2 01 1 1302- ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98159-317-2 01 1 1206-1210 ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) REAR BODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-317-2 01 1 1206-1210 ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9> 		8-98159-317-2 01 1 1206-1210 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9> 		8-98159-317-2 01 1 1206-1210 ● ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98159-317-2 01 1 1211-1301 ● ●
38 02.480 HARNESS; CHAS
REAR BODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-317-2 01 1 1211-1301 ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9> 		8-98159-317-2 01 1 1211-1301 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9> 		8-98159-317-2 01 1 1211-1301 ● ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98159-317-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-317-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9> 		8-98159-317-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13),4 WHEELANTI LOCK BRAKE<JE5>,ELECTRONIC TRAC TION CONTROL<NW9> 		8-98159-317-2 01 1 1302- ● ● ●
38 02.480 HARNESS; CHAS
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42) 		8-98159-323-2 01 1 1206-1210 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-323-2 01 1 1206-1210 ●
38 02.480 HARNESS; CHAS
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42) 		8-98159-323-2 01 1 1211-1301 ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-323-2 01 1 1211-1301 ●
38 02.480 HARNESS; CHAS
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-323-2 01 1 1302- ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) EXC. AUSTRALIA EQUIPMENT(B13),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-323-2 01 1 1302- ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. AUSTRALIA EQUIPMENT(B13),HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1206-1210 ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1206-1210 ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98159-322-2 01 1 1206-1210 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98159-322-2 01 1 1206-1210 ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. AUSTRALIA EQUIPMENT(B13),HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1211-1301 ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1211-1301 ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98159-322-2 01 1 1211-1301 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98159-322-2 01 1 1211-1301 ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. AUSTRALIA EQUIPMENT(B13),HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98159-322-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98159-322-2 01 1 1302- ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-324-2 01 1 1205-1205 ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-324-2 01 1 1206-1210 ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-324-2 01 1 1211- ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1205-1205 ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1205-1205 ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1205-1205 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98159-325-2 01 1 1205-1205 ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1206-1210 ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1206-1210 ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1206-1210 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98159-325-2 01 1 1206-1210 ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1211-1301 ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1211-1301 ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1211-1301 ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98159-325-2 01 1 1211-1301 ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1302- ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1302- ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) 		8-98159-325-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 		8-98159-325-2 01 1 1302- ● ● ●

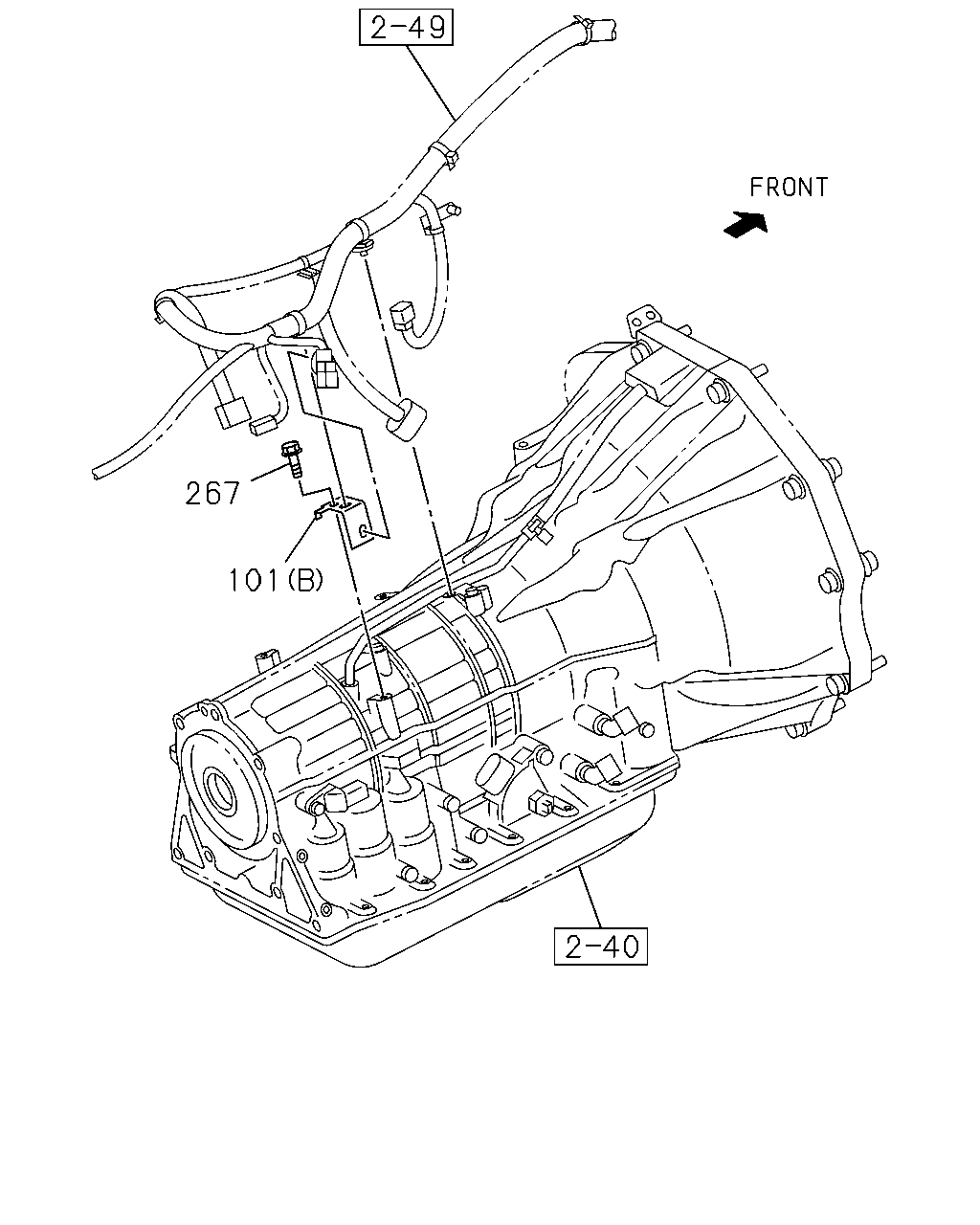

101 02.483 BRACKET; HARNESS CONNECTOR
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) (B) 		8-98182-490-1 01 1 1206- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98102-999-0 01 1 1205- ● ● ● ● ● ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1205-1205 ● ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1205-1205 ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98140-863-0 01 1 1205-1205 ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1205-1205 ● ● ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1206-1301 ●
189 02.480 HARNESS; EXT
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1206-1301 ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1206-1301 ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98140-863-0 01 1 1206-1301 ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1206-1301 ● ● ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1302- ●
189 02.480 HARNESS; EXT
HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1302- ●
189 02.480 HARNESS; EXT
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98140-863-0 01 1 1302- ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1302- ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98140-863-0 01 1 1302- ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1302- ● ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-533-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-534-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-535-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-536-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98159-354-4 01 1 1206- ●
226 02.480 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98167-612-4 01 1 1206- ●
226 02.480 HARNESS; RR DOOR 8-98159-355-6 01 1 1205-1205 ● ●
226 02.480 HARNESS; RR DOOR 8-98159-355-6 01 1 1206- ●
226 02.480 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98159-355-6 01 1 1206- ●
226 02.480 HARNESS; RR DOOR 8-98167-613-6 01 1 1205-1205 ● ●
226 02.480 HARNESS; RR DOOR 8-98167-613-6 01 1 1206- ●
226 02.480 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98167-613-6 01 1 1206- ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-527-3 01 1 1205-1205 ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-527-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-528-3 01 1 1205-1205 ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98159-528-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-525-3 01 1 1205-1205 ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-525-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-526-3 01 1 1205-1205 ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-526-3 01 1 1206- ● ●
290 02.483 NUT; BRKT
4JJ1-TCX ENG(LS0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1205-1205 ● ● ● ● ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1206-1210 ● ● ● ● ● ●
290 02.483 NUT; BRKT
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1211- ● ● ● ● ● ●
342 02.480 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98137-579-2 01 1 1205- ● ● ● ● ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> 02.559 D=58 BLACK 		8-97302-191-0 02 1 1205- ● ●
483 02.480 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98165-202-2 01 1 1205- ● ● ●
483 02.480 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98129-592-2 01 1 1205- ● ● ●
çizim 136644
366 731 736 738 739 741 743 742 744 746 737 745 747 748
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-219-0 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-219-2 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-217-0 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-217-2 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-544-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-544-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-527-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-527-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-556-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-556-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-550-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-550-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-907-4 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-907-4 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-555-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-555-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-547-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-547-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-906-4 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-906-4 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-497-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-497-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-058-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-058-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-498-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-498-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-059-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-059-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-588-6 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-588-8 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-541-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-541-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-533-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-533-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-905-4 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-905-4 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-536-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-536-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-530-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-530-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-886-4 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-886-4 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-586-6 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-586-8 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98188-421-7 01 1 1205-1205 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98188-421-7 01 1 1205-1205 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-421-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-421-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98188-420-7 01 1 1205-1205 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-420-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-420-7 01 1 1211- ● ● ●
731 02.483 RELAY; DRL
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 02.485 (A) 12V YAZAKI 		8-97309-292-0 01 1 1206-1208 ● ● ● ●
731 02.483 RELAY; DRL
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 02.485 (A) 12V YAZAKI 		8-97309-292-0 01 1 1209- ● ● ● ●
731 02.483 RELAY; DRL
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 09.778 (B) 12V YAZAKI 		8-97309-293-0 01 1 1206-1208 ● ● ● ●
731 02.483 RELAY; DRL
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 09.778 (B) 12V YAZAKI 		8-97309-293-0 01 1 1209- ● ● ● ●
736 02.694 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 1205- ● ● ● ● ● ●
737 02.694 RELAY; DIMMER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1205- ● ● ● ● ● ●
738 02.694 RELAY; HEADLAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1205- ● ● ● ● ● ●
739 02.694 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1205- ● ● ● ● ● ●
741 02.694 RELAY; HORN
09.778 12V YAZAKI 		8-97309-293-0 01 1 1205- ● ● ● ● ● ●
742 02.694 RELAY; THERMO
09.778 12V YAZAKI 		8-97309-293-0 01 1 1205- ● ● ● ● ● ●
743 02.694 RELAY; A/C COMPRESSOR
09.778 12V YAZAKI 		8-97309-293-0 01 1 1205-1205 ● ● ● ● ● ●
743 02.694 RELAY; A/C COMPRESSOR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1206-1210 ● ● ● ● ● ●
743 02.694 RELAY; A/C COMPRESSOR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1211- ● ● ● ● ● ●
744 02.694 RELAY; RR FOG LAMP
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1206-1208 ● ● ● ●
744 02.694 RELAY; RR FOG LAMP
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1209- ● ● ● ●
745 02.694 RELAY; HEATER
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.485 (B) 12V YAZAKI 		8-97309-292-0 01 1 1206- ● ●
745 02.694 RELAY; HEATER
03.670 (A) 12V YAZAKI 		8-98146-834-0 01 1 1205- ● ● ● ● ● ●
746 02.694 RELAY; ECM,MAIN
03.670 12V YAZAKI 		8-98146-834-0 01 1 1205-1205 ● ● ● ● ● ●
746 02.694 RELAY; ECM,MAIN
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 03.670 12V YAZAKI 		8-98146-834-0 01 1 1206-1210 ● ● ● ● ● ●
746 02.694 RELAY; ECM,MAIN
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 03.670 12V YAZAKI 		8-98146-834-0 01 1 1211- ● ● ● ● ● ●
747 02.694 RELAY; GLOW
02.100 12V YAZAKI 		8-98146-837-0 01 1 1205- ● ● ● ● ● ●
748 02.694 RELAY; STARTER
02.100 12V YAZAKI 		8-98146-837-0 01 1 1205- ● ● ● ● ● ●
çizim 136820
4 734 745 750 749 751
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-751-0 01 1 1205- ● ● ● ● ● ●
734 02.694 RELAY; ACC SOCKET
09.778 12V YAZAKI 		8-97309-293-0 01 1 1205- ● ● ● ● ● ●
745 02.694 RELAY; HEATER
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.485 (B) 12V YAZAKI 		8-97309-292-0 01 1 1206- ● ●
745 02.694 RELAY; HEATER
03.670 (A) 12V YAZAKI 		8-98146-834-0 01 1 1205- ● ● ● ● ● ●
749 02.694 RELAY; POWER WINDOW
09.778 12V YAZAKI 		8-97309-293-0 01 1 1205- ● ● ● ● ● ●
750 02.694 RELAY; RR DEFOGGER
09.778 12V YAZAKI 		8-97309-293-0 01 1 1205- ● ● ● ● ● ●
751 02.694 RELAY; DEAD LOCK
02.485 12V YAZAKI 		8-97309-292-0 01 1 1205- ● ● ● ● ● ●
çizim 136947
267 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
101 02.483 BRACKET; HARNESS CONNECTOR
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) (B) 		8-98182-490-1 01 1 1206- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98102-999-0 01 1 1205- ● ● ● ● ● ●
267 02.483 BOLT; BRKT
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1206- ● ● ●
çizim 136993
655 547 408
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-115-0 01 1 1205- ● ● ● ● ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98159-334-4 01 1 1206- ● ● ● ● ●
547 02.480 HARNESS; CABLE,SRS 8-98159-336-4 01 1 1205-1205 ● ● ● ●
547 02.480 HARNESS; CABLE,SRS 8-98159-336-4 01 1 1206- ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98159-336-4 01 1 1206- ● ● ●
547 02.480 HARNESS; CABLE,SRS 8-98159-335-4 01 1 1205-1205 ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98159-335-4 01 1 1206- ● ●
655 02.480 RETAINER
4JK1-TCY ENG(RDX) 08.077 		8-97182-405-0 01 1 1206- ● ● ● ●
çizim 194317
13 366 699 699 699 699 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) 		8-98260-547-0 01 1 1402- ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98224-343-2 01 1 1211- ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98224-344-2 01 1 1211-1412 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98260-541-0 01 1 1501- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-98190-070-1 01 1 1206-1208 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-98224-337-2 01 1 1209- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98108-654-7 01 1 1206-1208 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98224-341-0 01 1 1209-1210 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98224-341-2 01 1 1211- ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> 		8-98190-105-4 01 1 1206-1301 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75> 		8-98190-105-4 01 1 1302- ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98190-106-4 01 1 1206-1301 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98190-106-4 01 1 1302- ● ●
13 02.525 HARNESS; ENG
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> 		8-98188-428-7 01 1 1206- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) EMISSION SYSTEM R15-04<K75> 		8-98201-303-0 01 1 1206-1208 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) EMISSION SYSTEM R15-04<K75> 		8-98224-350-0 01 1 1209-1209 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) EMISSION SYSTEM R15-04<K75> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98224-350-2 01 1 1210-1302 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) EMISSION SYSTEM R15-04<K75> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98224-350-2 01 1 1303-1406 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) EMISSION SYSTEM R15-04<K75> 		8-98224-350-2 01 1 1407- ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98201-302-0 01 1 1206-1208 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98224-349-0 01 1 1209-1209 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98224-349-2 01 1 1210-1302 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98224-349-2 01 1 1303-1406 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98224-349-2 01 1 1407- ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) EMISSION SYSTEM R15-04<K75> 		8-98190-072-1 01 1 1206-1208 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) EMISSION SYSTEM R15-04<K75> 		8-98224-345-2 01 1 1209-1302 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> 		8-98224-345-2 01 1 1303-1401 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> 		8-98260-545-0 01 1 1402- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98173-607-6 01 1 1206-1208 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98224-346-2 01 1 1209-1302 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98224-346-2 01 1 1303-1401 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98260-546-0 01 1 1402- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-98190-071-1 01 1 1206-1209 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-98224-338-2 01 1 1210-1401 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-98260-538-0 01 1 1402- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98108-656-7 01 1 1206-1208 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 		8-98224-342-0 01 1 1209-1210 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98224-342-2 01 1 1211-1401 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-98260-540-0 01 1 1402- ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) EURO5 SPECIFICATION<NT5> 		8-98188-431-7 01 1 1206-1401 ● ●
13 02.525 HARNESS; ENG
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) EURO5 SPECIFICATION<NT5> 		8-98260-548-0 01 1 1402- ● ●
13 02.525 HARNESS; ENG
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> 		8-98188-429-7 01 1 1206-1401 ● ●
13 02.525 HARNESS; ENG
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> 		8-98260-549-0 01 1 1402- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98108-646-7 01 1 1205-1208 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98224-339-2 01 1 1209- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) 		8-98108-650-8 01 1 1205-1208 ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) 		8-98224-348-2 01 1 1209- ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) 		8-98173-605-6 01 1 1205-1208 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) 		8-98224-347-2 01 1 1209-1401 ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98224-347-2 01 1 1402-1408 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98108-648-7 01 1 1205-1208 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98224-340-2 01 1 1209-1401 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98260-539-0 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-219-0 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-219-2 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-217-0 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98218-217-2 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-544-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-544-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-527-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-527-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-556-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-556-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-550-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-550-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-907-4 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-907-4 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-555-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-555-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-547-7 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-547-7 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-906-4 01 1 1206-1210 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-906-4 01 1 1211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-497-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-497-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-058-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-058-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-498-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-498-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-059-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98201-059-5 01 1 1302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-588-6 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-588-8 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-541-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-541-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-533-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-533-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-905-4 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-905-4 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-536-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-536-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-530-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98160-530-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-886-4 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98199-886-4 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-586-6 01 1 1206-1208 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-586-8 01 1 1209- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98188-421-7 01 1 1205-1205 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98188-421-7 01 1 1205-1205 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-421-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-421-7 01 1 1211- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98188-420-7 01 1 1205-1205 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-420-7 01 1 1206-1210 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> 		8-98188-420-7 01 1 1211- ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) (A) L=135 		8-94473-399-0 01 1 1205-1205 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) (A) L=135 		8-94473-399-0 01 1 1206-1210 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) L=135 		8-94473-399-0 01 1 1211-1401 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) L=135 		8-94473-399-0 01 1 1402-1412 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) L=135 		8-94473-399-0 01 1 1501- ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) (B) L=140 		8-97378-707-0 01 1 1205-1205 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (B) L=140 		8-97378-707-0 01 1 1206-1210 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) L=140 		8-97378-707-0 01 1 1211-1401 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) L=140 		8-97378-707-0 01 1 1402-1412 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) L=140 		8-97378-707-0 01 1 1501- ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) (C) L=146.2 		8-98052-677-0 01 1 1205-1205 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (C) L=146.2 		8-98052-677-0 01 1 1206-1210 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (C) L=146.2 		8-98052-677-0 01 1 1211-1401 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (C) L=146.2 		8-98052-677-0 01 1 1402-1412 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (C) L=146.2 		8-98052-677-0 01 1 1501- ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) (D) 		8-98182-511-0 02 1 1205-1205 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JK1-TCY ENG(RDX) (D) 		8-98182-511-0 03 1 1206-1401 ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> (D) 		8-98182-511-0 03 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) (D) 		8-98182-511-0 02 1 1206-1210 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (D) 		8-98182-511-0 02 1 1211-1401 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (D) 		8-98182-511-0 02 1 1402-1412 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (D) 		8-98182-511-0 02 1 1501- ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) L=155 		8-97173-307-0 02 1 1209-1209 ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) (B) L=155 		8-97173-307-0 02 1 1210-1210 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) L=155 		8-97173-307-0 02 1 1211-1401 ● ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) L=155 		8-97173-307-0 02 1 1402-1412 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) L=155 		8-97173-307-0 02 1 1501- ● ● ●
699 02.559 CLIP; ENG HARNESS
4JK1-TCY ENG(RDX) (A) L=170.3 		1-09987-182-0 01 1 1206-1401 ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> (A) L=170.3 		1-09987-182-0 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JK1-TCY ENG(RDX) (B) L=155 		8-97173-307-0 01 1 1206-1401 ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> (B) L=155 		8-97173-307-0 01 1 1402- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
