◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#81910) — 201 parça

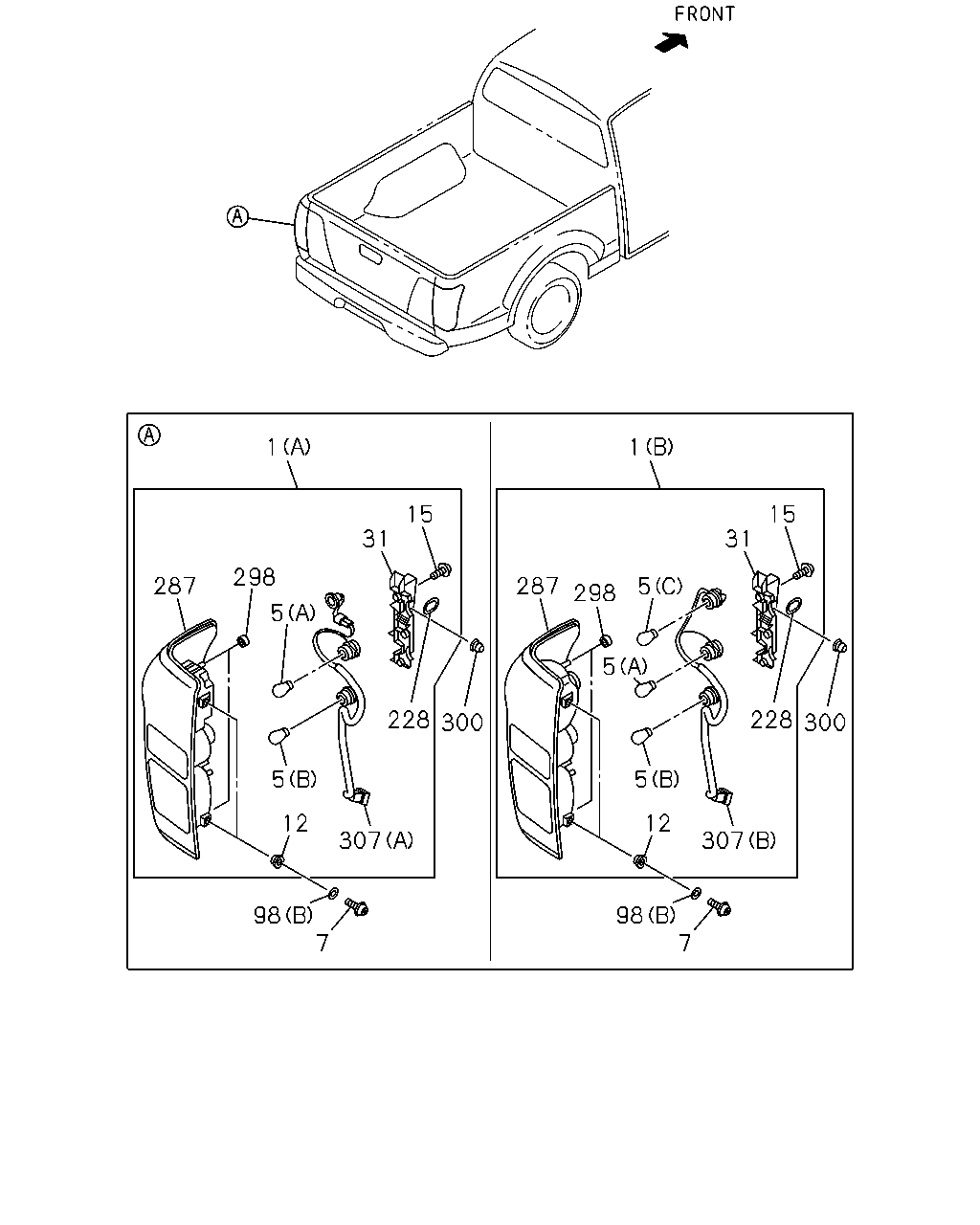

çizim 136004
1 15 31 5 298 287 5 228 300 12 307 98 7 7 98 307 12 5 5 5 298 287 1 31 15 228 300
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.679 LAMP ASM; RR COMB
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98233-092-2 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98233-093-2 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98125-402-3 01 1 1205- ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98125-402-3 01 1 1205- ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98125-403-3 01 1 1205- ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98125-403-3 01 1 1205- ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-731-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-731-0 01 1 1206- ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C) 		8-97137-731-0 01 1 1206- ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-732-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-732-0 01 1 1206- ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C) 		8-97137-732-0 01 1 1206- ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98125-398-3 01 1 1205-1409 ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98125-398-3 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98125-398-3 01 1 1410- ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98125-399-3 01 1 1205-1409 ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98125-399-3 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98125-399-3 01 1 1410- ●
5 08.991 BULB; RR COMB LAMP
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 5W 		8-94124-595-0 01 1 1410- ● ●
5 08.991 BULB; RR COMB LAMP
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 5W 		8-94124-595-0 01 1 1410- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W 		8-94124-074-0 04 1 1205-1205 ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W 		8-94124-074-0 04 1 1206- ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W 		8-94124-074-0 04 1 1206- ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (E) STOP 12V 21/5W 		8-94125-959-0 02 1 1205-1205 ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (E) STOP 12V 21/5W 		8-94125-959-0 02 1 1206- ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (E) STOP 12V 21/5W 		8-94125-959-0 02 1 1206- ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W 		8-94124-074-0 01 1 1205- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W 		8-94124-074-0 01 1 1205- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W 		8-97179-967-0 01 1 1205- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W 		8-97179-967-0 01 1 1205- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1205- ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1205- ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1205- ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1205- ● ● ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 1205- ● ● ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97349-413-0 02 1 1205- ● ● ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97349-413-0 02 1 1205- ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 1205-1205 ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 1206- ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 1206- ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING 		8-97376-768-0 03 1 1205- ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING 		8-97376-768-0 03 1 1205- ● ● ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98193-892-0 01 1 1205- ● ● ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98193-893-0 01 1 1205- ● ● ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (B) D=16 		8-94427-941-0 04 1 1205- ● ● ● ● ● ●
98 02.708 WASHER
16.588 (A) 		8-94279-039-0 02 1 1205-1205 ● ● ● ● ● ●
98 02.708 WASHER
16.588 (A) 		8-94279-039-0 02 1 1206-1312 ●
98 02.708 WASHER
HIGH MOUNT STOP LAMP<TS6> 16.588 (A) 		8-94279-039-0 02 1 1206-1312 ● ● ● ● ●
98 02.708 WASHER
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1401- ●
98 02.708 WASHER
HIGH MOUNT STOP LAMP<TS6> 16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1401- ● ● ● ● ●
228 02.689 CLIP; COVER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97376-769-0 01 1 1205- ● ● ● ● ● ●
228 02.689 CLIP; COVER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97376-769-0 01 1 1205- ● ● ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> 		8-98235-556-0 01 1 1410- ● ●
287 02.679 LAMP UNIT; RR COMB
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> 		8-98235-557-0 01 1 1410- ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) 		8-98131-706-0 01 1 1205- ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> 		8-98131-706-0 01 1 1205- ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) 		8-98131-707-0 01 1 1205- ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> 		8-98131-707-0 01 1 1205- ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> 		8-98131-710-0 01 1 1205-1409 ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> 		8-98131-710-0 01 1 1410- ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> 		8-98131-710-0 01 1 1410- ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> 		8-98131-711-0 01 1 1205-1409 ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> 		8-98131-711-0 01 1 1410- ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> 		8-98131-711-0 01 1 1410- ●
298 02.727 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97289-148-0 02 1 1205- ● ● ● ● ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97289-148-0 02 1 1205- ● ● ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97372-854-0 02 1 1205- ● ● ● ● ● ●
307 02.727 CORD ASM; LAMP
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98250-079-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98250-079-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
(C) 		8-98193-900-0 01 1 1205-1205 ● ● ● ● ● ●
307 02.727 CORD ASM; LAMP
(C) 		8-98193-900-0 01 1 1206- ●
307 02.727 CORD ASM; LAMP
HIGH MOUNT STOP LAMP<TS6> (C) 		8-98193-900-0 01 1 1206- ● ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98193-891-0 01 1 1205-1409 ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98193-891-0 01 1 1205-1409 ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98193-891-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98193-891-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98193-891-0 01 1 1410- ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98193-891-0 01 1 1410- ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98193-896-0 01 1 1205- ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98193-896-0 01 1 1205- ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98193-896-0 01 1 1205- ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98193-896-0 01 1 1205- ● ● ●

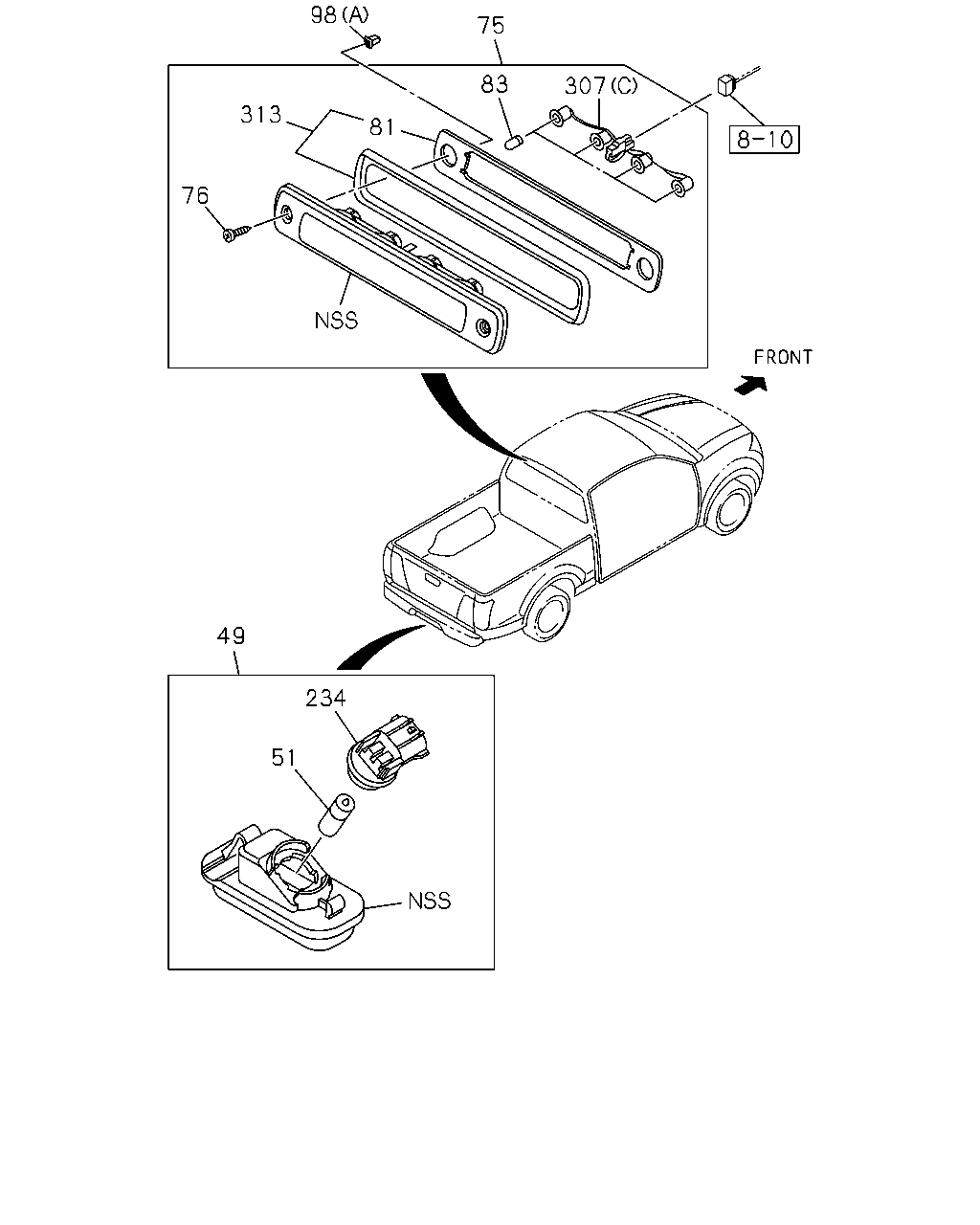

çizim 136409
307 75 83 81 98 313 76 49 234 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
49 02.700 LAMP; LICENSE PLATE
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97236-690-1 02 1 1205-1209 ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98200-930-0 02 1 1205-1205 ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98200-930-0 02 1 1205-1205 ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98200-930-0 02 1 1206-1209 ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98200-930-0 02 1 1206-1209 ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98200-930-0 02 1 1206-1209 ●
49 02.700 LAMP; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98224-482-0 02 1 1210- ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98224-482-0 02 1 1210- ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE 8-98224-482-0 02 1 1210- ●
51 08.991 BULB; LICENSE PLATE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 12V 5W 		8-94124-595-0 02 1 1205-1205 ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 12V 5W 		8-94124-595-0 02 1 1205-1205 ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 12V 5W 		8-94124-595-0 02 1 1206-1209 ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 12V 5W 		8-94124-595-0 02 1 1206-1209 ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 12V 5W 		8-94124-595-0 02 1 1206-1209 ●
51 08.991 BULB; LICENSE PLATE LAMP
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 12V 5W 		8-94124-595-0 02 1 1210- ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 12V 5W 		8-94124-595-0 02 1 1210- ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 02 1 1210- ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED 8-98084-142-2 01 1 1205-1205 ● ● ● ● ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED 8-98084-142-2 01 1 1206-1312 ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 		8-98084-142-2 01 1 1206-1312 ● ● ● ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED 8-98255-655-2 01 1 1401- ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 		8-98255-655-2 01 1 1401- ● ● ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED 8-98193-901-0 02 1 1205-1205 ● ● ● ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED 8-98193-901-0 02 1 1206- ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 		8-98193-901-0 02 1 1206- ● ● ● ● ●
81 02.694 GASKET; STOP LAMP 8-98193-899-0 01 1 1205-1205 ● ● ● ● ● ●
81 02.694 GASKET; STOP LAMP 8-98193-899-0 01 1 1206-1312 ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-98193-899-0 01 1 1206-1312 ● ● ● ● ●
81 02.694 GASKET; STOP LAMP 8-98257-962-0 01 1 1401- ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-98257-962-0 01 1 1401- ● ● ● ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
12V 5W 		8-98193-898-0 04 1 1205-1205 ● ● ● ● ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
12V 5W 		8-98193-898-0 04 1 1206- ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 12V 5W 		8-98193-898-0 04 1 1206- ● ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (B) D=16 		8-94427-941-0 04 1 1205- ● ● ● ● ● ●
98 02.708 WASHER
16.588 (A) 		8-94279-039-0 02 1 1205-1205 ● ● ● ● ● ●
98 02.708 WASHER
16.588 (A) 		8-94279-039-0 02 1 1206-1312 ●
98 02.708 WASHER
HIGH MOUNT STOP LAMP<TS6> 16.588 (A) 		8-94279-039-0 02 1 1206-1312 ● ● ● ● ●
98 02.708 WASHER
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1401- ●
98 02.708 WASHER
HIGH MOUNT STOP LAMP<TS6> 16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1401- ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		1-82119-148-0 02 1 1205-1205 ● ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		1-82119-148-0 02 1 1205-1205 ● ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		1-82119-148-0 02 1 1206-1209 ● ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		1-82119-148-0 02 1 1206-1209 ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		1-82119-148-0 02 1 1206-1209 ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		1-82119-148-0 02 1 1210- ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		1-82119-148-0 02 1 1210- ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP 1-82119-148-0 02 1 1210- ●
307 02.727 CORD ASM; LAMP
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98250-079-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98250-079-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
(C) 		8-98193-900-0 01 1 1205-1205 ● ● ● ● ● ●
307 02.727 CORD ASM; LAMP
(C) 		8-98193-900-0 01 1 1206- ●
307 02.727 CORD ASM; LAMP
HIGH MOUNT STOP LAMP<TS6> (C) 		8-98193-900-0 01 1 1206- ● ● ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98193-891-0 01 1 1205-1409 ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98193-891-0 01 1 1205-1409 ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98193-891-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98193-891-0 01 1 1410- ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98193-891-0 01 1 1410- ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98193-891-0 01 1 1410- ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98193-896-0 01 1 1205- ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98193-896-0 01 1 1205- ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98193-896-0 01 1 1205- ● ● ●
307 02.727 CORD ASM; LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98193-896-0 01 1 1205- ● ● ●
313 02.708 RUBBER & GASKET
16.165 		8-98250-208-0 01 1 1205-1205 ● ● ● ● ● ●
313 02.708 RUBBER & GASKET
16.165 		8-98250-208-0 01 1 1206- ●
313 02.708 RUBBER & GASKET
HIGH MOUNT STOP LAMP<TS6> 16.165 		8-98250-208-0 01 1 1206- ● ● ● ● ●
çizim 194313
1 5 5 15 6 3 5 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.679 LAMP ASM; RR COMB
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98233-092-2 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98233-093-2 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98125-402-3 01 1 1205- ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98125-402-3 01 1 1205- ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98125-403-3 01 1 1205- ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) 		8-98125-403-3 01 1 1205- ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-731-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-731-0 01 1 1206- ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C) 		8-97137-731-0 01 1 1206- ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-732-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (C) 		8-97137-732-0 01 1 1206- ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C) 		8-97137-732-0 01 1 1206- ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98125-398-3 01 1 1205-1409 ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98125-398-3 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98125-398-3 01 1 1410- ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98125-399-3 01 1 1205-1409 ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98125-399-3 01 1 1410- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A) 		8-98125-399-3 01 1 1410- ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-001-0 01 1 1205-1205 ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-001-0 01 1 1206- ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 02.689 		5-82236-001-0 01 1 1206- ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-002-0 01 1 1205-1205 ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-002-0 01 1 1206- ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 02.689 		5-82236-002-0 01 1 1206- ●
5 08.991 BULB; RR COMB LAMP
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 5W 		8-94124-595-0 01 1 1410- ● ●
5 08.991 BULB; RR COMB LAMP
EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 5W 		8-94124-595-0 01 1 1410- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W 		8-94124-074-0 04 1 1205-1205 ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W 		8-94124-074-0 04 1 1206- ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W 		8-94124-074-0 04 1 1206- ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (E) STOP 12V 21/5W 		8-94125-959-0 02 1 1205-1205 ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (E) STOP 12V 21/5W 		8-94125-959-0 02 1 1206- ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (E) STOP 12V 21/5W 		8-94125-959-0 02 1 1206- ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W 		8-94124-074-0 01 1 1205- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W 		8-94124-074-0 01 1 1205- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W 		8-97179-967-0 01 1 1205- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W 		8-97179-967-0 01 1 1205- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1205- ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1205- ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1205- ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W 		8-94125-959-0 01 1 1205- ● ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-001-0 01 1 1205-1205 ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-001-0 01 1 1206- ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 		5-82235-001-0 01 1 1206- ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-002-0 01 1 1205-1205 ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-002-0 01 1 1206- ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 		5-82235-002-0 01 1 1206- ●
9 02.689 NUT; LAMP,RR COMB
REAR BODY DELETE(8HH) M5 FLANGE 		8-98049-363-0 08 1 1205-1205 ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
REAR BODY DELETE(8HH) M5 FLANGE 		8-98049-363-0 08 1 1206- ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) M5 FLANGE 		8-98049-363-0 08 1 1206- ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 1205-1205 ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 1206- ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 1206- ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING 		8-97376-768-0 03 1 1205- ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING 		8-97376-768-0 03 1 1205- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
