◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#81909) — 129 parça

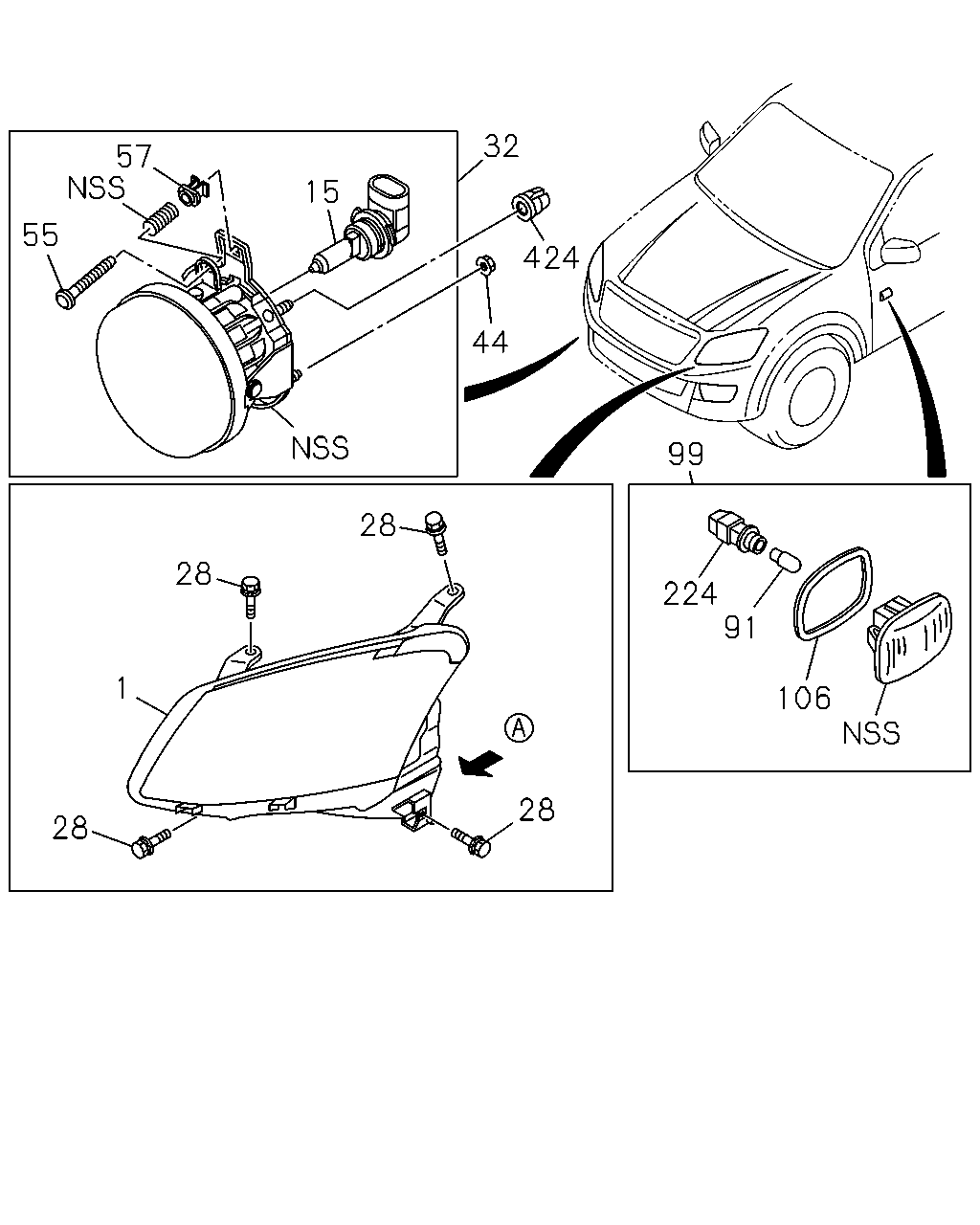

çizim 135729
57 55 15 32 424 44 99 224 91 106 28 28 28 1 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98222-275-2 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98222-276-2 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98125-395-7 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-395-7 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98125-396-7 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-396-7 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-386-7 01 1 1206-1409 ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98125-386-7 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-387-7 01 1 1206-1409 ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98125-387-7 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD 8-98125-391-6 01 1 1205-1205 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-391-6 01 1 1205-1205 ● ● ●
1 02.725 LAMP ASM; HEAD 8-98125-391-6 01 1 1206- ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98125-391-6 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-391-6 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-391-6 01 1 1206- ●
1 02.725 LAMP ASM; HEAD 8-98125-392-6 01 1 1205-1205 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-392-6 01 1 1205-1205 ● ● ●
1 02.725 LAMP ASM; HEAD 8-98125-392-6 01 1 1206- ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98125-392-6 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-392-6 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-392-6 01 1 1206- ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-382-7 01 1 1205-1409 ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS>,HEAD LAMP LEVELING MANUAL<T92> 		8-98125-382-7 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-382-7 01 1 1410- ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-383-7 01 1 1205-1409 ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS>,HEAD LAMP LEVELING MANUAL<T92> 		8-98125-383-7 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-383-7 01 1 1410- ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 1205- ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 1205- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1205- ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 1205- ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 1205- ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 1205- ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
DOOR MIRROR<RT9> 12V 5W 		8-97310-952-0 02 1 1205- ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
DOOR MIRROR<RT9> 		8-98084-153-0 02 1 1205- ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
DOOR MIRROR<RT9> 		8-97333-420-0 02 1 1205- ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
DOOR MIRROR<RT9> 		8-97310-953-0 02 1 1205- ● ● ● ● ● ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 1205- ● ● ● ● ● ●

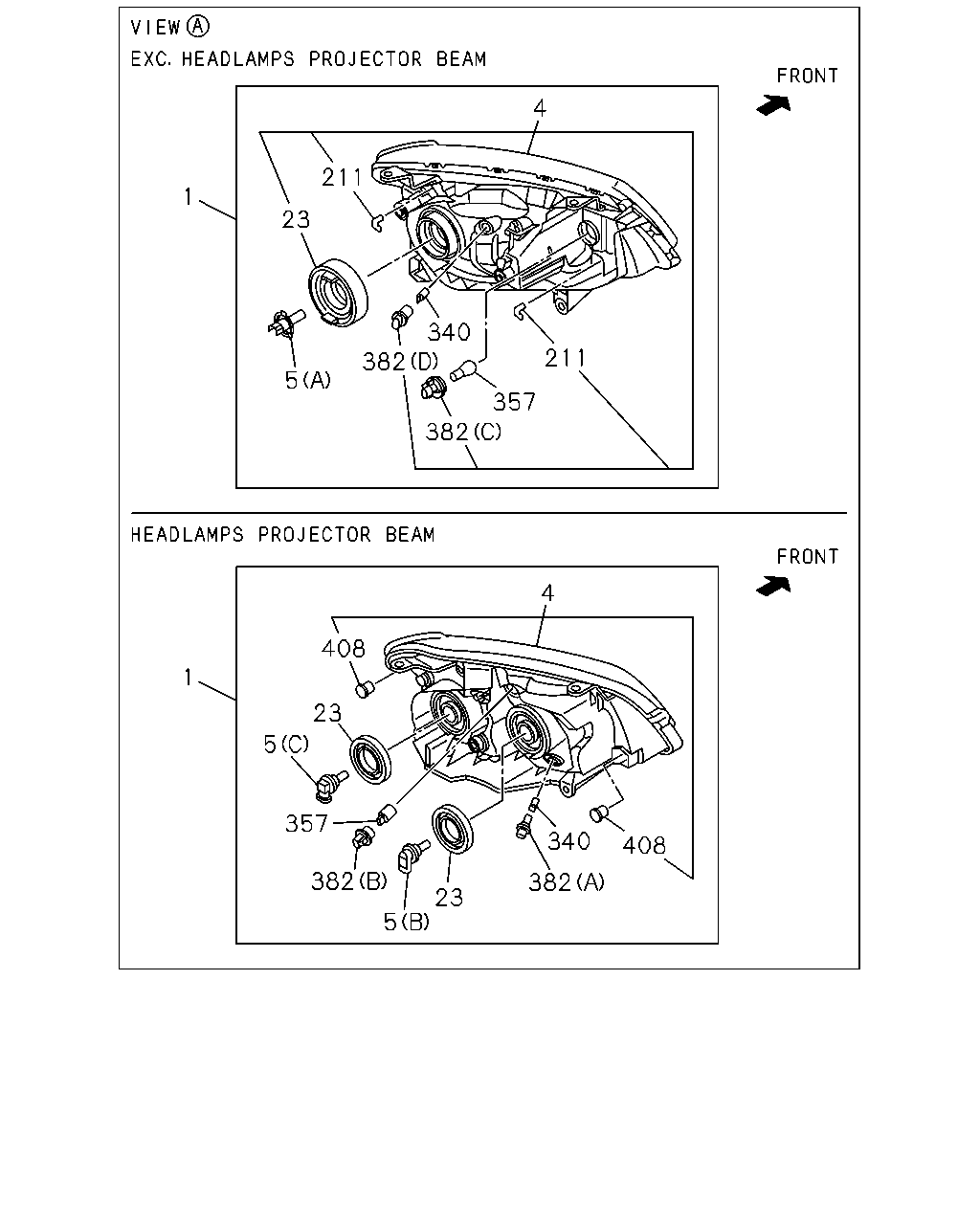

çizim 136396
1 23 211 4 5 382 340 211 357 382 1 408 23 5 357 382 5 23 340 382 408 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98222-275-2 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98222-276-2 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98125-395-7 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-395-7 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> 		8-98125-396-7 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-396-7 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-386-7 01 1 1206-1409 ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98125-386-7 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-387-7 01 1 1206-1409 ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98125-387-7 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD 8-98125-391-6 01 1 1205-1205 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-391-6 01 1 1205-1205 ● ● ●
1 02.725 LAMP ASM; HEAD 8-98125-391-6 01 1 1206- ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98125-391-6 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-391-6 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-391-6 01 1 1206- ●
1 02.725 LAMP ASM; HEAD 8-98125-392-6 01 1 1205-1205 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-392-6 01 1 1205-1205 ● ● ●
1 02.725 LAMP ASM; HEAD 8-98125-392-6 01 1 1206- ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98125-392-6 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-392-6 01 1 1206- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-392-6 01 1 1206- ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-382-7 01 1 1205-1409 ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS>,HEAD LAMP LEVELING MANUAL<T92> 		8-98125-382-7 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-382-7 01 1 1410- ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-383-7 01 1 1205-1409 ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS>,HEAD LAMP LEVELING MANUAL<T92> 		8-98125-383-7 01 1 1410- ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-383-7 01 1 1410- ●
4 02.727 HEADLAMP UNIT
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98253-037-1 01 1 1410- ● ●
4 02.727 HEADLAMP UNIT
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98253-038-1 01 1 1410- ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-199-0 01 1 1205-1309 ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS>,HEAD LAMP LEVELING MANUAL<T92> 		8-98186-199-2 01 1 1310- ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-199-2 01 1 1310- ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-200-2 01 1 1205-1409 ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS>,HEAD LAMP LEVELING MANUAL<T92> 		8-98186-200-2 01 1 1410- ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-200-2 01 1 1410- ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-205-2 01 1 1206-1409 ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98186-205-2 01 1 1410- ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-206-2 01 1 1206-1409 ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98186-206-2 01 1 1410- ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-98186-210-0 01 1 1206- ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-210-0 01 1 1206- ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> 		8-98186-212-0 01 1 1206- ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-212-0 01 1 1206- ● ●
4 02.727 HEADLAMP UNIT 8-98186-215-0 01 1 1205-1205 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-215-0 01 1 1205-1205 ● ● ●
4 02.727 HEADLAMP UNIT 8-98186-215-0 01 1 1206- ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98186-215-0 01 1 1206- ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-215-0 01 1 1206- ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-215-0 01 1 1206- ●
4 02.727 HEADLAMP UNIT 8-98186-216-0 01 1 1205-1205 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-216-0 01 1 1205-1205 ● ● ●
4 02.727 HEADLAMP UNIT 8-98186-216-0 01 1 1206- ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98186-216-0 01 1 1206- ● ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-216-0 01 1 1206- ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-216-0 01 1 1206- ●
5 02.727 BULB; HEADLAMP
(A) 12V 55/60W 		8-98186-377-0 02 1 1205- ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 12V 55/60W 		8-98186-377-0 02 1 1205- ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60W 		8-97289-997-0 02 1 1205- ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98160-205-0 02 1 1205- ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97332-448-0 02 1 1205- ● ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97332-448-0 02 1 1205- ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97675-961-0 04 1 1205- ● ● ●
211 02.728 TUBE; HEADLAMP 8-97333-983-0 06 1 1205-1311 ● ● ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97333-983-0 06 1 1205-1311 ● ● ●
211 02.728 TUBE; HEADLAMP 8-97333-983-0 04 1 1312- ● ● ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97333-983-0 04 1 1312- ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-98257-815-0 02 1 1406- ● ● ●
340 08.991 BULB; POSITION
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W 		8-98257-815-0 02 1 1406- ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 1205-1405 ● ● ● ● ● ●
340 08.991 BULB; POSITION
HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W 		8-94124-595-0 02 1 1406- ● ● ●
357 08.991 BULB; TURN SIGNAL
12V 21W 		8-97179-967-0 02 1 1205- ● ● ●
357 08.991 BULB; TURN SIGNAL
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-97179-967-0 02 1 1205- ● ● ●
357 08.991 BULB; TURN SIGNAL
HEADLAMPS PROJECTOR BEAM<8LH> 02.727 12V 21W 		8-98160-206-0 02 1 1205- ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> (C) 		8-98206-114-0 02 1 1206-1311 ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98206-114-0 02 1 1206-1311 ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(C) 		8-98206-114-0 02 1 1312- ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98206-114-0 02 1 1312- ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(C) 		8-97332-446-0 02 1 1205-1205 ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-97332-446-0 02 1 1205-1205 ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(C) 		8-97332-446-0 02 1 1206-1311 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92> (C) 		8-97332-446-0 02 1 1206-1311 ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-97332-446-0 02 1 1206-1311 ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-97332-446-0 02 1 1206-1311 ●
382 02.575 PLUG; SOCKET,HEADLAMP
(D) 		8-97332-447-0 02 1 1205- ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-97332-447-0 02 1 1205- ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-98012-788-0 02 1 1205- ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-98160-270-1 02 1 1205- ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-375-0 04 1 1205-1410 ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98300-478-0 04 1 1411- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
