7-40 — INSTRUMENT PANEL AND BOX (#81902) — 184 parça

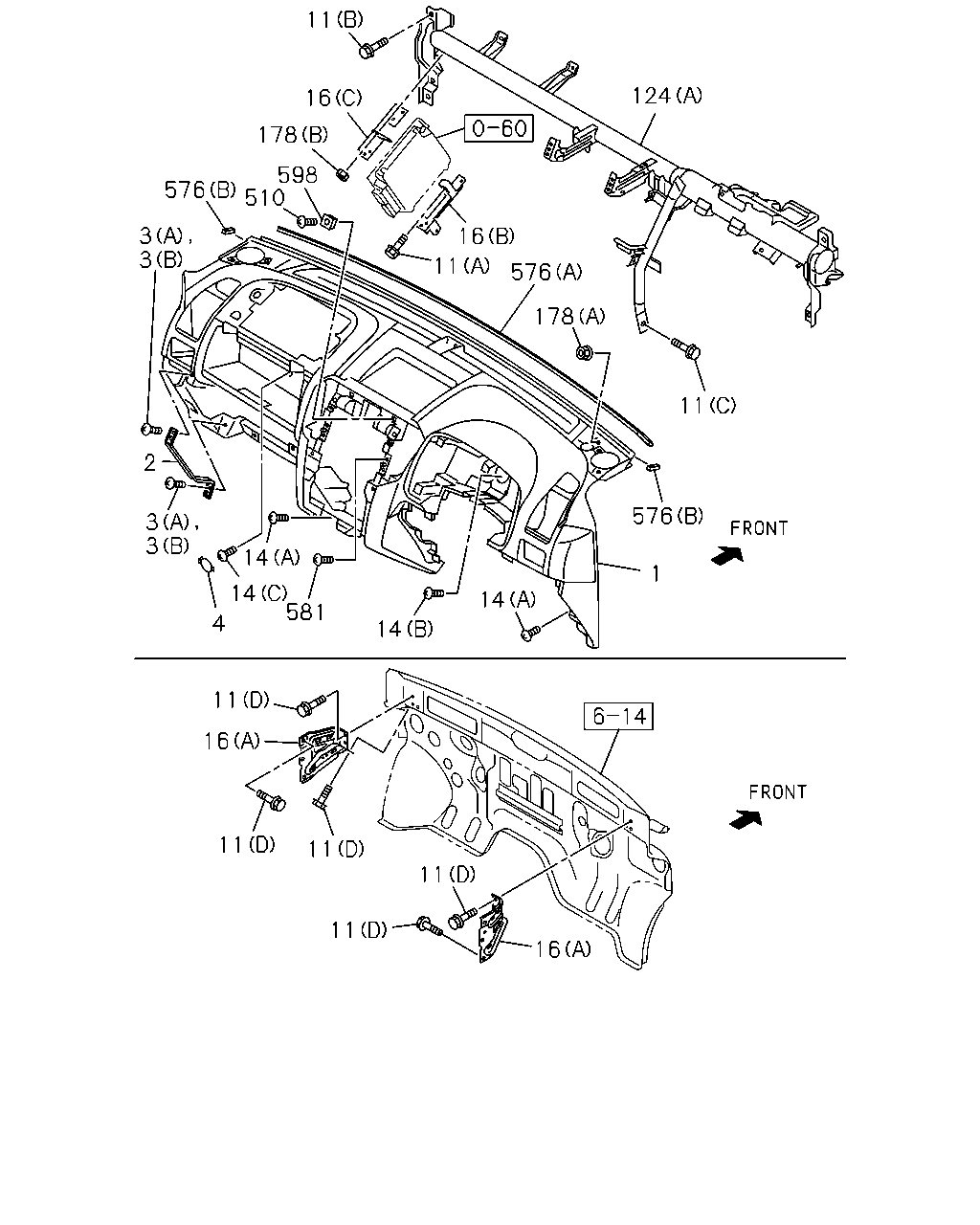

11 178 576 598 510 3 2 3 3 14 4 14 581 14 1 14 576 11 178 576 16 16 124 11 11 16 3 11 11 11 11 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.080 PANEL; INST BLACK	8-97423-070-0	01	1	1205-	●	●	●	●	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR	8-98232-644-1	01	1	1212-	●	●	●	●	●	●
3	16.081 SCREW; BINDER HD (A) M5X16	8-98197-847-0	02	1	1309-	●	●	●	●	●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) M5X16	8-98197-847-0	34	1	1206-1308		●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) COOLER W/FRESH AIR(C65) (A) M5X16	8-98197-847-0	34	1	1206-1308			●	●		●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) M5X16	8-98246-739-0	32	1	1309-		●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) COOLER W/FRESH AIR(C65) (B) M5X16	8-98246-739-0	32	1	1309-			●	●		●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	37	1	1206-1302		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) M5X16	8-98197-847-0	37	1	1206-1302			●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	37	1	1303-1308		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) M5X16	8-98197-847-0	37	1	1303-1308			●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) M5X16	8-98246-739-0	35	1	1309-		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) M5X16	8-98246-739-0	35	1	1309-			●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) M5X16	8-98197-847-0	38	1	1206-1308		●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65) (A) M5X16	8-98197-847-0	38	1	1206-1308			●	●		●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) M5X16	8-98246-739-0	36	1	1309-		●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65) (B) M5X16	8-98246-739-0	36	1	1309-			●	●		●
3	16.081 SCREW; BINDER HD (A) M5X16	8-98197-847-0	33	1	1205-1205	●	●	●	●	●	●
3	16.081 SCREW; BINDER HD HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	33	1	1206-1302	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	33	1	1206-1302		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) M5X16	8-98197-847-0	33	1	1206-1302			●			●
3	16.081 SCREW; BINDER HD HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	33	1	1303-1308	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	33	1	1303-1308		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) M5X16	8-98197-847-0	33	1	1303-1308			●			●
3	16.081 SCREW; BINDER HD HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) M5X16	8-98246-739-0	31	1	1309-	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) M5X16	8-98246-739-0	31	1	1309-		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) M5X16	8-98246-739-0	31	1	1309-			●			●
4	16.080 COVER; INST PNL 16.165 BLACK	8-97416-610-0	01	1	1205-	●	●	●	●	●	●
11	16.090 BOLT; INST PNL 4JJ1-TCX ENG(LS0) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1205-1205	●	●	●	●	●	●
11	16.090 BOLT; INST PNL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1206-1210	●	●	●	●	●	●
11	16.090 BOLT; INST PNL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1211-	●	●	●	●	●	●
11	16.090 BOLT; INST PNL 08.155 (B) M8X25 FLANGE	0-28450-825-0	04	1	1205-	●	●	●	●	●	●
11	16.090 BOLT; INST PNL (C) M6X30 W/LK&PL WASHER	8-98057-965-0	01	1	1205-	●	●	●	●	●	●
11	16.090 BOLT; INST PNL 01.540 (D) M8X32.5 W/PL WASHER	8-98136-077-0	12	1	1205-	●	●	●	●	●	●
14	16.085 SCREW; INST PNL 16.650 (A) M5X16	8-98167-220-0	03	1	1205-	●	●	●	●	●	●
14	16.085 SCREW; INST PNL 16.650 (A) M5X16	8-98167-220-0	04	1	1205-	●	●	●	●	●	●
14	16.085 SCREW; INST PNL 08.083 (B) M5X16 TAPPING	8-98167-449-0	06	1	1205-	●	●	●	●	●	●
14	16.085 SCREW; INST PNL 16.345 (C) M5X14 TAPPING	8-98184-363-0	01	1	1205-	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-98104-144-3	01	1	1205-	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-98108-670-2	01	1	1205-	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL 4JJ1-TCX ENG(LS0) (B)	8-98119-431-2	01	1	1205-1205	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (B)	8-98119-431-2	01	1	1206-1210	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B)	8-98119-431-2	01	1	1211-	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL 4JJ1-TCX ENG(LS0) (C)	8-98119-428-2	01	1	1205-1205	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (C)	8-98119-428-2	01	1	1206-1210	●	●	●	●	●	●
16	16.085 BRACKET; INST PNL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (C)	8-98119-428-2	01	1	1211-	●	●	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR (B)	8-98232-645-0	01	1	1206-	●	●	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (A)	8-98064-646-4	01	1	1206-		●			●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (A)	8-98064-646-4	01	1	1206-			●	●		●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER DELETE(AK6) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A)	8-98064-647-4	01	1	1206-		●	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO DELETE(UL5) (A)	8-98064-644-4	01	1	1205-1205	●	●			●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5) (A)	8-98064-644-4	01	1	1205-1205			●	●		●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO DELETE(UL5) (A)	8-98064-644-4	01	1	1206-	●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (A)	8-98064-644-4	01	1	1206-		●			●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (A)	8-98064-644-4	01	1	1206-			●	●		●
124	16.081 REINFORCEMENT; INST PNL,UPR INST PANEL FOR DIN E SIZE AUDIO(7QL) (A)	8-98064-645-4	01	1	1205-1205	●	●	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR INST PANEL FOR DIN E SIZE AUDIO(7QL) (A)	8-98064-645-4	01	1	1206-	●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A)	8-98064-645-4	01	1	1206-		●	●	●	●	●
178	16.085 NUT; INST PANEL 4JJ1-TCX ENG(LS0) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1205-1205	●	●	●	●	●	●
178	16.085 NUT; INST PANEL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1206-1210	●	●	●	●	●	●
178	16.085 NUT; INST PANEL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1211-	●	●	●	●	●	●
178	16.085 NUT; INST PANEL 08.915 (A) M6 FLANGE	8-98055-704-0	03	1	1205-	●	●	●	●	●	●
510	16.081 SCREW; CENTER CLUSTER 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1205-	●	●	●	●	●	●
576	16.085 CUSHION (A)	8-98232-668-0	01	1	1206-	●	●	●	●	●	●
576	16.085 CUSHION (B)	8-98232-669-0	02	1	1206-	●	●	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1205-1205	●	●	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1205-1205	●	●	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1206-	●	●	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1206-	●
581	09.744 SCREW RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1206-		●	●	●	●	●
598	09.262 GROMMET; SCREW	8-98164-685-0	15	1	1205-	●	●	●	●	●	●

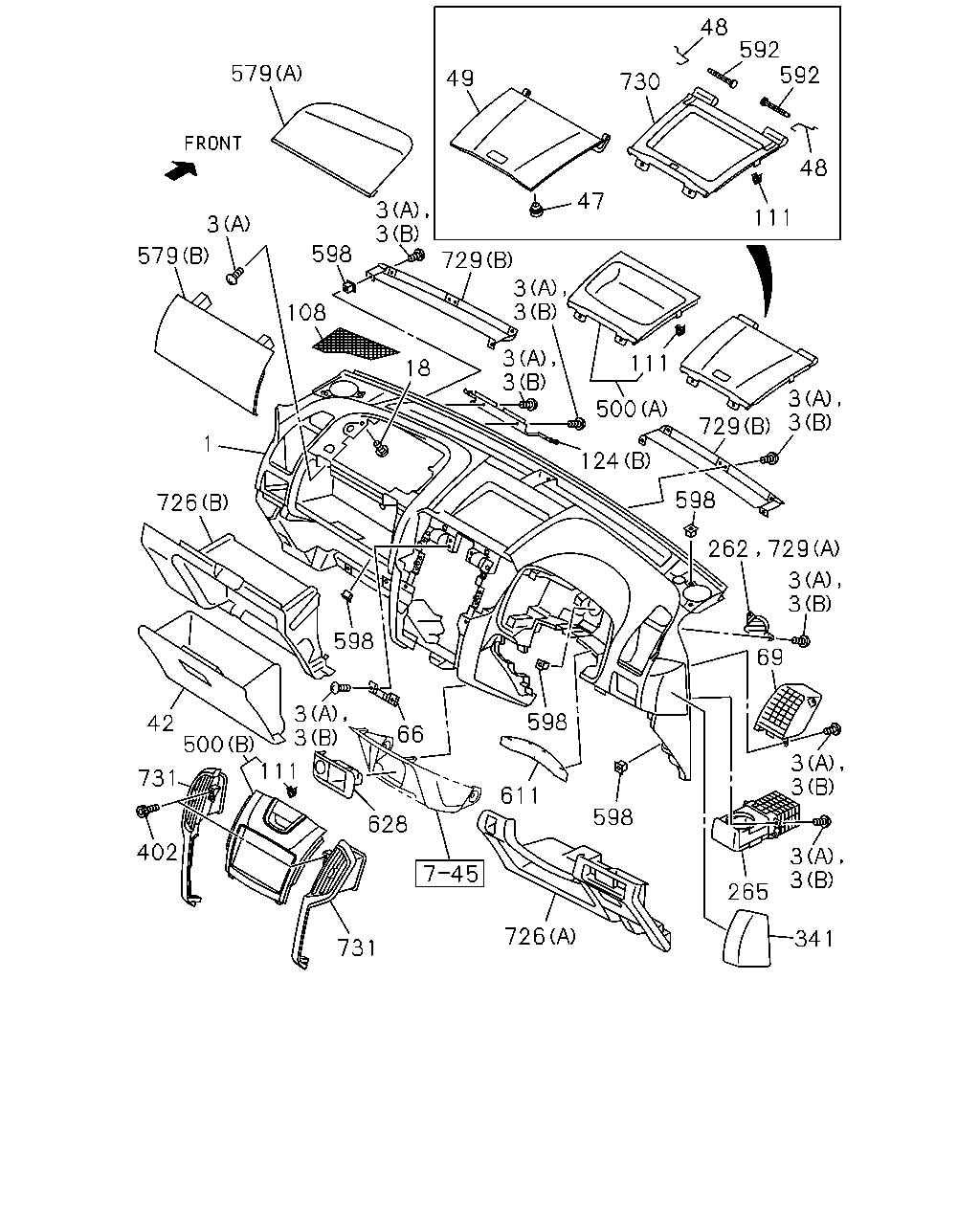

729 262 598 729 3 3 3 3 111 48 592 592 48 730 47 49 3 3 3 3 3 3 3 3 3 731 111 731 628 66 598 18 108 598 729 111 500 124 579 1 726 42 500 611 598 726 265 3 69 3 3 3 341 598 402 579

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.080 PANEL; INST BLACK	8-97423-070-0	01	1	1205-	●	●	●	●	●	●
3	16.081 SCREW; BINDER HD (A) M5X16	8-98197-847-0	02	1	1309-	●	●	●	●	●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) M5X16	8-98197-847-0	34	1	1206-1308		●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) COOLER W/FRESH AIR(C65) (A) M5X16	8-98197-847-0	34	1	1206-1308			●	●		●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) M5X16	8-98246-739-0	32	1	1309-		●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) COOLER W/FRESH AIR(C65) (B) M5X16	8-98246-739-0	32	1	1309-			●	●		●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	37	1	1206-1302		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) M5X16	8-98197-847-0	37	1	1206-1302			●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	37	1	1303-1308		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) M5X16	8-98197-847-0	37	1	1303-1308			●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) M5X16	8-98246-739-0	35	1	1309-		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) M5X16	8-98246-739-0	35	1	1309-			●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) M5X16	8-98197-847-0	38	1	1206-1308		●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65) (A) M5X16	8-98197-847-0	38	1	1206-1308			●	●		●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) M5X16	8-98246-739-0	36	1	1309-		●			●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65) (B) M5X16	8-98246-739-0	36	1	1309-			●	●		●
3	16.081 SCREW; BINDER HD (A) M5X16	8-98197-847-0	33	1	1205-1205	●	●	●	●	●	●
3	16.081 SCREW; BINDER HD HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	33	1	1206-1302	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	33	1	1206-1302		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) M5X16	8-98197-847-0	33	1	1206-1302			●			●
3	16.081 SCREW; BINDER HD HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	33	1	1303-1308	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) M5X16	8-98197-847-0	33	1	1303-1308		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) M5X16	8-98197-847-0	33	1	1303-1308			●			●
3	16.081 SCREW; BINDER HD HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) M5X16	8-98246-739-0	31	1	1309-	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) M5X16	8-98246-739-0	31	1	1309-		●		●	●
3	16.081 SCREW; BINDER HD AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CON T(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) M5X16	8-98246-739-0	31	1	1309-			●			●
18	16.085 BOLT; BRKT 00.685 M8X40 FLANGE	0-28650-840-0	02	1	1205-1205	●	●	●	●	●	●
18	16.085 BOLT; BRKT 00.685 M8X40 FLANGE	0-28650-840-0	02	1	1206-	●
18	16.085 BOLT; BRKT AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 00.685 M8X40 FLANGE	0-28650-840-0	02	1	1206-		●	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL LOCK GLOVE BOX<A99> BLACK	8-97416-629-2	01	1	1205-	●	●	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL EXC. LOCK GLOVE BOX<A99> BLACK	8-97416-631-2	01	1	1205-	●	●	●	●	●	●
47	16.100 STOPPER; GLOVE BOX LID INTERIOR CUSTOM(RBD)	8-98194-179-1	03	1	1205-			●	●		●
48	16.110 SPRING; GLOVE BOX LID INTERIOR CUSTOM(RBD)	8-98194-177-1	01	1	1205-1411			●	●		●
48	16.110 SPRING; GLOVE BOX LID INTERIOR CUSTOM(RBD)	8-98298-678-0	01	1	1412-			●	●		●
48	16.110 SPRING; GLOVE BOX LID INTERIOR CUSTOM(RBD)	8-98194-178-1	01	1	1205-1411			●	●		●
48	16.110 SPRING; GLOVE BOX LID INTERIOR CUSTOM(RBD)	8-98298-679-0	01	1	1412-			●	●		●
49	16.110 LID; GLOVE BOX INTERIOR CUSTOM(RBD) BLACK	8-97423-320-1	01	1	1205-			●	●		●
66	16.085 REINFORCEMENT; INST PANEL	8-98187-112-0	01	1	1205-	●	●	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET BLACK	8-97423-071-2	01	1	1205-	●	●	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET BLACK	8-97423-072-2	01	1	1205-	●	●	●	●	●	●
108	09.264 GRILLE; INST PNL REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK	8-97416-627-2	01	1	1206-			●	●		●
108	09.264 GRILLE; INST PNL BLACK	8-97416-625-2	01	1	1205-1205	●	●	●	●	●	●
108	09.264 GRILLE; INST PNL BLACK	8-97416-625-2	01	1	1206-	●	●			●
108	09.264 GRILLE; INST PNL EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> BLACK	8-97416-625-2	01	1	1206-			●	●		●
108	09.264 GRILLE; INST PNL BLACK	8-97416-626-2	01	1	1205-	●	●	●	●	●	●
111	09.744 CLIP; CLUSTER PANEL,GRILLE RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.165	8-98164-677-0	04	1	1205-1205	●	●	●	●	●	●
111	09.744 CLIP; CLUSTER PANEL,GRILLE 16.165	8-98164-677-0	04	1	1206-	●	●			●
111	09.744 CLIP; CLUSTER PANEL,GRILLE RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.165	8-98164-677-0	04	1	1206-			●	●		●
111	09.744 CLIP; CLUSTER PANEL,GRILLE 16.165	8-98164-677-0	02	1	1205-	●	●	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR (B)	8-98232-645-0	01	1	1206-	●	●	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (A)	8-98064-646-4	01	1	1206-		●			●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (A)	8-98064-646-4	01	1	1206-			●	●		●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER DELETE(AK6) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A)	8-98064-647-4	01	1	1206-		●	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO DELETE(UL5) (A)	8-98064-644-4	01	1	1205-1205	●	●			●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5) (A)	8-98064-644-4	01	1	1205-1205			●	●		●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO DELETE(UL5) (A)	8-98064-644-4	01	1	1206-	●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (A)	8-98064-644-4	01	1	1206-		●			●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (A)	8-98064-644-4	01	1	1206-			●	●		●
124	16.081 REINFORCEMENT; INST PNL,UPR INST PANEL FOR DIN E SIZE AUDIO(7QL) (A)	8-98064-645-4	01	1	1205-1205	●	●	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR INST PANEL FOR DIN E SIZE AUDIO(7QL) (A)	8-98064-645-4	01	1	1206-	●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A)	8-98064-645-4	01	1	1206-		●	●	●	●	●
262	09.264 GRILLE; DEFROSTER BLACK	8-97423-076-0	01	1	1205-1205	●	●	●	●	●	●
262	09.264 GRILLE; DEFROSTER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) BLACK	8-97423-076-0	01	1	1206-1302	●	●		●	●
262	09.264 GRILLE; DEFROSTER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BLACK	8-97423-076-0	01	1	1206-1302			●			●
262	09.264 GRILLE; DEFROSTER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) BLACK	8-97423-076-0	01	1	1303-	●	●		●	●
262	09.264 GRILLE; DEFROSTER AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61) BLACK	8-97423-076-0	01	1	1303-			●			●
262	09.264 GRILLE; DEFROSTER BLACK	8-97423-077-0	01	1	1205-1205	●	●	●	●	●	●
262	09.264 GRILLE; DEFROSTER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) BLACK	8-97423-077-0	01	1	1206-1302	●	●		●	●
262	09.264 GRILLE; DEFROSTER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BLACK	8-97423-077-0	01	1	1206-1302			●			●
262	09.264 GRILLE; DEFROSTER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) BLACK	8-97423-077-0	01	1	1303-	●	●		●	●
262	09.264 GRILLE; DEFROSTER AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT (C61) BLACK	8-97423-077-0	01	1	1303-			●			●
265	16.100 HOLDER; CUP BLACK	8-97423-073-0	01	1	1205-	●	●	●	●	●	●
265	16.100 HOLDER; CUP BLACK	8-97423-074-0	01	1	1205-	●	●	●	●	●	●
341	16.110 LID; FUSE BOX BLACK	8-97416-611-3	01	1	1205-	●	●	●	●	●	●
341	16.110 LID; FUSE BOX BLACK	8-97416-612-3	01	1	1205-	●	●	●	●	●	●
402	09.264 SCREW; VENT GRILLE,INST 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1205-	●	●	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO DELETE(UL5) (B) BLACK	8-97416-624-2	01	1	1205-1205	●	●	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO DELETE(UL5) (B) BLACK	8-97416-624-2	01	1	1206-	●
500	16.081 CLUSTER; INST CENTER RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (B) BLACK	8-97416-624-2	01	1	1206-		●	●	●	●	●
500	16.081 CLUSTER; INST CENTER INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK	8-97416-621-1	01	1	1205-	●	●	●	●	●	●
500	16.081 CLUSTER; INST CENTER (A) BLACK	8-97416-622-4	01	1	1205-	●	●			●
500	16.081 CLUSTER; INST CENTER INTERIOR BASIC(RBA) (A) BLACK	8-97416-622-4	01	1	1205-			●	●		●
579	16.080 COVER; INST PNL AIR BAG DRIVER & PASSENGER DELETE(AK6) (A) BLACK	8-97423-078-0	01	1	1206-		●	●	●	●	●
579	16.080 COVER; INST PNL (B) BLACK	8-97423-075-4	01	1	1205-	●	●	●	●	●	●
592	16.115 HINGE; LID INTERIOR CUSTOM(RBD)	8-98194-176-1	02	1	1205-			●	●		●
598	09.262 GROMMET; SCREW	8-98164-685-0	15	1	1205-	●	●	●	●	●	●
611	16.081 SHEET	8-98187-119-0	01	1	1205-	●	●	●	●	●	●
628	09.743 BEZEL; INST LWR FRONT CONSOLE WO/LID<D54> BLACK	8-97416-618-2	01	1	1205-1205	●	●	●
628	09.743 BEZEL; INST LWR FRONT CONSOLE WO/LID<D54> BLACK	8-97416-618-2	01	1	1206-	●	●	●
628	09.743 BEZEL; INST LWR FRONT SEAT SPLIT BENCH<AM6> BLACK	8-97416-618-2	01	1	1206-		●	●
628	09.743 BEZEL; INST LWR FRONT CONSOLE WO/LID<D54> BLACK	8-97416-617-2	01	1	1205-1205				●	●	●
628	09.743 BEZEL; INST LWR FRONT CONSOLE WO/LID<D54> BLACK	8-97416-617-2	01	1	1206-				●	●	●
628	09.743 BEZEL; INST LWR FRONT SEAT SPLIT BENCH<AM6> BLACK	8-97416-617-2	01	1	1206-					●	●
726	16.080 PANEL; INST LW REAR BODY DBL WALL CTR PULL(E63) (A) BLACK	8-97416-615-5	01	1	1205-	●	●	●	●	●	●
726	16.080 PANEL; INST LW REAR BODY DELETE(8HH) (A) BLACK	8-97423-423-0	01	1	1205-1205	●	●	●	●	●	●
726	16.080 PANEL; INST LW REAR BODY DELETE(8HH) (A) BLACK	8-97423-423-0	01	1	1206-	●		●	●	●	●
726	16.080 PANEL; INST LW REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) BLACK	8-97423-423-0	01	1	1206-		●
726	16.080 PANEL; INST LW (B) BLACK	8-97416-635-4	01	1	1205-	●	●	●	●	●	●
729	16.085 COVER; GRILLE COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) BLACK	8-97423-079-0	01	1	1206-		●			●
729	16.085 COVER; GRILLE COOLER W/FRESH AIR(C65) (A) BLACK	8-97423-079-0	01	1	1206-			●	●		●
729	16.085 COVER; GRILLE COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) BLACK	8-97423-080-0	01	1	1206-		●			●
729	16.085 COVER; GRILLE COOLER W/FRESH AIR(C65) (A) BLACK	8-97423-080-0	01	1	1206-			●	●		●
729	16.085 COVER; GRILLE COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) BLACK	8-97423-081-0	01	1	1206-		●			●
729	16.085 COVER; GRILLE COOLER W/FRESH AIR(C65) (B) BLACK	8-97423-081-0	01	1	1206-			●	●		●
729	16.085 COVER; GRILLE COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B) BLACK	8-97423-082-0	01	1	1206-		●			●
729	16.085 COVER; GRILLE COOLER W/FRESH AIR(C65) (B) BLACK	8-97423-082-0	01	1	1206-			●	●		●
730	16.115 BEZEL; LID INTERIOR CUSTOM(RBD) BLACK	8-97423-319-0	01	1	1205-			●	●		●
731	16.085 GRILLE; VENTILATOR 09.264 BLACK	8-97416-639-4	01	1	1205-	●	●			●
731	16.085 GRILLE; VENTILATOR INTERIOR BASIC(RBA) 09.264 BLACK	8-97416-639-4	01	1	1205-			●	●		●
731	16.085 GRILLE; VENTILATOR 09.264 BLACK	8-97416-640-4	01	1	1205-	●	●			●
731	16.085 GRILLE; VENTILATOR INTERIOR BASIC(RBA) 09.264 BLACK	8-97416-640-4	01	1	1205-			●	●		●
731	16.085 GRILLE; VENTILATOR INTERIOR CUSTOM(RBD) 09.264 SILVER	8-97416-637-4	01	1	1205-			●	●		●
731	16.085 GRILLE; VENTILATOR INTERIOR CUSTOM(RBD) 09.264 SILVER	8-97416-638-4	01	1	1205-			●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
