◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#81901) — 136 parça

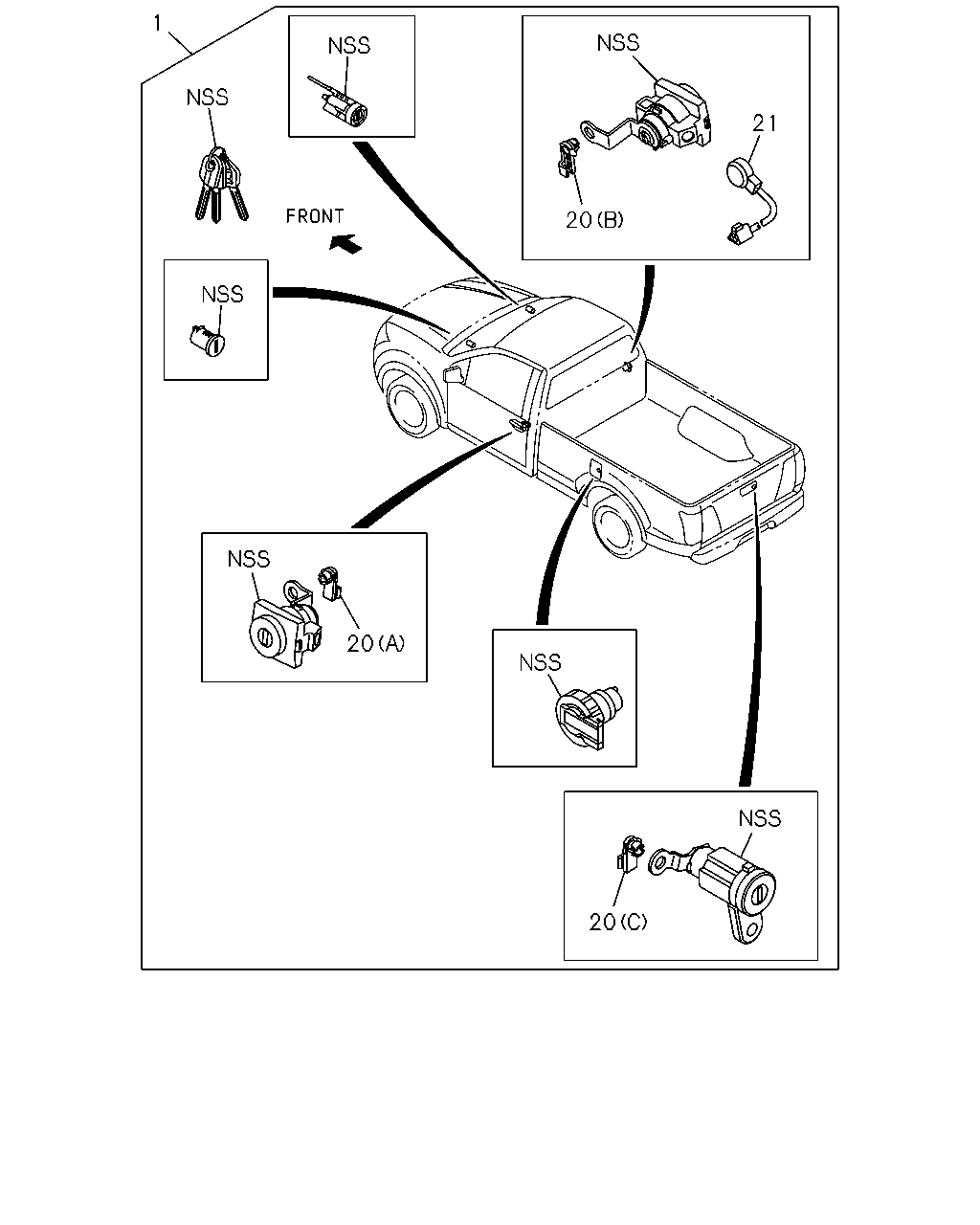

çizim 132710
1 20 21 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> HONG KONG EQUIPMENT(B14) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. LOCK END GATE<8CW> 		8-98185-830-0 01 1 1206-1411 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> HONG KONG EQUIPMENT(B14) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. LOCK END GATE<8CW> 		8-98274-602-0 01 1 1412- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98103-833-0 01 1 1206-1411 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98274-586-0 01 1 1412- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),LOCK END GATE<8CW> 		8-98185-842-0 01 1 1206-1411 ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),LOCK END GATE<8CW> 		8-98274-603-0 01 1 1412- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. AUSTRALIA EQUIPMENT(B13), IMMOBILIZER SYSTEM<7KC>,LOCK END GATE<8CW> 		8-98103-056-0 01 1 1206- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),FUEL TANK CAP W/LOC K<N05>,LOCK END GATE<8CW> 		8-98103-098-0 01 1 1206-1411 ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),FUEL TANK CAP W/LOC K<N05>,LOCK END GATE<8CW> 		8-98274-584-0 01 1 1412- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM <7KC>,LOCK END GATE<8CW> 		8-98103-054-0 01 1 1206- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13),IMMOBILIZER SYSTE M<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98103-043-0 01 1 1206- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,IMMOBILIZER SYSTEM<7KC>,LOCK END GATE<8CW> 		8-98103-043-0 01 1 1206- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/L OCK<N05>,IMMOBILIZER SYSTEM<7KC>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,L OCK END GATE<8CW> 		8-98103-042-0 01 1 1206- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC>,LOCK END GATE<8CW> 		8-98103-042-0 01 1 1206- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,AUSTRALIA EQUIPMENT(B13),IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK EN D GATE<8CW> 		8-98103-037-0 01 1 1206- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, IMMOBILIZER SYSTEM<7KC>,LOCK END GATE<8CW> 		8-98103-037-0 01 1 1206- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/LOCK<N05>,IMMOBILI ZER SYSTEM<7KC>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98103-036-0 01 1 1206- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER S YSTEM<7KC>,LOCK END GATE<8CW> 		8-98103-036-0 01 1 1206- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98103-837-0 01 1 1206-1411 ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98274-587-0 01 1 1412- ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),FUEL TANK CAP W/LOC K<N05> 		8-98103-100-0 01 1 1206-1411 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),FUEL TANK CAP W/LOC K<N05> 		8-98274-585-0 01 1 1412- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM <7KC> 		8-98103-058-0 01 1 1206- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/L OCK<N05>,IMMOBILIZER SYSTEM<7KC>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98103-044-0 01 1 1206- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC> 		8-98103-044-0 01 1 1206- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/LOCK<N05>,IMMOBILI ZER SYSTEM<7KC>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY> 		8-98103-038-0 01 1 1206- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER S YSTEM<7KC> 		8-98103-038-0 01 1 1206- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. LOCK END GATE<8CW> 		8-98185-828-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,LOCK END GATE<8CW> 		8-98185-828-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>,LOCK END GATE<8CW> 		8-98274-600-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98103-839-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP W/LOCK<N05>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY>,LOC K END GATE<8CW> 		8-98103-839-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP W/LOCK<N05>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY>,LOC K END GATE<8CW> 		8-98274-588-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> EXC. LOCK GLOVE BOX<A99>,LOCK END GATE<8CW> 		8-98194-100-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. LOCK GLOVE BOX<A99>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98194-100-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. LOCK GLOVE BOX<A99>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98274-597-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98194-101-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W /ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98194-101-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W /ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98274-598-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK END GATE<8CW> 		8-98103-087-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LO CK END GATE<8CW> 		8-98103-087-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LO CK END GATE<8CW> 		8-98274-579-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98103-086-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>,LOCK END GATE <8CW> 		8-98103-086-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>,LOCK END GATE <8CW> 		8-98274-578-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,LOCK END GATE<8CW> 		8-98185-846-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98185-846-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98274-605-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98185-847-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY>,LOCK END GATE<8CW> 		8-98185-847-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY>,LOCK END GATE<8CW> 		8-98274-606-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK END GATE<8CW> 		8-98103-083-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK END GATE<8CW> 		8-98103-083-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98103-083-0 01 1 1206-1411 ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK END GATE<8CW> 		8-98274-576-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98274-576-0 01 1 1412- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98103-082-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98103-082-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/L OCK<N05>,REMOTE CONT DOOR LOCK W/ANTITHEFT<7KY>,LOCK END GATE<8CW> 		8-98103-082-0 01 1 1206-1411 ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW> 		8-98274-575-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/L OCK<N05>,REMOTE CONT DOOR LOCK W/ANTITHEFT<7KY>,LOCK END GATE<8CW> 		8-98274-575-0 01 1 1412- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, LOCK END GATE<8CW> 		8-98103-077-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, LOCK END GATE<8CW> 		8-98103-077-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,AUSTRALIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98103-077-0 01 1 1206-1411 ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, LOCK END GATE<8CW> 		8-98274-574-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,AUSTRALIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW> 		8-98274-574-0 01 1 1412- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>,LOCK END GATE <8CW> 		8-98103-076-0 01 1 1205-1205 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>,LOCK END GATE <8CW> 		8-98103-076-0 01 1 1206-1411 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, LOCKEND GATE<8CW> 		8-98103-076-0 01 1 1206-1411 ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>,LOCK END GATE <8CW> 		8-98274-573-0 01 1 1412- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, LOCKEND GATE<8CW> 		8-98274-573-0 01 1 1412- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98103-840-0 01 1 1205-1205 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98103-840-0 01 1 1206-1411 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98274-589-0 01 1 1412- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK END GATE<8CW> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05> 		8-98194-099-0 01 1 1205-1205 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W /ANTI THEFT<7KY> 		8-98194-099-0 01 1 1206-1411 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W /ANTI THEFT<7KY> 		8-98274-596-0 01 1 1412- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JJ1-TCX ENG(LS0) AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05> 		8-98103-088-0 01 1 1205-1205 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY> 		8-98103-088-0 01 1 1206-1411 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY> 		8-98274-580-0 01 1 1412- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JJ1-TCX ENG(LS0) AUTO DOOR LOCK<AU4> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05> 		8-98189-438-0 01 1 1205-1205 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98189-438-0 01 1 1206-1411 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98274-608-0 01 1 1412- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JJ1-TCX ENG(LS0) LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05> 		8-98103-085-0 01 1 1205-1205 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/L OCK<N05>,REMOTE CONT DOOR LOCK W/ANTITHEFT<7KY> 		8-98103-085-0 01 1 1206-1411 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05> 		8-98103-085-0 01 1 1206-1411 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13),FUEL TANK CAP W/L OCK<N05>,REMOTE CONT DOOR LOCK W/ANTITHEFT<7KY> 		8-98274-577-0 01 1 1412- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05> 		8-98274-577-0 01 1 1412- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JJ1-TCX ENG(LS0) LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05> 		8-98189-439-0 01 1 1205-1205 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05> 		8-98189-439-0 01 1 1206-1411 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05> 		8-98274-609-0 01 1 1412- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. REMOTE CONT DOOR LOCK<AP5> (A) YELLOW 		8-97350-043-0 01 1 1205- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
LOCK END GATE<8CW> (C) 		8-97357-958-0 01 1 1205- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
(B) WHITE 		8-97350-044-0 01 1 1205- ● ● ● ● ● ●
21 16.328 SWITCH ASM; DOOR LOCK CYL
AUTO DOOR LOCK<AU4> 		8-98162-756-0 01 1 1205-1411 ● ● ● ● ● ●
21 16.328 SWITCH ASM; DOOR LOCK CYL
AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) 		8-98162-756-0 01 1 1412- ● ● ● ● ● ●

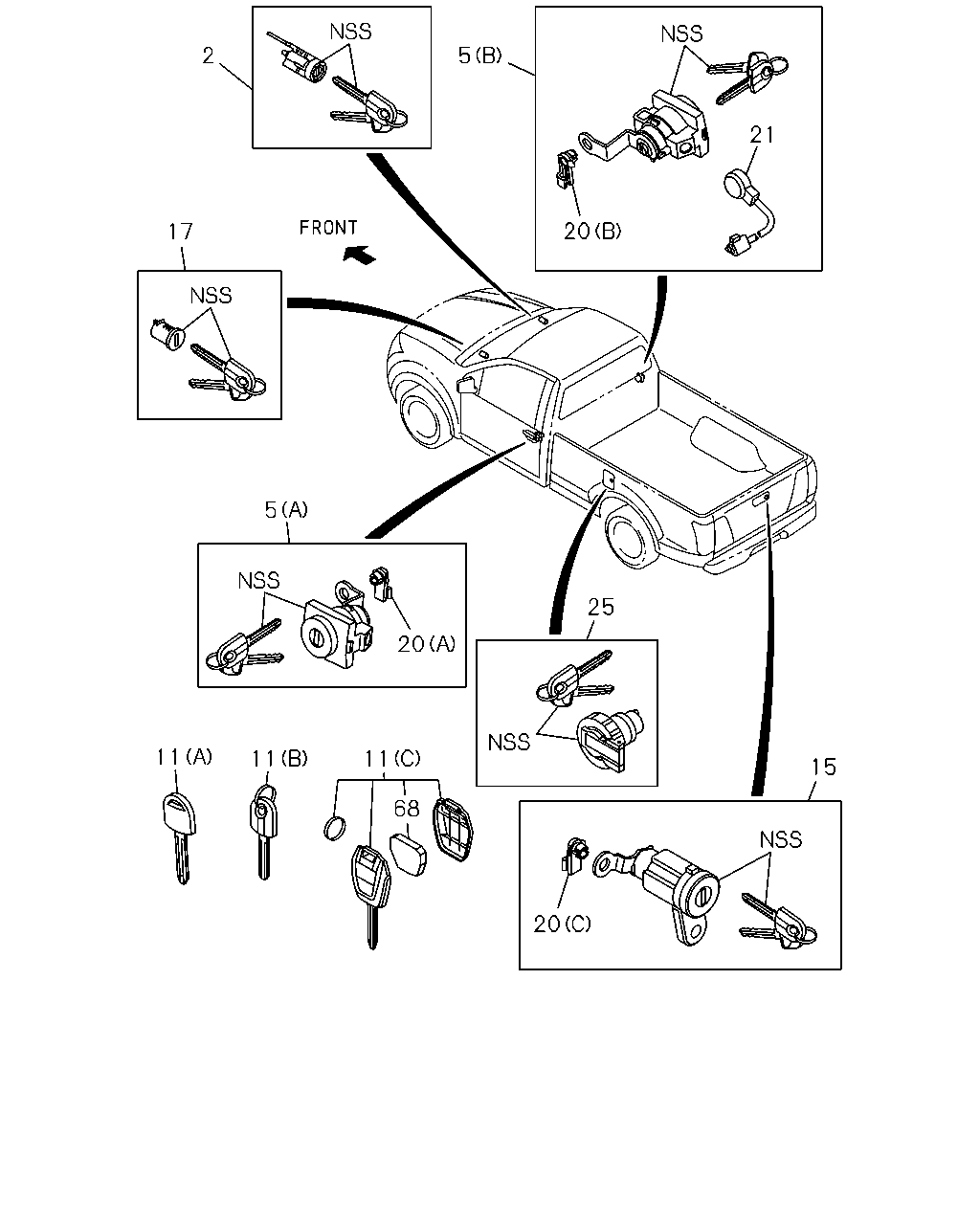

çizim 132794
2 5 21 20 17 5 20 25 11 11 11 68 20 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.188 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> 		8-98274-647-0 01 1 1412- ● ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98274-646-0 01 1 1412- ● ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK<AP5> 		8-98193-734-0 01 1 1205-1411 ● ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98193-734-0 01 1 1412- ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98193-733-0 01 1 1205-1411 ● ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98193-733-0 01 1 1412- ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5> (A) 		8-98274-650-0 01 1 1412- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5> (B) 		8-98274-649-0 01 1 1412- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5> (A) 		8-98193-737-0 01 1 1205-1411 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> (A) 		8-98193-737-0 01 1 1412- ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98193-736-0 01 1 1205-1205 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98193-736-0 01 1 1206-1307 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98193-736-0 01 1 1206-1307 ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) 		8-98193-736-0 01 1 1308-1411 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98193-736-0 01 1 1308-1411 ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,IMMOBILIZER SYSTEM<7KC> (B) 		8-98193-736-0 01 1 1412- ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. AUSTRALIA EQUIPMENT(B13), IMMOBILIZER SYSTEM<7KC> (B) 		8-98193-736-0 01 1 1412- ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> (B) 		8-98193-738-0 01 1 1205-1205 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) (B) 		8-98193-738-0 01 1 1206-1411 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) (B) 		8-98274-651-0 01 1 1412- ● ● ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER 		8-98274-338-0 AR 1 1412- ● ● ● ● ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER 		8-98274-332-0 AR 1 1412- ● ● ● ● ● ●
11 02.187 KEY; BLANK
(A) 		8-97350-352-0 AR 1 1205- ● ● ● ● ● ●
11 02.187 KEY; BLANK
(B) IMMOBILIZER 		8-98007-939-1 AR 1 1205-1411 ● ● ● ● ● ●
11 02.187 KEY; BLANK
EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER 		8-98007-939-1 AR 1 1412- ● ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER 		8-98136-339-1 AR 1 1205-1411 ● ● ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER 		8-98136-339-1 AR 1 1412- ● ● ● ● ●
15 16.650 CYLINDER ASM; W/KEY,TAIL GATE LO
LOCK END GATE<8CW> IMMOBILIZER SYSTEM<7KC> 		8-98274-653-0 01 1 1412- ● ● ●
15 16.650 CYLINDER ASM; W/KEY,TAIL GATE LO
LOCK END GATE<8CW> 		8-98193-740-0 01 1 1205-1411 ● ● ●
15 16.650 CYLINDER ASM; W/KEY,TAIL GATE LO
LOCK END GATE<8CW> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98193-740-0 01 1 1412- ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> 		8-98274-648-0 01 1 1412- ● ● ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
LOCK GLOVE BOX<A99> 		8-98193-735-0 01 1 1205-1411 ● ● ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98193-735-0 01 1 1412- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. REMOTE CONT DOOR LOCK<AP5> (A) YELLOW 		8-97350-043-0 01 1 1205- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
LOCK END GATE<8CW> (C) 		8-97357-958-0 01 1 1205- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
(B) WHITE 		8-97350-044-0 01 1 1205- ● ● ● ● ● ●
21 16.328 SWITCH ASM; DOOR LOCK CYL
AUTO DOOR LOCK<AU4> 		8-98162-756-0 01 1 1205-1411 ● ● ● ● ● ●
21 16.328 SWITCH ASM; DOOR LOCK CYL
AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) 		8-98162-756-0 01 1 1412- ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98060-587-0 01 1 1205- ● ● ● ● ● ●
68 02.440 TRANSMITTER; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> 		8-98102-844-1 01 1 1205- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
