◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#8190) — 7 parça

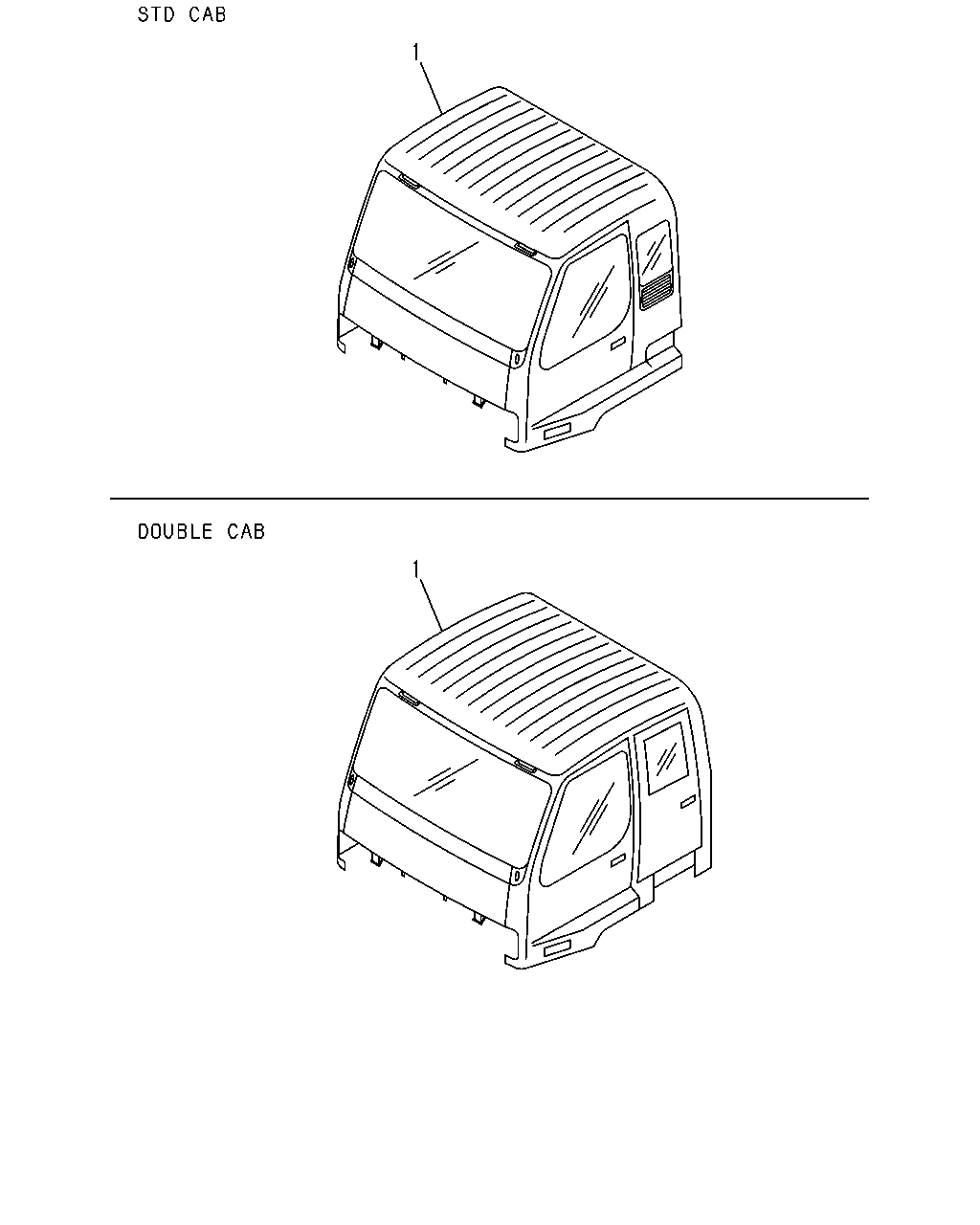

çizim 103227
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW FLAT(YS1) LAMPS TWO ROOF MARKER<TEC> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> EXC. POWER WINDOW<A30> 		1-61084-484-0 01 1 0005-0210 ●
1 CAB ASM; SERVICE,WO/ELEC
POWER WINDOW<A30> CAB SUSPENSION SEMI FLOATING<SDK> 		1-61085-523-0 01 1 0211- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> 		1-61084-485-0 01 1 0005-0210 ●
1 CAB ASM; SERVICE,WO/ELEC
DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION RIGID<W71> 		1-61085-526-0 01 1 0211- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW FLAT(YS1) LAMPS TWO ROOF MARKER<TEC> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> EXC. POWER WINDOW<A30> 		1-61084-486-0 01 1 0005-0210 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> 		1-61084-487-0 01 1 0005-0210 ●
1 CAB ASM; SERVICE,WO/ELEC
DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION RIGID<W71> 		1-61085-527-0 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
