Sayfa 7-20 - Isuzu EPC

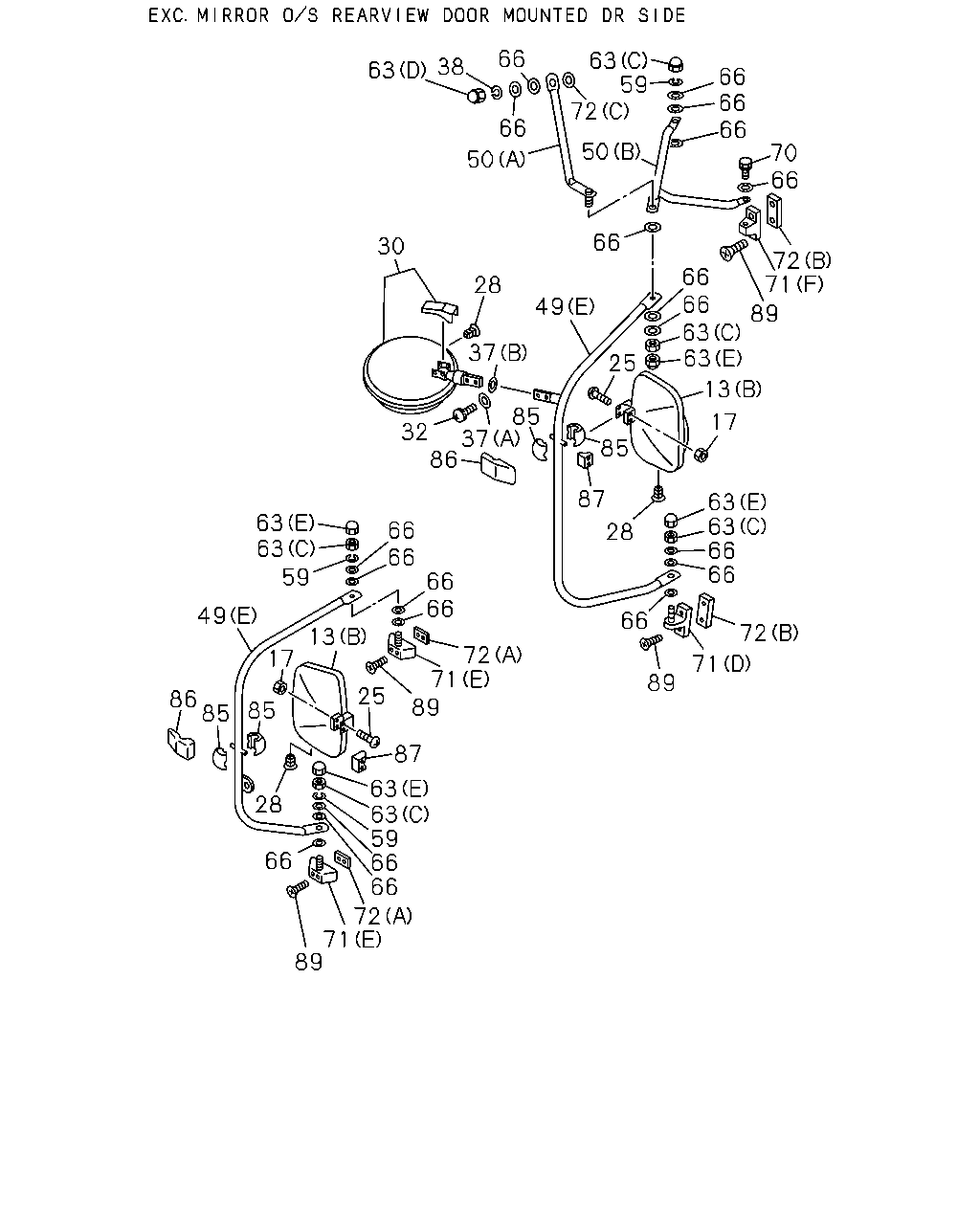

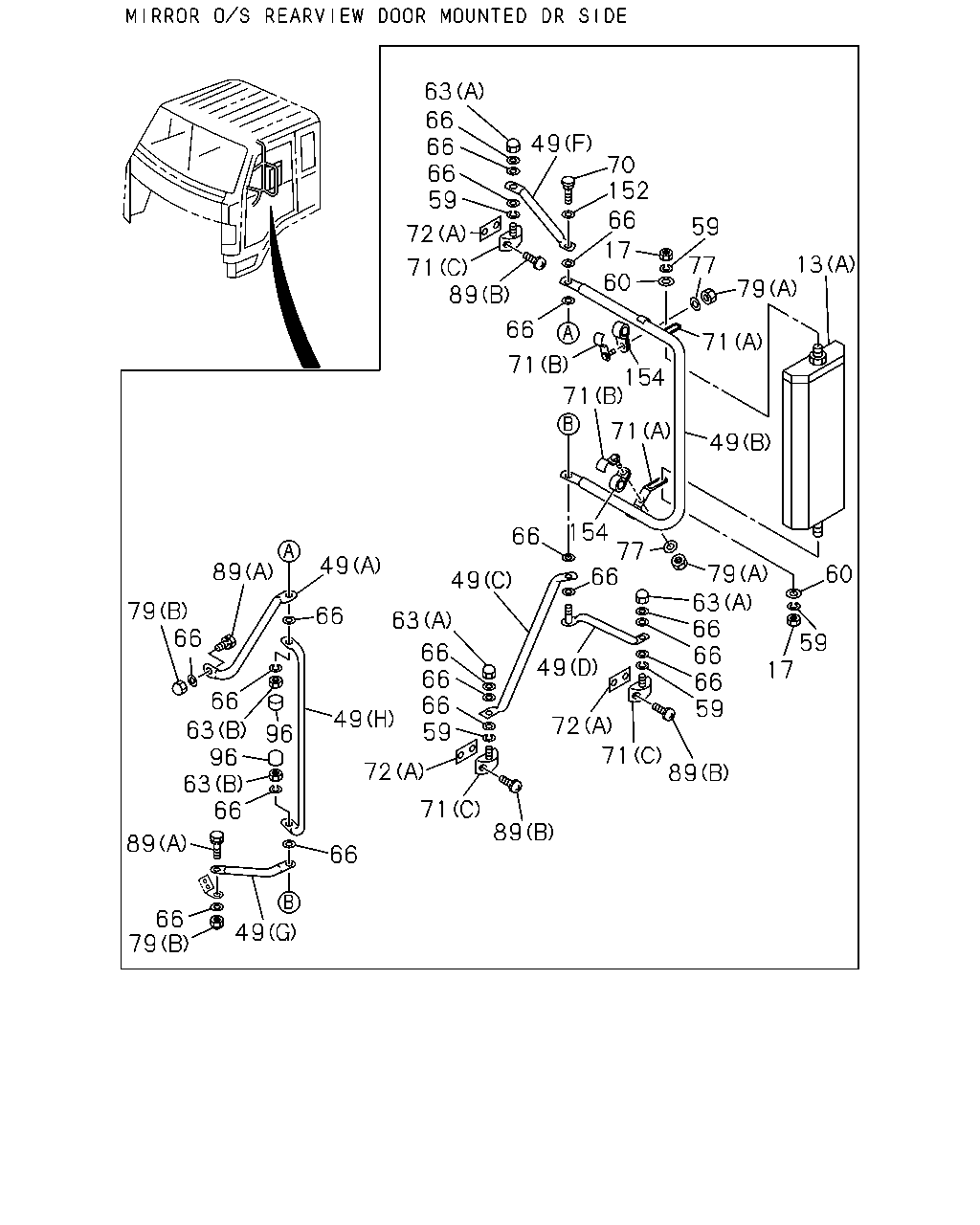

7-20 — MIRROR AND MIRROR STAY (#819) — 135 parça

66 63 59 72 38 63 66 66 66 66 50 70 66 50 66 30 72 71 66 66 89 63 63 28 49 37 25 13 85 17 32 37 86 85 87 63 63 66 66 63 63 59 66 66 28 66 66 49 66 72 13 72 71 89 17 71 89 85 25 86 85 87 63 63 59 66 66 28 66 72 71 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (B)	1-71737-918-0	02	1	9202-	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
17	NUT; CAP,MIRROR STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> M5	1-09984-124-0	04	1	9202-	●	●
25	SCREW; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> M5X50	1-09981-444-0	08	1	9202-	●	●
28	GROMMET; UNDER MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ,MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-678-0	01	1	9202-	●	●
28	GROMMET; UNDER MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> BLACK	1-71737-678-0	01	1	9202-	●	●
28	GROMMET; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-678-0	02	1	9202-	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> BLACK	1-71736-662-4	01	1	9202-	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9202-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (B)	1-71736-661-0	01	1	9202-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-748-0	02	1	9202-	●	●
38	WASHER; LK,UNDER MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ID=8.2	1-09985-177-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (F)	1-71736-562-1	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (G)	1-71736-564-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (H)	1-71736-624-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-561-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C)	1-71736-566-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (D)	1-71736-568-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-658-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-560-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-563-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C)	1-71736-565-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (D)	1-71736-567-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (E) BLACK	1-71798-001-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ,MIRROR O/S UNDER VIEW<RR9> (E)	1-71736-719-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (E)	1-71736-846-0	01	1	9202-	●	●
50	STAY; CAB SIDE EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (A)	1-71736-410-3	01	1	9202-	●	●
50	STAY; CAB SIDE EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (B) BLACK	1-71736-414-0	01	1	9202-	●	●
59	WASHER; LK MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=8.2	1-09985-177-0	04	1	9202-	●	●
59	WASHER; LK MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=10	1-09985-180-0	06	1	9202-	●	●
59	WASHER; LK EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ID=10	1-09985-180-0	03	1	9202-	●	●
59	WASHER; LK EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ID=10	1-09985-180-0	01	1	9202-	●	●
63	NUT; STAY MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A) M10	1-09984-134-0	06	1	9202-	●	●
63	NUT; STAY MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B) M10 H=8.3	1-09984-146-0	04	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (C) M10	1-09984-120-0	03	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (D) M8 FLANGE	1-09984-126-0	02	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (E) M10	1-09984-145-0	03	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (C) M10	1-09984-120-0	01	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (E) M10	1-09984-145-0	01	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=8.4 OD=16	1-09985-174-0	04	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=10 OD=18 T=2.0	1-09985-182-0	04	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> OD=26 ID=10	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> OD=26 ID=10	1-09985-204-0	14	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ID=8.4 OD=16	1-09985-174-0	02	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ID=8.5 T=1.0	1-09985-181-0	02	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> OD=26 ID=10	1-09985-204-0	10	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> OD=26 ID=10	1-09985-204-0	03	1	9202-	●	●
70	BOLT; STAY TO BRKT MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> M10X52	1-71736-634-0	02	1	9202-	●	●
70	BOLT; STAY TO BRKT EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> M10X30	1-09980-517-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-224-3	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-404-1	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C) L=21.5	1-71737-441-4	06	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (E)	1-71736-419-2	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (F) WHITE	1-71736-578-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (D) WHITE	1-71736-415-3	01	1	9202-	●	●
72	SHEET MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71737-428-0	06	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (C) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (A)	1-71737-428-0	02	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (B) D=8 2-HOLE	1-71737-444-0	02	1	9202-	●	●
85	PIVOT; MAIN MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ID=22.2	1-71736-489-2	04	1	9202-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> BLACK	1-71737-760-0	02	1	9202-	●	●
87	SPACER EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32>	1-71737-704-0	02	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (A) M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9202-9207	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B) M6X20	1-09981-494-0	12	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> M6X20	1-09981-494-0	08	1	9202-	●	●

63 66 66 66 59 49 70 152 66 59 72 17 13 77 71 89 60 79 66 71 154 71 71 71 49 154 77 66 66 49 89 79 63 66 66 66 59 60 49 79 66 66 63 59 17 66 66 66 59 49 66 63 96 63 66 49 72 96 71 89 72 71 89 89 66 66 79 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (B)	1-71737-918-0	02	1	9202-	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
17	NUT; CAP,MIRROR STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> M5	1-09984-124-0	04	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (F)	1-71736-562-1	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (G)	1-71736-564-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (H)	1-71736-624-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-561-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C)	1-71736-566-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (D)	1-71736-568-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-658-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-560-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-563-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C)	1-71736-565-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (D)	1-71736-567-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (E) BLACK	1-71798-001-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ,MIRROR O/S UNDER VIEW<RR9> (E)	1-71736-719-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (E)	1-71736-846-0	01	1	9202-	●	●
59	WASHER; LK MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=8.2	1-09985-177-0	04	1	9202-	●	●
59	WASHER; LK MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=10	1-09985-180-0	06	1	9202-	●	●
59	WASHER; LK EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ID=10	1-09985-180-0	03	1	9202-	●	●
59	WASHER; LK EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ID=10	1-09985-180-0	01	1	9202-	●	●
60	WASHER; PL,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	9202-	●	●
63	NUT; STAY MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A) M10	1-09984-134-0	06	1	9202-	●	●
63	NUT; STAY MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B) M10 H=8.3	1-09984-146-0	04	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (C) M10	1-09984-120-0	03	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (D) M8 FLANGE	1-09984-126-0	02	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (E) M10	1-09984-145-0	03	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (C) M10	1-09984-120-0	01	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (E) M10	1-09984-145-0	01	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=8.4 OD=16	1-09985-174-0	04	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=10 OD=18 T=2.0	1-09985-182-0	04	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> OD=26 ID=10	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> OD=26 ID=10	1-09985-204-0	14	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ID=8.4 OD=16	1-09985-174-0	02	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ID=8.5 T=1.0	1-09985-181-0	02	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> OD=26 ID=10	1-09985-204-0	10	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> OD=26 ID=10	1-09985-204-0	03	1	9202-	●	●
70	BOLT; STAY TO BRKT MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> M10X52	1-71736-634-0	02	1	9202-	●	●
70	BOLT; STAY TO BRKT EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> M10X30	1-09980-517-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-224-3	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-404-1	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C) L=21.5	1-71737-441-4	06	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (E)	1-71736-419-2	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (F) WHITE	1-71736-578-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (D) WHITE	1-71736-415-3	01	1	9202-	●	●
72	SHEET MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71737-428-0	06	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (C) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (A)	1-71737-428-0	02	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (B) D=8 2-HOLE	1-71737-444-0	02	1	9202-	●	●
77	WASHER; PL,BRKT,STAY MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9202-	●	●
79	NUT; BRKT,STAY MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A) M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
79	NUT; BRKT,STAY MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B) M8 FLANGE	1-09984-126-0	04	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (A) M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9202-9207	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B) M6X20	1-09981-494-0	12	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> M6X20	1-09981-494-0	08	1	9202-	●	●
96	CAP; MIRROR STAY MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y>	1-71736-199-0	04	1	9202-	●	●
152	SHEET; MIRROR STAY MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y>	1-71736-357-0	02	1	9202-	●	●
154	SEAT; BRKT MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y>	1-71736-479-0	04	1	9202-	●	●

133 134 13 132 6 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM	1-73117-026-1	01	1	9202-	●	●
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9202-	●	●
6	BUSHING; RR VIEW MIRROR DELUXE CAB(W14)	1-73318-342-0	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> (B)	1-71737-918-0	02	1	9202-	●	●
132	RING; MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32>	1-71737-934-0	02	1	9202-	●	●
133	LENS; MIRROR,OUTSIDE EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32>	1-71737-927-0	02	1	9202-	●	●
134	CLIP; MIRROR LENS EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32>	1-71737-936-0	02	1	9202-	●	●
