7-10 — CAUTION PLATE AND LABEL (#81899) — 77 parça

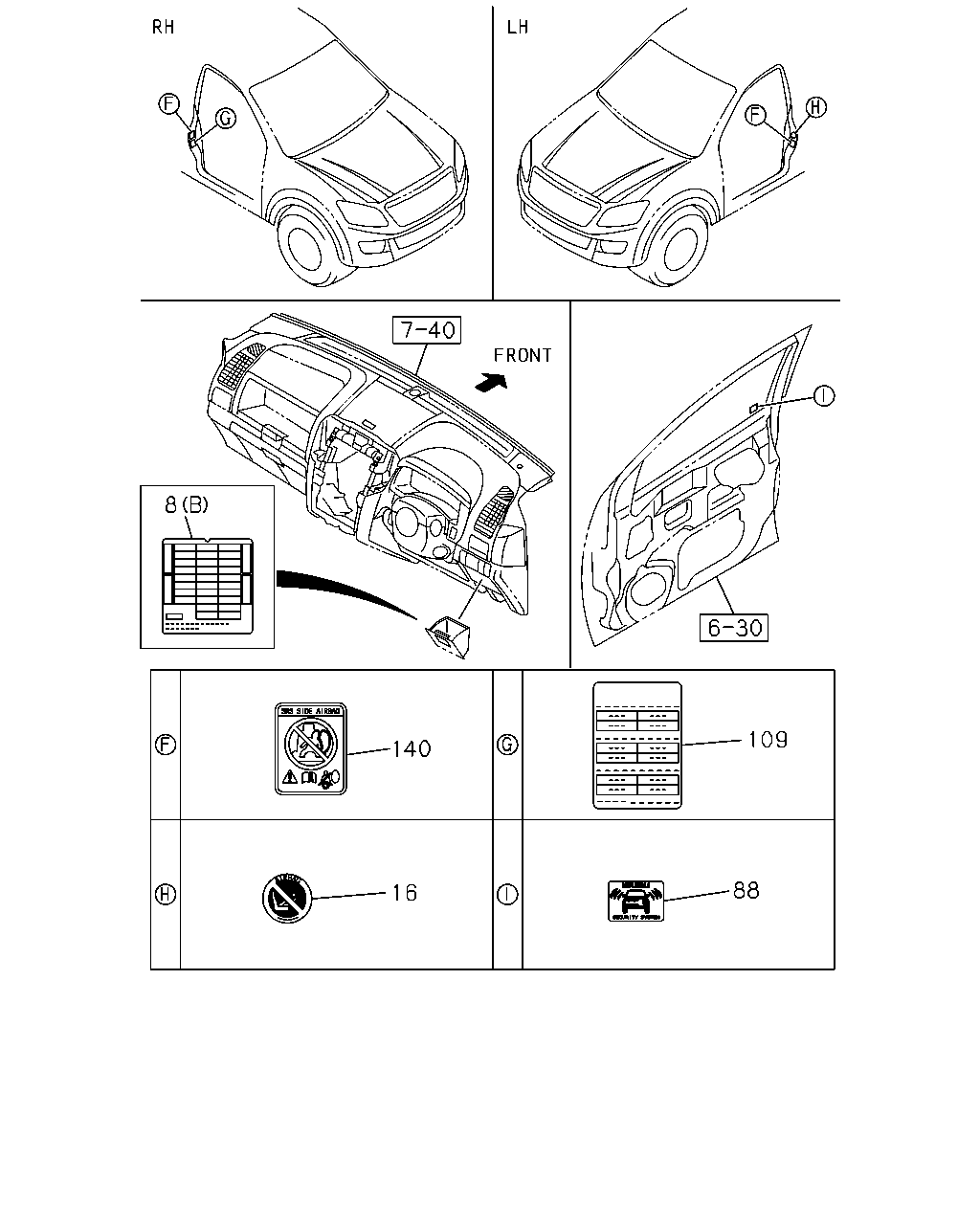

çizim 132688
8 140 16 109 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 03.680 LABEL; FUSE
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98181-920-1 01 1 1206-1301 ● ●
8 03.680 LABEL; FUSE
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98181-920-1 01 1 1302- ● ●
8 03.680 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1205-1205 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (A) 		8-98166-842-3 01 1 1206-1210 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (A) 		8-98166-842-3 01 1 1211- ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) (B) 		8-98167-404-1 01 1 1205-1205 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
(B) 		8-98167-404-1 01 1 1206- ● ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR 8-97378-569-0 01 1 1205-1205 ● ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR 8-97378-569-0 01 1 1206- ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-97378-569-0 01 1 1206- ● ● ● ● ●
88 08.808 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98141-993-2 02 1 1206- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 195R15C(QZO) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98100-752-1 01 1 1206-1301 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 215/70R15CDUNLOP TIRE(CWP),FRT&RR 245/70R16(QCQ),FRT&RR 195R15C(QZO),FRT&RR 255/65R17(QZX) EXC. AUSTRALIA EQUIPMENT(B13),HIGH RIDE SUSPENSION(7YC) 		8-98100-752-1 01 1 1206-1301 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 215/70R15CDUNLOP TIRE(CWP),FRT&RR 245/70R16(QCQ),FRT&RR 195R15C(QZO),FRT&RR 255/65R17(QZX) EXC. AUSTRALIA EQUIPMENT(B13),HIGH RIDE SUSPENSION(7YC) 		8-98100-752-1 01 1 1302- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 215/70R15CDUNLOP TIRE(CWP),FRT&RR 245/70R16(QCQ),FRT&RR 195R15C(QZO),FRT&RR 255/65R17(QZX) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98102-346-1 01 1 1206-1301 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 245/70R16(QCQ),FRT&RR 255/65R17(QZX) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98102-346-1 01 1 1206-1301 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 215/70R15CDUNLOP TIRE(CWP),FRT&RR 245/70R16(QCQ),FRT&RR 195R15C(QZO),FRT&RR 255/65R17(QZX) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98102-346-1 01 1 1302- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 245/70R16(QCQ),FRT&RR 255/65R17(QZX) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98102-346-1 01 1 1302- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-98100-751-0 01 1 1205-1205 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-751-0 01 1 1205-1205 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-98100-751-0 01 1 1206-1301 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP) AUSTRALIA EQUIPMENT(B13) 		8-98100-751-0 01 1 1206-1301 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP) AUSTRALIA EQUIPMENT(B13) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-751-0 01 1 1206-1301 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-98100-751-0 01 1 1302- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP) AUSTRALIA EQUIPMENT(B13) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-751-0 01 1 1302- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) HIGH RIDE SUSPENSION(7YC) 		8-98100-756-0 01 1 1205-1205 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) 		8-98100-756-0 01 1 1205-1205 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98100-756-0 01 1 1206-1301 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) AUSTRALIA EQUIPMENT(B13) 		8-98100-756-0 01 1 1206-1301 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98100-756-0 01 1 1302- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) AUSTRALIA EQUIPMENT(B13) 		8-98100-756-0 01 1 1302- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) HIGH RIDE SUSPENSION(7YC) 		8-98100-757-0 01 1 1205-1205 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) 		8-98100-757-0 01 1 1205-1205 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98100-757-0 01 1 1206-1301 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) AUSTRALIA EQUIPMENT(B13) 		8-98100-757-0 01 1 1206-1301 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98100-757-0 01 1 1302- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) AUSTRALIA EQUIPMENT(B13) 		8-98100-757-0 01 1 1302- ● ● ●
140 08.808 PLATE; CAUTION,SRS 8-98179-251-2 02 1 1205-1205 ● ● ● ● ● ●
140 08.808 PLATE; CAUTION,SRS 8-98179-251-2 02 1 1206- ●
140 08.808 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98179-251-2 02 1 1206- ● ● ● ● ●

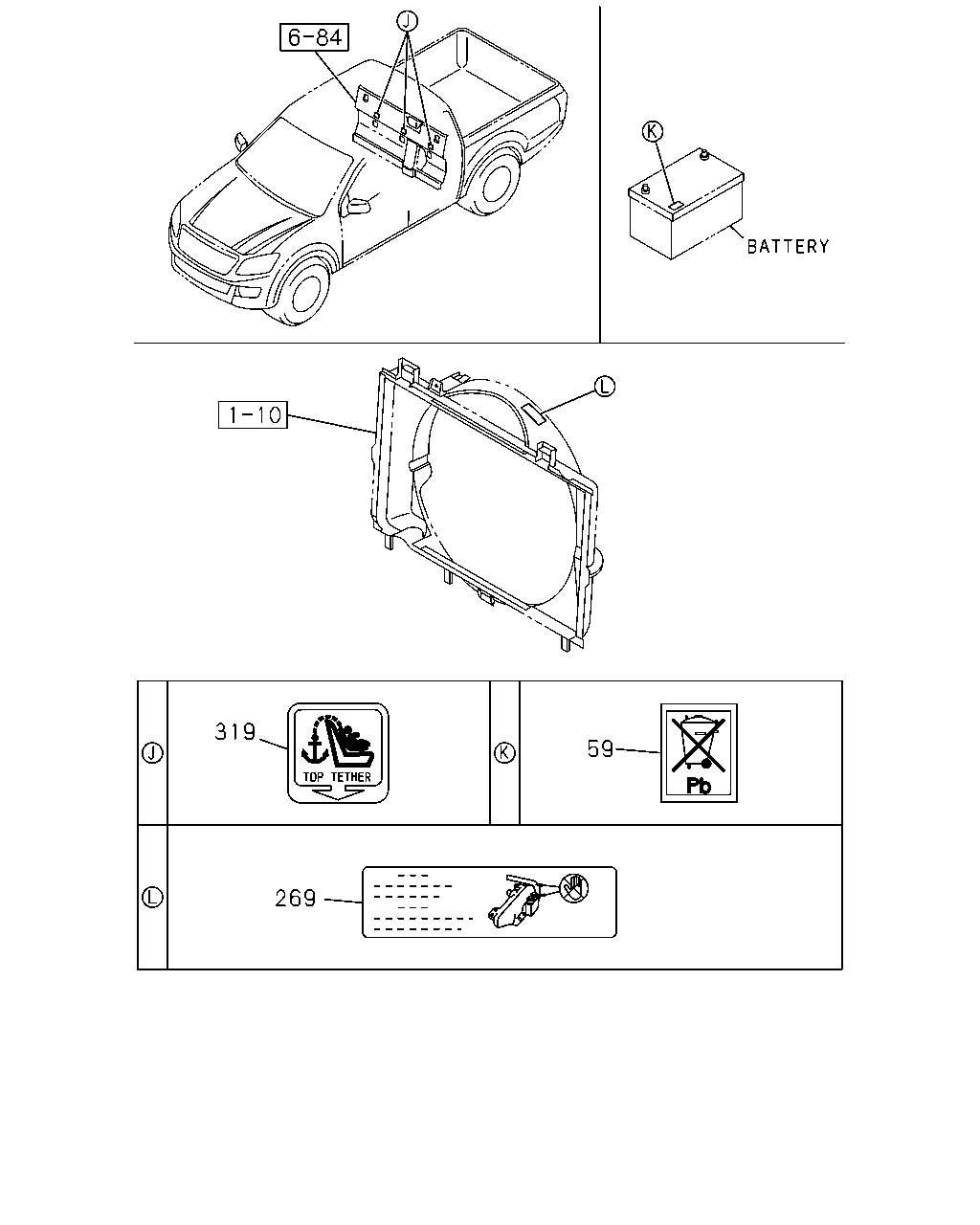

çizim 132916
319 59 269
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
59 08.808 PLATE; CAUTION,BATTERY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98140-947-0 01 1 1206- ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
SINGAPORE EQUIPMENT(2G0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98140-947-0 01 1 1206- ●
269 08.808 LABEL; CAUTION,EGR
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97943-094-0 01 1 1206- ● ●
319 08.808 LABEL; TOP TETHER
MALAYSIA EQUIPMENT(B10) 		8-98174-417-0 02 1 1211-1409 ● ●
319 08.808 LABEL; TOP TETHER
MALAYSIA EQUIPMENT(B10) 		8-98174-417-0 02 1 1410- ● ●
319 08.808 LABEL; TOP TETHER
EQUIPMENT IMPACT<EPS> EXC. MALAYSIA EQUIPMENT(B10) 		8-98174-417-0 02 1 1410- ● ●
319 08.808 LABEL; TOP TETHER 8-98174-417-0 03 1 1205-1205 ● ●
319 08.808 LABEL; TOP TETHER
AUSTRALIA EQUIPMENT(B13) 		8-98174-417-0 03 1 1206-1409 ● ●
319 08.808 LABEL; TOP TETHER
AUSTRALIA EQUIPMENT(B13) EXC. EQUIPMENT IMPACT<EPS> 		8-98174-417-0 03 1 1410- ● ●

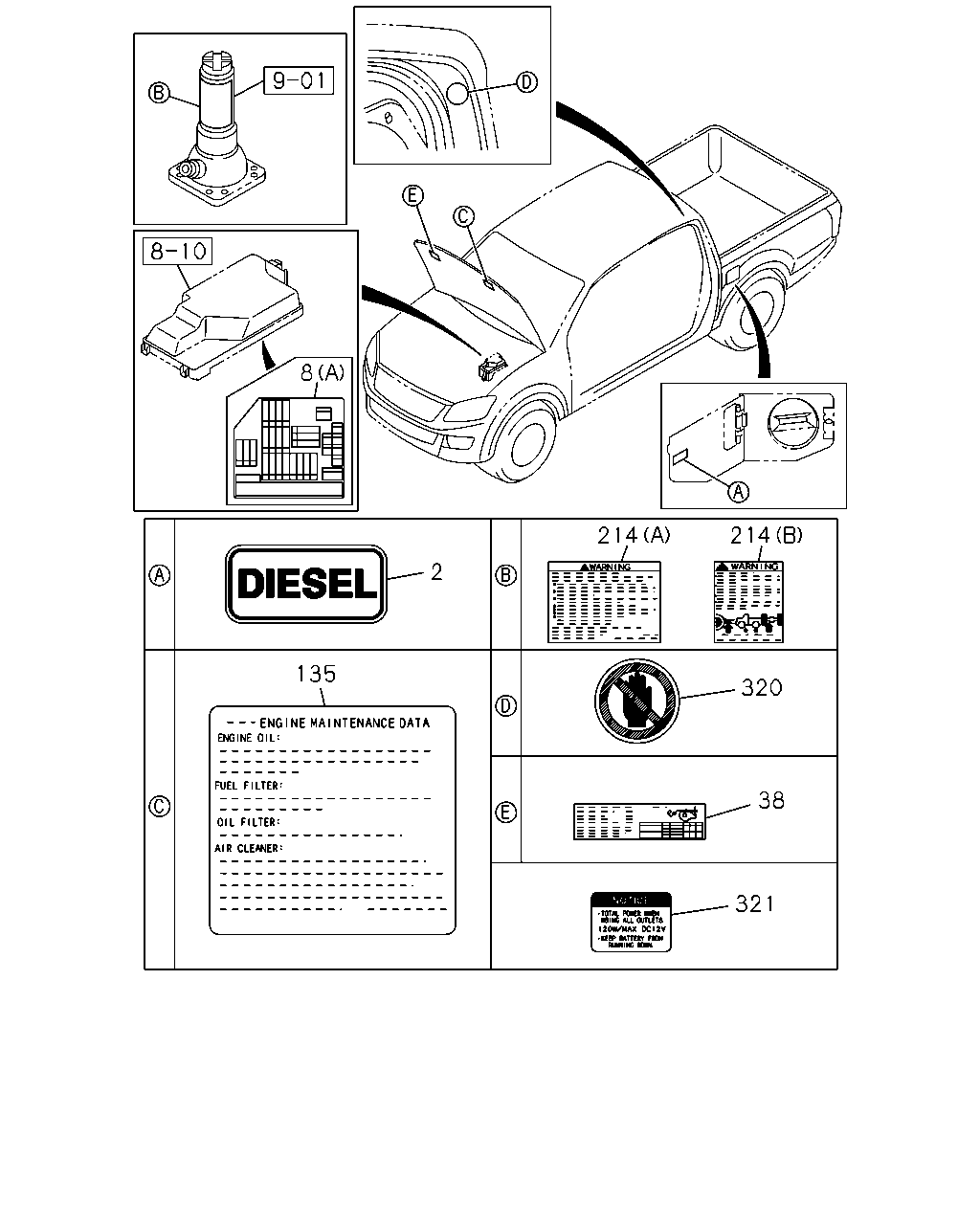

çizim 194308
8 2 135 214 214 320 38 321
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) 		8-98147-133-0 01 1 1205-1510 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98181-920-1 01 1 1206-1301 ● ●
8 03.680 LABEL; FUSE
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98181-920-1 01 1 1302- ● ●
8 03.680 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1205-1205 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (A) 		8-98166-842-3 01 1 1206-1210 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (A) 		8-98166-842-3 01 1 1211- ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) (B) 		8-98167-404-1 01 1 1205-1205 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
(B) 		8-98167-404-1 01 1 1206- ● ● ● ● ● ●
38 08.808 PLATE; CAUTION,LSV
MALAYSIA EQUIPMENT(B10) BRK WHL LK CONT LSPV<JR9> 		8-97947-380-1 01 1 1211-1301 ● ● ● ●
38 08.808 PLATE; CAUTION,LSV
MALAYSIA EQUIPMENT(B10),CONGO EQUIPMENT(CDF) BRK WHL LK CONT LSPV<JR9> 		8-97947-380-1 01 1 1302- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCS ENG(LKZ) 		8-98200-831-0 01 1 1206-1210 ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCS ENG(LKZ) 		8-98200-831-0 01 1 1211- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 		8-98200-831-0 01 1 1211- ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JA1-T ENG(LP0) 		8-97332-377-1 01 1 1206- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCY ENG(RDX) 		8-98196-345-0 01 1 1206- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) 		8-98200-830-0 01 1 1205-1205 ● ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) 		8-98200-830-0 01 1 1206- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 		8-98200-830-0 01 1 1206- ● ● ● ●
214 08.808 LABEL; JACK
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-97315-282-1 01 1 1206-1402 ● ● ● ● ●
214 08.808 LABEL; JACK
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98245-069-0 01 1 1403-1501 ● ● ● ● ●
214 08.808 LABEL; JACK
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98304-658-0 01 1 1502- ● ● ● ● ●
214 08.808 LABEL; JACK
(A) 		8-98192-980-2 01 1 1205-1205 ● ● ● ● ● ●
214 08.808 LABEL; JACK
(A) 		8-98192-980-2 01 1 1206- ●
214 08.808 LABEL; JACK
AUSTRALIA EQUIPMENT(B13) (A) 		8-98192-980-2 01 1 1206- ● ● ● ● ●
320 08.808 LABEL; WARNING,DOOR 8-98183-175-0 01 1 1205-1501 ● ●
320 08.808 LABEL; WARNING,DOOR 8-98302-861-0 02 1 1502- ● ●
320 08.808 LABEL; WARNING,DOOR 8-98183-176-0 01 1 1205-1501 ● ●
321 08.808 LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98183-494-1 01 1 1205- ● ● ● ● ● ●
