Sayfa 7-01 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶

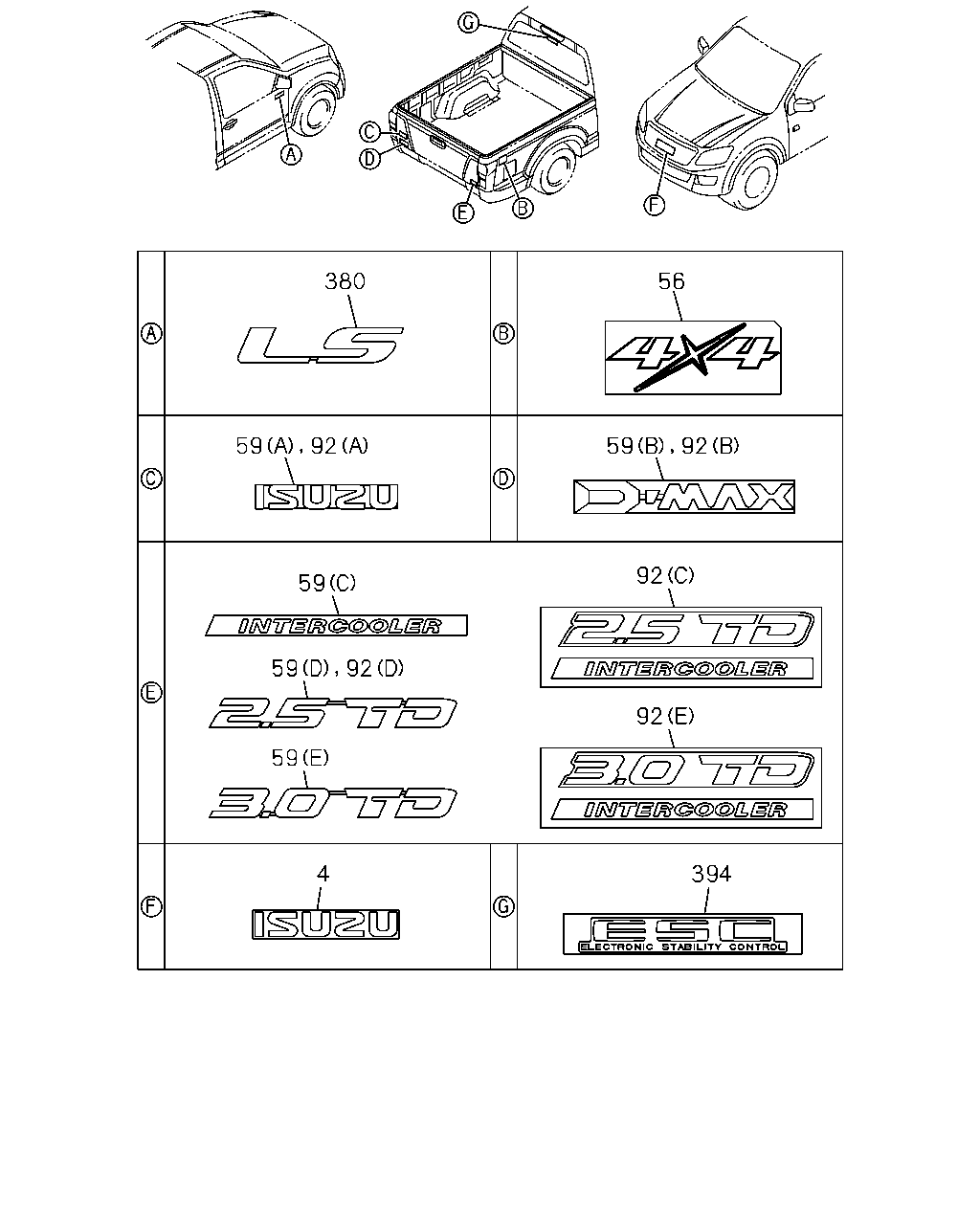

7-01 — EMBLEM AND NAME PLATE (#81898) — 39 parça

380 56 59 92 59 59 92 59 4 59 92 92 92 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	01.303 EMBLEM; RAD GRILLE	8-98164-912-0	01	1	1205-	●	●	●	●	●	●
56	08.147 DECAL; BODY SIDE BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR GARNET RED MICA(528),BODY COLORMINERAL GRAY MET(530),BODY COLOR TUN DRA GREEN MICA(533) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> LIGHT SILVER & RED	8-97421-195-1	02	1	1205-				●	●	●
56	08.147 DECAL; BODY SIDE BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR SOLEIL ORANGE MICA(532),BODY COLOR ASH BEIGE MET(541) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> DARK GRAY & RED	8-97421-196-1	02	1	1205-				●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) (A)	8-98129-896-0	01	1	1205-	●		●	●		●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) (B)	8-98134-860-0	01	1	1205-	●		●	●		●
59	01.303 DECAL; TAIL GATE 4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-903-0	01	1	1205-1205			●	●		●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-903-0	01	1	1206-1210			●			●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-903-0	01	1	1206-1210				●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-903-0	01	1	1211-			●			●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-903-0	01	1	1211-				●
59	01.303 DECAL; TAIL GATE 4JK1-TCS ENG(LKZ),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D)	8-98134-871-0	01	1	1206-1210			●			●
59	01.303 DECAL; TAIL GATE 4JK1-TCS ENG(LKZ) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D)	8-98134-871-0	01	1	1206-1210				●
59	01.303 DECAL; TAIL GATE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D)	8-98134-871-0	01	1	1211-			●			●
59	01.303 DECAL; TAIL GATE 4JK1-TCS ENG(LKZ) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D)	8-98134-871-0	01	1	1211-				●
59	01.303 DECAL; TAIL GATE 4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (E)	8-98134-872-0	01	1	1205-1205			●	●		●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (E)	8-98134-872-0	01	1	1206-			●	●		●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) (A)	8-98129-861-0	01	1	1205-		●			●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) (B)	8-98129-863-0	01	1	1205-		●			●
92	08.147 DECAL; RR END 4JK1-TCS ENG(LKZ),4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-870-0	01	1	1206-1210		●			●
92	08.147 DECAL; RR END 4JK1-TCS ENG(LKZ),4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-870-0	01	1	1206-1210			●			●
92	08.147 DECAL; RR END 4JK1-TCS ENG(LKZ) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-870-0	01	1	1206-1210				●
92	08.147 DECAL; RR END 4JK1-TCS ENG(LKZ),4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-870-0	01	1	1211-		●
92	08.147 DECAL; RR END 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-870-0	01	1	1211-			●			●
92	08.147 DECAL; RR END 4JK1-TCS ENG(LKZ) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-870-0	01	1	1211-				●
92	08.147 DECAL; RR END 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-870-0	01	1	1211-					●
92	08.147 DECAL; RR END 4JA1-T ENG(LP0) REAR BODY DBL WALL CTR PULL(E63) (D)	8-98129-869-0	01	1	1206-		●	●
92	08.147 DECAL; RR END 4JJ1-TCX ENG(LS0) REAR BODY DBL WALL CTR PULL(E63) (E)	8-98129-871-0	01	1	1205-1205	●	●			●
92	08.147 DECAL; RR END 4JJ1-TCX ENG(LS0) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (E)	8-98129-871-0	01	1	1205-1205			●	●		●
92	08.147 DECAL; RR END 4JJ1-TCX ENG(LS0) REAR BODY DBL WALL CTR PULL(E63) (E)	8-98129-871-0	01	1	1206-	●	●
92	08.147 DECAL; RR END 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (E)	8-98129-871-0	01	1	1206-			●	●		●
92	08.147 DECAL; RR END 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) REAR BODY DBL WALL CTR PULL(E63) (E)	8-98129-871-0	01	1	1206-					●
380	17.215 PLATE; SIDE INTERIOR CUSTOM(RBD)	8-98129-894-0	02	1	1205-			●	●		●
394	16.507 DECAL; RR BODY	8-98129-857-2	01	1	1205-1205	●	●	●	●	●	●
394	16.507 DECAL; RR BODY	8-98129-857-2	01	1	1206-	●
394	16.507 DECAL; RR BODY ELECTRONIC TRACTION CONTROL<NW9> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-98129-857-2	01	1	1206-		●	●			●
394	16.507 DECAL; RR BODY ELECTRONIC TRACTION CONTROL<NW9>	8-98129-857-2	01	1	1206-				●
394	16.507 DECAL; RR BODY ELECTRONIC TRACTION CONTROL<NW9> EXC. SINGAPORE EQUIPMENT(2G0)	8-98129-857-2	01	1	1206-					●

231

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

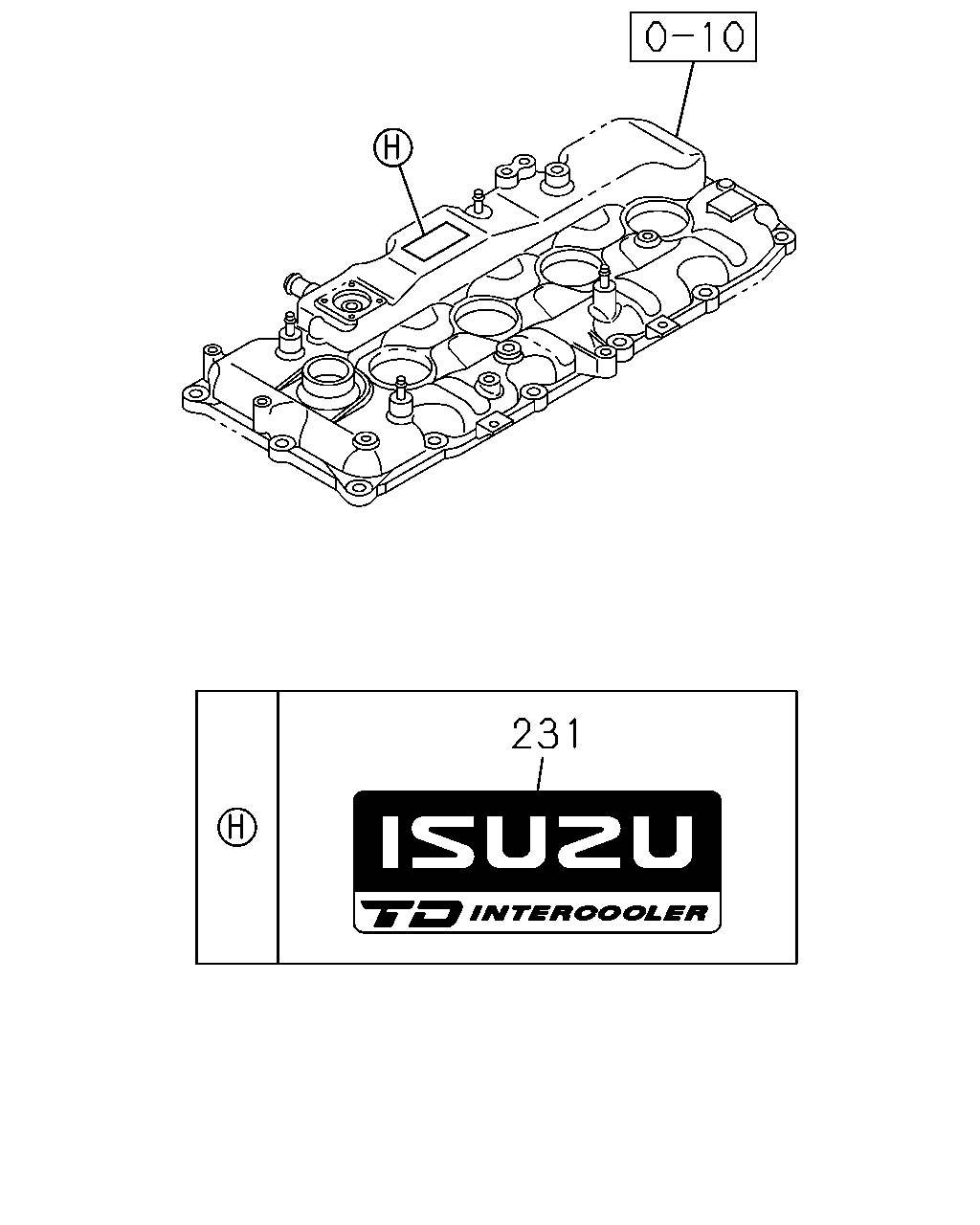

	231	01.303 EMBLEM; ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EXC. ENG SIGHT SHIELD<8LQ>	8-98221-983-0	01	1	1206-1210		●	●	●	●	●
	231	01.303 EMBLEM; ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. ENG SIGHT SHIELD<8LQ>	8-98221-983-0	01	1	1211-		●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
