6-90 — REAR BUMPER (#81897) — 25 parça

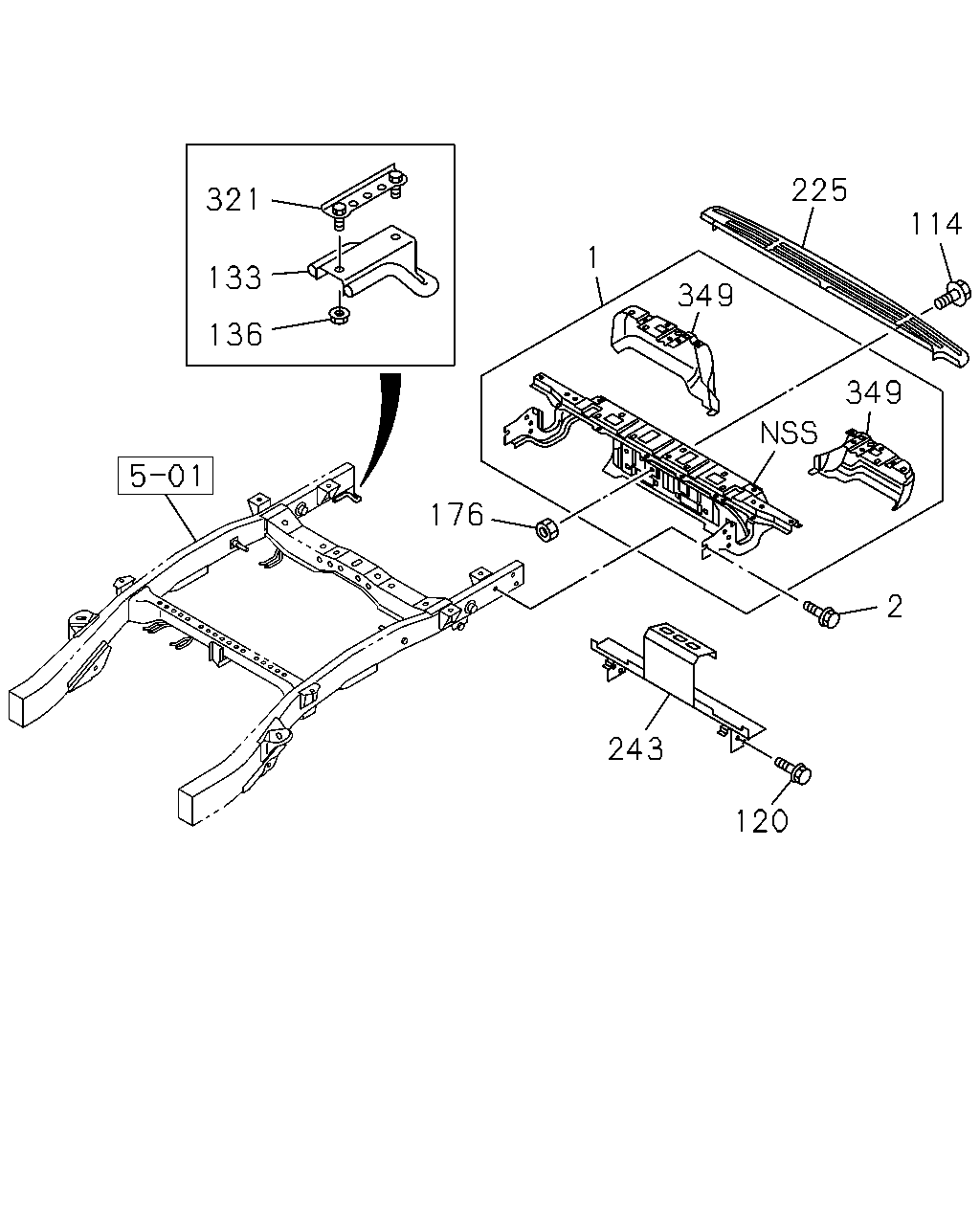

çizim 132543
321 133 136 176 1 225 114 349 349 2 243 120
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) BLACK 		8-98153-276-4 01 1 1205- ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) PLATED 		8-98153-275-4 01 1 1205- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M12X30 		8-98062-142-0 06 1 1205- ● ● ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1205-1205 ● ● ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1206-1302 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1206-1302 ● ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1303- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1303- ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1303- ●
120 07.800 BOLT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 06.509 M12X30 FLANGE 		0-28661-230-0 02 1 1205- ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-98107-434-0 01 1 1205- ● ● ● ● ● ●
136 07.068 NUT; HOOK
TOW HOOK RR ONLY<7TK> 04.085 M10 FLANGE 		0-91180-210-0 02 1 1205- ● ● ● ● ● ●
176 07.068 NUT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 07.831 		8-98054-813-0 02 1 1205-1205 ● ● ● ● ● ●
176 07.068 NUT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 07.831 		8-98054-813-0 02 1 1206-1302 ●
176 07.068 NUT
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 07.831 		8-98054-813-0 02 1 1206-1302 ● ● ● ● ●
176 07.068 NUT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 07.831 		8-98054-813-0 02 1 1303- ●
176 07.068 NUT
AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 07.831 		8-98054-813-0 02 1 1303- ● ● ● ●
176 07.068 NUT
AUSTRALIA EQUIPMENT(B13) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 07.831 		8-98054-813-0 02 1 1303- ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98102-359-2 01 1 1205- ● ● ● ● ● ●
243 07.869 BRACKET
REAR BODY DELETE(8HH) 		8-98202-598-1 01 1 1205- ● ● ● ● ● ●
321 07.068 BRACKET; HOOK
TOW HOOK RR ONLY<7TK> 		8-98123-937-0 01 1 1205- ● ● ● ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98238-275-0 01 1 1309- ● ● ● ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98238-276-0 01 1 1309- ● ● ● ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98238-273-0 01 1 1309- ● ● ● ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98238-274-0 01 1 1309- ● ● ● ● ● ●
