◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#81893) — 32 parça

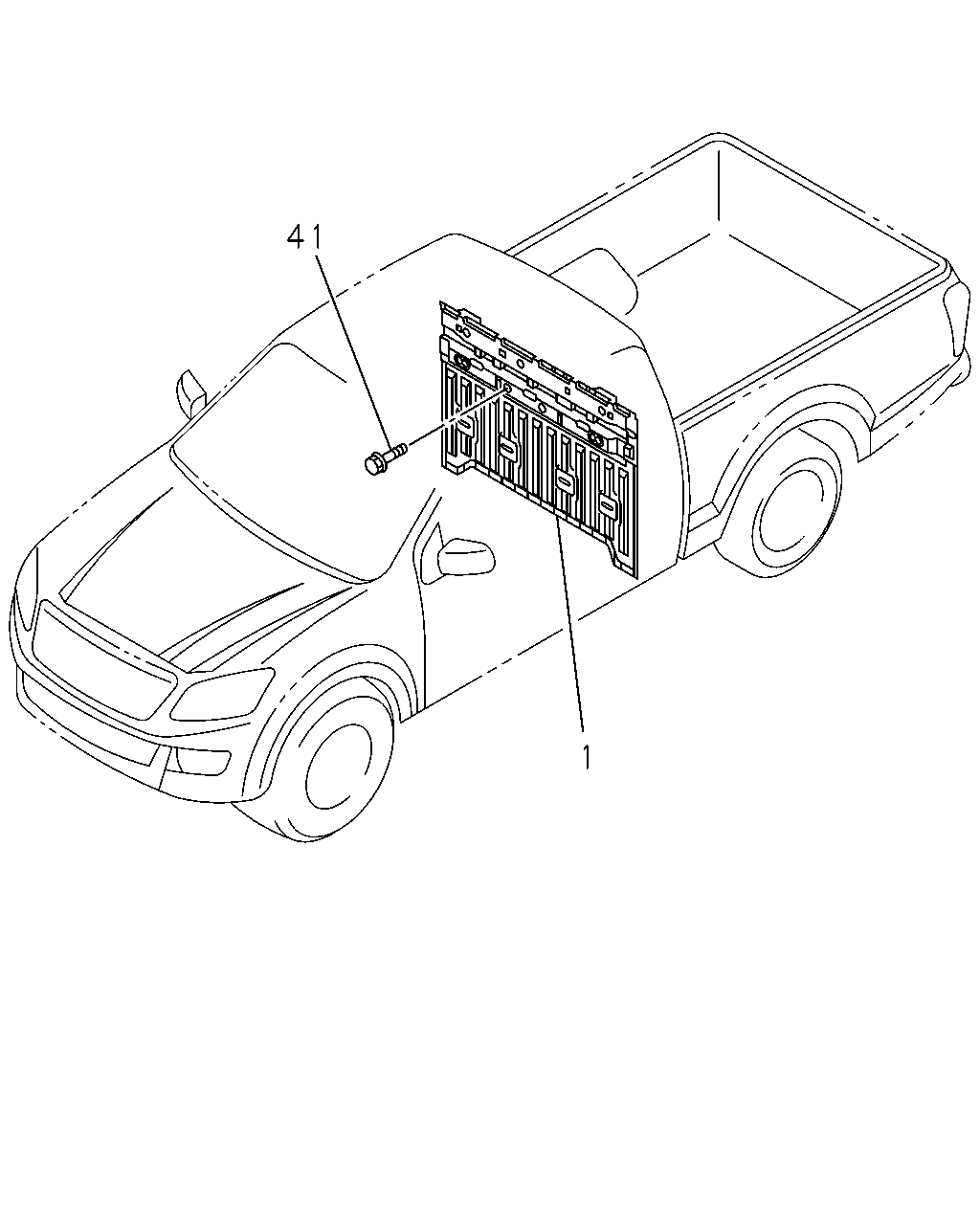

çizim 132431
41 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) MALAYSIA EQUIPMENT(B10) 		8-98234-975-1 01 1 1311-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98234-975-1 01 1 1410- ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) EQUIPMENT IMPACT<EPS> 		8-98234-975-1 01 1 1410- ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) AUSTRALIA EQUIPMENT(B13) 		8-98234-976-1 01 1 1311-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) AUSTRALIA EQUIPMENT(B13) EXC. EQUIPMENT IMPACT<EPS> 		8-98234-976-1 01 1 1410- ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) 		8-98234-974-1 01 1 1311-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),EQUIPMENT IMPACT<EPS> 		8-98234-974-1 01 1 1410- ● ●
1 16.587 PANEL; BACK OUTER
MALAYSIA EQUIPMENT(B10) 		8-98207-117-0 01 1 1211-1310 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) MALAYSIA EQUIPMENT(B10) 		8-98207-117-1 01 1 1311-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) MALAYSIA EQUIPMENT(B10) 		8-98207-117-1 01 1 1410- ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> EXC. MALAYSIA EQUIPMENT(B10) 		8-98207-117-1 01 1 1410- ● ●
1 16.587 PANEL; BACK OUTER 8-98207-118-0 01 1 1205-1205 ● ●
1 16.587 PANEL; BACK OUTER
AUSTRALIA EQUIPMENT(B13) 		8-98207-118-0 01 1 1206-1310 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) AUSTRALIA EQUIPMENT(B13) 		8-98207-118-1 01 1 1311-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) AUSTRALIA EQUIPMENT(B13) EXC. EQUIPMENT IMPACT<EPS> 		8-98207-118-1 01 1 1410- ● ●
1 16.587 PANEL; BACK OUTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98207-116-0 01 1 1206-1210 ● ●
1 16.587 PANEL; BACK OUTER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) 		8-98207-116-0 01 1 1211-1310 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) 		8-98207-116-1 01 1 1311-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),EQUIPMENT IMPACT<EPS> 		8-98207-116-1 01 1 1410- ● ●
1 16.587 PANEL; BACK OUTER 8-98103-272-1 01 1 1205- ● ●
1 16.587 PANEL; BACK OUTER 8-98103-271-2 01 1 1205-1310 ● ●
1 16.587 PANEL; BACK OUTER 8-98234-973-0 01 1 1311- ● ●
41 16.587 BOLT
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1205-1205 ● ● ● ●
41 16.587 BOLT
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1206-1301 ●
41 16.587 BOLT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1206-1301 ● ● ●
41 16.587 BOLT
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1302-1409 ●
41 16.587 BOLT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1302-1409 ● ● ●
41 16.587 BOLT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1302-1409 ● ●
41 16.587 BOLT
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1410- ●
41 16.587 BOLT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1410- ● ● ●
41 16.587 BOLT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1410- ● ●
41 16.587 BOLT
INTERIOR CUSTOM(RBD) MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
