◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#81891) — 16 parça

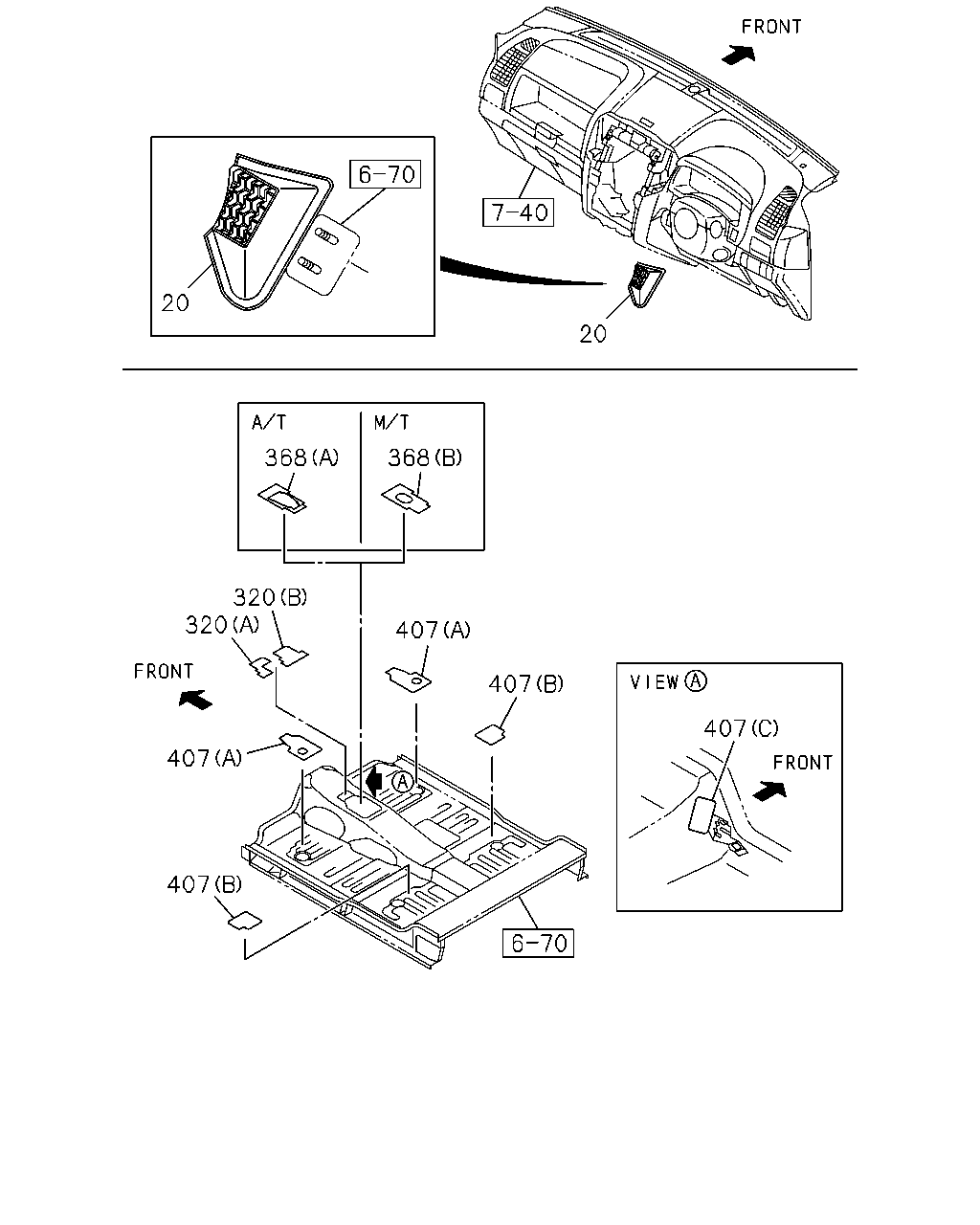

çizim 194307
20 20 368 368 320 320 407 407 407 407 407
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 16.547 REST; FOOT 8-98064-439-2 01 1 1205- ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE(AK6) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-705-0 01 1 1206- ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) FRONT CONSOLE W/LID<D55> (A) 		8-98166-704-0 01 1 1205-1205 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98166-704-0 01 1 1205-1205 ● ●
320 16.549 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98166-704-0 01 1 1206- ● ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1205-1205 ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUX 5 SPEED 5S(MZJ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1205-1205 ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1206-1301 ● ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1302- ● ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1205- ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1205- ● ●
407 16.850 DEADENER; FLOOR PANEL
(C) 		8-98165-147-0 01 1 1205- ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
FRONT SEAT BUCKET STANDARD<A50> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 		8-98103-655-1 01 1 1206-1409 ● ●
407 16.850 DEADENER; FLOOR PANEL
FRONT SEAT BUCKET STANDARD<A50> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98103-655-1 01 1 1410- ● ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-98103-655-1 02 1 1205- ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(B) 		8-98155-918-0 02 1 1205- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
