6-03 — RADIATOR GRILLE
(#8189) — 17 parça
Tümü
A - FSS5MF
B - FSS5WF
C - FTS5MF
D - FTS5WF
◀

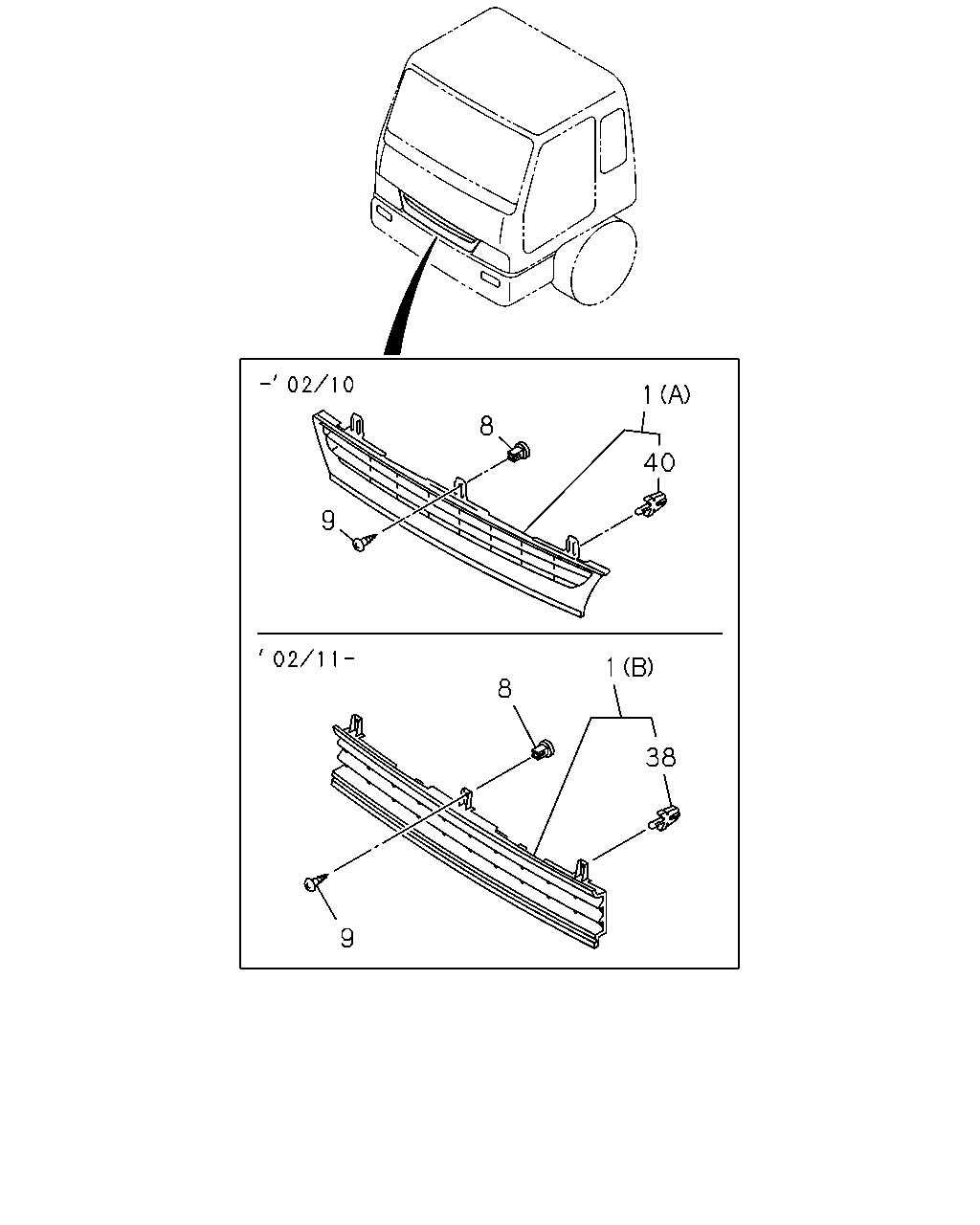

[603A] GRILLE;RADIATOR (6 parça)

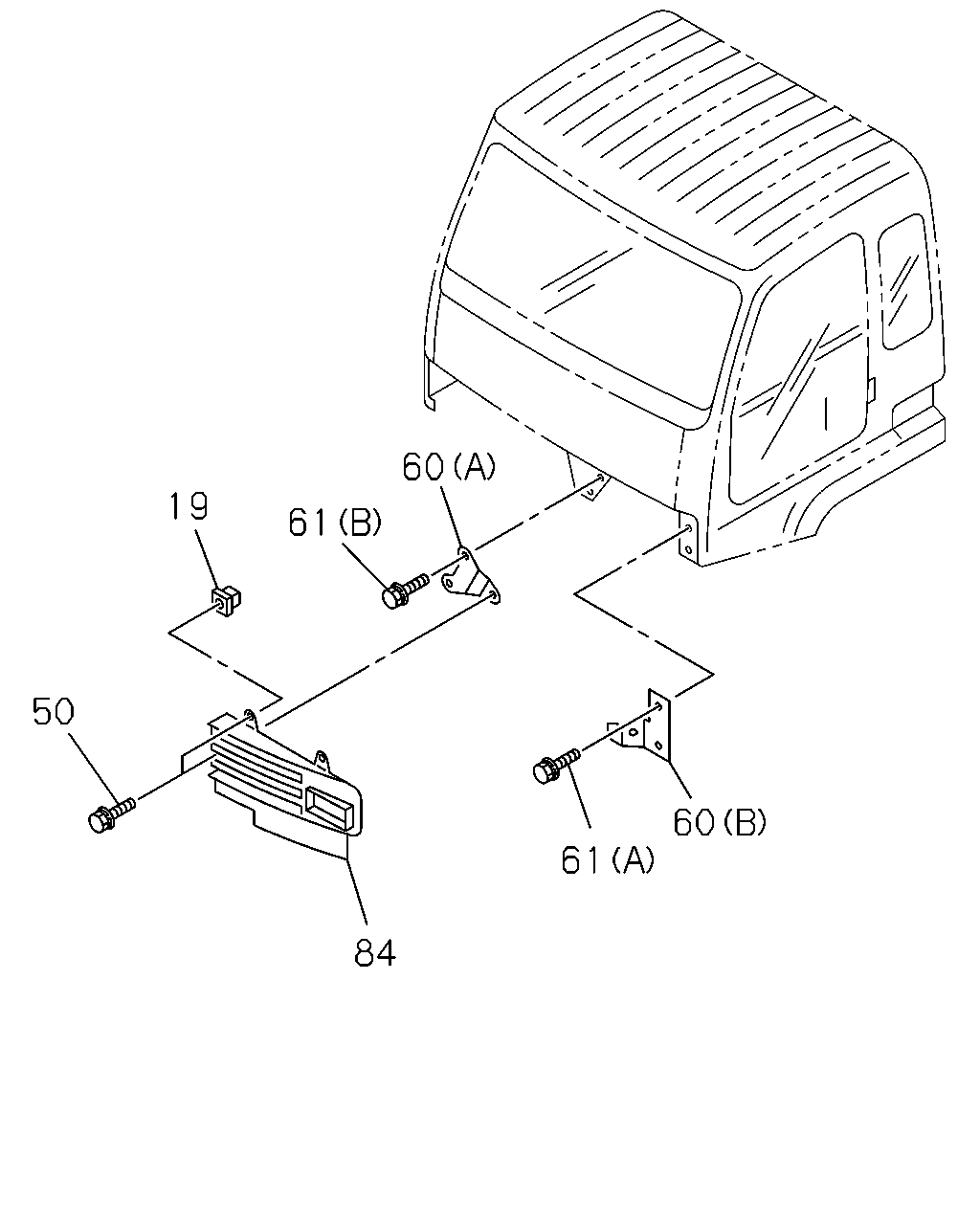

[603A] GRILLE;RADIATOR SIDE (11 parça)
▶
1
8
40
9
1
8
38
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
GRILLE; RAD
(A) WHITE
1-71118-818-1
01
1
0005-0210
●
●
●
●
1
GRILLE; RAD
(B) BLACK
1-71118-766-1
01
1
0211-
●
●
●
●
8
GROMMET; SCREW,RAD GRILLE
8-94279-704-0
01
1
0005-
●
●
●
●
9
SCREW; RAD GRILLE
M5X16 W/PL WASHER TAPPING
8-94279-123-0
01
1
0005-
●
●
●
●
38
CLIP; GRILLE
BLACK
8-94218-027-0
06
1
0211-
●
●
●
●
40
CLIP; RAD GRILLE
BLACK
8-94218-027-0
06
1
0005-0210
●
●
●
●
60
19
61
50
60
61
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
19
GROMMET; SCREW,RAD GRILLE
D=7.5X7.5 L=7
8-94430-147-0
04
1
0211-
●
●
●
●
50
BOLT; GRILLE
M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
0211-
●
●
●
●
60
BRACKET; RAD GRILLE SIDE
(B)
1-71118-776-1
01
1
0211-
●
●
●
●
60
BRACKET; RAD GRILLE SIDE
(A)
1-71118-785-1
01
1
0211-
●
●
●
●
60
BRACKET; RAD GRILLE SIDE
(A)
1-71118-752-1
01
1
0211-
●
●
●
●
60
BRACKET; RAD GRILLE SIDE
(B)
1-71118-775-1
01
1
0211-
●
●
●
●
61
BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0211-
●
●
●
●
61
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0211-0904
●
●
●
●
61
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
●
●
●
●
84
GRILLE; RAD SIDE
1-71118-769-3
01
1
0211-
●
●
●
●
84
GRILLE; RAD SIDE
1-71118-768-3
01
1
0211-
●
●
●
●
