◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#81889) — 227 parça

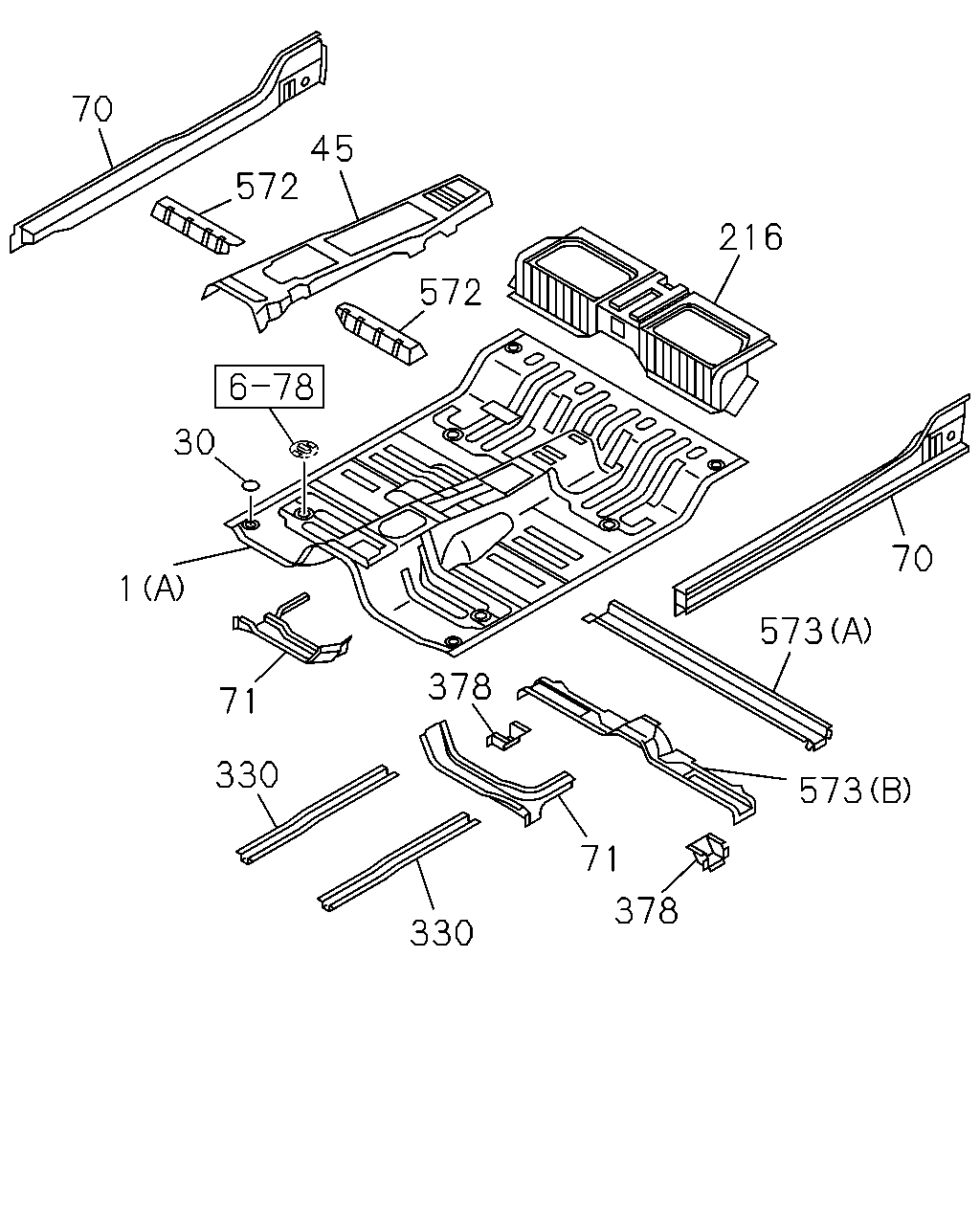

çizim 131837
70 45 572 572 216 30 1 71 330 330 378 71 378 573 573 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR
JUMP SEAT<AJ2> (A) 		8-98112-030-6 01 1 1205-1207 ● ●
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1208- ● ●
1 16.545 PANEL; FLOOR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-040-6 01 1 1205-1207 ● ●
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1205- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1205-1306 ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ● ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 04 1 1205-1301 ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1302- ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 06 1 1205-1301 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1302- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1205- ● ● ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1205- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-993-2 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-997-2 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-4 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-006-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-4 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-982-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-991-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-996-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-894-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-912-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-893-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-907-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-994-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-994-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-998-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-998-1 01 1 1410- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1205- ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1205- ● ● ● ● ● ●
216 16.670 PANEL; SEAT RISER
JUMP SEAT<AJ2> 		8-98104-744-8 01 1 1205- ● ●
216 16.670 PANEL; SEAT RISER
EXC. JUMP SEAT<AJ2> 		8-98101-953-8 01 1 1205- ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1205- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1205- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1205- ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1205- ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1205- ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1205- ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1205- ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-1 01 1 1205-1205 ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1206- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1206- ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1206- ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1205- ● ●

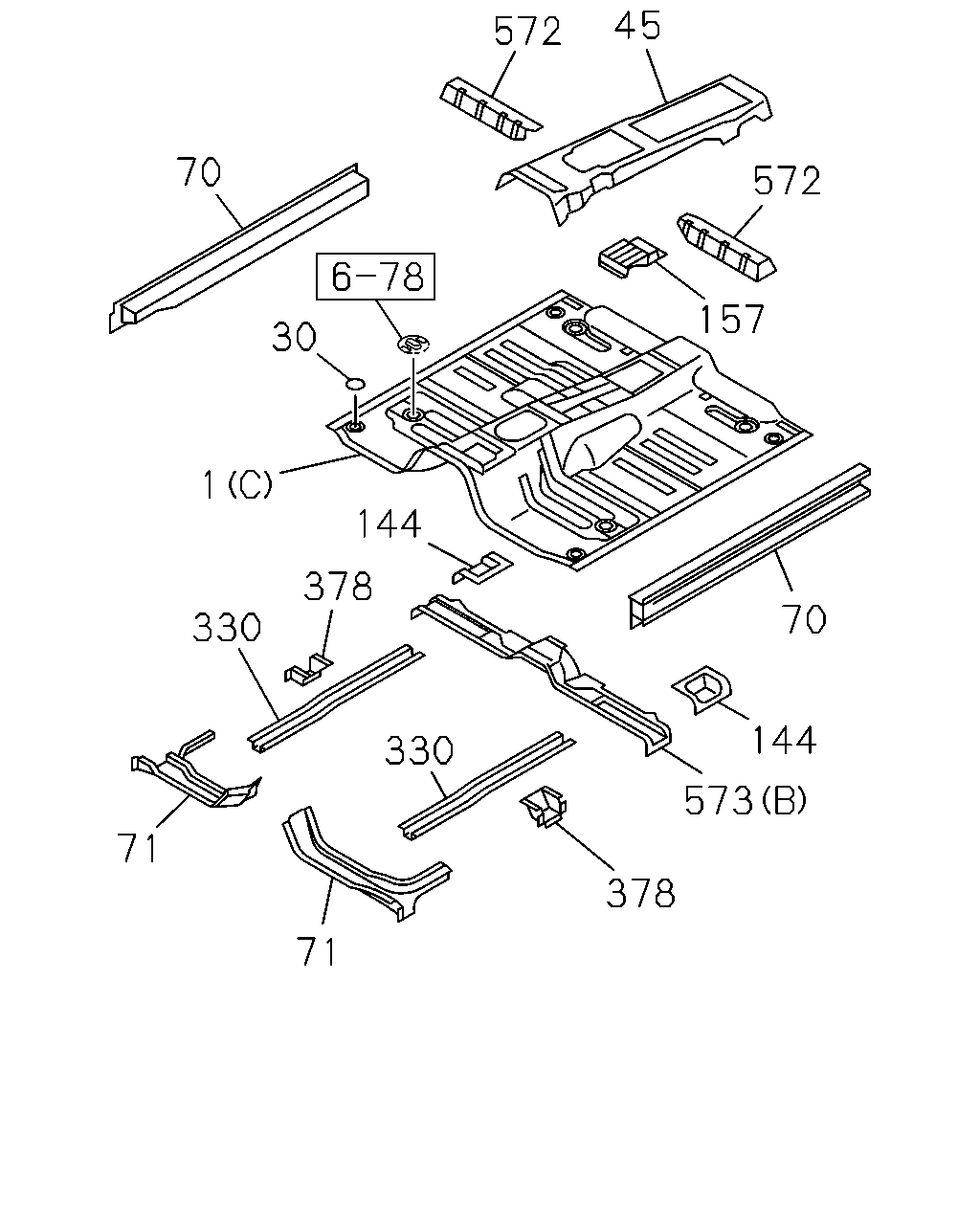

çizim 131840
70 572 45 572 30 157 1 144 378 330 71 71 330 378 573 144 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR
JUMP SEAT<AJ2> (A) 		8-98112-030-6 01 1 1205-1207 ● ●
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1208- ● ●
1 16.545 PANEL; FLOOR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-040-6 01 1 1205-1207 ● ●
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1205- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1205-1306 ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ● ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 04 1 1205-1301 ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1302- ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 06 1 1205-1301 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1302- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1205- ● ● ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1205- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-993-2 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-997-2 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-4 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-006-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-4 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-982-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-991-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-996-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-894-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-912-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-893-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-907-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-994-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-994-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-998-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-998-1 01 1 1410- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1205- ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1205- ● ● ● ● ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1205- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1205- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1205- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1205- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1205- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1205- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1205- ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1205- ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1205- ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1205- ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1205- ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-1 01 1 1205-1205 ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1206- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1206- ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1206- ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1205- ● ●

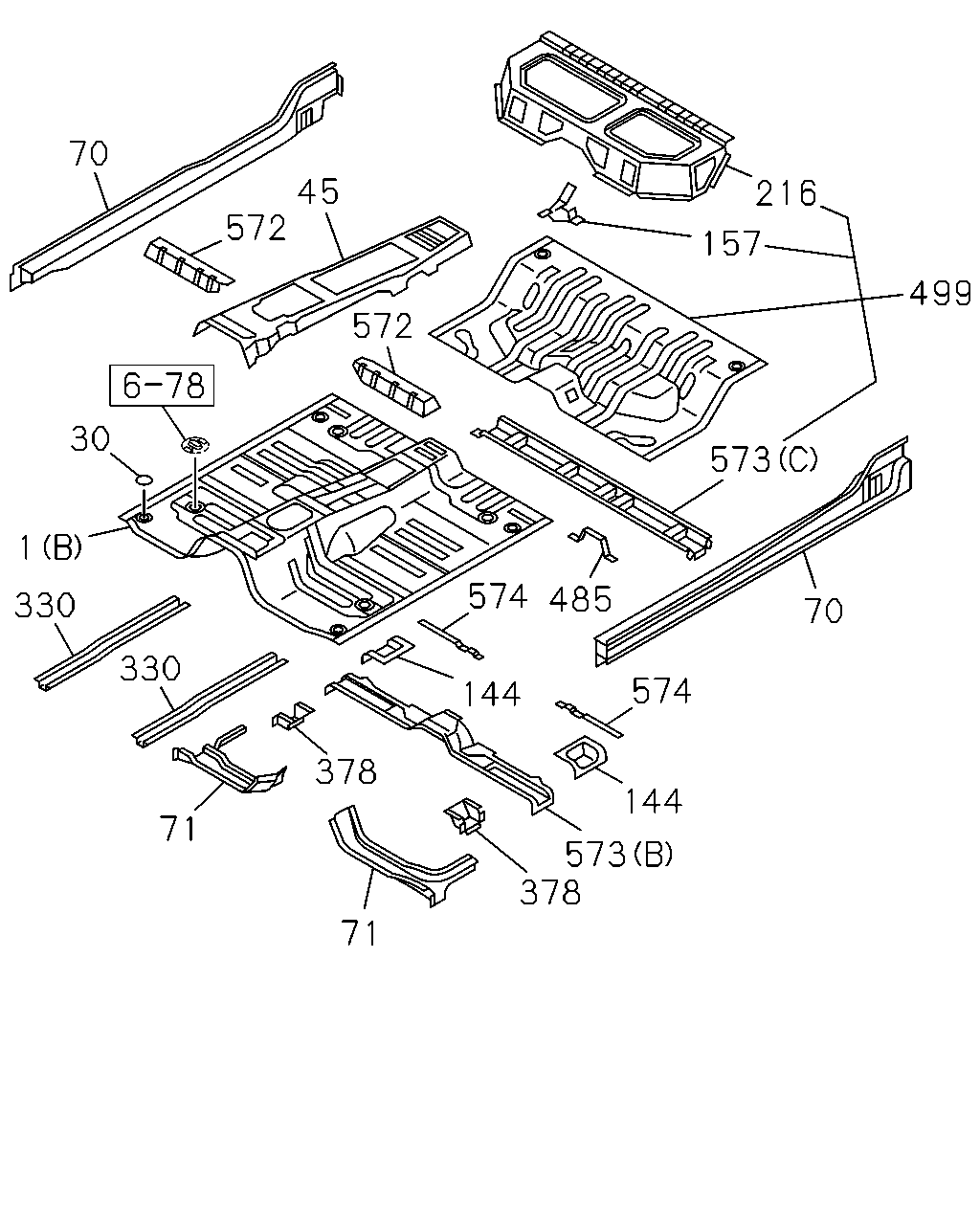

çizim 132218
70 45 572 30 572 157 216 499 573 1 330 330 71 378 71 144 574 485 70 574 144 573 378
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR
JUMP SEAT<AJ2> (A) 		8-98112-030-6 01 1 1205-1207 ● ●
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1208- ● ●
1 16.545 PANEL; FLOOR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-040-6 01 1 1205-1207 ● ●
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1205- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1205-1306 ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ● ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 04 1 1205-1301 ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1302- ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 06 1 1205-1301 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1302- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1205- ● ● ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1205- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-993-2 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-997-2 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-4 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-006-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-4 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98101-982-5 01 1 1206- ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-991-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-996-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-894-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-912-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-893-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS> 		8-98103-907-3 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-994-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-994-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-994-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-998-1 01 1 1205-1205 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1206-1301 ● ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1302-1409 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) 		8-98162-998-1 01 1 1410- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS> 		8-98162-998-1 01 1 1410- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1205- ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1205- ● ● ● ● ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1205- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1205- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1205- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1205- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1205- ● ●
216 16.670 PANEL; SEAT RISER
JUMP SEAT<AJ2> 		8-98104-744-8 01 1 1205- ● ●
216 16.670 PANEL; SEAT RISER
EXC. JUMP SEAT<AJ2> 		8-98101-953-8 01 1 1205- ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1205- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1205- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1205- ● ● ● ● ● ●
485 16.800 SEAL; TAPE TYPE 8-94336-915-0 01 1 1205- ● ●
499 16.545 PANEL; FLOOR,RR 8-98116-646-9 01 1 1205-1506 ● ●
499 16.545 PANEL; FLOOR,RR 8-98322-482-0 01 1 1507- ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1205- ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1205- ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1205- ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1205- ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-1 01 1 1205-1205 ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1206- ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1206- ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1206- ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1205- ● ●
574 16.800 TAPE; ADHESIVE 8-98178-885-0 02 1 1205- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
