6-60 — ROOF PANEL (#81887) — 99 parça

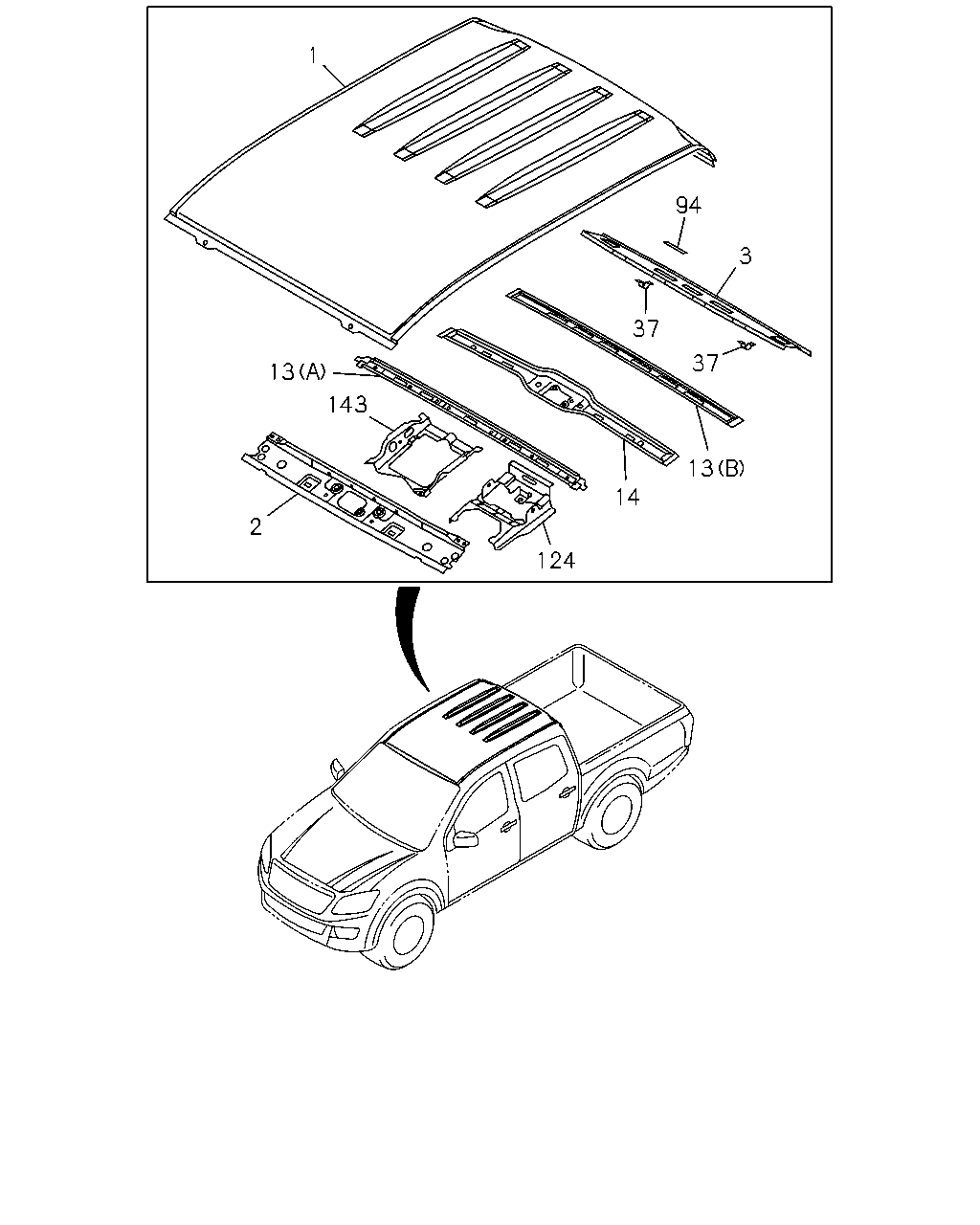

1 37 3 37 13 14 124 2 143 13 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.585 PANEL; ROOF	8-98103-953-2	01	1	1205-1205	●
1	16.585 PANEL; ROOF EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71>	8-98103-953-2	01	1	1205-1205		●
1	16.585 PANEL; ROOF	8-98103-953-3	01	1	1206-	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71>	8-98103-953-3	01	1	1206-		●
1	16.585 PANEL; ROOF ROOF RADIO ANTENNA<U71>	8-98103-954-2	01	1	1205-1205		●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71>	8-98103-954-3	01	1	1206-		●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>	8-98103-952-3	01	1	1206-		●
1	16.585 PANEL; ROOF INTERIOR BASIC(RBA) EXC. HIGH MOUNT STOP LAMP<TS6>	8-98103-955-3	01	1	1206-			●	●
1	16.585 PANEL; ROOF INTERIOR BASIC(RBA)	8-98103-957-3	01	1	1205-1205			●	●
1	16.585 PANEL; ROOF INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6>	8-98103-957-3	01	1	1206-			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD)	8-98103-960-3	01	1	1205-1301			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD) EXC. CONGO EQUIPMENT(CDF)	8-98103-960-3	01	1	1302-			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6>	8-98184-915-1	01	1	1302-			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) EXC. HIGH MOUNT STOP LAMP<TS6>	8-98184-914-1	01	1	1302-			●	●
1	16.585 PANEL; ROOF	8-98103-951-3	01	1	1205-1205					●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-98103-951-3	01	1	1206-					●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-98103-950-3	01	1	1206-					●	●
2	16.585 PANEL; ROOF,CENTER	8-98103-964-5	01	1	1205-	●	●	●	●	●	●
3	16.585 PANEL; ROOF,RR	8-98103-999-3	01	1	1205-	●	●	●	●	●	●
13	16.585 PANEL; ROOF SUPPORT (A)	8-98103-963-1	01	1	1205-	●	●	●	●	●	●
13	16.585 PANEL; ROOF SUPPORT (B)	8-98103-982-0	01	1	1205-			●	●
13	16.585 PANEL; ROOF SUPPORT (C)	8-98150-942-0	01	1	1205-					●	●
14	16.585 SUPPORT; ROOF	8-98103-976-1	01	1	1205-1205	●	●
14	16.585 SUPPORT; ROOF	8-98103-976-1	01	1	1206-	●
14	16.585 SUPPORT; ROOF HIGH MOUNT STOP LAMP<TS6> AUSTRALIA EQUIPMENT(B13)	8-98103-976-1	01	1	1206-		●
14	16.585 SUPPORT; ROOF HIGH MOUNT STOP LAMP<TS6> EXC. AUSTRALIA EQUIPMENT(B13)	8-98163-386-1	01	1	1206-		●
14	16.585 SUPPORT; ROOF	8-98112-817-1	01	1	1205-1205			●	●
14	16.585 SUPPORT; ROOF AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98112-817-1	01	1	1206-1301			●	●
14	16.585 SUPPORT; ROOF AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)	8-98112-817-1	01	1	1302-1409			●	●
14	16.585 SUPPORT; ROOF AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)	8-98112-817-1	01	1	1410-			●	●
14	16.585 SUPPORT; ROOF MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS>	8-98112-817-1	01	1	1410-			●	●
14	16.585 SUPPORT; ROOF EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98163-387-1	01	1	1206-1301			●	●
14	16.585 SUPPORT; ROOF EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)	8-98163-387-1	01	1	1302-1409			●	●
14	16.585 SUPPORT; ROOF EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)	8-98163-387-1	01	1	1410-			●	●
14	16.585 SUPPORT; ROOF MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS>	8-98163-387-1	01	1	1410-			●	●
37	16.585 BRACKET; TRIM,ROOF BACK	8-98103-996-0	02	1	1205-			●	●	●	●
94	16.570 SEAL; REINFORCEMENT	8-98201-900-0	01	1	1205-			●	●
124	16.585 BRACKET; ROOM LAMP MAP LAMP<C74>	8-98103-968-0	01	1	1205-	●	●	●	●
143	16.584 BRACKET; CONSOLE HEADER CONSOLE<DK6> 16.570	8-98103-962-1	01	1	1205-		●	●	●

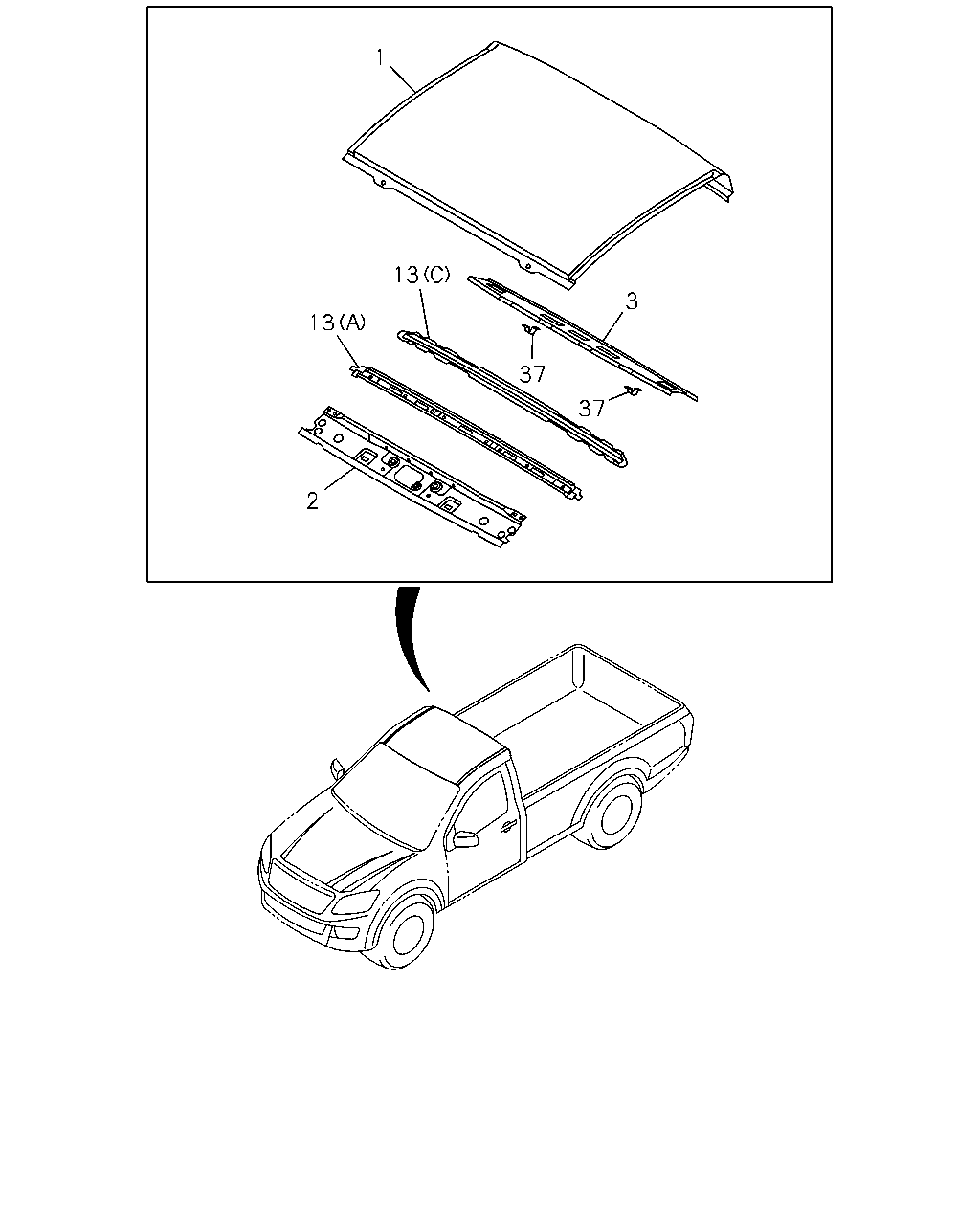

1 13 13 3 37 37 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.585 PANEL; ROOF	8-98103-953-2	01	1	1205-1205	●
1	16.585 PANEL; ROOF EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71>	8-98103-953-2	01	1	1205-1205		●
1	16.585 PANEL; ROOF	8-98103-953-3	01	1	1206-	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71>	8-98103-953-3	01	1	1206-		●
1	16.585 PANEL; ROOF ROOF RADIO ANTENNA<U71>	8-98103-954-2	01	1	1205-1205		●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71>	8-98103-954-3	01	1	1206-		●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>	8-98103-952-3	01	1	1206-		●
1	16.585 PANEL; ROOF INTERIOR BASIC(RBA) EXC. HIGH MOUNT STOP LAMP<TS6>	8-98103-955-3	01	1	1206-			●	●
1	16.585 PANEL; ROOF INTERIOR BASIC(RBA)	8-98103-957-3	01	1	1205-1205			●	●
1	16.585 PANEL; ROOF INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6>	8-98103-957-3	01	1	1206-			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD)	8-98103-960-3	01	1	1205-1301			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD) EXC. CONGO EQUIPMENT(CDF)	8-98103-960-3	01	1	1302-			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6>	8-98184-915-1	01	1	1302-			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) EXC. HIGH MOUNT STOP LAMP<TS6>	8-98184-914-1	01	1	1302-			●	●
1	16.585 PANEL; ROOF	8-98103-951-3	01	1	1205-1205					●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-98103-951-3	01	1	1206-					●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-98103-950-3	01	1	1206-					●	●
2	16.585 PANEL; ROOF,CENTER	8-98103-964-5	01	1	1205-	●	●	●	●	●	●
3	16.585 PANEL; ROOF,RR	8-98103-999-3	01	1	1205-	●	●	●	●	●	●
13	16.585 PANEL; ROOF SUPPORT (A)	8-98103-963-1	01	1	1205-	●	●	●	●	●	●
13	16.585 PANEL; ROOF SUPPORT (B)	8-98103-982-0	01	1	1205-			●	●
13	16.585 PANEL; ROOF SUPPORT (C)	8-98150-942-0	01	1	1205-					●	●
37	16.585 BRACKET; TRIM,ROOF BACK	8-98103-996-0	02	1	1205-			●	●	●	●

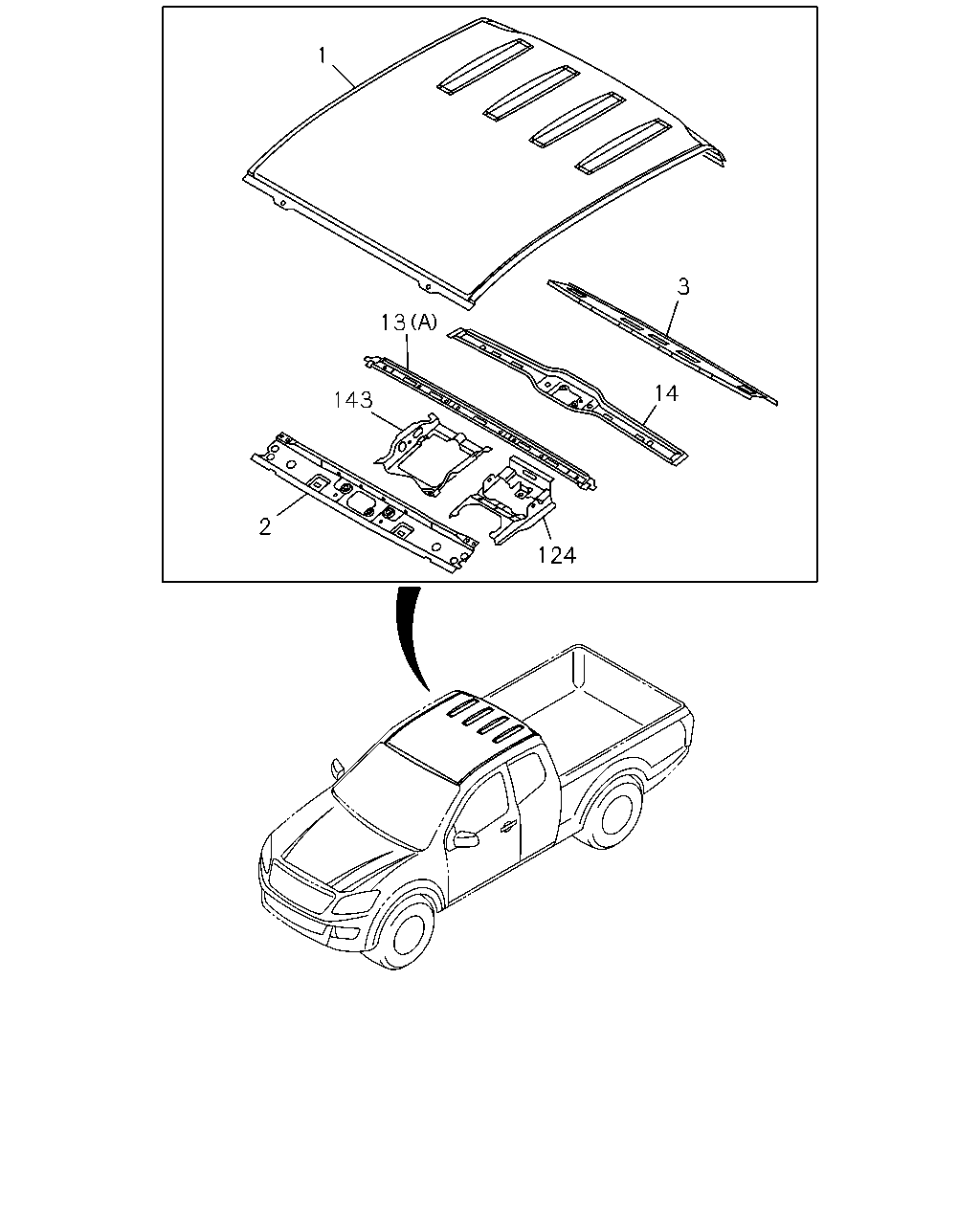

3 14 124 13 143 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.585 PANEL; ROOF	8-98103-953-2	01	1	1205-1205	●
1	16.585 PANEL; ROOF EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71>	8-98103-953-2	01	1	1205-1205		●
1	16.585 PANEL; ROOF	8-98103-953-3	01	1	1206-	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71>	8-98103-953-3	01	1	1206-		●
1	16.585 PANEL; ROOF ROOF RADIO ANTENNA<U71>	8-98103-954-2	01	1	1205-1205		●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71>	8-98103-954-3	01	1	1206-		●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>	8-98103-952-3	01	1	1206-		●
1	16.585 PANEL; ROOF INTERIOR BASIC(RBA) EXC. HIGH MOUNT STOP LAMP<TS6>	8-98103-955-3	01	1	1206-			●	●
1	16.585 PANEL; ROOF INTERIOR BASIC(RBA)	8-98103-957-3	01	1	1205-1205			●	●
1	16.585 PANEL; ROOF INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6>	8-98103-957-3	01	1	1206-			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD)	8-98103-960-3	01	1	1205-1301			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD) EXC. CONGO EQUIPMENT(CDF)	8-98103-960-3	01	1	1302-			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6>	8-98184-915-1	01	1	1302-			●	●
1	16.585 PANEL; ROOF INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) EXC. HIGH MOUNT STOP LAMP<TS6>	8-98184-914-1	01	1	1302-			●	●
1	16.585 PANEL; ROOF	8-98103-951-3	01	1	1205-1205					●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-98103-951-3	01	1	1206-					●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-98103-950-3	01	1	1206-					●	●
2	16.585 PANEL; ROOF,CENTER	8-98103-964-5	01	1	1205-	●	●	●	●	●	●
3	16.585 PANEL; ROOF,RR	8-98103-999-3	01	1	1205-	●	●	●	●	●	●
13	16.585 PANEL; ROOF SUPPORT (A)	8-98103-963-1	01	1	1205-	●	●	●	●	●	●
13	16.585 PANEL; ROOF SUPPORT (B)	8-98103-982-0	01	1	1205-			●	●
13	16.585 PANEL; ROOF SUPPORT (C)	8-98150-942-0	01	1	1205-					●	●
14	16.585 SUPPORT; ROOF	8-98103-976-1	01	1	1205-1205	●	●
14	16.585 SUPPORT; ROOF	8-98103-976-1	01	1	1206-	●
14	16.585 SUPPORT; ROOF HIGH MOUNT STOP LAMP<TS6> AUSTRALIA EQUIPMENT(B13)	8-98103-976-1	01	1	1206-		●
14	16.585 SUPPORT; ROOF HIGH MOUNT STOP LAMP<TS6> EXC. AUSTRALIA EQUIPMENT(B13)	8-98163-386-1	01	1	1206-		●
14	16.585 SUPPORT; ROOF	8-98112-817-1	01	1	1205-1205			●	●
14	16.585 SUPPORT; ROOF AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98112-817-1	01	1	1206-1301			●	●
14	16.585 SUPPORT; ROOF AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)	8-98112-817-1	01	1	1302-1409			●	●
14	16.585 SUPPORT; ROOF AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)	8-98112-817-1	01	1	1410-			●	●
14	16.585 SUPPORT; ROOF MALAYSIA EQUIPMENT(B10) EQUIPMENT IMPACT<EPS>	8-98112-817-1	01	1	1410-			●	●
14	16.585 SUPPORT; ROOF EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98163-387-1	01	1	1206-1301			●	●
14	16.585 SUPPORT; ROOF EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)	8-98163-387-1	01	1	1302-1409			●	●
14	16.585 SUPPORT; ROOF EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)	8-98163-387-1	01	1	1410-			●	●
14	16.585 SUPPORT; ROOF MALAYSIA EQUIPMENT(B10) EXC. EQUIPMENT IMPACT<EPS>	8-98163-387-1	01	1	1410-			●	●
124	16.585 BRACKET; ROOM LAMP MAP LAMP<C74>	8-98103-968-0	01	1	1205-	●	●	●	●
143	16.584 BRACKET; CONSOLE HEADER CONSOLE<DK6> 16.570	8-98103-962-1	01	1	1205-		●	●	●
