Sayfa 6-52 - Isuzu EPC

6-52 — REAR DOOR LOCK AND HANDLE (#81885) — 195 parça

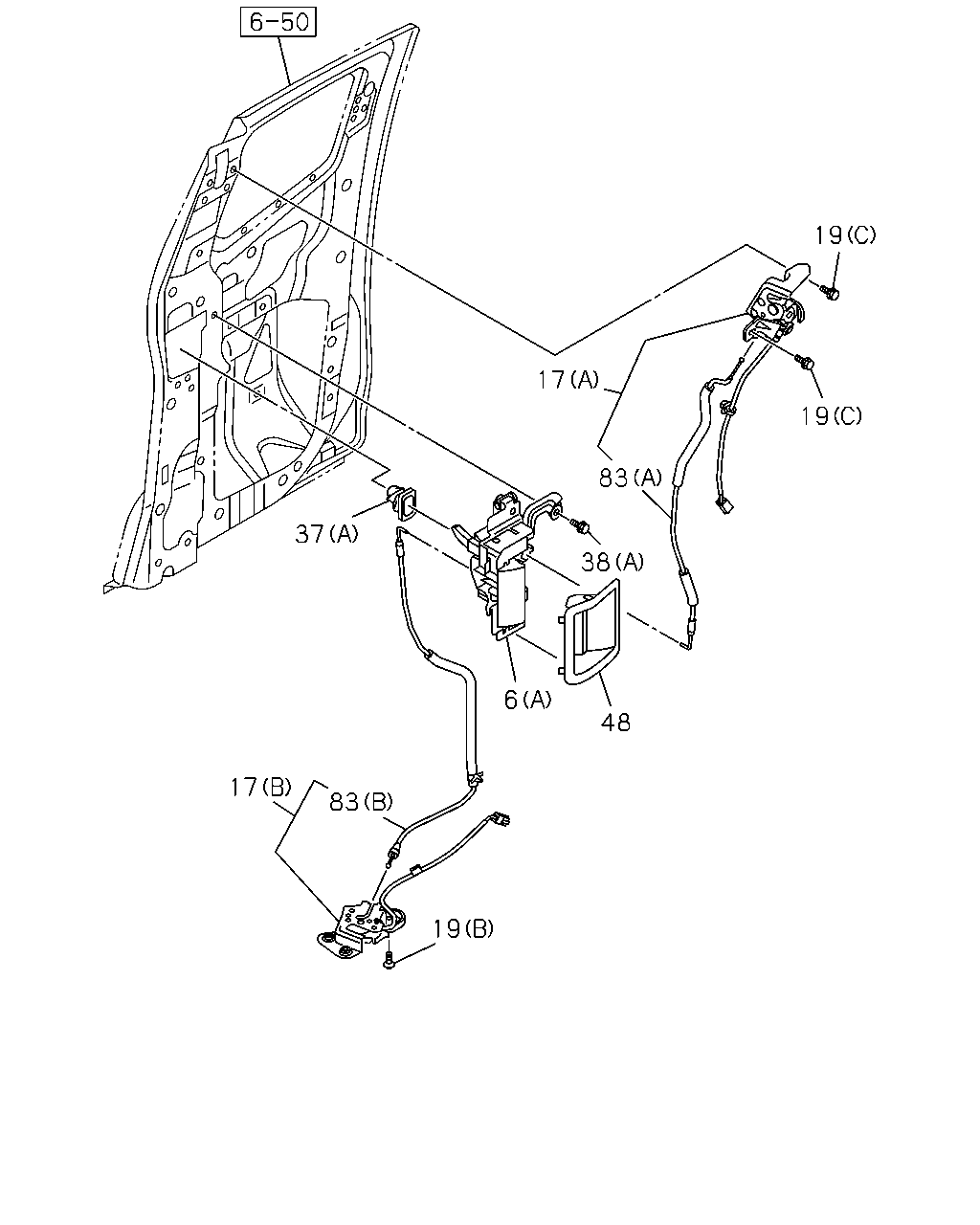

19 19 17 83 38 37 6 48 17 83 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK	8-97421-775-4	01	1	1205-	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK	8-97421-777-4	01	1	1205-	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR BASIC(RBA) (B) BLACK	8-97416-726-4	01	1	1205-			●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR BASIC(RBA) (B) BLACK	8-97416-728-4	01	1	1205-			●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM(RBD) (B) BLACK	8-97416-730-3	01	1	1205-			●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM(RBD) (B) BLACK	8-97416-732-3	01	1	1205-			●	●
17	16.330 LOCK; DOOR,RR DOOR (A)	8-98103-157-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR (A)	8-98103-158-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR (B)	8-98103-159-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR (B)	8-98103-160-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C)	8-98103-984-0	01	1	1205-			●	●
17	16.330 LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C)	8-98103-985-0	01	1	1205-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D)	8-98103-988-1	01	1	1206-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D)	8-98103-989-1	01	1	1206-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> (D)	8-98103-986-1	01	1	1205-1205			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D)	8-98103-986-1	01	1	1206-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> (D)	8-98103-987-1	01	1	1205-1205			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D)	8-98103-987-1	01	1	1206-			●	●
19	16.345 BOLT; RR DOOR LOCK AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE	8-98048-996-0	02	1	1205-			●	●
19	16.345 BOLT; RR DOOR LOCK 16.330 (B) SCREW M6X14.5	8-98004-342-0	06	1	1205-	●	●	●	●
19	16.345 BOLT; RR DOOR LOCK (C) M6X16	8-98165-451-0	06	1	1205-	●	●
37	16.157 GROMMET; RR DOOR (A)	8-98212-205-0	02	1	1205-	●	●
37	16.157 GROMMET; RR DOOR 12.182 (B) OD=26	8-94141-484-0	02	1	1205-			●	●
38	16.345 SCREW; INSIDE LEVER,RR DOOR LK 02.343 (A) M6X16 FLANGE	0-28650-616-0	06	1	1205-	●	●
38	16.345 SCREW; INSIDE LEVER,RR DOOR LK (B) M5X14 TAPPING	8-98184-363-0	02	1	1205-			●	●
48	16.345 COVER; INSIDE HANDLE,RR DOOR BLACK	8-97421-217-2	02	1	1205-	●	●
83	16.341 CABLE ASM; LOCK CONTROL (A)	8-98193-861-0	01	1	1205-	●	●
83	16.341 CABLE ASM; LOCK CONTROL (A)	8-98193-862-0	01	1	1205-	●	●
83	16.341 CABLE ASM; LOCK CONTROL (B)	8-98193-863-0	02	1	1205-	●	●
83	16.341 CABLE ASM; LOCK CONTROL (C)	8-98193-717-0	01	1	1205-			●	●
83	16.341 CABLE ASM; LOCK CONTROL (C)	8-98193-715-0	01	1	1205-			●	●
83	16.341 CABLE ASM; LOCK CONTROL (D)	8-98193-716-0	02	1	1205-			●	●

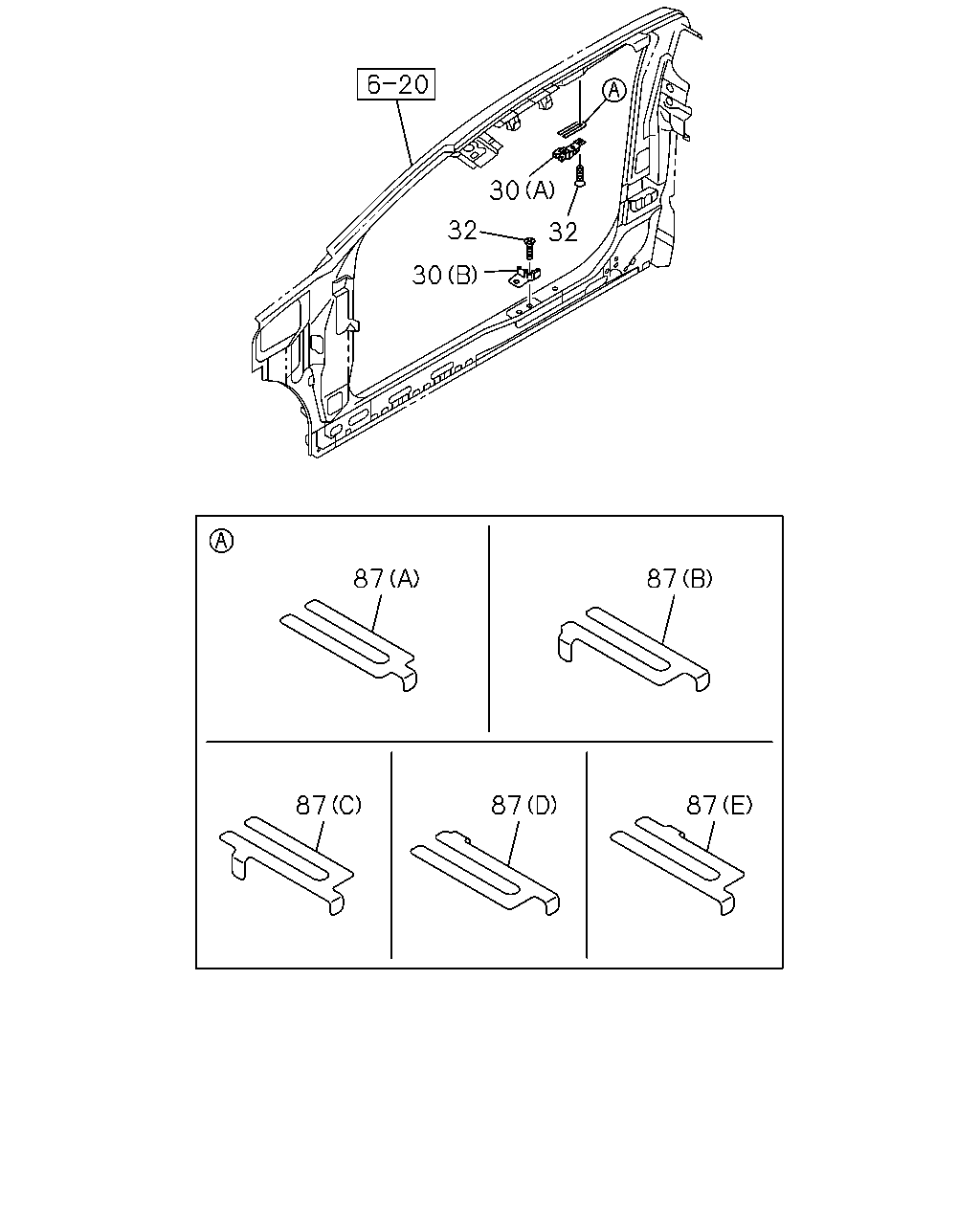

30 32 32 30 87 87 87 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	16.335 STRIKER; RR DOOR (A)	8-98103-162-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (A)	8-98103-163-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (B)	8-98103-164-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (B)	8-98103-165-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (C)	8-98012-203-0	02	1	1205-			●	●
32	16.335 SCREW; DOOR STRIKER M8X35	8-98049-360-0	08	1	1205-	●	●
32	16.335 SCREW; DOOR STRIKER M8X35	8-98049-360-0	04	1	1205-			●	●
87	16.335 SPACER; STRIKER (B) T=2.0	8-98214-625-0	AR	1	1205-	●	●
87	16.335 SPACER; STRIKER (C) T=1.0	8-98214-626-0	AR	1	1205-	●	●
87	16.335 SPACER; STRIKER (D) T=2.0	8-98215-417-0	AR	1	1205-	●	●
87	16.335 SPACER; STRIKER (E) T=1.0	8-98215-418-0	AR	1	1205-	●	●
87	16.335 SPACER; STRIKER (A) T=2.0	8-98180-586-0	02	1	1205-	●	●

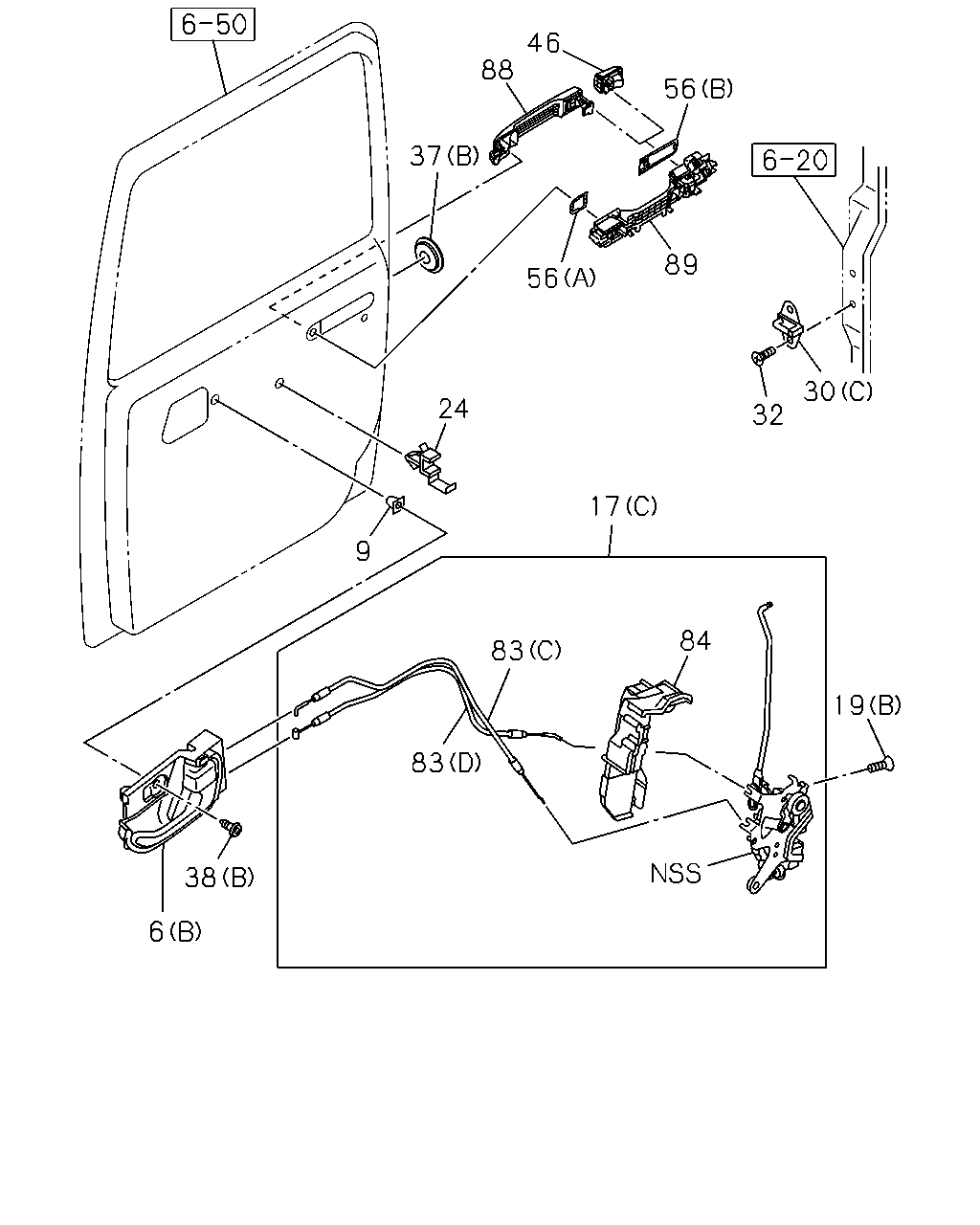

37 88 46 56 56 89 30 32 17 24 9 38 6 83 83 84 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK	8-97421-775-4	01	1	1205-	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK	8-97421-777-4	01	1	1205-	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR BASIC(RBA) (B) BLACK	8-97416-726-4	01	1	1205-			●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR BASIC(RBA) (B) BLACK	8-97416-728-4	01	1	1205-			●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM(RBD) (B) BLACK	8-97416-730-3	01	1	1205-			●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM(RBD) (B) BLACK	8-97416-732-3	01	1	1205-			●	●
9	16.345 GROMMET; SCREW,INSIDE HANDLE 10.565	8-94152-494-0	02	1	1205-			●	●
17	16.330 LOCK; DOOR,RR DOOR (A)	8-98103-157-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR (A)	8-98103-158-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR (B)	8-98103-159-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR (B)	8-98103-160-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C)	8-98103-984-0	01	1	1205-			●	●
17	16.330 LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C)	8-98103-985-0	01	1	1205-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D)	8-98103-988-1	01	1	1206-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D)	8-98103-989-1	01	1	1206-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> (D)	8-98103-986-1	01	1	1205-1205			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D)	8-98103-986-1	01	1	1206-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> (D)	8-98103-987-1	01	1	1205-1205			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D)	8-98103-987-1	01	1	1206-			●	●
19	16.345 BOLT; RR DOOR LOCK AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE	8-98048-996-0	02	1	1205-			●	●
19	16.345 BOLT; RR DOOR LOCK 16.330 (B) SCREW M6X14.5	8-98004-342-0	06	1	1205-	●	●	●	●
19	16.345 BOLT; RR DOOR LOCK (C) M6X16	8-98165-451-0	06	1	1205-	●	●
24	16.345 ANTIRATTLER; DOOR INSIDE HANDLE	8-97251-932-0	02	1	1205-			●	●
30	16.335 STRIKER; RR DOOR (A)	8-98103-162-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (A)	8-98103-163-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (B)	8-98103-164-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (B)	8-98103-165-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (C)	8-98012-203-0	02	1	1205-			●	●
32	16.335 SCREW; DOOR STRIKER M8X35	8-98049-360-0	08	1	1205-	●	●
32	16.335 SCREW; DOOR STRIKER M8X35	8-98049-360-0	04	1	1205-			●	●
37	16.157 GROMMET; RR DOOR (A)	8-98212-205-0	02	1	1205-	●	●
37	16.157 GROMMET; RR DOOR 12.182 (B) OD=26	8-94141-484-0	02	1	1205-			●	●
38	16.345 SCREW; INSIDE LEVER,RR DOOR LK 02.343 (A) M6X16 FLANGE	0-28650-616-0	06	1	1205-	●	●
38	16.345 SCREW; INSIDE LEVER,RR DOOR LK (B) M5X14 TAPPING	8-98184-363-0	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 16.270	8-98201-401-0	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE OUTSIDE HANDLE CHROME<E20> 16.270 PLATED	8-98176-465-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 DARK BLUE	8-97422-452-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 BLACK	8-97422-454-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 WHITE	8-97422-463-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 DARK RED	8-97422-458-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 SILVER	8-97422-456-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 GRAY	8-97422-455-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 LIGHT ORANGE	8-97422-459-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 DARK GREEN	8-97422-453-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 LIGHT BEIGE	8-97422-460-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> 16.270 BLACK	8-98176-463-1	02	1	1205-			●	●
56	16.360 GASKET; HANDLE,RR DOOR 16.350 (A)	8-98176-466-0	02	1	1205-			●	●
56	16.360 GASKET; HANDLE,RR DOOR (B)	8-98176-467-2	02	1	1205-			●	●
83	16.341 CABLE ASM; LOCK CONTROL (A)	8-98193-861-0	01	1	1205-	●	●
83	16.341 CABLE ASM; LOCK CONTROL (A)	8-98193-862-0	01	1	1205-	●	●
83	16.341 CABLE ASM; LOCK CONTROL (B)	8-98193-863-0	02	1	1205-	●	●
83	16.341 CABLE ASM; LOCK CONTROL (C)	8-98193-717-0	01	1	1205-			●	●
83	16.341 CABLE ASM; LOCK CONTROL (C)	8-98193-715-0	01	1	1205-			●	●
83	16.341 CABLE ASM; LOCK CONTROL (D)	8-98193-716-0	02	1	1205-			●	●
84	16.270 COVER; DOOR LOCK	8-97351-079-0	01	1	1205-			●	●
84	16.270 COVER; DOOR LOCK	8-97351-080-0	01	1	1205-			●	●
88	16.335 GRIP; RR DOOR HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 16.330	8-98201-399-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR OUTSIDE HANDLE CHROME<E20> 16.330 PLATED	8-98176-458-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 DARK BLUE	8-97422-425-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 BLACK	8-97422-427-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 WHITE	8-97422-436-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 DARK RED	8-97422-431-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 SILVER	8-97422-429-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 GRAY	8-97422-428-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 LIGHT ORANGE	8-97422-432-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 DARK GREEN	8-97422-426-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 LIGHT BEIGE	8-97422-433-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> 16.330	8-98176-456-0	02	1	1205-			●	●
89	16.335 BRACKET; GRIP,DOOR	8-98176-472-4	01	1	1205-			●	●
89	16.335 BRACKET; GRIP,DOOR	8-98176-473-4	01	1	1205-			●	●

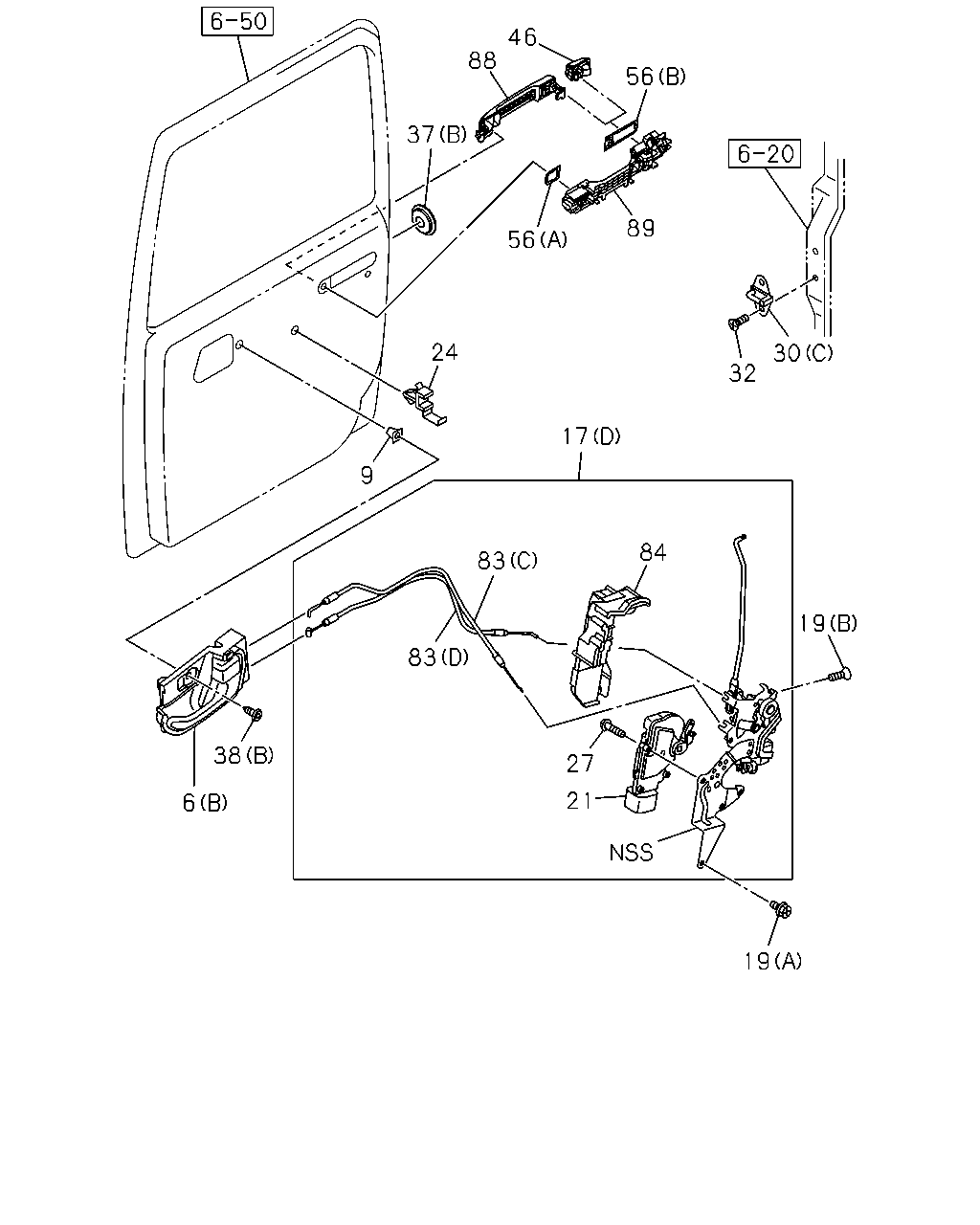

37 88 46 56 56 89 32 30 24 17 9 83 83 84 19 27 21 19 38 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK	8-97421-775-4	01	1	1205-	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK (A) BLACK	8-97421-777-4	01	1	1205-	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR BASIC(RBA) (B) BLACK	8-97416-726-4	01	1	1205-			●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR BASIC(RBA) (B) BLACK	8-97416-728-4	01	1	1205-			●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM(RBD) (B) BLACK	8-97416-730-3	01	1	1205-			●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK INTERIOR CUSTOM(RBD) (B) BLACK	8-97416-732-3	01	1	1205-			●	●
9	16.345 GROMMET; SCREW,INSIDE HANDLE 10.565	8-94152-494-0	02	1	1205-			●	●
17	16.330 LOCK; DOOR,RR DOOR (A)	8-98103-157-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR (A)	8-98103-158-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR (B)	8-98103-159-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR (B)	8-98103-160-5	01	1	1205-	●	●
17	16.330 LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C)	8-98103-984-0	01	1	1205-			●	●
17	16.330 LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C)	8-98103-985-0	01	1	1205-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D)	8-98103-988-1	01	1	1206-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D)	8-98103-989-1	01	1	1206-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> (D)	8-98103-986-1	01	1	1205-1205			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D)	8-98103-986-1	01	1	1206-			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> (D)	8-98103-987-1	01	1	1205-1205			●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (D)	8-98103-987-1	01	1	1206-			●	●
19	16.345 BOLT; RR DOOR LOCK AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE	8-98048-996-0	02	1	1205-			●	●
19	16.345 BOLT; RR DOOR LOCK 16.330 (B) SCREW M6X14.5	8-98004-342-0	06	1	1205-	●	●	●	●
19	16.345 BOLT; RR DOOR LOCK (C) M6X16	8-98165-451-0	06	1	1205-	●	●
21	16.345 ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97351-083-0	01	1	1206-1502			●	●
21	16.345 ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-020-0	01	1	1503-			●	●
21	16.345 ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-97351-084-0	01	1	1206-1502			●	●
21	16.345 ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98292-019-0	01	1	1503-			●	●
21	16.345 ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4>	8-97351-081-0	01	1	1205-1205			●	●
21	16.345 ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-97351-081-0	01	1	1206-1502			●	●
21	16.345 ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98292-018-0	01	1	1503-			●	●
21	16.345 ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4>	8-97351-082-0	01	1	1205-1205			●	●
21	16.345 ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-97351-082-0	01	1	1206-1502			●	●
21	16.345 ACTUATOR; RR DOOR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY>	8-98292-017-0	01	1	1503-			●	●
24	16.345 ANTIRATTLER; DOOR INSIDE HANDLE	8-97251-932-0	02	1	1205-			●	●
27	16.330 SCREW; RR DOOR LOCK AUTO DOOR LOCK<AU4>	8-97349-997-0	04	1	1205-			●	●
30	16.335 STRIKER; RR DOOR (A)	8-98103-162-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (A)	8-98103-163-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (B)	8-98103-164-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (B)	8-98103-165-3	01	1	1205-	●	●
30	16.335 STRIKER; RR DOOR (C)	8-98012-203-0	02	1	1205-			●	●
32	16.335 SCREW; DOOR STRIKER M8X35	8-98049-360-0	08	1	1205-	●	●
32	16.335 SCREW; DOOR STRIKER M8X35	8-98049-360-0	04	1	1205-			●	●
37	16.157 GROMMET; RR DOOR (A)	8-98212-205-0	02	1	1205-	●	●
37	16.157 GROMMET; RR DOOR 12.182 (B) OD=26	8-94141-484-0	02	1	1205-			●	●
38	16.345 SCREW; INSIDE LEVER,RR DOOR LK 02.343 (A) M6X16 FLANGE	0-28650-616-0	06	1	1205-	●	●
38	16.345 SCREW; INSIDE LEVER,RR DOOR LK (B) M5X14 TAPPING	8-98184-363-0	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 16.270	8-98201-401-0	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE OUTSIDE HANDLE CHROME<E20> 16.270 PLATED	8-98176-465-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 DARK BLUE	8-97422-452-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 BLACK	8-97422-454-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 WHITE	8-97422-463-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 DARK RED	8-97422-458-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 SILVER	8-97422-456-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 GRAY	8-97422-455-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 LIGHT ORANGE	8-97422-459-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 DARK GREEN	8-97422-453-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.270 LIGHT BEIGE	8-97422-460-1	02	1	1205-			●	●
46	16.345 COVER; OUTSIDE HANDLE EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> 16.270 BLACK	8-98176-463-1	02	1	1205-			●	●
56	16.360 GASKET; HANDLE,RR DOOR 16.350 (A)	8-98176-466-0	02	1	1205-			●	●
56	16.360 GASKET; HANDLE,RR DOOR (B)	8-98176-467-2	02	1	1205-			●	●
83	16.341 CABLE ASM; LOCK CONTROL (A)	8-98193-861-0	01	1	1205-	●	●
83	16.341 CABLE ASM; LOCK CONTROL (A)	8-98193-862-0	01	1	1205-	●	●
83	16.341 CABLE ASM; LOCK CONTROL (B)	8-98193-863-0	02	1	1205-	●	●
83	16.341 CABLE ASM; LOCK CONTROL (C)	8-98193-717-0	01	1	1205-			●	●
83	16.341 CABLE ASM; LOCK CONTROL (C)	8-98193-715-0	01	1	1205-			●	●
83	16.341 CABLE ASM; LOCK CONTROL (D)	8-98193-716-0	02	1	1205-			●	●
84	16.270 COVER; DOOR LOCK	8-97351-079-0	01	1	1205-			●	●
84	16.270 COVER; DOOR LOCK	8-97351-080-0	01	1	1205-			●	●
88	16.335 GRIP; RR DOOR HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 16.330	8-98201-399-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR OUTSIDE HANDLE CHROME<E20> 16.330 PLATED	8-98176-458-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 DARK BLUE	8-97422-425-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 BLACK	8-97422-427-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 WHITE	8-97422-436-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 DARK RED	8-97422-431-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 SILVER	8-97422-429-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 GRAY	8-97422-428-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 LIGHT ORANGE	8-97422-432-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 DARK GREEN	8-97422-426-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> 16.330 LIGHT BEIGE	8-97422-433-0	02	1	1205-			●	●
88	16.335 GRIP; RR DOOR EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> 16.330	8-98176-456-0	02	1	1205-			●	●
89	16.335 BRACKET; GRIP,DOOR	8-98176-472-4	01	1	1205-			●	●
89	16.335 BRACKET; GRIP,DOOR	8-98176-473-4	01	1	1205-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
