6-50 — REAR DOOR AND HINGE (#81883) — 63 parça

1 3 4 4 4 4 4 3 4 9 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.150 DOOR ASM; REAR	8-98108-260-8	01	1	1205-	●	●
1	16.150 DOOR ASM; REAR	8-98108-261-8	01	1	1205-	●	●
1	16.150 DOOR ASM; REAR	8-98108-218-3	01	1	1205-1205			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98108-218-3	01	1	1206-1301			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)	8-98108-218-3	01	1	1302-1409			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) EXC. EQUIPMENT IMPACT<EPS>	8-98108-218-4	01	1	1410-			●	●
1	16.150 DOOR ASM; REAR	8-98108-219-3	01	1	1205-1205			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98108-219-3	01	1	1206-1301			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)	8-98108-219-3	01	1	1302-1409			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) EXC. EQUIPMENT IMPACT<EPS>	8-98108-219-4	01	1	1410-			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98161-044-1	01	1	1206-1301			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)	8-98161-044-1	01	1	1302-1409			●	●
1	16.150 DOOR ASM; REAR EQUIPMENT IMPACT<EPS>	8-98161-044-2	01	1	1410-			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0)	8-98161-044-2	01	1	1410-			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98161-045-1	01	1	1206-1301			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)	8-98161-045-1	01	1	1302-1409			●	●
1	16.150 DOOR ASM; REAR EQUIPMENT IMPACT<EPS>	8-98161-045-2	01	1	1410-			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0)	8-98161-045-2	01	1	1410-			●	●
3	16.335 HINGE; RR DOOR UPR RH & LWR LH	8-98105-282-3	02	1	1205-	●	●
3	16.335 HINGE; RR DOOR LWR RH & UPR LH	8-98105-283-3	02	1	1205-	●	●
3	16.335 HINGE; RR DOOR UPR RH & LWR LH	8-98105-280-1	02	1	1205-			●	●
3	16.335 HINGE; RR DOOR LWR RH & UPR LH	8-98105-281-1	02	1	1205-			●	●
4	16.335 BOLT; HINGE 09.171 (A) M8X23 FLANGE	8-98005-842-0	04	1	1205-	●	●
4	16.335 BOLT; HINGE 09.171 (A) M8X23 FLANGE	8-98005-842-0	12	1	1205-	●	●
4	16.335 BOLT; HINGE 16.320 (B) M8X23 FLANGE	8-98029-440-0	04	1	1205-	●	●
4	16.335 BOLT; HINGE 09.171 (A) M8X23 FLANGE	8-98005-842-0	08	1	1205-			●	●
4	16.335 BOLT; HINGE 09.171 (A) M8X23 FLANGE	8-98005-842-0	08	1	1205-			●	●
8	16.320 ARM; CHECK,RR DOOR	8-98103-032-4	02	1	1205-	●	●
8	16.320 ARM; CHECK,RR DOOR	8-98103-031-3	02	1	1205-			●	●
9	16.323 BOLT; CHECK ARM 16.320 M8X23	8-98166-694-0	02	1	1205-	●	●	●	●
11	16.320 NUT M6 FLANGE	8-98049-362-0	04	1	1205-	●	●	●	●

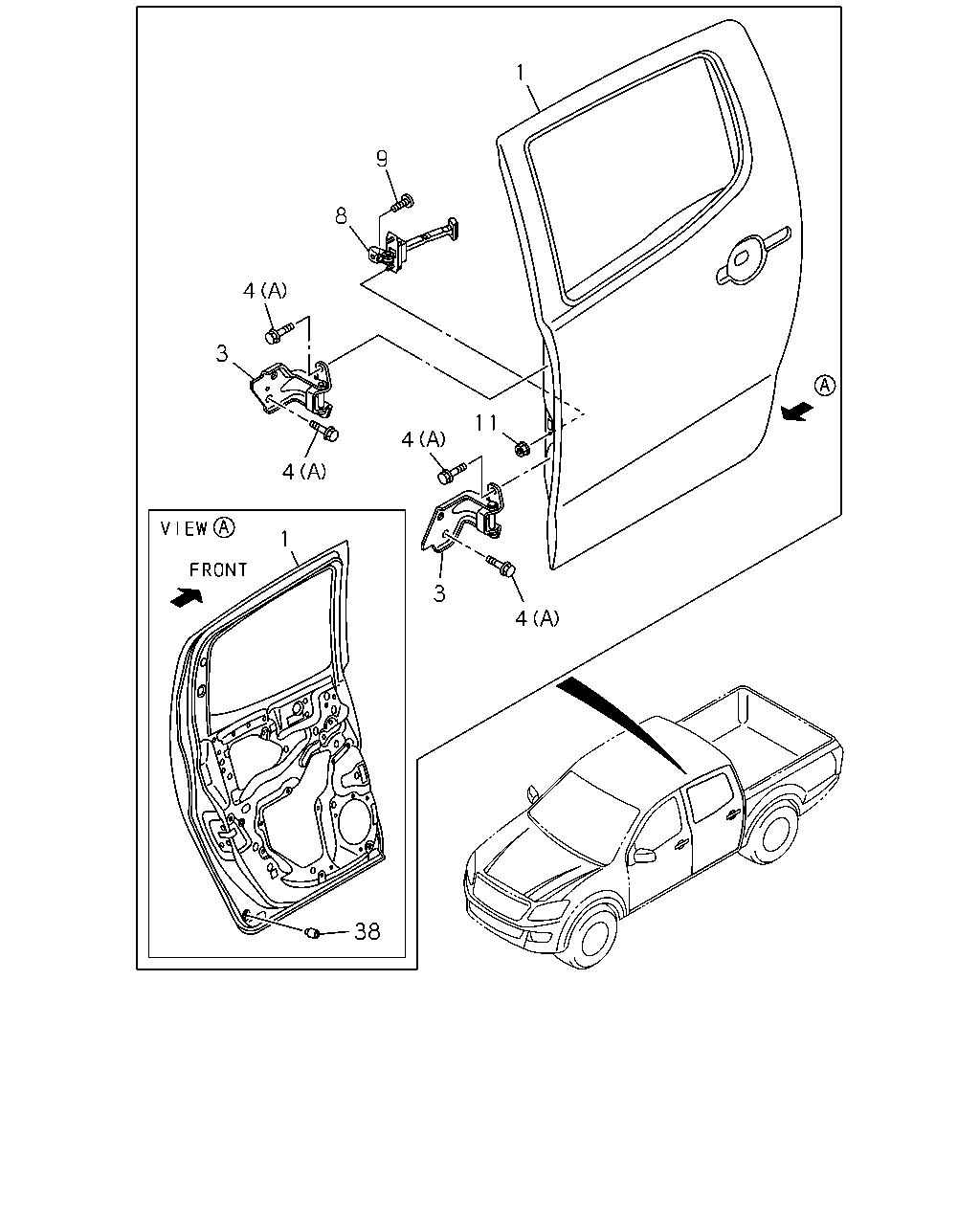

1 9 8 4 3 4 4 11 3 4 1 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.150 DOOR ASM; REAR	8-98108-260-8	01	1	1205-	●	●
1	16.150 DOOR ASM; REAR	8-98108-261-8	01	1	1205-	●	●
1	16.150 DOOR ASM; REAR	8-98108-218-3	01	1	1205-1205			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98108-218-3	01	1	1206-1301			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)	8-98108-218-3	01	1	1302-1409			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) EXC. EQUIPMENT IMPACT<EPS>	8-98108-218-4	01	1	1410-			●	●
1	16.150 DOOR ASM; REAR	8-98108-219-3	01	1	1205-1205			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98108-219-3	01	1	1206-1301			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)	8-98108-219-3	01	1	1302-1409			●	●
1	16.150 DOOR ASM; REAR AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) EXC. EQUIPMENT IMPACT<EPS>	8-98108-219-4	01	1	1410-			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98161-044-1	01	1	1206-1301			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)	8-98161-044-1	01	1	1302-1409			●	●
1	16.150 DOOR ASM; REAR EQUIPMENT IMPACT<EPS>	8-98161-044-2	01	1	1410-			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0)	8-98161-044-2	01	1	1410-			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98161-045-1	01	1	1206-1301			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)	8-98161-045-1	01	1	1302-1409			●	●
1	16.150 DOOR ASM; REAR EQUIPMENT IMPACT<EPS>	8-98161-045-2	01	1	1410-			●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0)	8-98161-045-2	01	1	1410-			●	●
3	16.335 HINGE; RR DOOR UPR RH & LWR LH	8-98105-282-3	02	1	1205-	●	●
3	16.335 HINGE; RR DOOR LWR RH & UPR LH	8-98105-283-3	02	1	1205-	●	●
3	16.335 HINGE; RR DOOR UPR RH & LWR LH	8-98105-280-1	02	1	1205-			●	●
3	16.335 HINGE; RR DOOR LWR RH & UPR LH	8-98105-281-1	02	1	1205-			●	●
4	16.335 BOLT; HINGE 09.171 (A) M8X23 FLANGE	8-98005-842-0	04	1	1205-	●	●
4	16.335 BOLT; HINGE 09.171 (A) M8X23 FLANGE	8-98005-842-0	12	1	1205-	●	●
4	16.335 BOLT; HINGE 16.320 (B) M8X23 FLANGE	8-98029-440-0	04	1	1205-	●	●
4	16.335 BOLT; HINGE 09.171 (A) M8X23 FLANGE	8-98005-842-0	08	1	1205-			●	●
4	16.335 BOLT; HINGE 09.171 (A) M8X23 FLANGE	8-98005-842-0	08	1	1205-			●	●
8	16.320 ARM; CHECK,RR DOOR	8-98103-032-4	02	1	1205-	●	●
8	16.320 ARM; CHECK,RR DOOR	8-98103-031-3	02	1	1205-			●	●
9	16.323 BOLT; CHECK ARM 16.320 M8X23	8-98166-694-0	02	1	1205-	●	●	●	●
11	16.320 NUT M6 FLANGE	8-98049-362-0	04	1	1205-	●	●	●	●
38	16.152 PROTECTOR; RR DOOR 16.165	8-98202-864-0	02	1	1205-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
