6-01 — FRONT BUMPER (#8188) — 209 parça

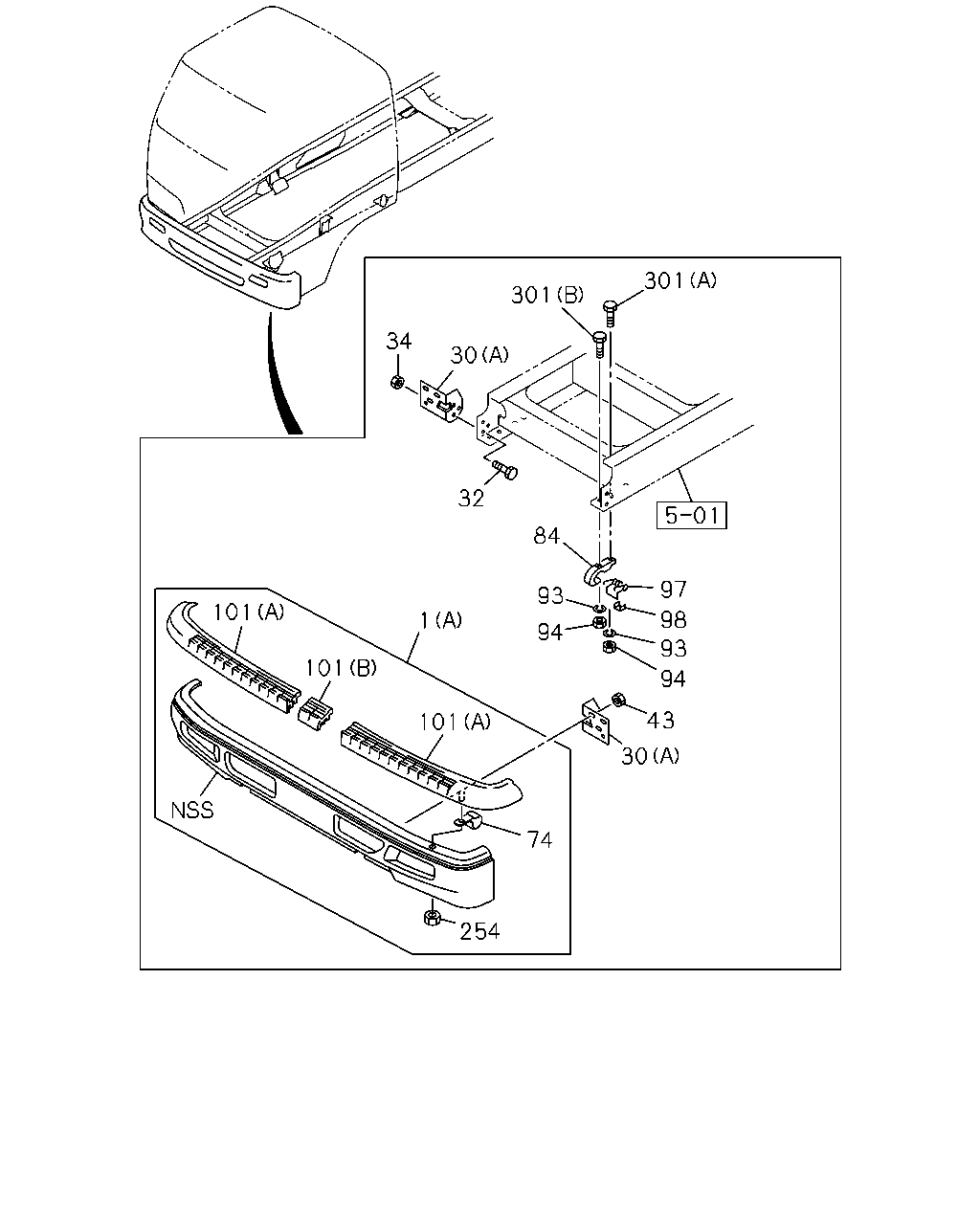

301 301 34 30 32 84 97 93 101 98 1 94 93 101 94 43 101 30 74 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0210	●	●	●	●
1	BUMPER ASM; FRT (B)	1-71210-843-1	01	1	0211-	●	●	●	●
30	BRACKET; FRT BUMPER (D)	1-53497-584-0	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-542-1	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (D)	1-53497-583-0	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-543-1	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-0210	●	●	●	●
30	BRACKET; FRT BUMPER (B)	1-71230-576-0	01	1	0211-	●	●	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●	●	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-568-0	01	1	0112-0210	●	●	●	●
30	BRACKET; FRT BUMPER (B)	1-71230-577-0	01	1	0211-	●	●	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-320-1	01	1	0211-			●	●
30	BRACKET; FRT BUMPER (C)	1-71230-498-1	01	1	0211-			●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0210	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	08	1	0211-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER M14	9-99110-514-0	12	1	0211-0512	●	●
34	NUT; BRKT,BUMPER M14	0-91110-514-0	12	1	0601-	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0210	●	●	●	●
34	NUT; BRKT,BUMPER M14	9-99110-514-0	04	1	0211-0512			●	●
34	NUT; BRKT,BUMPER M14	0-91110-514-0	04	1	0601-			●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0210	●	●	●	●
43	NUT; BRKT TO BUMPER M10 CAP NUT	1-09650-480-0	08	1	0211-	●	●	●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0005-0210	●	●	●	●
84	HOOK	1-57181-017-2	01	1	0005-0210	●	●
84	HOOK	1-57181-027-1	01	1	0005-			●	●
93	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	0005-0210	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0005-0603			●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-			●	●
94	NUT; HOOK M14	9-99110-414-0	02	1	0005-0210	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	0005-0206			●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0207-0210			●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0211-0512			●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	0601-			●	●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0005-			●	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0005-			●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0005-0210	●	●	●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0005-0210	●	●	●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0005-0210	●	●	●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0005-0210	●	●	●	●
301	BOLT; HOOK TO FRAME (A) M14X60	0-10811-460-0	01	1	0005-0210	●	●
301	BOLT; HOOK TO FRAME (B) M14X70	0-10811-470-0	01	1	0005-0210	●	●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10811-660-0	01	1	0005-0512			●	●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10861-660-0	01	1	0601-			●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10811-670-0	01	1	0005-0512			●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10861-670-0	01	1	0601-			●	●

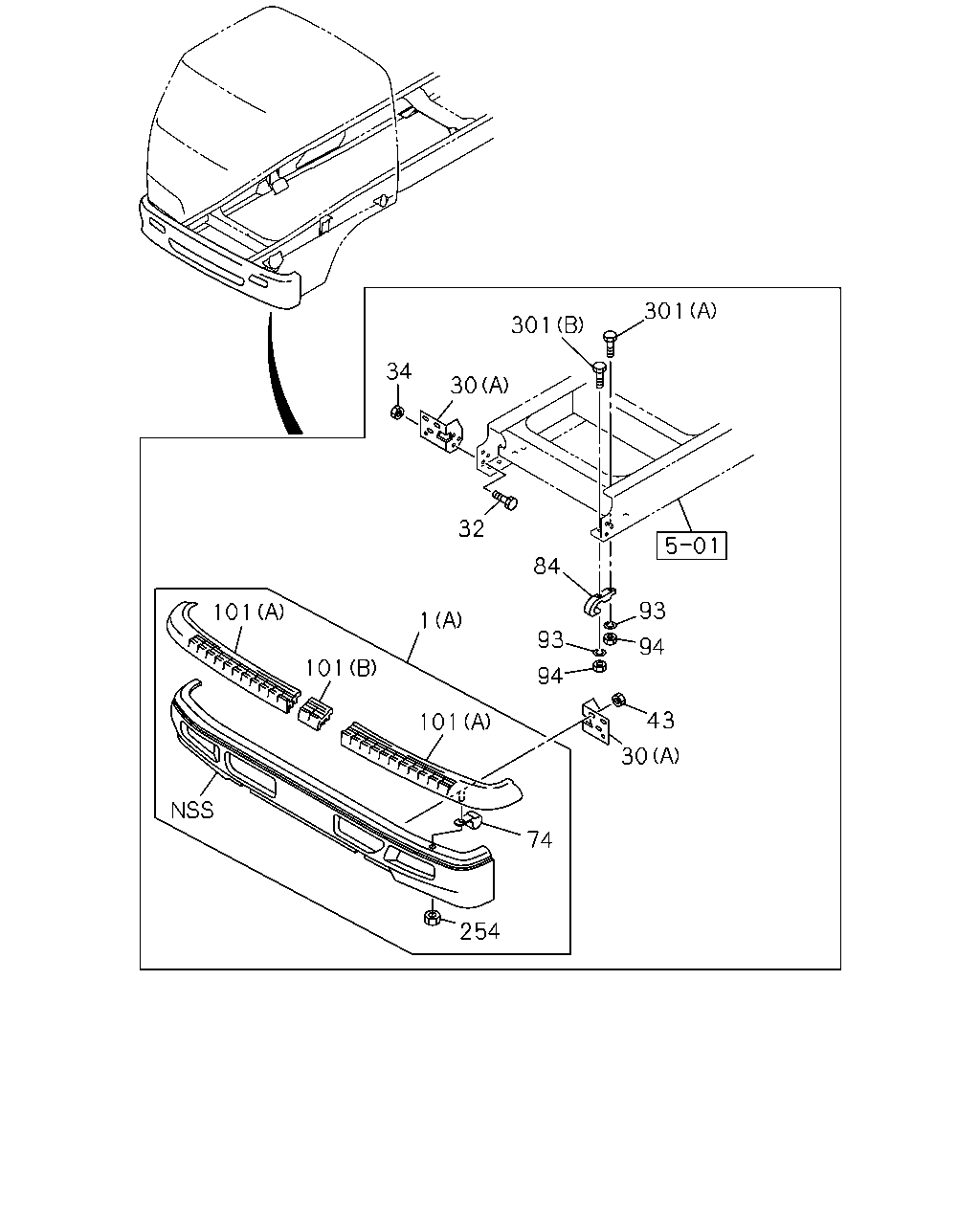

301 301 34 30 32 84 93 101 1 93 94 101 94 43 101 30 74 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0210	●	●	●	●
1	BUMPER ASM; FRT (B)	1-71210-843-1	01	1	0211-	●	●	●	●
30	BRACKET; FRT BUMPER (D)	1-53497-584-0	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-542-1	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (D)	1-53497-583-0	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-543-1	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-0210	●	●	●	●
30	BRACKET; FRT BUMPER (B)	1-71230-576-0	01	1	0211-	●	●	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●	●	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-568-0	01	1	0112-0210	●	●	●	●
30	BRACKET; FRT BUMPER (B)	1-71230-577-0	01	1	0211-	●	●	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-320-1	01	1	0211-			●	●
30	BRACKET; FRT BUMPER (C)	1-71230-498-1	01	1	0211-			●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0210	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	08	1	0211-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER M14	9-99110-514-0	12	1	0211-0512	●	●
34	NUT; BRKT,BUMPER M14	0-91110-514-0	12	1	0601-	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0210	●	●	●	●
34	NUT; BRKT,BUMPER M14	9-99110-514-0	04	1	0211-0512			●	●
34	NUT; BRKT,BUMPER M14	0-91110-514-0	04	1	0601-			●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0210	●	●	●	●
43	NUT; BRKT TO BUMPER M10 CAP NUT	1-09650-480-0	08	1	0211-	●	●	●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0005-0210	●	●	●	●
84	HOOK	1-57181-017-2	01	1	0005-0210	●	●
84	HOOK	1-57181-027-1	01	1	0005-			●	●
93	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	0005-0210	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0005-0603			●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-			●	●
94	NUT; HOOK M14	9-99110-414-0	02	1	0005-0210	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	0005-0206			●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0207-0210			●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0211-0512			●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	0601-			●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0005-0210	●	●	●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0005-0210	●	●	●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0005-0210	●	●	●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0005-0210	●	●	●	●
301	BOLT; HOOK TO FRAME (A) M14X60	0-10811-460-0	01	1	0005-0210	●	●
301	BOLT; HOOK TO FRAME (B) M14X70	0-10811-470-0	01	1	0005-0210	●	●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10811-660-0	01	1	0005-0512			●	●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10861-660-0	01	1	0601-			●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10811-670-0	01	1	0005-0512			●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10861-670-0	01	1	0601-			●	●

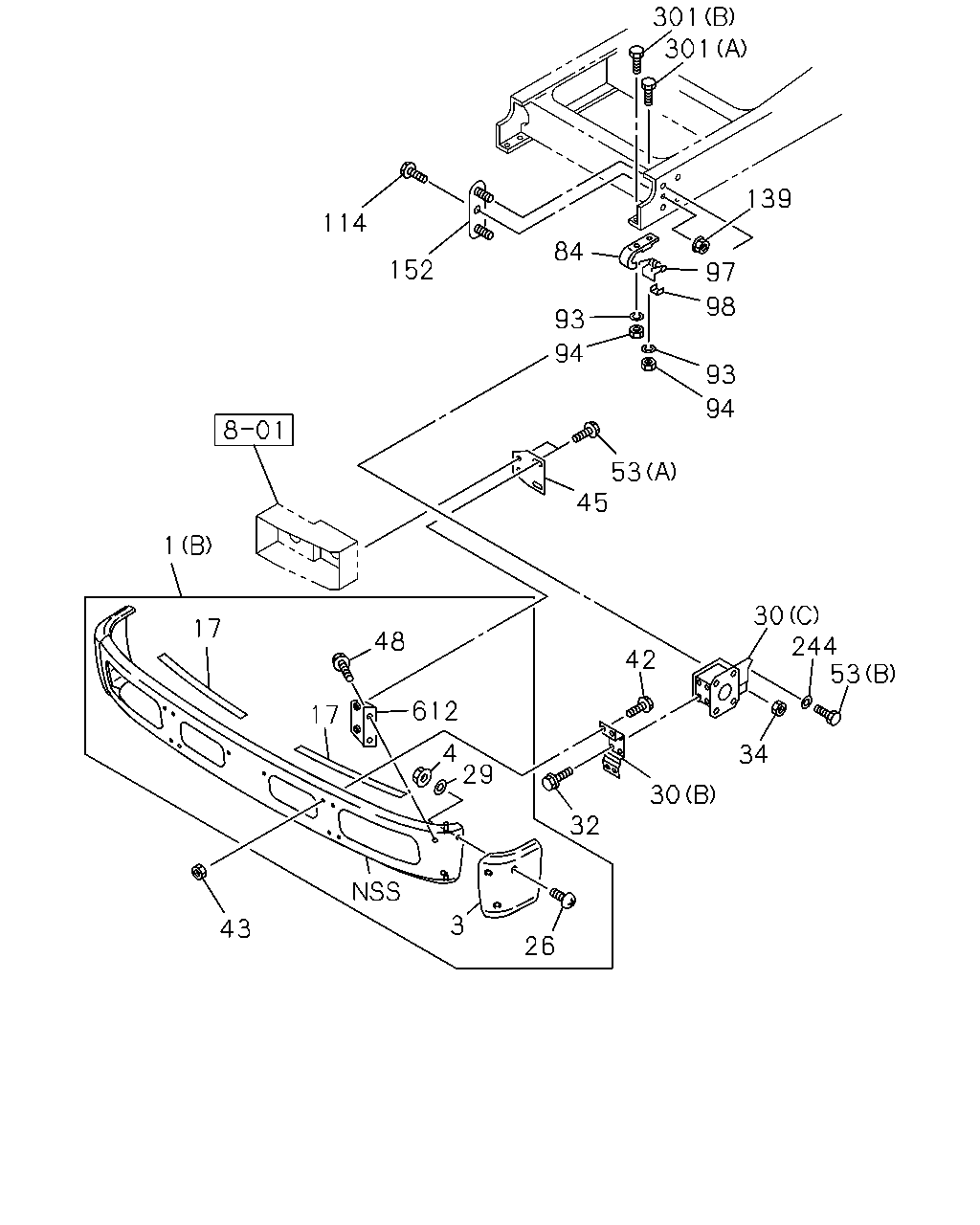

301 301 139 114 84 97 152 98 93 94 93 94 53 45 1 30 244 53 17 48 42 612 17 4 29 34 30 32 3 43 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0210	●	●	●	●
1	BUMPER ASM; FRT (B)	1-71210-843-1	01	1	0211-	●	●	●	●
3	BUMPER; FRT,SIDE	1-71210-642-0	01	1	0211-	●	●	●	●
3	BUMPER; FRT,SIDE	1-71210-641-0	01	1	0211-	●	●	●	●
4	NUT; CTR BUMPER M8 FLANGE	0-91150-108-0	06	1	0211-0602	●	●	●	●
4	NUT; CTR BUMPER M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●	●
17	PROTECTOR; FRT BUMPER	1-71260-178-0	02	1	0211-	●	●	●	●
26	BOLT; CTR BUMPER	1-09060-008-0	06	1	0211-	●	●	●	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	9-09160-708-0	06	1	0211-0605	●	●	●	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	06	1	0606-	●	●	●	●
30	BRACKET; FRT BUMPER (D)	1-53497-584-0	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-542-1	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (D)	1-53497-583-0	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-543-1	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-0210	●	●	●	●
30	BRACKET; FRT BUMPER (B)	1-71230-576-0	01	1	0211-	●	●	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●	●	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-568-0	01	1	0112-0210	●	●	●	●
30	BRACKET; FRT BUMPER (B)	1-71230-577-0	01	1	0211-	●	●	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-320-1	01	1	0211-			●	●
30	BRACKET; FRT BUMPER (C)	1-71230-498-1	01	1	0211-			●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0210	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	08	1	0211-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER M14	9-99110-514-0	12	1	0211-0512	●	●
34	NUT; BRKT,BUMPER M14	0-91110-514-0	12	1	0601-	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0210	●	●	●	●
34	NUT; BRKT,BUMPER M14	9-99110-514-0	04	1	0211-0512			●	●
34	NUT; BRKT,BUMPER M14	0-91110-514-0	04	1	0601-			●	●
42	BOLT; BUMPER M10X25 FLANGE	0-28681-025-0	06	1	0211-0212	●	●	●	●
42	BOLT; BUMPER M10X25 FLANGE	0-28681-025-0	07	1	0301-0512	●	●	●	●
42	BOLT; BUMPER M10X25 FLANGE	0-28651-025-0	07	1	0601-	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0210	●	●	●	●
43	NUT; BRKT TO BUMPER M10 CAP NUT	1-09650-480-0	08	1	0211-	●	●	●	●
45	BRACKET; BRKT TO BUMPER	1-71230-350-1	02	1	0211-	●	●	●	●
48	BOLT; SUPPORT M10X16 FLANGE	0-28081-016-0	04	1	0211-0512	●	●	●	●
48	BOLT; SUPPORT M10X16 FLANGE	0-28051-016-0	04	1	0601-	●	●	●	●
53	BOLT; BRKT TO FRAME (B) M14X40	0-20801-440-0	16	1	0211-0512	●	●
53	BOLT; BRKT TO FRAME (B) M14X40	0-20851-440-0	16	1	0601-	●	●
53	BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	08	1	0211-0512	●	●	●	●
53	BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28651-025-0	08	1	0601-	●	●	●	●
53	BOLT; BRKT TO FRAME (B) M14X40	0-20801-440-0	04	1	0211-0512			●	●
53	BOLT; BRKT TO FRAME (B) M14X40	0-20851-440-0	04	1	0601-			●	●
84	HOOK	1-57181-017-2	01	1	0005-0210	●	●
84	HOOK	1-57181-027-1	01	1	0005-			●	●
93	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	0005-0210	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0005-0603			●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-			●	●
94	NUT; HOOK M14	9-99110-414-0	02	1	0005-0210	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	0005-0206			●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0207-0210			●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0211-0512			●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	0601-			●	●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0005-			●	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0005-			●	●
114	BOLT M8X20 FLANGE	0-28680-820-0	02	1	0211-0512			●	●
114	BOLT M8X20 FLANGE	0-28650-820-0	02	1	0601-			●	●
139	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	02	1	0211-0602			●	●
139	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0603-			●	●
152	PLATE; FRT BUMPER	1-53497-544-1	02	1	0211-			●	●
244	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	16	1	0211-0603	●	●
244	WASHER; LK,BRKT TO FRAME ID=14.2	0-91510-814-0	16	1	0604-	●	●
244	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	0211-0603			●	●
244	WASHER; LK,BRKT TO FRAME ID=14.2	0-91510-814-0	08	1	0604-			●	●
301	BOLT; HOOK TO FRAME (A) M14X60	0-10811-460-0	01	1	0005-0210	●	●
301	BOLT; HOOK TO FRAME (B) M14X70	0-10811-470-0	01	1	0005-0210	●	●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10811-660-0	01	1	0005-0512			●	●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10861-660-0	01	1	0601-			●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10811-670-0	01	1	0005-0512			●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10861-670-0	01	1	0601-			●	●
612	SUPPORT	1-71230-351-0	02	1	0211-	●	●	●	●

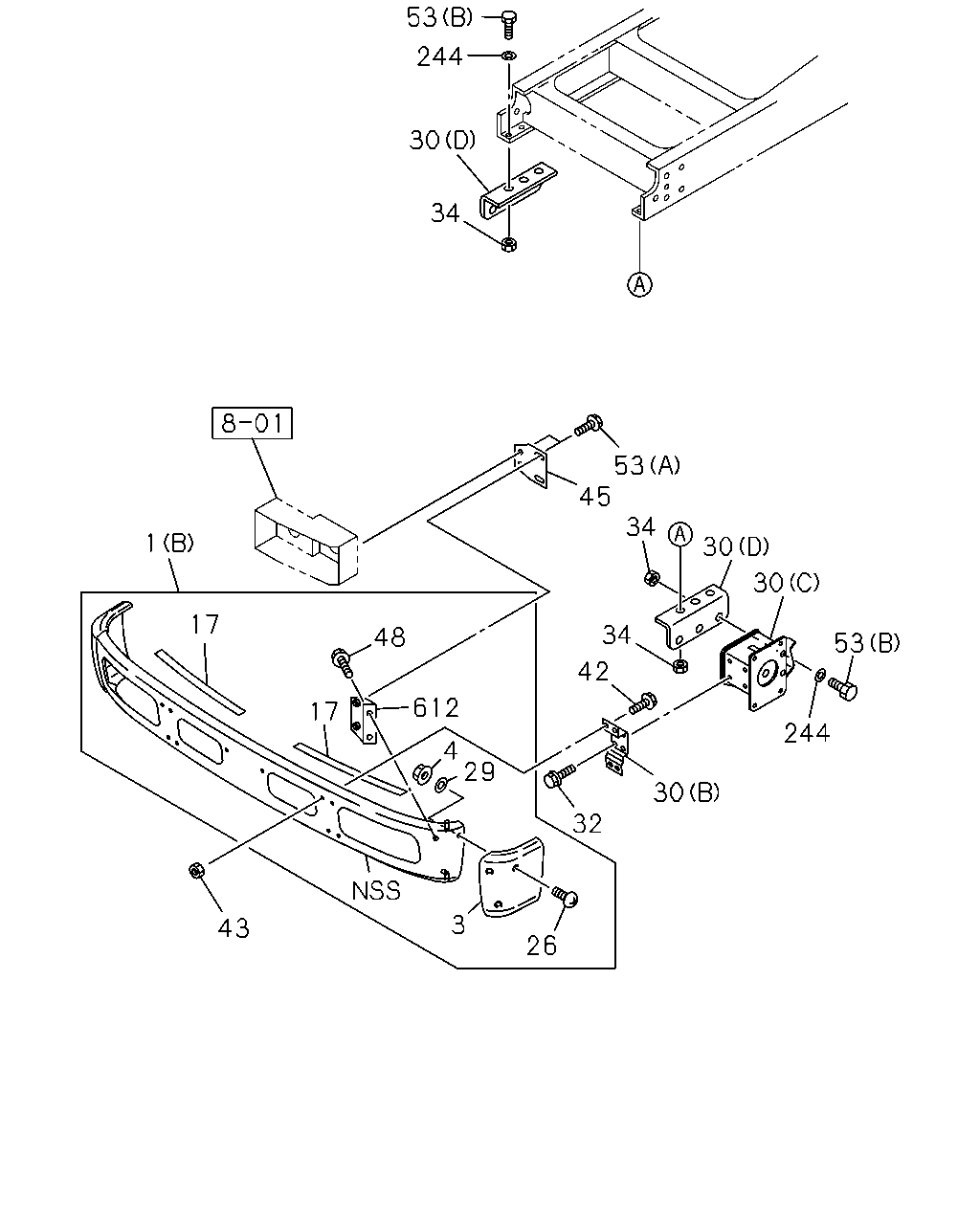

53 244 30 34 53 45 34 1 30 30 17 34 48 53 42 612 17 244 4 29 30 32 3 43 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0210	●	●	●	●
1	BUMPER ASM; FRT (B)	1-71210-843-1	01	1	0211-	●	●	●	●
3	BUMPER; FRT,SIDE	1-71210-642-0	01	1	0211-	●	●	●	●
3	BUMPER; FRT,SIDE	1-71210-641-0	01	1	0211-	●	●	●	●
4	NUT; CTR BUMPER M8 FLANGE	0-91150-108-0	06	1	0211-0602	●	●	●	●
4	NUT; CTR BUMPER M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●	●
17	PROTECTOR; FRT BUMPER	1-71260-178-0	02	1	0211-	●	●	●	●
26	BOLT; CTR BUMPER	1-09060-008-0	06	1	0211-	●	●	●	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	9-09160-708-0	06	1	0211-0605	●	●	●	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	06	1	0606-	●	●	●	●
30	BRACKET; FRT BUMPER (D)	1-53497-584-0	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-542-1	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (D)	1-53497-583-0	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-543-1	01	1	0211-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-0210	●	●	●	●
30	BRACKET; FRT BUMPER (B)	1-71230-576-0	01	1	0211-	●	●	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●	●	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-568-0	01	1	0112-0210	●	●	●	●
30	BRACKET; FRT BUMPER (B)	1-71230-577-0	01	1	0211-	●	●	●	●
30	BRACKET; FRT BUMPER (C)	1-71230-320-1	01	1	0211-			●	●
30	BRACKET; FRT BUMPER (C)	1-71230-498-1	01	1	0211-			●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0210	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	08	1	0211-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER M14	9-99110-514-0	12	1	0211-0512	●	●
34	NUT; BRKT,BUMPER M14	0-91110-514-0	12	1	0601-	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0210	●	●	●	●
34	NUT; BRKT,BUMPER M14	9-99110-514-0	04	1	0211-0512			●	●
34	NUT; BRKT,BUMPER M14	0-91110-514-0	04	1	0601-			●	●
42	BOLT; BUMPER M10X25 FLANGE	0-28681-025-0	06	1	0211-0212	●	●	●	●
42	BOLT; BUMPER M10X25 FLANGE	0-28681-025-0	07	1	0301-0512	●	●	●	●
42	BOLT; BUMPER M10X25 FLANGE	0-28651-025-0	07	1	0601-	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0210	●	●	●	●
43	NUT; BRKT TO BUMPER M10 CAP NUT	1-09650-480-0	08	1	0211-	●	●	●	●
45	BRACKET; BRKT TO BUMPER	1-71230-350-1	02	1	0211-	●	●	●	●
48	BOLT; SUPPORT M10X16 FLANGE	0-28081-016-0	04	1	0211-0512	●	●	●	●
48	BOLT; SUPPORT M10X16 FLANGE	0-28051-016-0	04	1	0601-	●	●	●	●
53	BOLT; BRKT TO FRAME (B) M14X40	0-20801-440-0	16	1	0211-0512	●	●
53	BOLT; BRKT TO FRAME (B) M14X40	0-20851-440-0	16	1	0601-	●	●
53	BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	08	1	0211-0512	●	●	●	●
53	BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28651-025-0	08	1	0601-	●	●	●	●
53	BOLT; BRKT TO FRAME (B) M14X40	0-20801-440-0	04	1	0211-0512			●	●
53	BOLT; BRKT TO FRAME (B) M14X40	0-20851-440-0	04	1	0601-			●	●
244	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	16	1	0211-0603	●	●
244	WASHER; LK,BRKT TO FRAME ID=14.2	0-91510-814-0	16	1	0604-	●	●
244	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	0211-0603			●	●
244	WASHER; LK,BRKT TO FRAME ID=14.2	0-91510-814-0	08	1	0604-			●	●
612	SUPPORT	1-71230-351-0	02	1	0211-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
