6-30 — FRONT DOOR AND HINGE (#81876) — 119 parça

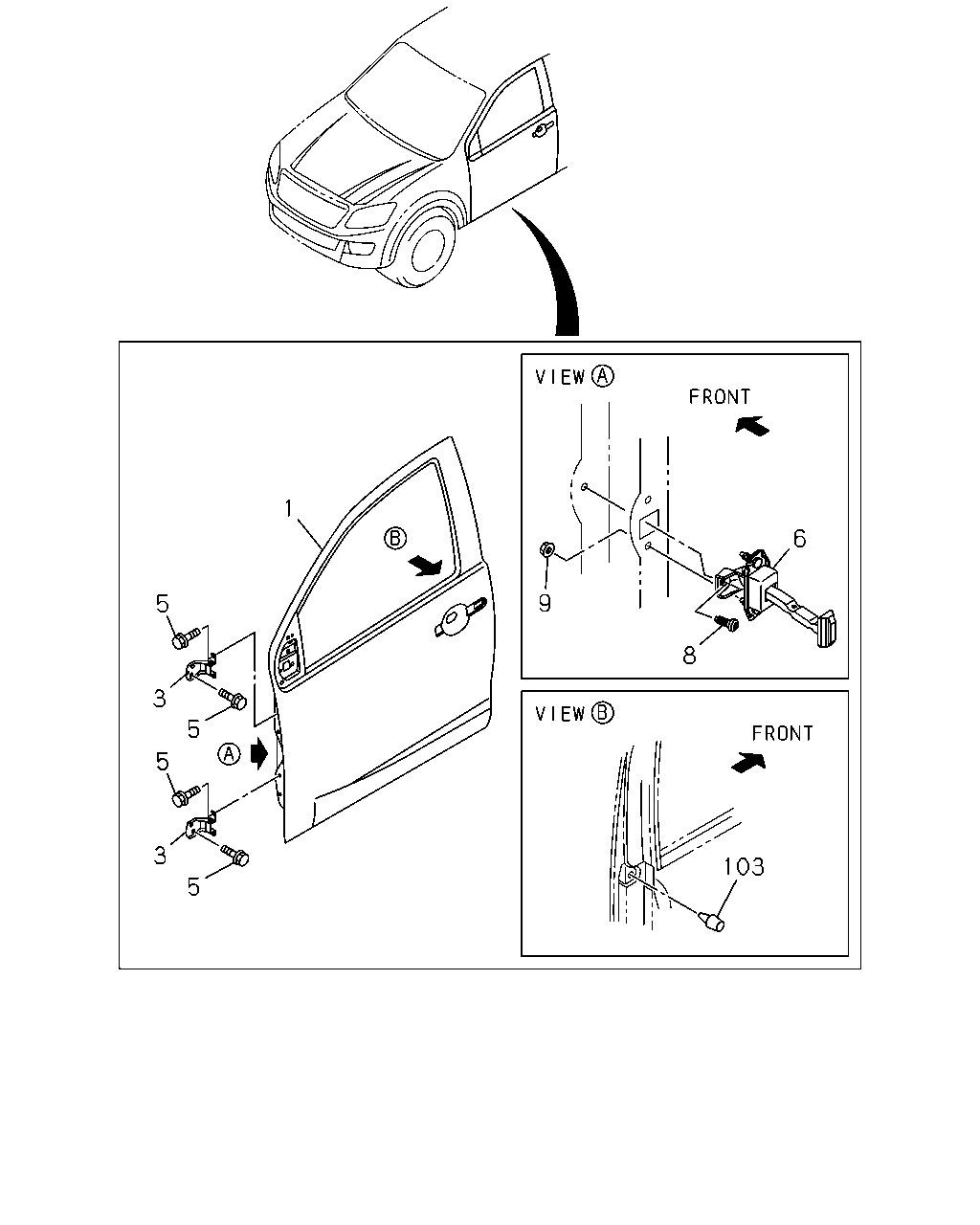

çizim 131051
6 8 9 103 1 5 3 5 5 3 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98162-202-2 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13), SINGAPORE EQUIPMENT(2G0) 		8-98162-202-2 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-202-2 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-202-2 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EQUIPMENT IMPACT<EPS> 		8-98268-843-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0) 		8-98268-843-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,S INGAPORE EQUIPMENT(2G0) 		8-98268-843-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98162-203-2 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13), SINGAPORE EQUIPMENT(2G0) 		8-98162-203-2 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-203-2 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-203-2 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EQUIPMENT IMPACT<EPS> 		8-98268-842-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0) 		8-98268-842-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,S INGAPORE EQUIPMENT(2G0) 		8-98268-842-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98162-200-2 01 1 1206-1301 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-200-2 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-200-2 01 1 1302-1409 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-200-2 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0) 		8-98268-844-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
INTERIOR CUSTOM(RBD) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EQUIPMENT IMPACT<EPS> HIGH RIDE SUSPENSION(7YC) 		8-98268-844-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98268-844-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98162-201-2 01 1 1206-1301 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-201-2 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-201-2 01 1 1302-1409 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-201-2 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0) 		8-98268-845-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
INTERIOR CUSTOM(RBD) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EQUIPMENT IMPACT<EPS> HIGH RIDE SUSPENSION(7YC) 		8-98268-845-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98268-845-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98162-198-2 01 1 1206-1301 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-198-2 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-198-2 01 1 1302-1409 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-198-2 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0) 		8-98268-847-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98268-847-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98162-199-2 01 1 1206-1301 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-199-2 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) 		8-98162-199-2 01 1 1302-1409 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-199-2 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0) 		8-98268-846-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98268-846-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-131-3 01 1 1205-1205 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-131-3 01 1 1205-1205 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-131-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98108-131-4 01 1 1206-1301 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-131-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-131-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98108-131-4 01 1 1302-1409 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-131-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98268-839-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-839-0 01 1 1410- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
INTERIOR CUSTOM(RBD) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98268-839-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-132-3 01 1 1205-1205 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-132-3 01 1 1205-1205 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-132-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98108-132-4 01 1 1206-1301 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-132-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-132-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98108-132-4 01 1 1302-1409 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98108-132-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98268-838-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-838-0 01 1 1410- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
INTERIOR CUSTOM(RBD) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98268-838-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98108-129-3 01 1 1205-1205 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98108-129-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98108-129-4 01 1 1206-1301 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> 		8-98108-129-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98108-129-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98108-129-4 01 1 1302-1409 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> 		8-98108-129-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98268-841-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-841-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> 		8-98268-841-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98108-130-3 01 1 1205-1205 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98108-130-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98108-130-4 01 1 1206-1301 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> 		8-98108-130-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98108-130-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98108-130-4 01 1 1302-1409 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> 		8-98108-130-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98268-840-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-840-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> 		8-98268-840-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98120-695-3 01 1 1205-1205 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98120-695-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98120-695-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98120-695-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98120-695-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-835-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-835-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98120-696-3 01 1 1205-1205 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98120-696-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98120-696-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98120-696-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98120-696-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-834-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-834-0 01 1 1410- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98120-693-3 01 1 1205-1205 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98120-693-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98120-693-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98120-693-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98120-693-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-837-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
INTERIOR BASIC(RBA) DOOR MIRROR<RT9> EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98268-837-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98120-694-3 01 1 1205-1205 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98120-694-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98120-694-4 01 1 1206-1301 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98120-694-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> 		8-98120-694-4 01 1 1302-1409 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) DOOR MIRROR<RT9> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-836-0 01 1 1410- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
INTERIOR BASIC(RBA) DOOR MIRROR<RT9> EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98268-836-0 01 1 1410- ● ●
3 16.320 HINGE; DOOR FRT
UPR RH & LWR LH 		8-98105-296-0 02 1 1205- ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
LWR RH & UPR LH 		8-98105-297-0 02 1 1205- ● ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1205- ● ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1205- ● ● ● ● ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-98103-030-5 02 1 1205- ● ● ● ● ● ●
8 16.320 BOLT; CHECK ARM
M8X23 		8-98166-694-0 02 1 1205- ● ● ● ● ● ●
9 16.320 NUT; CHECK ARM
M6 FLANGE 		8-98049-362-0 04 1 1205- ● ● ● ● ● ●
103 16.165 PROTECTOR; FRT DOOR 8-98202-864-0 04 1 1205- ● ● ● ● ● ●

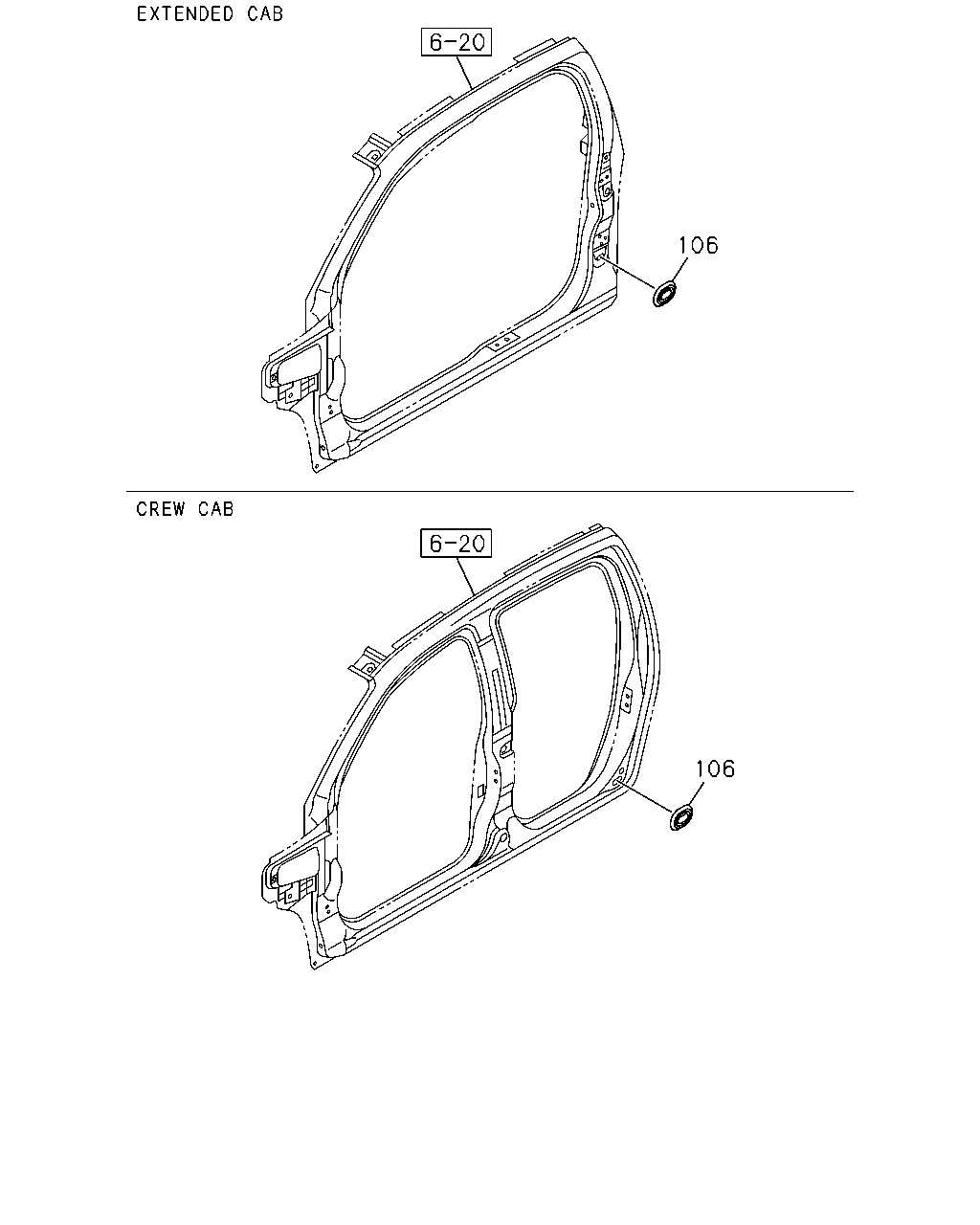

çizim 194298
106 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
106 16.165 GROMMET; PROTECTOR
16.570 		8-94279-724-0 02 1 1205- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
