◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-14 - DASH PANEL AND FENDER SKIRT ▶
6-14 — DASH PANEL AND FENDER SKIRT (#81874) — 13 parça

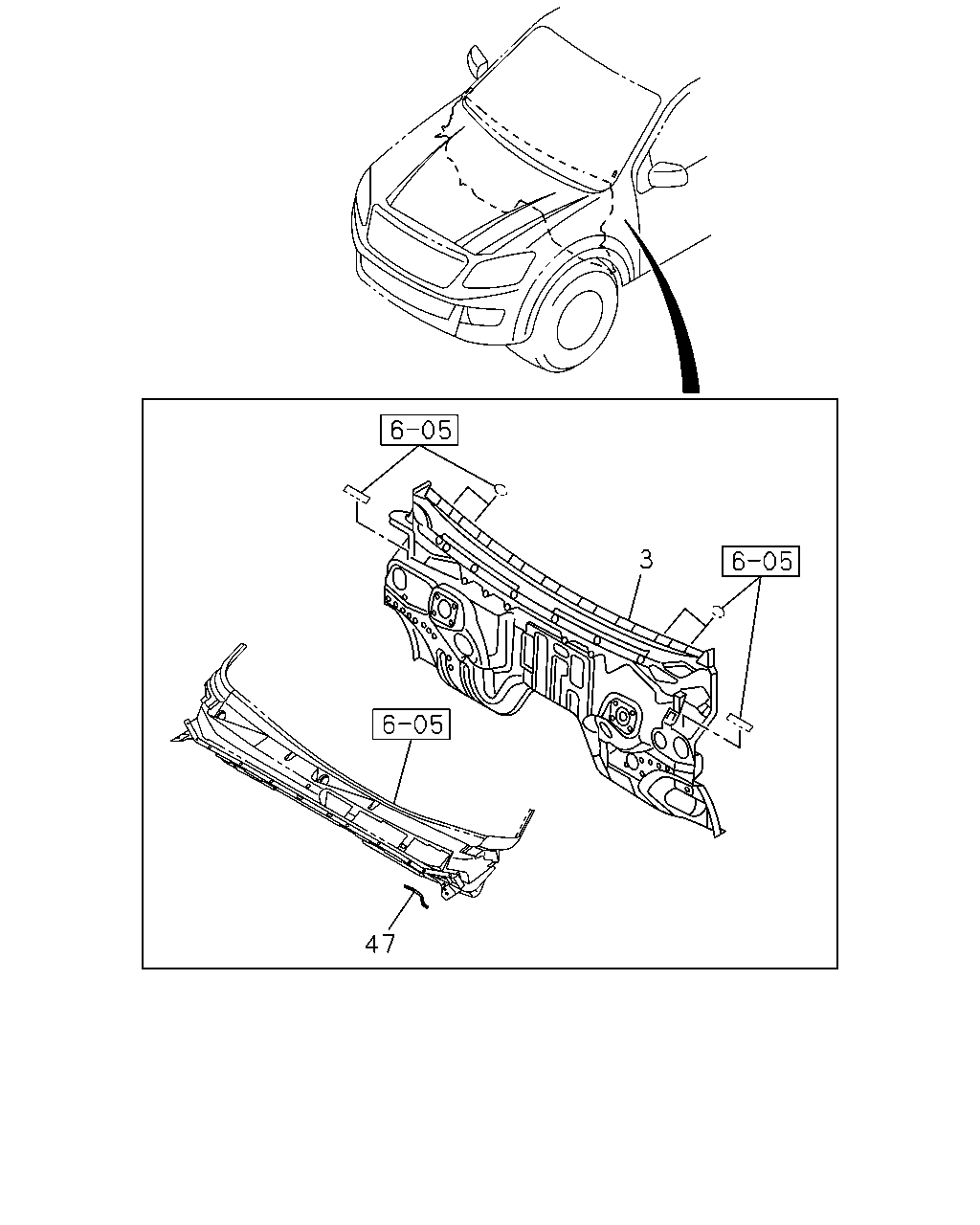

çizim 194297
3 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) 		8-98103-215-2 01 1 1206-1301 ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF) 		8-98103-215-2 01 1 1302- ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) CONGO EQUIPMENT(CDF) 		8-98206-216-2 01 1 1302- ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCX ENG(LS0) 		8-98103-213-2 01 1 1205-1205 ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 		8-98103-213-2 01 1 1206-1210 ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 		8-98103-213-2 01 1 1211-1301 ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. CONGO EQUIPMENT(CDF) 		8-98103-213-2 01 1 1302- ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) CONGO EQUIPMENT(CDF) 		8-98124-738-2 01 1 1302- ● ● ● ●
47 16.550 TAPE; DASH PANEL
4JA1-T ENG(LP0) 		8-98151-273-0 02 1 1206- ● ●
47 16.550 TAPE; DASH PANEL
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98151-273-0 01 1 1205-1205 ● ● ● ● ● ●
47 16.550 TAPE; DASH PANEL
4JJ1-TCX ENG(LS0) 		8-98151-273-0 01 1 1205-1205 ● ● ● ● ● ●
47 16.550 TAPE; DASH PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 		8-98151-273-0 01 1 1206-1210 ● ● ● ● ● ●
47 16.550 TAPE; DASH PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 		8-98151-273-0 01 1 1211- ● ● ● ● ● ●
