5-30 — SPARE TIRE CARRIER AND COVER (#8187) — 21 parça

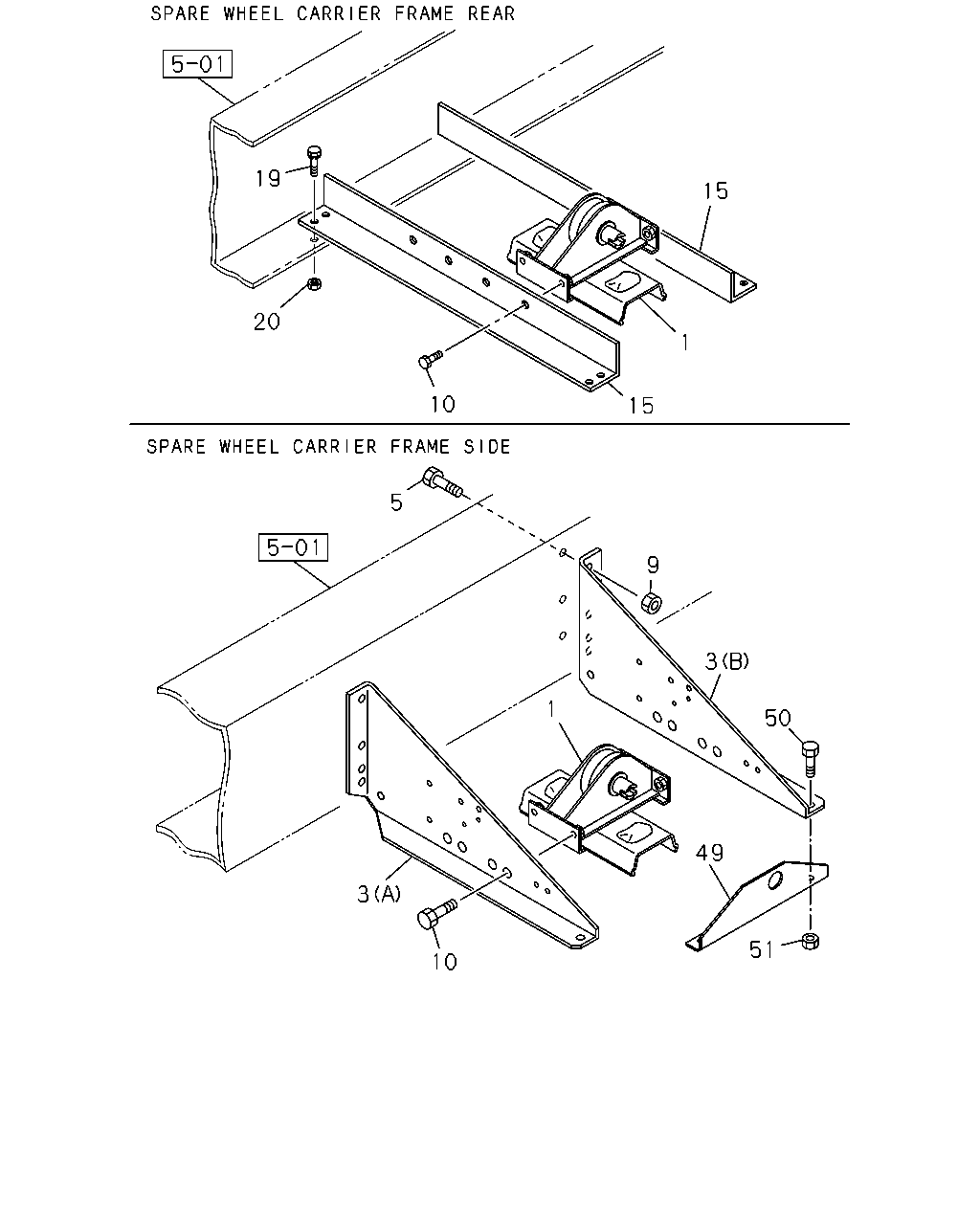

çizim 78145
19 15 20 1 10 15 5 9 3 1 50 49 3 51 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANGER ASM; TIRE FT 1-53630-208-3 01 1 0005- ● ● ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-374-0 01 1 0005-0210 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-375-0 01 1 0005-0210 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 0005-0210 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 04 1 0005-0210 ●
10 BOLT; TIRE HANGER
M12X30 FLANGE 		0-28681-230-0 04 1 0005-0512 ● ● ● ●
10 BOLT; TIRE HANGER
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-394-0 02 1 0005-0210 ● ●
15 MEMBER; CROSS,SPARE TIRE 1-53631-394-0 02 1 0211- ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-373-0 02 1 0005-0210 ● ●
15 MEMBER; CROSS,SPARE TIRE 1-53631-373-0 02 1 0211- ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 08 1 0005-0210 ● ● ● ●
19 BOLT; C/MBR
M10X30 FLANGE 		0-28081-030-0 08 1 0211-0311 ● ● ● ●
19 BOLT; C/MBR
M10X25 FLANGE 		0-28081-025-0 08 1 0312-0512 ● ● ● ●
19 BOLT; C/MBR
M10X25 FLANGE 		0-28051-025-0 08 1 0601- ● ● ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 0005-0210 ● ● ● ●
20 NUT; C/MBR
M10 FLANGE 		0-91150-210-0 08 1 0211-0602 ● ● ● ●
20 NUT; C/MBR
M10 FLANGE 		0-91180-210-0 08 1 0603- ● ● ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-376-0 01 1 0005-0210 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 02 1 0005-0210 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 02 1 0005-0210 ●
