6-01 — FRONT BUMPER (#81869) — 190 parça

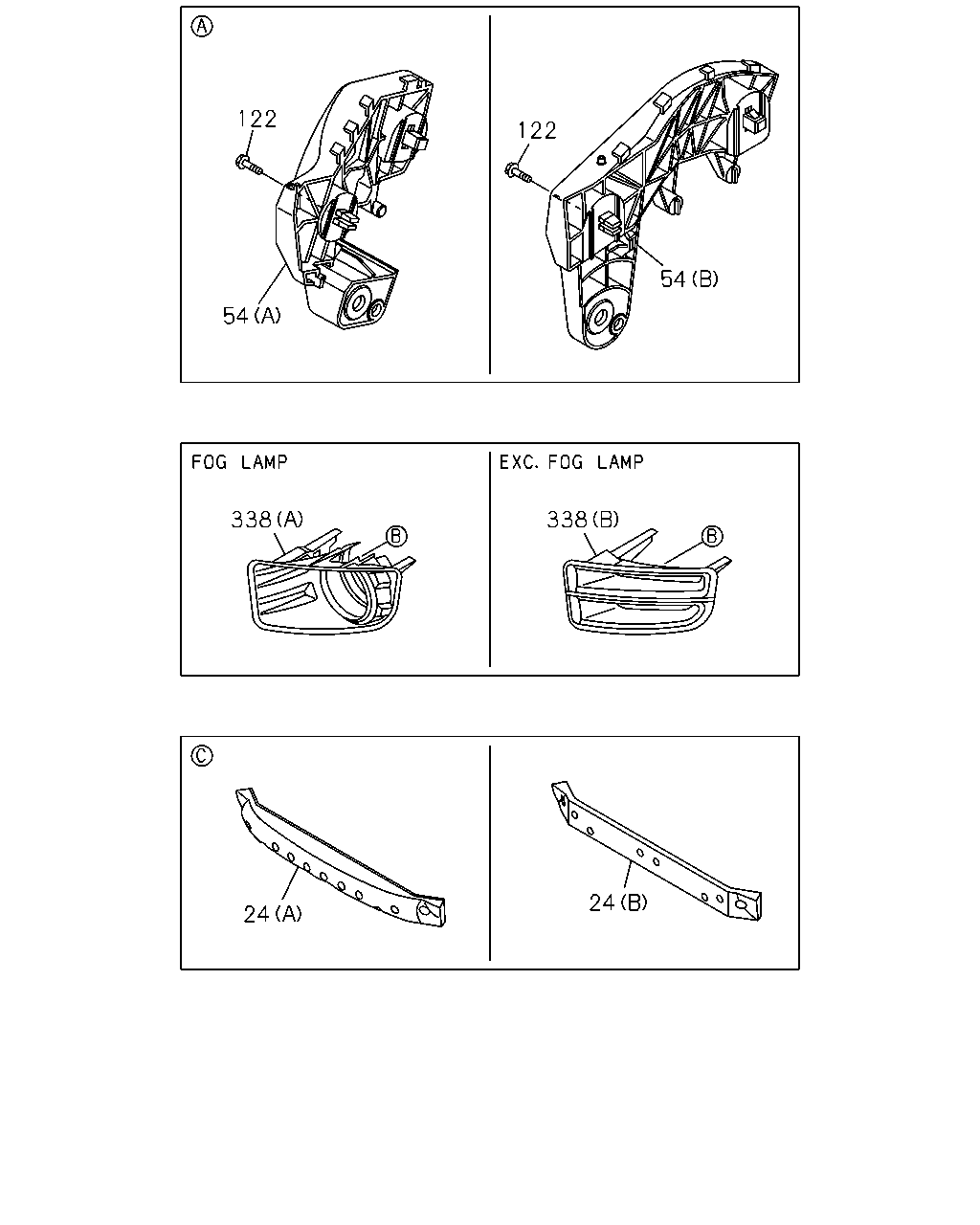

çizim 126359
122 122 54 54 338 338 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 07.869 BAR; FRT BUMPER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (B) 		8-98165-112-1 01 1 1206-1301 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (B) 		8-98165-112-1 01 1 1302-1409 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,SINGAPORE EQUIPMENT(2G0) (B) 		8-98165-112-1 01 1 1410- ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EQUIPMENT IMPACT<EPS> (B) 		8-98165-112-1 01 1 1410- ● ● ● ●
24 07.869 BAR; FRT BUMPER
(A) 		8-98165-113-1 01 1 1205-1205 ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
(A) 		8-98165-113-1 01 1 1206-1301 ●
24 07.869 BAR; FRT BUMPER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 		8-98165-113-1 01 1 1206-1301 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
(A) 		8-98165-113-1 01 1 1302-1409 ●
24 07.869 BAR; FRT BUMPER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) (A) 		8-98165-113-1 01 1 1302-1409 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
(A) 		8-98165-113-1 01 1 1410- ●
24 07.869 BAR; FRT BUMPER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98165-113-1 01 1 1410- ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1205- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
08.155 (D) 		8-98050-462-0 06 1 1205- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-256-3 01 1 1205-1301 ● ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1205-1301 ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-256-3 01 1 1302- ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1302- ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-257-3 01 1 1205-1301 ● ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1205-1301 ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-257-3 01 1 1302- ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1302- ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1205-1301 ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1205-1301 ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1302- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1302- ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1205-1301 ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1205-1301 ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1302- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1302- ● ● ●
122 07.874 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER 		0-74160-616-0 02 1 1205- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> (A) 		8-98099-824-1 01 1 1205- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> (A) 		8-98099-825-1 01 1 1205- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> (B) 		8-98099-827-1 01 1 1205- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> (B) 		8-98099-828-1 01 1 1205- ● ● ● ● ● ●

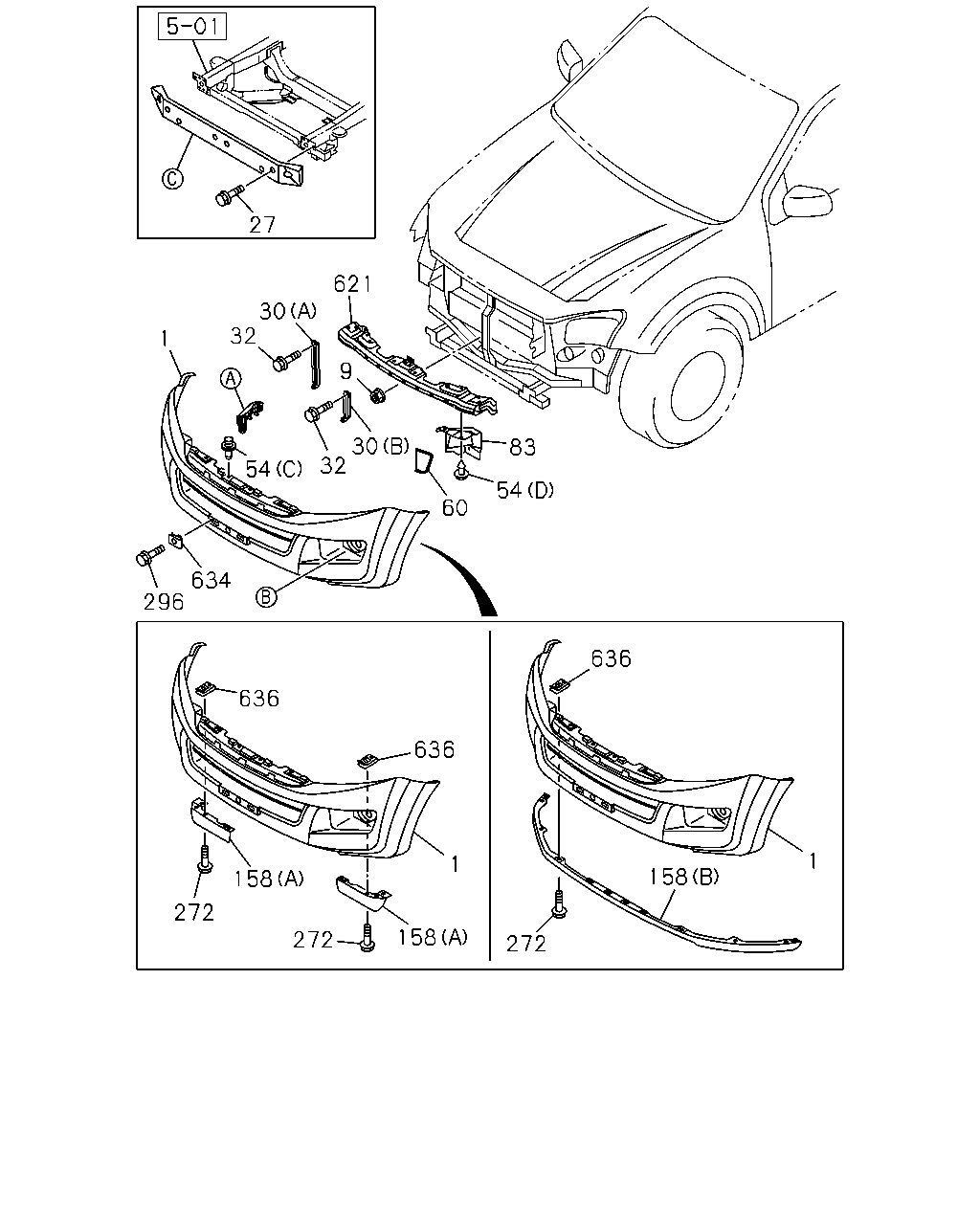

çizim 126462
27 1 32 30 621 30 32 54 83 54 60 634 296 636 636 158 272 158 272 1 272 158 1 636 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.831 BUMPER ASM; FRT
KD-PREPARATORY PACK VAR4<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1205-1205 ● ● ●
1 07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1205-1205 ● ● ●
1 07.831 BUMPER ASM; FRT
KD-PREPARATORY PACK VAR4<7TV> 		8-98193-446-2 01 1 1206-1210 ●
1 07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-446-2 01 1 1206-1210 ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> KD-PREPARATORY PACK VAR4<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV>,HIGH RIDE SUSPE NSION(7YC) 		8-98193-446-2 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV>,HIGH RIDE SUSPE NSION(7YC) 		8-98193-446-2 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
KD-PREPARATORY PACK VAR4<7TV> 		8-98193-446-2 01 1 1211- ●
1 07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-446-2 01 1 1211- ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> KD-PREPARATORY PACK VAR4<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1211- ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV>,HIGH RIDE SUSPE NSION(7YC) 		8-98193-446-2 01 1 1211- ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1211- ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV>,HIGH RIDE SUSPE NSION(7YC) 		8-98193-446-2 01 1 1211- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),COLOR KEYED BUMPER(VT4) ,KD-PREPARATORY PACK VAR4<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV>,HIGH RIDE SUSPE NSION(7YC) 		8-98193-444-2 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1211- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),COLOR KEYED BUMPER(VT4) ,KD-PREPARATORY PACK VAR4<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1211- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1211- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV>,HIGH RIDE SUSPE NSION(7YC) 		8-98193-444-2 01 1 1211- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98193-447-2 01 1 1206-1210 ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),COLOR KEYED BUMPER(VT4),KD-PREPARATORY PACKVAR4<7TV> 		8-98193-447-2 01 1 1206-1210 ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-447-2 01 1 1206-1210 ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-447-2 01 1 1206-1210 ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) 		8-98193-447-2 01 1 1206-1210 ● ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),COLOR KEYED BUMPER(VT4) ,KD-PREPARATORY PACK VAR4<7TV> 		8-98193-447-2 01 1 1206-1210 ● ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98193-447-2 01 1 1211-1301 ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),COLOR KEYED BUMPER(VT4),KD-PREPARATORY PACKVAR4<7TV> 		8-98193-447-2 01 1 1211-1301 ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-447-2 01 1 1211-1301 ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-447-2 01 1 1211-1301 ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) 		8-98193-447-2 01 1 1211-1301 ● ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),COLOR KEYED BUMPER(VT4) ,KD-PREPARATORY PACK VAR4<7TV> 		8-98193-447-2 01 1 1211-1301 ● ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) 		8-98193-447-2 01 1 1302- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),COLOR KEYED BUMPER(VT4) ,KD-PREPARATORY PACK VAR4<7TV> 		8-98193-447-2 01 1 1302- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-447-2 01 1 1302- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-447-2 01 1 1302- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) 		8-98193-447-2 01 1 1302- ● ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),COLOR KEYED BUMPER(VT4) ,KD-PREPARATORY PACK VAR4<7TV> 		8-98193-447-2 01 1 1302- ● ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCX ENG(LS0) KD-PREPARATORY PACK VAR4<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-449-2 01 1 1205-1205 ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1205-1205 ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCX ENG(LS0) KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1205-1205 ● ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCX ENG(LS0) EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1205-1205 ● ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-449-2 01 1 1206-1210 ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1206-1210 ●
1 07.831 BUMPER ASM; FRT
AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1206-1210 ● ● ●
1 07.831 BUMPER ASM; FRT
AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1206-1210 ● ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-449-2 01 1 1211-1301 ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1211-1301 ●
1 07.831 BUMPER ASM; FRT
AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1211-1301 ● ● ●
1 07.831 BUMPER ASM; FRT
AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1211-1301 ● ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1211-1301 ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1211-1301 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-449-2 01 1 1302- ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1302- ● ●
1 07.831 BUMPER ASM; FRT
AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1302- ● ● ●
1 07.831 BUMPER ASM; FRT
AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1302- ● ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1302- ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> 		8-98193-449-2 01 1 1302- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),KD-PREPARATORY PACK VAR 4<7TV>,HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-570-1 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV>, HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-570-1 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),KD-PREPARATORY PACK VAR 4<7TV>,HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-570-1 01 1 1211- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV>, HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-570-1 01 1 1211- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13), KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-573-2 01 1 1206-1210 ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-573-2 01 1 1206-1210 ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),KD-PREPARATORY PACK VAR 4<7TV> PRIMER 		8-98196-573-2 01 1 1206-1210 ● ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13), KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-573-2 01 1 1211-1301 ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-573-2 01 1 1211-1301 ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),KD-PREPARATORY PACK VAR 4<7TV> PRIMER 		8-98196-573-2 01 1 1211-1301 ● ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13), KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-573-2 01 1 1302- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) AUSTRALIA EQUIPMENT(B13) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-573-2 01 1 1302- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),KD-PREPARATORY PACK VAR 4<7TV> PRIMER 		8-98196-573-2 01 1 1302- ● ● ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV>, HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-572-1 01 1 1205-1205 ● ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV>, HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-572-1 01 1 1206-1210 ● ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV>, HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-572-1 01 1 1211- ● ● ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-575-1 01 1 1205-1205 ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-575-1 01 1 1205-1205 ● ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-575-1 01 1 1206-1210 ●
1 07.831 BUMPER ASM; FRT
AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-575-1 01 1 1206-1210 ● ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-575-1 01 1 1206-1210 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-575-1 01 1 1211-1301 ●
1 07.831 BUMPER ASM; FRT
AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-575-1 01 1 1211-1301 ● ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-575-1 01 1 1211-1301 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-575-1 01 1 1302- ● ●
1 07.831 BUMPER ASM; FRT
AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-575-1 01 1 1302- ● ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER 		8-98196-575-1 01 1 1302- ● ●
9 07.840 NUT; REINF,FRT BUMPER
01.062 M6 FLANGE 		0-91180-106-0 06 1 1205- ● ● ● ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE 		0-28661-025-0 04 1 1205- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(A) 		8-98087-391-2 02 1 1205- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(B) 		8-98087-392-0 02 1 1205- ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
02.343 M6X16 FLANGE 		0-28650-616-0 06 1 1205- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1205- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
08.155 (D) 		8-98050-462-0 06 1 1205- ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-256-3 01 1 1205-1301 ● ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1205-1301 ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-256-3 01 1 1302- ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1302- ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-257-3 01 1 1205-1301 ● ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1205-1301 ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-98074-257-3 01 1 1302- ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1302- ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1205-1301 ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1205-1301 ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1302- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1302- ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1205-1301 ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1205-1301 ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1302- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1302- ● ● ●
60 07.831 SPACER; FRT BUMPER 8-98140-340-1 01 1 1205- ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-694-0 01 1 1205- ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-695-0 01 1 1205- ● ● ● ● ● ●
158 07.833 EXTENSION; FRT BUMPER
(B) 		8-98099-823-1 01 1 1205-1301 ● ●
158 07.833 EXTENSION; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-823-1 01 1 1205-1301 ●
158 07.833 EXTENSION; FRT BUMPER
(B) 		8-98099-823-1 01 1 1302- ●
158 07.833 EXTENSION; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-823-1 01 1 1302- ● ●
158 07.833 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-950-0 01 1 1205-1301 ●
158 07.833 EXTENSION; FRT BUMPER
(A) 		8-98101-950-0 01 1 1205-1301 ● ● ●
158 07.833 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-950-0 01 1 1302- ● ●
158 07.833 EXTENSION; FRT BUMPER
(A) 		8-98101-950-0 01 1 1302- ● ● ●
158 07.833 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-951-0 01 1 1205-1301 ●
158 07.833 EXTENSION; FRT BUMPER
(A) 		8-98101-951-0 01 1 1205-1301 ● ● ●
158 07.833 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-951-0 01 1 1302- ● ●
158 07.833 EXTENSION; FRT BUMPER
(A) 		8-98101-951-0 01 1 1302- ● ● ●
272 07.874 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1205-1301 ● ●
272 07.874 BOLT; BUMPER TO EXT
EXC. HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1205-1301 ●
272 07.874 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1302- ●
272 07.874 BOLT; BUMPER TO EXT
EXC. HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1302- ● ●
272 07.874 BOLT; BUMPER TO EXT
HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1205-1301 ●
272 07.874 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1205-1301 ● ● ●
272 07.874 BOLT; BUMPER TO EXT
HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1302- ● ●
272 07.874 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1302- ● ● ●
296 07.800 BOLT; LICENSE PLATE,FRT
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1205-1205 ● ● ● ● ● ●
296 07.800 BOLT; LICENSE PLATE,FRT
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1206-1305 ●
296 07.800 BOLT; LICENSE PLATE,FRT
AUSTRALIA EQUIPMENT(B13) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1206-1305 ● ● ● ● ●
296 07.800 BOLT; LICENSE PLATE,FRT
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1306- ●
296 07.800 BOLT; LICENSE PLATE,FRT
AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1306- ● ● ● ●
296 07.800 BOLT; LICENSE PLATE,FRT
AUSTRALIA EQUIPMENT(B13) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1306- ●
621 07.831 SUPPORT; FRT BUMPER 8-98087-390-1 01 1 1205- ● ● ● ● ● ●
634 07.831 NUT; LICENCE PLATE 8-98054-813-0 02 1 1205-1205 ● ● ● ● ● ●
634 07.831 NUT; LICENCE PLATE 8-98054-813-0 02 1 1206-1305 ●
634 07.831 NUT; LICENCE PLATE
AUSTRALIA EQUIPMENT(B13) 		8-98054-813-0 02 1 1206-1305 ● ● ● ● ●
634 07.831 NUT; LICENCE PLATE 8-98054-813-0 02 1 1306- ●
634 07.831 NUT; LICENCE PLATE
AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF) 		8-98054-813-0 02 1 1306- ● ● ● ●
634 07.831 NUT; LICENCE PLATE
AUSTRALIA EQUIPMENT(B13) 		8-98054-813-0 02 1 1306- ●
636 07.833 NUT; EXT,FRT BUMPER 8-98072-786-0 10 1 1205-1301 ● ●
636 07.833 NUT; EXT,FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 10 1 1205-1301 ●
636 07.833 NUT; EXT,FRT BUMPER 8-98072-786-0 10 1 1302- ●
636 07.833 NUT; EXT,FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 10 1 1302- ● ●
636 07.833 NUT; EXT,FRT BUMPER
HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 04 1 1205-1301 ●
636 07.833 NUT; EXT,FRT BUMPER 8-98072-786-0 04 1 1205-1301 ● ● ●
636 07.833 NUT; EXT,FRT BUMPER
HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 04 1 1302- ● ●
636 07.833 NUT; EXT,FRT BUMPER 8-98072-786-0 04 1 1302- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
