◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#8186) — 26 parça

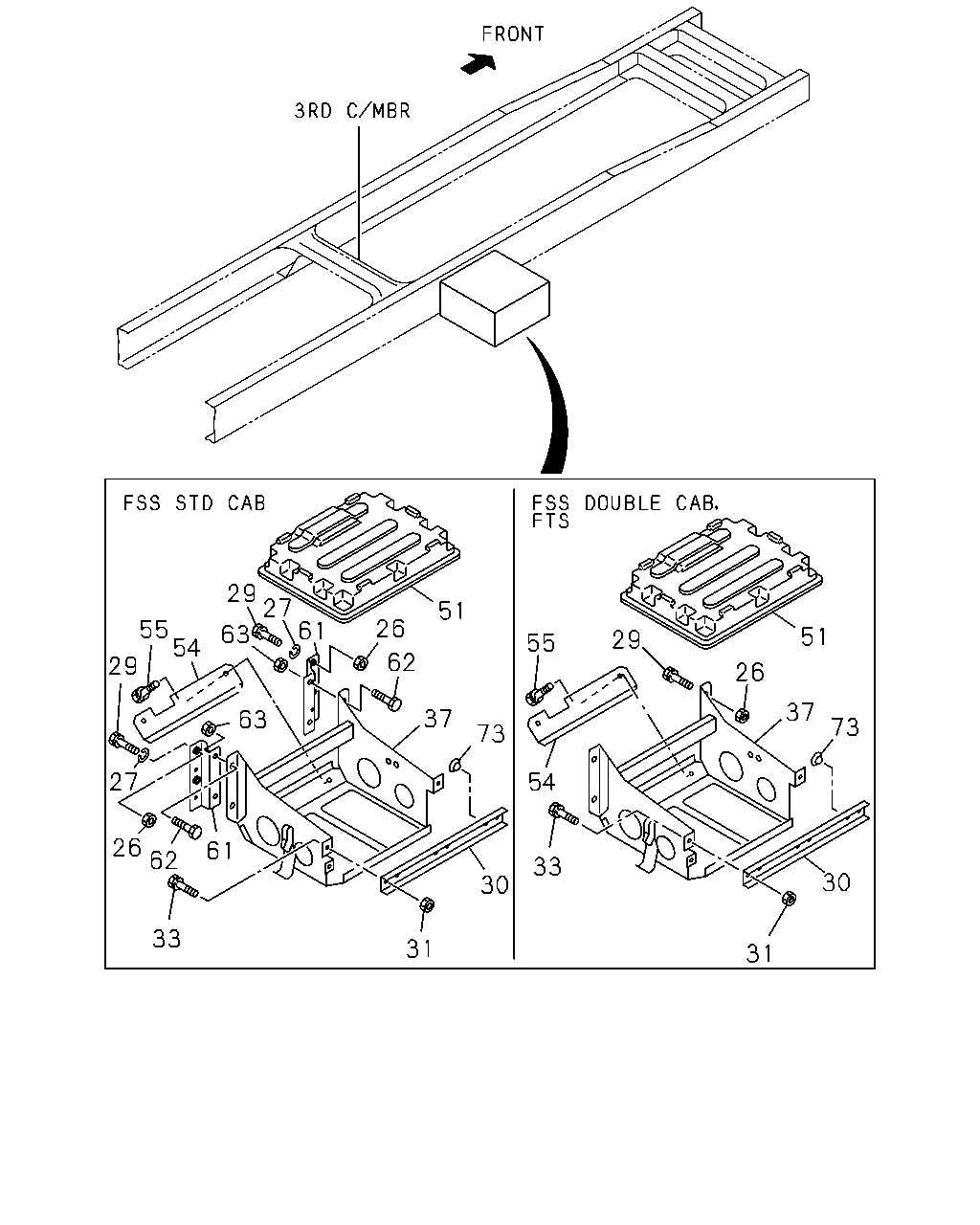

çizim 79081
29 27 61 51 26 55 54 63 51 29 55 62 29 26 63 37 37 73 73 27 54 26 62 61 33 30 30 33 31 31
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 NUT; BRKT
M10 		9-09110-510-0 04 1 0005-0512 ● ● ● ●
26 NUT; BRKT
M10 		0-91110-510-0 04 1 0601- ● ● ● ●
27 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 04 1 0301-0603 ●
27 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 0604- ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ● ● ● ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ●
30 PLATE; BATTERY 1-53616-046-3 01 1 0005- ● ● ● ●
31 NUT; PLATE
M8 		9-09110-408-0 02 1 0005-0512 ● ● ● ●
31 NUT; PLATE
M8 		0-91110-508-0 02 1 0601- ● ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
37 BRACKET; BATTERY 1-53613-405-0 01 1 0005- ● ● ● ●
51 COVER; BATTERY 1-53612-019-1 01 1 0005- ● ● ● ●
54 PROTECTOR; HEAT,BATTERY 1-53619-083-3 01 1 0005- ● ●
54 PROTECTOR; HEAT,BATTERY 1-53619-095-3 01 1 0005- ● ●
55 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ● ● ● ●
55 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ●
61 DISTANCE; BRKT,BATTERY 1-53619-133-0 01 1 0211-0212 ●
61 DISTANCE; BRKT,BATTERY 1-53619-146-0 01 1 0301- ●
61 DISTANCE; BRKT,BATTERY 1-53619-134-0 01 1 0211-0212 ●
61 DISTANCE; BRKT,BATTERY 1-53619-147-0 01 1 0301- ●
62 BOLT; DIST TO FRAME,BATTERY
M14X40 		0-20801-440-0 04 1 0211-0512 ●
62 BOLT; DIST TO FRAME,BATTERY
M14X40 		0-20851-440-0 04 1 0601- ●
63 NUT; DIST TO FRAME
M14 		9-99110-414-0 04 1 0211-0512 ●
63 NUT; DIST TO FRAME
M14 		0-91110-514-0 04 1 0601- ●
73 RUBBER; CUSHION,PLATE 1-09337-002-0 04 1 0005- ● ● ● ●
