◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#81840) — 39 parça

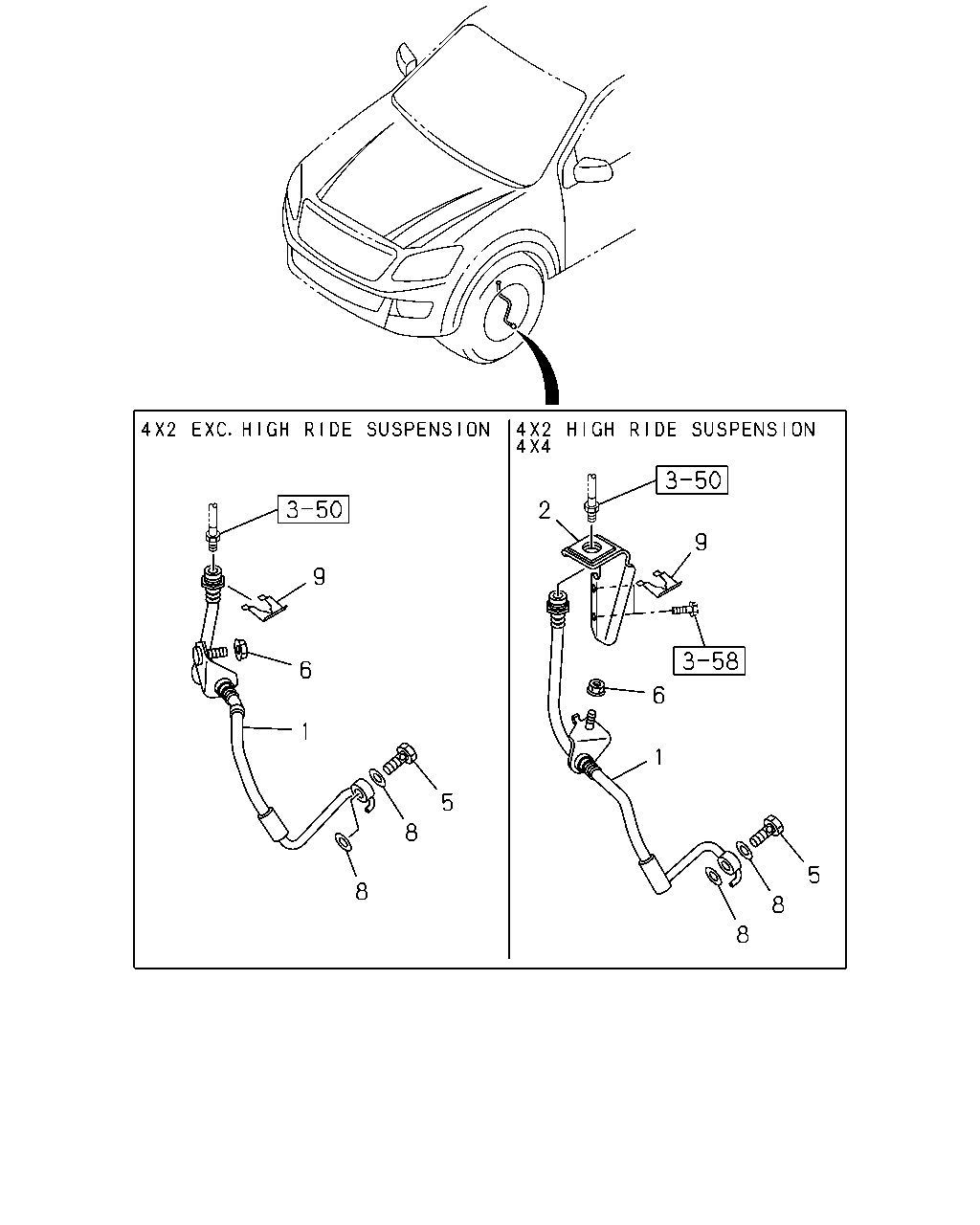

çizim 119912
9 6 1 8 8 5 2 9 6 1 8 8 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
L=413 		8-98067-244-1 01 1 1205-1301 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413 		8-98067-244-1 01 1 1205-1301 ●
1 04.680 HOSE; FLEX,FRT BRK
L=413 		8-98067-244-1 01 1 1302- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413 		8-98067-244-1 01 1 1302- ● ●
1 04.680 HOSE; FLEX,FRT BRK
L=413 		8-98067-248-1 01 1 1205-1301 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413 		8-98067-248-1 01 1 1205-1301 ●
1 04.680 HOSE; FLEX,FRT BRK
L=413 		8-98067-248-1 01 1 1302- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413 		8-98067-248-1 01 1 1302- ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391 		8-98067-246-4 01 1 1205-1301 ●
1 04.680 HOSE; FLEX,FRT BRK
L=391 		8-98067-246-4 01 1 1205-1301 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391 		8-98067-246-4 01 1 1302- ● ●
1 04.680 HOSE; FLEX,FRT BRK
L=391 		8-98067-246-4 01 1 1302- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391 		8-98067-247-4 01 1 1205-1301 ●
1 04.680 HOSE; FLEX,FRT BRK
L=391 		8-98067-247-4 01 1 1205-1301 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391 		8-98067-247-4 01 1 1302- ● ●
1 04.680 HOSE; FLEX,FRT BRK
L=391 		8-98067-247-4 01 1 1302- ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-148-1 01 1 1205-1205 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97947-148-1 01 1 1205-1205 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-97947-148-1 01 1 1206-1210 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-97947-148-1 01 1 1206-1210 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-97947-148-1 01 1 1211-1301 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-97947-148-1 01 1 1211-1301 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-97947-148-1 01 1 1302- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-97947-148-1 01 1 1302- ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-149-1 01 1 1205-1301 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97947-149-1 01 1 1205-1301 ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-149-1 01 1 1302- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97947-149-1 01 1 1302- ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 1205- ● ● ● ● ● ●
6 04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 1205- ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1205- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1205- ● ● ● ● ● ●

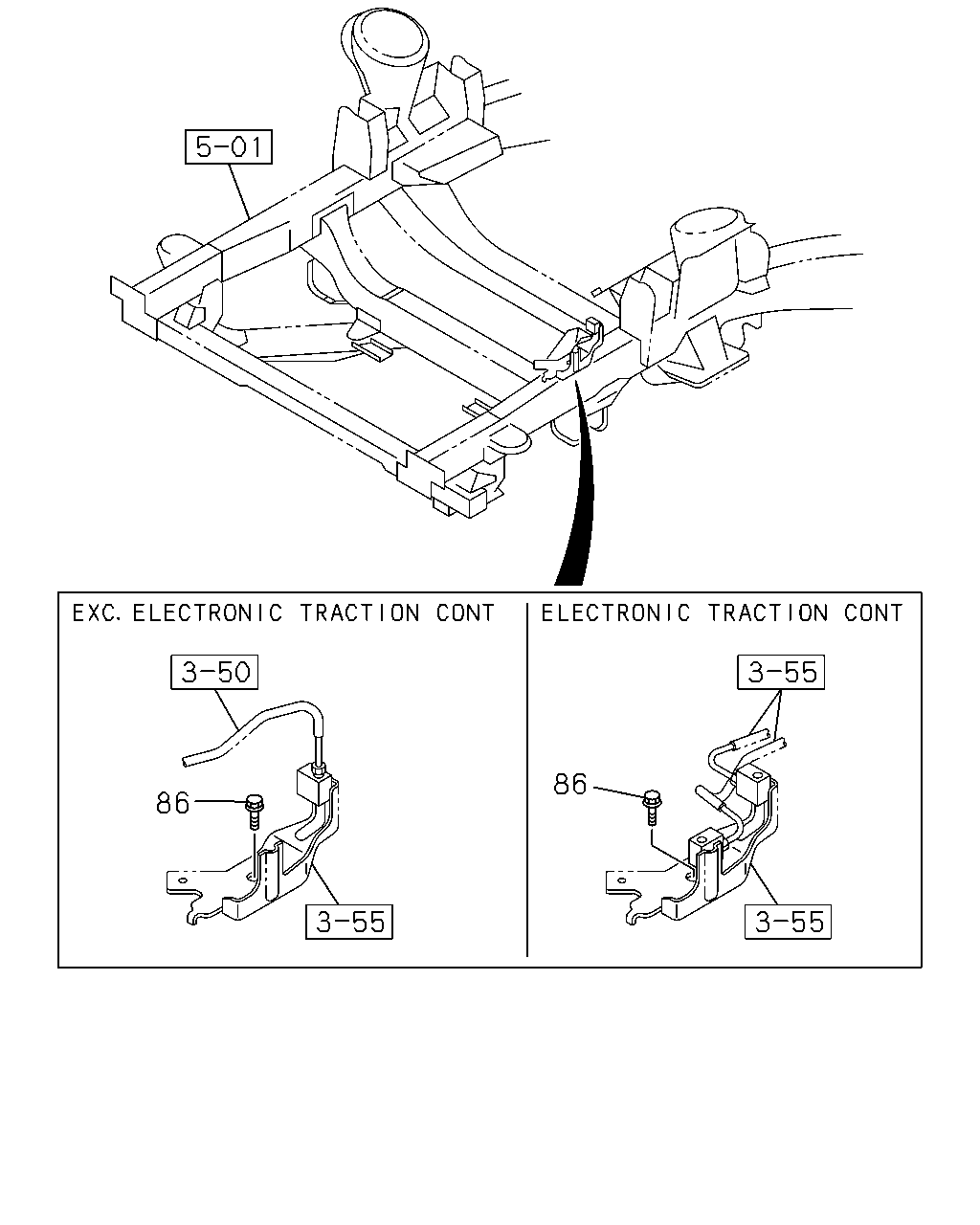

çizim 194387
86 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
86 04.686 BOLT; BRK PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1205-1205 ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1206-1210 ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1206-1210 ● ● ● ●
86 04.686 BOLT; BRK PIPE
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1206-1210 ● ●
86 04.686 BOLT; BRK PIPE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1211- ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1211- ● ● ● ●
86 04.686 BOLT; BRK PIPE
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
