◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#81837) — 13 parça

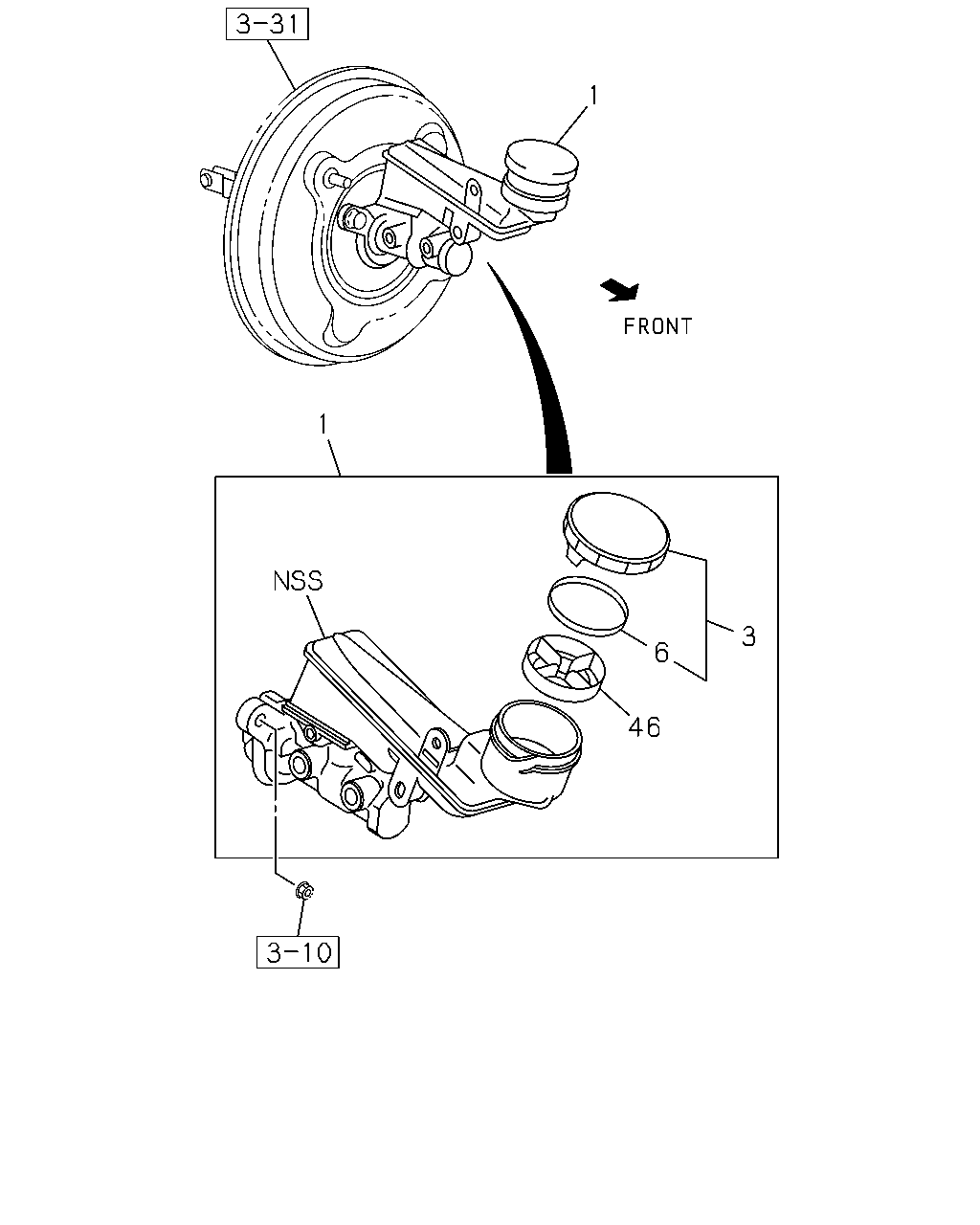

çizim 194380
1 1 3 6 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.650 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-227-0 01 1 1206-1301 ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-227-0 01 1 1302- ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN(MA1) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-228-0 01 1 1206- ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
M/T MUX 5 SPEED 5S(MZJ) 		8-98163-229-0 01 1 1205-1205 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98163-229-0 01 1 1206-1301 ●
1 04.650 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-229-0 01 1 1206-1301 ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98163-229-0 01 1 1302- ●
1 04.650 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-229-0 01 1 1302- ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN(MA1) 		8-98163-230-0 01 1 1205-1205 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-230-0 01 1 1206- ● ● ● ●
3 04.651 CAP; OIL TANK 8-98047-704-0 01 1 1205- ● ● ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL 8-98047-706-0 01 1 1205- ● ● ● ● ● ●
46 04.651 FILTER; OIL TANK,M/CYL 8-98047-702-0 01 1 1205- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
