Sayfa 2-65 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE ▶

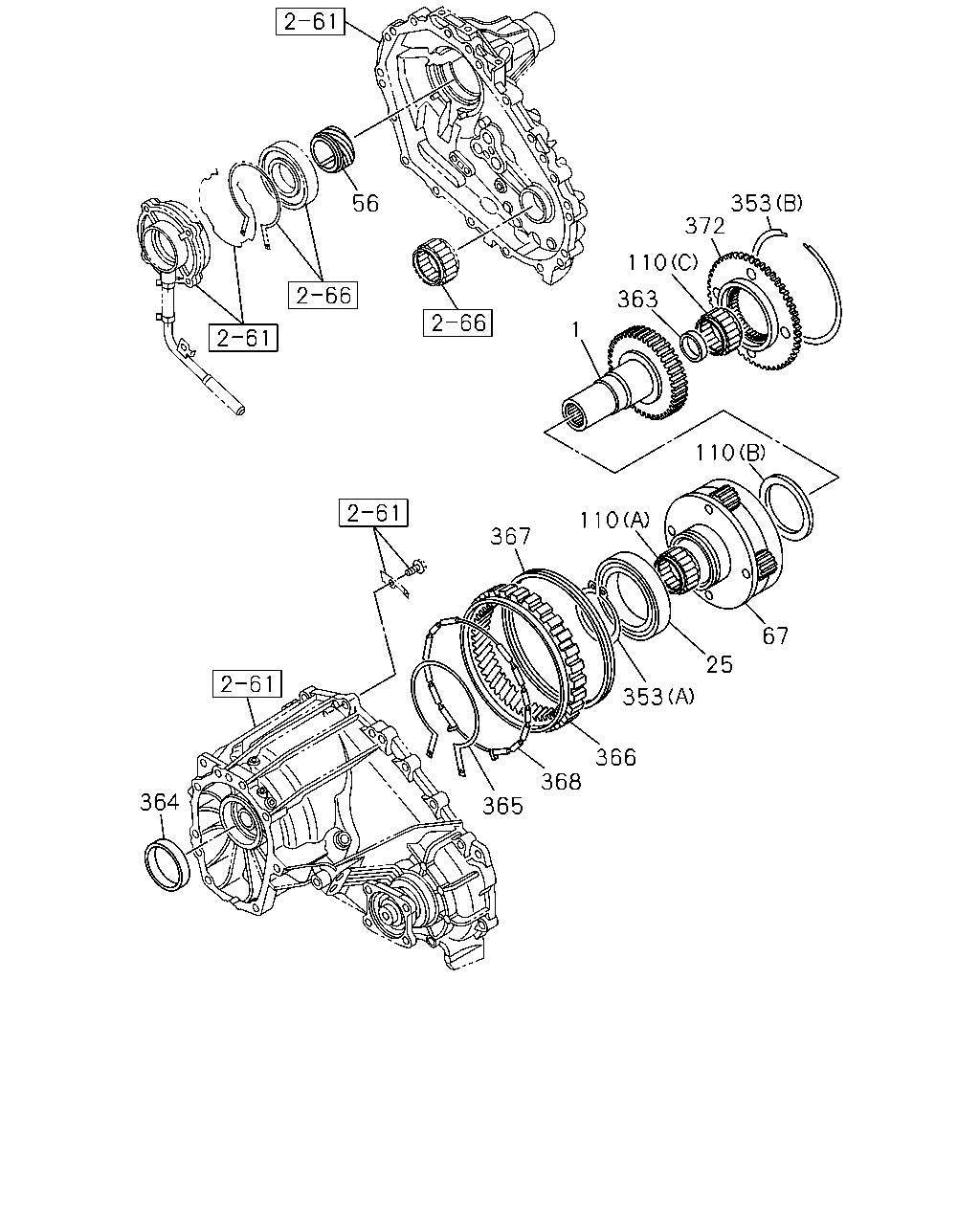

2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#81830) — 26 parça

56 110 372 353 363 110 110 367 67 25 353 366 368 365 364 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.162 SHAFT; GEAR,INPUT M/T AISIN 6 SPEED(RNU)	8-98156-637-1	01	1	1206-	●	●
1	04.162 SHAFT; GEAR,INPUT A/T 5 SPEED-AISIN(MA1)	8-98118-924-1	01	1	1205-1303	●	●	●
1	04.162 SHAFT; GEAR,INPUT A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98118-924-1	01	1	1304-1306	●	●	●
1	04.162 SHAFT; GEAR,INPUT A/T 5 SPEED-AISIN(MA1)	8-98118-924-1	01	1	1307-	●	●	●
1	04.162 SHAFT; GEAR,INPUT M/T MUX 5 SPEED 5S(MZJ)	8-97373-467-0	01	1	1205-1205	●	●	●
1	04.162 SHAFT; GEAR,INPUT M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)	8-97373-467-0	01	1	1206-1303	●	●	●
1	04.162 SHAFT; GEAR,INPUT M/T MUA 5 SPEED 5H(MWQ) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97373-467-0	01	1	1304-1306	●	●	●
1	04.162 SHAFT; GEAR,INPUT 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97373-467-0	01	1	1304-1306	●	●	●
1	04.162 SHAFT; GEAR,INPUT M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)	8-97373-467-0	01	1	1307-	●	●	●
25	04.164 BEARING; BALL,INPUT SHAFT NSK	8-97234-735-0	01	1	1205-	●	●	●
56	04.343 GEAR; SPD DRIVE,TRANSFER Z=6	8-97238-581-0	01	1	1205-	●	●	●
67	04.532 CARRIER; TRANSFER	8-98158-116-0	01	1	1205-	●	●	●
110	04.532 BEARING; NEEDLE (A)	8-97234-739-0	01	1	1205-	●	●	●
110	04.532 BEARING; NEEDLE (B)	8-97234-741-0	01	1	1205-	●	●	●
110	04.532 BEARING; NEEDLE (C)	8-97234-743-0	01	1	1205-	●	●	●
353	04.545 RING; SNAP,CARRIER (A) ID=65.5	8-97305-403-0	01	1	1205-	●	●	●
353	04.545 RING; SNAP,CARRIER (B) ID=137	8-97305-406-0	01	1	1205-	●	●	●
363	04.545 CAP; SEAL,INPUT SHAFT M/T AISIN 6 SPEED(RNU)	8-98156-632-0	01	1	1206-	●	●
363	04.545 CAP; SEAL,INPUT SHAFT	8-97238-725-0	01	1	1205-1205	●	●	●
363	04.545 CAP; SEAL,INPUT SHAFT A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)	8-97238-725-0	01	1	1206-	●	●	●
364	04.545 SEAL; OIL,COVER,INPUT 04.510 NOK	8-97238-999-0	01	1	1205-	●	●	●
365	04.545 RING; RETAINING,OUTER INPUT ID=97	8-97305-010-1	01	1	1205-	●	●	●
366	04.532 GEAR; INTERNAL,HIGH-LOW Z=27	8-97231-831-2	01	1	1205-	●	●	●
367	04.545 RING; RETAINING,SPIRAL TYPE ID=162 OD=176	8-97247-459-0	01	1	1205-	●	●	●
368	04.545 RING; DAMPER,TRANSFER ID=168.4 OD=178	8-97320-914-0	01	1	1205-	●	●	●
372	04.162 TEETH; DOG,PLANETARY 01.462 Z=56	8-97358-244-0	01	1	1205-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
