Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#8182) — 532 parça

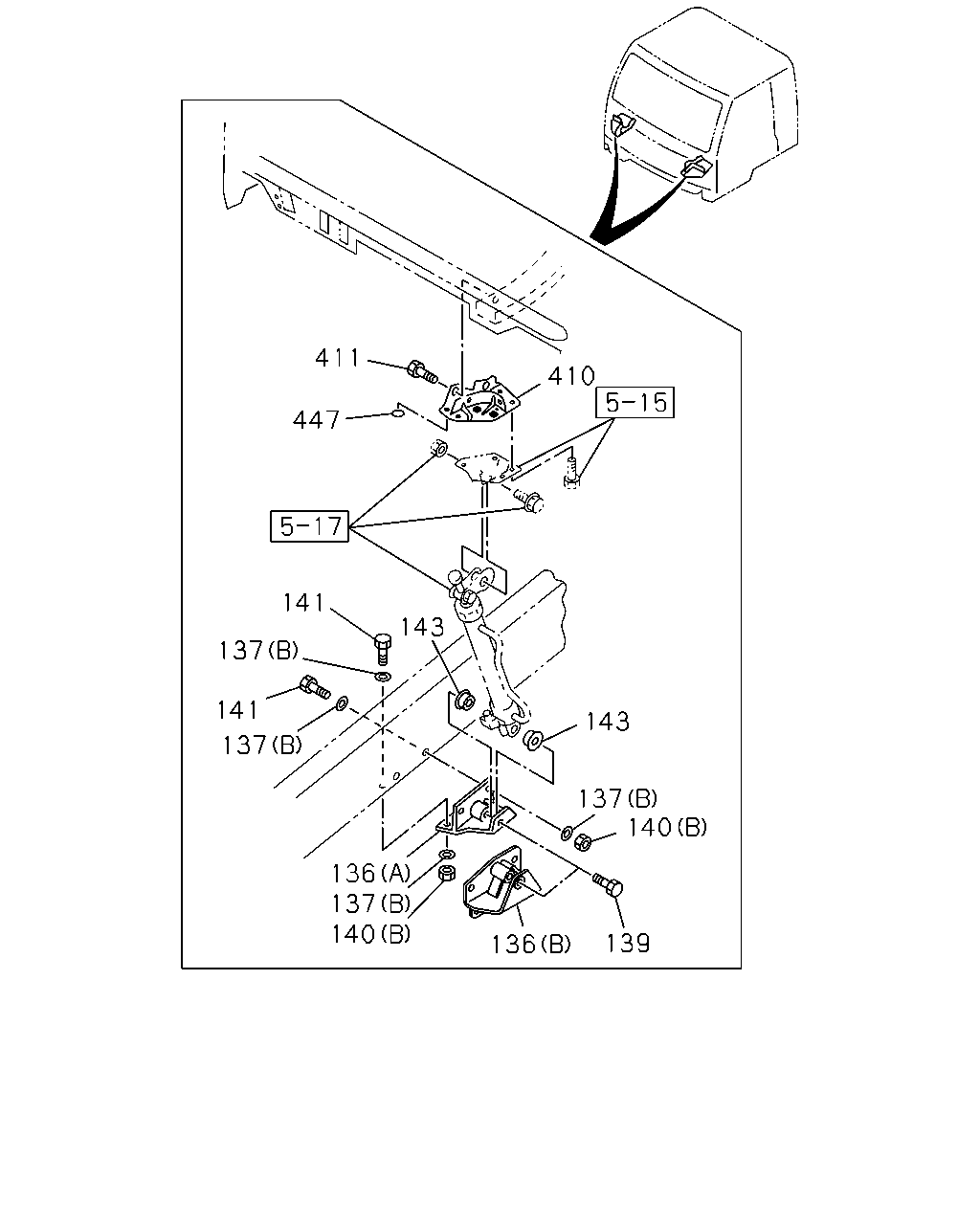

411 410 447 141 143 137 141 143 137 137 140 136 137 140 139 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
136	BRACKET; OIL CYL (A)	1-53459-568-3	01	1	0005-0210	●
136	BRACKET; OIL CYL (B)	1-53457-099-0	01	1	0211-	●
136	BRACKET; OIL CYL (A)	1-53459-569-3	01	1	0005-0210	●
136	BRACKET; OIL CYL (B)	1-53457-100-0	01	1	0211-	●
136	BRACKET; OIL CYL (B)	1-53458-677-0	01	1	0005-		●
136	BRACKET; OIL CYL (B)	1-53458-678-0	01	1	0005-		●
137	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	16	1	0005-1201	●	●
137	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	16	1	1202-	●	●
137	WASHER; PL,BRKT (A) ID=12.5 OD=26	9-09160-612-0	04	1	0205-0605	●	●
137	WASHER; PL,BRKT (A) ID=12.5 OD=26	0-91610-612-0	04	1	0606-	●	●
139	PIN; OIL CYL,LWR	1-53459-490-3	02	1	0005-	●	●
140	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	04	1	0005-0210	●	●
140	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	06	1	0211-0602	●	●
140	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	06	1	0603-	●	●
140	NUT; BRKT (B) M14	9-99110-514-0	08	1	0005-0512	●	●
140	NUT; BRKT (B) M14	0-91110-514-0	08	1	0601-	●	●
141	BOLT; BRKT M14X40	9-92061-440-0	08	1	0005-0512	●	●
141	BOLT; BRKT M14X40	0-20951-440-0	08	1	0601-	●	●
143	SPACER; OIL CYL,LWR	1-53459-491-2	04	1	0005-	●	●
410	REINFORCEMENT; CAB TILT	1-62580-238-2	01	1	0005-	●	●
410	REINFORCEMENT; CAB TILT	1-62580-241-2	01	1	0005-	●	●
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	08	1	0005-0904	●	●
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0905-	●	●
447	SEAL OD=25 BLACK	1-76798-019-0	02	1	0005-	●	●

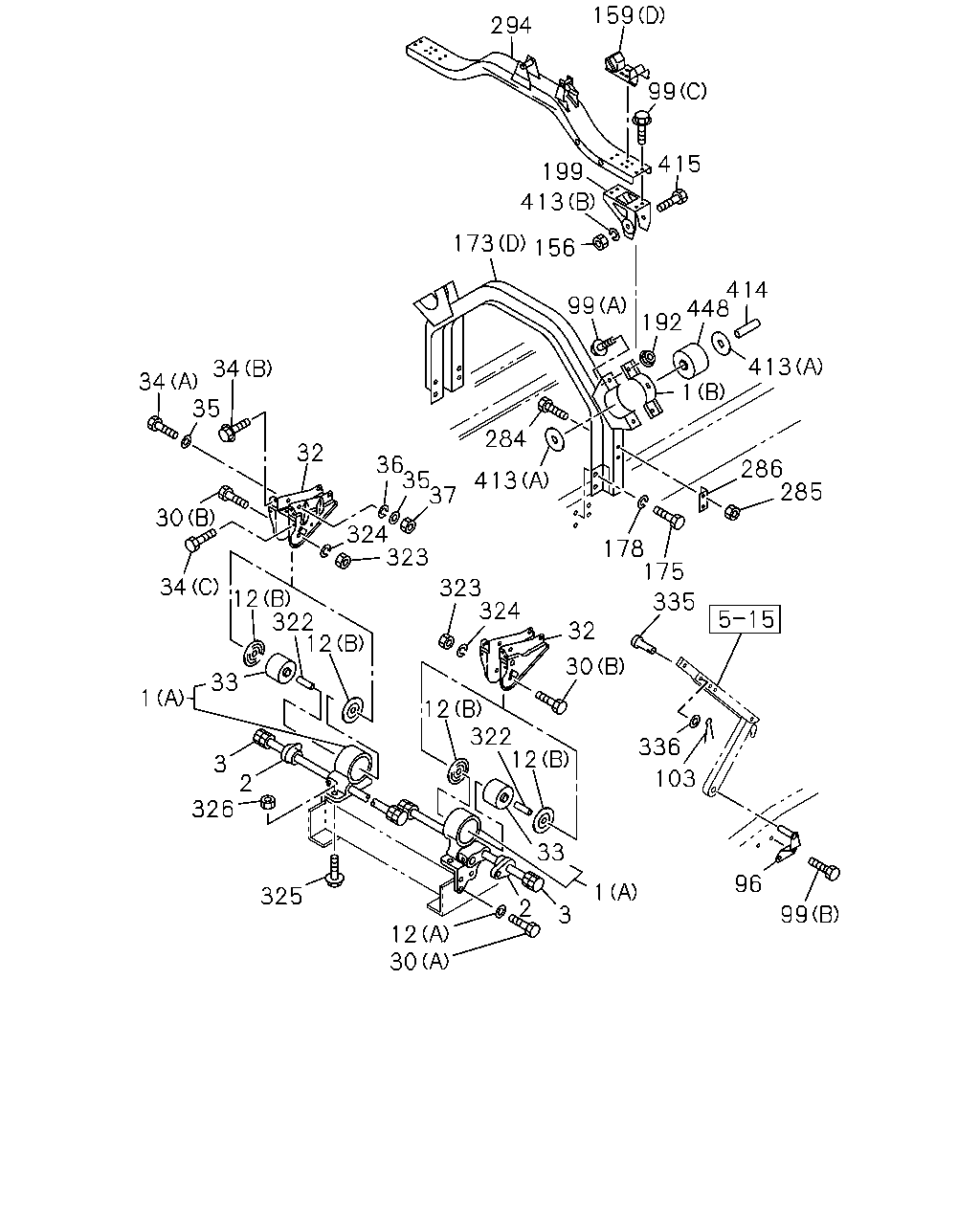

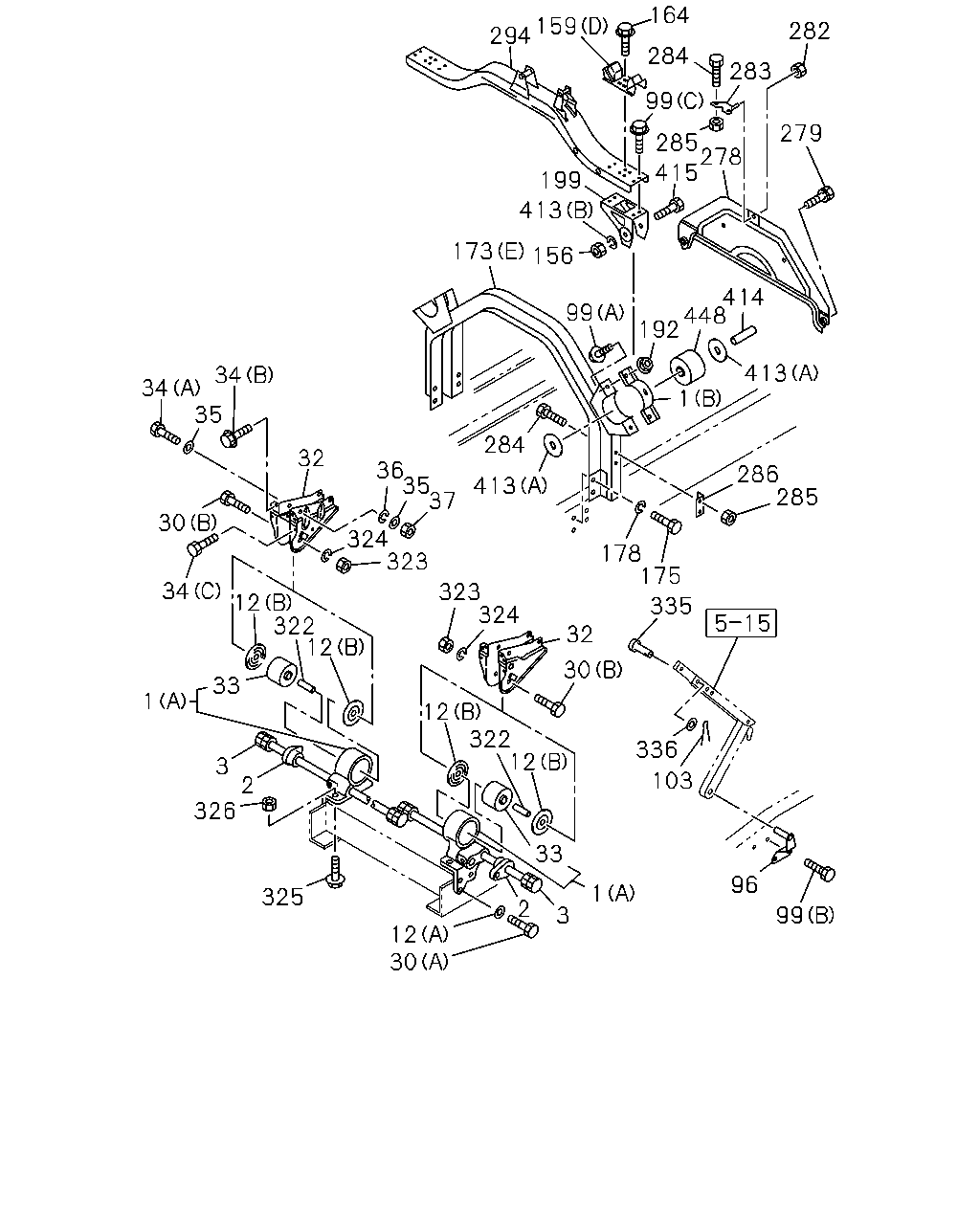

164 159 294 282 284 283 99 279 285 278 415 199 413 173 156 414 448 192 99 413 34 34 35 1 284 32 36 35 37 286 285 413 30 324 323 178 175 34 323 324 12 322 12 335 32 33 30 1 12 322 12 336 3 103 2 326 33 96 1 325 2 99 3 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET; CAB MTG (A)	1-53453-277-0	01	1	0005-0210	●		●
1	BRACKET; CAB MTG (A)	1-53453-337-1	01	1	0211-	●		●
1	BRACKET; CAB MTG (A)	1-53453-276-0	01	1	0005-0210	●		●
1	BRACKET; CAB MTG (A)	1-53453-336-1	01	1	0211-	●		●
1	BRACKET; CAB MTG (B)	1-53454-841-0	02	1	0005-0210	●
1	BRACKET; CAB MTG (B)	1-53454-903-0	02	1	0211-	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0005-0210				●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0211-			●	●
1	BRACKET; CAB MTG (A)	1-53453-268-0	01	1	0005-0210				●
1	BRACKET; CAB MTG (A)	1-53453-323-0	01	1	0211-				●
1	BRACKET; CAB MTG (A)	1-53453-267-0	01	1	0005-0210				●
1	BRACKET; CAB MTG (A)	1-53453-322-0	01	1	0211-				●
1	BRACKET; CAB MTG (B)	1-53454-635-1	02	1	0005-0210		●
1	BRACKET; CAB MTG (B)	1-53454-879-0	02	1	0211-		●
1	BRACKET; CAB MTG (A)	1-53453-279-0	01	1	0005-0210		●
1	BRACKET; CAB MTG (A)	1-53453-333-0	01	1	0211-		●
1	BRACKET; CAB MTG (A)	1-53453-278-0	01	1	0005-0210		●
1	BRACKET; CAB MTG (A)	1-53453-332-0	01	1	0211-		●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	0005-			●	●
3	TORSION BAR	1-09585-130-0	01	1	0005-			●	●
3	TORSION BAR	1-09585-129-0	01	1	0005-			●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	0005-1201	●	●	●	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●	●	●	●
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	0005-0210	●	●	●
12	WASHER; LK,BRKT (C) ID=12.2	9-09150-612-0	08	1	0005-0603	●	●
12	WASHER; LK,BRKT (C) ID=12.2	0-91510-612-0	08	1	0604-	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0005-0210				●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0211-0306	●	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-	●	●	●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	0005-	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	0005-0512	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-233-4	01	1	0005-0210	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-291-1	01	1	0005-0210	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0005-0210				●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0211-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0005-0210				●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0211-	●	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-636-1	02	1	0005-0210	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-681-0	02	1	0211-	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-634-0	02	1	0005-0210				●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-836-3	02	1	0211-				●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	0005-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0904	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	0005-	●	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0005-	●	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	0005-	●	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	0005-	●	●	●	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	0005-			●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	0005-0512			●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	02	1	0005-0512	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●
99	BOLT; BRKT (B) M12X35	9-92061-235-0	08	1	0005-0512	●	●
99	BOLT; BRKT (B) M12X35	0-20951-235-0	08	1	0601-	●	●
99	BOLT; BRKT (C) M12X25 FLANGE	0-28081-225-0	02	1	0211-0512	●	●
99	BOLT; BRKT (C) M12X25 FLANGE	0-28051-225-0	02	1	0601-	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0005-0210				●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0211-0512			●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0005-0210				●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0211-0512			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612			●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-			●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	0005-			●	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	0005-0210				●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	0211-0512			●	●
156	NUT; CAB MTG RR M16	0-91110-516-0	02	1	0601-			●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	0005-0210	●	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	0211-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	0005-0210	●	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	0211-	●	●
159	RUBBER; CUSHION,CAB MTG (C)	9-54347-160-1	02	1	0005-	●	●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0005-0210				●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0211-			●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	0005-0210				●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	0211-0512			●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28650-820-0	04	1	0601-			●	●
173	MEMBER; CAB MTG RR (A)	1-53454-674-0	01	1	0005-0210			●
173	MEMBER; CAB MTG RR (D)	1-53454-860-4	01	1	0211-			●
173	MEMBER; CAB MTG RR (A)	1-53454-670-0	01	1	0005-0210	●
173	MEMBER; CAB MTG RR (A)	1-53454-904-0	01	1	0211-0303	●
173	MEMBER; CAB MTG RR (A)	1-53454-922-0	01	1	0304-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0005-0210	●	●
173	MEMBER; CAB MTG RR (C)	1-53454-881-1	01	1	0211-0211	●	●
173	MEMBER; CAB MTG RR (C)	1-53454-920-0	01	1	0212-	●	●
173	MEMBER; CAB MTG RR (E)	1-53454-705-1	01	1	0005-0210				●
173	MEMBER; CAB MTG RR (E)	1-53454-906-0	01	1	0211-				●
173	MEMBER; CAB MTG RR (A)	1-53454-636-2	01	1	0005-0210		●
173	MEMBER; CAB MTG RR (A)	1-53454-878-0	01	1	0211-		●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	0005-0512	●	●	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●	●	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	0005-0603	●	●	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	0005-0210				●
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	0211-0602			●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0603-			●	●
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	0005-0207				●
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0208-0210				●
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0211-1403			●	●
199	BRACKET; CAB RR MTG	8-98269-637-0	02	1	1404-			●	●
278	COVER EXC. ENGINE REAR PTO(SV1)	1-53192-309-0	01	1	0005-0210	●		●
278	COVER ENGINE REAR PTO(SV1)	1-53193-899-0	01	1	0005-0210	●	●	●	●
278	COVER EXC. ENGINE REAR PTO(SV1)	1-53192-204-0	01	1	0005-0210		●		●
279	BOLT M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●	●	●
282	NUT; BACK COVER M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●	●	●
283	BRACKET; UPR	1-53459-630-2	01	1	0005-0210	●	●	●	●
284	BOLT; BRKT UPR M8X20 FLANGE	0-28680-820-0	06	1	0005-0210	●	●	●	●
285	NUT; BRKT UPR M8 FLANGE	0-91150-108-0	06	1	0005-0210	●	●	●	●
286	BRACKET; LOW	1-53459-631-3	01	1	0005-0210	●	●	●	●
286	BRACKET; LOW	1-53459-632-3	01	1	0005-0210	●	●	●	●
294	MEMBER; FLOATING	1-53454-530-1	01	1	0005-0210				●
294	MEMBER; FLOATING	1-53454-530-1	01	1	0211-			●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0005-0210				●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0211-	●	●	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	0005-0512	●	●	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	0005-0603	●	●	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	0005-0512	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	0005-0512	●	●	●	●
326	NUT; GUIDE NUT M12	0-91110-512-0	02	1	0601-	●	●	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	0005-			●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	0005-			●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	0005-0210				●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	0211-0306			●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0307-			●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	0005-0210				●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	0211-0603			●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	0-91510-816-0	02	1	0604-			●	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	0005-0210				●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	0211-			●	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	0005-0210				●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	0211-			●	●
448	BUSHING; CAB MTG	1-53459-836-2	02	1	0005-0210				●
448	BUSHING; CAB MTG	1-53459-836-3	02	1	0211-			●	●

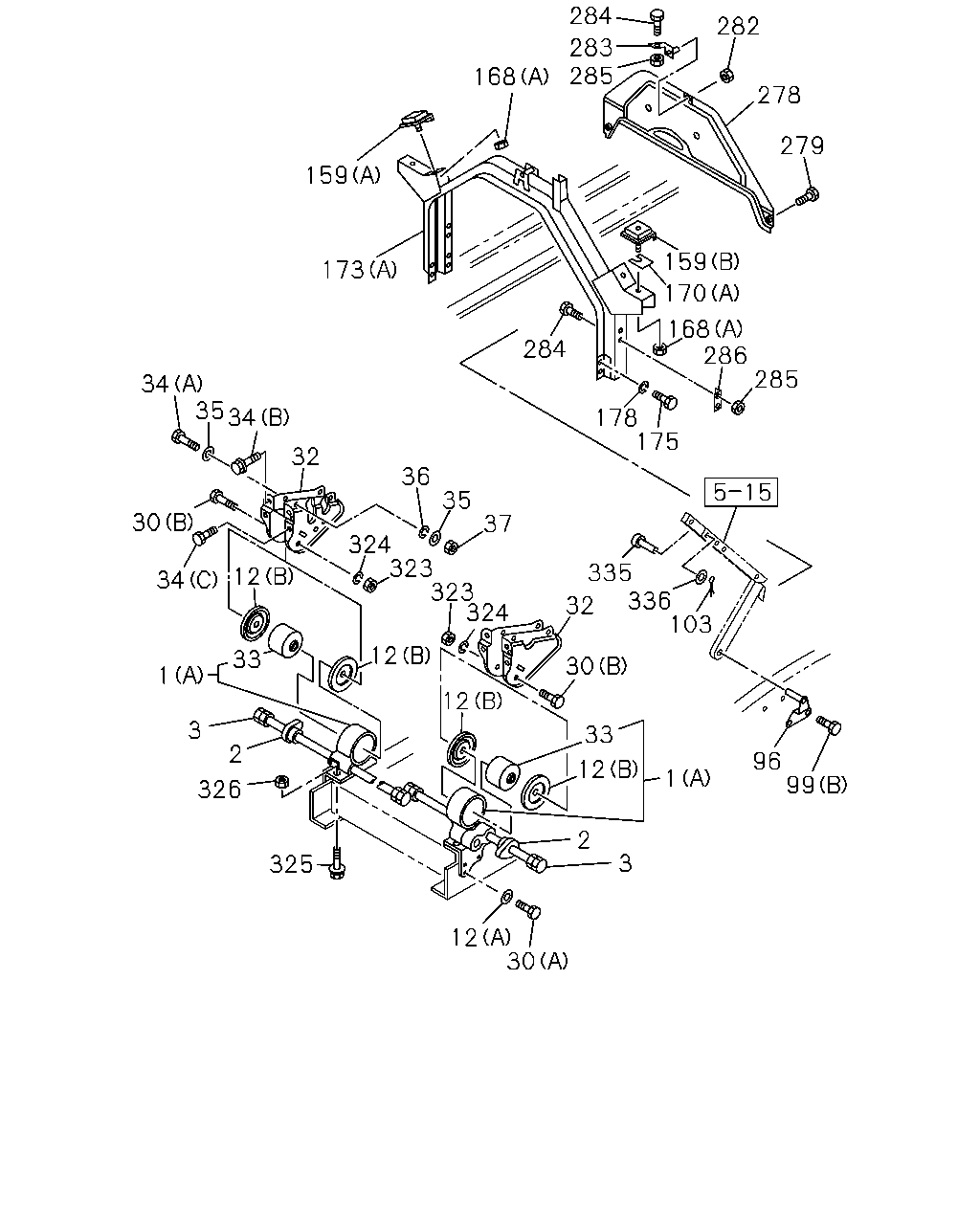

284 159 282 283 285 168 278 279 159 173 284 173 159 170 170 99 1 168 286 285 140 34 34 35 173 168 140 158 176 36 35 37 178 175 32 137 1 30 324 323 12 99 99 34 323 324 322 32 12 30 12 33 12 322 12 1 326 33 1 325 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET; CAB MTG (A)	1-53453-277-0	01	1	0005-0210	●		●
1	BRACKET; CAB MTG (A)	1-53453-337-1	01	1	0211-	●		●
1	BRACKET; CAB MTG (A)	1-53453-276-0	01	1	0005-0210	●		●
1	BRACKET; CAB MTG (A)	1-53453-336-1	01	1	0211-	●		●
1	BRACKET; CAB MTG (B)	1-53454-841-0	02	1	0005-0210	●
1	BRACKET; CAB MTG (B)	1-53454-903-0	02	1	0211-	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0005-0210				●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0211-			●	●
1	BRACKET; CAB MTG (A)	1-53453-268-0	01	1	0005-0210				●
1	BRACKET; CAB MTG (A)	1-53453-323-0	01	1	0211-				●
1	BRACKET; CAB MTG (A)	1-53453-267-0	01	1	0005-0210				●
1	BRACKET; CAB MTG (A)	1-53453-322-0	01	1	0211-				●
1	BRACKET; CAB MTG (B)	1-53454-635-1	02	1	0005-0210		●
1	BRACKET; CAB MTG (B)	1-53454-879-0	02	1	0211-		●
1	BRACKET; CAB MTG (A)	1-53453-279-0	01	1	0005-0210		●
1	BRACKET; CAB MTG (A)	1-53453-333-0	01	1	0211-		●
1	BRACKET; CAB MTG (A)	1-53453-278-0	01	1	0005-0210		●
1	BRACKET; CAB MTG (A)	1-53453-332-0	01	1	0211-		●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	0005-1201	●	●	●	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●	●	●	●
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	0005-0210	●	●	●
12	WASHER; LK,BRKT (C) ID=12.2	9-09150-612-0	08	1	0005-0603	●	●
12	WASHER; LK,BRKT (C) ID=12.2	0-91510-612-0	08	1	0604-	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0005-0210				●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0211-0306	●	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-	●	●	●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	0005-	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	0005-0512	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-233-4	01	1	0005-0210	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-291-1	01	1	0005-0210	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0005-0210				●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0211-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0005-0210				●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0211-	●	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-636-1	02	1	0005-0210	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-681-0	02	1	0211-	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-634-0	02	1	0005-0210				●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-836-3	02	1	0211-				●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	0005-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0904	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	0005-	●	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0005-	●	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	0005-	●	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	0005-	●	●	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	0005-0512			●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	02	1	0005-0512	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●
99	BOLT; BRKT (B) M12X35	9-92061-235-0	08	1	0005-0512	●	●
99	BOLT; BRKT (B) M12X35	0-20951-235-0	08	1	0601-	●	●
99	BOLT; BRKT (C) M12X25 FLANGE	0-28081-225-0	02	1	0211-0512	●	●
99	BOLT; BRKT (C) M12X25 FLANGE	0-28051-225-0	02	1	0601-	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0005-0210				●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0211-0512			●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0005-0210				●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0211-0512			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612			●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-			●	●
137	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	16	1	0005-1201	●	●
137	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	16	1	1202-	●	●
137	WASHER; PL,BRKT (A) ID=12.5 OD=26	9-09160-612-0	04	1	0205-0605	●	●
137	WASHER; PL,BRKT (A) ID=12.5 OD=26	0-91610-612-0	04	1	0606-	●	●
140	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	04	1	0005-0210	●	●
140	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	06	1	0211-0602	●	●
140	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	06	1	0603-	●	●
140	NUT; BRKT (B) M14	9-99110-514-0	08	1	0005-0512	●	●
140	NUT; BRKT (B) M14	0-91110-514-0	08	1	0601-	●	●
158	BRACKET; CUSHION RUBBER	1-53457-115-0	02	1	0211-	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	0005-0210	●	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	0211-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	0005-0210	●	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	0211-	●	●
159	RUBBER; CUSHION,CAB MTG (C)	9-54347-160-1	02	1	0005-	●	●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0005-0210				●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0211-			●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12 FLANGE	0-91150-212-0	04	1	0005-0210	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12 FLANGE	0-91150-212-0	02	1	0005-0210	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A),(B) M12 FLANGE	0-91150-212-0	06	1	0211-0602	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A),(B) M12 FLANGE	0-91180-212-0	06	1	0603-	●	●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	0005-0009	●		●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	0010-0210	●	●	●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	0211-	●	●
170	SHIM; CUSHION RUBBER (B) T=1.6	9-54347-136-1	AR	1	0005-	●	●
173	MEMBER; CAB MTG RR (A)	1-53454-674-0	01	1	0005-0210			●
173	MEMBER; CAB MTG RR (D)	1-53454-860-4	01	1	0211-			●
173	MEMBER; CAB MTG RR (A)	1-53454-670-0	01	1	0005-0210	●
173	MEMBER; CAB MTG RR (A)	1-53454-904-0	01	1	0211-0303	●
173	MEMBER; CAB MTG RR (A)	1-53454-922-0	01	1	0304-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0005-0210	●	●
173	MEMBER; CAB MTG RR (C)	1-53454-881-1	01	1	0211-0211	●	●
173	MEMBER; CAB MTG RR (C)	1-53454-920-0	01	1	0212-	●	●
173	MEMBER; CAB MTG RR (E)	1-53454-705-1	01	1	0005-0210				●
173	MEMBER; CAB MTG RR (E)	1-53454-906-0	01	1	0211-				●
173	MEMBER; CAB MTG RR (A)	1-53454-636-2	01	1	0005-0210		●
173	MEMBER; CAB MTG RR (A)	1-53454-878-0	01	1	0211-		●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	0005-0512	●	●	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●	●	●	●
176	NUT; MEMBER M12	9-99110-512-0	04	1	0005-0512		●
176	NUT; MEMBER M12	0-91110-512-0	04	1	0601-		●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	0005-0603	●	●	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●	●	●
278	COVER EXC. ENGINE REAR PTO(SV1)	1-53192-309-0	01	1	0005-0210	●		●
278	COVER ENGINE REAR PTO(SV1)	1-53193-899-0	01	1	0005-0210	●	●	●	●
278	COVER EXC. ENGINE REAR PTO(SV1)	1-53192-204-0	01	1	0005-0210		●		●
279	BOLT M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●	●	●
282	NUT; BACK COVER M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●	●	●
283	BRACKET; UPR	1-53459-630-2	01	1	0005-0210	●	●	●	●
284	BOLT; BRKT UPR M8X20 FLANGE	0-28680-820-0	06	1	0005-0210	●	●	●	●
285	NUT; BRKT UPR M8 FLANGE	0-91150-108-0	06	1	0005-0210	●	●	●	●
286	BRACKET; LOW	1-53459-631-3	01	1	0005-0210	●	●	●	●
286	BRACKET; LOW	1-53459-632-3	01	1	0005-0210	●	●	●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0005-0210				●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0211-	●	●	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	0005-0512	●	●	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	0005-0603	●	●	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	0005-0512	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	0005-0512	●	●	●	●
326	NUT; GUIDE NUT M12	0-91110-512-0	02	1	0601-	●	●	●	●

159 294 99 415 199 413 173 156 414 448 192 99 413 34 34 35 1 284 32 36 35 37 286 285 413 30 324 323 178 175 34 323 324 12 322 12 335 32 33 30 1 12 322 12 336 3 103 2 326 33 96 1 325 2 99 3 12 30

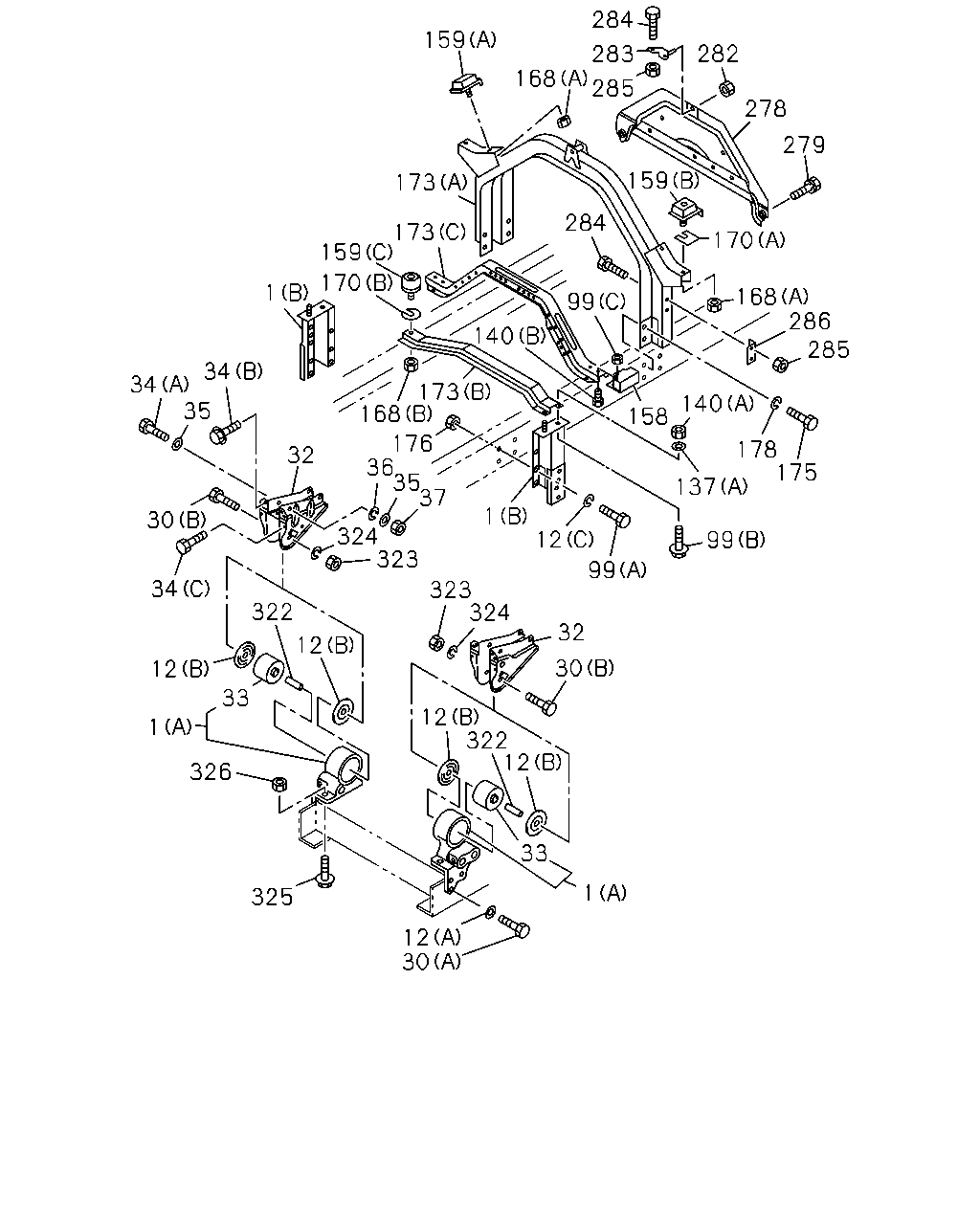

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET; CAB MTG (A)	1-53453-277-0	01	1	0005-0210	●		●
1	BRACKET; CAB MTG (A)	1-53453-337-1	01	1	0211-	●		●
1	BRACKET; CAB MTG (A)	1-53453-276-0	01	1	0005-0210	●		●
1	BRACKET; CAB MTG (A)	1-53453-336-1	01	1	0211-	●		●
1	BRACKET; CAB MTG (B)	1-53454-841-0	02	1	0005-0210	●
1	BRACKET; CAB MTG (B)	1-53454-903-0	02	1	0211-	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0005-0210				●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0211-			●	●
1	BRACKET; CAB MTG (A)	1-53453-268-0	01	1	0005-0210				●
1	BRACKET; CAB MTG (A)	1-53453-323-0	01	1	0211-				●
1	BRACKET; CAB MTG (A)	1-53453-267-0	01	1	0005-0210				●
1	BRACKET; CAB MTG (A)	1-53453-322-0	01	1	0211-				●
1	BRACKET; CAB MTG (B)	1-53454-635-1	02	1	0005-0210		●
1	BRACKET; CAB MTG (B)	1-53454-879-0	02	1	0211-		●
1	BRACKET; CAB MTG (A)	1-53453-279-0	01	1	0005-0210		●
1	BRACKET; CAB MTG (A)	1-53453-333-0	01	1	0211-		●
1	BRACKET; CAB MTG (A)	1-53453-278-0	01	1	0005-0210		●
1	BRACKET; CAB MTG (A)	1-53453-332-0	01	1	0211-		●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	0005-			●	●
3	TORSION BAR	1-09585-130-0	01	1	0005-			●	●
3	TORSION BAR	1-09585-129-0	01	1	0005-			●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	0005-1201	●	●	●	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●	●	●	●
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	0005-0210	●	●	●
12	WASHER; LK,BRKT (C) ID=12.2	9-09150-612-0	08	1	0005-0603	●	●
12	WASHER; LK,BRKT (C) ID=12.2	0-91510-612-0	08	1	0604-	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0005-0210				●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0211-0306	●	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-	●	●	●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	0005-	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	0005-0512	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-233-4	01	1	0005-0210	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-291-1	01	1	0005-0210	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0005-0210				●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0211-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0005-0210				●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0211-	●	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-636-1	02	1	0005-0210	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-681-0	02	1	0211-	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-634-0	02	1	0005-0210				●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-836-3	02	1	0211-				●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	0005-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0904	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	0005-	●	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0005-	●	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	0005-	●	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	0005-	●	●	●	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	0005-			●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	0005-0512			●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	02	1	0005-0512	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●
99	BOLT; BRKT (B) M12X35	9-92061-235-0	08	1	0005-0512	●	●
99	BOLT; BRKT (B) M12X35	0-20951-235-0	08	1	0601-	●	●
99	BOLT; BRKT (C) M12X25 FLANGE	0-28081-225-0	02	1	0211-0512	●	●
99	BOLT; BRKT (C) M12X25 FLANGE	0-28051-225-0	02	1	0601-	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0005-0210				●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0211-0512			●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0005-0210				●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0211-0512			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612			●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-			●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	0005-			●	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	0005-0210				●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	0211-0512			●	●
156	NUT; CAB MTG RR M16	0-91110-516-0	02	1	0601-			●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	0005-0210	●	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	0211-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	0005-0210	●	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	0211-	●	●
159	RUBBER; CUSHION,CAB MTG (C)	9-54347-160-1	02	1	0005-	●	●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0005-0210				●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0211-			●	●
173	MEMBER; CAB MTG RR (A)	1-53454-674-0	01	1	0005-0210			●
173	MEMBER; CAB MTG RR (D)	1-53454-860-4	01	1	0211-			●
173	MEMBER; CAB MTG RR (A)	1-53454-670-0	01	1	0005-0210	●
173	MEMBER; CAB MTG RR (A)	1-53454-904-0	01	1	0211-0303	●
173	MEMBER; CAB MTG RR (A)	1-53454-922-0	01	1	0304-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0005-0210	●	●
173	MEMBER; CAB MTG RR (C)	1-53454-881-1	01	1	0211-0211	●	●
173	MEMBER; CAB MTG RR (C)	1-53454-920-0	01	1	0212-	●	●
173	MEMBER; CAB MTG RR (E)	1-53454-705-1	01	1	0005-0210				●
173	MEMBER; CAB MTG RR (E)	1-53454-906-0	01	1	0211-				●
173	MEMBER; CAB MTG RR (A)	1-53454-636-2	01	1	0005-0210		●
173	MEMBER; CAB MTG RR (A)	1-53454-878-0	01	1	0211-		●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	0005-0512	●	●	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●	●	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	0005-0603	●	●	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	0005-0210				●
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	0211-0602			●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0603-			●	●
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	0005-0207				●
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0208-0210				●
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0211-1403			●	●
199	BRACKET; CAB RR MTG	8-98269-637-0	02	1	1404-			●	●
284	BOLT; BRKT UPR M8X20 FLANGE	0-28680-820-0	06	1	0005-0210	●	●	●	●
285	NUT; BRKT UPR M8 FLANGE	0-91150-108-0	06	1	0005-0210	●	●	●	●
286	BRACKET; LOW	1-53459-631-3	01	1	0005-0210	●	●	●	●
286	BRACKET; LOW	1-53459-632-3	01	1	0005-0210	●	●	●	●
294	MEMBER; FLOATING	1-53454-530-1	01	1	0005-0210				●
294	MEMBER; FLOATING	1-53454-530-1	01	1	0211-			●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0005-0210				●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	0211-	●	●	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	0005-0512	●	●	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	0005-0603	●	●	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	0005-0512	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	0005-0512	●	●	●	●
326	NUT; GUIDE NUT M12	0-91110-512-0	02	1	0601-	●	●	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	0005-			●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	0005-			●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	0005-0210				●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	0211-0306			●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0307-			●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	0005-0210				●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	0211-0603			●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	0-91510-816-0	02	1	0604-			●	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	0005-0210				●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	0211-			●	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	0005-0210				●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	0211-			●	●
448	BUSHING; CAB MTG	1-53459-836-2	02	1	0005-0210				●
448	BUSHING; CAB MTG	1-53459-836-3	02	1	0211-			●	●

284 282 283 285 168 278 279 159 159 173 170 168 286 285 284 34 35 34 178 175 32 36 35 30 37 324 323 323 324 12 335 336 103 12 34 32 12 33 30 1 3 33 2 96 99 12 1 326 2 3 325 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BRACKET; CAB MTG (A)	1-53453-277-0	01	1	0005-0210	●		●
1	BRACKET; CAB MTG (A)	1-53453-337-1	01	1	0211-	●		●
1	BRACKET; CAB MTG (A)	1-53453-276-0	01	1	0005-0210	●		●
1	BRACKET; CAB MTG (A)	1-53453-336-1	01	1	0211-	●		●
1	BRACKET; CAB MTG (B)	1-53454-841-0	02	1	0005-0210	●
1	BRACKET; CAB MTG (B)	1-53454-903-0	02	1	0211-	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0005-0210				●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	0211-			●	●
1	BRACKET; CAB MTG (A)	1-53453-268-0	01	1	0005-0210				●
1	BRACKET; CAB MTG (A)	1-53453-323-0	01	1	0211-				●
1	BRACKET; CAB MTG (A)	1-53453-267-0	01	1	0005-0210				●
1	BRACKET; CAB MTG (A)	1-53453-322-0	01	1	0211-				●
1	BRACKET; CAB MTG (B)	1-53454-635-1	02	1	0005-0210		●
1	BRACKET; CAB MTG (B)	1-53454-879-0	02	1	0211-		●
1	BRACKET; CAB MTG (A)	1-53453-279-0	01	1	0005-0210		●
1	BRACKET; CAB MTG (A)	1-53453-333-0	01	1	0211-		●
1	BRACKET; CAB MTG (A)	1-53453-278-0	01	1	0005-0210		●
1	BRACKET; CAB MTG (A)	1-53453-332-0	01	1	0211-		●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	0005-			●	●
3	TORSION BAR	1-09585-130-0	01	1	0005-			●	●
3	TORSION BAR	1-09585-129-0	01	1	0005-			●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	0005-1201	●	●	●	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●	●	●	●
12	WASHER; LK,BRKT (B) ID=34.5	1-53458-281-1	04	1	0005-0210	●	●	●
12	WASHER; LK,BRKT (C) ID=12.2	9-09150-612-0	08	1	0005-0603	●	●
12	WASHER; LK,BRKT (C) ID=12.2	0-91510-612-0	08	1	0604-	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0005-0210				●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	0211-0306	●	●	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-	●	●	●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	0005-	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	9-92061-440-0	10	1	0005-0512	●	●	●	●
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-233-4	01	1	0005-0210	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-291-1	01	1	0005-0210	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0005-0210				●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	0211-	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0005-0210				●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0211-	●	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-636-1	02	1	0005-0210	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-681-0	02	1	0211-	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-634-0	02	1	0005-0210				●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-836-3	02	1	0211-				●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	0005-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0904	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	0005-	●	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0005-	●	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	0005-	●	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	0005-	●	●	●	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	0005-			●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	0005-0512			●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	02	1	0005-0512	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●
99	BOLT; BRKT (B) M12X35	9-92061-235-0	08	1	0005-0512	●	●
99	BOLT; BRKT (B) M12X35	0-20951-235-0	08	1	0601-	●	●
99	BOLT; BRKT (C) M12X25 FLANGE	0-28081-225-0	02	1	0211-0512	●	●
99	BOLT; BRKT (C) M12X25 FLANGE	0-28051-225-0	02	1	0601-	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0005-0210				●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	0211-0512			●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0005-0210				●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	0211-0512			●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612			●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-			●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	0005-			●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	0005-0210	●	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	0211-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	0005-0210	●	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	0211-	●	●
159	RUBBER; CUSHION,CAB MTG (C)	9-54347-160-1	02	1	0005-	●	●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0005-0210				●
159	RUBBER; CUSHION,CAB MTG (D)	1-53458-285-0	02	1	0211-			●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12 FLANGE	0-91150-212-0	04	1	0005-0210	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12 FLANGE	0-91150-212-0	02	1	0005-0210	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A),(B) M12 FLANGE	0-91150-212-0	06	1	0211-0602	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A),(B) M12 FLANGE	0-91180-212-0	06	1	0603-	●	●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	0005-0009	●		●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	0010-0210	●	●	●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	0211-	●	●
170	SHIM; CUSHION RUBBER (B) T=1.6	9-54347-136-1	AR	1	0005-	●	●
173	MEMBER; CAB MTG RR (A)	1-53454-674-0	01	1	0005-0210			●
173	MEMBER; CAB MTG RR (D)	1-53454-860-4	01	1	0211-			●
173	MEMBER; CAB MTG RR (A)	1-53454-670-0	01	1	0005-0210	●
173	MEMBER; CAB MTG RR (A)	1-53454-904-0	01	1	0211-0303	●
173	MEMBER; CAB MTG RR (A)	1-53454-922-0	01	1	0304-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0005-0210	●	●
173	MEMBER; CAB MTG RR (C)	1-53454-881-1	01	1	0211-0211	●	●
173	MEMBER; CAB MTG RR (C)	1-53454-920-0	01	1	0212-	●	●
173	MEMBER; CAB MTG RR (E)	1-53454-705-1	01	1	0005-0210				●
173	MEMBER; CAB MTG RR (E)	1-53454-906-0	01	1	0211-				●
173	MEMBER; CAB MTG RR (A)	1-53454-636-2	01	1	0005-0210		●
173	MEMBER; CAB MTG RR (A)	1-53454-878-0	01	1	0211-		●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	0005-0512	●	●	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●	●	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	0005-0603	●	●	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●	●	●
278	COVER EXC. ENGINE REAR PTO(SV1)	1-53192-309-0	01	1	0005-0210	●		●
278	COVER ENGINE REAR PTO(SV1)	1-53193-899-0	01	1	0005-0210	●	●	●	●
278	COVER EXC. ENGINE REAR PTO(SV1)	1-53192-204-0	01	1	0005-0210		●		●
279	BOLT M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●	●	●
282	NUT; BACK COVER M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●	●	●
283	BRACKET; UPR	1-53459-630-2	01	1	0005-0210	●	●	●	●
284	BOLT; BRKT UPR M8X20 FLANGE	0-28680-820-0	06	1	0005-0210	●	●	●	●
285	NUT; BRKT UPR M8 FLANGE	0-91150-108-0	06	1	0005-0210	●	●	●	●
286	BRACKET; LOW	1-53459-631-3	01	1	0005-0210	●	●	●	●
286	BRACKET; LOW	1-53459-632-3	01	1	0005-0210	●	●	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	0005-0512	●	●	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	0005-0603	●	●	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	0005-0512	●	●	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	0005-0512	●	●	●	●
326	NUT; GUIDE NUT M12	0-91110-512-0	02	1	0601-	●	●	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	0005-			●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	0005-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
