2-44B — AUTO TRANS CONTROL VALVE; LOWER BODY (#81818) — 38 parça

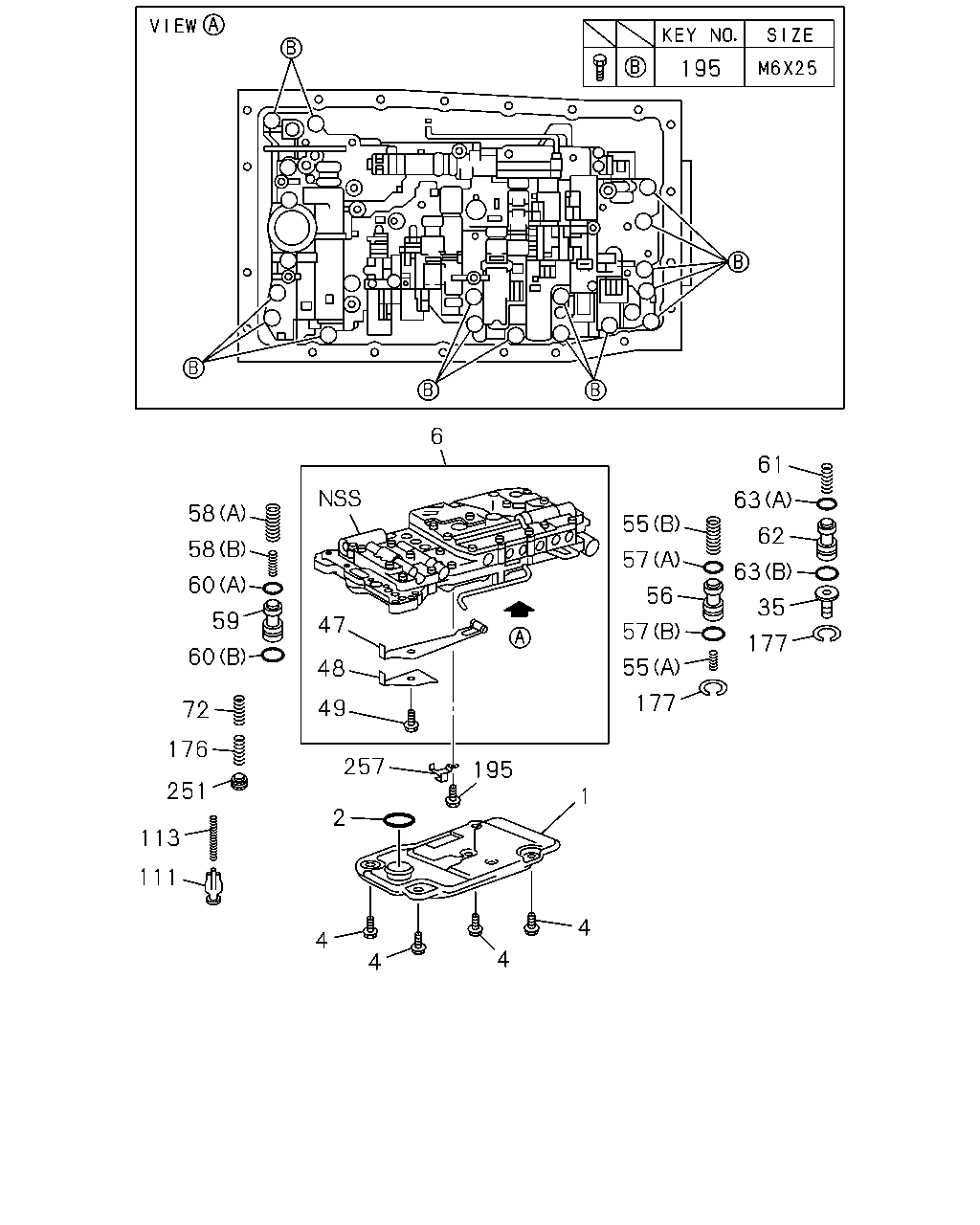

çizim 194388
195 61 63 62 63 35 177 55 57 56 57 55 177 1 4 4 4 4 2 257 195 49 48 47 6 111 113 251 176 72 60 60 58 58 59
BalonParca AdiParca NoAdetTipApplied Date
1 04.197 STRAINER ASM; OIL,A/T
4X2 CREW CAB(TFB*W*) 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98197-678-0 01 1 1211-
1 04.197 STRAINER ASM; OIL,A/T 8-98189-731-0 01 1 1205-1210
1 04.197 STRAINER ASM; OIL,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 		8-98189-731-0 01 1 1211-
1 04.197 STRAINER ASM; OIL,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 		8-98189-731-0 01 1 1211-
1 04.197 STRAINER ASM; OIL,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) 		8-98189-731-0 01 1 1211-
2 04.197 GASKET; OIL STRAINER,A/T 8-98189-732-0 01 1 1205-
4 04.197 BOLT; OIL STRAINER,A/T
4X2 CREW CAB(TFB*W*) 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 04.265 L=16 		8-94480-096-0 04 1 1211-
4 04.197 BOLT; OIL STRAINER,A/T
04.265 M6X12 		8-94479-927-0 04 1 1205-1210
4 04.197 BOLT; OIL STRAINER,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 04.265 M6X12 		8-94479-927-0 04 1 1211-
4 04.197 BOLT; OIL STRAINER,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 04.265 M6X12 		8-94479-927-0 04 1 1211-
4 04.197 BOLT; OIL STRAINER,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) 04.265 M6X12 		8-94479-927-0 04 1 1211-
6 04.265 BODY ASM; VLV LWR,A/T 8-98189-497-0 01 1 1205-
35 04.265 SPRING; LWR VLV BODY 8-98189-477-0 01 1 1205-
47 04.050 SPRING; DETENT,A/T 8-98189-498-0 01 1 1205-
48 04.052 PLATE; DETENT SPR,A/T 8-98189-499-0 01 1 1205-
49 04.052 BOLT; DETENT SPR PLATE,A/T
M6X14 		8-98189-500-0 01 1 1205-
55 04.246 SPRING; ACCUMLATOR PISTON
(A) 		8-98189-480-0 01 1 1205-
55 04.246 SPRING; ACCUMLATOR PISTON
(B) 		8-98189-481-0 01 1 1205-
56 04.241 PISTON; ACCUMLATOR 8-98189-735-0 01 1 1205-
57 04.241 GASKET; 2ND SPD PISTON,A/T
04.167 (A) ID=24 		8-97184-889-0 01 1 1205-
57 04.241 GASKET; 2ND SPD PISTON,A/T
(B) ID=34 		8-98189-737-0 01 1 1205-
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A
(A) 		8-97184-330-0 01 1 1205-
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A
(B) 		8-98189-479-0 01 1 1205-
59 04.166 PISTON; DIRECT CLU,A/T 8-98189-734-0 01 1 1205-
60 04.169 GASKET; DIRECT CLU PISTON,A/T
04.241 (A) ID=27 		8-97184-886-0 01 1 1205-
60 04.169 GASKET; DIRECT CLU PISTON,A/T
04.241 (B) ID=34 		8-98189-737-0 01 1 1205-
61 04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-98189-478-0 01 1 1205-
62 04.166 PISTON; FWD CLU,A/T 8-98189-733-0 01 1 1205-
63 04.167 GASKET; FWD CLU,A/T
04.241 (A) ID=20 		8-97184-885-0 01 1 1205-
63 04.167 GASKET; FWD CLU,A/T
(B) ID=29 		8-98189-736-0 01 1 1205-
72 04.233 SPRING; ACCUMLATOR PISTON 8-98189-483-0 01 1 1205-
111 04.169 BODY; CHECK BALL 8-94479-931-0 01 1 1205-
113 04.164 SPRING; CHECK BALL 8-94479-930-0 01 1 1205-
176 04.265 SPRING; ACCUM INNER 8-98189-482-0 01 1 1205-
177 04.265 RING; SNAP
ID=19 		8-97025-821-0 02 1 1205-
195 04.265 BOLT; CLAMP
M6X25 		8-94473-624-0 16 1 1205-
251 04.265 VALVE; ACCUMULATOR 8-98189-739-0 01 1 1205-
257 04.265 CLAMP; HARNESS 8-98189-740-0 01 1 1205-
