Isuzu WW
▶
PICKUP
▶
TFR
▶
51412 - TFR/TFS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-42B - AUTO TRANS OIL PAN AND OIL CONTROL
▶

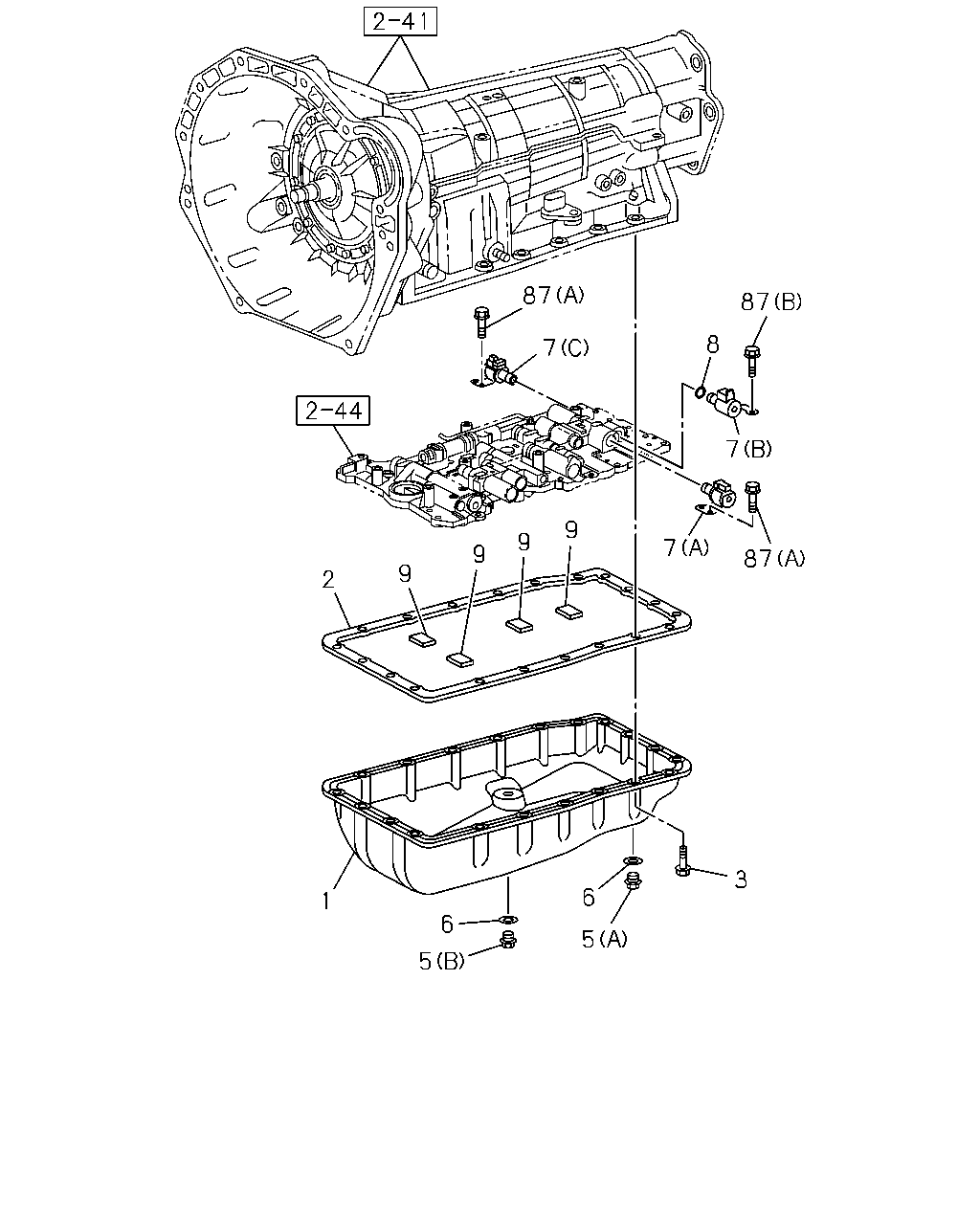

2-42B — AUTO TRANS OIL PAN AND OIL CONTROL
(#81817) — 18 parça
87
7
87
8
2
9
9
9
9
7
7
87
6
1
5
6
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.195 PAN ASM; OIL,A/T
4X2 CREW CAB(TFB*W*) 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)
8-98197-679-0
01
1
1211-
1
04.195 PAN ASM; OIL,A/T
8-98209-424-0
01
1
1205-1205
1
04.195 PAN ASM; OIL,A/T
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
8-98209-424-0
01
1
1206-1210
1
04.195 PAN ASM; OIL,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)
8-98209-424-0
01
1
1211-
1
04.195 PAN ASM; OIL,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)
8-98209-424-0
01
1
1211-
1
04.195 PAN ASM; OIL,A/T
4JK1-TCY ENG(RDX)
8-98197-897-0
01
1
1206-
2
04.196 GASKET; OIL PAN,A/T
8-98189-738-0
01
1
1205-
3
04.196 BOLT; OIL PAN TO CASE
M6X15
8-98189-751-0
20
1
1205-
5
04.195 PLUG; OIL PAN
(A) M10X9
8-97367-573-0
01
1
1205-
5
04.195 PLUG; OIL PAN
(B) M10X9
8-98189-752-0
01
1
1205-
6
04.195 GASKET; OIL PAN TO PLUG
ID=12
5-34132-002-0
02
1
1205-
7
04.265 SOLENOID; DOWN SHIFT,A/T
(A)
8-98189-501-0
01
1
1205-
7
04.265 SOLENOID; DOWN SHIFT,A/T
(B)
8-98189-502-0
01
1
1205-
7
04.265 SOLENOID; DOWN SHIFT,A/T
(C)
8-98189-503-0
01
1
1205-
8
04.265 GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1
8-94480-101-0
01
1
1205-
9
04.195 MAGNET; OIL PAN
5-34138-004-0
04
1
1205-
87
04.265 BOLT; SOLENOID
04.197 (A) M5X12
8-94405-335-0
03
1
1205-
87
04.265 BOLT; SOLENOID
(B) M6X12
8-94479-927-0
01
1
1205-
