◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35A - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#81814) — 92 parça

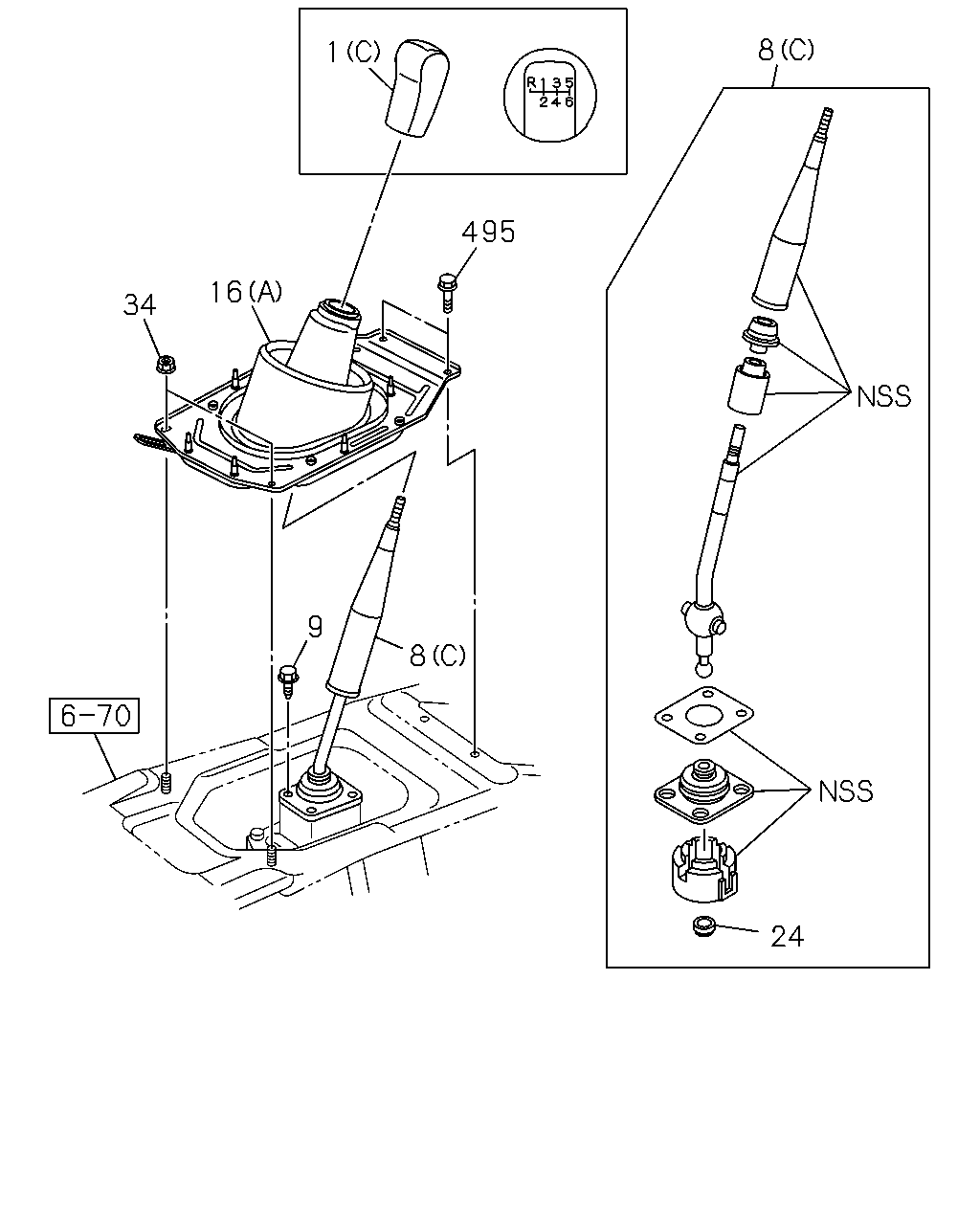

çizim 113889
1 495 16 34 9 8 8 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> CONGO EQUIPMENT(CDF) (D) BLACK 		8-97425-928-1 01 1 1503- ● ● ●
1 04.006 KNOB; CHANGE LEVER
CONGO EQUIPMENT(CDF) SHIFT KNOB SILVER INSERT<KH1> (D) SILVER 		8-97425-929-1 01 1 1503- ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (C) BLACK 		8-97419-390-2 01 1 1206- ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> (C) SILVER 		8-97423-314-1 01 1 1206- ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK 		8-97416-791-3 01 1 1205-1205 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK 		8-97416-791-3 01 1 1206-1301 ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK 		8-97416-791-3 01 1 1302-1502 ● ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> EXC. CONGO EQUIPMENT(CDF) (A) BLACK 		8-97416-791-3 01 1 1503- ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB SILVER INSERT<KH1> (B) 		8-97371-734-0 01 1 1205-1205 ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB SILVER INSERT<KH1> (B) 		8-97371-734-0 01 1 1206-1301 ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB SILVER INSERT<KH1> (B) 		8-97371-734-0 01 1 1302-1502 ● ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB SILVER INSERT<KH1> (B) 		8-97371-734-0 01 1 1503- ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
CONGO EQUIPMENT(CDF) EXC. SHIFT KNOB SPORTS<KAE> (B) 		8-97371-734-0 01 1 1503- ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> (A) SILVER 		8-97423-313-0 01 1 1205-1205 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> (A) SILVER 		8-97423-313-0 01 1 1206-1502 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> EXC. CONGO EQUIPMENT(CDF) (A) SILVER 		8-97423-313-0 01 1 1503- ● ●
8 04.006 LEVER; CHANGE
(A) 		8-98202-733-1 01 1 1206-1301 ● ●
8 04.006 LEVER; CHANGE
(A) 		8-98202-733-1 01 1 1302- ● ● ●
8 04.006 LEVER; CHANGE
(A) 		8-98204-208-1 01 1 1206- ●
8 04.006 LEVER; CHANGE
(C) 		8-98188-123-1 01 1 1206- ●
8 04.006 LEVER; CHANGE
(B) 		8-98201-972-1 01 1 1205- ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1206-1301 ● ● ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1302- ● ● ● ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1205-1205 ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1206- ● ●
16 04.015 BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98186-367-0 01 1 1205-1205 ●
16 04.015 BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98186-367-0 01 1 1206-1301 ● ● ● ● ●
16 04.015 BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98186-367-0 01 1 1302- ● ● ● ● ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98186-369-0 01 1 1205-1205 ●
16 04.015 BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98186-369-0 01 1 1206-1301 ● ● ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98186-369-0 01 1 1302- ● ● ● ● ● ●
24 04.008 BUSHING; CHANGE LEVER 8-98188-121-0 01 1 1206- ●
24 04.008 BUSHING; CHANGE LEVER
4JJ1-TCX ENG(LS0) 		8-97943-618-0 01 1 1205-1205 ●
24 04.008 BUSHING; CHANGE LEVER 8-97943-618-0 01 1 1206-1301 ● ● ● ●
24 04.008 BUSHING; CHANGE LEVER 8-97943-618-0 01 1 1302- ● ● ● ● ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 1205-1205 ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 1206-1301 ● ● ● ● ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 1302- ● ● ● ● ● ●
495 04.012 SCREW; GROMMET
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1205-1205 ●
495 04.012 SCREW; GROMMET
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1206-1301 ● ● ● ● ●
495 04.012 SCREW; GROMMET
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1302- ● ● ● ● ● ●
çizim 114191
8 8 24 24 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 04.006 LEVER; CHANGE
(A) 		8-98202-733-1 01 1 1206-1301 ● ●
8 04.006 LEVER; CHANGE
(A) 		8-98202-733-1 01 1 1302- ● ● ●
8 04.006 LEVER; CHANGE
(A) 		8-98204-208-1 01 1 1206- ●
8 04.006 LEVER; CHANGE
(C) 		8-98188-123-1 01 1 1206- ●
8 04.006 LEVER; CHANGE
(B) 		8-98201-972-1 01 1 1205- ●
22 04.015 COVER; DUST,CHANGE LEVER 8-97945-801-0 01 1 1206-1301 ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER 8-97945-801-0 01 1 1302- ● ● ● ●
24 04.008 BUSHING; CHANGE LEVER 8-98188-121-0 01 1 1206- ●
24 04.008 BUSHING; CHANGE LEVER
4JJ1-TCX ENG(LS0) 		8-97943-618-0 01 1 1205-1205 ●
24 04.008 BUSHING; CHANGE LEVER 8-97943-618-0 01 1 1206-1301 ● ● ● ●
24 04.008 BUSHING; CHANGE LEVER 8-97943-618-0 01 1 1302- ● ● ● ● ●

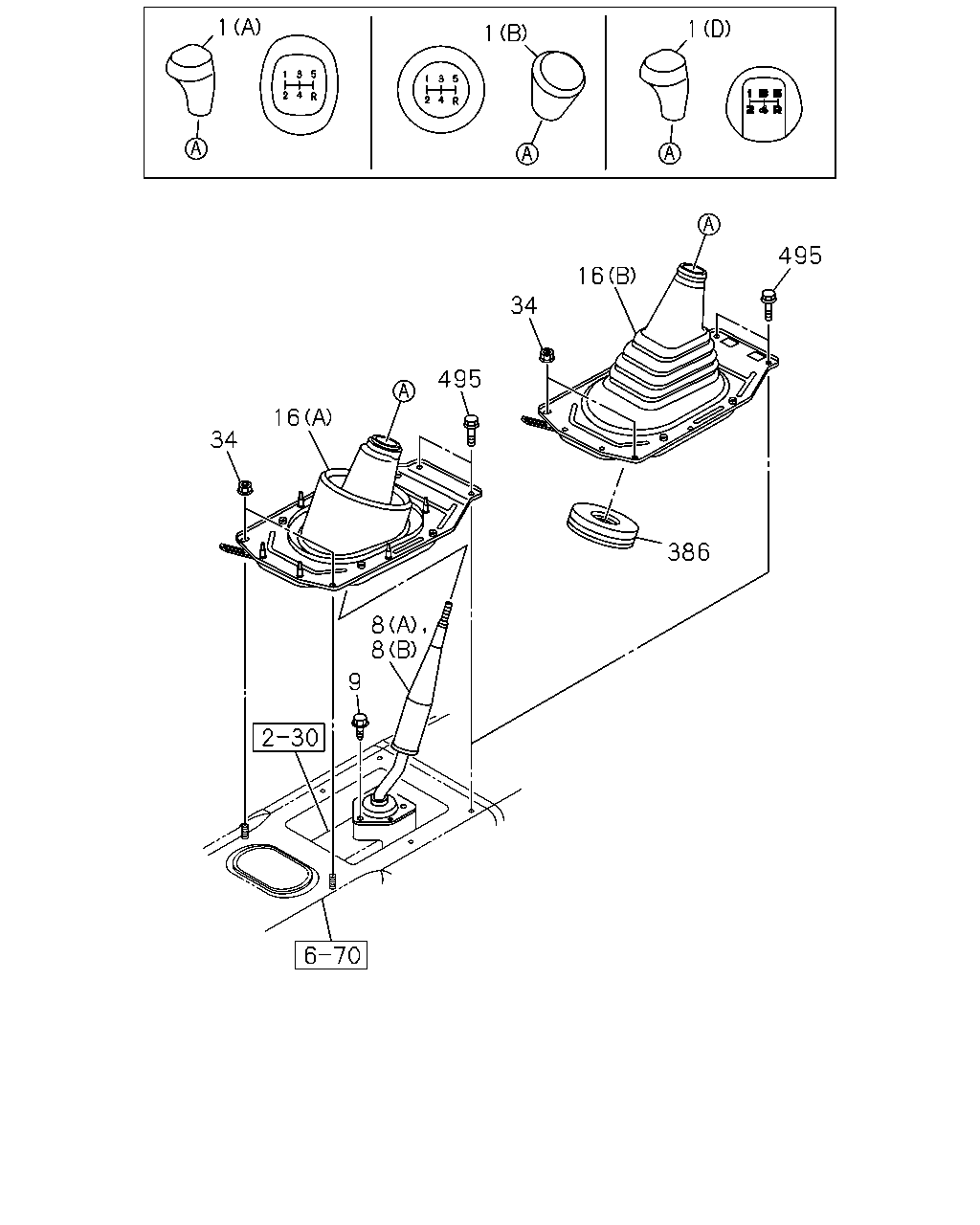

çizim 194379
1 1 1 495 16 386 34 495 16 8 8 9 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> CONGO EQUIPMENT(CDF) (D) BLACK 		8-97425-928-1 01 1 1503- ● ● ●
1 04.006 KNOB; CHANGE LEVER
CONGO EQUIPMENT(CDF) SHIFT KNOB SILVER INSERT<KH1> (D) SILVER 		8-97425-929-1 01 1 1503- ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (C) BLACK 		8-97419-390-2 01 1 1206- ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> (C) SILVER 		8-97423-314-1 01 1 1206- ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK 		8-97416-791-3 01 1 1205-1205 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK 		8-97416-791-3 01 1 1206-1301 ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK 		8-97416-791-3 01 1 1302-1502 ● ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> EXC. CONGO EQUIPMENT(CDF) (A) BLACK 		8-97416-791-3 01 1 1503- ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB SILVER INSERT<KH1> (B) 		8-97371-734-0 01 1 1205-1205 ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB SILVER INSERT<KH1> (B) 		8-97371-734-0 01 1 1206-1301 ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB SILVER INSERT<KH1> (B) 		8-97371-734-0 01 1 1302-1502 ● ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB SILVER INSERT<KH1> (B) 		8-97371-734-0 01 1 1503- ● ● ● ●
1 04.006 KNOB; CHANGE LEVER
CONGO EQUIPMENT(CDF) EXC. SHIFT KNOB SPORTS<KAE> (B) 		8-97371-734-0 01 1 1503- ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> (A) SILVER 		8-97423-313-0 01 1 1205-1205 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> (A) SILVER 		8-97423-313-0 01 1 1206-1502 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> EXC. CONGO EQUIPMENT(CDF) (A) SILVER 		8-97423-313-0 01 1 1503- ● ●
8 04.006 LEVER; CHANGE
(A) 		8-98202-733-1 01 1 1206-1301 ● ●
8 04.006 LEVER; CHANGE
(A) 		8-98202-733-1 01 1 1302- ● ● ●
8 04.006 LEVER; CHANGE
(A) 		8-98204-208-1 01 1 1206- ●
8 04.006 LEVER; CHANGE
(C) 		8-98188-123-1 01 1 1206- ●
8 04.006 LEVER; CHANGE
(B) 		8-98201-972-1 01 1 1205- ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1206-1301 ● ● ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1302- ● ● ● ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1205-1205 ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1206- ● ●
16 04.015 BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98186-367-0 01 1 1205-1205 ●
16 04.015 BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98186-367-0 01 1 1206-1301 ● ● ● ● ●
16 04.015 BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98186-367-0 01 1 1302- ● ● ● ● ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98186-369-0 01 1 1205-1205 ●
16 04.015 BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98186-369-0 01 1 1206-1301 ● ● ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98186-369-0 01 1 1302- ● ● ● ● ● ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 1205-1205 ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 1206-1301 ● ● ● ● ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 1302- ● ● ● ● ● ●
386 04.015 INSULATION; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98191-338-0 01 1 1205-1205 ●
386 04.015 INSULATION; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98191-338-0 01 1 1206-1301 ● ● ● ●
386 04.015 INSULATION; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98191-338-0 01 1 1302- ● ● ● ● ● ●
495 04.012 SCREW; GROMMET
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1205-1205 ●
495 04.012 SCREW; GROMMET
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1206-1301 ● ● ● ● ●
495 04.012 SCREW; GROMMET
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1302- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
