Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#8181) — 320 parça

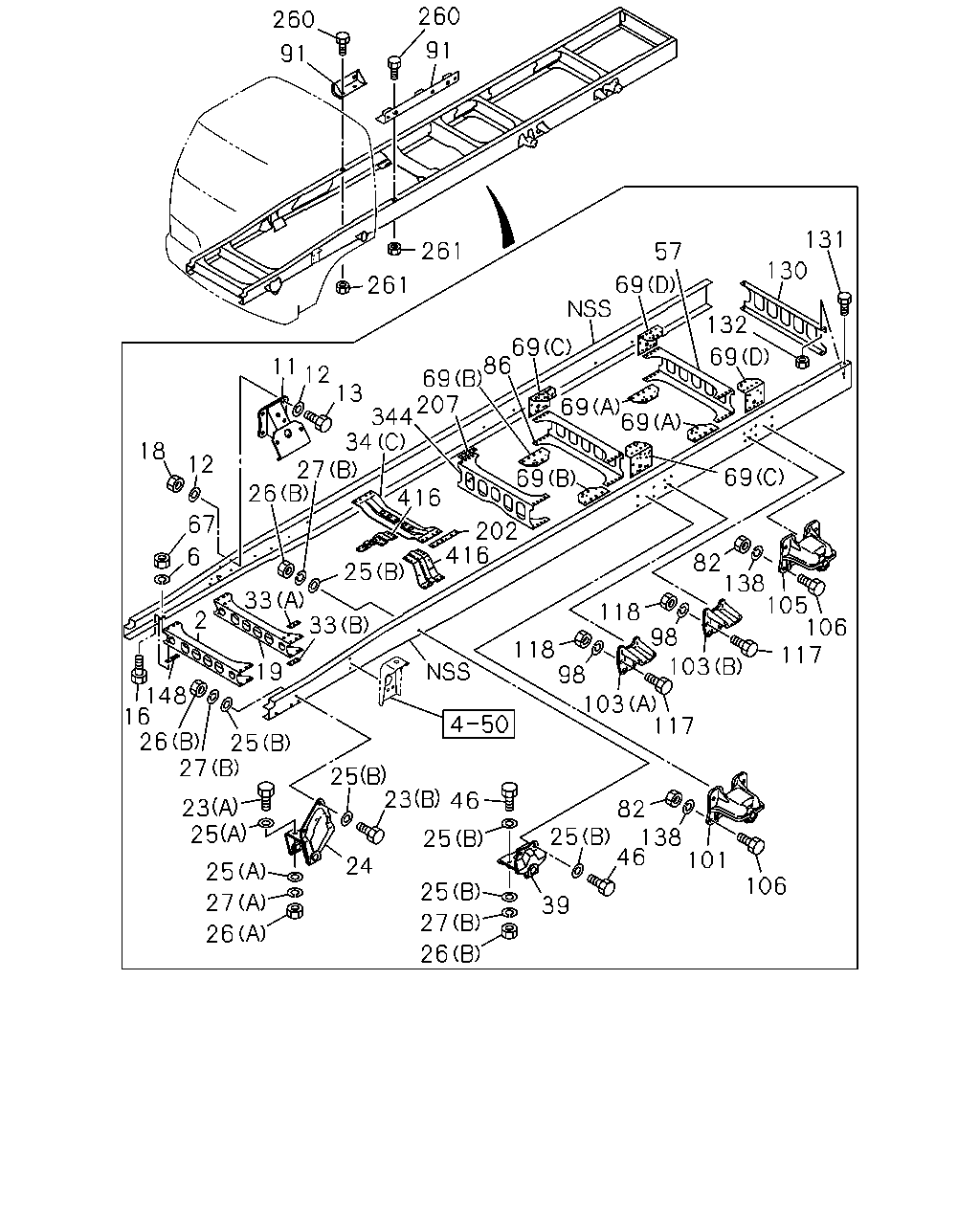

260 260 91 91 131 261 57 130 261 69 132 69 86 12 69 13 207 344 34 27 26 69 11 69 69 18 69 12 69 416 67 202 416 25 82 138 105 106 117 6 33 2 33 19 118 98 118 98 103 148 16 26 25 27 103 117 25 23 46 23 25 82 25 138 46 101 25 24 25 106 25 27 39 27 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	0005-0210	●
2	MEMBER; CROSS,1ST FSS DOUBLE CAB(FS*W)	1-53181-460-9	01	1	0005-0210		●
2	MEMBER; CROSS,1ST	1-53181-781-1	01	1	0211-	●
2	MEMBER; CROSS,1ST FSS DOUBLE CAB(FS*W)	1-53181-781-1	01	1	0211-		●
2	MEMBER; CROSS,1ST FTS ALL(FT****)	1-53181-670-9	01	1	0005-0210		●
2	MEMBER; CROSS,1ST FTS ALL(FT****)	1-53181-939-2	01	1	0211-		●
6	WASHER; LK,1ST C/MBR FTS ALL(FT****) ID=16.2	9-09150-616-0	01	1	0005-0603		●
6	WASHER; LK,1ST C/MBR FTS ALL(FT****) ID=16.2	0-91510-616-0	01	1	0604-		●
11	BRACKET; ENG MTG	1-53211-197-0	02	1	0005-0210	●
11	BRACKET; ENG MTG FSS DOUBLE CAB(FS*W)	1-53211-197-0	02	1	0005-0210		●
11	BRACKET; ENG MTG	1-53211-197-0	02	1	0211-	●
11	BRACKET; ENG MTG FSS DOUBLE CAB(FS*W)	1-53211-197-0	02	1	0211-		●
11	BRACKET; ENG MTG FTS ALL(FT****)	1-53211-218-0	02	1	0005-		●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	0005-	●	●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	0005-0210	●
13	BOLT; BRKT,ENG MTG FSS DOUBLE CAB(FS*W) M12X40	9-92061-240-0	08	1	0005-0210		●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	0211-0512	●
13	BOLT; BRKT,ENG MTG FSS DOUBLE CAB(FS*W) M12X40	9-92061-240-0	08	1	0211-0512		●
13	BOLT; BRKT,ENG MTG M12X40	0-20951-240-0	08	1	0601-	●
13	BOLT; BRKT,ENG MTG FSS DOUBLE CAB(FS*W) M12X40	0-20951-240-0	08	1	0601-		●
13	BOLT; BRKT,ENG MTG FTS ALL(FT****) M12X35	9-92061-235-0	08	1	0005-0512		●
13	BOLT; BRKT,ENG MTG FTS ALL(FT****) M12X35	0-20951-235-0	08	1	0601-		●
16	BOLT; 1ST C/MBR TO S/MBR FTS ALL(FT****) M16X40	0-20801-640-0	01	1	0005-0512		●
16	BOLT; 1ST C/MBR TO S/MBR FTS ALL(FT****) M16X40	0-20851-640-0	01	1	0601-		●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	0005-0512	●	●
18	NUT; BRKT,ENG MTG M12	0-91110-512-0	08	1	0601-	●	●
19	MEMBER; CROSS,2ND	1-53181-744-2	01	1	0005-0210	●
19	MEMBER; CROSS,2ND FSS DOUBLE CAB(FS*W)	1-53181-744-2	01	1	0005-0210		●
19	MEMBER; CROSS,2ND	1-53181-744-3	01	1	0211-	●
19	MEMBER; CROSS,2ND FSS DOUBLE CAB(FS*W)	1-53181-744-3	01	1	0211-		●
19	MEMBER; CROSS,2ND FTS ALL(FT****)	1-53181-671-9	01	1	0005-0210		●
19	MEMBER; CROSS,2ND FTS ALL(FT****)	1-53181-940-1	01	1	0211-		●
23	BOLT; BRKT,SPR FTS ALL(FT****) (B) M14X45	9-92061-445-0	06	1	0005-		●
23	BOLT; BRKT,SPR FTS ALL(FT****) (A) M16X50	9-92061-650-0	04	1	0005-0512		●
23	BOLT; BRKT,SPR FTS ALL(FT****) (A) M16X50	0-20951-650-0	04	1	0601-		●
24	BRACKET; FRT SPR,FRT	1-53351-141-0	02	1	0005-0210	●
24	BRACKET; FRT SPR,FRT FSS DOUBLE CAB(FS*W)	1-53351-141-0	02	1	0005-0210		●
24	BRACKET; FRT SPR,FRT	1-53351-141-0	02	1	0211-	●
24	BRACKET; FRT SPR,FRT FSS DOUBLE CAB(FS*W)	1-53351-141-0	02	1	0211-		●
24	BRACKET; FRT SPR,FRT FTS ALL(FT****)	1-53351-149-3	01	1	0005-		●
24	BRACKET; FRT SPR,FRT FTS ALL(FT****)	1-53351-148-3	01	1	0005-		●
25	WASHER; PL,BRKT FTS ALL(FT****) (A) ID=16.2	1-09503-223-0	08	1	0005-		●
25	WASHER; PL,BRKT FTS ALL(FT****) (B) ID=15	9-09651-069-0	28	1	0005-1201		●
25	WASHER; PL,BRKT FTS ALL(FT****) (B) ID=15	8-98010-627-1	28	1	1202-		●
26	NUT; BRKT,SPR FTS ALL(FT****) (B) M14	9-99110-514-0	14	1	0005-0512		●
26	NUT; BRKT,SPR FTS ALL(FT****) (B) M14	0-91110-514-0	14	1	0601-		●
26	NUT; BRKT,SPR FTS ALL(FT****) (A) M16	9-99110-516-0	04	1	0005-0512		●
26	NUT; BRKT,SPR FTS ALL(FT****) (A) M16	0-91110-516-0	04	1	0601-		●
27	WASHER; LK,BRKT,FRT SPR FTS ALL(FT****) (B) ID=14.2	9-09150-614-0	14	1	0005-0603		●
27	WASHER; LK,BRKT,FRT SPR FTS ALL(FT****) (B) ID=14.2	0-91510-614-0	14	1	0604-		●
27	WASHER; LK,BRKT,FRT SPR FTS ALL(FT****) (A) ID=16.2	9-09150-616-0	04	1	0005-0603		●
27	WASHER; LK,BRKT,FRT SPR FTS ALL(FT****) (A) ID=16.2	0-91510-616-0	04	1	0604-		●
33	SPACER; 2ND C/MBR,UPR FTS ALL(FT****) (A)	1-53168-276-0	02	1	0005-		●
33	SPACER; 2ND C/MBR,UPR FTS ALL(FT****) (B)	1-53168-287-0	02	1	0005-		●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	0005-0210	●
34	MEMBER; CROSS,3RD FSS DOUBLE CAB(FS*W) (A)	1-53175-358-1	01	1	0005-0210		●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	0211-	●
34	MEMBER; CROSS,3RD FSS DOUBLE CAB(FS*W) (A)	1-53175-358-1	01	1	0211-		●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	0005-0210	●
34	MEMBER; CROSS,3RD FSS DOUBLE CAB(FS*W) (B)	1-53175-359-1	01	1	0005-0210		●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	0211-	●
34	MEMBER; CROSS,3RD FSS DOUBLE CAB(FS*W) (B)	1-53175-359-1	01	1	0211-		●
34	MEMBER; CROSS,3RD FTS ALL(FT****) (C)	1-53174-231-1	01	1	0005-		●
39	BRACKET; FRT SPR,RR	1-53352-061-1	02	1	0005-0210	●
39	BRACKET; FRT SPR,RR FSS DOUBLE CAB(FS*W)	1-53352-061-1	02	1	0005-0210		●
39	BRACKET; FRT SPR,RR	1-53352-061-1	02	1	0211-	●
39	BRACKET; FRT SPR,RR FSS DOUBLE CAB(FS*W)	1-53352-061-1	02	1	0211-		●
39	BRACKET; FRT SPR,RR FTS ALL(FT****)	1-53352-125-2	01	1	0005-		●
39	BRACKET; FRT SPR,RR FTS ALL(FT****)	1-53352-124-2	01	1	0005-		●
46	BOLT; BRKT FIX FTS ALL(FT****) M14X45	9-92061-445-0	08	1	0005-		●
57	MEMBER; CROSS,RR SUSP FRT FTS ALL(FT****)	1-53181-691-4	01	1	0005-		●
67	NUT; C/MBR FTS ALL(FT****) M16	9-99110-516-0	01	1	0005-0512		●
67	NUT; C/MBR FTS ALL(FT****) M16	0-91110-516-0	01	1	0601-		●
69	GUSSET; RR SUSP,UPR FTS ALL(FT****) (A)	1-53167-099-4	02	1	0005-		●
69	GUSSET; RR SUSP,UPR FTS ALL(FT****) (B)	1-53167-100-3	02	1	0005-		●
69	GUSSET; RR SUSP,UPR FTS ALL(FT****) (C)	1-53167-629-0	01	1	0005-		●
69	GUSSET; RR SUSP,UPR FTS ALL(FT****) (D)	1-53167-631-0	01	1	0005-		●
69	GUSSET; RR SUSP,UPR FTS ALL(FT****) (C)	1-53167-628-0	01	1	0005-		●
69	GUSSET; RR SUSP,UPR FTS ALL(FT****) (D)	1-53167-630-0	01	1	0005-		●
82	NUT; BRKT M14	9-99110-414-0	22	1	0005-0210	●
82	NUT; BRKT FSS DOUBLE CAB(FS*W) M14	9-99110-414-0	22	1	0005-0210		●
82	NUT; BRKT M14	9-99110-414-0	22	1	0211-0512	●
82	NUT; BRKT FSS DOUBLE CAB(FS*W) M14	9-99110-414-0	22	1	0211-0512		●
82	NUT; BRKT M14	0-91110-514-0	22	1	0601-	●
82	NUT; BRKT FSS DOUBLE CAB(FS*W) M14	0-91110-514-0	22	1	0601-		●
82	NUT; BRKT FTS ALL(FT****) M14	9-99110-414-0	20	1	0005-0512		●
82	NUT; BRKT FTS ALL(FT****) M14	0-91110-514-0	20	1	0601-		●
86	MEMBER; CROSS,RR SUSP RR FTS ALL(FT****)	1-53181-691-4	01	1	0005-		●
91	FRAME ASM; SUB FTS DOUBLE CAB(FT*W)	1-53631-387-1	01	1	0005-0210		●
91	FRAME ASM; SUB FTS DOUBLE CAB(FT*W)	1-53631-471-1	01	1	0211-		●
91	FRAME ASM; SUB FTS DOUBLE CAB(FT*W)	1-53631-377-0	01	1	0005-		●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	0005-0603	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0604-	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	0005-0210	●
101	BRACKET; RR SPR,FRT FSS DOUBLE CAB(FS*W)	1-53353-090-4	02	1	0005-0210		●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	0211-	●
101	BRACKET; RR SPR,FRT FSS DOUBLE CAB(FS*W)	1-53353-090-4	02	1	0211-		●
101	BRACKET; RR SPR,FRT FTS ALL(FT****)	1-53353-072-1	02	1	0005-		●
103	STOPPER; SUB SPR (C)	1-53356-059-1	04	1	0005-0210	●
103	STOPPER; SUB SPR FSS DOUBLE CAB(FS*W) (C)	1-53356-059-1	04	1	0005-0210		●
103	STOPPER; SUB SPR (C)	1-53356-059-1	04	1	0211-	●
103	STOPPER; SUB SPR FSS DOUBLE CAB(FS*W) (C)	1-53356-059-1	04	1	0211-		●
103	STOPPER; SUB SPR FTS ALL(FT****) (A)	1-53356-038-1	02	1	0005-		●
103	STOPPER; SUB SPR FTS ALL(FT****) (B)	1-53357-029-1	02	1	0005-		●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	0005-0210	●
105	BRACKET; RR SPR,RR FSS DOUBLE CAB(FS*W)	1-53354-074-0	02	1	0005-0210		●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	0211-	●
105	BRACKET; RR SPR,RR FSS DOUBLE CAB(FS*W)	1-53354-074-0	02	1	0211-		●
105	BRACKET; RR SPR,RR FTS ALL(FT****)	1-53353-072-1	02	1	0005-		●
106	BOLT; BRKT M14X45	0-20801-445-0	22	1	0005-0210	●
106	BOLT; BRKT FSS DOUBLE CAB(FS*W) M14X45	0-20801-445-0	22	1	0005-0210		●
106	BOLT; BRKT M14X45	0-20801-445-0	22	1	0211-	●
106	BOLT; BRKT FSS DOUBLE CAB(FS*W) M14X45	0-20801-445-0	22	1	0211-		●
106	BOLT; BRKT FTS ALL(FT****) M14X45	0-20801-445-0	20	1	0005-		●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	0005-	●	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	0005-0512	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-	●	●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	0005-0210	●
130	MEMBER; CROSS,END FSS DOUBLE CAB(FS*W)	1-53181-516-2	01	1	0005-0210		●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	0211-	●
130	MEMBER; CROSS,END FSS DOUBLE CAB(FS*W)	1-53181-516-2	01	1	0211-		●
130	MEMBER; CROSS,END FTS ALL(FT****)	1-53181-151-2	01	1	0005-		●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50041-025-0	04	1	0005-0210	●
131	BOLT; END C/MBR FSS DOUBLE CAB(FS*W) M10X25 W/LK WASHER	0-50041-025-0	04	1	0005-0210		●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50041-025-0	04	1	0211-0512	●
131	BOLT; END C/MBR FSS DOUBLE CAB(FS*W) M10X25 W/LK WASHER	0-50041-025-0	04	1	0211-0512		●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	0601-	●
131	BOLT; END C/MBR FSS DOUBLE CAB(FS*W) M10X25 W/LK WASHER	0-50541-025-0	04	1	0601-		●
131	BOLT; END C/MBR FTS ALL(FT****) M12X30 W/LK WASHER	0-50041-230-0	04	1	0005-0512		●
131	BOLT; END C/MBR FTS ALL(FT****) M12X30 W/LK WASHER	0-50541-230-0	04	1	0601-		●
132	NUT; END C/MBR M10	9-09110-410-0	04	1	0005-0210	●
132	NUT; END C/MBR FSS DOUBLE CAB(FS*W) M10	9-09110-410-0	04	1	0005-0210		●
132	NUT; END C/MBR M10	9-09110-410-0	04	1	0211-0512	●
132	NUT; END C/MBR FSS DOUBLE CAB(FS*W) M10	9-09110-410-0	04	1	0211-0512		●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	0601-	●
132	NUT; END C/MBR FSS DOUBLE CAB(FS*W) M10	0-91110-510-0	04	1	0601-		●
132	NUT; END C/MBR FTS ALL(FT****) M12	9-99110-412-0	04	1	0005-0512		●
132	NUT; END C/MBR FTS ALL(FT****) M12	0-91110-512-0	04	1	0601-		●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	0005-0210	●
138	WASHER; LK,BRKT FSS DOUBLE CAB(FS*W) ID=14.2	9-09150-614-0	22	1	0005-0210		●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	0211-0603	●
138	WASHER; LK,BRKT FSS DOUBLE CAB(FS*W) ID=14.2	9-09150-614-0	22	1	0211-0603		●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	22	1	0604-	●
138	WASHER; LK,BRKT FSS DOUBLE CAB(FS*W) ID=14.2	0-91510-614-0	22	1	0604-		●
138	WASHER; LK,BRKT FTS ALL(FT****) ID=14.2	9-09150-614-0	20	1	0005-0603		●
138	WASHER; LK,BRKT FTS ALL(FT****) ID=14.2	0-91510-614-0	20	1	0604-		●
148	SPACER; C/MBR FTS ALL(FT****)	1-53168-341-0	02	1	0005-		●
202	SPACER; 3RD C/MBR FTS ALL(FT****)	1-53168-351-1	02	1	0005-		●
207	SPACER; 4TH C/MBR FTS ALL(FT****)	1-53168-163-1	02	1	0005-		●
260	BOLT; SUB FRAME FTS DOUBLE CAB(FT*W) M12X40 FLANGE	0-28091-240-0	05	1	0005-0512		●
260	BOLT; SUB FRAME FTS DOUBLE CAB(FT*W) M12X40 FLANGE	0-28061-240-0	05	1	0601-		●
261	NUT; SUB FRAME FTS DOUBLE CAB(FT*W) M12	9-99110-512-0	05	1	0005-0512		●
261	NUT; SUB FRAME FTS DOUBLE CAB(FT*W) M12	0-91110-512-0	05	1	0601-		●
344	MEMBER; CROSS,4TH	1-53181-465-9	01	1	0005-0210	●
344	MEMBER; CROSS,4TH	1-53181-925-1	01	1	0211-0601	●
344	MEMBER; CROSS,4TH	1-53182-067-2	01	1	0602-	●
344	MEMBER; CROSS,4TH FSS DOUBLE CAB(FS*W)	1-53181-463-1	01	1	0005-0210		●
344	MEMBER; CROSS,4TH FSS DOUBLE CAB(FS*W)	1-53181-463-3	01	1	0211-		●
344	MEMBER; CROSS,4TH FTS ALL(FT****)	1-53181-095-2	01	1	0005-		●
416	GUSSET; 3RD C/MBR FTS ALL(FT****)	1-53164-214-0	01	1	0005-		●
416	GUSSET; 3RD C/MBR FTS ALL(FT****)	1-53164-213-0	01	1	0005-		●

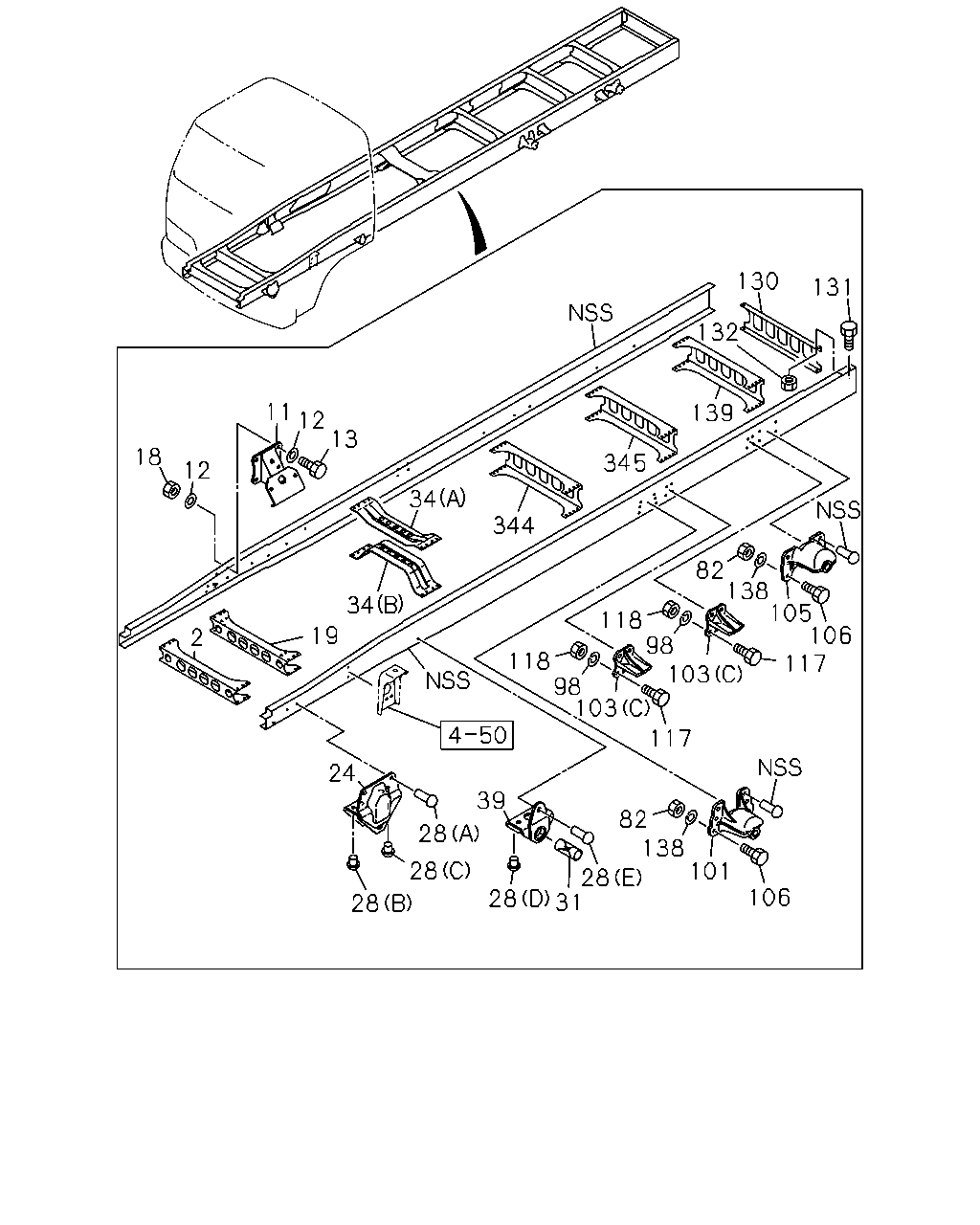

130 131 132 11 139 12 13 18 345 12 34 344 82 138 105 106 117 34 2 118 98 103 19 118 98 103 117 24 39 82 138 101 28 28 28 28 31 106 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	0005-0210	●
2	MEMBER; CROSS,1ST FSS DOUBLE CAB(FS*W)	1-53181-460-9	01	1	0005-0210		●
2	MEMBER; CROSS,1ST	1-53181-781-1	01	1	0211-	●
2	MEMBER; CROSS,1ST FSS DOUBLE CAB(FS*W)	1-53181-781-1	01	1	0211-		●
2	MEMBER; CROSS,1ST FTS ALL(FT****)	1-53181-670-9	01	1	0005-0210		●
2	MEMBER; CROSS,1ST FTS ALL(FT****)	1-53181-939-2	01	1	0211-		●
11	BRACKET; ENG MTG	1-53211-197-0	02	1	0005-0210	●
11	BRACKET; ENG MTG FSS DOUBLE CAB(FS*W)	1-53211-197-0	02	1	0005-0210		●
11	BRACKET; ENG MTG	1-53211-197-0	02	1	0211-	●
11	BRACKET; ENG MTG FSS DOUBLE CAB(FS*W)	1-53211-197-0	02	1	0211-		●
11	BRACKET; ENG MTG FTS ALL(FT****)	1-53211-218-0	02	1	0005-		●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	0005-	●	●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	0005-0210	●
13	BOLT; BRKT,ENG MTG FSS DOUBLE CAB(FS*W) M12X40	9-92061-240-0	08	1	0005-0210		●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	0211-0512	●
13	BOLT; BRKT,ENG MTG FSS DOUBLE CAB(FS*W) M12X40	9-92061-240-0	08	1	0211-0512		●
13	BOLT; BRKT,ENG MTG M12X40	0-20951-240-0	08	1	0601-	●
13	BOLT; BRKT,ENG MTG FSS DOUBLE CAB(FS*W) M12X40	0-20951-240-0	08	1	0601-		●
13	BOLT; BRKT,ENG MTG FTS ALL(FT****) M12X35	9-92061-235-0	08	1	0005-0512		●
13	BOLT; BRKT,ENG MTG FTS ALL(FT****) M12X35	0-20951-235-0	08	1	0601-		●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	0005-0512	●	●
18	NUT; BRKT,ENG MTG M12	0-91110-512-0	08	1	0601-	●	●
19	MEMBER; CROSS,2ND	1-53181-744-2	01	1	0005-0210	●
19	MEMBER; CROSS,2ND FSS DOUBLE CAB(FS*W)	1-53181-744-2	01	1	0005-0210		●
19	MEMBER; CROSS,2ND	1-53181-744-3	01	1	0211-	●
19	MEMBER; CROSS,2ND FSS DOUBLE CAB(FS*W)	1-53181-744-3	01	1	0211-		●
19	MEMBER; CROSS,2ND FTS ALL(FT****)	1-53181-671-9	01	1	0005-0210		●
19	MEMBER; CROSS,2ND FTS ALL(FT****)	1-53181-940-1	01	1	0211-		●
24	BRACKET; FRT SPR,FRT	1-53351-141-0	02	1	0005-0210	●
24	BRACKET; FRT SPR,FRT FSS DOUBLE CAB(FS*W)	1-53351-141-0	02	1	0005-0210		●
24	BRACKET; FRT SPR,FRT	1-53351-141-0	02	1	0211-	●
24	BRACKET; FRT SPR,FRT FSS DOUBLE CAB(FS*W)	1-53351-141-0	02	1	0211-		●
24	BRACKET; FRT SPR,FRT FTS ALL(FT****)	1-53351-149-3	01	1	0005-		●
24	BRACKET; FRT SPR,FRT FTS ALL(FT****)	1-53351-148-3	01	1	0005-		●
28	RIVET; BRKT,FRT SPR (A) D11X32 PLATED TAPER END	9-06761-132-0	04	1	0005-0210	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (A) D11X32 PLATED TAPER END	9-06761-132-0	04	1	0005-0210		●
28	RIVET; BRKT,FRT SPR (A) D11X32 PLATED TAPER END	9-06761-132-0	04	1	0211-0607	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (A) D11X32 PLATED TAPER END	9-06761-132-0	04	1	0211-0607		●
28	RIVET; BRKT,FRT SPR (A) D11X32 PLATED TAPER END	0-67801-132-0	04	1	0608-	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (A) D11X32 PLATED TAPER END	0-67801-132-0	04	1	0608-		●
28	RIVET; BRKT,FRT SPR (D) D11X36 PLATED TAPER END	9-06761-136-0	04	1	0005-0210	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (D) D11X36 PLATED TAPER END	9-06761-136-0	04	1	0005-0210		●
28	RIVET; BRKT,FRT SPR (D) D11X36 PLATED TAPER END	9-06761-136-0	04	1	0211-0607	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (D) D11X36 PLATED TAPER END	9-06761-136-0	04	1	0211-0607		●
28	RIVET; BRKT,FRT SPR (D) D11X36 PLATED TAPER END	0-67801-136-0	04	1	0608-	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (D) D11X36 PLATED TAPER END	0-67801-136-0	04	1	0608-		●
28	RIVET; BRKT,FRT SPR (B) D12X36 PLATED TAPER END	9-06761-236-0	02	1	0005-0210	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (B) D12X36 PLATED TAPER END	9-06761-236-0	02	1	0005-0210		●
28	RIVET; BRKT,FRT SPR (B) D12X36 PLATED TAPER END	9-06761-236-0	02	1	0211-0607	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (B) D12X36 PLATED TAPER END	9-06761-236-0	02	1	0211-0607		●
28	RIVET; BRKT,FRT SPR (B) D12X36 PLATED TAPER END	0-67801-236-0	02	1	0608-	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (B) D12X36 PLATED TAPER END	0-67801-236-0	02	1	0608-		●
28	RIVET; BRKT,FRT SPR (C) D12X38 PLATED TAPER END	9-06761-238-0	02	1	0005-0210	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (C) D12X38 PLATED TAPER END	9-06761-238-0	02	1	0005-0210		●
28	RIVET; BRKT,FRT SPR (C) D12X38 PLATED TAPER END	9-06761-238-0	02	1	0211-	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (C) D12X38 PLATED TAPER END	9-06761-238-0	02	1	0211-		●
28	RIVET; BRKT,FRT SPR (E) D12X40 PLATED TAPER END	9-06761-240-0	02	1	0005-0210	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (E) D12X40 PLATED TAPER END	9-06761-240-0	02	1	0005-0210		●
28	RIVET; BRKT,FRT SPR (E) D12X40 PLATED TAPER END	9-06761-240-0	02	1	0211-	●
28	RIVET; BRKT,FRT SPR FSS DOUBLE CAB(FS*W) (E) D12X40 PLATED TAPER END	9-06761-240-0	02	1	0211-		●
31	BUSHING; FRT SPR,RR ID=25	9-51151-032-0	02	1	0005-0210	●
31	BUSHING; FRT SPR,RR FSS DOUBLE CAB(FS*W) ID=25	9-51151-032-0	02	1	0005-0210		●
31	BUSHING; FRT SPR,RR ID=25	9-51151-032-0	02	1	0211-0811	●
31	BUSHING; FRT SPR,RR FSS DOUBLE CAB(FS*W) ID=25	9-51151-032-0	02	1	0211-0811		●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	0812-	●
31	BUSHING; FRT SPR,RR FSS DOUBLE CAB(FS*W) ID=25	8-98082-176-0	02	1	0812-		●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	0005-0210	●
34	MEMBER; CROSS,3RD FSS DOUBLE CAB(FS*W) (A)	1-53175-358-1	01	1	0005-0210		●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	0211-	●
34	MEMBER; CROSS,3RD FSS DOUBLE CAB(FS*W) (A)	1-53175-358-1	01	1	0211-		●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	0005-0210	●
34	MEMBER; CROSS,3RD FSS DOUBLE CAB(FS*W) (B)	1-53175-359-1	01	1	0005-0210		●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	0211-	●
34	MEMBER; CROSS,3RD FSS DOUBLE CAB(FS*W) (B)	1-53175-359-1	01	1	0211-		●
34	MEMBER; CROSS,3RD FTS ALL(FT****) (C)	1-53174-231-1	01	1	0005-		●
39	BRACKET; FRT SPR,RR	1-53352-061-1	02	1	0005-0210	●
39	BRACKET; FRT SPR,RR FSS DOUBLE CAB(FS*W)	1-53352-061-1	02	1	0005-0210		●
39	BRACKET; FRT SPR,RR	1-53352-061-1	02	1	0211-	●
39	BRACKET; FRT SPR,RR FSS DOUBLE CAB(FS*W)	1-53352-061-1	02	1	0211-		●
39	BRACKET; FRT SPR,RR FTS ALL(FT****)	1-53352-125-2	01	1	0005-		●
39	BRACKET; FRT SPR,RR FTS ALL(FT****)	1-53352-124-2	01	1	0005-		●
82	NUT; BRKT M14	9-99110-414-0	22	1	0005-0210	●
82	NUT; BRKT FSS DOUBLE CAB(FS*W) M14	9-99110-414-0	22	1	0005-0210		●
82	NUT; BRKT M14	9-99110-414-0	22	1	0211-0512	●
82	NUT; BRKT FSS DOUBLE CAB(FS*W) M14	9-99110-414-0	22	1	0211-0512		●
82	NUT; BRKT M14	0-91110-514-0	22	1	0601-	●
82	NUT; BRKT FSS DOUBLE CAB(FS*W) M14	0-91110-514-0	22	1	0601-		●
82	NUT; BRKT FTS ALL(FT****) M14	9-99110-414-0	20	1	0005-0512		●
82	NUT; BRKT FTS ALL(FT****) M14	0-91110-514-0	20	1	0601-		●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	0005-0603	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0604-	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	0005-0210	●
101	BRACKET; RR SPR,FRT FSS DOUBLE CAB(FS*W)	1-53353-090-4	02	1	0005-0210		●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	0211-	●
101	BRACKET; RR SPR,FRT FSS DOUBLE CAB(FS*W)	1-53353-090-4	02	1	0211-		●
101	BRACKET; RR SPR,FRT FTS ALL(FT****)	1-53353-072-1	02	1	0005-		●
103	STOPPER; SUB SPR (C)	1-53356-059-1	04	1	0005-0210	●
103	STOPPER; SUB SPR FSS DOUBLE CAB(FS*W) (C)	1-53356-059-1	04	1	0005-0210		●
103	STOPPER; SUB SPR (C)	1-53356-059-1	04	1	0211-	●
103	STOPPER; SUB SPR FSS DOUBLE CAB(FS*W) (C)	1-53356-059-1	04	1	0211-		●
103	STOPPER; SUB SPR FTS ALL(FT****) (A)	1-53356-038-1	02	1	0005-		●
103	STOPPER; SUB SPR FTS ALL(FT****) (B)	1-53357-029-1	02	1	0005-		●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	0005-0210	●
105	BRACKET; RR SPR,RR FSS DOUBLE CAB(FS*W)	1-53354-074-0	02	1	0005-0210		●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	0211-	●
105	BRACKET; RR SPR,RR FSS DOUBLE CAB(FS*W)	1-53354-074-0	02	1	0211-		●
105	BRACKET; RR SPR,RR FTS ALL(FT****)	1-53353-072-1	02	1	0005-		●
106	BOLT; BRKT M14X45	0-20801-445-0	22	1	0005-0210	●
106	BOLT; BRKT FSS DOUBLE CAB(FS*W) M14X45	0-20801-445-0	22	1	0005-0210		●
106	BOLT; BRKT M14X45	0-20801-445-0	22	1	0211-	●
106	BOLT; BRKT FSS DOUBLE CAB(FS*W) M14X45	0-20801-445-0	22	1	0211-		●
106	BOLT; BRKT FTS ALL(FT****) M14X45	0-20801-445-0	20	1	0005-		●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	0005-	●	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	0005-0512	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-	●	●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	0005-0210	●
130	MEMBER; CROSS,END FSS DOUBLE CAB(FS*W)	1-53181-516-2	01	1	0005-0210		●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	0211-	●
130	MEMBER; CROSS,END FSS DOUBLE CAB(FS*W)	1-53181-516-2	01	1	0211-		●
130	MEMBER; CROSS,END FTS ALL(FT****)	1-53181-151-2	01	1	0005-		●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50041-025-0	04	1	0005-0210	●
131	BOLT; END C/MBR FSS DOUBLE CAB(FS*W) M10X25 W/LK WASHER	0-50041-025-0	04	1	0005-0210		●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50041-025-0	04	1	0211-0512	●
131	BOLT; END C/MBR FSS DOUBLE CAB(FS*W) M10X25 W/LK WASHER	0-50041-025-0	04	1	0211-0512		●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	0601-	●
131	BOLT; END C/MBR FSS DOUBLE CAB(FS*W) M10X25 W/LK WASHER	0-50541-025-0	04	1	0601-		●
131	BOLT; END C/MBR FTS ALL(FT****) M12X30 W/LK WASHER	0-50041-230-0	04	1	0005-0512		●
131	BOLT; END C/MBR FTS ALL(FT****) M12X30 W/LK WASHER	0-50541-230-0	04	1	0601-		●
132	NUT; END C/MBR M10	9-09110-410-0	04	1	0005-0210	●
132	NUT; END C/MBR FSS DOUBLE CAB(FS*W) M10	9-09110-410-0	04	1	0005-0210		●
132	NUT; END C/MBR M10	9-09110-410-0	04	1	0211-0512	●
132	NUT; END C/MBR FSS DOUBLE CAB(FS*W) M10	9-09110-410-0	04	1	0211-0512		●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	0601-	●
132	NUT; END C/MBR FSS DOUBLE CAB(FS*W) M10	0-91110-510-0	04	1	0601-		●
132	NUT; END C/MBR FTS ALL(FT****) M12	9-99110-412-0	04	1	0005-0512		●
132	NUT; END C/MBR FTS ALL(FT****) M12	0-91110-512-0	04	1	0601-		●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	0005-0210	●
138	WASHER; LK,BRKT FSS DOUBLE CAB(FS*W) ID=14.2	9-09150-614-0	22	1	0005-0210		●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	0211-0603	●
138	WASHER; LK,BRKT FSS DOUBLE CAB(FS*W) ID=14.2	9-09150-614-0	22	1	0211-0603		●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	22	1	0604-	●
138	WASHER; LK,BRKT FSS DOUBLE CAB(FS*W) ID=14.2	0-91510-614-0	22	1	0604-		●
138	WASHER; LK,BRKT FTS ALL(FT****) ID=14.2	9-09150-614-0	20	1	0005-0603		●
138	WASHER; LK,BRKT FTS ALL(FT****) ID=14.2	0-91510-614-0	20	1	0604-		●
139	MEMBER; CROSS,6TH FSS DOUBLE CAB(FS*W)	1-53181-465-9	01	1	0005-0210		●
139	MEMBER; CROSS,6TH FSS DOUBLE CAB(FS*W)	1-53181-925-1	01	1	0211-0601		●
139	MEMBER; CROSS,6TH FSS DOUBLE CAB(FS*W)	1-53182-067-2	01	1	0602-		●
344	MEMBER; CROSS,4TH	1-53181-465-9	01	1	0005-0210	●
344	MEMBER; CROSS,4TH	1-53181-925-1	01	1	0211-0601	●
344	MEMBER; CROSS,4TH	1-53182-067-2	01	1	0602-	●
344	MEMBER; CROSS,4TH FSS DOUBLE CAB(FS*W)	1-53181-463-1	01	1	0005-0210		●
344	MEMBER; CROSS,4TH FSS DOUBLE CAB(FS*W)	1-53181-463-3	01	1	0211-		●
344	MEMBER; CROSS,4TH FTS ALL(FT****)	1-53181-095-2	01	1	0005-		●
345	MEMBER; CROSS,5TH	1-53181-465-9	01	1	0005-0210	●
345	MEMBER; CROSS,5TH FSS DOUBLE CAB(FS*W)	1-53181-465-9	01	1	0005-0210		●
345	MEMBER; CROSS,5TH	1-53181-925-1	01	1	0211-0601	●
345	MEMBER; CROSS,5TH FSS DOUBLE CAB(FS*W)	1-53181-925-1	01	1	0211-0601		●
345	MEMBER; CROSS,5TH	1-53182-067-2	01	1	0602-	●
345	MEMBER; CROSS,5TH FSS DOUBLE CAB(FS*W)	1-53182-067-2	01	1	0602-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
