Sayfa 2-25A - Isuzu EPC

2-25A — SPEEDOMETER DRIVEN GEAR (#81809) — 181 parça

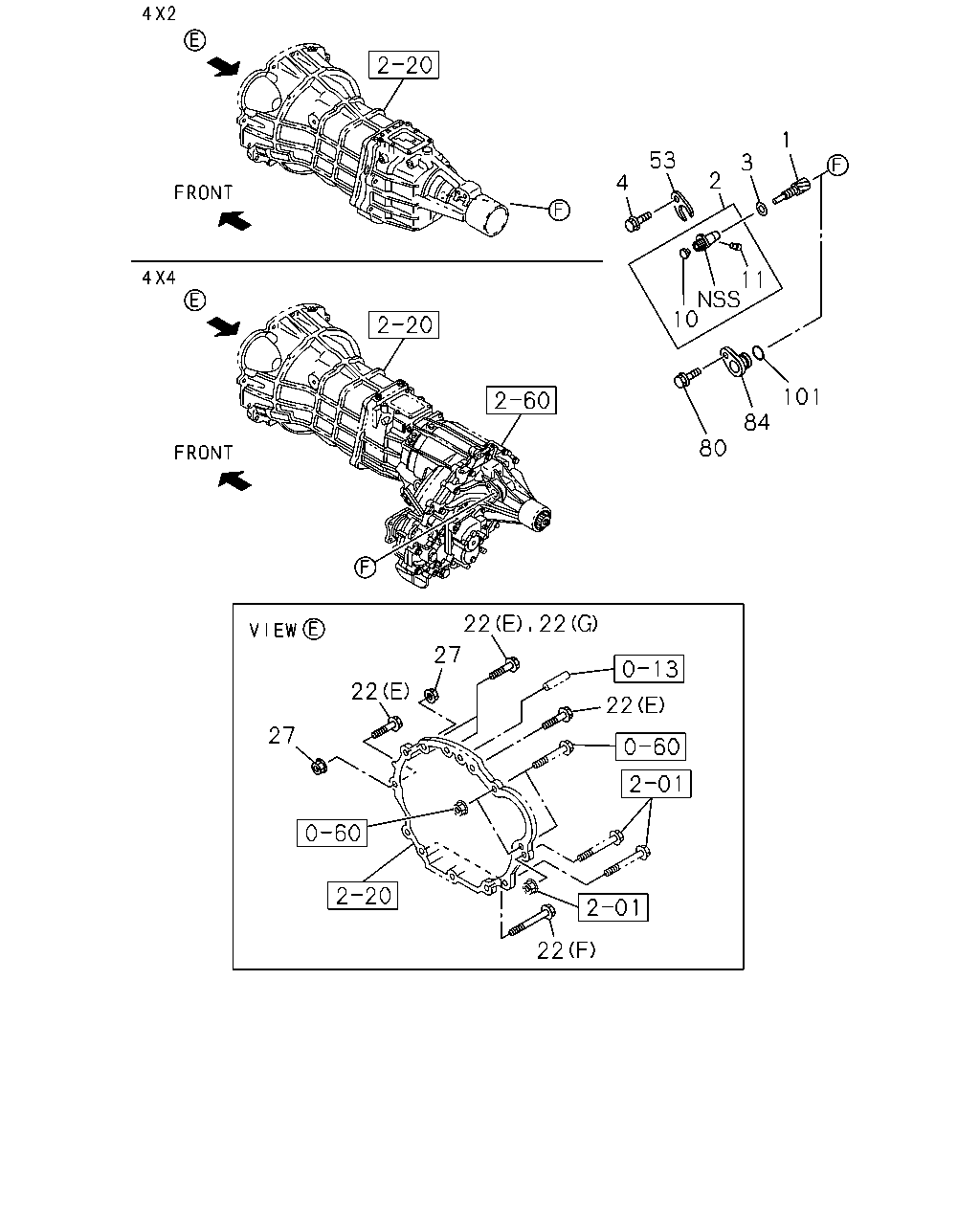

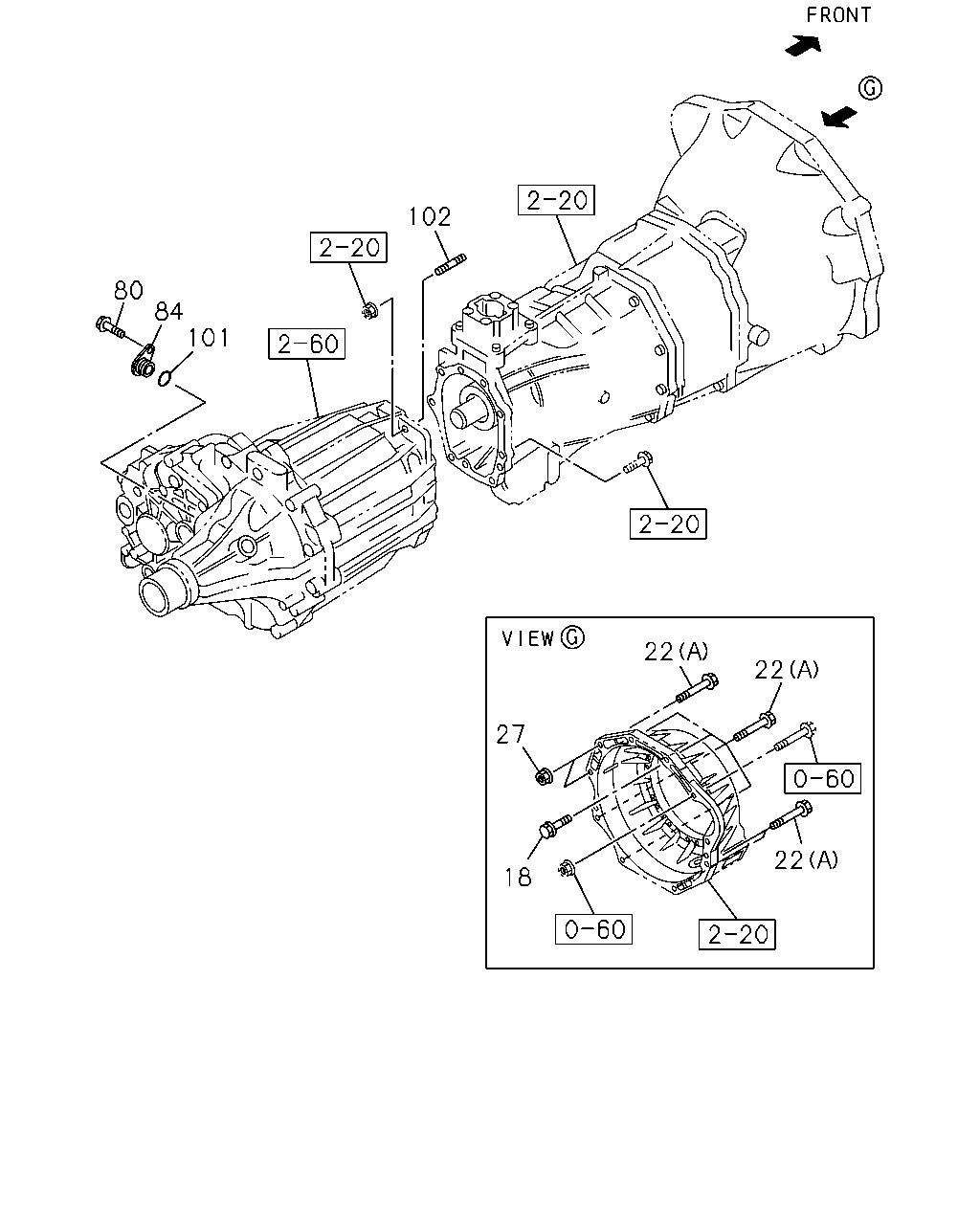

80 84 101 102 27 22 18 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	00.685 BOLT; CLU HSG TO TRANS	8-98203-121-0	05	1	1206-	●
22	00.685 BOLT; TRANS CASE TO ENG (E) M10X40 FLANGE	0-28051-040-0	04	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X60 FLANGE	0-28051-060-0	02	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X40 FLANGE	0-28051-240-0	01	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) 04.510 (B) M10X35 FLANGE	0-28051-035-0	02	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (E) M10X40 FLANGE	0-28051-040-0	03	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (C) M10X45 FLANGE	0-28051-045-0	01	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (D) M12X35 FLANGE	0-28051-235-0	01	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) 00.724 (A) M12X50 FLANGE	0-28051-250-0	08	1	1205-1205						●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 00.724 (A) M12X50 FLANGE	0-28051-250-0	08	1	1206-	●					●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) 03.162 M10 FLANGE	0-91180-110-0	02	1	1206-1210		●	●		●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1211-1301		●	●	●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1302-	●					●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0) 02.042 M12 FLANGE	0-91180-112-0	02	1	1205-1205						●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.042 M12 FLANGE	0-91180-112-0	02	1	1206-	●					●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1205-1205						●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1206-	●					●
80	04.329 BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1206-		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***)	8-98103-318-0	01	1	1205-1205						●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1206-	●					●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1206-		●
101	04.338 GASKET; CAP 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	1205-1205						●
101	04.338 GASKET; CAP 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-	●					●
101	04.338 GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-		●
102	00.683 STUD; TRANS 4X4(TFS***) 04.510 M10X27 L=43.5	8-98035-677-0	01	1	1206-1302	●
102	00.683 STUD; TRANS 4X4 REGULAR CAB LONG(TFS5SF) 4X4 CREW CAB LONG(TFS5WF) 4JK1-TCY ENG(RDX) 04.510 M10X27 L=43.5	8-98035-677-0	01	1	1303-	●

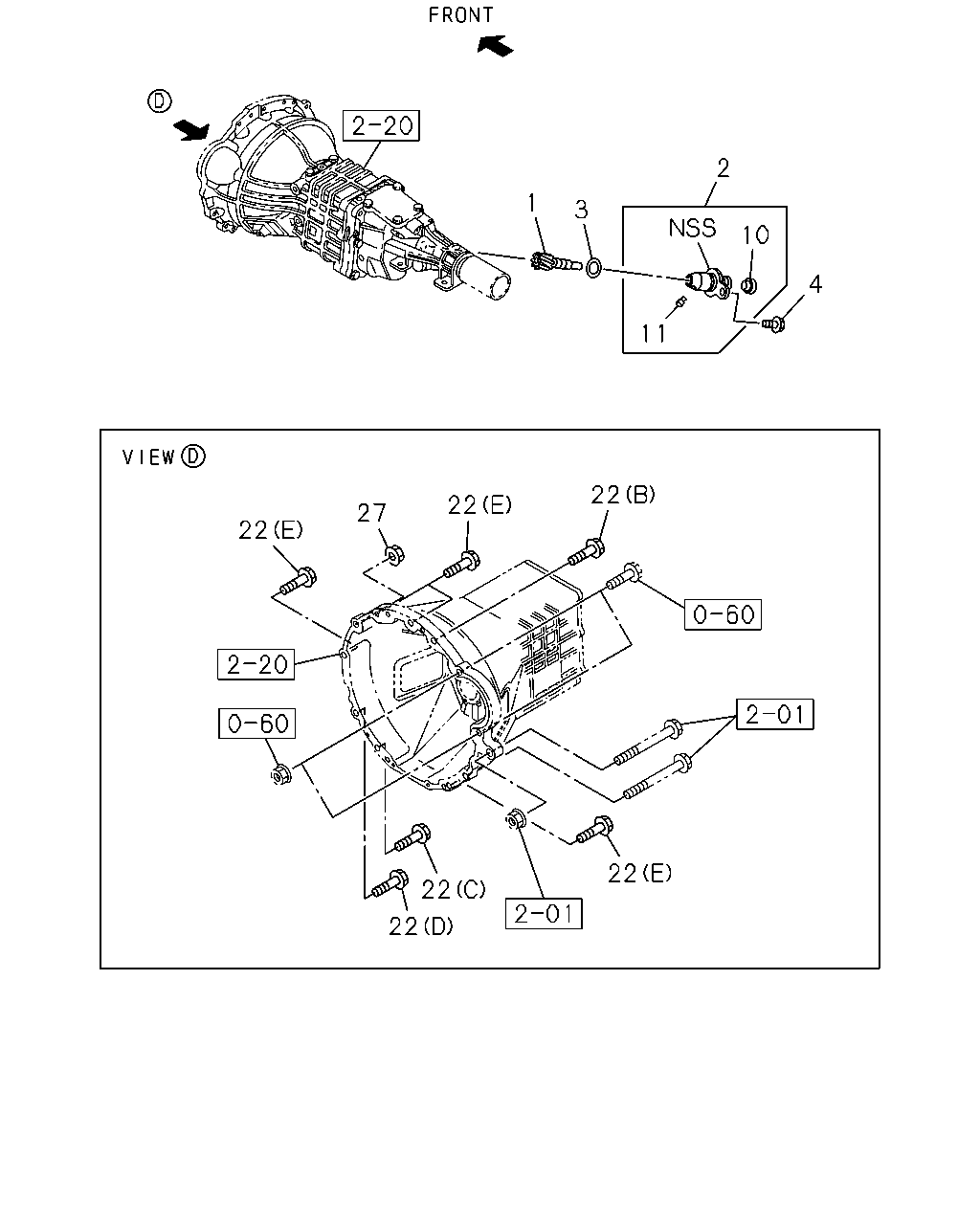

1 3 2 10 4 11 22 22 27 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18	8-98123-464-0	01	1	1206-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97012-085-2	01	1	1206-		●
1	04.337 GEAR; DRIVEN,SPD Z=18	8-94473-304-2	01	1	1206-					●
1	04.337 GEAR; DRIVEN,SPD Z=19	8-94473-303-2	01	1	1206-1301			●
1	04.337 GEAR; DRIVEN,SPD Z=19	8-94473-303-2	01	1	1302-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97238-583-0	01	1	1206-		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1206-1301		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1206-1301			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1302-		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1302-			●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	1206-					●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-454-1	01	1	1206-		●				●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-1301		●				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-1301			●		●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1302-		●				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1302-			●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1206-1301		●				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1206-1301			●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1302-		●				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1302-			●	●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1206-					●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1206-1301		●				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1206-1301			●		●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1302-		●				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1302-			●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1206-1301		●				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1206-1301			●		●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1302-		●				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1302-			●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (E) M10X40 FLANGE	0-28051-040-0	04	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X60 FLANGE	0-28051-060-0	02	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X40 FLANGE	0-28051-240-0	01	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) 04.510 (B) M10X35 FLANGE	0-28051-035-0	02	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (E) M10X40 FLANGE	0-28051-040-0	03	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (C) M10X45 FLANGE	0-28051-045-0	01	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (D) M12X35 FLANGE	0-28051-235-0	01	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) 00.724 (A) M12X50 FLANGE	0-28051-250-0	08	1	1205-1205						●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 00.724 (A) M12X50 FLANGE	0-28051-250-0	08	1	1206-	●					●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) 03.162 M10 FLANGE	0-91180-110-0	02	1	1206-1210		●	●		●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1211-1301		●	●	●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1302-	●					●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0) 02.042 M12 FLANGE	0-91180-112-0	02	1	1205-1205						●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.042 M12 FLANGE	0-91180-112-0	02	1	1206-	●					●

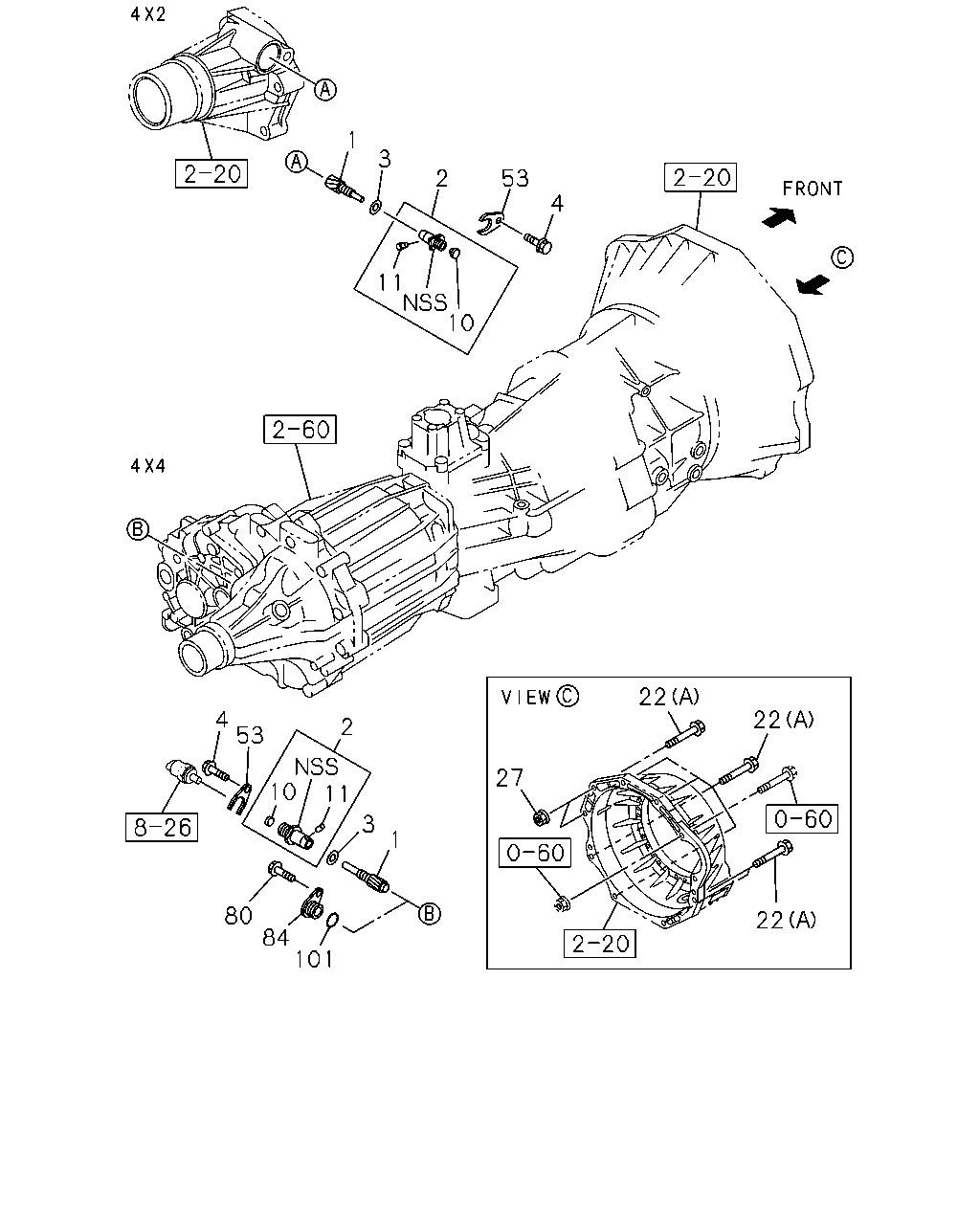

22 22 22 27 101 84 80 1 3 2 11 10 53 4 10 11 4 53 2 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18	8-98123-464-0	01	1	1206-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97012-085-2	01	1	1206-		●
1	04.337 GEAR; DRIVEN,SPD Z=18	8-94473-304-2	01	1	1206-					●
1	04.337 GEAR; DRIVEN,SPD Z=19	8-94473-303-2	01	1	1206-1301			●
1	04.337 GEAR; DRIVEN,SPD Z=19	8-94473-303-2	01	1	1302-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97238-583-0	01	1	1206-		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1206-1301		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1206-1301			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1302-		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1302-			●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	1206-					●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-454-1	01	1	1206-		●				●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-1301		●				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-1301			●		●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1302-		●				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1302-			●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1206-1301		●				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1206-1301			●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1302-		●				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1302-			●	●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1206-					●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1206-1301		●				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1206-1301			●		●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1302-		●				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1302-			●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1206-1301		●				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1206-1301			●		●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1302-		●				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1302-			●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (E) M10X40 FLANGE	0-28051-040-0	04	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X60 FLANGE	0-28051-060-0	02	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X40 FLANGE	0-28051-240-0	01	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) 04.510 (B) M10X35 FLANGE	0-28051-035-0	02	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (E) M10X40 FLANGE	0-28051-040-0	03	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (C) M10X45 FLANGE	0-28051-045-0	01	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (D) M12X35 FLANGE	0-28051-235-0	01	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) 00.724 (A) M12X50 FLANGE	0-28051-250-0	08	1	1205-1205						●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 00.724 (A) M12X50 FLANGE	0-28051-250-0	08	1	1206-	●					●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) 03.162 M10 FLANGE	0-91180-110-0	02	1	1206-1210		●	●		●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1211-1301		●	●	●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1302-	●					●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0) 02.042 M12 FLANGE	0-91180-112-0	02	1	1205-1205						●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.042 M12 FLANGE	0-91180-112-0	02	1	1206-	●					●
53	04.338 PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1206-1301		●				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1206-1301			●
53	04.338 PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1302-		●				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1302-			●	●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1205-1205						●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1206-	●					●
80	04.329 BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1206-		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***)	8-98103-318-0	01	1	1205-1205						●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1206-	●					●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1206-		●
101	04.338 GASKET; CAP 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	1205-1205						●
101	04.338 GASKET; CAP 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-	●					●
101	04.338 GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-		●

4 53 2 3 1 11 10 101 84 80 22 22 22 22 27 22 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=18	8-98123-464-0	01	1	1206-						●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97012-085-2	01	1	1206-		●
1	04.337 GEAR; DRIVEN,SPD Z=18	8-94473-304-2	01	1	1206-					●
1	04.337 GEAR; DRIVEN,SPD Z=19	8-94473-303-2	01	1	1206-1301			●
1	04.337 GEAR; DRIVEN,SPD Z=19	8-94473-303-2	01	1	1302-			●	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17	8-97238-583-0	01	1	1206-		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1206-1301		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1206-1301			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97021-133-4	01	1	1302-		●				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	1302-			●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	1206-					●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-454-1	01	1	1206-		●				●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-1301		●				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-1301			●		●
3	04.338 GASKET; BUSHING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1302-		●				●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	1302-			●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1206-1301		●				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1206-1301			●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1302-		●				●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	1302-			●	●
4	04.338 BOLT; RET,DRIVEN GEAR 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1206-					●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1206-1301		●				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1206-1301			●		●
10	04.338 SEAL; OIL,DRIVE GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1302-		●				●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	1302-			●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1206-1301		●				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1206-1301			●		●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94446-571-1	01	1	1302-		●				●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	1302-			●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (E) M10X40 FLANGE	0-28051-040-0	04	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X60 FLANGE	0-28051-060-0	02	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X40 FLANGE	0-28051-240-0	01	1	1206-		●	●	●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) 04.510 (B) M10X35 FLANGE	0-28051-035-0	02	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (E) M10X40 FLANGE	0-28051-040-0	03	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (C) M10X45 FLANGE	0-28051-045-0	01	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JA1-T ENG(LP0) (D) M12X35 FLANGE	0-28051-235-0	01	1	1206-					●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0) 00.724 (A) M12X50 FLANGE	0-28051-250-0	08	1	1205-1205						●
22	00.685 BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 00.724 (A) M12X50 FLANGE	0-28051-250-0	08	1	1206-	●					●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) 03.162 M10 FLANGE	0-91180-110-0	02	1	1206-1210		●	●		●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1211-1301		●	●	●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1302-	●					●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0) 02.042 M12 FLANGE	0-91180-112-0	02	1	1205-1205						●
27	00.685 NUT; CLU HSG TO TRANS 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.042 M12 FLANGE	0-91180-112-0	02	1	1206-	●					●
53	04.338 PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1206-1301		●				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1206-1301			●
53	04.338 PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-572-0	01	1	1302-		●				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	1302-			●	●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1205-1205						●
80	04.329 BOLT; SPD SENSOR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1206-	●					●
80	04.329 BOLT; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1206-		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***)	8-98103-318-0	01	1	1205-1205						●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1206-	●					●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98103-318-0	01	1	1206-		●
101	04.338 GASKET; CAP 4X4(TFS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	1205-1205						●
101	04.338 GASKET; CAP 4X4(TFS***) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-	●					●
101	04.338 GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1206-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
