2-06A — CLUTCH SLAVE CYLINDER (#81804) — 69 parça

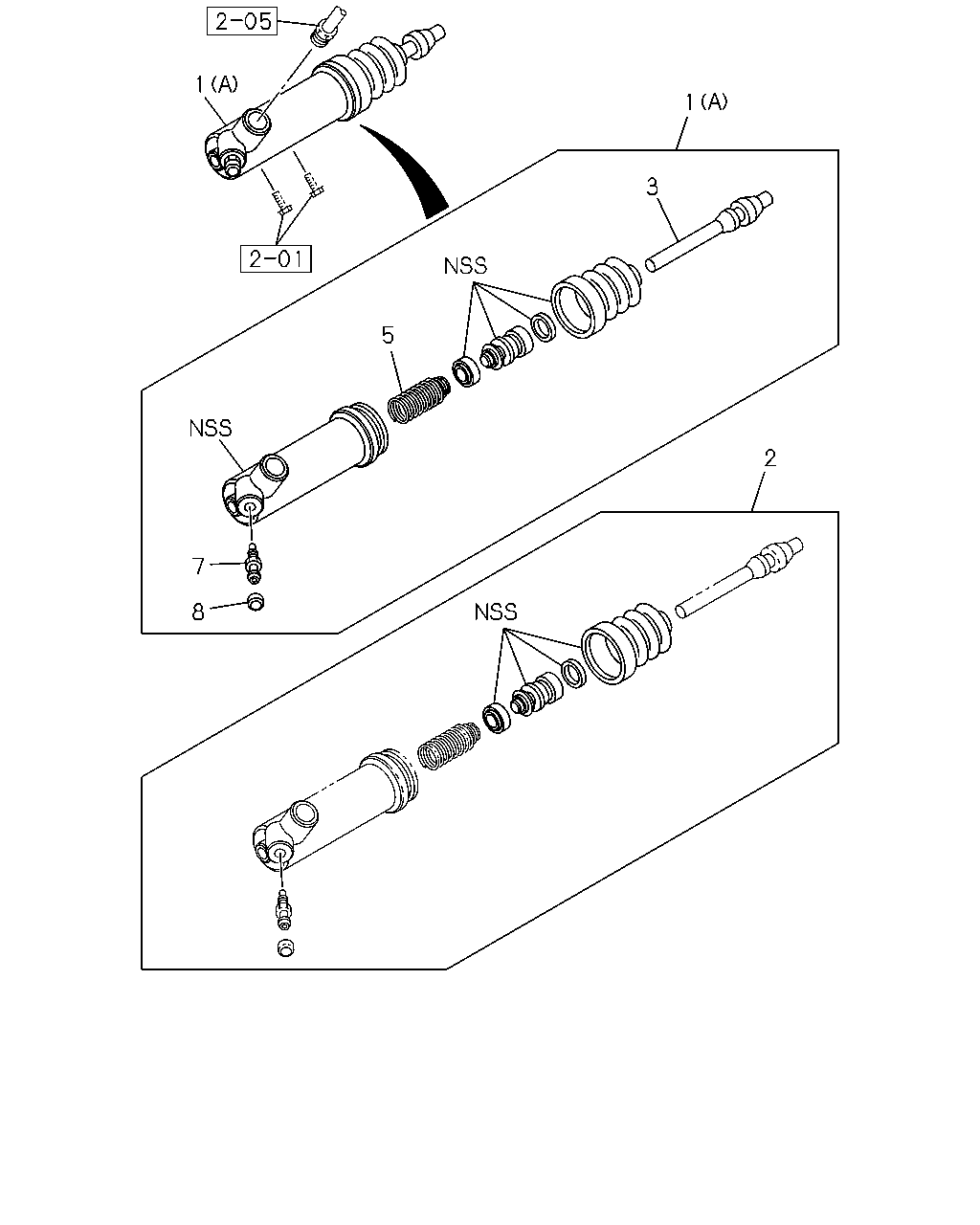

çizim 101643
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU
(B) 		8-97945-177-0 01 1 1206-1301 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X2(TFB***) (B) 		8-97945-177-0 01 1 1206-1301 ●
1 00.780 CYLINDER; SLAVE,CLU
(B) 		8-97945-177-0 01 1 1302- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X2(TFB***) (B) 		8-97945-177-0 01 1 1302- ●
1 00.780 CYLINDER; SLAVE,CLU
4X4(TFS***) (C) 		8-97946-625-1 01 1 1206- ●
1 00.780 CYLINDER; SLAVE,CLU
(A) 		8-97946-624-2 01 1 1205-1205 ●
1 00.780 CYLINDER; SLAVE,CLU
(A) 		8-97946-624-2 01 1 1206- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1205-1205 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1206-1301 ● ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1302- ● ● ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1206-1301 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1302- ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1205-1205 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1206- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1205-1205 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1206-1301 ● ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1302- ● ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1205-1205 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1206-1301 ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1302- ● ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1205-1205 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1206-1301 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1302- ● ● ● ● ● ●

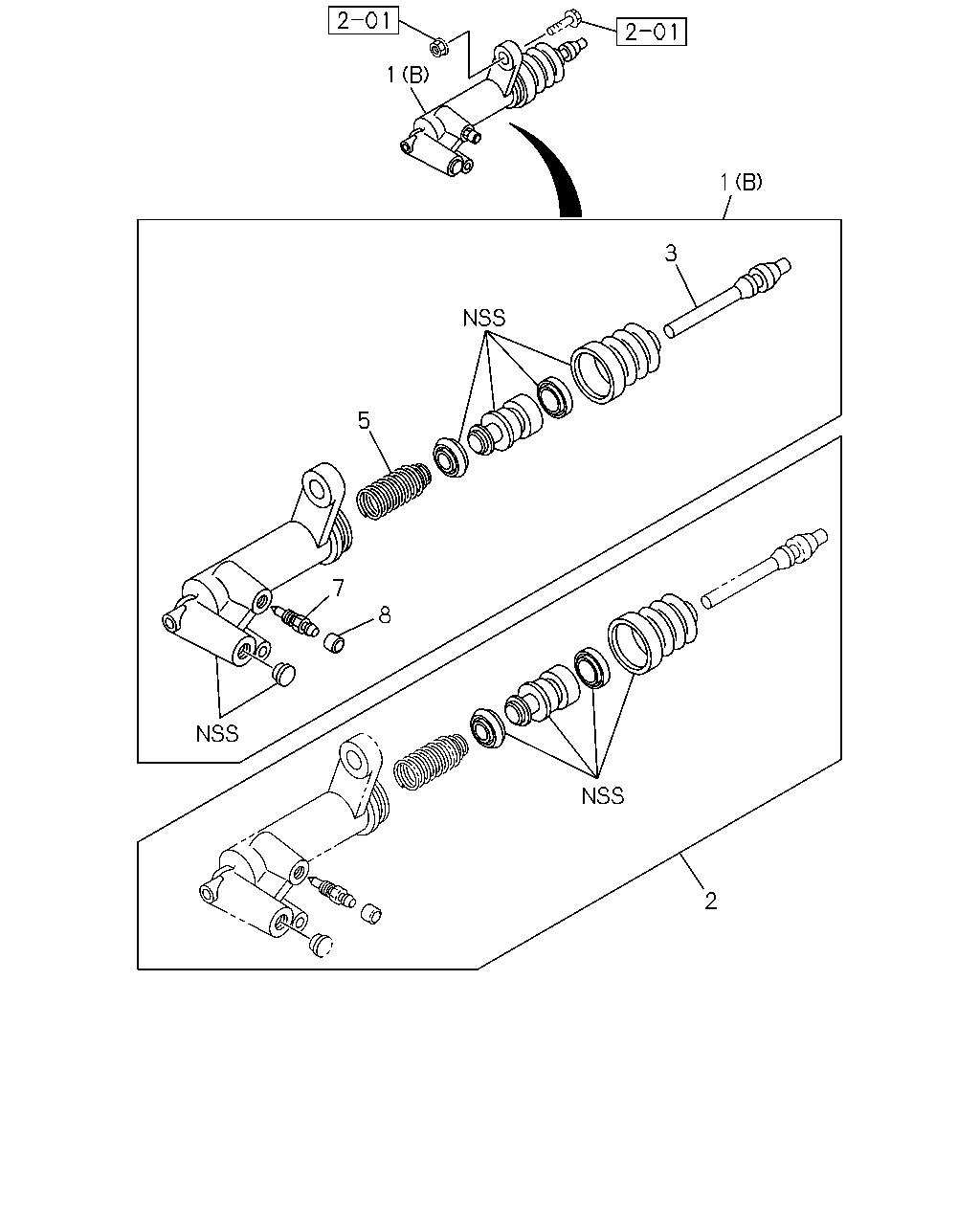

çizim 103036
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU
(B) 		8-97945-177-0 01 1 1206-1301 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X2(TFB***) (B) 		8-97945-177-0 01 1 1206-1301 ●
1 00.780 CYLINDER; SLAVE,CLU
(B) 		8-97945-177-0 01 1 1302- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X2(TFB***) (B) 		8-97945-177-0 01 1 1302- ●
1 00.780 CYLINDER; SLAVE,CLU
4X4(TFS***) (C) 		8-97946-625-1 01 1 1206- ●
1 00.780 CYLINDER; SLAVE,CLU
(A) 		8-97946-624-2 01 1 1205-1205 ●
1 00.780 CYLINDER; SLAVE,CLU
(A) 		8-97946-624-2 01 1 1206- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1205-1205 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1206-1301 ● ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1302- ● ● ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1206-1301 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1302- ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1205-1205 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1206- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1205-1205 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1206-1301 ● ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1302- ● ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1205-1205 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1206-1301 ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1302- ● ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1205-1205 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1206-1301 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1302- ● ● ● ● ● ●

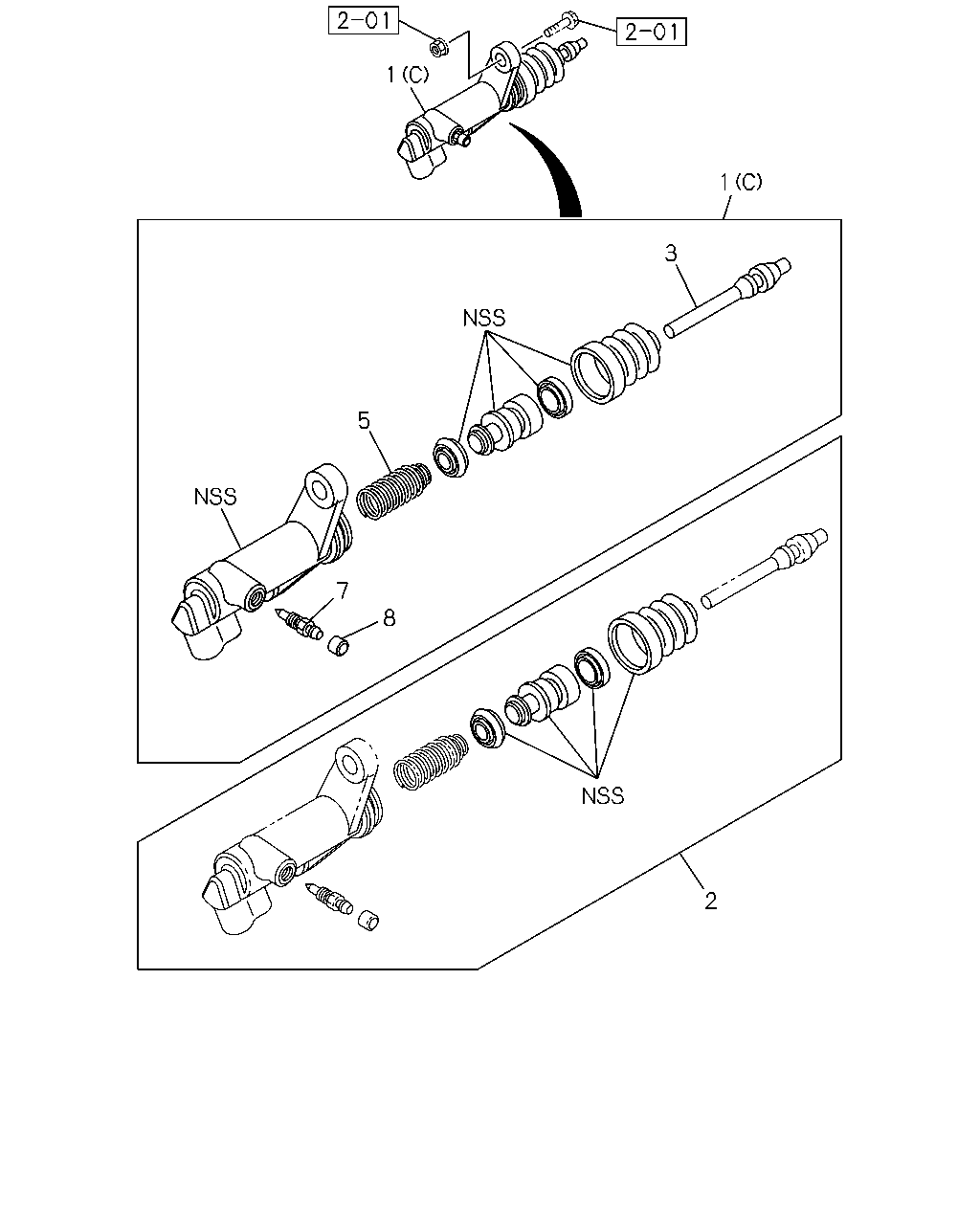

çizim 194357
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.780 CYLINDER; SLAVE,CLU
(B) 		8-97945-177-0 01 1 1206-1301 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X2(TFB***) (B) 		8-97945-177-0 01 1 1206-1301 ●
1 00.780 CYLINDER; SLAVE,CLU
(B) 		8-97945-177-0 01 1 1302- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4X2(TFB***) (B) 		8-97945-177-0 01 1 1302- ●
1 00.780 CYLINDER; SLAVE,CLU
4X4(TFS***) (C) 		8-97946-625-1 01 1 1206- ●
1 00.780 CYLINDER; SLAVE,CLU
(A) 		8-97946-624-2 01 1 1205-1205 ●
1 00.780 CYLINDER; SLAVE,CLU
(A) 		8-97946-624-2 01 1 1206- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1205-1205 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1206-1301 ● ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1302- ● ● ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1206-1301 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1302- ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1205-1205 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-98187-063-0 01 1 1206- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1205-1205 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1206-1301 ● ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1302- ● ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1205-1205 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1206-1301 ● ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1302- ● ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1205-1205 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1206-1301 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1302- ● ● ● ● ● ●
