2-05A — CLUTCH PIPING (#81803) — 61 parça

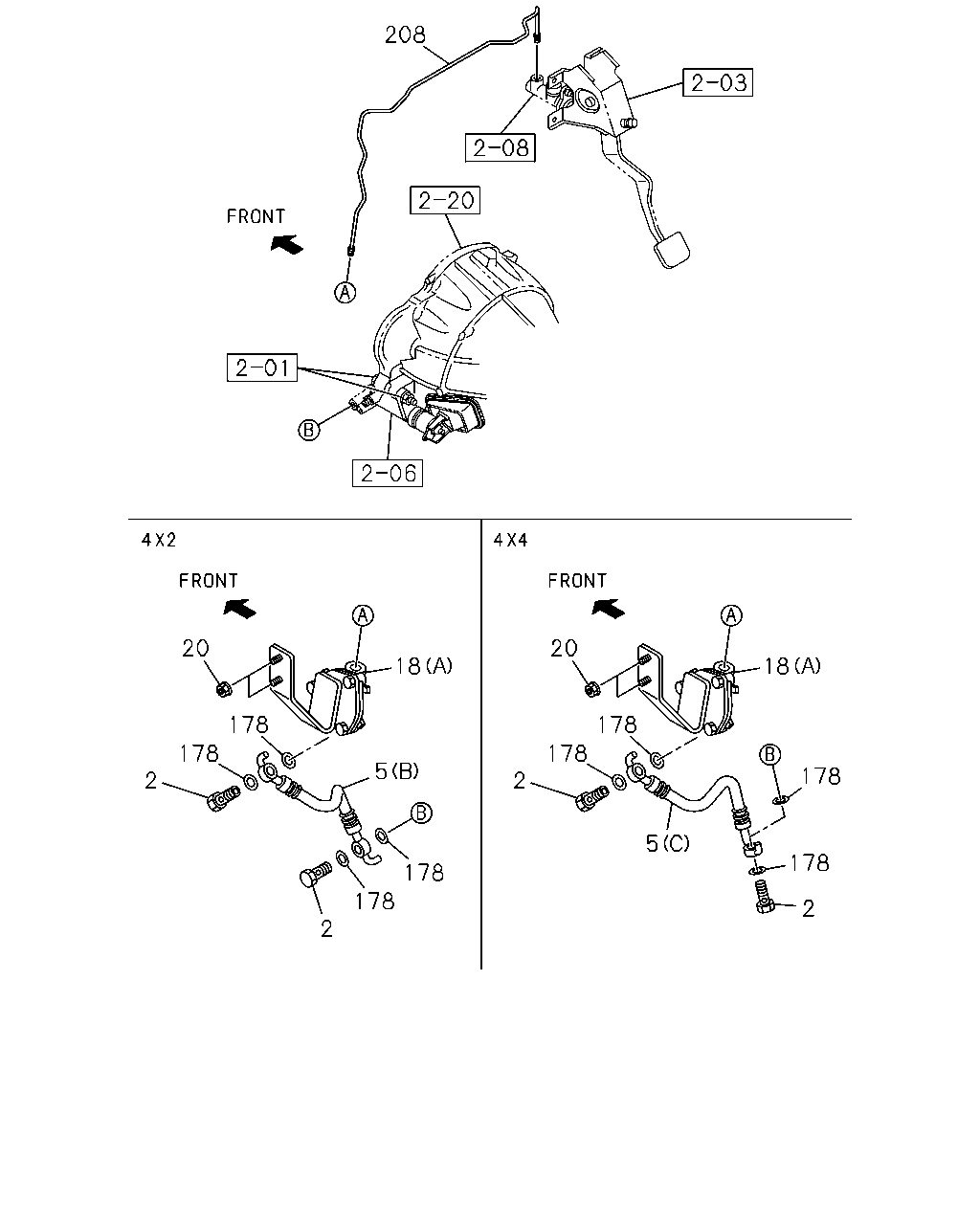

çizim 102422
208 20 18 178 178 2 5 178 178 2 2 178 178 20 18 178 178 2 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-97359-818-0 02 1 1205-1205 ●
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-97359-818-0 02 1 1206-1301 ● ● ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-97359-818-0 02 1 1302- ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98098-317-1 01 1 1206-1301 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4X2(TFB***) (B) 		8-98098-317-1 01 1 1206-1301 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98098-317-1 01 1 1302- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4X2(TFB***) (B) 		8-98098-317-1 01 1 1302- ●
5 00.785 HOSE; FLEX,CLU PIPE
4X4(TFS***) (C) 		8-98098-316-1 01 1 1206- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98098-315-1 01 1 1205-1205 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98098-315-1 01 1 1206- ● ●
18 00.830 DAMPER ASM; CLU OIL
(A) 		8-97946-616-1 01 1 1205-1205 ●
18 00.830 DAMPER ASM; CLU OIL
(A) 		8-97946-616-1 01 1 1206-1301 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
(A) 		8-97946-616-1 01 1 1302- ● ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
(B) 		8-97946-623-1 01 1 1205-1205 ●
18 00.830 DAMPER ASM; CLU OIL
(B) 		8-97946-623-1 01 1 1206- ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1205-1205 ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1206-1301 ● ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1302- ● ● ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1205-1205 ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1206-1301 ● ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1302- ● ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-98100-268-1 01 1 1205-1205 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-98100-268-1 01 1 1206-1301 ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-98100-268-1 01 1 1302- ● ● ● ● ● ●

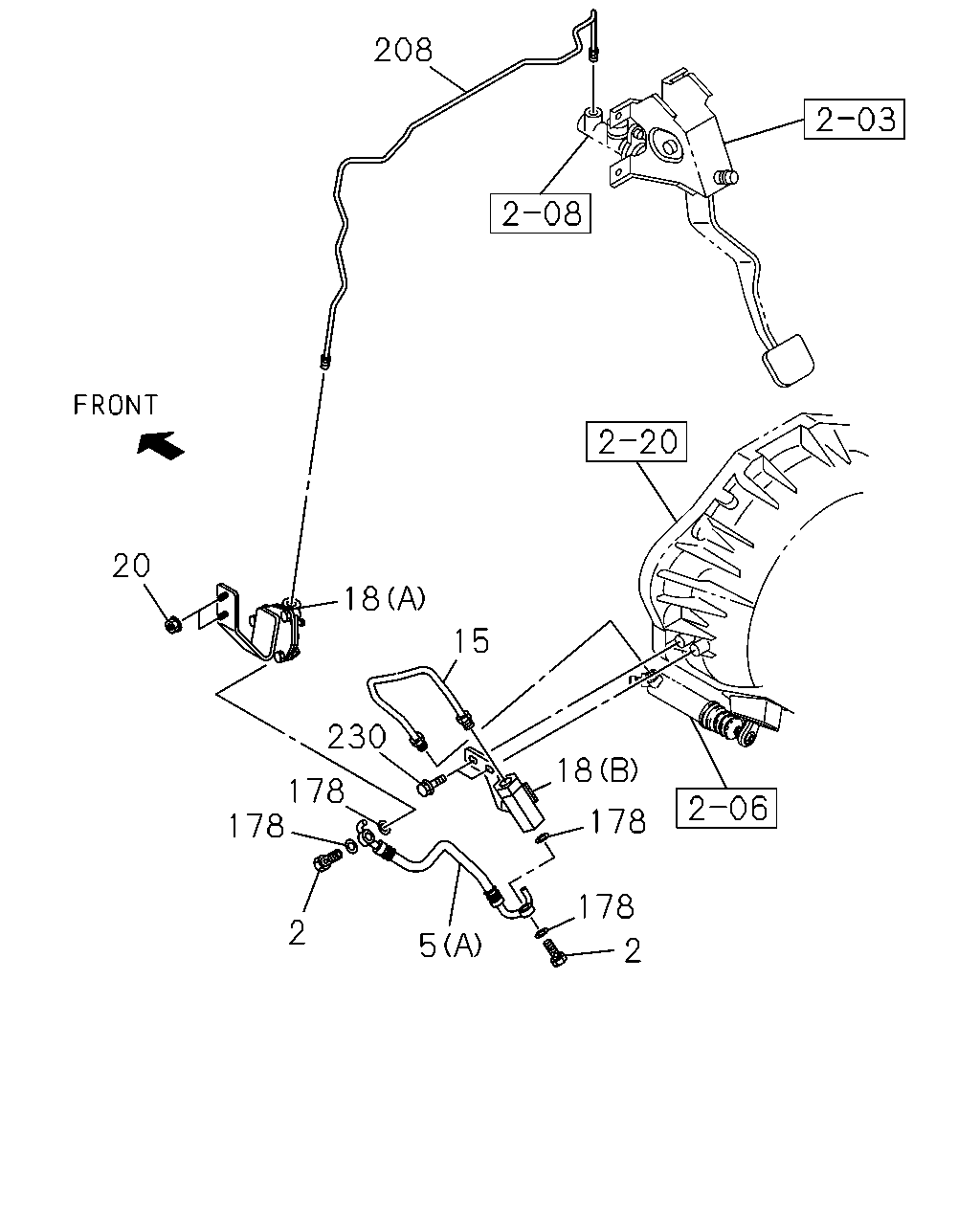

çizim 102445
208 20 18 15 230 178 178 2 5 2 178 178 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-97359-818-0 02 1 1205-1205 ●
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-97359-818-0 02 1 1206-1301 ● ● ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-97359-818-0 02 1 1302- ● ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98098-317-1 01 1 1206-1301 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4X2(TFB***) (B) 		8-98098-317-1 01 1 1206-1301 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98098-317-1 01 1 1302- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4X2(TFB***) (B) 		8-98098-317-1 01 1 1302- ●
5 00.785 HOSE; FLEX,CLU PIPE
4X4(TFS***) (C) 		8-98098-316-1 01 1 1206- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98098-315-1 01 1 1205-1205 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98098-315-1 01 1 1206- ● ●
15 00.785 PIPE; CLU,FLEX HOSE 8-98097-509-0 01 1 1205-1205 ●
15 00.785 PIPE; CLU,FLEX HOSE 8-98097-509-0 01 1 1206- ● ●
18 00.830 DAMPER ASM; CLU OIL
(A) 		8-97946-616-1 01 1 1205-1205 ●
18 00.830 DAMPER ASM; CLU OIL
(A) 		8-97946-616-1 01 1 1206-1301 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
(A) 		8-97946-616-1 01 1 1302- ● ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
(B) 		8-97946-623-1 01 1 1205-1205 ●
18 00.830 DAMPER ASM; CLU OIL
(B) 		8-97946-623-1 01 1 1206- ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1205-1205 ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1206-1301 ● ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1302- ● ● ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1205-1205 ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1206-1301 ● ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1302- ● ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-98100-268-1 01 1 1205-1205 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-98100-268-1 01 1 1206-1301 ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-98100-268-1 01 1 1302- ● ● ● ● ● ●
230 00.785 BOLT; ACTUATOR
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1205-1205 ●
230 00.785 BOLT; ACTUATOR
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1206- ● ●

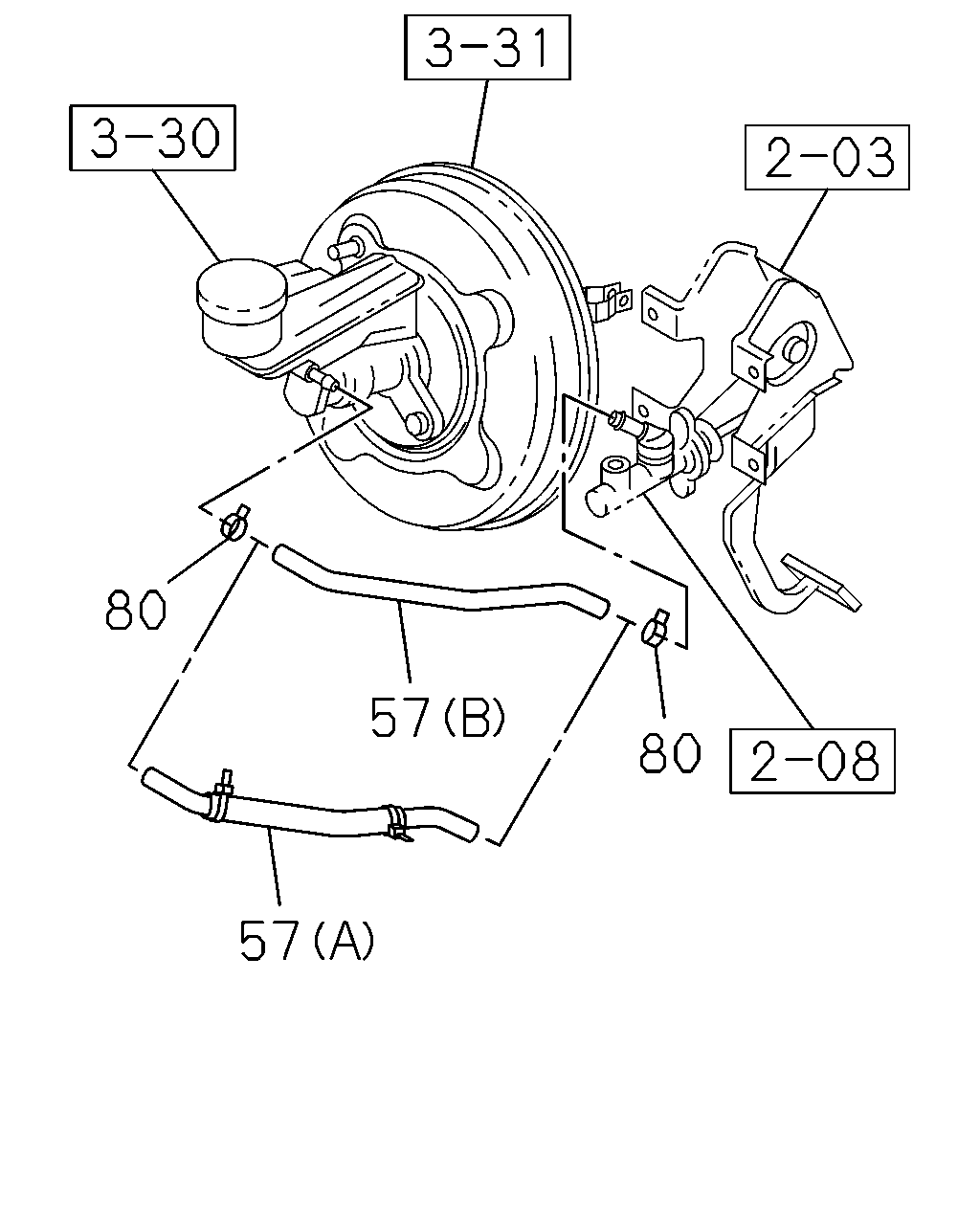

çizim 194359
80 57 57 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
57 00.785 HOSE; CLU M/CYL TO OIL TANK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-98097-543-1 01 1 1206-1210 ● ● ● ● ●
57 00.785 HOSE; CLU M/CYL TO OIL TANK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-98097-543-1 01 1 1211-1301 ● ● ● ● ●
57 00.785 HOSE; CLU M/CYL TO OIL TANK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) 		8-98097-543-1 01 1 1302- ● ● ● ● ● ●
57 00.785 HOSE; CLU M/CYL TO OIL TANK
(A) 		8-98119-218-2 01 1 1205-1205 ●
57 00.785 HOSE; CLU M/CYL TO OIL TANK
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) 		8-98119-218-2 01 1 1206-1301 ● ● ● ● ●
57 00.785 HOSE; CLU M/CYL TO OIL TANK
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) 		8-98119-218-2 01 1 1302- ● ● ● ● ● ●
80 00.785 CLIP; HOSE
ID=12 WO/PVC COATING 		8-97947-824-0 02 1 1205-1205 ●
80 00.785 CLIP; HOSE
ID=12 WO/PVC COATING 		8-97947-824-0 02 1 1206-1301 ● ● ● ● ●
80 00.785 CLIP; HOSE
ID=12 WO/PVC COATING 		8-97947-824-0 02 1 1302- ● ● ● ● ● ●
