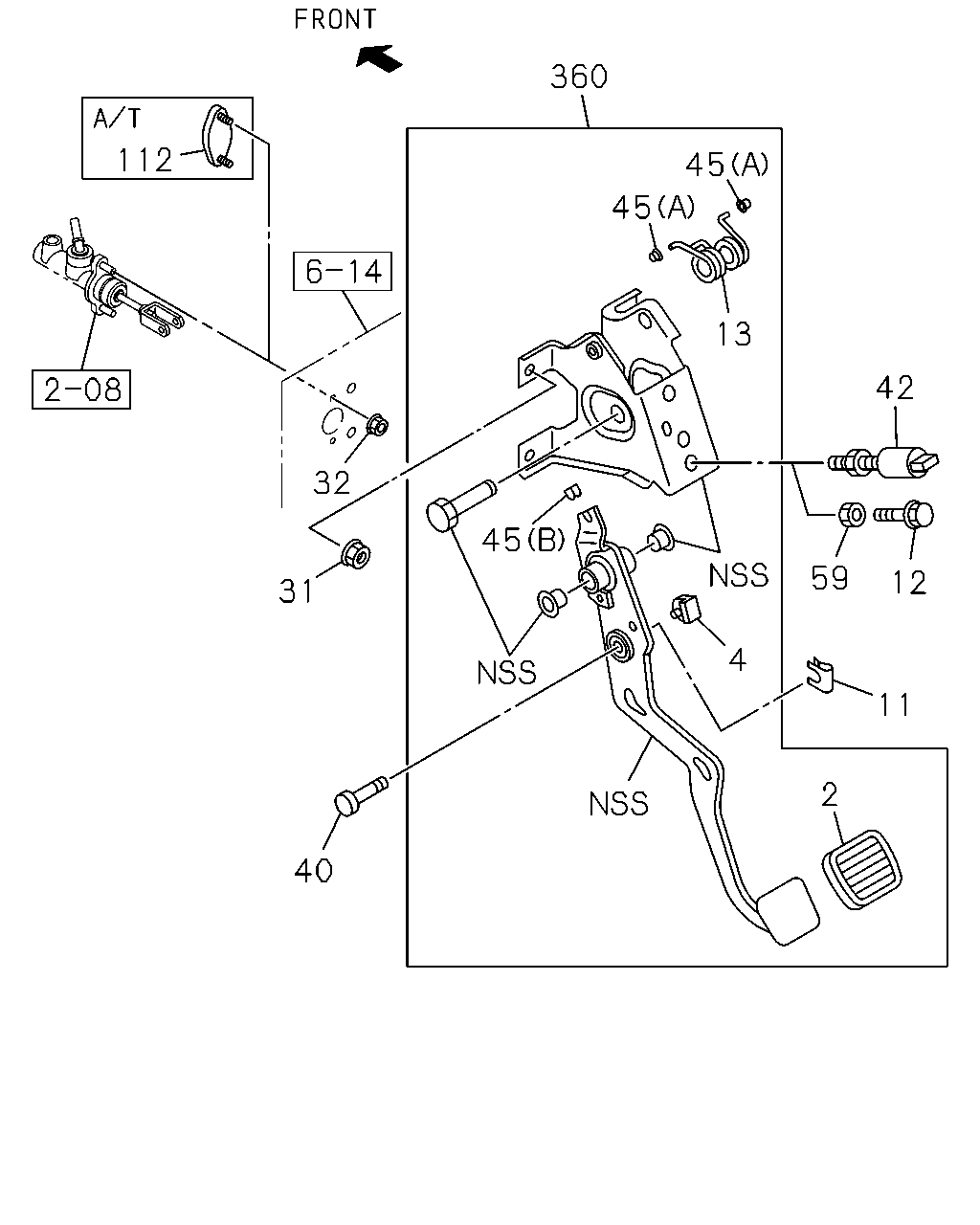

2 |
04.630 COVER; CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-97318-799-0 |
01 |
1 |
1205-1205 |
● |
● |
● |
● |
● |
● |
| |
2 |
04.630 COVER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP)
|
8-97318-799-0 |
01 |
1 |
1206-1301 |
● |
● |
● |
● |
● |
● |
| |
2 |
04.630 COVER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP),M/T MUA 5 SPEED 5S(RSQ)
|
8-97318-799-0 |
01 |
1 |
1302- |
● |
● |
● |
● |
● |
● |
| |
4 |
00.829 STOPPER; CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-97947-783-0 |
01 |
1 |
1205-1205 |
● |
● |
● |
● |
● |
● |
| |
4 |
00.829 STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP)
|
8-97947-783-0 |
01 |
1 |
1206-1301 |
● |
● |
● |
● |
● |
● |
| |
4 |
00.829 STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP),M/T MUA 5 SPEED 5S(RSQ)
|
8-97947-783-0 |
01 |
1 |
1302- |
● |
● |
● |
● |
● |
● |
| |
11 |
00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUX 5 SPEED 5S(MZJ)
|
8-98007-161-0 |
01 |
1 |
1205-1205 |
● |
● |
● |
● |
● |
● |
| |
11 |
00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP)
|
8-98007-161-0 |
01 |
1 |
1206-1301 |
● |
● |
● |
● |
● |
● |
| |
11 |
00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP),M/T MUA 5 SPEED 5S(RSQ)
|
8-98007-161-0 |
01 |
1 |
1302- |
● |
● |
● |
● |
● |
● |
| |
12 |
00.841 BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
M10X35
|
0-20851-035-0 |
01 |
1 |
1206-1301 |
|
● |
● |
● |
● |
● |
| |
12 |
00.841 BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T M
UA 5 SPEED 5S(RSQ)
M10X35
|
0-20851-035-0 |
01 |
1 |
1302-1408 |
|
● |
● |
● |
● |
● |
| |
12 |
00.841 BOLT; CLU PEDAL ADJ
4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
EURO3 SPECIFICATION<NT3>
M10X35
|
0-20851-035-0 |
01 |
1 |
1409- |
|
● |
● |
● |
● |
● |
| |
12 |
00.841 BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T M
UA 5 SPEED 5S(RSQ)
M10X35
|
0-20851-035-0 |
01 |
1 |
1409- |
|
● |
● |
● |
● |
● |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED
5G(RSP)
|
8-98207-852-0 |
01 |
1 |
1206-1301 |
|
● |
● |
|
|
|
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED
5G(RSP),M/T MUA 5 SPEED 5S(RSQ)
|
8-98207-852-0 |
01 |
1 |
1302- |
|
● |
● |
|
|
|
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-97942-312-0 |
01 |
1 |
1205-1205 |
● |
● |
● |
● |
● |
● |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
|
8-97942-312-0 |
01 |
1 |
1206-1210 |
● |
● |
● |
● |
● |
● |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
|
8-97942-312-0 |
01 |
1 |
1211- |
● |
● |
● |
● |
● |
● |
| |
31 |
01.153 NUT; MTG BRKT TO BODY
M/T MUX 5 SPEED 5S(MZJ)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1205-1205 |
● |
● |
● |
● |
● |
● |
| |
31 |
01.153 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1206-1301 |
● |
● |
● |
● |
● |
● |
| |
31 |
01.153 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP),M/T MUA 5 SPEED 5S(RSQ)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1302- |
● |
● |
● |
● |
● |
● |
| |
32 |
00.777 NUT; BRKT TO CLU M/CYL
A/T 5 SPEED-AISIN(MA1),M/T MUX 5
SPEED 5S(MZJ)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1205-1205 |
● |
● |
● |
● |
● |
● |
| |
32 |
00.777 NUT; BRKT TO CLU M/CYL
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TMSG 5 SPEED(M75),M/T AISIN 6
SPEED(RNU),M/T MUA 5 SPEED 5G(RSP)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1206-1301 |
● |
● |
● |
● |
● |
● |
| |
32 |
00.777 NUT; BRKT TO CLU M/CYL
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1302- |
● |
● |
● |
● |
● |
● |
| |
40 |
00.833 PIN; JOINT,CLU DAMPER
M/T MUX 5 SPEED 5S(MZJ)
OD=7.9 L=27.5
|
8-97312-338-0 |
01 |
1 |
1205-1205 |
● |
● |
● |
● |
● |
● |
| |
40 |
00.833 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP)
OD=7.9 L=27.5
|
8-97312-338-0 |
01 |
1 |
1206-1301 |
● |
● |
● |
● |
● |
● |
| |
40 |
00.833 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP),M/T MUA 5 SPEED 5S(RSQ)
OD=7.9 L=27.5
|
8-97312-338-0 |
01 |
1 |
1302- |
● |
● |
● |
● |
● |
● |
| |
42 |
04.054 SWITCH; CLU
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-98154-210-0 |
01 |
1 |
1205-1205 |
● |
● |
● |
● |
● |
● |
| |
42 |
04.054 SWITCH; CLU
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6
SPEED(RNU)
|
8-98154-210-0 |
01 |
1 |
1206-1210 |
● |
● |
● |
● |
● |
● |
| |
42 |
04.054 SWITCH; CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
AUTO CRUISE CONT<K30>
|
8-98154-210-0 |
01 |
1 |
1206-1210 |
|
|
● |
● |
● |
● |
| |
42 |
04.054 SWITCH; CLU
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-98154-210-0 |
01 |
1 |
1211-1408 |
● |
● |
|
● |
● |
|
| |
42 |
04.054 SWITCH; CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ)
AUTO CRUISE CONT<K30>
|
8-98154-210-0 |
01 |
1 |
1211-1408 |
|
● |
● |
● |
● |
● |
| |
42 |
04.054 SWITCH; CLU
4JK1-TCY ENG(RDX)
M/T AISIN 6 SPEED(RNU)
|
8-98154-210-0 |
01 |
1 |
1211-1408 |
|
● |
● |
|
● |
● |
| |
42 |
04.054 SWITCH; CLU
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ)
EXC. AUTO CRUISE CONT<K30>
|
8-98154-210-0 |
01 |
1 |
1211-1408 |
|
|
● |
|
● |
● |
| |
42 |
04.054 SWITCH; CLU
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
|
8-98154-210-0 |
01 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
42 |
04.054 SWITCH; CLU
4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
EMISSION SYSTEM R15-04<K75>,EURO1
SPECIFICATION<NT1>,EURO2
SPECIFICATION<NT2>
|
8-98154-210-0 |
01 |
1 |
1409- |
|
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
(A)
|
8-97942-313-0 |
02 |
1 |
1205-1205 |
● |
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP)
(A)
|
8-97942-313-0 |
02 |
1 |
1206-1301 |
● |
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP),M/T MUA 5 SPEED 5S(RSQ)
(A)
|
8-97942-313-0 |
02 |
1 |
1302- |
● |
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
(B)
|
8-97942-314-0 |
01 |
1 |
1205-1205 |
● |
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP)
(B)
|
8-97942-314-0 |
01 |
1 |
1206-1301 |
● |
● |
● |
● |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T
AISIN 6 SPEED(RNU),M/T MUA 5 SPEED
5G(RSP),M/T MUA 5 SPEED 5S(RSQ)
(B)
|
8-97942-314-0 |
01 |
1 |
1302- |
● |
● |
● |
● |
● |
● |
| |
59 |
00.833 NUT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
M10
|
0-91110-510-0 |
01 |
1 |
1206-1301 |
|
● |
● |
● |
● |
● |
| |
59 |
00.833 NUT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T M
UA 5 SPEED 5S(RSQ)
M10
|
0-91110-510-0 |
01 |
1 |
1302-1408 |
|
● |
● |
● |
● |
● |
| |
59 |
00.833 NUT; CLU PEDAL ADJ
4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
EURO3 SPECIFICATION<NT3>
M10
|
0-91110-510-0 |
01 |
1 |
1409- |
|
● |
● |
● |
● |
● |
| |
59 |
00.833 NUT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T M
UA 5 SPEED 5S(RSQ)
M10
|
0-91110-510-0 |
01 |
1 |
1409- |
|
● |
● |
● |
● |
● |
| |
112 |
00.785 PLUG; METAL,M/CYL
A/T 5 SPEED-AISIN(MA1)
|
8-97945-168-0 |
01 |
1 |
1205- |
|
|
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
|
8-97946-363-2 |
01 |
1 |
1206-1206 |
|
● |
|
|
|
|
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
|
8-97946-363-2 |
01 |
1 |
1206-1206 |
|
|
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
|
8-98219-798-0 |
01 |
1 |
1206-1408 |
|
● |
|
|
|
|
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
|
8-98219-798-0 |
01 |
1 |
1206-1408 |
|
|
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
EURO3 SPECIFICATION<NT3>
|
8-98219-798-0 |
01 |
1 |
1409-1512 |
|
● |
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JJ1-TCS ENG(LFB)
M/T MUA 5 SPEED 5H(MWQ)
|
8-98219-798-0 |
01 |
1 |
1409-1512 |
|
|
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
EURO3 SPECIFICATION<NT3>
|
8-98317-387-0 |
01 |
1 |
1601- |
|
● |
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JJ1-TCS ENG(LFB)
M/T MUA 5 SPEED 5H(MWQ)
|
8-98317-387-0 |
01 |
1 |
1601- |
|
|
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED
5G(RSP)
|
8-98205-966-0 |
01 |
1 |
1206-1206 |
|
● |
● |
|
|
|
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED
5G(RSP)
|
8-97947-854-0 |
01 |
1 |
1206-1301 |
|
● |
● |
|
|
|
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED
5G(RSP),M/T MUA 5 SPEED 5S(RSQ)
|
8-97947-854-0 |
01 |
1 |
1302-1512 |
|
● |
● |
|
|
|
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JA1-T ENG(LP0)
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED
5G(RSP),M/T MUA 5 SPEED 5S(RSQ)
|
8-98317-388-0 |
01 |
1 |
1601- |
|
● |
● |
|
|
|
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-97947-241-2 |
01 |
1 |
1205-1205 |
● |
● |
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
|
8-97947-241-2 |
01 |
1 |
1206-1206 |
● |
● |
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
|
8-98219-800-0 |
01 |
1 |
1206-1210 |
● |
● |
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
|
8-98219-800-0 |
01 |
1 |
1211-1408 |
● |
● |
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
|
8-98219-800-0 |
01 |
1 |
1409-1512 |
● |
● |
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
EMISSION SYSTEM R15-04<K75>,EURO1
SPECIFICATION<NT1>,EURO2
SPECIFICATION<NT2>
|
8-98219-800-0 |
01 |
1 |
1409-1512 |
|
● |
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),
4JK1-TCY ENG(RDX)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
|
8-98317-389-0 |
01 |
1 |
1601- |
● |
● |
● |
● |
● |
● |
| |
360 |
00.830 PEDAL ASM; CLUTCH
4JK1-TCS ENG(LKZ)
M/T MUA 5 SPEED 5H(MWQ)
EMISSION SYSTEM R15-04<K75>,EURO1
SPECIFICATION<NT1>,EURO2
SPECIFICATION<NT2>
|
8-98317-389-0 |
01 |
1 |
1601- |
|
● |
● |
● |
● |
● |
