◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#8180) — 87 parça

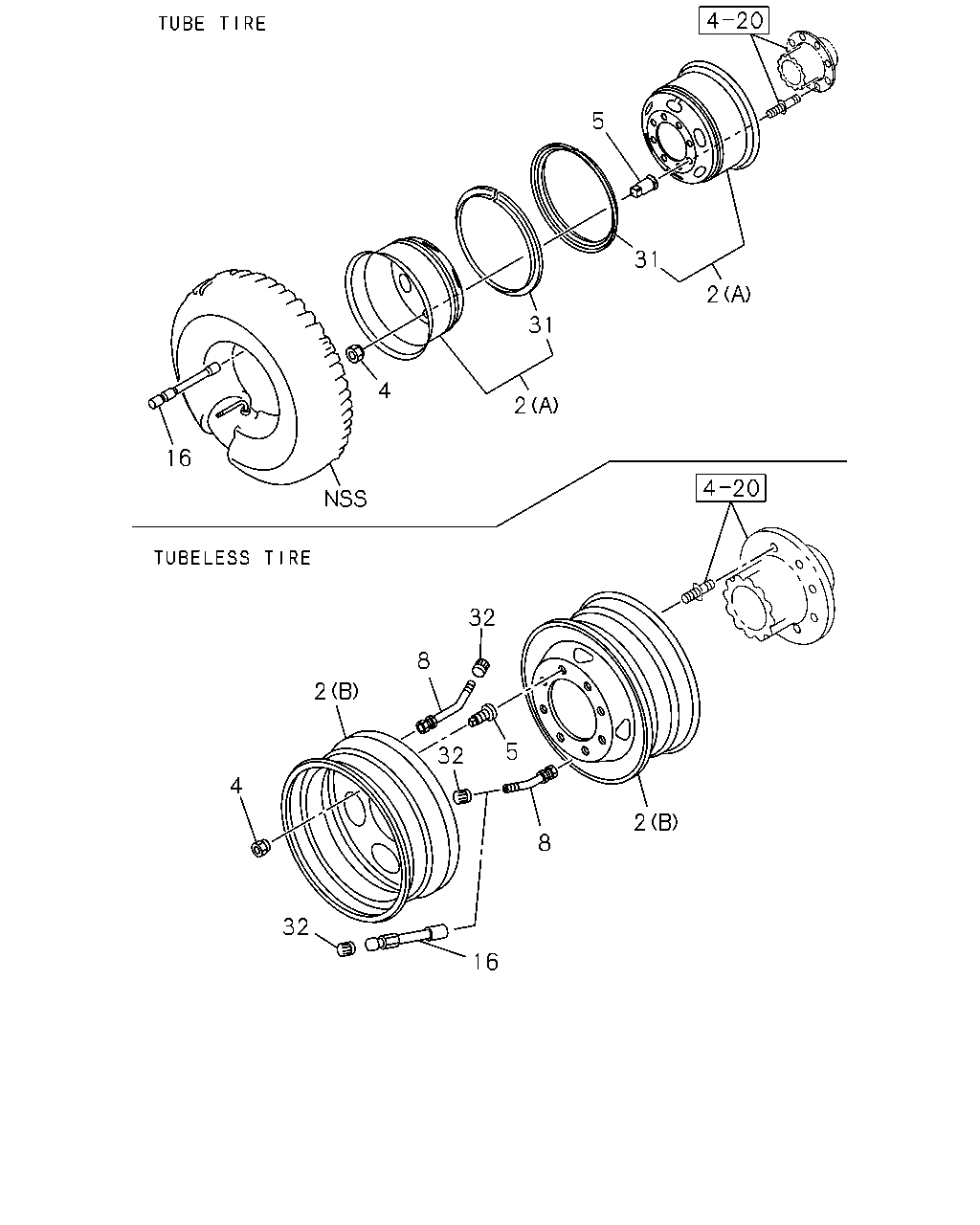

çizim 78660
5 31 2 31 4 2 16 32 8 2 32 5 4 2 8 32 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) (A) 		1-42350-197-0 01 1 0005-0210 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) (A) 		1-42350-197-0 01 1 0005-0210 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 8-STUD 		1-42350-302-2 01 1 0005-0203 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> (A) 8-STUD 		1-42350-302-2 01 1 0005-0203 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 		1-42350-641-0 01 1 0204-0210 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> (A) 		1-42350-641-0 01 1 0204-0210 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) (A) 		1-42350-197-0 06 1 0005-0210 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 8-STUD 		1-42350-302-2 06 1 0005-0203 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 		1-42350-641-0 06 1 0204-0210 ● ●
2 WHEEL; DISC
(B) 		1-42350-408-0 07 1 0211- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-478-0 01 1 0005-0210 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> (A) 		1-42350-478-0 01 1 0005-0210 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-268-2 01 1 0005-0210 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-268-2 01 1 0005-0210 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-478-0 06 1 0005-0210 ● ●
2 WHEEL; DISC
(B) 		1-42350-650-0 07 1 0211- ● ●
2 WHEEL; DISC
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-268-2 06 1 0005-0210 ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 08 1 0005-0610 ● ● ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0611- ● ● ● ●
4 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 08 1 0005-0610 ● ● ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0611- ● ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 08 1 0005-0610 ● ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0611- ● ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 08 1 0005-0610 ● ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0611- ● ● ● ●
8 VALVE; TIRE 1-42370-020-3 07 1 0211- ● ● ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=115 		1-42370-015-2 02 1 0005-1003 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=115 		8-98167-051-0 02 1 1004- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 0005-1003 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 02 1 1004- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> 		1-42355-012-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 06 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 06 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 06 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> 		1-42355-003-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 06 1 0005-0210 ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46> 		1-42374-001-0 07 1 0005-0210 ● ● ● ●
32 CAP; VALVE 1-42374-001-0 07 1 0211- ● ● ● ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL REAR<R46> 		1-42374-001-0 06 1 0005-0210 ● ● ● ●

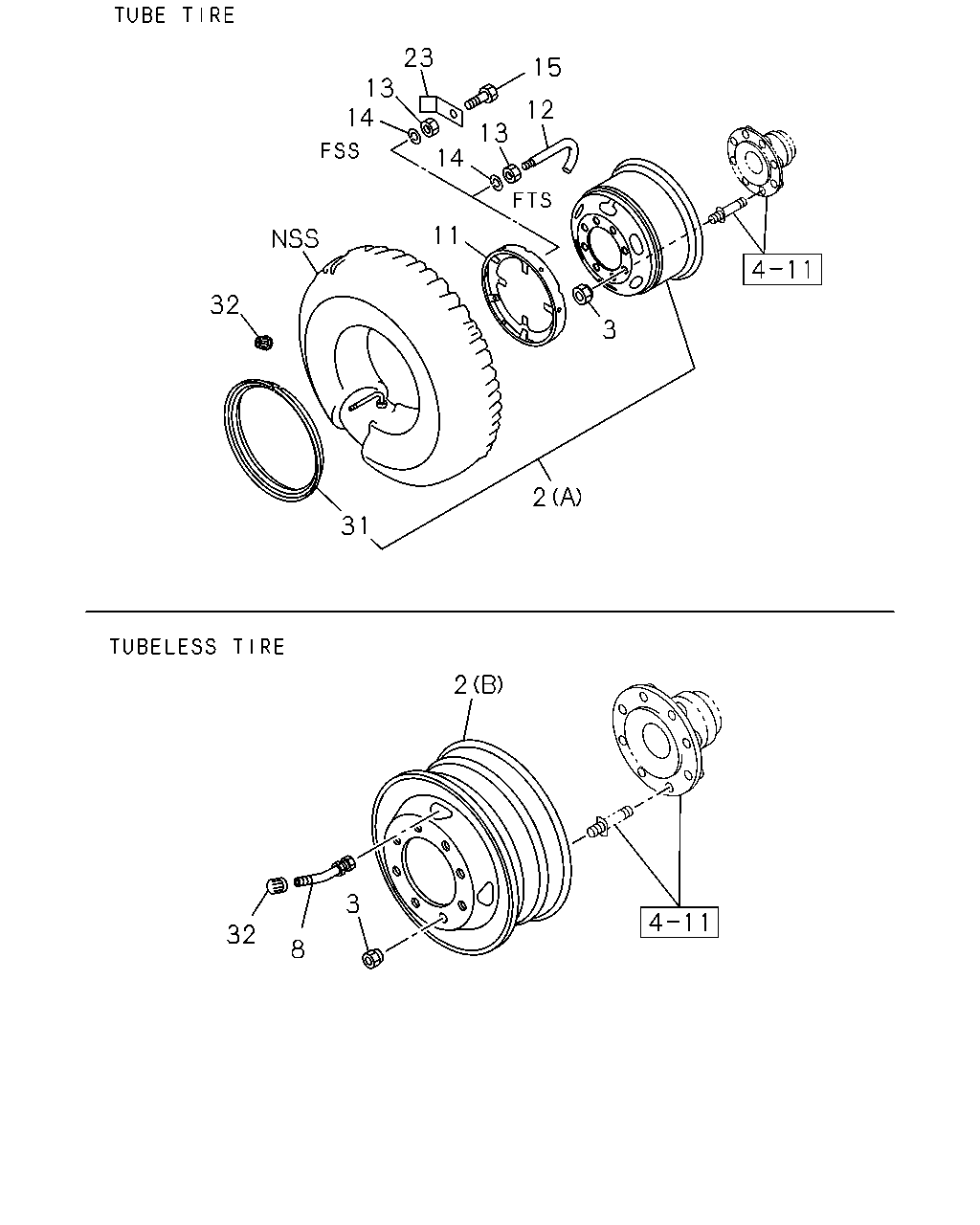

çizim 103161
23 13 14 15 12 13 14 11 32 3 2 31 2 3 32 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) (A) 		1-42350-197-0 01 1 0005-0210 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) (A) 		1-42350-197-0 01 1 0005-0210 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 8-STUD 		1-42350-302-2 01 1 0005-0203 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> (A) 8-STUD 		1-42350-302-2 01 1 0005-0203 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 		1-42350-641-0 01 1 0204-0210 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> (A) 		1-42350-641-0 01 1 0204-0210 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) (A) 		1-42350-197-0 06 1 0005-0210 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 8-STUD 		1-42350-302-2 06 1 0005-0203 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 		1-42350-641-0 06 1 0204-0210 ● ●
2 WHEEL; DISC
(B) 		1-42350-408-0 07 1 0211- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-478-0 01 1 0005-0210 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> (A) 		1-42350-478-0 01 1 0005-0210 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-268-2 01 1 0005-0210 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-268-2 01 1 0005-0210 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-478-0 06 1 0005-0210 ● ●
2 WHEEL; DISC
(B) 		1-42350-650-0 07 1 0211- ● ●
2 WHEEL; DISC
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-268-2 06 1 0005-0210 ● ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 0005- ● ● ● ●
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 0005- ● ● ● ●
8 VALVE; TIRE 1-42370-020-3 07 1 0211- ● ● ● ●
11 STEP; DISC WHEEL SIDE 1-43139-002-2 02 1 0005-0210 ● ● ● ●
12 U-BOLT; STEP DISC
L=44 		9-43139-023-1 06 1 0005-0210 ● ●
13 NUT; STEP DISC
M10 		9-09110-510-0 06 1 0005-0210 ● ● ● ●
14 WASHER; LK,STEP DISC
ID=10.2 		9-09150-510-0 06 1 0005-0210 ● ● ● ●
15 BOLT; STEP DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47),DISC WHEEL8STUD 20X6.00S 135-10(SBB) M10X45 		0-10806-045-0 06 1 0005-0210 ● ●
23 PLATE; CLAMP,STEP DISC
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-43139-020-0 06 1 0005-0210 ● ●
23 PLATE; CLAMP,STEP DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-43139-013-0 06 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> 		1-42355-012-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 06 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 06 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-012-1 06 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> 		1-42355-003-1 01 1 0005-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 06 1 0005-0210 ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46> 		1-42374-001-0 07 1 0005-0210 ● ● ● ●
32 CAP; VALVE 1-42374-001-0 07 1 0211- ● ● ● ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL REAR<R46> 		1-42374-001-0 06 1 0005-0210 ● ● ● ●
