◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#818) — 26 parça

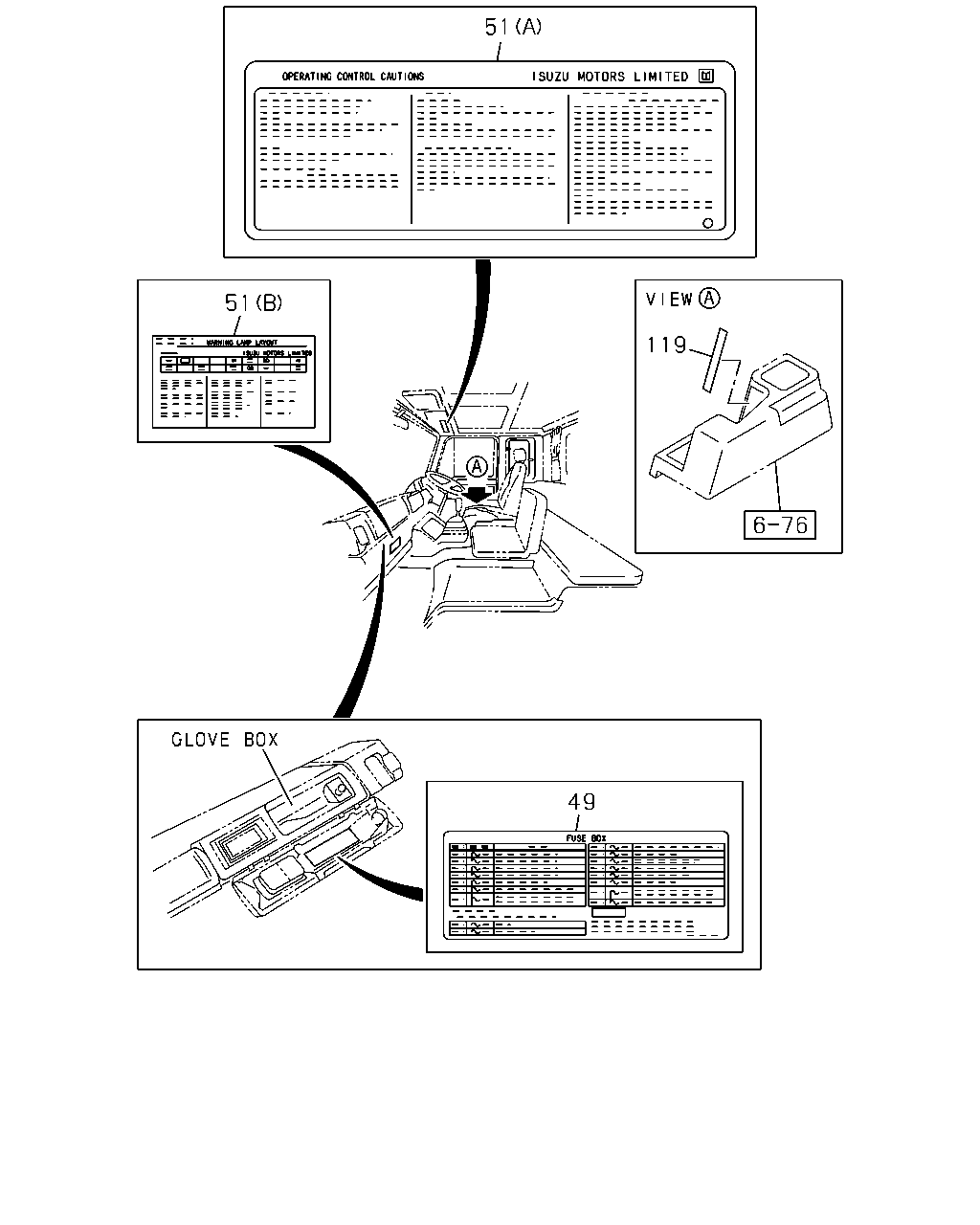

çizim 28767
51 51 119 49
BalonParca AdiParca NoAdetTipApplied Date A B
49 PLATE; CAUTION,FUSE BOX
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-85888-297-0 01 1 9302- ● ●
49 PLATE; CAUTION,FUSE BOX
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-85887-685-2 01 1 9202- ● ●
49 PLATE; CAUTION,FUSE BOX
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-85888-310-0 01 1 9308- ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-581-0 01 1 9202- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85888-229-1 01 1 9202- ● ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-85880-576-1 01 1 9202- ● ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85888-217-1 01 1 9202- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-580-0 01 1 9202- ● ●
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-373-0 01 1 9202- ● ●
çizim 94614
4 4 4 4 69
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
THAILAND EQUIPMENT(PM9) (A) 		1-85886-718-1 01 1 9211- ● ●
4 LABEL; ENG MAINTENANCE
THAILAND EQUIPMENT(PM9) (B) 		1-85886-719-1 01 1 9211-9405 ● ●
4 LABEL; ENG MAINTENANCE
EXC. THAILAND EQUIPMENT(PM9) (C) 		8-94393-471-0 01 1 9202-9312 ● ●
4 LABEL; ENG MAINTENANCE
(C) 		8-94393-471-0 01 1 9401-9410 ● ●
4 LABEL; ENG MAINTENANCE
EXC. THAILAND EQUIPMENT(PM9) (C) 		8-94393-471-0 01 1 9411-9412 ● ●
4 LABEL; ENG MAINTENANCE
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (C) 		8-94393-471-0 01 1 9501- ● ●
4 LABEL; ENG MAINTENANCE
HONG KONG EQUIPMENT(PQ1) (D) 		8-94390-020-0 01 1 9501- ●
69 PLATE; CAUTION,STARTER SW
CAUTIONS ARABIAN<WJ7> 		1-85887-537-0 01 1 9202- ● ●
69 PLATE; CAUTION,STARTER SW
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85887-389-0 01 1 9202- ● ●
69 PLATE; CAUTION,STARTER SW
CAUTIONS FRENCH<WJ8> 		1-85887-535-0 01 1 9202- ● ●
çizim 95626
2 6 63
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
FUEL TANK 200L FMCSR<PK6> 		8-94414-353-0 01 1 9202- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		1-85883-114-0 01 1 9202- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-53639-004-0 01 1 9202- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> 		1-85883-108-0 01 1 9202- ● ●
63 PLATE; CAUTION,SEAT AIR
CAUTIONS ARABIAN<WJ7> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75537-202-0 01 1 9202- ● ●
63 PLATE; CAUTION,SEAT AIR
CAUTIONS FRENCH<WJ8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75537-201-0 01 1 9202- ● ●
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-75537-199-0 01 1 9202- ● ●
