Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#81799) — 234 parça

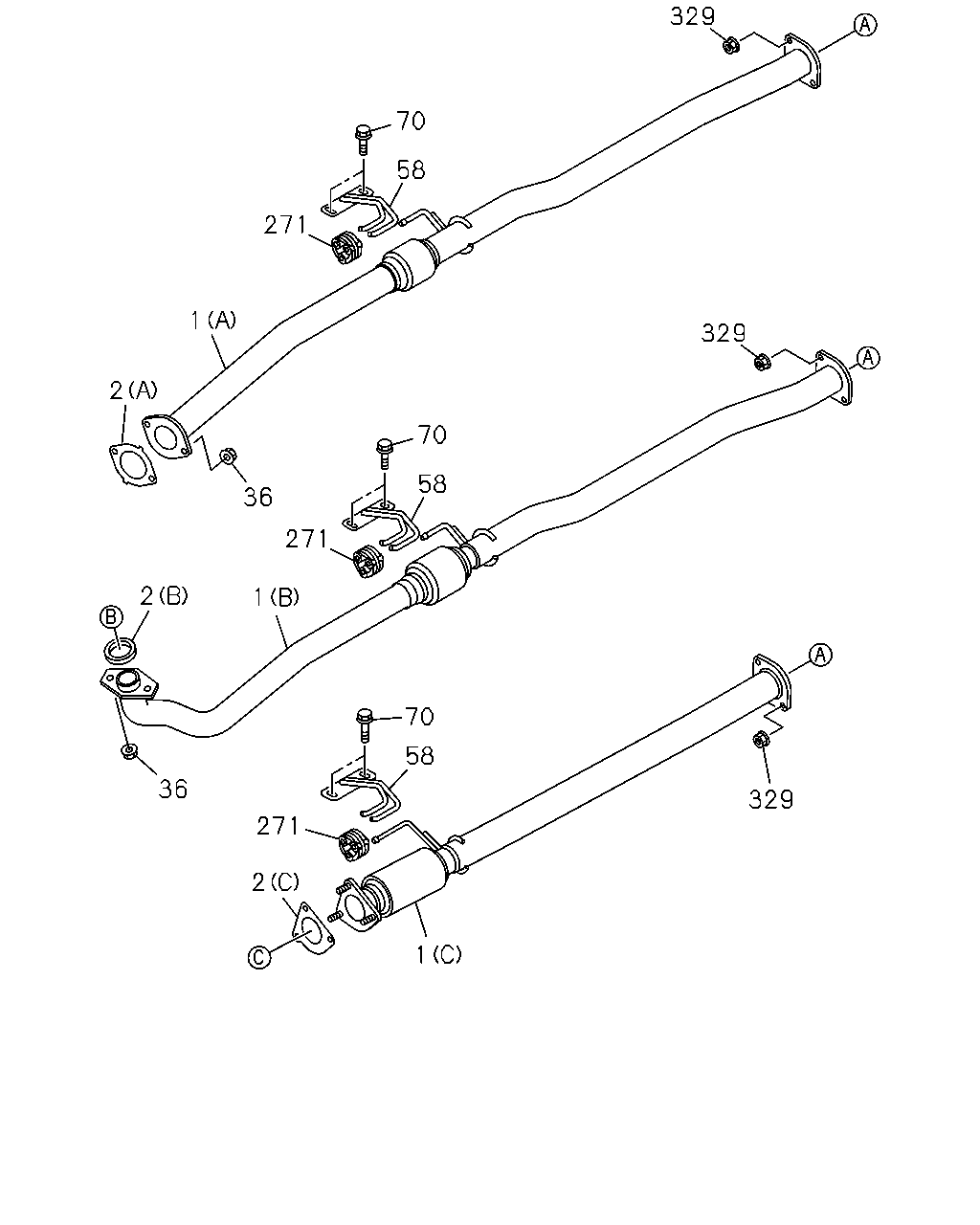

329 70 58 271 1 2 36 70 329 58 271 2 1 36 70 58 271 2 1 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.609 PIPE; EXH EURO3 SPECIFICATION<NT3> (A)	8-98065-528-1	01	1	1211-	●
1	03.609 PIPE; EXH (C)	8-98211-401-1	01	1	1206-		●
1	03.609 PIPE; EXH EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98065-530-1	01	1	1206-	●		●
1	03.609 PIPE; EXH (B)	8-98205-429-2	01	1	1206-				●
1	03.609 PIPE; EXH (A)	8-98140-583-1	01	1	1205-1205					●
1	03.609 PIPE; EXH EURO4 SPECIFICATION<NT4> (A)	8-98140-583-1	01	1	1206-1210					●
1	03.609 PIPE; EXH EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98140-583-1	01	1	1211-					●	●
2	03.611 GASKET; PIPE TO MANIF EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98017-270-0	01	1	1206-	●		●	●
2	03.611 GASKET; PIPE TO MANIF (C)	8-98151-231-0	01	1	1206-		●
2	03.611 GASKET; PIPE TO MANIF (A) ID=65	8-97263-052-0	01	1	1205-1210					●
2	03.611 GASKET; PIPE TO MANIF (A) ID=65	8-97263-052-0	01	1	1211-					●	●
2	03.611 GASKET; PIPE TO MANIF EURO3 SPECIFICATION<NT3> (A) ID=65	8-97263-052-0	01	1	1211-	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	1206-1303		●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1304-	●		●	●	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1205-1205					●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1206-1210	●		●	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1211-1303	●		●	●	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	1304-		●
58	03.613 BRACKET; EXH PIPE,RR	8-97368-450-0	01	1	1205-1205					●
58	03.613 BRACKET; EXH PIPE,RR	8-97368-450-0	01	1	1206-	●		●	●	●	●
70	03.706 BOLT; BRKT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1205-1205					●
70	03.706 BOLT; BRKT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1206-	●		●	●	●	●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1205-1205					●
271	03.704 RUBBER; HANGER,RR PIPE 03.706	8-97289-169-0	01	1	1206-	●		●	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1205-1205					●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1206-1210	●	●	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1211-1303	●	●	●	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1304-	●		●	●	●	●

428 115 12 337 59 115 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	03.701 SILENCER ASM; EXH MALAYSIA EQUIPMENT(B10)	8-98213-724-1	01	1	1211-						●
12	03.701 SILENCER ASM; EXH EXC. MALAYSIA EQUIPMENT(B10)	8-98140-589-2	01	1	1211-						●
12	03.701 SILENCER ASM; EXH	8-98125-376-3	01	1	1206-	●		●
12	03.701 SILENCER ASM; EXH	8-98065-538-3	01	1	1206-				●
12	03.701 SILENCER ASM; EXH	8-98140-590-1	01	1	1205-1205					●
12	03.701 SILENCER ASM; EXH	8-98140-590-2	01	1	1206-		●			●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	1205-1303	●	●	●	●	●	●
59	03.704 BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	1304-	●		●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1205-1205					●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1206-1210	●	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1211-1303	●	●	●	●	●	●
84	03.611 GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1304-	●		●	●	●	●
115	03.704 RUBBER; MTG,SILENCER 03.706 (A)	8-97289-169-0	01	1	1205-1205					●
115	03.704 RUBBER; MTG,SILENCER 03.706 (A)	8-97289-169-0	01	1	1206-	●		●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-98124-470-0	02	1	1205-1205					●
115	03.704 RUBBER; MTG,SILENCER (B)	8-98124-470-0	02	1	1206-	●		●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1205-1205					●
337	03.706 BOLT; RUBBER,SUPPORT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1206-1210	●	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1211-1303	●	●	●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 01.267 M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1304-	●		●	●	●	●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE	8-98124-470-0	01	1	1205-1205					●
428	03.704 RUBBER; MTG,CLAMP,EXH PIPE	8-98124-470-0	01	1	1206-	●		●	●	●	●

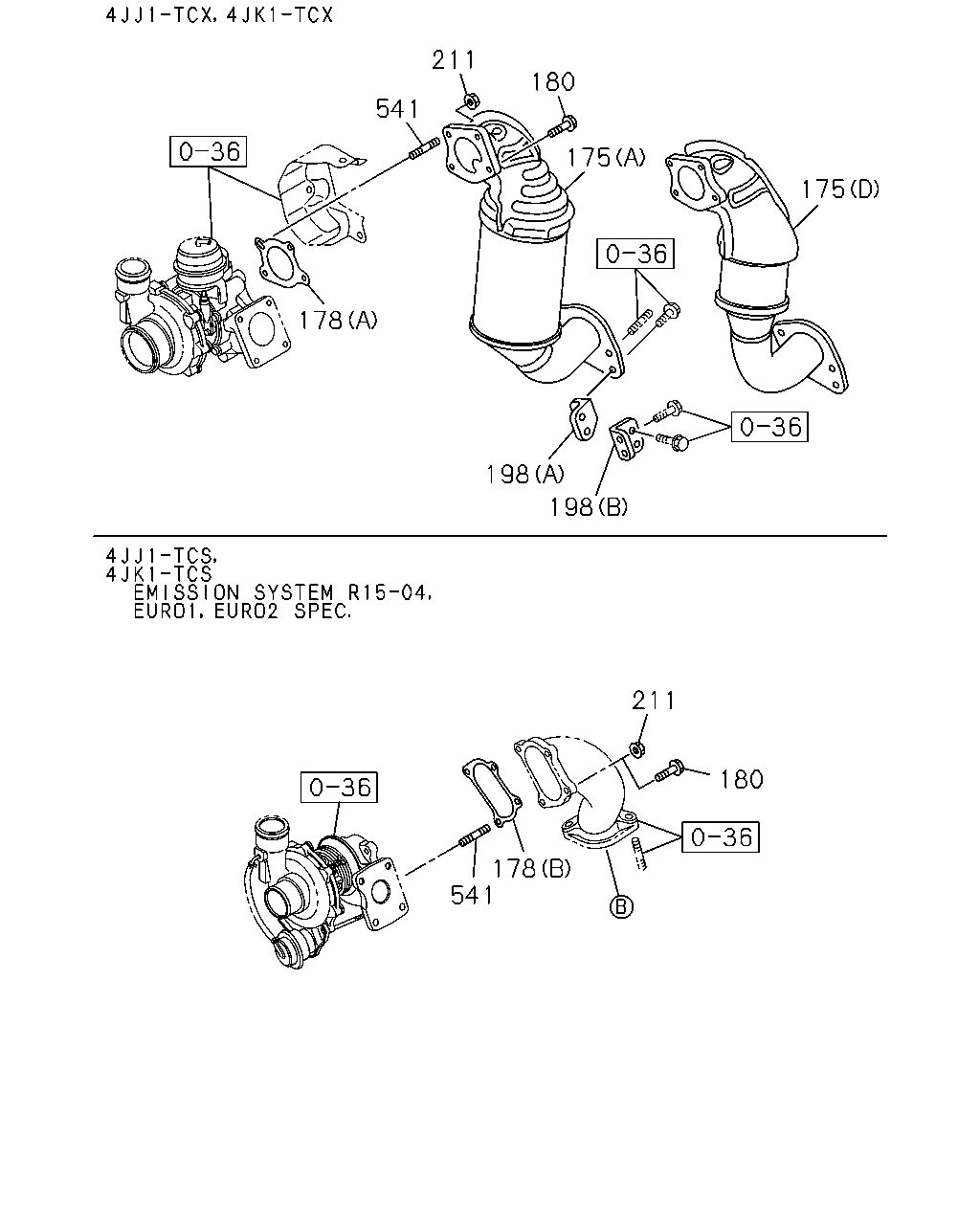

180 211 178 541 198 198 175 175 180 211 541 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (E)	8-98132-076-1	01	1	1211-1302	●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (E)	8-98228-307-0	01	1	1303-	●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98140-595-2	01	1	1211-1304						●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98228-310-0	01	1	1305-						●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98132-075-2	01	1	1211-1302					●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98228-311-0	01	1	1303-					●
175	03.685 CONVERTER; CATALYST EURO2 SPECIFICATION<NT2> (B)	8-98195-457-1	01	1	1206-				●
175	03.685 CONVERTER; CATALYST (C)	8-98177-633-4	01	1	1206-		●
175	03.685 CONVERTER; CATALYST (A)	8-98132-074-2	01	1	1205-1205					●
175	03.685 CONVERTER; CATALYST EURO4 SPECIFICATION<NT4> (A)	8-98132-074-2	01	1	1206-					●
178	03.611 GASKET; CONV TO MANIF (C)	8-98151-218-0	01	1	1206-		●
178	03.611 GASKET; CONV TO MANIF (B)	8-97312-284-1	01	1	1206-	●		●
178	03.611 GASKET; CONV TO MANIF (A)	8-98132-538-0	01	1	1205-1210					●
178	03.611 GASKET; CONV TO MANIF (A)	8-98132-538-0	01	1	1211-					●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	03	1	1206-		●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1205-1210					●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1211-1309					●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1310-	●		●		●	●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (B)	8-98132-077-0	01	1	1211-1302	●				●
198	03.685 BRACKET; CONV MTG (B)	8-98132-077-0	01	1	1211-1302						●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (B)	8-98132-077-0	01	1	1303-1303	●				●	●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (B)	8-98132-077-0	01	1	1303-1304						●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (A)	8-98132-078-0	01	1	1211-1302	●				●
198	03.685 BRACKET; CONV MTG (A)	8-98132-078-0	01	1	1211-1302						●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (A)	8-98132-078-0	01	1	1303-1303	●				●	●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (A)	8-98132-078-0	01	1	1303-1304						●
198	03.685 BRACKET; CONV MTG (C)	8-98196-697-1	01	1	1206-		●
198	03.685 BRACKET; CONV MTG (B)	8-98196-696-1	01	1	1205-1205					●
198	03.685 BRACKET; CONV MTG EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98196-696-1	01	1	1206-1302		●			●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98196-696-1	01	1	1303-1304	●	●			●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98196-696-1	01	1	1305-	●	●			●	●
198	03.685 BRACKET; CONV MTG (A)	8-98203-739-0	01	1	1205-1205					●
198	03.685 BRACKET; CONV MTG EURO4 SPECIFICATION<NT4> (A)	8-98203-739-0	01	1	1206-1302					●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98203-739-0	01	1	1303-1304	●				●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98203-739-0	01	1	1305-	●				●	●
211	03.685 NUT; CONV EURO3 SPECIFICATION<NT3> 03.613 M8 FLANGE	8-97161-607-0	02	1	1211-						●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	04	1	1206-1309	●		●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1205-1205					●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1206-1309		●			●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1310-	●	●	●		●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	04	1	1206-1309	●		●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1205-1205					●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1206-1210		●			●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1211-1309		●			●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1310-	●	●	●		●	●

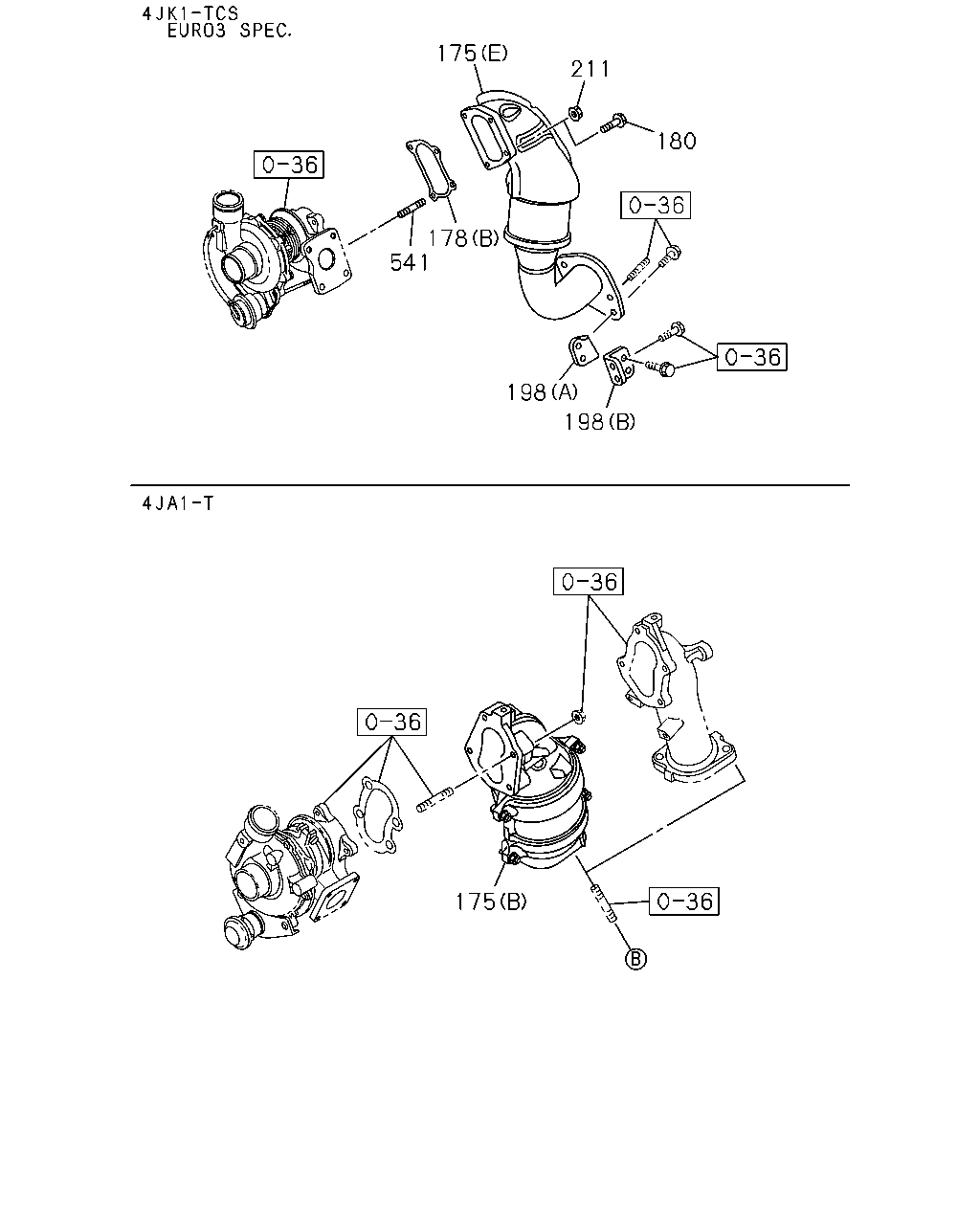

175 211 180 198 198 541 178 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (E)	8-98132-076-1	01	1	1211-1302	●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (E)	8-98228-307-0	01	1	1303-	●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98140-595-2	01	1	1211-1304						●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98228-310-0	01	1	1305-						●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98132-075-2	01	1	1211-1302					●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98228-311-0	01	1	1303-					●
175	03.685 CONVERTER; CATALYST EURO2 SPECIFICATION<NT2> (B)	8-98195-457-1	01	1	1206-				●
175	03.685 CONVERTER; CATALYST (C)	8-98177-633-4	01	1	1206-		●
175	03.685 CONVERTER; CATALYST (A)	8-98132-074-2	01	1	1205-1205					●
175	03.685 CONVERTER; CATALYST EURO4 SPECIFICATION<NT4> (A)	8-98132-074-2	01	1	1206-					●
178	03.611 GASKET; CONV TO MANIF (C)	8-98151-218-0	01	1	1206-		●
178	03.611 GASKET; CONV TO MANIF (B)	8-97312-284-1	01	1	1206-	●		●
178	03.611 GASKET; CONV TO MANIF (A)	8-98132-538-0	01	1	1205-1210					●
178	03.611 GASKET; CONV TO MANIF (A)	8-98132-538-0	01	1	1211-					●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	03	1	1206-		●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1205-1210					●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1211-1309					●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1310-	●		●		●	●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (B)	8-98132-077-0	01	1	1211-1302	●				●
198	03.685 BRACKET; CONV MTG (B)	8-98132-077-0	01	1	1211-1302						●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (B)	8-98132-077-0	01	1	1303-1303	●				●	●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (B)	8-98132-077-0	01	1	1303-1304						●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (A)	8-98132-078-0	01	1	1211-1302	●				●
198	03.685 BRACKET; CONV MTG (A)	8-98132-078-0	01	1	1211-1302						●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (A)	8-98132-078-0	01	1	1303-1303	●				●	●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (A)	8-98132-078-0	01	1	1303-1304						●
198	03.685 BRACKET; CONV MTG (C)	8-98196-697-1	01	1	1206-		●
198	03.685 BRACKET; CONV MTG (B)	8-98196-696-1	01	1	1205-1205					●
198	03.685 BRACKET; CONV MTG EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98196-696-1	01	1	1206-1302		●			●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98196-696-1	01	1	1303-1304	●	●			●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98196-696-1	01	1	1305-	●	●			●	●
198	03.685 BRACKET; CONV MTG (A)	8-98203-739-0	01	1	1205-1205					●
198	03.685 BRACKET; CONV MTG EURO4 SPECIFICATION<NT4> (A)	8-98203-739-0	01	1	1206-1302					●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98203-739-0	01	1	1303-1304	●				●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98203-739-0	01	1	1305-	●				●	●
211	03.685 NUT; CONV EURO3 SPECIFICATION<NT3> 03.613 M8 FLANGE	8-97161-607-0	02	1	1211-						●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	04	1	1206-1309	●		●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1205-1205					●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1206-1309		●			●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1310-	●	●	●		●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	04	1	1206-1309	●		●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1205-1205					●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1206-1210		●			●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1211-1309		●			●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1310-	●	●	●		●	●

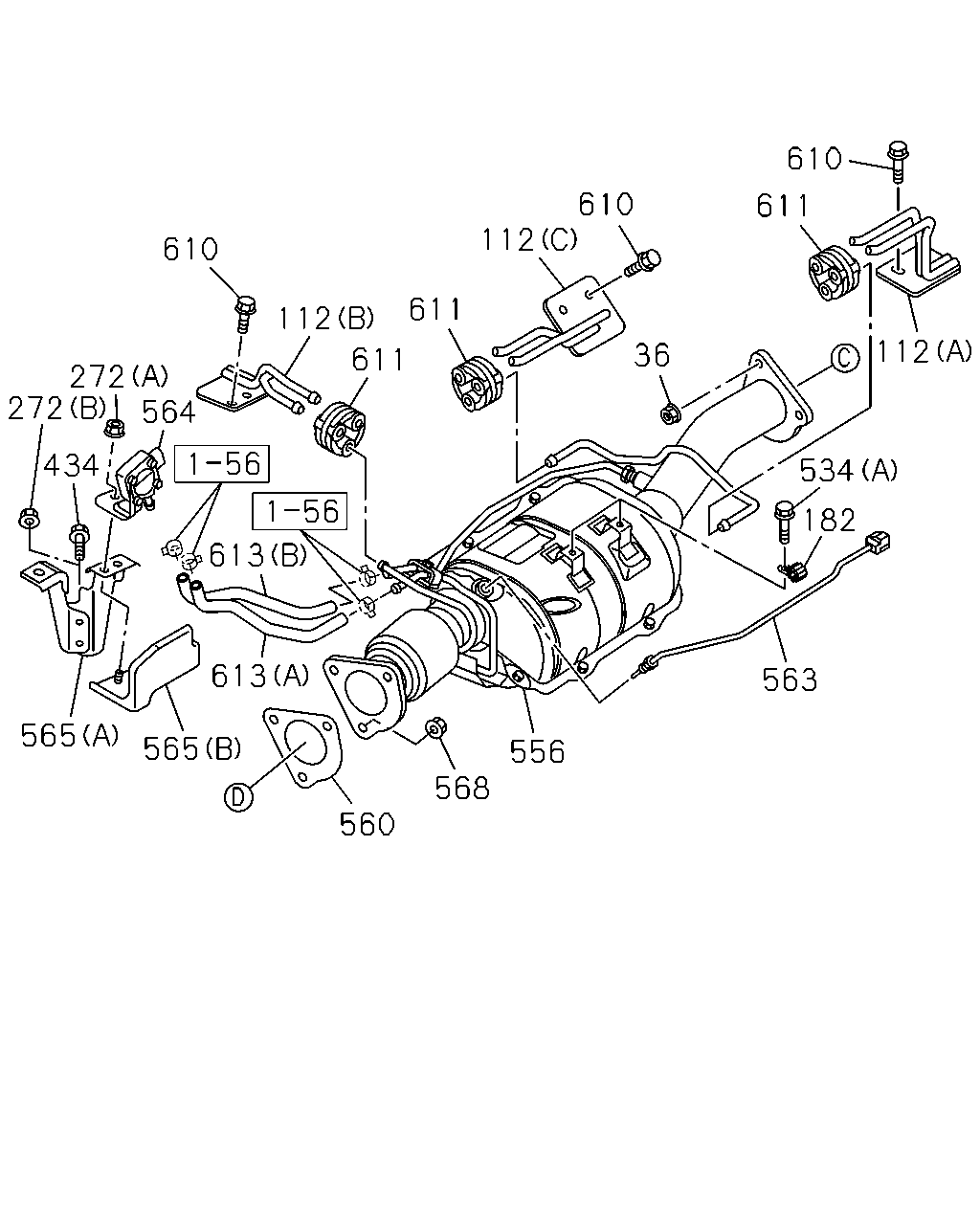

272 434 272 564 610 112 611 611 112 610 36 611 610 112 534 182 563 556 568 560 565 613 613 565

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	1206-1303		●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1304-	●		●	●	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1205-1205					●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1206-1210	●		●	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1211-1303	●		●	●	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	1304-		●
112	03.706 BRACKET; HANGER (C)	8-98196-456-2	01	1	1206-		●
112	03.706 BRACKET; HANGER 4X2(TFB***) (A)	8-98196-457-1	01	1	1206-		●
112	03.706 BRACKET; HANGER (B)	8-98196-455-1	01	1	1206-		●
112	03.706 BRACKET; HANGER 4X4(TFS***) (A)	8-98196-458-1	01	1	1206-		●
182	03.682 CLIP; HARNESS ID=7	8-98002-767-0	02	1	1206-		●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1206-		●
272	03.685 NUT; FLANGE 4X2(TFB***) EURO5 SPECIFICATION<NT5> EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1206-		●
434	03.613 BOLT; BRKT 4X2(TFB***) EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1206-		●
434	03.613 BOLT; BRKT 4X4(TFS***) EURO5 SPECIFICATION<NT5> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1206-		●
534	03.704 BOLT; CLIP 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1206-		●
534	03.704 BOLT; CLIP (B)	8-98182-197-0	01	1	1206-		●
556	03.701 DPD ASM	8-98177-632-4	01	1	1206-		●
560	03.611 GASKET; DPD	8-98151-231-0	01	1	1206-		●
563	01.150 SENSOR; TEMPERATURE,DPD	8-98206-094-0	01	1	1206-		●
564	01.150 SENSOR; PRESSURE,DPD 4X2(TFB***) EURO5 SPECIFICATION<NT5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98178-093-0	01	1	1206-1311		●
564	01.150 SENSOR; PRESSURE,DPD 4X2(TFB***) EURO5 SPECIFICATION<NT5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98260-259-0	01	1	1312-		●
564	01.150 SENSOR; PRESSURE,DPD 4X2(TFB***) EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC)	8-98178-090-0	01	1	1206-1311		●
564	01.150 SENSOR; PRESSURE,DPD 4X4(TFS***) EURO5 SPECIFICATION<NT5>	8-98178-090-0	01	1	1206-1311		●
564	01.150 SENSOR; PRESSURE,DPD 4X2(TFB***) EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC)	8-98260-258-0	01	1	1312-		●
564	01.150 SENSOR; PRESSURE,DPD 4X4(TFS***) EURO5 SPECIFICATION<NT5>	8-98260-258-0	01	1	1312-		●
565	03.706 BRACKET; SENSOR,PRESSURE 4X2(TFB***) EURO5 SPECIFICATION<NT5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98178-092-0	01	1	1206-		●
565	03.706 BRACKET; SENSOR,PRESSURE 4X2(TFB***) EURO5 SPECIFICATION<NT5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98178-094-0	01	1	1206-		●
565	03.706 BRACKET; SENSOR,PRESSURE 4X2(TFB***) EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC) (A)	8-98175-943-0	01	1	1206-		●
565	03.706 BRACKET; SENSOR,PRESSURE 4X4(TFS***) EURO5 SPECIFICATION<NT5> (A)	8-98175-943-0	01	1	1206-		●
565	03.706 BRACKET; SENSOR,PRESSURE 4X2(TFB***) EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC) (B)	8-98178-091-0	01	1	1206-		●
565	03.706 BRACKET; SENSOR,PRESSURE 4X4(TFS***) EURO5 SPECIFICATION<NT5> (B)	8-98178-091-0	01	1	1206-		●
568	03.704 NUT; DPD 03.342 M10 FLANGE	8-97309-942-0	03	1	1206-		●
610	03.704 BOLT; HANGER	8-98196-310-0	06	1	1206-		●
611	03.706 INSULATOR; HANGER	8-97289-169-0	03	1	1206-		●
613	03.603 HOSE; RUBBER (A)	8-98178-495-2	01	1	1206-		●
613	03.603 HOSE; RUBBER (B)	8-98178-496-2	01	1	1206-		●

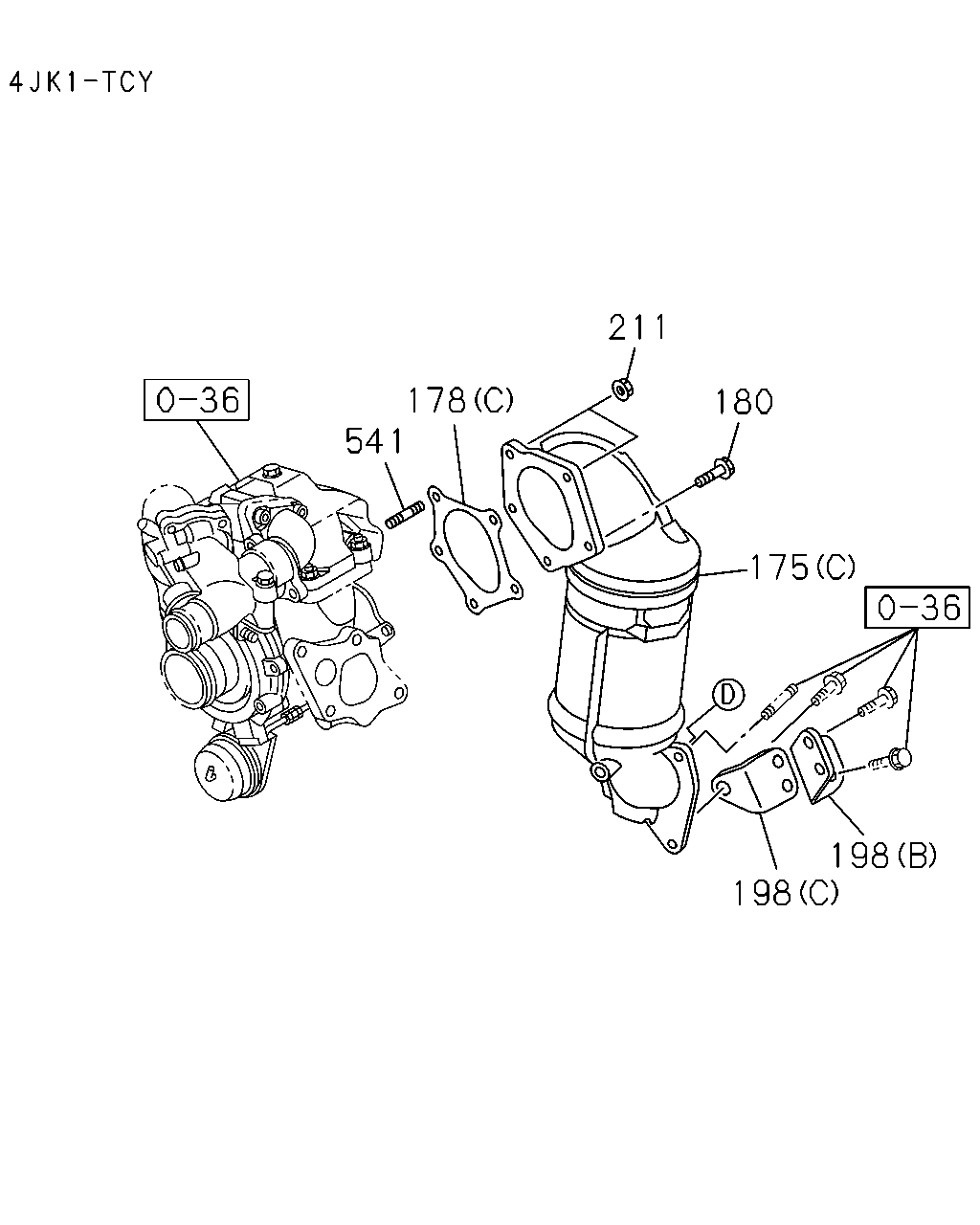

541 178 211 180 175 198 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (E)	8-98132-076-1	01	1	1211-1302	●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (E)	8-98228-307-0	01	1	1303-	●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98140-595-2	01	1	1211-1304						●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98228-310-0	01	1	1305-						●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98132-075-2	01	1	1211-1302					●
175	03.685 CONVERTER; CATALYST EURO3 SPECIFICATION<NT3> (D)	8-98228-311-0	01	1	1303-					●
175	03.685 CONVERTER; CATALYST EURO2 SPECIFICATION<NT2> (B)	8-98195-457-1	01	1	1206-				●
175	03.685 CONVERTER; CATALYST (C)	8-98177-633-4	01	1	1206-		●
175	03.685 CONVERTER; CATALYST (A)	8-98132-074-2	01	1	1205-1205					●
175	03.685 CONVERTER; CATALYST EURO4 SPECIFICATION<NT4> (A)	8-98132-074-2	01	1	1206-					●
178	03.611 GASKET; CONV TO MANIF (C)	8-98151-218-0	01	1	1206-		●
178	03.611 GASKET; CONV TO MANIF (B)	8-97312-284-1	01	1	1206-	●		●
178	03.611 GASKET; CONV TO MANIF (A)	8-98132-538-0	01	1	1205-1210					●
178	03.611 GASKET; CONV TO MANIF (A)	8-98132-538-0	01	1	1211-					●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	03	1	1206-		●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1205-1210					●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1211-1309					●	●
180	03.708 BOLT; CONV TO PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1310-	●		●		●	●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (B)	8-98132-077-0	01	1	1211-1302	●				●
198	03.685 BRACKET; CONV MTG (B)	8-98132-077-0	01	1	1211-1302						●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (B)	8-98132-077-0	01	1	1303-1303	●				●	●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (B)	8-98132-077-0	01	1	1303-1304						●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (A)	8-98132-078-0	01	1	1211-1302	●				●
198	03.685 BRACKET; CONV MTG (A)	8-98132-078-0	01	1	1211-1302						●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (A)	8-98132-078-0	01	1	1303-1303	●				●	●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3> (A)	8-98132-078-0	01	1	1303-1304						●
198	03.685 BRACKET; CONV MTG (C)	8-98196-697-1	01	1	1206-		●
198	03.685 BRACKET; CONV MTG (B)	8-98196-696-1	01	1	1205-1205					●
198	03.685 BRACKET; CONV MTG EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98196-696-1	01	1	1206-1302		●			●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98196-696-1	01	1	1303-1304	●	●			●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98196-696-1	01	1	1305-	●	●			●	●
198	03.685 BRACKET; CONV MTG (A)	8-98203-739-0	01	1	1205-1205					●
198	03.685 BRACKET; CONV MTG EURO4 SPECIFICATION<NT4> (A)	8-98203-739-0	01	1	1206-1302					●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98203-739-0	01	1	1303-1304	●				●
198	03.685 BRACKET; CONV MTG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A)	8-98203-739-0	01	1	1305-	●				●	●
211	03.685 NUT; CONV EURO3 SPECIFICATION<NT3> 03.613 M8 FLANGE	8-97161-607-0	02	1	1211-						●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	04	1	1206-1309	●		●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1205-1205					●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1206-1309		●			●
211	03.685 NUT; CONV 03.342 M8 FLANGE	8-97379-384-0	02	1	1310-	●	●	●		●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	04	1	1206-1309	●		●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1205-1205					●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1206-1210		●			●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1211-1309		●			●	●
541	03.708 STUD; CONV TO PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1310-	●	●	●		●	●

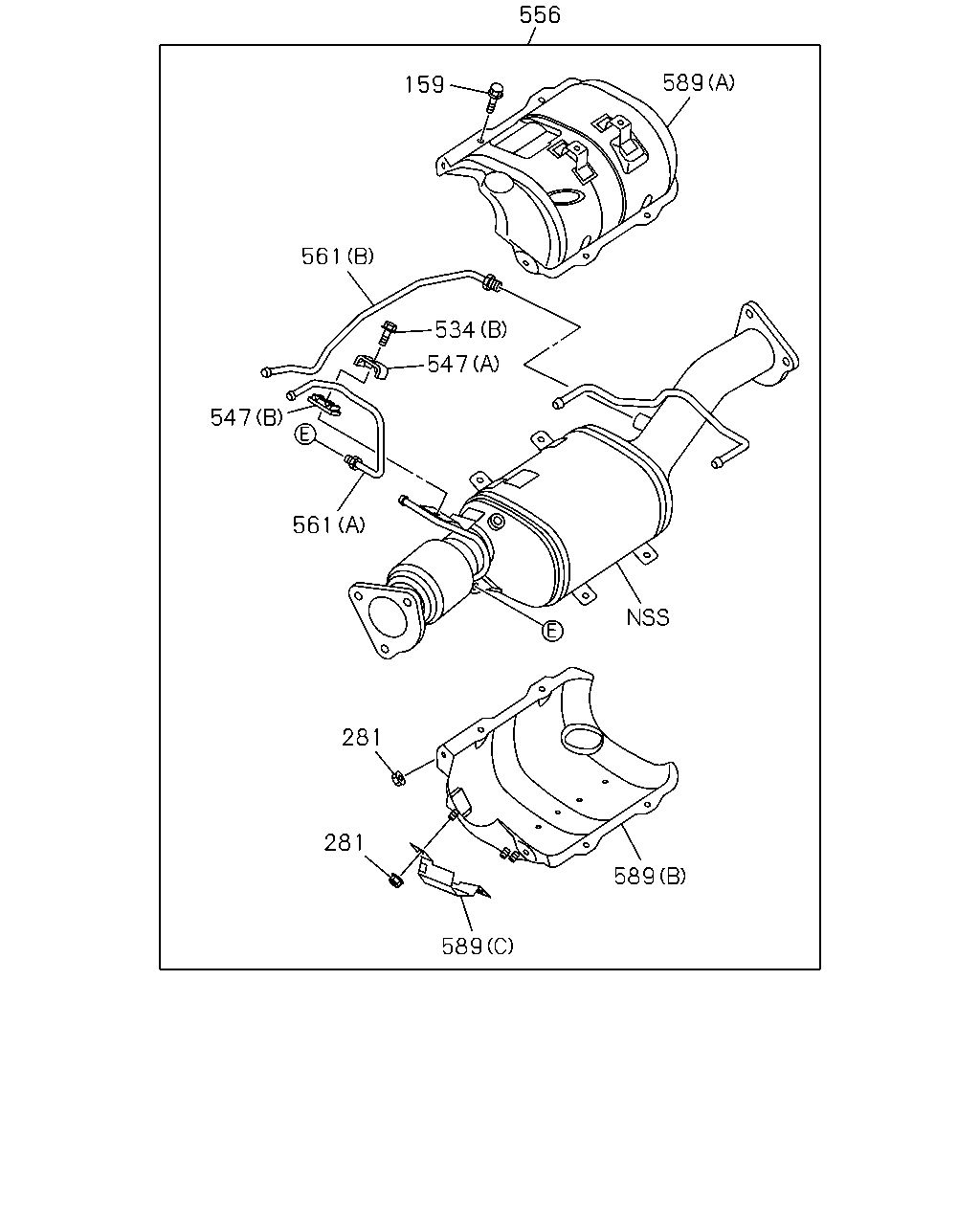

556 589 159 561 534 547 547 561 281 281 589 589

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
159	03.690 BOLT; HEAT PROTECTOR	8-98182-198-0	06	1	1206-	●
281	03.685 NUT; HEAT PROTECTOR M6 FLANGE	8-98194-567-0	09	1	1206-	●
534	03.704 BOLT; CLIP 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1206-	●
534	03.704 BOLT; CLIP (B)	8-98182-197-0	01	1	1206-	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	01	1	1206-	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	01	1	1206-	●
556	03.701 DPD ASM	8-98177-632-4	01	1	1206-	●
561	03.609 PIPE; DPD (A)	8-98181-832-0	01	1	1206-	●
561	03.609 PIPE; DPD (B)	8-98181-833-0	01	1	1206-	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98181-835-0	01	1	1206-	●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98181-836-0	01	1	1206-	●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-98194-566-0	01	1	1206-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
