Isuzu WW
▶
PICKUP
▶
TFR
▶
51412 - TFR/TFS-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶
1-30 — AIR CLEANER
(#81794) — 147 parça
Tümü
A - 4JK1-TCX ENG
B - 4JJ1-TCS ENG
C - 4JK1-TCS ENG
D - 4JA1-T ENG
E - 4JK1-TCY ENG
F - 4JJ1-TCX ENG
◀

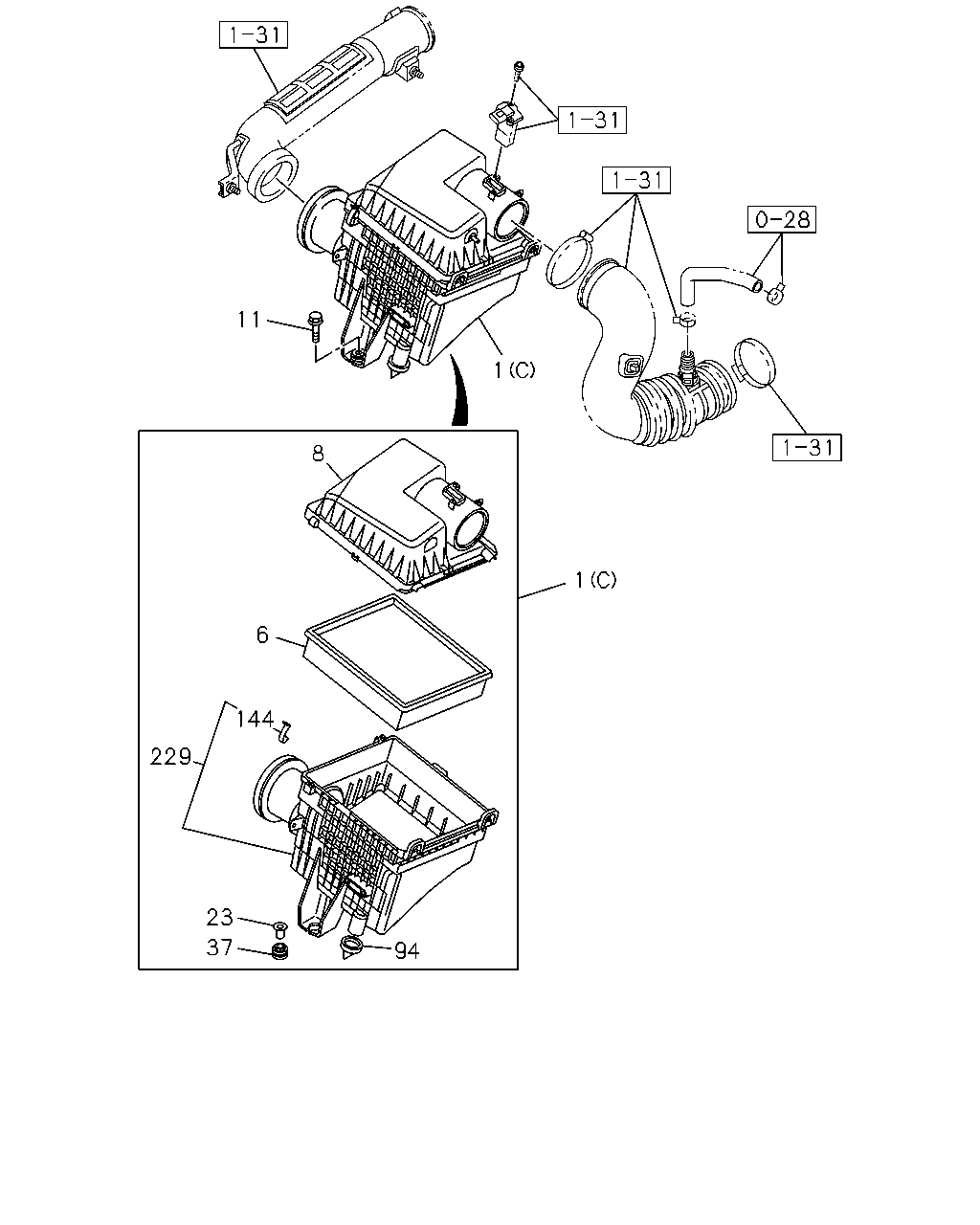

[130A] 4JJ1,4JA1,4JK1-TCS,4JK1-TCX(NO.2) (49 parça)

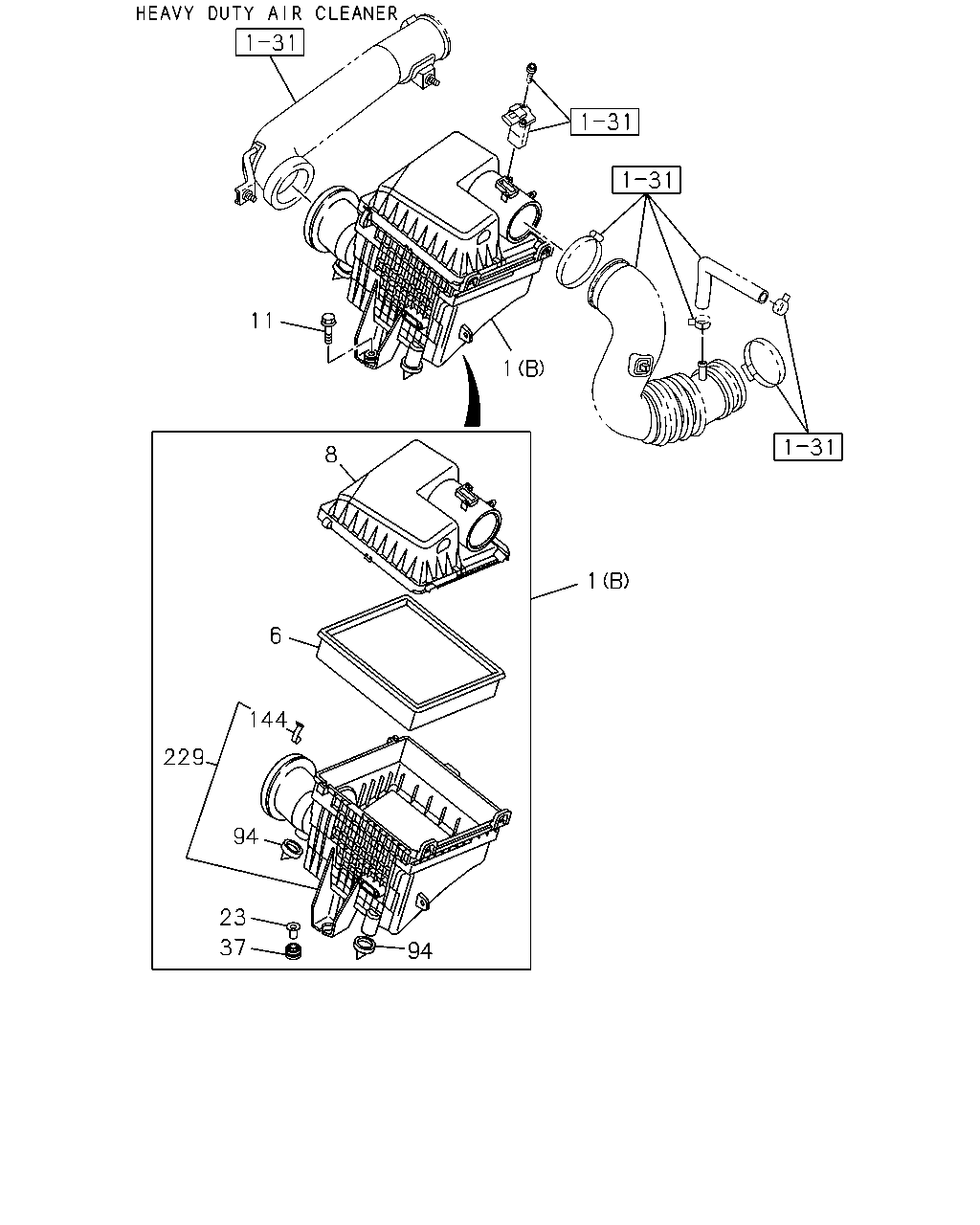

[130A] 4JJ1,4JA1,4JK1-TCS,4JK1-TCX(NO.1) (49 parça)

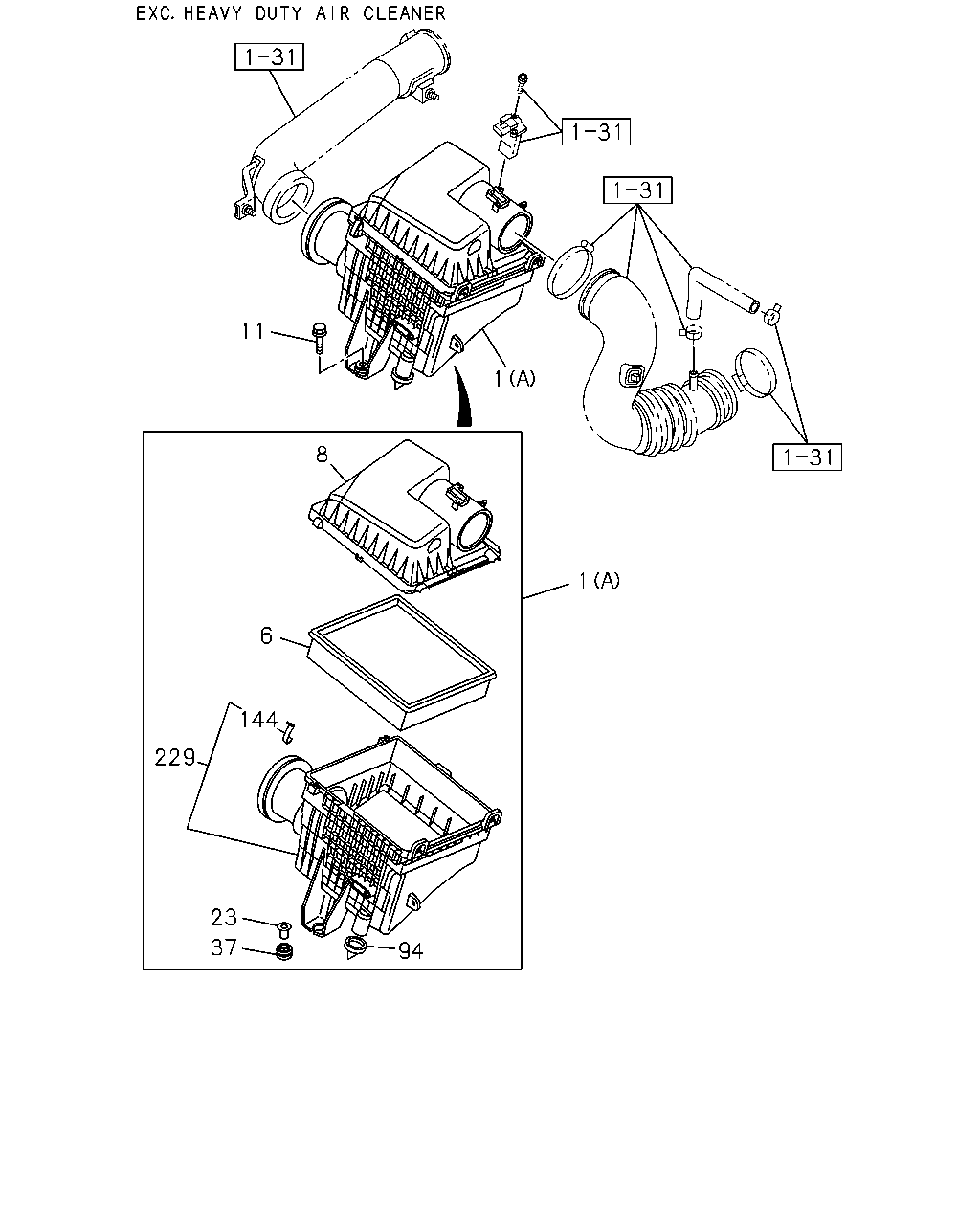

[130A] 4JK1-TCY (49 parça)
▶
11
1
1
8
6
144
229
94
23
37
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98114-220-4
01
1
1211-
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98114-219-5
01
1
1211-
●
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98103-917-4
01
1
1206-
●
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98103-916-5
01
1
1206-
●
●
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98140-259-3
01
1
1206-
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98140-257-2
01
1
1206-
●
1
03.402 CLEANER ASM; AIR
(C)
8-98179-138-0
01
1
1206-
●
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98104-506-4
01
1
1205-
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98104-505-5
01
1
1205-
●
6
03.410 FILTER; ACL
8-98140-266-0
01
1
1206-1210
●
●
●
6
03.410 FILTER; ACL
8-98140-266-0
01
1
1211-
●
●
●
●
6
03.410 FILTER; ACL
8-98140-265-0
01
1
1205-1205
●
6
03.410 FILTER; ACL
8-98140-265-0
01
1
1206-
●
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-388-0
01
1
1211-
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98141-385-0
01
1
1211-
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-261-0
01
1
1205-
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-389-0
01
1
1206-
●
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-264-0
01
1
1206-
●
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-390-0
01
1
1206-
●
8
03.410 COVER ASM; ACL
8-98189-413-0
01
1
1206-
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-387-0
01
1
1205-
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98141-386-0
01
1
1206-
●
11
03.403 BOLT; ACL
01.060 M8X35 FLANGE
0-28650-835-0
03
1
1205-1205
●
11
03.403 BOLT; ACL
01.060 M8X35 FLANGE
0-28650-835-0
03
1
1206-1210
●
●
●
●
●
11
03.403 BOLT; ACL
01.060 M8X35 FLANGE
0-28650-835-0
03
1
1211-
●
●
●
●
●
●
23
03.405 COLLAR; ACL STAY
8-98140-270-0
03
1
1205-1205
●
23
03.405 COLLAR; ACL STAY
8-98140-270-0
03
1
1206-1210
●
●
●
●
●
23
03.405 COLLAR; ACL STAY
8-98140-270-0
03
1
1211-
●
●
●
●
●
●
37
03.406 RUBBER; MTG,ACL
8-98140-269-0
03
1
1205-1205
●
37
03.406 RUBBER; MTG,ACL
8-98140-269-0
03
1
1206-1210
●
●
●
●
●
37
03.406 RUBBER; MTG,ACL
8-98140-269-0
03
1
1211-
●
●
●
●
●
●
94
03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
02
1
1205-1205
●
94
03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
02
1
1206-1210
●
●
●
●
94
03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
02
1
1211-
●
●
●
●
●
94
03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
01
1
1205-1205
●
94
03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
01
1
1206-1210
●
●
●
●
94
03.415 VALVE; VACUATOR
8-94447-157-0
01
1
1206-1210
●
94
03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
01
1
1211-
●
●
●
●
●
94
03.415 VALVE; VACUATOR
8-94447-157-0
01
1
1211-
●
144
03.403 CLIP; ACL
8-97324-624-0
02
1
1205-1205
●
144
03.403 CLIP; ACL
8-97324-624-0
02
1
1206-1210
●
●
●
●
●
144
03.403 CLIP; ACL
8-97324-624-0
02
1
1211-
●
●
●
●
●
●
229
03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-391-0
01
1
1206-1210
●
●
●
229
03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-391-0
01
1
1211-
●
●
●
●
229
03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-267-0
01
1
1206-1210
●
●
●
229
03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-267-0
01
1
1211-
●
●
●
●
229
03.406 BODY ASM; ACL
8-98189-414-0
01
1
1206-
●
229
03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-392-0
01
1
1205-
●
229
03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-268-0
01
1
1205-
●
11
1
8
6
1
144
229
23
37
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98114-220-4
01
1
1211-
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98114-219-5
01
1
1211-
●
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98103-917-4
01
1
1206-
●
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98103-916-5
01
1
1206-
●
●
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98140-259-3
01
1
1206-
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98140-257-2
01
1
1206-
●
1
03.402 CLEANER ASM; AIR
(C)
8-98179-138-0
01
1
1206-
●
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98104-506-4
01
1
1205-
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98104-505-5
01
1
1205-
●
6
03.410 FILTER; ACL
8-98140-266-0
01
1
1206-1210
●
●
●
6
03.410 FILTER; ACL
8-98140-266-0
01
1
1211-
●
●
●
●
6
03.410 FILTER; ACL
8-98140-265-0
01
1
1205-1205
●
6
03.410 FILTER; ACL
8-98140-265-0
01
1
1206-
●
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-388-0
01
1
1211-
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98141-385-0
01
1
1211-
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-261-0
01
1
1205-
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-389-0
01
1
1206-
●
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-264-0
01
1
1206-
●
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-390-0
01
1
1206-
●
8
03.410 COVER ASM; ACL
8-98189-413-0
01
1
1206-
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-387-0
01
1
1205-
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98141-386-0
01
1
1206-
●
11
03.403 BOLT; ACL
01.060 M8X35 FLANGE
0-28650-835-0
03
1
1205-1205
●
11
03.403 BOLT; ACL
01.060 M8X35 FLANGE
0-28650-835-0
03
1
1206-1210
●
●
●
●
●
11
03.403 BOLT; ACL
01.060 M8X35 FLANGE
0-28650-835-0
03
1
1211-
●
●
●
●
●
●
23
03.405 COLLAR; ACL STAY
8-98140-270-0
03
1
1205-1205
●
23
03.405 COLLAR; ACL STAY
8-98140-270-0
03
1
1206-1210
●
●
●
●
●
23
03.405 COLLAR; ACL STAY
8-98140-270-0
03
1
1211-
●
●
●
●
●
●
37
03.406 RUBBER; MTG,ACL
8-98140-269-0
03
1
1205-1205
●
37
03.406 RUBBER; MTG,ACL
8-98140-269-0
03
1
1206-1210
●
●
●
●
●
37
03.406 RUBBER; MTG,ACL
8-98140-269-0
03
1
1211-
●
●
●
●
●
●
94
03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
02
1
1205-1205
●
94
03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
02
1
1206-1210
●
●
●
●
94
03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
02
1
1211-
●
●
●
●
●
94
03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
01
1
1205-1205
●
94
03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
01
1
1206-1210
●
●
●
●
94
03.415 VALVE; VACUATOR
8-94447-157-0
01
1
1206-1210
●
94
03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
01
1
1211-
●
●
●
●
●
94
03.415 VALVE; VACUATOR
8-94447-157-0
01
1
1211-
●
144
03.403 CLIP; ACL
8-97324-624-0
02
1
1205-1205
●
144
03.403 CLIP; ACL
8-97324-624-0
02
1
1206-1210
●
●
●
●
●
144
03.403 CLIP; ACL
8-97324-624-0
02
1
1211-
●
●
●
●
●
●
229
03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-391-0
01
1
1206-1210
●
●
●
229
03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-391-0
01
1
1211-
●
●
●
●
229
03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-267-0
01
1
1206-1210
●
●
●
229
03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-267-0
01
1
1211-
●
●
●
●
229
03.406 BODY ASM; ACL
8-98189-414-0
01
1
1206-
●
229
03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-392-0
01
1
1205-
●
229
03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-268-0
01
1
1205-
●
11
1
1
8
6
144
229
23
37
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98114-220-4
01
1
1211-
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98114-219-5
01
1
1211-
●
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98103-917-4
01
1
1206-
●
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98103-916-5
01
1
1206-
●
●
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98140-259-3
01
1
1206-
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98140-257-2
01
1
1206-
●
1
03.402 CLEANER ASM; AIR
(C)
8-98179-138-0
01
1
1206-
●
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98104-506-4
01
1
1205-
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98104-505-5
01
1
1205-
●
6
03.410 FILTER; ACL
8-98140-266-0
01
1
1206-1210
●
●
●
6
03.410 FILTER; ACL
8-98140-266-0
01
1
1211-
●
●
●
●
6
03.410 FILTER; ACL
8-98140-265-0
01
1
1205-1205
●
6
03.410 FILTER; ACL
8-98140-265-0
01
1
1206-
●
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-388-0
01
1
1211-
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98141-385-0
01
1
1211-
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-261-0
01
1
1205-
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-389-0
01
1
1206-
●
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-264-0
01
1
1206-
●
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-390-0
01
1
1206-
●
8
03.410 COVER ASM; ACL
8-98189-413-0
01
1
1206-
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-387-0
01
1
1205-
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98141-386-0
01
1
1206-
●
11
03.403 BOLT; ACL
01.060 M8X35 FLANGE
0-28650-835-0
03
1
1205-1205
●
11
03.403 BOLT; ACL
01.060 M8X35 FLANGE
0-28650-835-0
03
1
1206-1210
●
●
●
●
●
11
03.403 BOLT; ACL
01.060 M8X35 FLANGE
0-28650-835-0
03
1
1211-
●
●
●
●
●
●
23
03.405 COLLAR; ACL STAY
8-98140-270-0
03
1
1205-1205
●
23
03.405 COLLAR; ACL STAY
8-98140-270-0
03
1
1206-1210
●
●
●
●
●
23
03.405 COLLAR; ACL STAY
8-98140-270-0
03
1
1211-
●
●
●
●
●
●
37
03.406 RUBBER; MTG,ACL
8-98140-269-0
03
1
1205-1205
●
37
03.406 RUBBER; MTG,ACL
8-98140-269-0
03
1
1206-1210
●
●
●
●
●
37
03.406 RUBBER; MTG,ACL
8-98140-269-0
03
1
1211-
●
●
●
●
●
●
94
03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
02
1
1205-1205
●
94
03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
02
1
1206-1210
●
●
●
●
94
03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
02
1
1211-
●
●
●
●
●
94
03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
01
1
1205-1205
●
94
03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
01
1
1206-1210
●
●
●
●
94
03.415 VALVE; VACUATOR
8-94447-157-0
01
1
1206-1210
●
94
03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
01
1
1211-
●
●
●
●
●
94
03.415 VALVE; VACUATOR
8-94447-157-0
01
1
1211-
●
144
03.403 CLIP; ACL
8-97324-624-0
02
1
1205-1205
●
144
03.403 CLIP; ACL
8-97324-624-0
02
1
1206-1210
●
●
●
●
●
144
03.403 CLIP; ACL
8-97324-624-0
02
1
1211-
●
●
●
●
●
●
229
03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-391-0
01
1
1206-1210
●
●
●
229
03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-391-0
01
1
1211-
●
●
●
●
229
03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-267-0
01
1
1206-1210
●
●
●
229
03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-267-0
01
1
1211-
●
●
●
●
229
03.406 BODY ASM; ACL
8-98189-414-0
01
1
1206-
●
229
03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-392-0
01
1
1205-
●
229
03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-268-0
01
1
1205-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
