1-11 — RADIATOR HOSE AND SUB TANK (#81793) — 56 parça

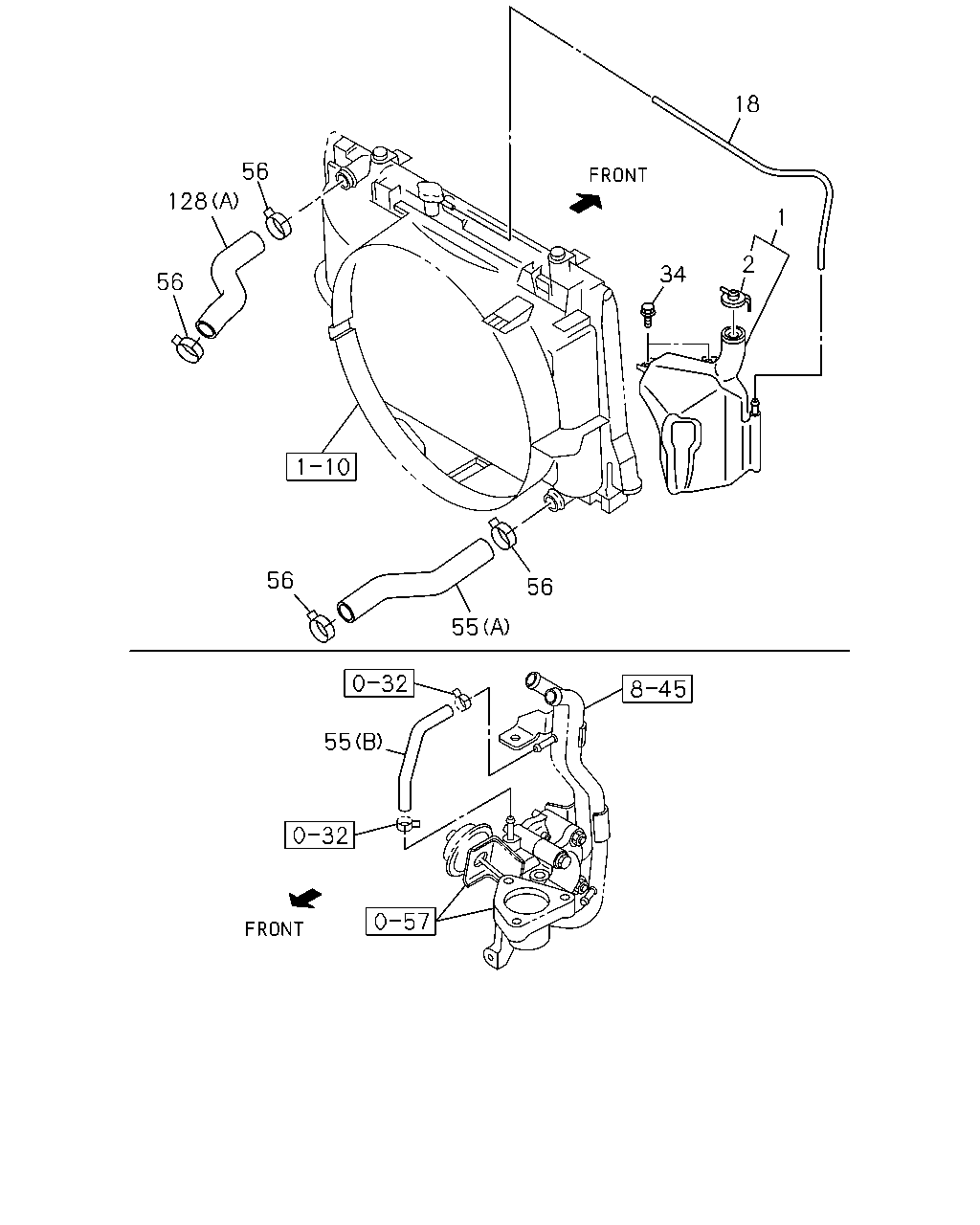

56 128 56 56 55 56 34 2 1 18 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-98095-701-2	01	1	1205-1205	●
1	01.219 TANK; SURGE,RAD	8-98095-701-2	01	1	1206-1210	●	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-98095-701-2	01	1	1211-	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-98189-898-0	01	1	1205-1205	●
2	01.203 CAP; SURGE TANK	8-98189-898-0	01	1	1206-1210	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-98189-898-0	01	1	1211-	●	●	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK ID=7 OD=12 L=580	8-98102-344-2	01	1	1205-1205	●
18	01.240 HOSE; RAD TO SURGE TANK ID=7 OD=12 L=580	8-98102-344-2	01	1	1206-1210	●	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK ID=7 OD=12 L=580	8-98102-344-2	01	1	1211-	●	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 09.744 M6X20 W/WASHER	8-98056-282-0	02	1	1205-1205	●
34	01.203 BOLT; RESERVE TANK 09.744 M6X20 W/WASHER	8-98056-282-0	02	1	1206-1210	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 09.744 M6X20 W/WASHER	8-98056-282-0	02	1	1211-	●	●	●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET (A)	8-98093-325-1	01	1	1206-		●
55	01.173 HOSE; WATER,RAD OUTLET EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A)	8-98093-325-1	01	1	1206-			●
55	01.173 HOSE; WATER,RAD OUTLET (C)	8-98093-327-1	01	1	1206-				●
55	01.173 HOSE; WATER,RAD OUTLET (B)	8-98179-012-1	01	1	1206-					●
55	01.173 HOSE; WATER,RAD OUTLET (A)	8-98093-324-2	01	1	1205-1205	●
55	01.173 HOSE; WATER,RAD OUTLET AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A)	8-98093-324-2	01	1	1206-1210	●		●		●
55	01.173 HOSE; WATER,RAD OUTLET AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A)	8-98093-324-2	01	1	1211-	●		●		●
55	01.173 HOSE; WATER,RAD OUTLET (A)	8-98093-324-2	01	1	1211-						●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	04	1	1205-1205	●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	04	1	1206-1403	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	1404-	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	1404-	●	●	●	●		●
128	01.159 HOSE; WATER,RAD INL (B)	8-98093-326-0	01	1	1206-				●
128	01.159 HOSE; WATER,RAD INL (A)	8-98090-629-2	01	1	1205-1205	●
128	01.159 HOSE; WATER,RAD INL (A)	8-98090-629-2	01	1	1206-1210	●	●	●		●
128	01.159 HOSE; WATER,RAD INL (A)	8-98090-629-2	01	1	1211-	●	●	●		●	●

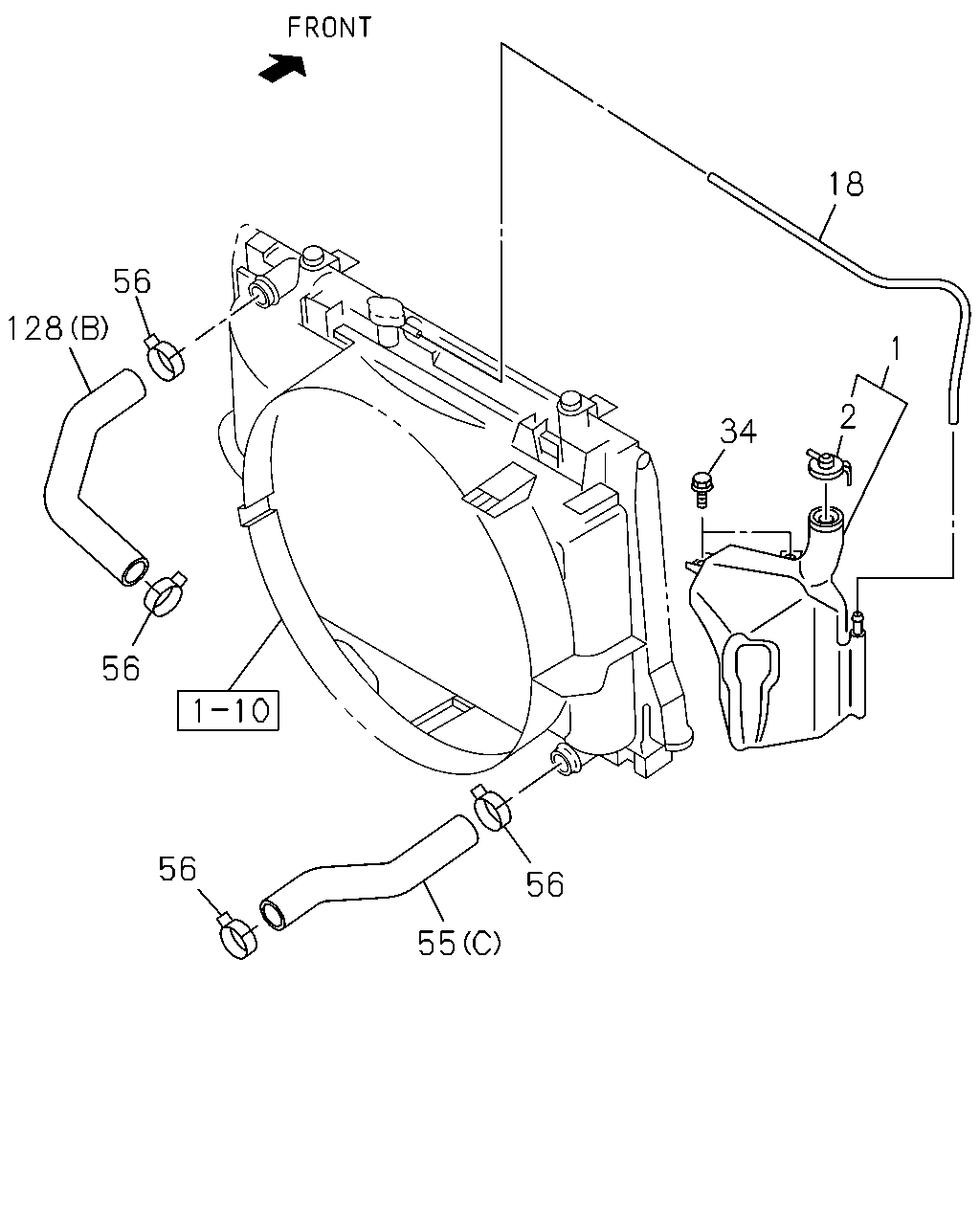

18 1 2 34 56 55 56 56 128 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-98095-701-2	01	1	1205-1205	●
1	01.219 TANK; SURGE,RAD	8-98095-701-2	01	1	1206-1210	●	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-98095-701-2	01	1	1211-	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-98189-898-0	01	1	1205-1205	●
2	01.203 CAP; SURGE TANK	8-98189-898-0	01	1	1206-1210	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-98189-898-0	01	1	1211-	●	●	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK ID=7 OD=12 L=580	8-98102-344-2	01	1	1205-1205	●
18	01.240 HOSE; RAD TO SURGE TANK ID=7 OD=12 L=580	8-98102-344-2	01	1	1206-1210	●	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK ID=7 OD=12 L=580	8-98102-344-2	01	1	1211-	●	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 09.744 M6X20 W/WASHER	8-98056-282-0	02	1	1205-1205	●
34	01.203 BOLT; RESERVE TANK 09.744 M6X20 W/WASHER	8-98056-282-0	02	1	1206-1210	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 09.744 M6X20 W/WASHER	8-98056-282-0	02	1	1211-	●	●	●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET (A)	8-98093-325-1	01	1	1206-		●
55	01.173 HOSE; WATER,RAD OUTLET EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A)	8-98093-325-1	01	1	1206-			●
55	01.173 HOSE; WATER,RAD OUTLET (C)	8-98093-327-1	01	1	1206-				●
55	01.173 HOSE; WATER,RAD OUTLET (B)	8-98179-012-1	01	1	1206-					●
55	01.173 HOSE; WATER,RAD OUTLET (A)	8-98093-324-2	01	1	1205-1205	●
55	01.173 HOSE; WATER,RAD OUTLET AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A)	8-98093-324-2	01	1	1206-1210	●		●		●
55	01.173 HOSE; WATER,RAD OUTLET AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A)	8-98093-324-2	01	1	1211-	●		●		●
55	01.173 HOSE; WATER,RAD OUTLET (A)	8-98093-324-2	01	1	1211-						●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	04	1	1205-1205	●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	04	1	1206-1403	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	1404-	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD ID=40.5	8-97313-472-0	02	1	1404-	●	●	●	●		●
128	01.159 HOSE; WATER,RAD INL (B)	8-98093-326-0	01	1	1206-				●
128	01.159 HOSE; WATER,RAD INL (A)	8-98090-629-2	01	1	1205-1205	●
128	01.159 HOSE; WATER,RAD INL (A)	8-98090-629-2	01	1	1206-1210	●	●	●		●
128	01.159 HOSE; WATER,RAD INL (A)	8-98090-629-2	01	1	1211-	●	●	●		●	●
