◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#81792) — 62 parça

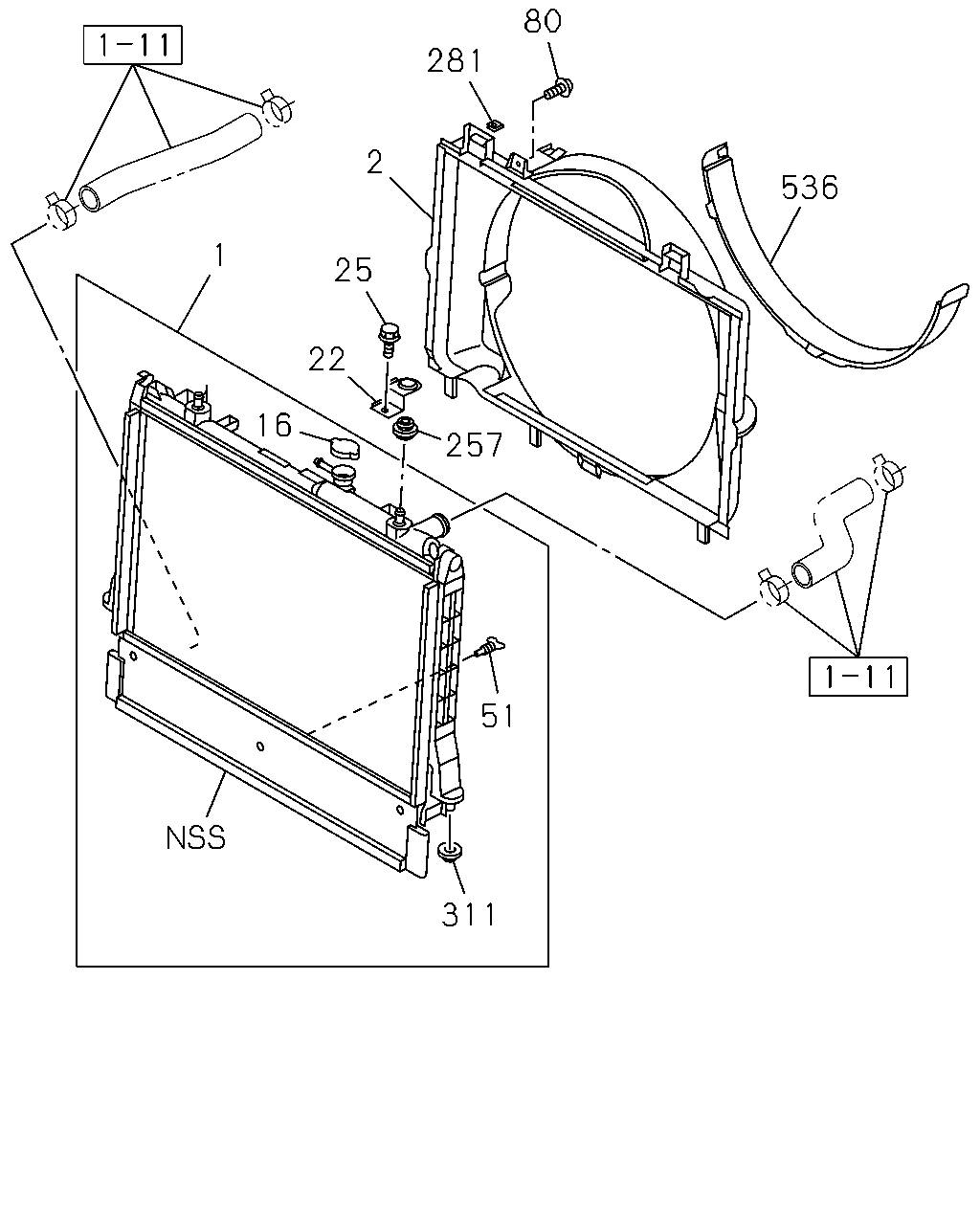

çizim 85548
311 51 257 22 25 2 281 80 536 16 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98206-452-1 01 1 1211- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98206-424-1 01 1 1211- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-98137-277-5 01 1 1206- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98137-277-5 01 1 1206- ●
1 01.219 RADIATOR ASM 8-98137-278-3 01 1 1206- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98194-394-2 01 1 1206- ●
1 01.219 RADIATOR ASM
M/T AISIN 6 SPEED(RNU) 		8-98194-394-2 01 1 1206- ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) 		8-98137-276-4 01 1 1206-1403 ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98137-276-4 01 1 1206-1403 ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98137-276-5 01 1 1404- ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98194-393-1 01 1 1206-1403 ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) 		8-98194-393-1 01 1 1206-1403 ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) 		8-98194-393-2 01 1 1404- ●
1 01.219 RADIATOR ASM
M/T MUX 5 SPEED 5S(MZJ) 		8-98137-273-3 01 1 1205-1210 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) 		8-98137-273-3 01 1 1211-1403 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98137-273-3 01 1 1211-1403 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) 		8-98137-273-4 01 1 1404- ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) 		8-98137-272-3 01 1 1205-1210 ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) 		8-98137-272-3 01 1 1211-1403 ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98137-272-3 01 1 1211-1403 ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) 		8-98137-272-4 01 1 1404- ●
2 01.277 GUIDE; FAN 8-98189-874-0 01 1 1205-1205 ●
2 01.277 GUIDE; FAN 8-98189-874-0 01 1 1206-1210 ● ●
2 01.277 GUIDE; FAN
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98189-874-0 01 1 1206-1210 ●
2 01.277 GUIDE; FAN 8-98189-874-0 01 1 1211- ● ● ●
2 01.277 GUIDE; FAN
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98189-874-0 01 1 1211- ●
2 01.277 GUIDE; FAN 8-98189-876-0 01 1 1206- ●
2 01.277 GUIDE; FAN
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98189-876-0 01 1 1206- ●
2 01.277 GUIDE; FAN 8-98189-878-0 01 1 1206- ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 1205-1205 ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 1206-1210 ● ● ● ● ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 1211- ● ● ● ● ● ●
22 01.270 BRACKET; RAD MTG 8-98102-383-2 02 1 1205-1205 ●
22 01.270 BRACKET; RAD MTG 8-98102-383-2 02 1 1206- ● ● ● ● ●
25 01.271 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1205-1205 ●
25 01.271 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1206- ● ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1205-1205 ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1206-1210 ● ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1211- ● ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE 8-98189-890-0 01 1 1205-1205 ●
80 01.277 BOLT; FAN GUIDE 8-98189-890-0 01 1 1206-1210 ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE 8-98189-890-0 01 1 1211- ● ● ● ● ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 02 1 1205-1205 ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 02 1 1206- ● ● ● ● ●
281 01.277 NUT; FAN GUIDE 8-98189-891-0 02 1 1205-1205 ●
281 01.277 NUT; FAN GUIDE 8-98189-891-0 02 1 1206-1210 ● ● ● ● ●
281 01.277 NUT; FAN GUIDE 8-98189-891-0 02 1 1211- ● ● ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 1205-1205 ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 1206-1210 ● ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 1211- ● ● ● ● ● ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 1205-1205 ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 1206-1210 ● ● ● ● ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 1211- ● ● ● ● ● ●

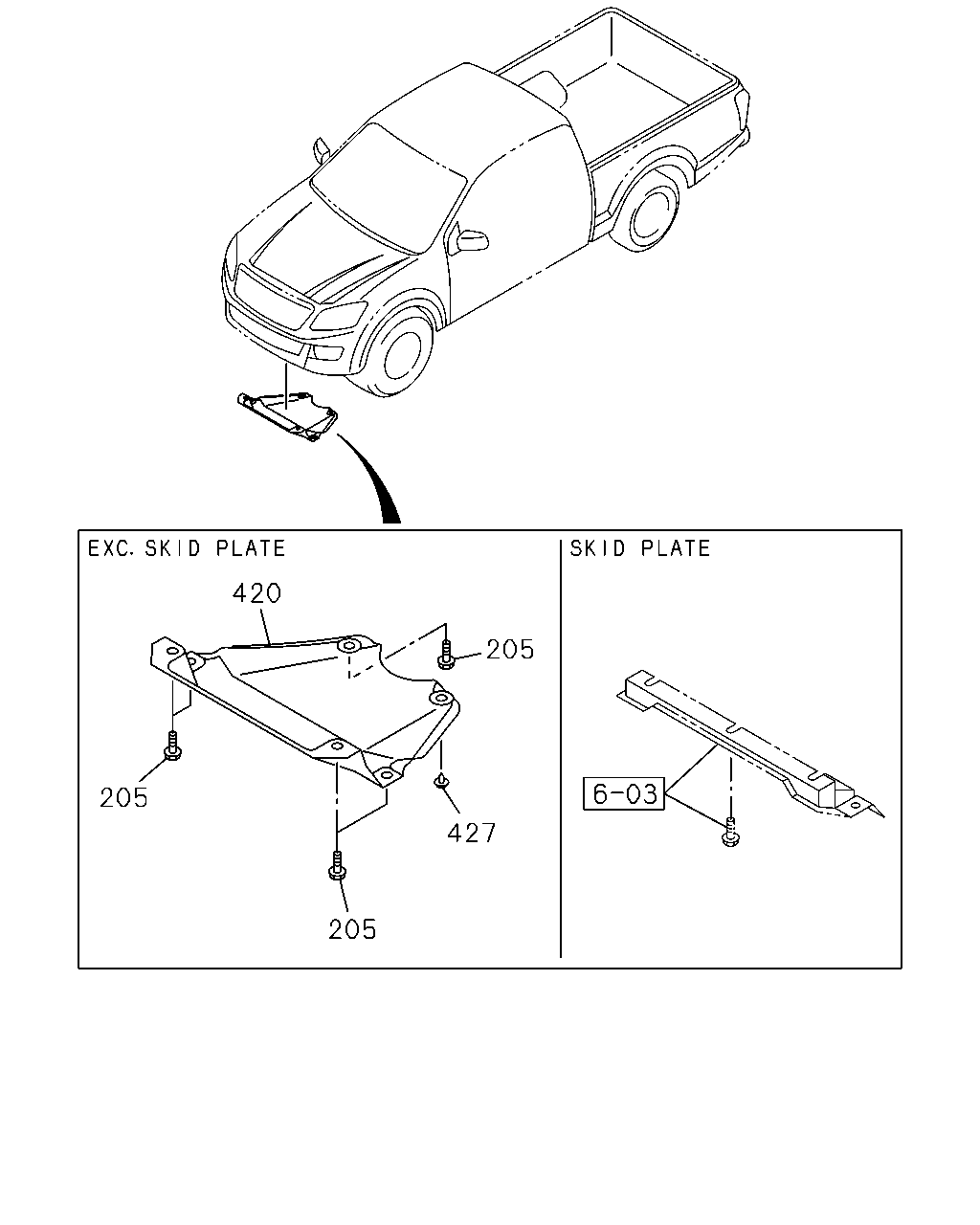

çizim 194352
420 205 205 427 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
205 01.267 BOLT; AIR GUIDE
4X2(TFB***) EXC. SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 05 1 1205-1205 ●
205 01.267 BOLT; AIR GUIDE
4X2(TFB***) EXC. SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 05 1 1206-1210 ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4X2(TFB***) EXC. SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 05 1 1211- ● ● ● ● ●
420 01.267 GUIDE; AIR,RAD
4X2(TFB***) EXC. SKID PLATE<7WE> 01.266 		8-98176-508-1 01 1 1205-1205 ●
420 01.267 GUIDE; AIR,RAD
4X2(TFB***) EXC. SKID PLATE<7WE> 01.266 		8-98176-508-1 01 1 1206-1210 ● ● ● ●
420 01.267 GUIDE; AIR,RAD
4X2(TFB***) EXC. SKID PLATE<7WE> 01.266 		8-98176-508-1 01 1 1211- ● ● ● ● ●
427 01.240 CLIP; FAN GUIDE
4X2(TFB***) EXC. SKID PLATE<7WE> 01.269 		8-98178-267-0 01 1 1205-1205 ●
427 01.240 CLIP; FAN GUIDE
4X2(TFB***) EXC. SKID PLATE<7WE> 01.269 		8-98178-267-0 01 1 1206-1210 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
4X2(TFB***) EXC. SKID PLATE<7WE> 01.269 		8-98178-267-0 01 1 1211- ● ● ● ● ●
