8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#81784) — 90 parça

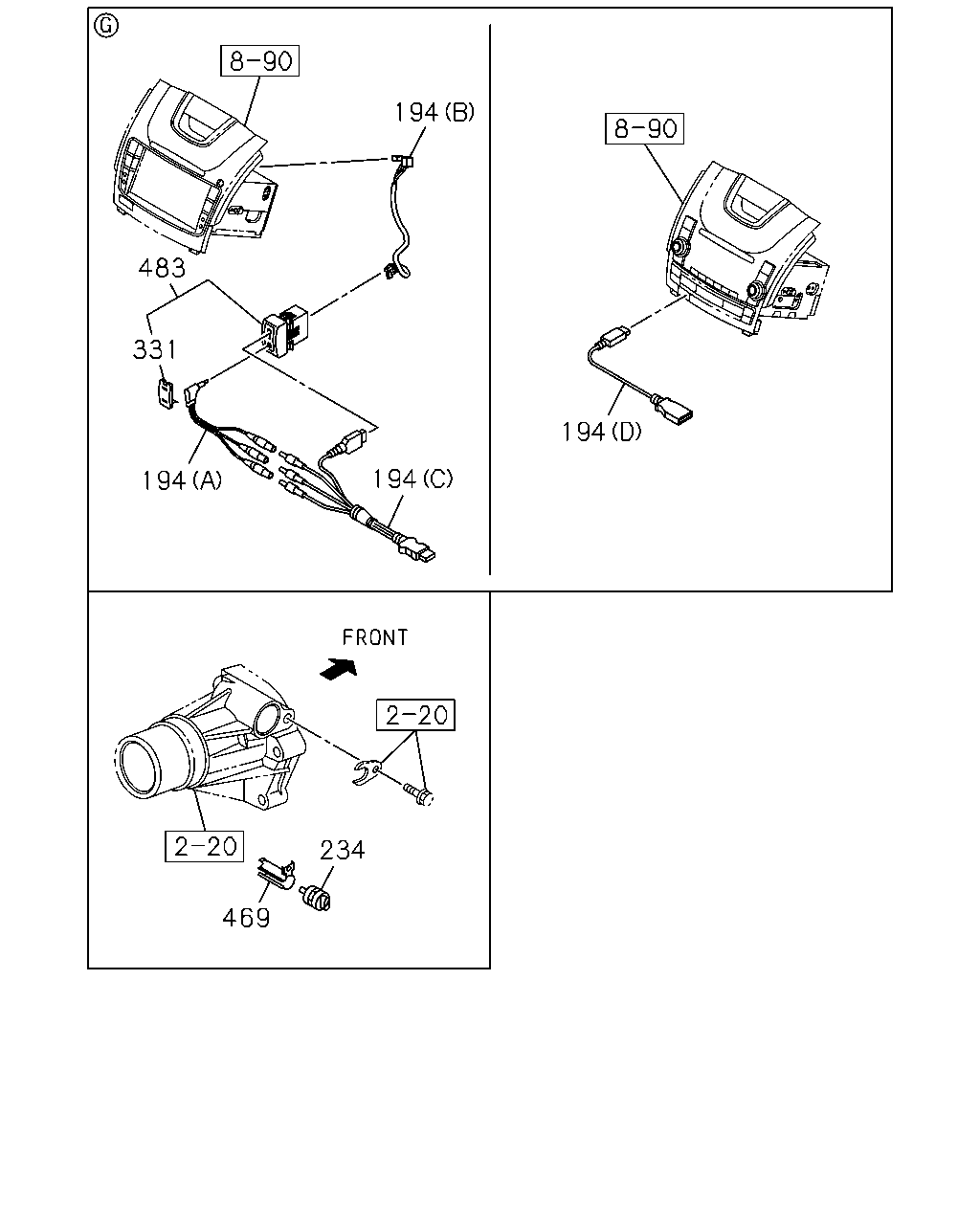

çizim 147278
194 194 194 331 483 194 234 469
BalonParca AdiParca NoAdetTipApplied Date A B C D E
194 CABLE; EXT,SOUND PLAY BOX
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (D) THA 		8-98193-631-0 01 1 1212- ● ● ●
194 CABLE; EXT,SOUND PLAY BOX
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (D) THA 		8-98193-631-0 01 1 1212- ●
194 CABLE; EXT,SOUND PLAY BOX
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (C) THA 		8-98235-372-0 01 1 1301- ● ● ● ●
194 CABLE; EXT,SOUND PLAY BOX
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (A) THA 		8-98209-351-0 01 1 1212- ● ● ● ●
194 CABLE; EXT,SOUND PLAY BOX
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (B) THA 		8-98209-263-0 01 1 1212- ● ● ● ●
234 SENSOR; VEHICLE SPD
A/T 5 SPEED-AISIN<MA1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE/BLACK THA 		8-98043-734-0 01 1 1109-1109 ●
234 SENSOR; VEHICLE SPD
A/T 5 SPEED-AISIN<MA1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE/BLACK THA 		8-98043-734-0 01 1 1110- ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1109-1109 ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1110-1202 ● ● ●
234 SENSOR; VEHICLE SPD
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1110-1202 ●
234 SENSOR; VEHICLE SPD
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1110-1202 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1203- ● ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1203- ●
234 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1203- ●
331 COVER; SW
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98217-463-0 01 1 1212- ● ● ● ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA 		8-98119-901-0 01 1 1109-1109 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA 		8-98119-901-0 01 1 1110-1202 ● ●
469 PROTECTOR; SPEED SENSOR
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> IMA 		8-98119-901-0 01 1 1110-1202 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA 		8-98119-901-0 01 1 1203- ● ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-98119-901-0 01 1 1203- ●
483 SWITCH
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-259-1 01 1 1212- ● ● ● ●

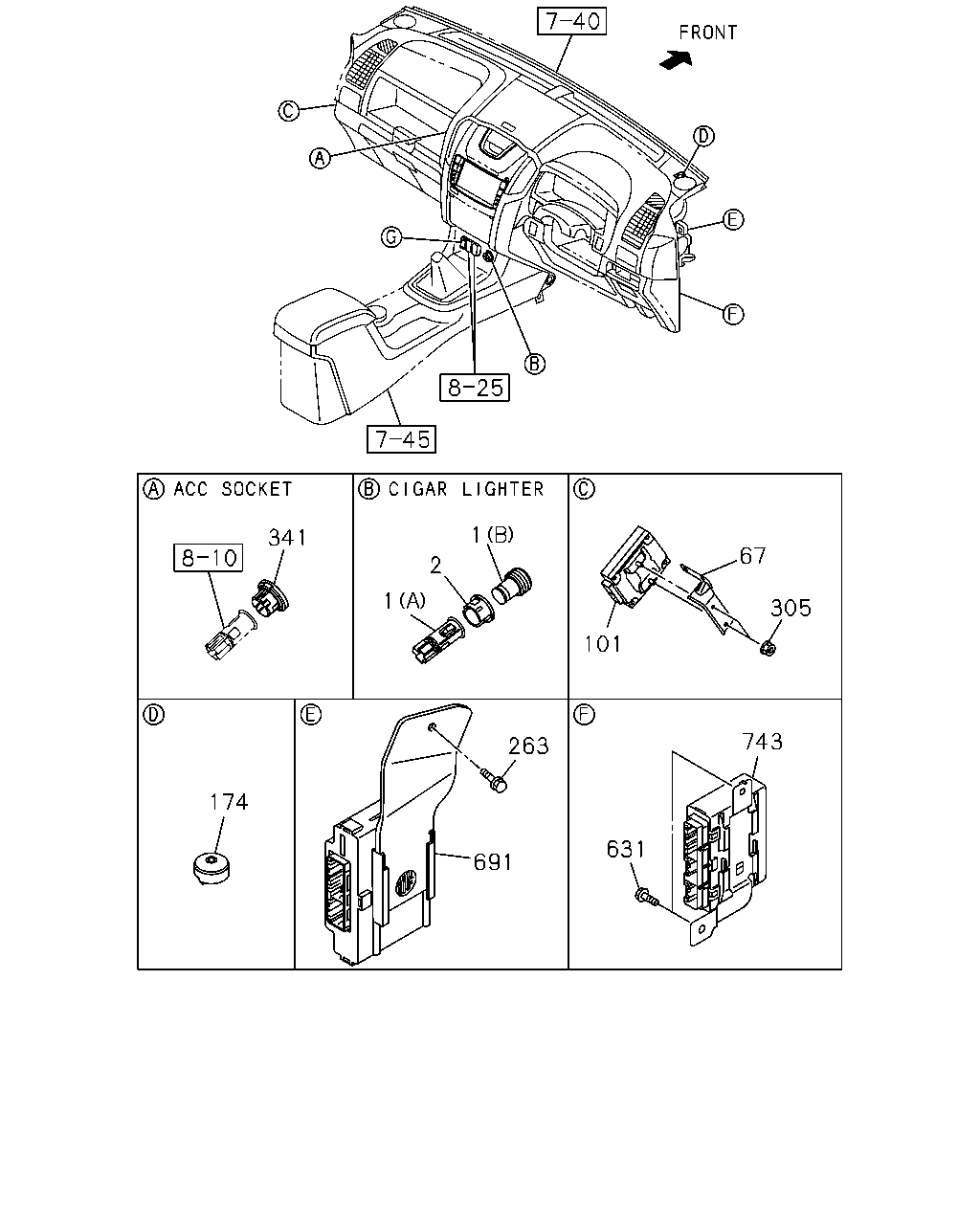

çizim 147285
174 263 691 631 743 67 305 101 1 2 1 341
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LIGHTER; CIGAR
(A) IMA 		8-98123-114-0 01 1 1109-1109 ● ●
1 LIGHTER; CIGAR
(A) IMA 		8-98123-114-0 01 1 1110- ● ● ● ● ●
1 LIGHTER; CIGAR
(B) IMA 		8-98123-117-0 01 1 1109-1109 ● ●
1 LIGHTER; CIGAR
(B) IMA 		8-98123-117-0 01 1 1110- ● ● ● ● ●
2 BEZEL; CIGAR LIGHTER
IMA 		8-98123-118-0 01 1 1109-1109 ● ●
2 BEZEL; CIGAR LIGHTER
IMA 		8-98123-118-0 01 1 1110- ● ● ● ● ●
67 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN<MA1> THA 		8-98113-342-0 01 1 1109-1109 ●
67 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN<MA1> THA 		8-98113-342-0 01 1 1110- ● ● ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> THA 		8-98132-576-0 01 1 1109-1109 ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> THA 		8-98132-576-0 01 1 1110-1211 ● ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> THA 		8-98132-576-0 01 1 1110-1211 ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> THA 		8-98132-576-0 01 1 1212-1212 ● ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> THA 		8-98132-576-0 01 1 1301- ● ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> THA 		8-98132-576-0 01 1 1301- ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98172-398-0 01 1 1109-1109 ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98172-398-0 01 1 1110- ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98132-573-0 01 1 1109-1109 ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98132-573-0 01 1 1110-1211 ● ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> HIGH RIDE SUSPENSION<7YC> THA 		8-98132-573-0 01 1 1212- ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98132-573-0 01 1 1212- ●
174 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98153-855-0 01 1 1109-1109 ● ●
174 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98153-855-0 01 1 1110- ● ● ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1109-1109 ●
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1110- ● ●
305 NUT; CONT UNIT
A/T 5 SPEED-AISIN<MA1> M6 FLANGE THA 		0-91180-106-0 02 1 1109-1109 ●
305 NUT; CONT UNIT
A/T 5 SPEED-AISIN<MA1> M6 FLANGE THA 		0-91180-106-0 02 1 1110- ● ● ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> THA 		8-98142-409-1 01 1 1110- ●
341 COVER ASM
IMA 		8-98123-123-0 01 1 1109-1109 ● ●
341 COVER ASM
IMA 		8-98123-123-0 01 1 1110- ● ● ● ●
341 COVER ASM
ACCESSORY SOCKET FRT CONSOLE<KC5> IMA 		8-98123-123-0 01 1 1110- ●
631 BOLT; CONT UNIT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 01 1 1212- ● ●
631 BOLT; CONT UNIT
EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5> M6X16 FLANGE THA 		0-28450-616-0 01 1 1212- ●
631 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> M6X16 FLANGE THA 		0-28450-616-0 01 1 1212- ●
631 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 02 1 1109-1109 ● ●
631 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 02 1 1110-1211 ● ● ●
631 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28450-616-0 02 1 1110-1211 ●
631 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONTDOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 02 1 1212- ● ●
631 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 02 1 1212- ●
631 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28450-616-0 02 1 1212- ●
691 CONTROLLER; TRANSFER
THA 		8-98186-110-0 01 1 1109-1109 ●
691 CONTROLLER; TRANSFER
THA 		8-98186-110-0 01 1 1110- ● ●
743 CONTROL UNIT; BCM
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98065-084-5 01 1 1212- ● ●
743 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98068-192-3 01 1 1109-1109 ● ●
743 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98068-192-3 01 1 1110-1204 ● ● ●
743 CONTROL UNIT; BCM
THA 		8-98068-192-3 01 1 1110-1204 ●
743 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98215-286-0 01 1 1205- ● ● ●
743 CONTROL UNIT; BCM
THA 		8-98215-286-0 01 1 1205- ●

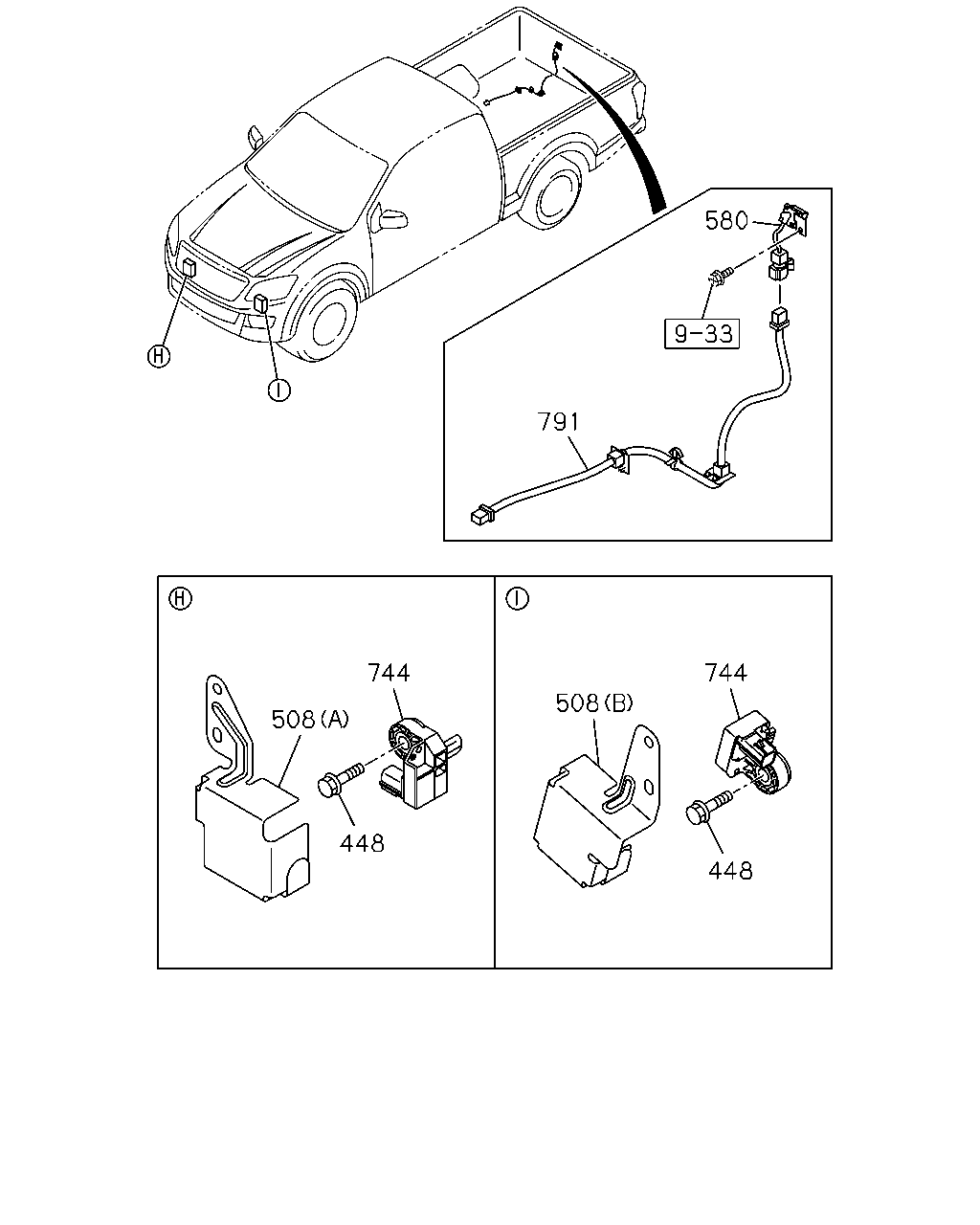

çizim 320090
791 580 508 448 744 508 448 744
BalonParca AdiParca NoAdetTipApplied Date A B C D E
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> M6X25 FLANGE THA 		0-28650-625-0 02 1 1109-1109 ● ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> M6X25 FLANGE THA 		0-28650-625-0 02 1 1110- ● ● ● ●
508 PROTECTOR
AIR BAG DRIVER & PASSENGER<AK5> (A) THA 		8-98165-179-0 01 1 1109-1109 ● ●
508 PROTECTOR
AIR BAG DRIVER & PASSENGER<AK5> (A) THA 		8-98165-179-0 01 1 1110- ● ● ● ●
508 PROTECTOR
AIR BAG DRIVER & PASSENGER<AK5> (B) THA 		8-98165-180-0 01 1 1109-1109 ● ●
508 PROTECTOR
AIR BAG DRIVER & PASSENGER<AK5> (B) THA 		8-98165-180-0 01 1 1110- ● ● ● ●
580 CAMERA; REAR
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98182-423-0 01 1 1212- ● ● ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98059-533-2 02 1 1109-1109 ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98059-533-2 02 1 1110- ● ● ● ●
791 CABLE; SAFETY
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98182-428-0 01 1 1212- ● ● ● ●
çizim 498509
368 631
BalonParca AdiParca NoAdetTipApplied Date A B C D E
368 CONTROL UNIT; DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMA 		8-97385-923-0 01 1 1212- ● ●
368 CONTROL UNIT; DOOR LOCK
EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5> IMA 		8-97385-923-0 01 1 1212- ●
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> IMA 		8-97385-923-0 01 1 1212- ●
631 BOLT; CONT UNIT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 01 1 1212- ● ●
631 BOLT; CONT UNIT
EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5> M6X16 FLANGE THA 		0-28450-616-0 01 1 1212- ●
631 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> M6X16 FLANGE THA 		0-28450-616-0 01 1 1212- ●
631 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 02 1 1109-1109 ● ●
631 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 02 1 1110-1211 ● ● ●
631 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28450-616-0 02 1 1110-1211 ●
631 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONTDOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 02 1 1212- ● ●
631 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> M6X16 FLANGE THA 		0-28450-616-0 02 1 1212- ●
631 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28450-616-0 02 1 1212- ●
