Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#81783) — 145 parça

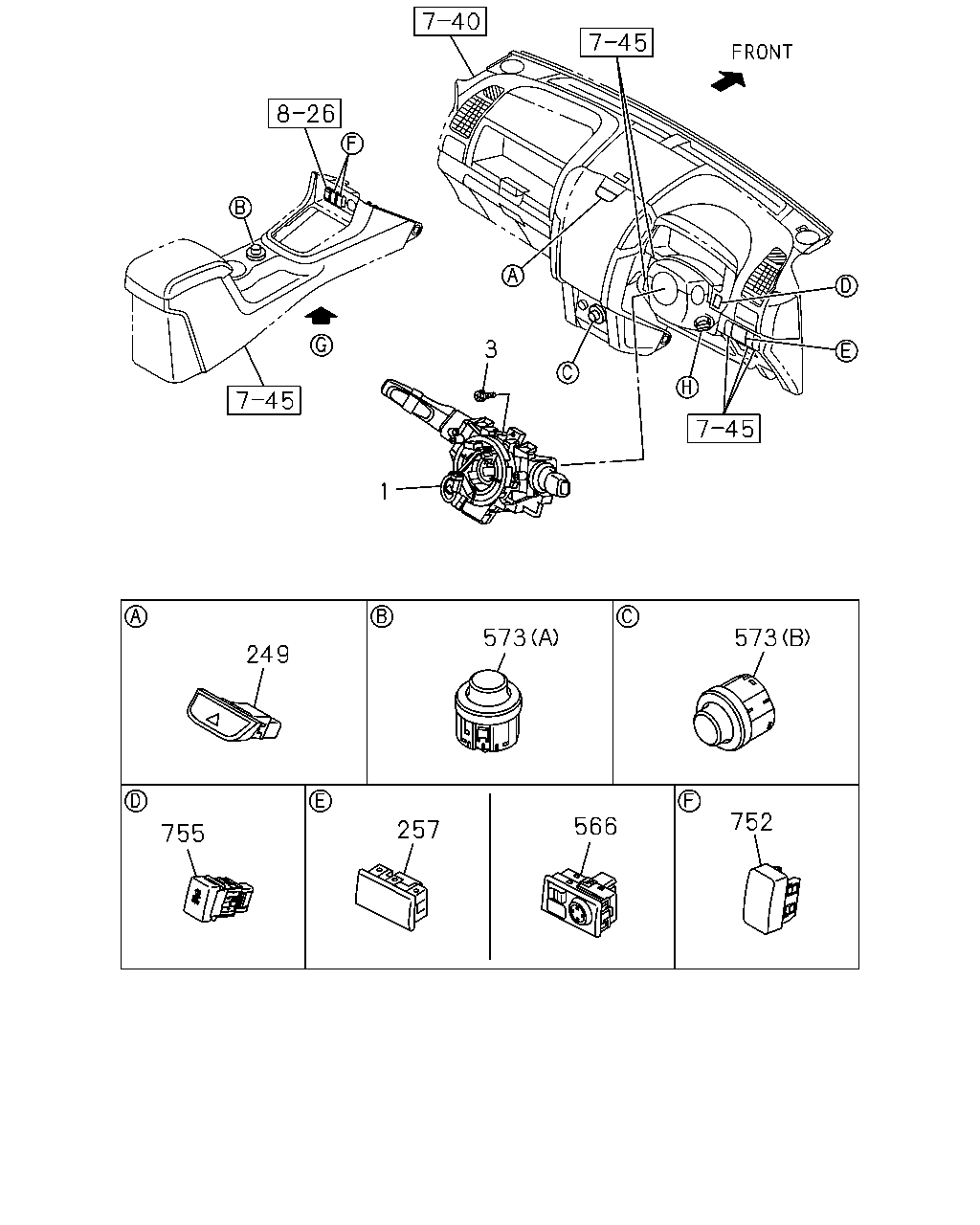

1 3 249 257 573 566 752 573 755

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-135-0	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-135-1	01	1	1110-	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98194-135-1	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98194-135-1	01	1	1110-				●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. FOG LAMP<T96> THA	8-98194-140-0	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. FOG LAMP<T96> THA	8-98194-140-1	01	1	1110-	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96> THA	8-98194-140-1	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96> THA	8-98194-140-1	01	1	1110-				●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA	8-98194-136-0	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA	8-98194-136-1	01	1	1110-	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-136-1	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-134-0	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-134-1	01	1	1110-	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-134-1	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-138-0	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-138-1	01	1	1110-	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9> ,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-138-1	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-139-0	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-139-1	01	1	1110-	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9> ,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-139-1	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-575-1	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-575-2	01	1	1110-	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98059-575-2	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98059-575-2	01	1	1110-				●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. FOG LAMP<T96> THA	8-98132-625-1	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. FOG LAMP<T96> THA	8-98132-625-2	01	1	1110-	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96> THA	8-98132-625-2	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96> THA	8-98132-625-2	01	1	1110-				●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA	8-98059-573-1	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA	8-98059-573-2	01	1	1110-	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-573-2	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-571-1	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-571-2	01	1	1110-	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> THA	8-98059-571-2	01	1	1110-					●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-571-2	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-580-1	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-580-2	01	1	1110-	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9> ,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-580-2	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-570-1	01	1	1109-1109	●	●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-570-2	01	1	1110-	●	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13> THA	8-98059-570-2	01	1	1110-					●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9> ,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98059-570-2	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-137-1	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> THA	8-98194-137-1	01	1	1110-				●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA	8-98194-142-1	01	1	1110-			●
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-141-1	01	1	1110-			●
3	SCREW; COMB SW M5X20 W/LK&PL WASHER THA	0-36230-520-0	01	1	1109-1109	●	●
3	SCREW; COMB SW M5X20 W/LK&PL WASHER THA	0-36230-520-0	01	1	1110-1211	●	●	●	●	●
3	SCREW; COMB SW M5X20 W/LK&PL WASHER THA	0-36230-520-0	01	1	1212-	●	●	●	●	●
249	SWITCH; HAZARD BLACK THA	8-97416-805-0	01	1	1109-1109	●	●
249	SWITCH; HAZARD BLACK THA	8-97416-805-0	01	1	1110-	●	●	●	●	●
257	COVER; HOLE,SW DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA	8-98106-389-2	01	1	1109-1109	●	●
257	COVER; HOLE,SW DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA	8-98106-389-2	01	1	1110-	●	●	●
257	COVER; HOLE,SW DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> THA	8-98106-389-2	01	1	1110-					●
566	SWITCH; MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA	8-98058-078-1	01	1	1109-1109	●	●
566	SWITCH; MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA	8-98058-078-1	01	1	1110-	●	●	●	●
566	SWITCH; MIRROR DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> THA	8-98106-392-1	01	1	1109-1109	●	●
566	SWITCH; MIRROR DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> THA	8-98106-392-1	01	1	1110-1211	●	●	●	●
566	SWITCH; MIRROR DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA	8-98106-392-1	01	1	1212-	●		●
566	SWITCH; MIRROR DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> THA	8-98106-392-1	01	1	1212-		●		●
573	SWITCH; 4WD EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) THA	8-98058-076-2	01	1	1109-1211		●
573	SWITCH; 4WD CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) THA	8-98065-836-2	01	1	1109-1109		●
573	SWITCH; 4WD CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) THA	8-98065-836-2	01	1	1110-1211		●
573	SWITCH; 4WD (A) THA	8-98065-836-2	01	1	1110-1211				●
573	SWITCH; 4WD (A) THA	8-98065-836-2	01	1	1212-		●		●
752	COVER; SEAT HTR RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA	8-98141-215-1	02	1	1212-	●	●	●	●
755	SWITCH; ESC OFF ELECTRONIC TRACTION CONTROL<NW9> THA	8-98058-081-1	01	1	1110-			●	●

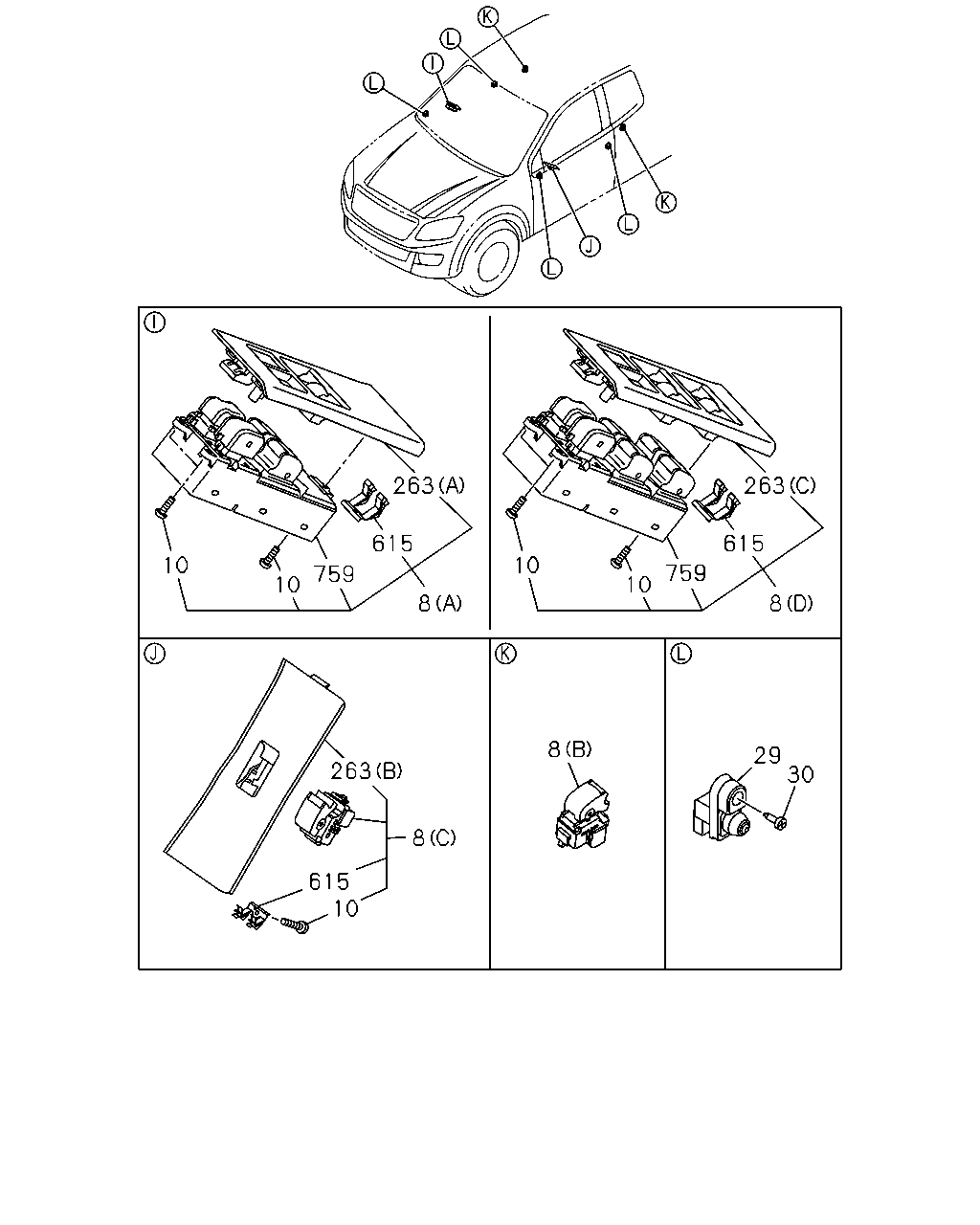

10 10 263 759 8 615 10 10 615 263 8 759 263 8 29 30 615 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	SWITCH; POWER WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (C) BLACK THA	8-97416-810-0	01	1	1109-1109	●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (C) BLACK THA	8-97416-810-0	01	1	1109-1109		●
8	SWITCH; POWER WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (C) BLACK THA	8-97416-810-0	01	1	1110-1211	●		●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (C) BLACK THA	8-97416-810-0	01	1	1110-1211		●		●
8	SWITCH; POWER WINDOW POWER WINDOW<A31> (C) BLACK THA	8-97416-810-0	01	1	1110-1211					●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (C) BLACK THA	8-97416-810-0	01	1	1212-	●	●	●	●
8	SWITCH; POWER WINDOW POWER WINDOW<A31> (C) BLACK THA	8-97416-810-0	01	1	1212-					●
8	SWITCH; POWER WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ> (A) BLACK THA	8-97416-734-0	01	1	1109-1211	●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ> (A) BLACK THA	8-97416-734-0	01	1	1109-1211		●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ> (A) BLACK THA	8-97416-734-0	01	1	1212-	●	●
8	SWITCH; POWER WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW<A31> (A) BLACK THA	8-97416-735-0	01	1	1109-1109	●
8	SWITCH; POWER WINDOW POWER WINDOW<A31> (A) BLACK THA	8-97416-735-0	01	1	1109-1109		●
8	SWITCH; POWER WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW<A31> (A) BLACK THA	8-97416-735-0	01	1	1110-1211	●
8	SWITCH; POWER WINDOW POWER WINDOW<A31> (A) BLACK THA	8-97416-735-0	01	1	1110-1211		●			●
8	SWITCH; POWER WINDOW POWER WINDOW<A31> (A) BLACK THA	8-97416-735-0	01	1	1212-	●	●			●
8	SWITCH; POWER WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ> (D) BLACK THA	8-97416-975-0	01	1	1110-1211			●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ> (D) BLACK THA	8-97416-975-0	01	1	1110-1211				●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ> (D) BLACK THA	8-97416-975-0	01	1	1212-			●	●
8	SWITCH; POWER WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) BLACK THA	8-97417-004-0	02	1	1110-1211			●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) BLACK THA	8-97417-004-0	02	1	1110-1211				●
8	SWITCH; POWER WINDOW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) BLACK THA	8-97417-004-0	02	1	1212-			●	●
8	SWITCH; POWER WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW<A31> (D) BLACK THA	8-97416-976-0	01	1	1110-1211			●
8	SWITCH; POWER WINDOW POWER WINDOW<A31> (D) BLACK THA	8-97416-976-0	01	1	1110-1211				●
8	SWITCH; POWER WINDOW POWER WINDOW<A31> (D) BLACK THA	8-97416-976-0	01	1	1212-			●	●
10	SCREW; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> THA	8-98192-450-0	03	1	1109-1109	●	●
10	SCREW; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> THA	8-98192-450-0	03	1	1109-1109	●	●
10	SCREW; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> THA	8-98192-450-0	03	1	1110-	●	●	●	●	●
10	SCREW; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> THA	8-98192-450-0	03	1	1110-	●	●	●	●	●
29	SWITCH; DOOR THA	8-97313-208-0	02	1	1109-1109	●	●
29	SWITCH; DOOR THA	8-97313-208-0	02	1	1110-	●	●	●	●	●
29	SWITCH; DOOR THA	8-97313-208-0	02	1	1110-			●	●
30	SCREW; DOOR SW M5X14 IMA	8-94120-095-0	02	1	1109-1109	●	●
30	SCREW; DOOR SW M5X14 IMA	8-94120-095-0	02	1	1110-	●	●	●	●	●
30	SCREW; DOOR SW M5X14 IMA	8-94120-095-0	02	1	1110-			●	●
263	COVER; SW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) THA	8-98192-247-0	01	1	1109-1109	●
263	COVER; SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) THA	8-98192-247-0	01	1	1109-1109		●
263	COVER; SW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) THA	8-98192-247-0	01	1	1110-1211	●		●
263	COVER; SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) THA	8-98192-247-0	01	1	1110-1211		●		●
263	COVER; SW POWER WINDOW<A31> (B) THA	8-98192-247-0	01	1	1110-1211					●
263	COVER; SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (B) THA	8-98192-247-0	01	1	1212-	●	●	●	●
263	COVER; SW POWER WINDOW<A31> (B) THA	8-98192-247-0	01	1	1212-					●
263	COVER; SW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (A) THA	8-98192-243-0	01	1	1109-1109	●
263	COVER; SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (A) THA	8-98192-243-0	01	1	1109-1109		●
263	COVER; SW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (A) THA	8-98192-243-0	01	1	1110-1211	●
263	COVER; SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (A) THA	8-98192-243-0	01	1	1110-1211		●
263	COVER; SW POWER WINDOW<A31> (A) THA	8-98192-243-0	01	1	1110-1211					●
263	COVER; SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (A) THA	8-98192-243-0	01	1	1212-	●	●
263	COVER; SW POWER WINDOW<A31> (A) THA	8-98192-243-0	01	1	1212-					●
263	COVER; SW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (C) THA	8-98192-244-0	01	1	1110-1211			●
263	COVER; SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (C) THA	8-98192-244-0	01	1	1110-1211				●
263	COVER; SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> (C) THA	8-98192-244-0	01	1	1212-			●	●
615	SPRING; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> THA	8-98192-268-0	01	1	1109-1109	●	●
615	SPRING; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> THA	8-98192-268-0	01	1	1109-1109	●	●
615	SPRING; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> THA	8-98192-268-0	01	1	1110-	●	●	●	●	●
615	SPRING; POWER WINDOW SW POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW<A31> THA	8-98192-268-0	01	1	1110-	●	●	●	●	●
759	SWITCH ASM; WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ> THA	8-98192-249-0	01	1	1109-1211	●
759	SWITCH ASM; WINDOW POWER WINDOW SAFETY DOOR<ABZ> THA	8-98192-249-0	01	1	1109-1211		●
759	SWITCH ASM; WINDOW POWER WINDOW SAFETY DOOR<ABZ> THA	8-98192-249-0	01	1	1212-	●	●
759	SWITCH ASM; WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW<A31> THA	8-98192-250-0	01	1	1109-1109	●
759	SWITCH ASM; WINDOW POWER WINDOW<A31> THA	8-98192-250-0	01	1	1109-1109		●
759	SWITCH ASM; WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW<A31> THA	8-98192-250-0	01	1	1110-1211	●
759	SWITCH ASM; WINDOW POWER WINDOW<A31> THA	8-98192-250-0	01	1	1110-1211		●			●
759	SWITCH ASM; WINDOW POWER WINDOW<A31> THA	8-98192-250-0	01	1	1212-	●	●			●
759	SWITCH ASM; WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW SAFETY DOOR<ABZ> THA	8-98192-251-0	01	1	1110-1211			●
759	SWITCH ASM; WINDOW POWER WINDOW SAFETY DOOR<ABZ> THA	8-98192-251-0	01	1	1110-1211				●
759	SWITCH ASM; WINDOW POWER WINDOW SAFETY DOOR<ABZ> THA	8-98192-251-0	01	1	1212-			●	●
759	SWITCH ASM; WINDOW INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> POWER WINDOW<A31> THA	8-98192-252-0	01	1	1110-1211			●
759	SWITCH ASM; WINDOW POWER WINDOW<A31> THA	8-98192-252-0	01	1	1110-1211				●
759	SWITCH ASM; WINDOW POWER WINDOW<A31> THA	8-98192-252-0	01	1	1212-			●	●

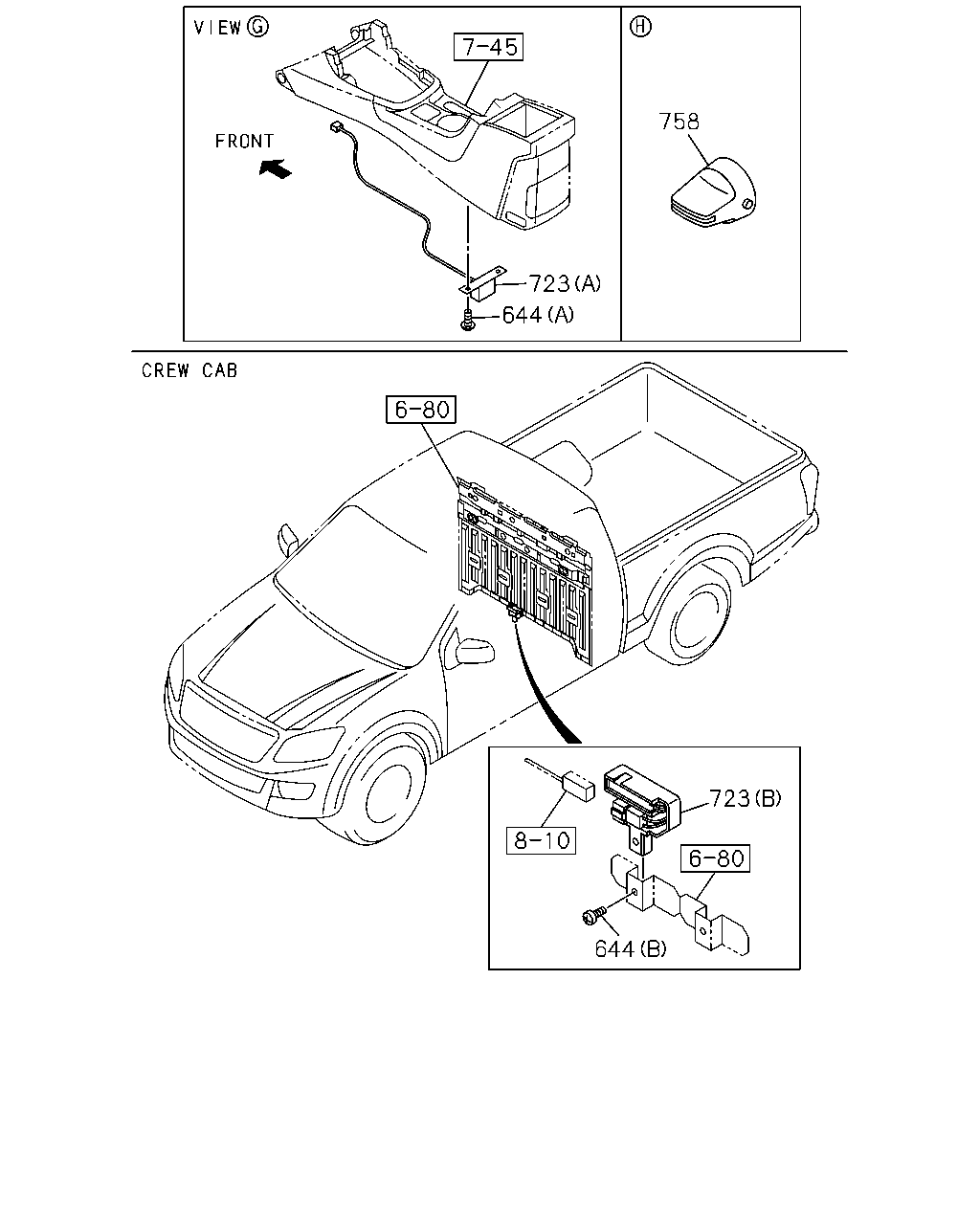

758 723 644 723 644

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
644	SCREW; TAPPING PASSIVE ENTRY AND START SYSTEM<AP3> (A) M5X16 TAPPING THA	8-98167-449-0	02	1	1212-	●	●
644	SCREW; TAPPING PASSIVE ENTRY AND START SYSTEM<AP3> (B) M6X12 TAPPING THA	0-71240-612-0	01	1	1212-		●
723	ANTENNA; KEYLESS ENTRY PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA	8-98076-332-1	01	1	1212-	●	●
723	ANTENNA; KEYLESS ENTRY PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA	8-98076-333-0	01	1	1212-		●
758	KNOB ASM; KEYLESS ENTRY PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98145-589-0	01	1	1212-	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	99	RELAY; FOG LAMP FOG LAMP<T96> 12V YAZAKI THA	8-97309-293-0	01	1	1109-1109	●	●
	99	RELAY; FOG LAMP FOG LAMP<T96> 12V YAZAKI THA	8-97309-293-0	01	1	1110-	●	●	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	99	RELAY; FOG LAMP FOG LAMP<T96> 12V YAZAKI THA	8-97309-293-0	01	1	1109-1109	●	●
	99	RELAY; FOG LAMP FOG LAMP<T96> 12V YAZAKI THA	8-97309-293-0	01	1	1110-	●	●	●	●
