◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#81782) — 55 parça

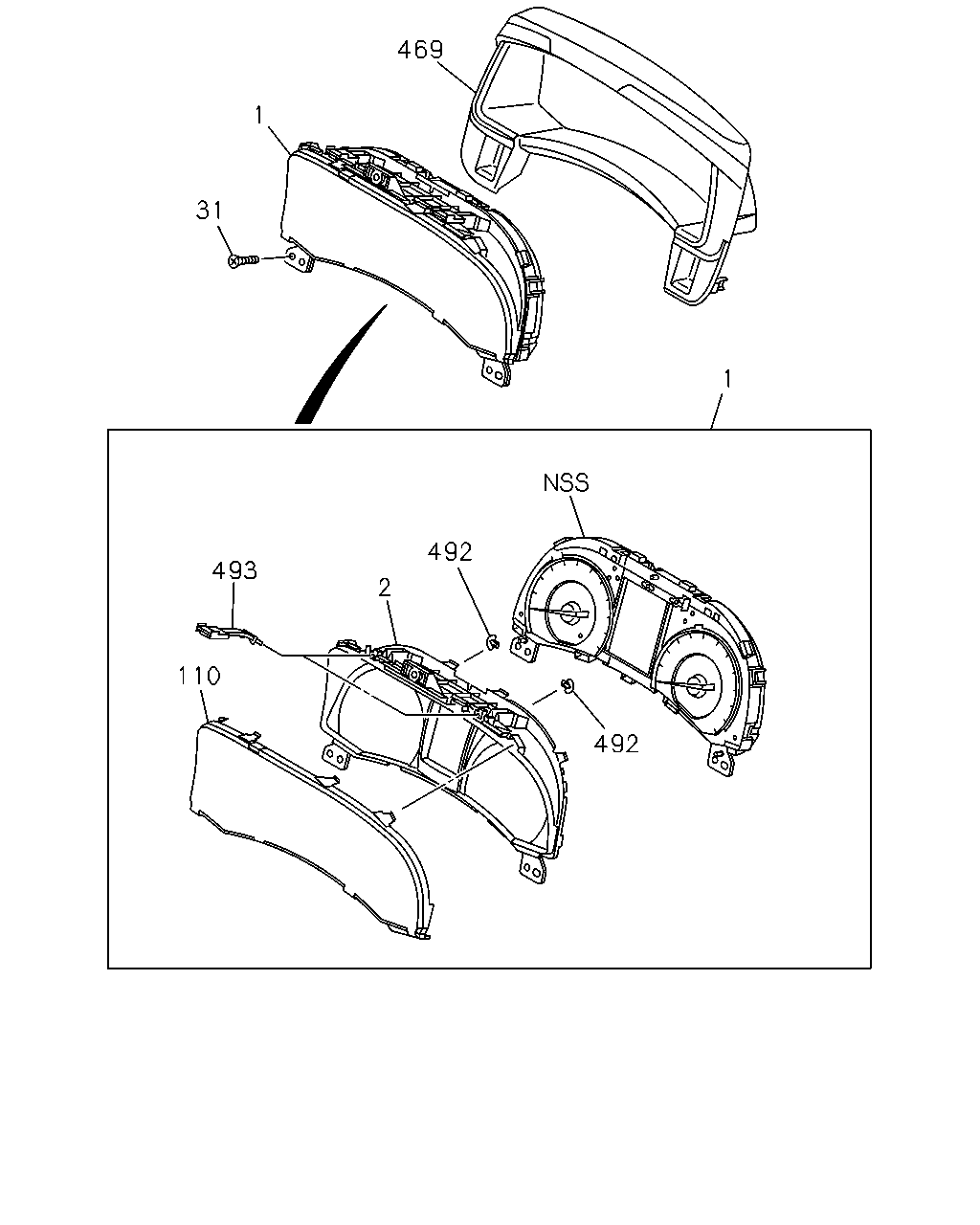

çizim 147318
469 1 492 2 492 110 493 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98185-145-4 01 1 1212- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98103-776-8 01 1 1212- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98103-773-6 01 1 1109-1109 ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98103-773-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-773-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-773-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98209-572-0 01 1 1212- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-572-0 01 1 1212- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-572-0 01 1 1212- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98103-766-6 01 1 1109-1109 ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98103-766-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98103-766-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98209-556-0 01 1 1212- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98209-556-0 01 1 1212- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98103-769-6 01 1 1109-1109 ● ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98103-769-6 01 1 1110-1211 ● ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-769-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-769-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98209-574-0 01 1 1212- ● ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-574-0 01 1 1212- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-574-0 01 1 1212- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98103-762-6 01 1 1109-1109 ● ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98103-762-6 01 1 1110-1211 ● ●
1 METER COMPL; CLUSTER
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98103-762-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98103-762-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98209-559-0 01 1 1212- ● ●
1 METER COMPL; CLUSTER
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98209-559-0 01 1 1212- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98209-559-0 01 1 1212- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98103-775-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-775-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98209-602-0 01 1 1212- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-602-0 01 1 1212- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98103-772-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-772-6 01 1 1110-1211 ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98209-604-0 01 1 1212- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-604-0 01 1 1212- ●
2 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-884-0 01 1 1109-1109 ● ●
2 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-884-0 01 1 1110- ● ● ● ●
2 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98163-885-0 01 1 1109-1109 ● ●
2 PANEL; CLUSTER
EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-885-0 01 1 1110-1211 ● ● ● ●
2 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98163-885-0 01 1 1212- ● ● ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING THA 		8-98167-449-0 03 1 1109-1109 ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING THA 		8-98167-449-0 03 1 1110-1211 ● ● ● ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING THA 		8-98167-449-0 03 1 1212- ● ● ● ● ●
110 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-882-0 01 1 1109-1109 ● ●
110 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-882-0 01 1 1110- ● ● ● ●
110 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98163-883-0 01 1 1109-1109 ● ●
110 GLASS; CLUSTER METER
EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-883-0 01 1 1110-1211 ● ● ● ●
110 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98163-883-0 01 1 1212- ● ● ● ●
469 PLATE; INSTRUMENT PANEL
BLACK THA 		8-97416-628-1 01 1 1109-1109 ● ●
469 PLATE; INSTRUMENT PANEL
BLACK THA 		8-97416-628-1 01 1 1110- ● ● ● ● ●
492 PANEL; TURN LENS
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-886-0 02 1 1109-1109 ● ●
492 PANEL; TURN LENS
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-886-0 02 1 1110- ● ● ● ●
493 PANEL; TOP LIGHT PRISM
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-887-0 02 1 1109-1109 ● ●
493 PANEL; TOP LIGHT PRISM
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-887-0 02 1 1110- ● ● ● ●
