8-15 — FIXING PARTS; WIRING HARNESS (#81781) — 108 parça

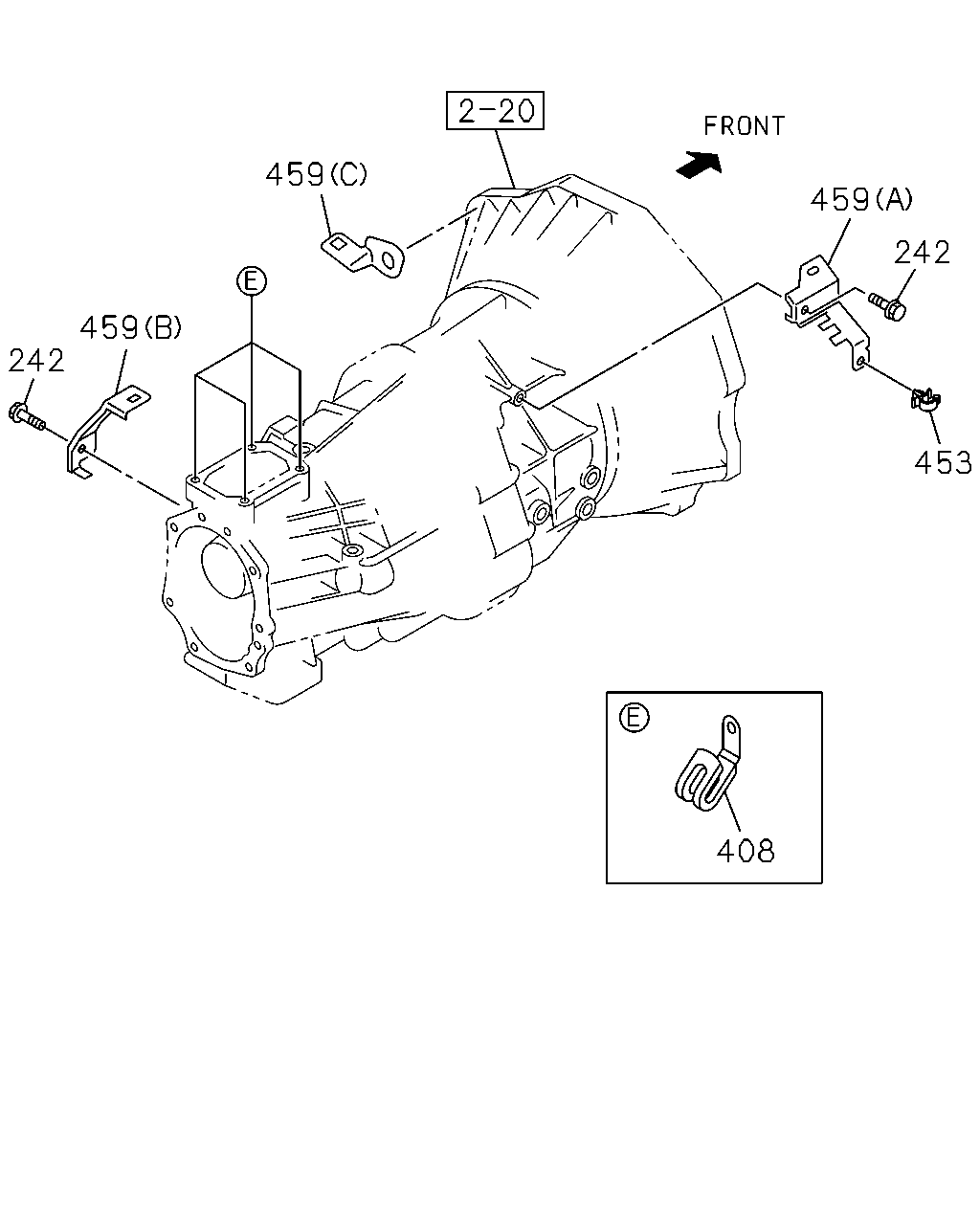

çizim 147268
408 453 242 459 459 459 242
BalonParca AdiParca NoAdetTipApplied Date A B C D E
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA 		0-28050-816-0 02 1 1109-1109 ● ●
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA 		0-28050-816-0 02 1 1110- ● ● ● ●
408 CLIP; TRANS HARNESS
ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 1109-1109 ● ●
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 1110- ● ● ● ● ●
453 CLIP; CABLE HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA 		5-09709-117-0 01 1 1109-1109 ● ●
453 CLIP; CABLE HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA 		5-09709-117-0 01 1 1110- ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-98035-740-0 01 1 1109-1109 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-98035-740-0 01 1 1110- ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98035-741-0 01 1 1109-1109 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98035-741-0 01 1 1110- ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-98050-882-0 01 1 1109-1109 ● ●
459 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-98050-882-0 01 1 1110- ● ● ● ● ●

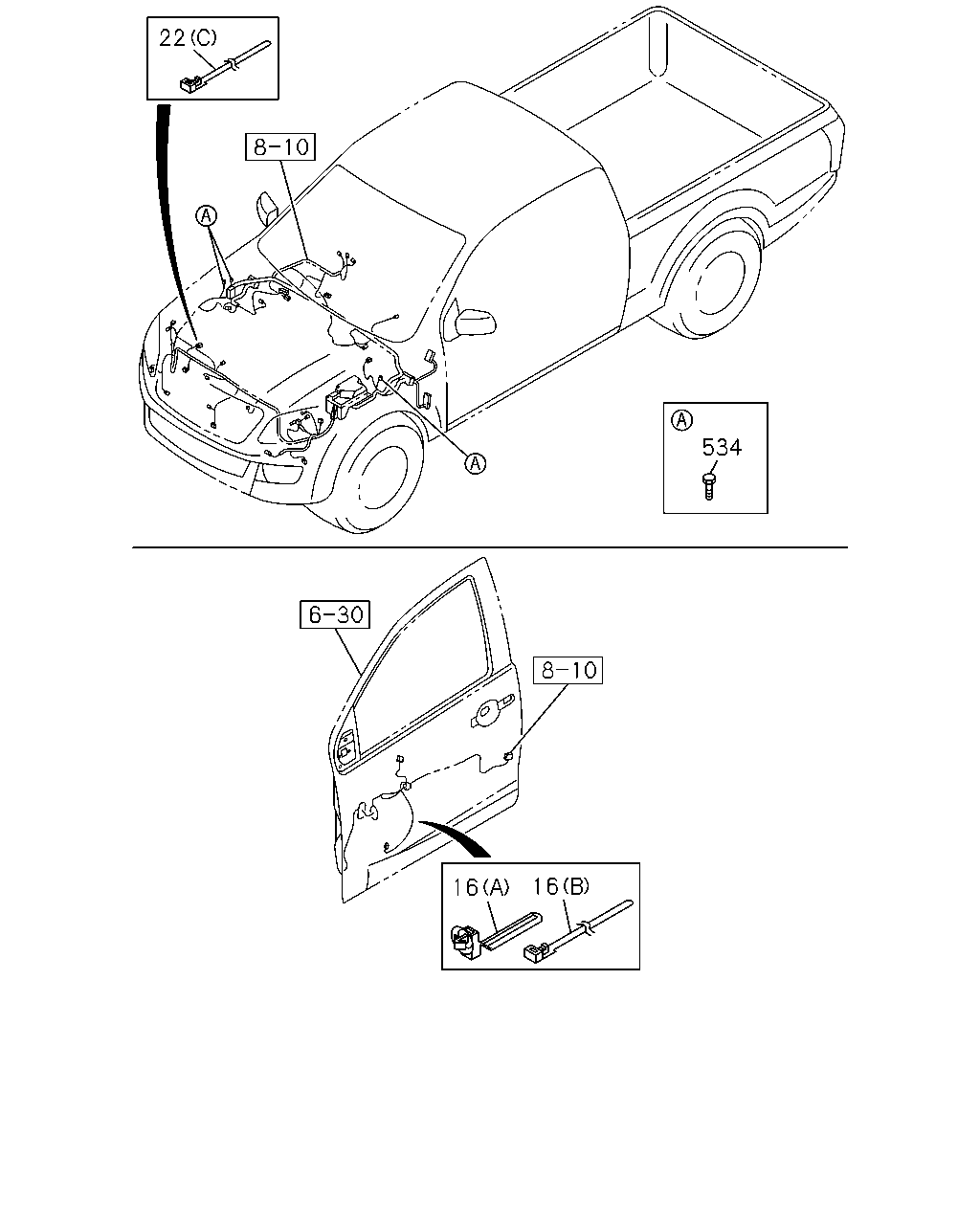

çizim 147271
22 534 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155 THA 		8-97173-307-0 04 1 1110-1211 ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140 THA 		8-97378-707-0 02 1 1110-1211 ●
16 CLIP; HARNESS
(B) L=140 THA 		8-97378-707-0 01 1 1212- ● ● ● ● ●
16 CLIP; HARNESS
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,REM OTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 01 1 1212- ● ● ● ●
16 CLIP; HARNESS
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) L=140 THA 		8-97378-707-0 01 1 1212- ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DO OR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155 THA 		8-97173-307-0 02 1 1109-1109 ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DO OR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155 THA 		8-97173-307-0 02 1 1109-1109 ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DO OR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155 THA 		8-97173-307-0 02 1 1110-1211 ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DO OR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155 THA 		8-97173-307-0 02 1 1110-1211 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> (A) L=155 THA 		8-97173-307-0 02 1 1110-1211 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> (A) L=155 THA 		8-97173-307-0 02 1 1110-1211 ●
16 CLIP; HARNESS
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155 THA 		8-97173-307-0 02 1 1110-1211 ●
16 CLIP; HARNESS
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155 THA 		8-97173-307-0 02 1 1110-1211 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> (A) L=155 THA 		8-97173-307-0 02 1 1212- ● ● ● ● ●
16 CLIP; HARNESS
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> (A) L=155 THA 		8-97173-307-0 02 1 1212- ● ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155 THA 		8-97173-307-0 02 1 1212- ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,REM OTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1212- ● ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,AUT O DOOR LOCK<AU4> (A) L=155 THA 		8-97173-307-0 02 1 1212- ● ● ● ● ●
16 CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1212- ● ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DO OR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140 THA 		8-97378-707-0 01 1 1109-1109 ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DO OR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140 THA 		8-97378-707-0 01 1 1109-1109 ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DO OR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140 THA 		8-97378-707-0 01 1 1110-1211 ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>,DO OR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140 THA 		8-97378-707-0 01 1 1110-1211 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> (B) L=140 THA 		8-97378-707-0 01 1 1110-1211 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> (B) L=140 THA 		8-97378-707-0 01 1 1110-1211 ●
16 CLIP; HARNESS
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140 THA 		8-97378-707-0 01 1 1110-1211 ●
16 CLIP; HARNESS
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140 THA 		8-97378-707-0 01 1 1110-1211 ●
16 CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 03 1 1212- ● ●
22 CLIP; ENG HARNESS
REFRIGERATION KIT<7FH> (C) L=140 IMA 		5-09707-031-1 01 1 1203-1204 ●
22 CLIP; ENG HARNESS
(A) ID=11.8 & 7.5 IMA 		1-09709-182-0 01 1 1109-1109 ● ●
22 CLIP; ENG HARNESS
(A) ID=11.8 & 7.5 IMA 		1-09709-182-0 01 1 1110-1212 ● ● ● ● ●
22 CLIP; ENG HARNESS
(A) ID=11.8 & 7.5 THA 		8-98212-982-0 01 1 1301- ● ● ● ● ●
22 CLIP; ENG HARNESS
(B) ID=7.5 & 7.5 THA 		8-97019-084-0 01 1 1109-1109 ● ●
22 CLIP; ENG HARNESS
(B) ID=7.5 & 7.5 THA 		8-97019-084-0 01 1 1110-1212 ● ● ● ● ●
22 CLIP; ENG HARNESS
(B) ID=7.5 & 7.5 THA 		8-98212-981-0 01 1 1301- ● ● ● ● ●
534 BOLT; EARTH
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 04 1 1109-1501 ● ●
534 BOLT; EARTH
M6X14 W/PL WASHER IMA 		8-98164-836-0 04 1 1502- ● ●

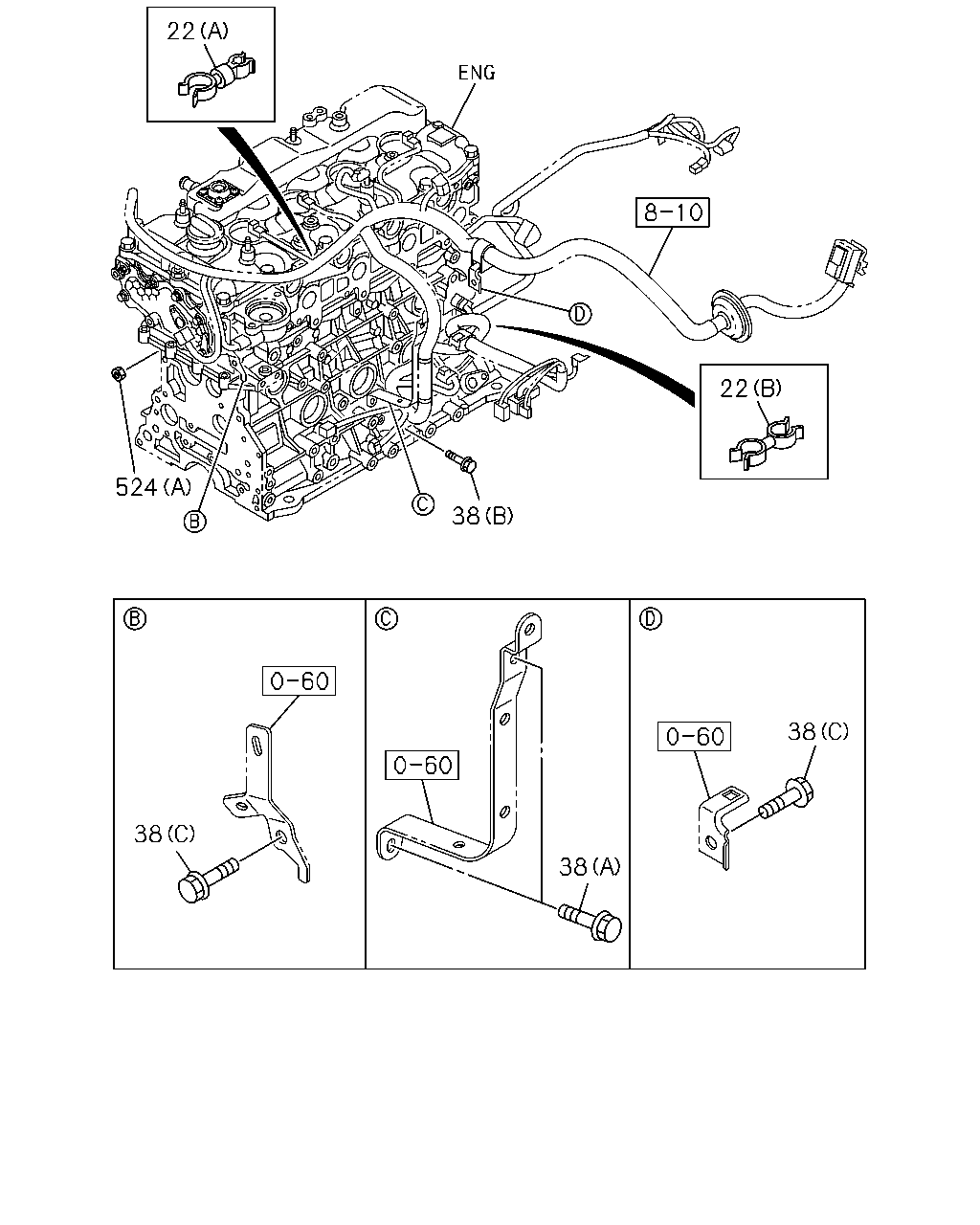

çizim 147289
38 38 38 22 524 38 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 CLIP; ENG HARNESS
REFRIGERATION KIT<7FH> (C) L=140 IMA 		5-09707-031-1 01 1 1203-1204 ●
22 CLIP; ENG HARNESS
(A) ID=11.8 & 7.5 IMA 		1-09709-182-0 01 1 1109-1109 ● ●
22 CLIP; ENG HARNESS
(A) ID=11.8 & 7.5 IMA 		1-09709-182-0 01 1 1110-1212 ● ● ● ● ●
22 CLIP; ENG HARNESS
(A) ID=11.8 & 7.5 THA 		8-98212-982-0 01 1 1301- ● ● ● ● ●
22 CLIP; ENG HARNESS
(B) ID=7.5 & 7.5 THA 		8-97019-084-0 01 1 1109-1109 ● ●
22 CLIP; ENG HARNESS
(B) ID=7.5 & 7.5 THA 		8-97019-084-0 01 1 1110-1212 ● ● ● ● ●
22 CLIP; ENG HARNESS
(B) ID=7.5 & 7.5 THA 		8-98212-981-0 01 1 1301- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1109-1109 ● ●
38 BOLT; CLIP,HARNESS
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1110- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1109-1109 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1110- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1109-1109 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1110- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M6X16 FLANGE THA 		0-28650-616-0 05 1 1109-1109 ● ●
38 BOLT; CLIP,HARNESS
(D) M6X16 FLANGE THA 		0-28650-616-0 05 1 1110- ● ● ● ● ●
524 NUT; HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1109-1109 ● ●
524 NUT; HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1110- ● ● ● ● ●
524 NUT; HARNESS
(B) M6 FLANGE THA 		0-91180-106-0 01 1 1109-1109 ● ●
524 NUT; HARNESS
(B) M6 FLANGE THA 		0-91180-106-0 01 1 1110-1211 ● ● ● ● ●
524 NUT; HARNESS
(B) M6 FLANGE THA 		0-91180-106-0 01 1 1212- ● ● ● ● ●

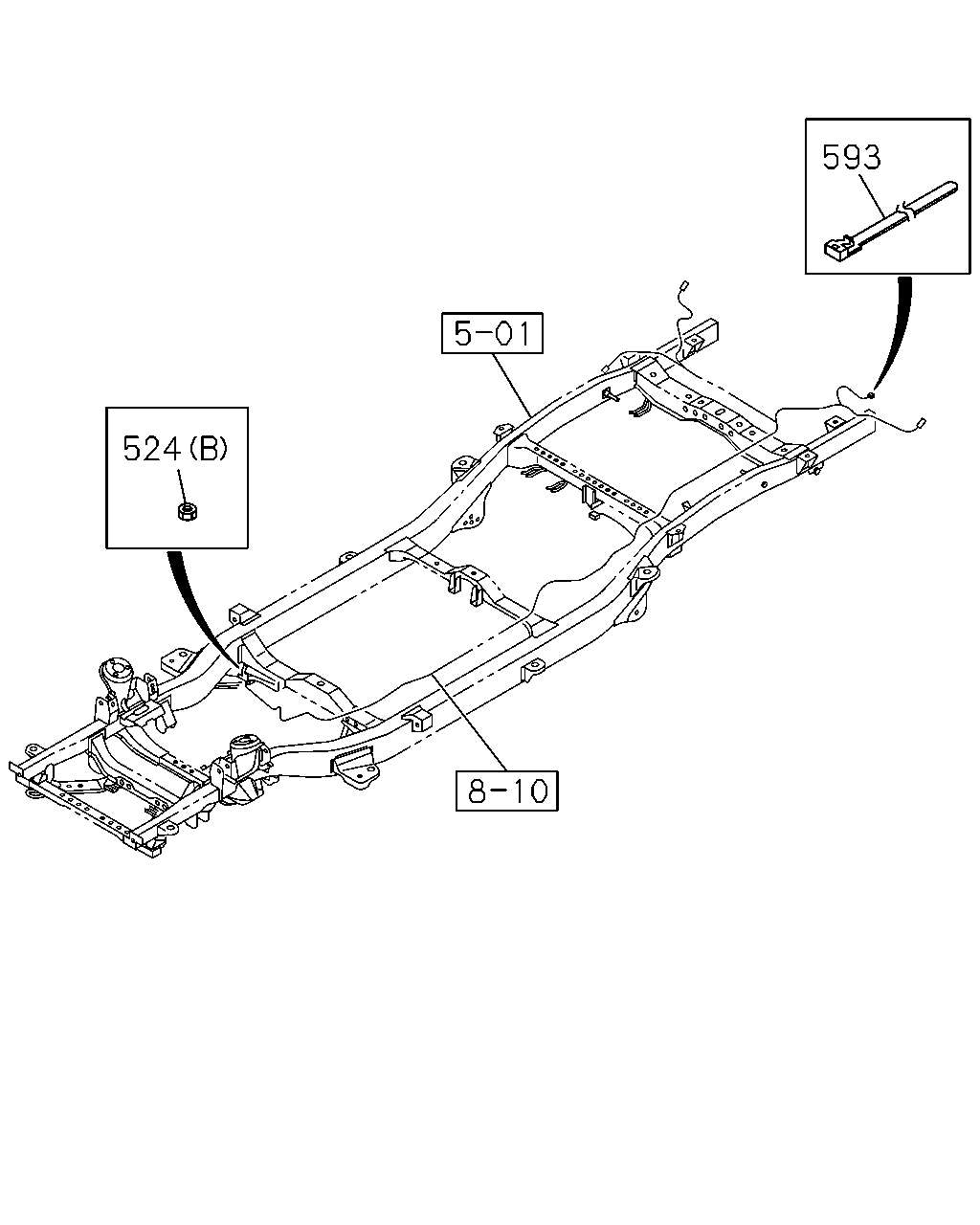

çizim 147293
524 593
BalonParca AdiParca NoAdetTipApplied Date A B C D E
524 NUT; HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1109-1109 ● ●
524 NUT; HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1110- ● ● ● ● ●
524 NUT; HARNESS
(B) M6 FLANGE THA 		0-91180-106-0 01 1 1109-1109 ● ●
524 NUT; HARNESS
(B) M6 FLANGE THA 		0-91180-106-0 01 1 1110-1211 ● ● ● ● ●
524 NUT; HARNESS
(B) M6 FLANGE THA 		0-91180-106-0 01 1 1212- ● ● ● ● ●
593 CLIP
REAR BODY DELETE<8HH> L=250 IMA 		5-09707-030-1 01 1 1110- ●

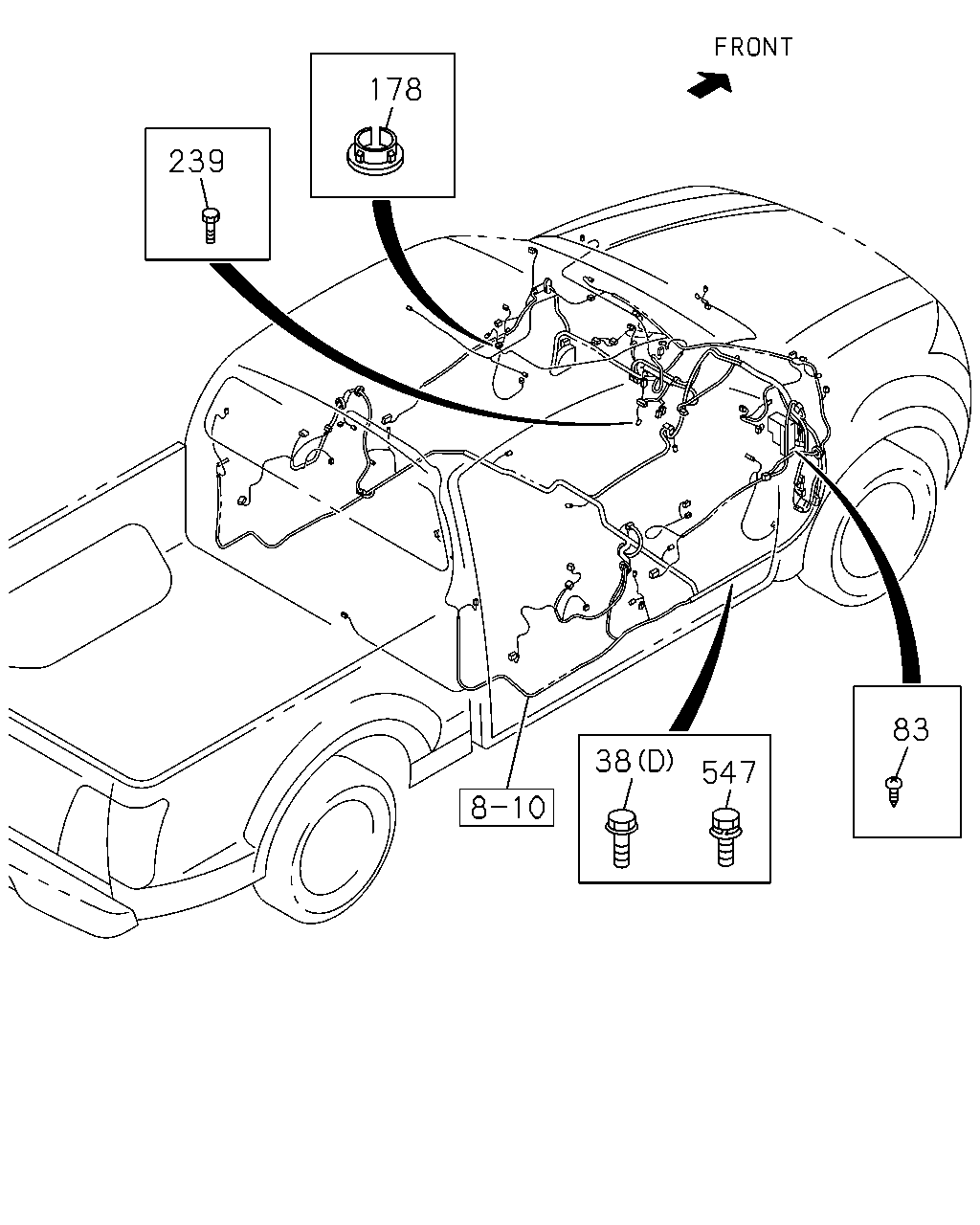

çizim 147294
38 547 83 239 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E
38 BOLT; CLIP,HARNESS
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1109-1109 ● ●
38 BOLT; CLIP,HARNESS
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1110- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1109-1109 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1110- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1109-1109 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1110- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M6X16 FLANGE THA 		0-28650-616-0 05 1 1109-1109 ● ●
38 BOLT; CLIP,HARNESS
(D) M6X16 FLANGE THA 		0-28650-616-0 05 1 1110- ● ● ● ● ●
83 SCREW; HARNESS
M5X25 TAPPING W/PL WASHER THA 		0-74360-525-0 01 1 1109-1109 ● ●
83 SCREW; HARNESS
M5X25 TAPPING W/PL WASHER THA 		0-74360-525-0 01 1 1110-1211 ● ● ● ● ●
83 SCREW; HARNESS
M5X25 TAPPING W/PL WASHER THA 		0-74360-525-0 01 1 1212- ● ● ● ● ●
178 GROMMET; HARNESS
THA 		8-97027-381-0 01 1 1109-1109 ● ●
178 GROMMET; HARNESS
THA 		8-97027-381-0 01 1 1110-1211 ● ● ● ● ●
178 GROMMET; HARNESS
THA 		8-97027-381-0 01 1 1212- ● ● ● ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 02 1 1109-1109 ● ●
239 BOLT; GRAND
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 02 1 1110-1204 ● ●
239 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 02 1 1110-1204 ●
239 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET STANDARD<A50> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 02 1 1110-1204 ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 02 1 1205-1501 ● ● ● ● ●
239 BOLT; GRAND
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 02 1 1205-1501 ● ●
239 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 02 1 1205-1501 ●
239 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET STANDARD<A50> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 02 1 1205-1501 ●
239 BOLT; GRAND
M6X14 W/PL WASHER IMA 		8-98164-836-0 02 1 1502- ● ● ● ● ●
239 BOLT; GRAND
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> M6X14 W/PL WASHER IMA 		8-98164-836-0 02 1 1502- ● ●
239 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M6X14 W/PL WASHER IMA 		8-98164-836-0 02 1 1502- ●
239 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET STANDARD<A50> M6X14 W/PL WASHER IMA 		8-98164-836-0 02 1 1502- ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 05 1 1109-1109 ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 05 1 1110-1204 ● ● ● ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 03 1 1205-1501 ● ● ● ● ●
239 BOLT; GRAND
M6X14 W/PL WASHER IMA 		8-98164-836-0 03 1 1502- ● ● ● ● ●
547 BOLT
AIR BAG DRIVER & PASSENGER<AK5> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1109-1109 ● ●
547 BOLT
AIR BAG DRIVER & PASSENGER<AK5> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1110-1501 ● ● ● ●
547 BOLT
AIR BAG DRIVER & PASSENGER<AK5> M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1502- ● ● ● ●
