◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#81780) — 720 parça

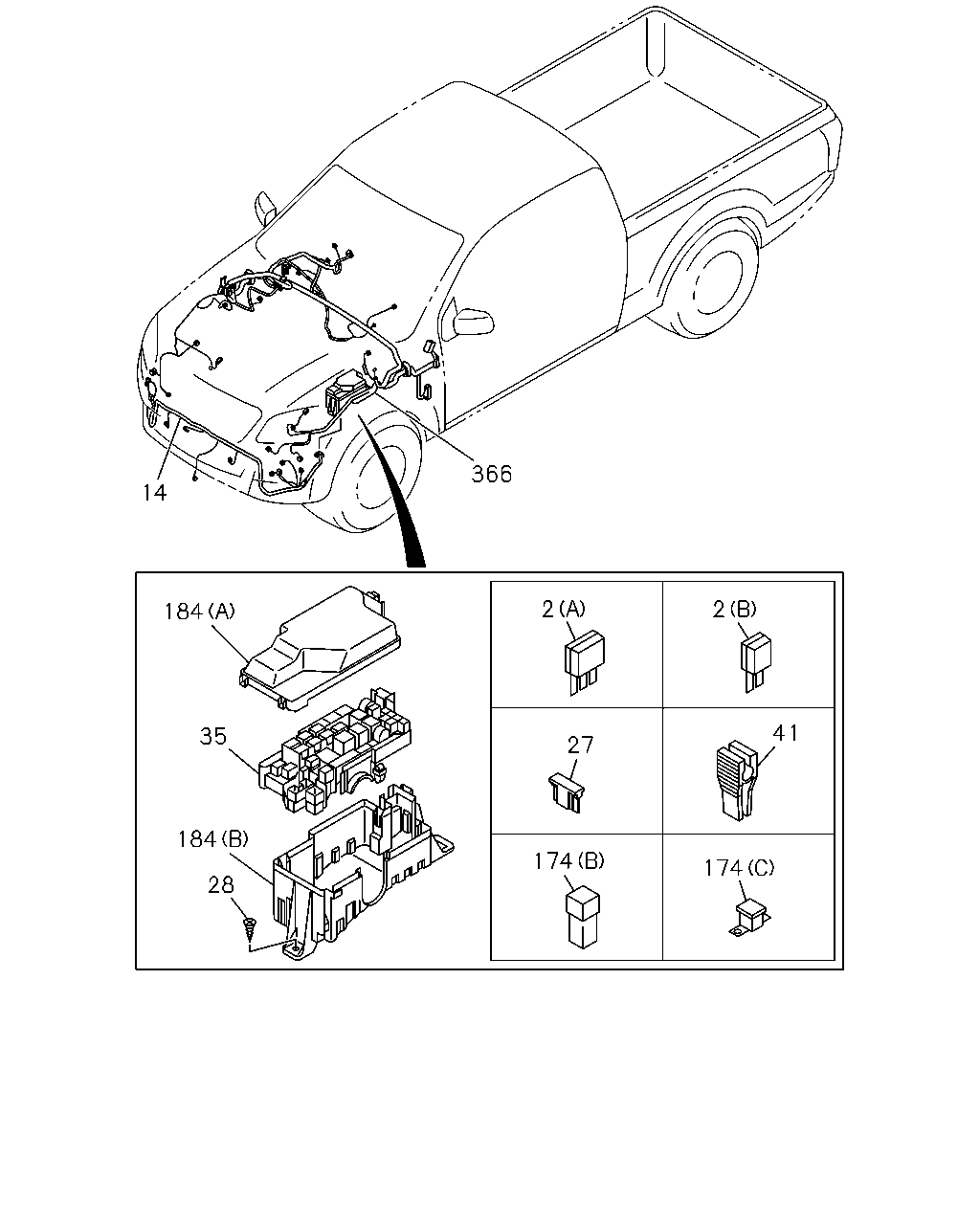

çizim 147266
366 14 184 35 184 28 2 2 41 174 174 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 AR 1 1109-1109 ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 AR 1 1110- ● ● ● ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA 		8-94422-640-1 AR 1 1109-1109 ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA 		8-94422-640-1 AR 1 1110- ● ● ● ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA>,HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-339-1 01 1 1109-1109 ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA>,HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-339-1 01 1 1110- ● ● ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-349-1 01 1 1109-1109 ● ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-349-1 01 1 1110- ● ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-349-1 01 1 1110- ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-341-1 01 1 1109-1109 ● ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-341-1 01 1 1110- ● ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-341-1 01 1 1110- ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-348-1 01 1 1109-1109 ● ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-348-1 01 1 1110- ● ● ●
14 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-348-1 01 1 1110- ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-340-1 01 1 1109-1109 ● ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-340-1 01 1 1110- ● ● ●
14 HARNESS; HEADLAMP
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-340-1 01 1 1110- ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98159-347-1 01 1 1109-1109 ● ●
14 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> THA 		8-98159-347-1 01 1 1110- ● ● ●
14 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-346-1 01 1 1109-1109 ● ●
14 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-346-1 01 1 1110- ● ● ●
14 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-338-1 01 1 1109-1109 ● ●
14 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98159-338-1 01 1 1110- ● ● ●
14 HARNESS; HEADLAMP
THA 		8-98159-338-1 01 1 1110- ●
27 FUSE UNIT
10A RED THA 		8-98054-257-0 AR 1 1109-1109 ● ●
27 FUSE UNIT
10A RED THA 		8-98054-257-0 AR 1 1110- ● ● ● ● ●
27 FUSE UNIT
15A BLUE THA 		8-98054-258-0 AR 1 1109-1109 ● ●
27 FUSE UNIT
15A BLUE THA 		8-98054-258-0 AR 1 1110- ● ● ● ● ●
27 FUSE UNIT
20A YELLOW THA 		8-98054-259-0 AR 1 1109-1109 ● ●
27 FUSE UNIT
20A YELLOW THA 		8-98054-259-0 AR 1 1110- ● ● ● ● ●
28 SCREW; FUSE BOX
THA 		8-97249-192-0 02 1 1109-1109 ● ●
28 SCREW; FUSE BOX
THA 		8-97249-192-0 02 1 1110- ● ● ● ● ●
35 BOX; RELAY & FUSE
THA 		8-98113-097-0 01 1 1109-1109 ● ●
35 BOX; RELAY & FUSE
THA 		8-98113-097-0 01 1 1110- ● ● ● ● ●
41 PULLER; FUSE
THA 		8-98054-260-0 01 1 1109-1109 ● ●
41 PULLER; FUSE
THA 		8-98054-260-0 01 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) 20A BLUE THA 		8-98079-189-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(A) 20A BLUE THA 		8-98079-189-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE IMA 		1-82516-028-1 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE IMA 		1-82516-028-1 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN THA 		8-98079-192-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN THA 		8-98079-192-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 50A RED THA 		8-98079-193-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(B) 50A RED THA 		8-98079-193-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) 60A YELLOW THA 		8-97219-407-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(A) 60A YELLOW THA 		8-97219-407-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW THA 		8-98197-288-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW THA 		8-98197-288-0 AR 1 1110- ● ● ● ● ●
184 COVER; RELAY & FUSE BOX
(A) THA 		8-98113-098-0 01 1 1109-1109 ● ●
184 COVER; RELAY & FUSE BOX
(A) THA 		8-98113-098-0 01 1 1110- ● ● ● ● ●
184 COVER; RELAY & FUSE BOX
(B) THA 		8-98113-099-0 01 1 1109-1109 ● ●
184 COVER; RELAY & FUSE BOX
(B) THA 		8-98113-099-0 01 1 1110- ● ● ● ● ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-196-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-196-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-196-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-196-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-198-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-198-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-198-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-198-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-133-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-133-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-133-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-133-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-191-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-191-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-191-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-191-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98210-195-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-195-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98210-195-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-195-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-137-3 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-137-3 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-137-4 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-137-4 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-193-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-193-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-193-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-193-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98210-197-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-197-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98210-197-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-197-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-131-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-131-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-190-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-190-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-907-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-907-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-187-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-187-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-187-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-187-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-189-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-189-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-189-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-189-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98210-186-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-186-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98210-186-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-186-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98210-188-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-188-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98210-188-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-188-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-912-3 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-542-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-542-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-542-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-542-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-542-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-542-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-542-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-548-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-548-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-548-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-548-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-548-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-548-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-548-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-539-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-539-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-539-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-539-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-539-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-539-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-539-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-545-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-545-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-545-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-545-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-545-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-545-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-545-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-543-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-543-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-543-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-543-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-543-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-543-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-543-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-549-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-549-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98160-549-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-549-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-549-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-549-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-549-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-549-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-549-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-549-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-540-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-540-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-540-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-540-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-540-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-540-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-540-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-546-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-546-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-546-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-546-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-546-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-546-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-546-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-526-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-526-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-526-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-526-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-526-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-526-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-526-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-532-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-532-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-532-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-532-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-532-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-532-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-532-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-523-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-523-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-523-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-523-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-523-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-523-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-523-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-529-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-529-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-529-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-529-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-529-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-529-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-529-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-537-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-537-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-537-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-538-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-538-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-538-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-525-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-525-8 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-531-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-531-9 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-520-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98160-520-8 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-522-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-522-8 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-528-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-528-9 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-521-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98160-521-8 01 1 1212- ●
çizim 147269
4 734 745 750 749
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 BOX ASM; FUSE,HARNESS
THA 		8-98166-751-0 01 1 1109-1109 ● ●
4 BOX ASM; FUSE,HARNESS
THA 		8-98166-751-0 01 1 1110- ● ● ● ● ●
734 RELAY; ACC SOCKET
12V YAZAKI THA 		8-97309-293-0 01 1 1109-1109 ● ●
734 RELAY; ACC SOCKET
12V YAZAKI THA 		8-97309-293-0 01 1 1110- ● ● ● ● ●
745 RELAY; HEATER
(B) 12V YAZAKI THA 		8-97309-292-0 01 1 1109-1109 ● ●
745 RELAY; HEATER
(B) 12V YAZAKI THA 		8-97309-292-0 01 1 1110- ● ● ● ● ●
745 RELAY; HEATER
(A) 12V YAZAKI THA 		8-98146-834-0 01 1 1109-1109 ● ●
745 RELAY; HEATER
(A) 12V YAZAKI THA 		8-98146-834-0 01 1 1110- ● ● ● ● ●
749 RELAY; POWER WINDOW
12V YAZAKI THA 		8-97309-293-0 01 1 1109-1109 ● ●
749 RELAY; POWER WINDOW
12V YAZAKI THA 		8-97309-293-0 01 1 1110- ● ● ● ● ●
750 RELAY; RR DEFOGGER
12V YAZAKI THA 		8-97309-293-0 01 1 1109-1109 ● ●
750 RELAY; RR DEFOGGER
12V YAZAKI THA 		8-97309-293-0 01 1 1110- ● ● ● ● ●
çizim 147279
35 748 747 745 746 737 742 736 743 738 739 741
BalonParca AdiParca NoAdetTipApplied Date A B C D E
35 BOX; RELAY & FUSE
THA 		8-98113-097-0 01 1 1109-1109 ● ●
35 BOX; RELAY & FUSE
THA 		8-98113-097-0 01 1 1110- ● ● ● ● ●
736 RELAY; STARTER CUT
12V YAZAKI THA 		8-97309-292-0 01 1 1109-1109 ● ●
736 RELAY; STARTER CUT
12V YAZAKI THA 		8-97309-292-0 01 1 1110- ● ● ● ● ●
737 RELAY; DIMMER
12V YAZAKI THA 		8-97309-292-0 01 1 1109-1109 ● ●
737 RELAY; DIMMER
12V YAZAKI THA 		8-97309-292-0 01 1 1110- ● ● ● ● ●
738 RELAY; HEADLAMP
12V YAZAKI THA 		8-97309-293-0 01 1 1109-1109 ● ●
738 RELAY; HEADLAMP
12V YAZAKI THA 		8-97309-293-0 01 1 1110- ● ● ● ● ●
739 RELAY; TAIL LAMP
12V YAZAKI THA 		8-97309-293-0 01 1 1109-1109 ● ●
739 RELAY; TAIL LAMP
12V YAZAKI THA 		8-97309-293-0 01 1 1110- ● ● ● ● ●
741 RELAY; HORN
12V YAZAKI THA 		8-97309-293-0 01 1 1109-1109 ● ●
741 RELAY; HORN
12V YAZAKI THA 		8-97309-293-0 01 1 1110- ● ● ● ● ●
742 RELAY; THERMO
12V YAZAKI THA 		8-97309-293-0 01 1 1109-1109 ● ●
742 RELAY; THERMO
12V YAZAKI THA 		8-97309-293-0 01 1 1110- ● ● ● ● ●
743 RELAY; A/C COMPRESSOR
12V YAZAKI THA 		8-97309-293-0 01 1 1109-1109 ● ●
743 RELAY; A/C COMPRESSOR
12V YAZAKI THA 		8-97309-293-0 01 1 1110- ● ● ● ● ●
745 RELAY; HEATER
(B) 12V YAZAKI THA 		8-97309-292-0 01 1 1109-1109 ● ●
745 RELAY; HEATER
(B) 12V YAZAKI THA 		8-97309-292-0 01 1 1110- ● ● ● ● ●
745 RELAY; HEATER
(A) 12V YAZAKI THA 		8-98146-834-0 01 1 1109-1109 ● ●
745 RELAY; HEATER
(A) 12V YAZAKI THA 		8-98146-834-0 01 1 1110- ● ● ● ● ●
746 RELAY; ECM,MAIN
12V YAZAKI THA 		8-98146-834-0 01 1 1109-1109 ● ●
746 RELAY; ECM,MAIN
12V YAZAKI THA 		8-98146-834-0 01 1 1110- ● ● ● ● ●
747 RELAY; GLOW
12V YAZAKI THA 		8-98146-837-0 01 1 1109-1109 ● ●
747 RELAY; GLOW
12V YAZAKI THA 		8-98146-837-0 01 1 1110- ● ● ● ● ●
748 RELAY; STARTER
12V YAZAKI THA 		8-98146-837-0 01 1 1109-1109 ● ●
748 RELAY; STARTER
12V YAZAKI THA 		8-98146-837-0 01 1 1110- ● ● ● ● ●

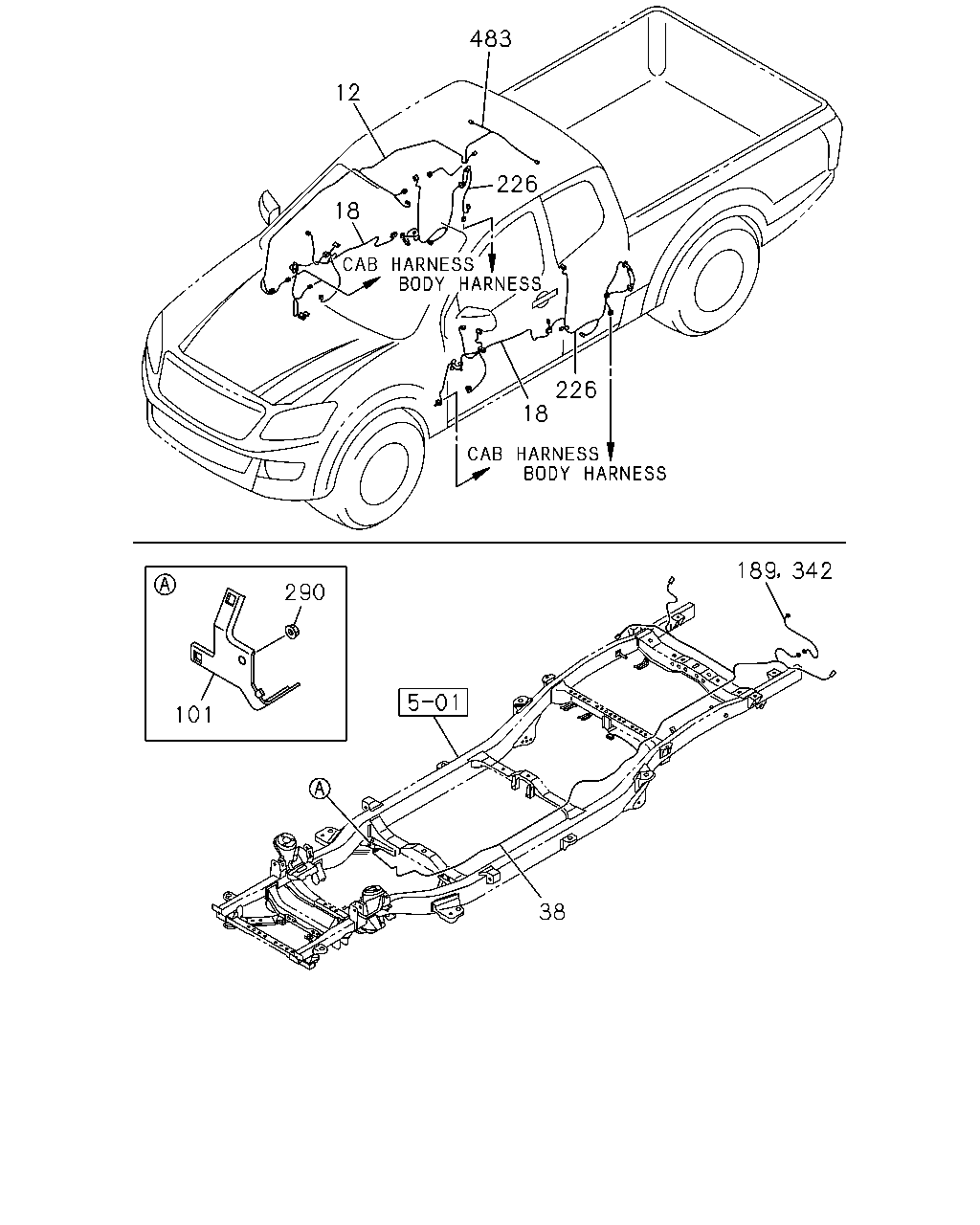

çizim 147282
38 101 290 18 226 226 483 12 18 189 342
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 HARNESS; ROOF
HEADER CONSOLE<DK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> 6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98209-216-2 01 1 1212- ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98209-218-2 01 1 1212- ●
12 HARNESS; ROOF
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98209-218-2 01 1 1212- ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98159-479-2 01 1 1109-1109 ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98159-479-2 01 1 1110-1211 ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-479-2 01 1 1110-1211 ●
12 HARNESS; ROOF
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-479-2 01 1 1110-1211 ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> 6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98159-479-3 01 1 1212- ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-479-3 01 1 1212- ●
12 HARNESS; ROOF
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-479-3 01 1 1212- ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98159-478-2 01 1 1109-1109 ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98159-478-2 01 1 1110-1211 ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-478-2 01 1 1110-1211 ●
12 HARNESS; ROOF
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-478-2 01 1 1110-1211 ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98159-478-2 01 1 1212- ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-478-2 01 1 1212- ●
12 HARNESS; ROOF
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-478-2 01 1 1212- ●
12 HARNESS; ROOF
EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98159-475-2 01 1 1109-1109 ● ●
12 HARNESS; ROOF
EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98159-475-2 01 1 1110-1211 ● ●
12 HARNESS; ROOF
EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-475-2 01 1 1110-1211 ●
12 HARNESS; ROOF
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98159-475-2 01 1 1212- ● ●
12 HARNESS; ROOF
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-475-2 01 1 1212- ●
12 HARNESS; ROOF
THA 		8-98159-331-0 01 1 1110- ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-365-1 01 1 1212- ● ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-362-1 01 1 1212- ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-362-1 01 1 1212- ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-362-1 01 1 1212- ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-364-1 01 1 1212- ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-364-1 01 1 1212- ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-364-1 01 1 1212- ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> EXC. AUTO DOOR LOCK<AU4> THA 		8-98159-492-3 01 1 1110- ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> EXC. AUTO DOOR LOCK<AU4> THA 		8-98159-510-4 01 1 1110- ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98200-072-2 01 1 1109-1109 ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98200-072-2 01 1 1110-1211 ● ● ●
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98225-363-1 01 1 1212- ● ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98200-117-1 01 1 1109-1109 ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98200-117-1 01 1 1110- ● ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-490-3 01 1 1109-1109 ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-490-3 01 1 1110- ● ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> THA 		8-98159-490-3 01 1 1110- ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-508-4 01 1 1109-1109 ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-508-4 01 1 1110-1211 ● ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> THA 		8-98159-508-4 01 1 1110-1211 ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,REM OTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-508-5 01 1 1212- ● ●
18 HARNESS; DOOR
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-508-5 01 1 1212- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOORMIRROR BLACK<RT9> THA 		8-98159-508-5 01 1 1212- ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-486-3 01 1 1109-1109 ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-486-3 01 1 1110-1211 ● ● ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-486-4 01 1 1212- ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-486-4 01 1 1212- ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-502-4 01 1 1109-1109 ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-502-4 01 1 1110-1211 ● ● ● ●
18 HARNESS; DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-211-3 01 1 1212- ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-488-3 01 1 1109-1109 ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-488-3 01 1 1110-1211 ● ● ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-488-4 01 1 1212- ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-488-4 01 1 1212- ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-506-4 01 1 1109-1109 ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-506-4 01 1 1110-1211 ● ● ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,REM OTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-506-5 01 1 1212- ● ●
18 HARNESS; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-506-5 01 1 1212- ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98209-205-3 01 1 1212- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> HIGH RIDE SUSPENSION<7YC> THA 		8-98209-205-3 01 1 1212- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-205-3 01 1 1212- ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-205-3 01 1 1212- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98209-203-3 01 1 1212- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98209-203-3 01 1 1212- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98209-203-3 01 1 1212- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA 		8-98209-203-3 01 1 1212- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-203-3 01 1 1212- ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-203-3 01 1 1212- ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98159-322-1 01 1 1109-1109 ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98159-322-1 01 1 1109-1109 ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-322-1 01 1 1109-1109 ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98159-322-1 01 1 1110-1211 ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98159-322-1 01 1 1110-1211 ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-322-1 01 1 1110-1211 ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-322-1 01 1 1110-1211 ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98159-322-2 01 1 1212- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> HIGH RIDE SUSPENSION<7YC> THA 		8-98159-322-2 01 1 1212- ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98159-322-2 01 1 1212- ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98159-322-2 01 1 1212- ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-323-1 01 1 1109-1109 ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-323-1 01 1 1110-1211 ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-323-2 01 1 1212- ● ●
38 HARNESS; CHAS
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-317-1 01 1 1109-1109 ●
38 HARNESS; CHAS
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-317-1 01 1 1109-1109 ●
38 HARNESS; CHAS
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-317-1 01 1 1109-1109 ●
38 HARNESS; CHAS
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-317-1 01 1 1110-1211 ●
38 HARNESS; CHAS
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-317-1 01 1 1110-1211 ●
38 HARNESS; CHAS
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-317-1 01 1 1110-1211 ●
38 HARNESS; CHAS
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> REAR BODY DELETE<8HH> THA 		8-98159-317-1 01 1 1110-1211 ●
38 HARNESS; CHAS
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-317-1 01 1 1110-1211 ●
38 HARNESS; CHAS
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98159-317-1 01 1 1110-1211 ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98159-317-1 01 1 1110-1211 ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-317-2 01 1 1212- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-317-2 01 1 1212- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98159-317-2 01 1 1212- ●
38 HARNESS; CHAS
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> REAR BODY DELETE<8HH> THA 		8-98159-317-2 01 1 1212- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-317-2 01 1 1212- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98159-317-2 01 1 1212- ●
38 HARNESS; CHAS
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98159-317-2 01 1 1212- ●
38 HARNESS; CHAS
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>, HIGH RIDE SUSPENSION<7YC> THA 		8-98159-318-1 01 1 1109-1109 ●
38 HARNESS; CHAS
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>, HIGH RIDE SUSPENSION<7YC> THA 		8-98159-318-1 01 1 1110-1211 ●
38 HARNESS; CHAS
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> REAR BODY DBL WALL CTR PULL<E63> THA 		8-98159-318-1 01 1 1110-1211 ●
38 HARNESS; CHAS
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-318-1 01 1 1110-1211 ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,H IGH RIDE SUSPENSION<7YC> THA 		8-98159-318-2 01 1 1212- ●
38 HARNESS; CHAS
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> REAR BODY DBL WALL CTR PULL<E63> RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98159-318-2 01 1 1212- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,HIGH RIDE SUSPENSION<7YC> THA 		8-98159-318-2 01 1 1212- ●
101 BRACKET; HARNESS CONNECTOR
THA 		8-98102-999-0 01 1 1109-1109 ● ●
101 BRACKET; HARNESS CONNECTOR
THA 		8-98102-999-0 01 1 1110- ● ● ● ● ●
189 HARNESS; EXT
HIGH RIDE SUSPENSION<7YC> EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98140-863-0 01 1 1109-1109 ●
189 HARNESS; EXT
EXC. REAR STEP BUMPER CHROME<V42> THA 		8-98140-863-0 01 1 1109-1109 ●
189 HARNESS; EXT
HIGH RIDE SUSPENSION<7YC> EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98140-863-0 01 1 1110- ● ●
189 HARNESS; EXT
EXC. REAR STEP BUMPER CHROME<V42> THA 		8-98140-863-0 01 1 1110- ●
189 HARNESS; EXT
REAR BODY DELETE<8HH> THA 		8-98140-863-0 01 1 1110- ●
226 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98159-355-6 01 1 1109- ● ●
226 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98167-613-6 01 1 1109- ● ●
226 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98159-354-4 01 1 1109- ● ●
226 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98167-612-4 01 1 1109- ● ●
226 HARNESS; RR DOOR
8-SPEAKER SYSTEM CUSTOM<U87> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-533-3 01 1 1110- ● ●
226 HARNESS; RR DOOR
8-SPEAKER SYSTEM CUSTOM<U87> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-534-3 01 1 1110- ● ●
226 HARNESS; RR DOOR
8-SPEAKER SYSTEM CUSTOM<U87> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-527-3 01 1 1110- ● ●
226 HARNESS; RR DOOR
8-SPEAKER SYSTEM CUSTOM<U87> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-528-3 01 1 1110- ● ●
226 HARNESS; RR DOOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-535-3 01 1 1110- ● ●
226 HARNESS; RR DOOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98159-536-3 01 1 1110- ● ●
226 HARNESS; RR DOOR
EXC. 8-SPEAKER SYSTEM CUSTOM<U87>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-525-3 01 1 1110- ● ●
226 HARNESS; RR DOOR
EXC. 8-SPEAKER SYSTEM CUSTOM<U87>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98159-526-3 01 1 1110- ● ●
290 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 1109-1109 ● ●
290 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 1110- ● ● ● ● ●
342 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98137-580-2 01 1 1109-1109 ●
342 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER CHROME<V42> THA 		8-98137-580-2 01 1 1109-1109 ●
342 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA 		8-98137-580-2 01 1 1110- ● ●
342 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER CHROME<V42> THA 		8-98137-580-2 01 1 1110- ● ●
483 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98165-202-2 01 1 1109-1109 ● ●
483 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> THA 		8-98165-202-2 01 1 1110- ● ●
483 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98165-202-2 01 1 1110- ●
483 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98165-202-2 01 1 1110- ●
483 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> THA 		8-98129-592-2 01 1 1109-1109 ● ●
483 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> THA 		8-98129-592-2 01 1 1110- ● ●
483 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. HEADER CONSOLE<DK6> THA 		8-98129-592-2 01 1 1110- ●

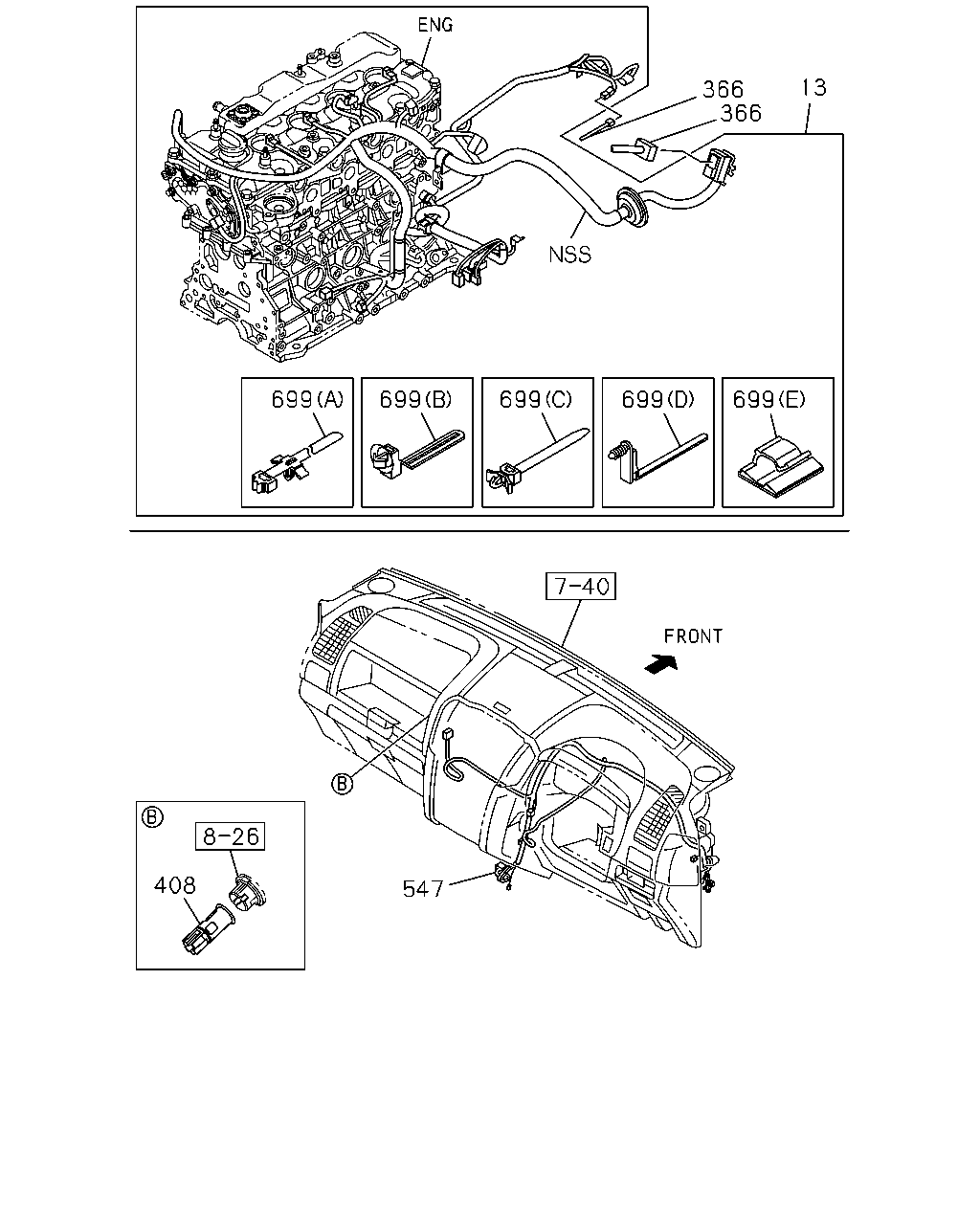

çizim 147296
366 366 13 699 699 699 699 699 408 547
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98108-656-7 01 1 1109-1208 ●
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98224-342-2 01 1 1209-1401 ●
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98260-540-0 01 1 1402- ●
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98108-654-7 01 1 1109-1109 ●
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98108-654-7 01 1 1110-1208 ● ● ●
13 HARNESS; ENG
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98224-341-2 01 1 1209- ● ● ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98108-662-7 01 1 1109-1109 ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98108-662-7 01 1 1110-1208 ● ● ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98224-343-2 01 1 1209- ● ● ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98108-650-8 01 1 1109-1109 ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98108-650-8 01 1 1110-1208 ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA 		8-98108-650-8 01 1 1110-1208 ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98224-348-2 01 1 1209- ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA 		8-98224-348-2 01 1 1209- ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98108-646-7 01 1 1109-1109 ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98108-646-7 01 1 1110-1208 ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA 		8-98108-646-7 01 1 1110-1208 ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98224-339-2 01 1 1209- ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA 		8-98224-339-2 01 1 1209- ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98108-664-7 01 1 1109-1109 ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98108-664-7 01 1 1110-1208 ● ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98224-344-2 01 1 1209-1401 ● ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98260-541-0 01 1 1402- ● ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98108-648-7 01 1 1109-1109 ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98108-648-7 01 1 1110-1208 ● ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98224-340-2 01 1 1209-1401 ● ●
13 HARNESS; ENG
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98260-539-0 01 1 1402- ● ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98173-605-6 01 1 1110-1208 ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98224-347-2 01 1 1209-1401 ●
13 HARNESS; ENG
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98260-547-0 01 1 1402- ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-196-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-196-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-196-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-196-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-198-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-198-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-198-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-198-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-133-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-133-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-133-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-133-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-191-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-191-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-191-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-191-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98210-195-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-195-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98210-195-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-195-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-137-3 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-137-3 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-137-4 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98209-137-4 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-193-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-193-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-193-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-193-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98210-197-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-197-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98210-197-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-197-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-131-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-131-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-190-4 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98210-190-5 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-907-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-907-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-187-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-187-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-187-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-187-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-189-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-189-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98210-189-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-189-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98210-186-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-186-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98210-186-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-186-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98210-188-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-188-2 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98210-188-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98210-188-3 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-912-3 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-542-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-542-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-542-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-542-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-542-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-542-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-542-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-548-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-548-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-548-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-548-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-548-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-548-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-548-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-539-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-539-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-539-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-539-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-539-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-539-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-539-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-545-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-545-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-545-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-545-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-545-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-545-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-545-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-543-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-543-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-543-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-543-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-543-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-543-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-543-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-549-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-549-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98160-549-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-549-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-549-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-549-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-549-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-549-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-549-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-549-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-540-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-540-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-540-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-540-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-540-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-540-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-540-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-546-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-546-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-546-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-546-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-546-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-546-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-546-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-526-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-526-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-526-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-526-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-526-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-526-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-526-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-532-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-532-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-532-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-532-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-532-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98160-532-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-532-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-523-6 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98160-523-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-523-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-523-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-523-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-523-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-523-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-529-7 01 1 1109-1109 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98160-529-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-529-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-529-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-529-8 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-529-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-529-9 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-537-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-537-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-537-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-538-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-538-7 01 1 1212-1309 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-538-8 01 1 1310- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-525-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-525-8 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-531-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-531-9 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-520-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98160-520-8 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-522-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-522-8 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-528-8 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE<AK6> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-528-9 01 1 1212- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98160-521-7 01 1 1110-1211 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98160-521-8 01 1 1212- ●
408 SOCKET ASM; ACCESSORY
IMA 		8-98123-115-0 01 1 1109-1109 ● ●
408 SOCKET ASM; ACCESSORY
IMA 		8-98123-115-0 01 1 1110- ● ● ● ●
408 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> IMA 		8-98123-115-0 01 1 1110- ●
547 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98159-334-3 01 1 1109-1109 ● ●
547 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98159-334-4 01 1 1110- ● ● ● ●
699 CLIP; ENG HARNESS
(D) THA 		8-98182-511-0 02 1 1212-1401 ● ● ● ● ●
699 CLIP; ENG HARNESS
(D) THA 		8-98182-511-0 02 1 1402- ● ● ●
699 CLIP; ENG HARNESS
(A) L=135 IMA 		8-94473-399-0 01 1 1212-1401 ● ● ● ● ●
699 CLIP; ENG HARNESS
(A) L=135 IMA 		8-94473-399-0 01 1 1402- ● ● ●
699 CLIP; ENG HARNESS
(B) L=155 THA 		8-97173-307-0 02 1 1212-1401 ● ● ● ● ●
699 CLIP; ENG HARNESS
(B) L=155 THA 		8-97173-307-0 02 1 1402- ● ● ●
699 CLIP; ENG HARNESS
(B) L=140 THA 		8-97378-707-0 01 1 1212-1401 ● ● ● ● ●
699 CLIP; ENG HARNESS
(B) L=140 THA 		8-97378-707-0 01 1 1402- ● ● ●
699 CLIP; ENG HARNESS
(C) L=146.2 IMA 		8-98052-677-0 01 1 1212-1401 ● ● ● ● ●
699 CLIP; ENG HARNESS
(C) L=146.2 IMA 		8-98052-677-0 01 1 1402- ● ● ●
699 CLIP; ENG HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> (E) ID=7 THA 		8-98158-303-0 02 1 1212- ●
çizim 147309
4 174 174 1 11 1 662
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-155-4 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-156-4 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-161-4 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> COOLER W/FRESH AIR<C65> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-161-4 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-162-4 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> COOLER W/FRESH AIR<C65> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-162-4 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-464-6 01 1 1212- ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-464-6 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-466-5 01 1 1212-1306 ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-466-5 01 1 1212-1306 ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-457-6 01 1 1212- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> COOLER W/FRESH AIR<C65> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-457-6 01 1 1212- ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> COOLER W/FRESH AIR<C65> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-457-6 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-459-6 01 1 1212- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> COOLER W/FRESH AIR<C65> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-459-6 01 1 1212- ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> COOLER W/FRESH AIR<C65> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-459-6 01 1 1212- ●
1 HARNESS; CAB
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR BASIC<RBA> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> EXC. AUTO DOOR LOCK<AU4> THA 		8-98160-469-5 01 1 1110-1211 ●
1 HARNESS; CAB
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR BASIC<RBA> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. AUTO DOOR LOCK<AU4> THA 		8-98160-469-5 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-464-5 01 1 1110-1211 ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-464-5 01 1 1110-1211 ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-159-2 01 1 1212- ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-159-2 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-466-5 01 1 1110-1211 ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-466-5 01 1 1110-1211 ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-160-1 01 1 1212-1306 ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-160-1 01 1 1212-1306 ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-467-5 01 1 1109-1109 ● ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-467-5 01 1 1110-1211 ● ●
1 HARNESS; CAB
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR DELUXE<RBB> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98160-467-5 01 1 1110-1211 ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> COOLER W/FRESH AIR<C65> EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-467-5 01 1 1110-1211 ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,REM OTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-467-6 01 1 1212- ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-467-6 01 1 1212- ●
1 HARNESS; CAB
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> INTERIOR DELUXE<RBB> AUTO DOOR LOCK<AU4> COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-467-6 01 1 1212- ●
1 HARNESS; CAB
INTERIOR DELUXE<RBB> COOLER W/FRESH AIR<C65> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,REM OTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-467-6 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-457-5 01 1 1109-1109 ● ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-457-5 01 1 1110-1211 ● ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> COOLER W/FRESH AIR<C65> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-457-5 01 1 1110-1211 ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> COOLER W/FRESH AIR<C65> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-457-5 01 1 1110-1211 ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-166-2 01 1 1212- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> COOLER W/FRESH AIR<C65> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-166-2 01 1 1212- ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> COOLER W/FRESH AIR<C65> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-166-2 01 1 1212- ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-459-5 01 1 1109-1109 ● ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-459-5 01 1 1110-1211 ● ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> COOLER W/FRESH AIR<C65> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-459-5 01 1 1110-1211 ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> COOLER W/FRESH AIR<C65> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98160-459-5 01 1 1110-1211 ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-167-2 01 1 1212- ● ●
1 HARNESS; CAB
INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> COOLER W/FRESH AIR<C65> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-167-2 01 1 1212- ●
1 HARNESS; CAB
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> COOLER W/FRESH AIR<C65> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-167-2 01 1 1212- ●
4 BOX ASM; FUSE,HARNESS
THA 		8-98166-751-0 01 1 1109-1109 ● ●
4 BOX ASM; FUSE,HARNESS
THA 		8-98166-751-0 01 1 1110- ● ● ● ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-568-7 01 1 1212- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98160-569-5 01 1 1212- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-194-5 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-194-5 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-194-5 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> PASSIVE ENTRY AND START SYSTEM<AP3> REAR DEFOGGER<C49> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-188-5 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-188-5 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET STANDARD<A50> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-188-5 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-195-4 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-195-4 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> PASSIVE ENTRY AND START SYSTEM<AP3> REAR DEFOGGER<C49> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98209-189-4 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98209-189-4 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET STANDARD<A50> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-189-4 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> THA 		8-98160-568-6 01 1 1109-1211 ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-182-3 01 1 1212- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> EXC. REAR DEFOGGER<C49> THA 		8-98160-572-6 01 1 1109-1211 ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. REAR DEFOGGER<C49> THA 		8-98160-572-6 01 1 1212- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> THA 		8-98160-569-4 01 1 1109-1211 ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98209-183-2 01 1 1212- ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> EXC. REAR DEFOGGER<C49> THA 		8-98160-573-4 01 1 1109-1211 ● ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. REAR DEFOGGER<C49> THA 		8-98160-573-4 01 1 1212- ● ●
11 HARNESS; BODY
THA 		8-98160-557-2 01 1 1110- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> THA 		8-98160-627-6 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA 		8-98160-627-6 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-627-7 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98160-627-7 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49> THA 		8-98160-629-6 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR DEFOGGER<C49> THA 		8-98160-629-7 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> THA 		8-98160-597-6 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET STANDARD<A50> THA 		8-98160-597-6 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-597-7 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET STANDARD<A50> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98160-597-7 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> EXC. REAR DEFOGGER<C49> THA 		8-98160-590-6 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR DEFOGGER<C49> THA 		8-98160-590-7 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> THA 		8-98160-630-4 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA 		8-98160-630-4 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-630-5 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98160-630-5 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49> THA 		8-98160-631-4 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR DEFOGGER<C49> THA 		8-98160-631-5 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> THA 		8-98160-592-4 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET STANDARD<A50> THA 		8-98160-592-4 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98160-592-5 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET STANDARD<A50> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98160-592-5 01 1 1212- ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> EXC. REAR DEFOGGER<C49> THA 		8-98160-594-4 01 1 1110-1211 ●
11 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONTSEAT BUCKET STANDARD<A50> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR DEFOGGER<C49> THA 		8-98160-594-5 01 1 1212- ●
174 FUSE; SLOW BLOW
(A) 20A BLUE THA 		8-98079-189-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(A) 20A BLUE THA 		8-98079-189-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE IMA 		1-82516-028-1 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE IMA 		1-82516-028-1 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK THA 		8-98079-191-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN THA 		8-98079-192-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN THA 		8-98079-192-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 50A RED THA 		8-98079-193-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(B) 50A RED THA 		8-98079-193-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(A) 60A YELLOW THA 		8-97219-407-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(A) 60A YELLOW THA 		8-97219-407-0 AR 1 1110- ● ● ● ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW THA 		8-98197-288-0 AR 1 1109-1109 ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW THA 		8-98197-288-0 AR 1 1110- ● ● ● ● ●
662 HARNESS; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> THA 		8-98163-074-0 01 1 1109-1109 ● ●
662 HARNESS; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> THA 		8-98163-074-0 01 1 1110-1211 ● ● ●
662 HARNESS; IMMOBILIZER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> THA 		8-98163-074-0 01 1 1110-1211 ●
662 HARNESS; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> THA 		8-98163-074-0 01 1 1212- ● ●
662 HARNESS; IMMOBILIZER
THA 		8-98163-074-0 01 1 1212- ●
662 HARNESS; IMMOBILIZER
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> THA 		8-98163-074-0 01 1 1212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
