◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#81779) — 12 parça

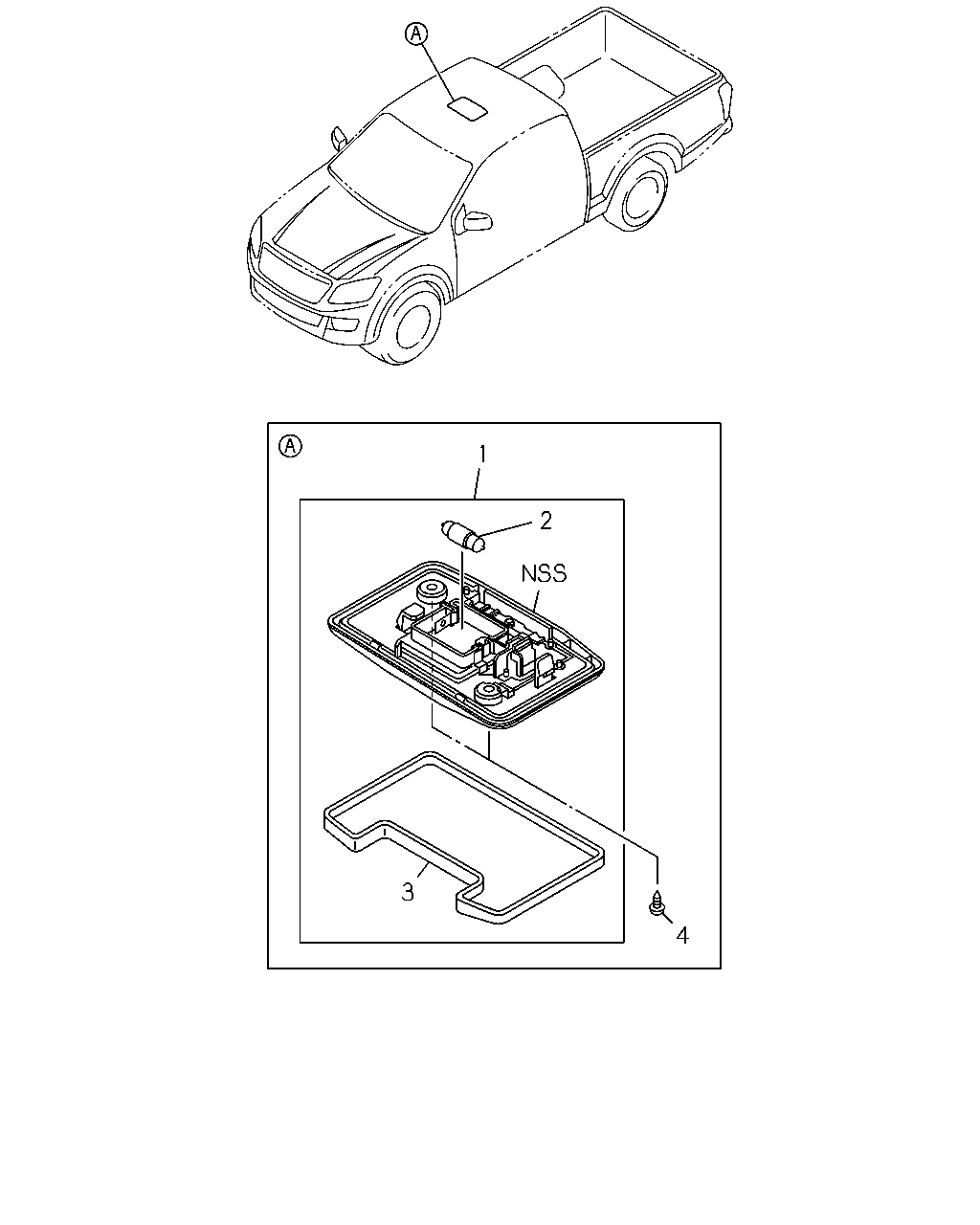

çizim 147299
1 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; ROOM
INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97423-972-0 01 1 1212- ● ●
1 LAMP ASM; ROOM
GRAY THA 		8-97419-992-0 01 1 1109-1109 ● ●
1 LAMP ASM; ROOM
GRAY THA 		8-97419-992-0 01 1 1110-1211 ● ● ● ● ●
1 LAMP ASM; ROOM
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA 		8-97419-992-0 01 1 1212- ● ●
1 LAMP ASM; ROOM
GRAY THA 		8-97419-992-0 01 1 1212- ● ● ●
2 BULB; ROOM LAMP
12V 10W THA 		8-97128-771-0 01 1 1109-1109 ● ●
2 BULB; ROOM LAMP
12V 10W THA 		8-97128-771-0 01 1 1110- ● ● ● ● ●
3 LENS; ROOM LAMP
THA 		8-97333-429-0 01 1 1109-1109 ● ●
3 LENS; ROOM LAMP
THA 		8-97333-429-0 01 1 1110- ● ● ● ● ●
4 SCREW; ROOM LAMP
M5X12 TAPPING IMA 		0-71040-512-0 02 1 1109-1109 ● ●
4 SCREW; ROOM LAMP
M5X12 TAPPING IMA 		0-71040-512-0 02 1 1110-1211 ● ● ● ● ●
4 SCREW; ROOM LAMP
M5X12 TAPPING IMA 		0-71040-512-0 02 1 1212- ● ● ● ● ●
