Sayfa 8-03 - Isuzu EPC

8-03 — LAMP; REAR AND REAR SIDE (#81778) — 216 parça

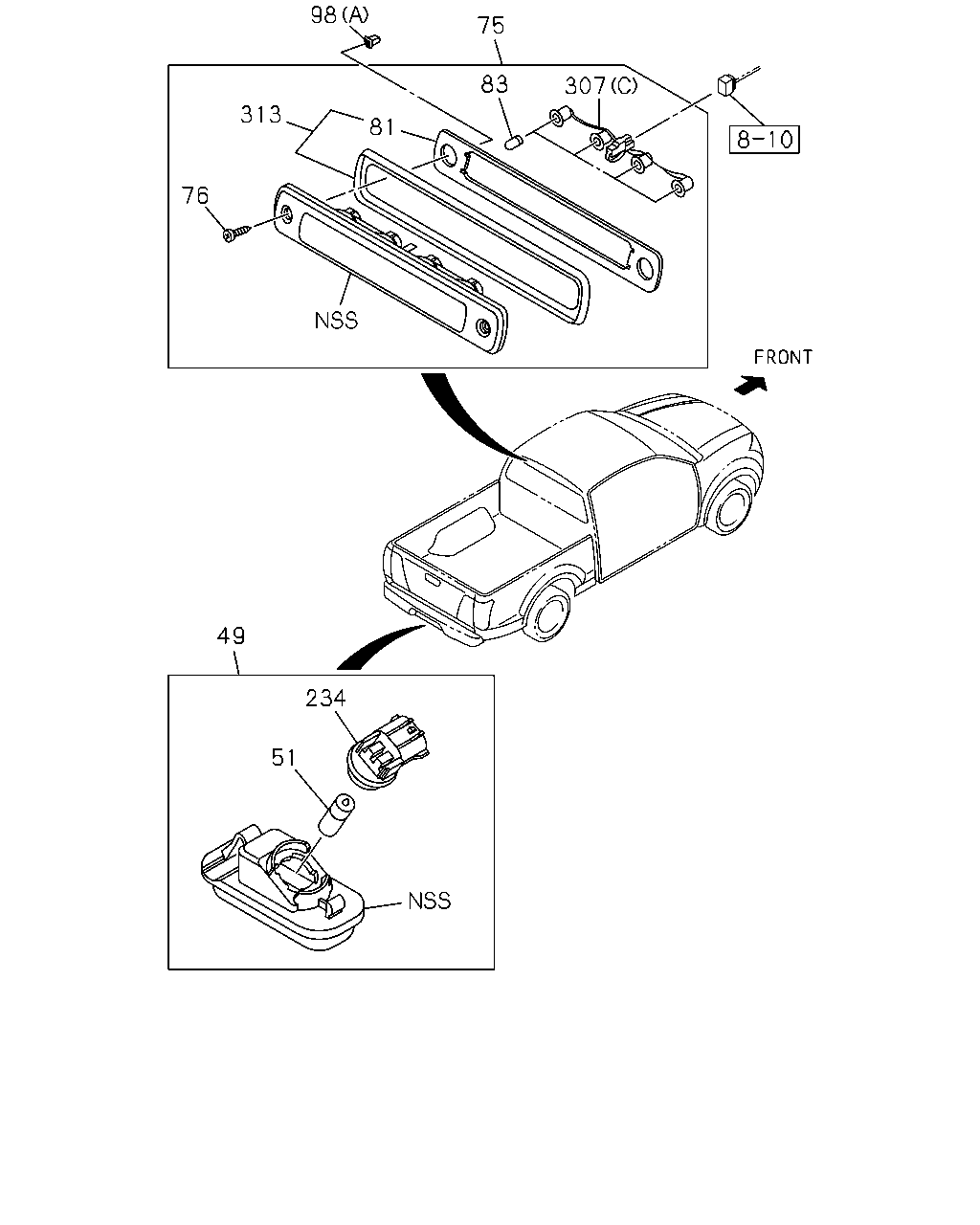

49 234 51 75 307 83 81 313 76 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
49	LAMP; LICENSE PLATE REAR BODY DELETE<8HH> THA	8-97236-690-1	02	1	1203-1209	●
49	LAMP; LICENSE PLATE REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98200-930-0	01	1	1109-1109		●
49	LAMP; LICENSE PLATE REAR STEP BUMPER CHROME<V42> THA	8-98200-930-0	01	1	1109-1109			●
49	LAMP; LICENSE PLATE REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98200-930-0	01	1	1110-1209		●		●
49	LAMP; LICENSE PLATE REAR STEP BUMPER CHROME<V42> THA	8-98200-930-0	01	1	1110-1209			●		●
49	LAMP; LICENSE PLATE REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98224-482-0	01	1	1210-		●		●
49	LAMP; LICENSE PLATE REAR STEP BUMPER CHROME<V42> THA	8-98224-482-0	01	1	1210-			●		●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-97236-690-1	02	1	1109-1109		●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42> THA	8-97236-690-1	02	1	1109-1109			●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98200-930-0	02	1	1110-1202		●		●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42> THA	8-98200-930-0	02	1	1110-1202			●
49	LAMP; LICENSE PLATE THA	8-98200-930-0	02	1	1110-1202	●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98200-930-0	02	1	1203-1209		●		●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42> THA	8-98200-930-0	02	1	1203-1209			●
49	LAMP; LICENSE PLATE REAR BODY DBL WALL CTR PULL<E63> THA	8-98200-930-0	02	1	1203-1209	●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98224-482-0	02	1	1210-		●		●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42> THA	8-98224-482-0	02	1	1210-			●
49	LAMP; LICENSE PLATE THA	8-98224-482-0	02	1	1210-	●
51	BULB; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> 12V 5W THA	8-94124-595-0	01	1	1109-1109		●
51	BULB; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42> 12V 5W THA	8-94124-595-0	01	1	1109-1109			●
51	BULB; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> 12V 5W THA	8-94124-595-0	01	1	1110-		●		●
51	BULB; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42> 12V 5W THA	8-94124-595-0	01	1	1110-			●		●
51	BULB; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> 12V 5W THA	8-94124-595-0	02	1	1109-1109		●
51	BULB; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42> 12V 5W THA	8-94124-595-0	02	1	1109-1109			●
51	BULB; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> 12V 5W THA	8-94124-595-0	02	1	1110-		●		●
51	BULB; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42> 12V 5W THA	8-94124-595-0	02	1	1110-			●
51	BULB; LICENSE PLATE LAMP 12V 5W THA	8-94124-595-0	02	1	1110-	●
75	LAMP ASM; STOP,HIGHMOUNTED THA	8-98084-142-2	01	1	1109-1109		●	●
75	LAMP ASM; STOP,HIGHMOUNTED THA	8-98084-142-2	01	1	1110-1312		●	●	●	●
75	LAMP ASM; STOP,HIGHMOUNTED THA	8-98255-655-2	01	1	1401-		●	●	●	●
76	SCREW; STOP LAMP,HIGHMOUNTED THA	8-98193-901-0	02	1	1109-1109		●	●
76	SCREW; STOP LAMP,HIGHMOUNTED THA	8-98193-901-0	02	1	1110-		●	●	●	●
81	GASKET; STOP LAMP THA	8-98193-899-0	01	1	1109-1109		●	●
81	GASKET; STOP LAMP THA	8-98193-899-0	01	1	1110-1312		●	●	●	●
81	GASKET; STOP LAMP THA	8-98257-962-0	01	1	1401-		●	●	●	●
83	BULB; STOP LAMP,HIGHMOUNTED 12V 5W THA	8-98193-898-0	04	1	1109-1109		●	●
83	BULB; STOP LAMP,HIGHMOUNTED 12V 5W THA	8-98193-898-0	04	1	1110-		●	●	●	●
98	WASHER (A) THA	8-94279-039-0	02	1	1109-1109		●	●
98	WASHER (A) THA	8-94279-039-0	02	1	1110-1312		●	●	●	●
98	WASHER (A) D=7.8X7.8 L=18 NATURAL IMA	8-94279-043-0	02	1	1401-		●	●	●	●
98	WASHER (B) D=16 THA	8-94427-941-0	04	1	1109-1109		●	●
98	WASHER (B) D=16 THA	8-94427-941-0	04	1	1110-		●	●	●	●
98	WASHER REAR BODY DBL WALL CTR PULL<E63> (B) D=16 THA	8-94427-941-0	04	1	1110-	●
234	SOCKET ASM; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	1-82119-148-0	01	1	1109-1109		●
234	SOCKET ASM; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42> THA	1-82119-148-0	01	1	1109-1109			●
234	SOCKET ASM; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	1-82119-148-0	01	1	1110-		●		●
234	SOCKET ASM; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42> THA	1-82119-148-0	01	1	1110-			●		●
234	SOCKET ASM; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	1-82119-148-0	02	1	1109-1109		●
234	SOCKET ASM; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42> THA	1-82119-148-0	02	1	1109-1109			●
234	SOCKET ASM; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	1-82119-148-0	02	1	1110-		●		●
234	SOCKET ASM; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42> THA	1-82119-148-0	02	1	1110-			●
234	SOCKET ASM; LICENSE PLATE LAMP THA	1-82119-148-0	02	1	1110-	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98193-891-0	01	1	1109-1109		●	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98193-891-0	01	1	1109-1109		●	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98193-891-0	01	1	1110-		●	●	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98193-891-0	01	1	1110-		●	●	●
307	CORD ASM; LAMP (A) THA	8-98193-891-0	01	1	1110-					●
307	CORD ASM; LAMP (A) THA	8-98193-891-0	01	1	1110-					●
307	CORD ASM; LAMP (C) THA	8-98193-900-0	01	1	1109-1109		●	●
307	CORD ASM; LAMP (C) THA	8-98193-900-0	01	1	1110-		●	●	●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1109-1109		●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1109-1109		●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1110-		●	●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1110-		●	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98193-896-0	01	1	1110-	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98193-896-0	01	1	1110-	●
313	RUBBER & GASKET THA	8-98250-208-0	01	1	1212-		●	●	●	●

1 5 5 15 6 3 5 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98125-398-3	01	1	1109-1109		●	●
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98125-398-3	01	1	1110-		●	●	●
1	LAMP ASM; RR COMB (A) THA	8-98125-398-3	01	1	1110-					●
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98125-399-3	01	1	1109-1109		●	●
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98125-399-3	01	1	1110-		●	●	●
1	LAMP ASM; RR COMB (A) THA	8-98125-399-3	01	1	1110-					●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-402-3	01	1	1109-1109		●	●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-402-3	01	1	1110-		●	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98125-402-3	01	1	1110-	●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-403-3	01	1	1109-1109		●	●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-403-3	01	1	1110-		●	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98125-403-3	01	1	1110-	●
1	LAMP ASM; RR COMB REAR BODY DELETE<8HH> (C) IMA	8-97137-731-0	01	1	1110-	●
1	LAMP ASM; RR COMB REAR BODY DELETE<8HH> (C) IMA	8-97137-732-0	01	1	1110-	●
3	GASKET; RR COMB LAMP REAR BODY DELETE<8HH> IMA	5-82236-001-0	01	1	1110-	●
3	GASKET; RR COMB LAMP REAR BODY DELETE<8HH> IMA	5-82236-002-0	01	1	1110-	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1110-		●	●	●	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1110-		●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1110-	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1110-	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1110-		●	●	●	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1110-		●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1110-	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1110-	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1110-		●	●	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1110-		●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1110-	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1110-	●
5	BULB; RR COMB LAMP REAR BODY DELETE<8HH> (D) BACK-UP AND TURN SIGNAL 12V 21W THA	8-94124-074-0	04	1	1110-	●
5	BULB; RR COMB LAMP REAR BODY DELETE<8HH> (E) STOP 12V 21/5W THA	8-94125-959-0	02	1	1110-	●
6	LENS; RR COMB LAMP REAR BODY DELETE<8HH> IMA	5-82235-001-0	01	1	1110-	●
6	LENS; RR COMB LAMP REAR BODY DELETE<8HH> IMA	5-82235-002-0	01	1	1110-	●
9	NUT; LAMP,RR COMB REAR BODY DELETE<8HH> M5 FLANGE THA	8-98049-363-0	08	1	1110-	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1109-1109		●	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1109-1109		●	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1110-		●	●	●	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1110-		●	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA	8-97376-768-0	03	1	1110-	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA	8-97376-768-0	03	1	1110-	●
15	SCREW; RR COMB LAMP REAR BODY DELETE<8HH> M4X20 TAPPING STAINLESS IMA	0-71090-420-0	16	1	1110-	●

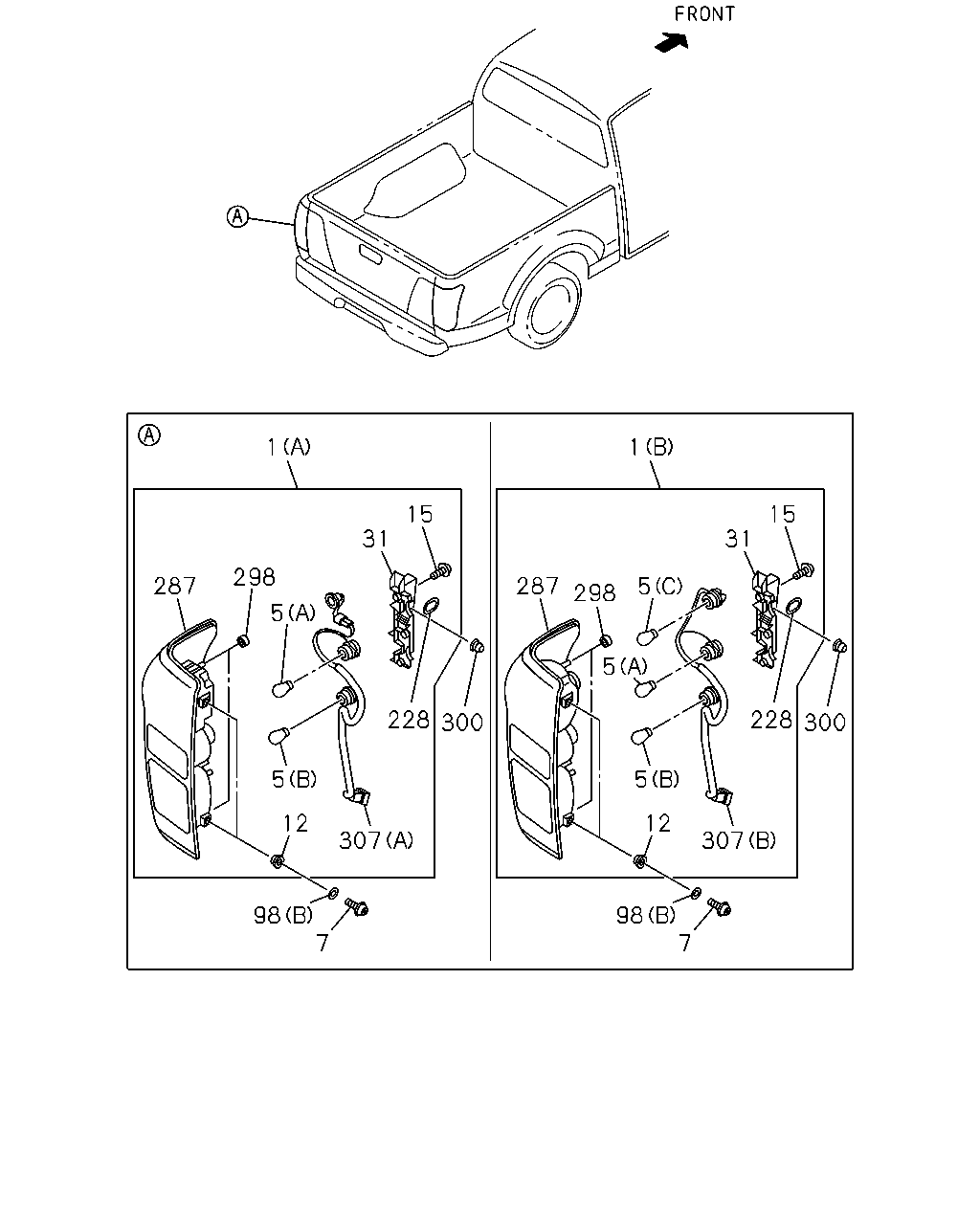

1 1 15 31 298 287 5 5 12 307 98 7 228 300 287 298 31 228 300 15 5 5 5 12 307 98 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98125-398-3	01	1	1109-1109		●	●
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98125-398-3	01	1	1110-		●	●	●
1	LAMP ASM; RR COMB (A) THA	8-98125-398-3	01	1	1110-					●
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98125-399-3	01	1	1109-1109		●	●
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98125-399-3	01	1	1110-		●	●	●
1	LAMP ASM; RR COMB (A) THA	8-98125-399-3	01	1	1110-					●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-402-3	01	1	1109-1109		●	●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-402-3	01	1	1110-		●	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98125-402-3	01	1	1110-	●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-403-3	01	1	1109-1109		●	●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-403-3	01	1	1110-		●	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98125-403-3	01	1	1110-	●
1	LAMP ASM; RR COMB REAR BODY DELETE<8HH> (C) IMA	8-97137-731-0	01	1	1110-	●
1	LAMP ASM; RR COMB REAR BODY DELETE<8HH> (C) IMA	8-97137-732-0	01	1	1110-	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1110-		●	●	●	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1110-		●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1110-	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1110-	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1110-		●	●	●	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1110-		●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1110-	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1110-	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1109-1109		●	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1110-		●	●	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1110-		●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1110-	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (C) STOP 12V 21/5W THA	8-94125-959-0	01	1	1110-	●
5	BULB; RR COMB LAMP REAR BODY DELETE<8HH> (D) BACK-UP AND TURN SIGNAL 12V 21W THA	8-94124-074-0	04	1	1110-	●
5	BULB; RR COMB LAMP REAR BODY DELETE<8HH> (E) STOP 12V 21/5W THA	8-94125-959-0	02	1	1110-	●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER THA	0-74160-514-0	04	1	1109-1109		●	●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER THA	0-74160-514-0	04	1	1110-		●	●	●	●
7	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> M5X14 TAPPING W/PL WASHER THA	0-74160-514-0	04	1	1110-	●
12	GROMMET; RR COMB LAMP THA	8-97349-413-0	02	1	1109-1109		●	●
12	GROMMET; RR COMB LAMP THA	8-97349-413-0	02	1	1109-1109		●	●
12	GROMMET; RR COMB LAMP THA	8-97349-413-0	02	1	1110-		●	●	●	●
12	GROMMET; RR COMB LAMP THA	8-97349-413-0	02	1	1110-		●	●	●	●
12	GROMMET; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97349-413-0	02	1	1110-	●
12	GROMMET; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97349-413-0	02	1	1110-	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1109-1109		●	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1109-1109		●	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1110-		●	●	●	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1110-		●	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA	8-97376-768-0	03	1	1110-	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA	8-97376-768-0	03	1	1110-	●
15	SCREW; RR COMB LAMP REAR BODY DELETE<8HH> M4X20 TAPPING STAINLESS IMA	0-71090-420-0	16	1	1110-	●
31	BRACKET; RR COMB LAMP THA	8-98193-892-0	01	1	1109-1109		●	●
31	BRACKET; RR COMB LAMP THA	8-98193-892-0	01	1	1110-		●	●	●	●
31	BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-98193-892-0	01	1	1110-	●
31	BRACKET; RR COMB LAMP THA	8-98193-893-0	01	1	1109-1109		●	●
31	BRACKET; RR COMB LAMP THA	8-98193-893-0	01	1	1110-		●	●	●	●
31	BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-98193-893-0	01	1	1110-	●
98	WASHER (A) THA	8-94279-039-0	02	1	1109-1109		●	●
98	WASHER (A) THA	8-94279-039-0	02	1	1110-1312		●	●	●	●
98	WASHER (A) D=7.8X7.8 L=18 NATURAL IMA	8-94279-043-0	02	1	1401-		●	●	●	●
98	WASHER (B) D=16 THA	8-94427-941-0	04	1	1109-1109		●	●
98	WASHER (B) D=16 THA	8-94427-941-0	04	1	1110-		●	●	●	●
98	WASHER REAR BODY DBL WALL CTR PULL<E63> (B) D=16 THA	8-94427-941-0	04	1	1110-	●
228	CLIP; COVER,RR COMB LAMP THA	8-97376-769-0	01	1	1109-1109		●	●
228	CLIP; COVER,RR COMB LAMP THA	8-97376-769-0	01	1	1109-1109		●	●
228	CLIP; COVER,RR COMB LAMP THA	8-97376-769-0	01	1	1110-		●	●	●	●
228	CLIP; COVER,RR COMB LAMP THA	8-97376-769-0	01	1	1110-		●	●	●	●
228	CLIP; COVER,RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97376-769-0	01	1	1110-	●
228	CLIP; COVER,RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97376-769-0	01	1	1110-	●
287	LAMP UNIT; RR COMB LAMPS TAIL AND STOP DELUXE<T81> THA	8-98131-710-0	01	1	1109-1109		●	●
287	LAMP UNIT; RR COMB LAMPS TAIL AND STOP DELUXE<T81> THA	8-98131-710-0	01	1	1110-		●	●	●
287	LAMP UNIT; RR COMB THA	8-98131-710-0	01	1	1110-					●
287	LAMP UNIT; RR COMB LAMPS TAIL AND STOP DELUXE<T81> THA	8-98131-711-0	01	1	1109-1109		●	●
287	LAMP UNIT; RR COMB LAMPS TAIL AND STOP DELUXE<T81> THA	8-98131-711-0	01	1	1110-		●	●	●
287	LAMP UNIT; RR COMB THA	8-98131-711-0	01	1	1110-					●
287	LAMP UNIT; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> THA	8-98131-706-0	01	1	1109-1109		●	●
287	LAMP UNIT; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> THA	8-98131-706-0	01	1	1110-		●	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL<E63> THA	8-98131-706-0	01	1	1110-	●
287	LAMP UNIT; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> THA	8-98131-707-0	01	1	1109-1109		●	●
287	LAMP UNIT; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> THA	8-98131-707-0	01	1	1110-		●	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL<E63> THA	8-98131-707-0	01	1	1110-	●
298	CAP; BREATHER,RR COMB LAMP THA	8-97289-148-0	02	1	1109-1109		●	●
298	CAP; BREATHER,RR COMB LAMP THA	8-97289-148-0	02	1	1109-1109		●	●
298	CAP; BREATHER,RR COMB LAMP THA	8-97289-148-0	02	1	1110-		●	●	●	●
298	CAP; BREATHER,RR COMB LAMP THA	8-97289-148-0	02	1	1110-		●	●	●	●
298	CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97289-148-0	02	1	1110-	●
298	CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97289-148-0	02	1	1110-	●
300	HOLDER; LAMP THA	8-97372-854-0	02	1	1109-1109		●	●
300	HOLDER; LAMP THA	8-97372-854-0	02	1	1110-		●	●	●	●
300	HOLDER; LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97372-854-0	02	1	1110-	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98193-891-0	01	1	1109-1109		●	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98193-891-0	01	1	1109-1109		●	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98193-891-0	01	1	1110-		●	●	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98193-891-0	01	1	1110-		●	●	●
307	CORD ASM; LAMP (A) THA	8-98193-891-0	01	1	1110-					●
307	CORD ASM; LAMP (A) THA	8-98193-891-0	01	1	1110-					●
307	CORD ASM; LAMP (C) THA	8-98193-900-0	01	1	1109-1109		●	●
307	CORD ASM; LAMP (C) THA	8-98193-900-0	01	1	1110-		●	●	●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1109-1109		●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1109-1109		●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1110-		●	●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1110-		●	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98193-896-0	01	1	1110-	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98193-896-0	01	1	1110-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
