◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#81776) — 47 parça

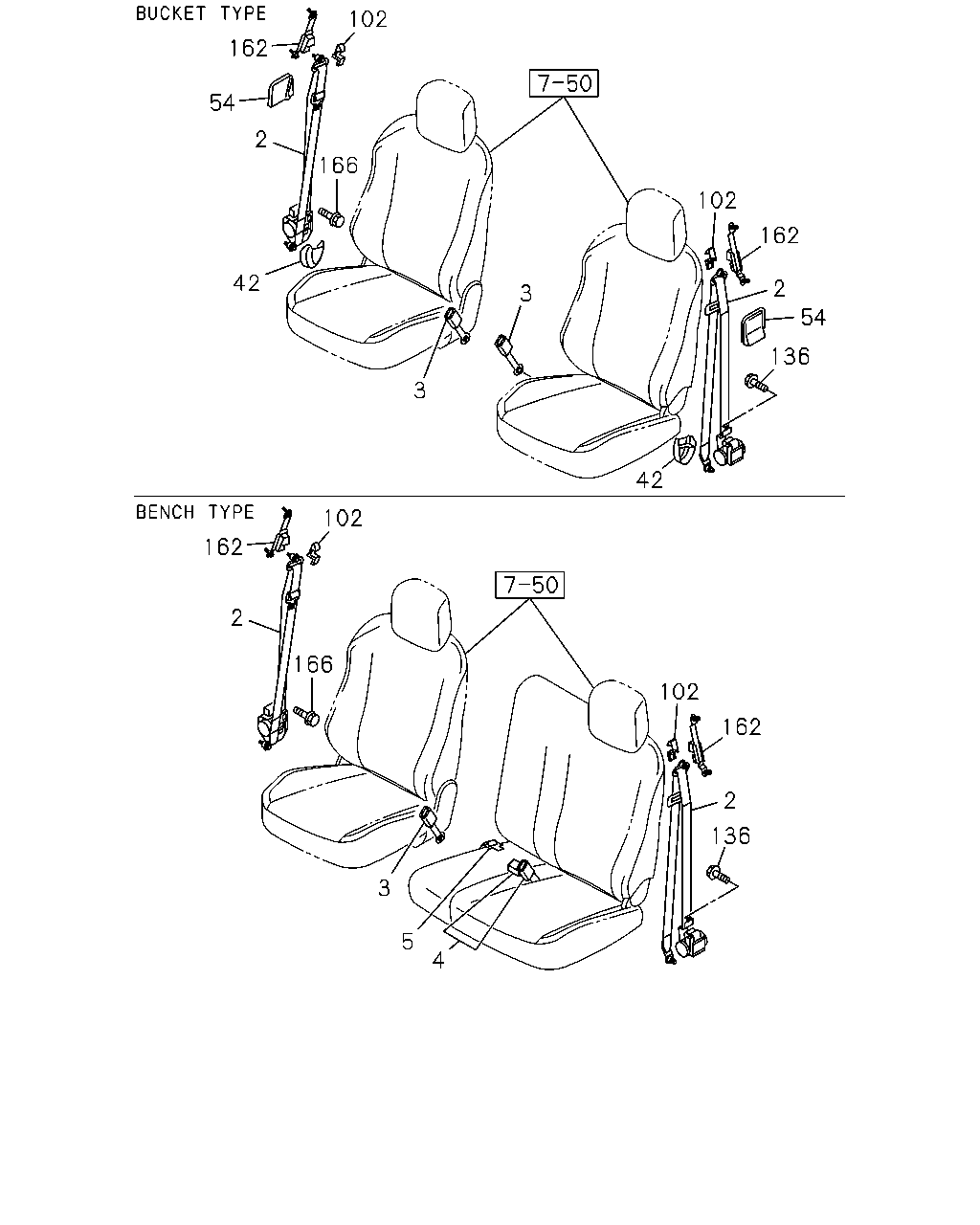

çizim 147248
102 162 54 2 166 42 3 3 102 2 162 54 136 42 166 102 162 2 102 162 2 136 3 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> DRIVER SIDE BLACK THA 		8-97416-643-2 01 1 1109-1109 ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> DRIVER SIDE BLACK THA 		8-97416-643-2 01 1 1110-1211 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
DRIVER SIDE BLACK THA 		8-97416-643-2 01 1 1110-1211 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> DRIVER SIDE BLACK THA 		8-97423-661-0 01 1 1212- ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
DRIVER SIDE BLACK THA 		8-97423-661-0 01 1 1212- ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> DRIVER SIDE BLACK THA 		8-97416-644-2 01 1 1109-1109 ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> DRIVER SIDE BLACK THA 		8-97416-644-2 01 1 1110-1211 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> DRIVER SIDE BLACK THA 		8-97423-662-0 01 1 1212- ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSENGER SIDE BLACK THA 		8-97416-647-2 01 1 1109-1109 ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSENGER SIDE BLACK THA 		8-97416-647-2 01 1 1110-1211 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE BLACK THA 		8-97416-647-2 01 1 1110-1211 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSENGER SIDE BLACK THA 		8-97423-665-0 01 1 1212- ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE BLACK THA 		8-97423-665-0 01 1 1212- ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> PASSENGER SIDE BLACK THA 		8-97417-195-2 01 1 1109-1109 ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> PASSENGER SIDE BLACK THA 		8-97417-195-2 01 1 1110-1211 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> PASSENGER SIDE BLACK THA 		8-97423-667-0 01 1 1212- ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
BLACK THA 		8-97416-837-3 01 1 1109-1109 ● ●
3 BELT; SEAT,BUCKLE SIDE
BLACK THA 		8-97416-837-3 01 1 1110-1311 ● ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
BLACK THA 		8-97426-632-0 01 1 1312- ● ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
BLACK THA 		8-97416-839-0 01 1 1109-1109 ● ●
3 BELT; SEAT,BUCKLE SIDE
BLACK THA 		8-97416-839-0 01 1 1110- ● ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
BLACK THA 		8-97417-107-1 01 1 1110- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
BLACK THA 		8-97423-671-0 01 1 1110- ●
42 COVER; SEAT BELT
BLACK THA 		8-97417-001-0 02 1 1109- ● ●
54 BEZEL; SEAT BELT
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-758-1 01 1 1109-1211 ●
54 BEZEL; SEAT BELT
BLACK THA 		8-97416-758-1 01 1 1109-1211 ●
54 BEZEL; SEAT BELT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-758-1 01 1 1212- ●
54 BEZEL; SEAT BELT
BLACK THA 		8-97416-758-1 01 1 1212- ●
54 BEZEL; SEAT BELT
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-759-1 01 1 1109- ●
54 BEZEL; SEAT BELT
INTERIOR COLOR DARK GRAY<117> BLACK THA 		8-97416-760-1 01 1 1109-1211 ●
54 BEZEL; SEAT BELT
BLACK THA 		8-97416-760-1 01 1 1109-1211 ●
54 BEZEL; SEAT BELT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-760-1 01 1 1212- ●
54 BEZEL; SEAT BELT
BLACK THA 		8-97416-760-1 01 1 1212- ●
54 BEZEL; SEAT BELT
INTERIOR COLOR BEIGE<120> BEIGE THA 		8-97416-761-1 01 1 1109- ●
102 COVER; SHOULDER ANCHOR
BLACK THA 		8-97416-646-2 02 1 1109-1109 ● ●
102 COVER; SHOULDER ANCHOR
BLACK THA 		8-97416-646-2 02 1 1110- ● ● ● ● ●
136 BOLT; SEAT BELT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1109-1109 ● ●
136 BOLT; SEAT BELT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1110- ● ● ● ● ●
162 ADJUSTER; SEAT BELT
BLACK THA 		8-97416-645-1 02 1 1109-1109 ● ●
162 ADJUSTER; SEAT BELT
BLACK THA 		8-97416-645-1 02 1 1110- ● ● ● ● ●
166 BOLT; SEAT BELT ANCHOR
M6X16 FLANGE THA 		0-28650-616-0 01 1 1109-1109 ● ●
166 BOLT; SEAT BELT ANCHOR
M6X16 FLANGE THA 		0-28650-616-0 01 1 1110- ● ● ● ● ●

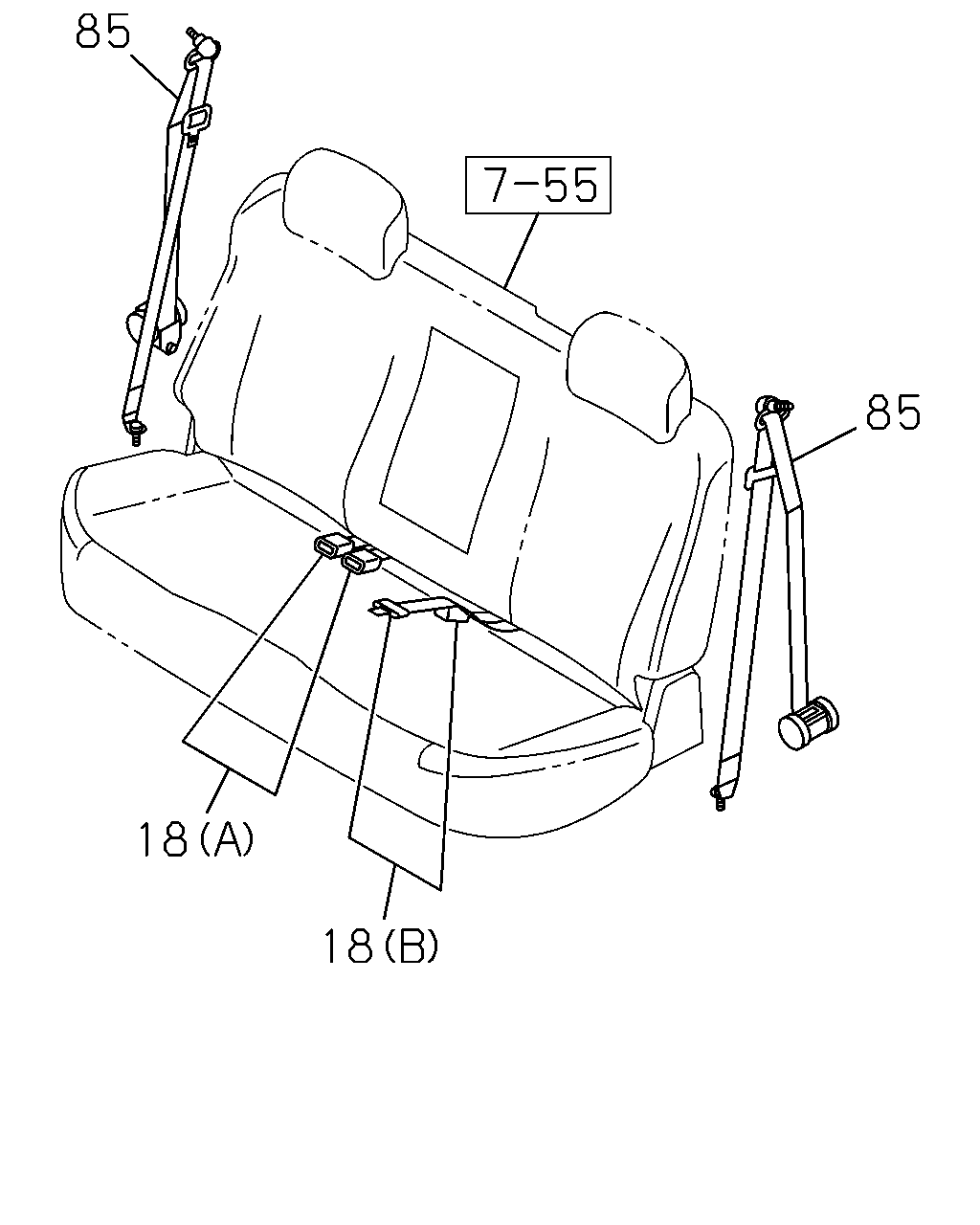

çizim 147252
85 85 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
18 BELT; SEAT,RR
(A) BLACK THA 		8-97416-937-1 01 1 1110- ● ●
18 BELT; SEAT,RR
(B) BLACK THA 		8-97423-672-0 01 1 1110- ● ●
85 BELT; SEAT,RR OUTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA 		8-97416-939-4 02 1 1110-1211 ●
85 BELT; SEAT,RR OUTER
BLACK THA 		8-97416-939-4 02 1 1110-1211 ●
85 BELT; SEAT,RR OUTER
BLACK THA 		8-97423-669-0 02 1 1212- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
