◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#81773) — 353 parça

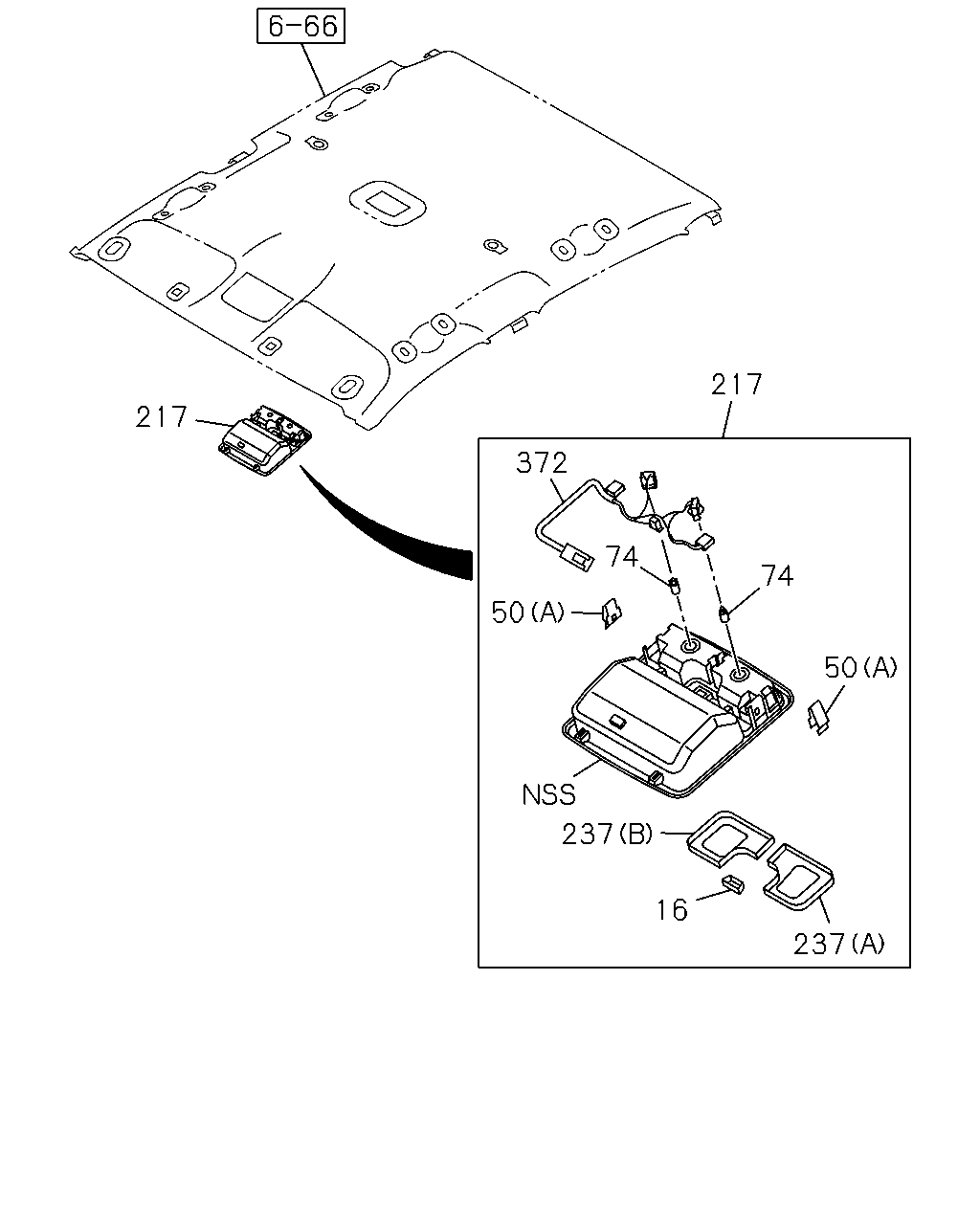

çizim 147257
217 372 217 74 50 50 74 237 16 237
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 KNOB ASM
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> GRAY THA 		8-97423-261-0 01 1 1109-1109 ●
16 KNOB ASM
HEADER CONSOLE<DK6> GRAY THA 		8-97423-261-0 01 1 1109-1109 ●
16 KNOB ASM
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> GRAY THA 		8-97423-261-0 01 1 1110- ● ●
16 KNOB ASM
HEADER CONSOLE<DK6> GRAY THA 		8-97423-261-0 01 1 1110- ●
16 KNOB ASM
GRAY THA 		8-97423-261-0 01 1 1110- ●
16 KNOB ASM
INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> BLACK THA 		8-97423-947-0 01 1 1212- ● ●
50 CLIP; CONSOLE
(B) THA 		8-98164-677-0 02 1 1110- ●
50 CLIP; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1109-1109 ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1109-1109 ●
50 CLIP; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1110-1211 ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1110-1211 ●
50 CLIP; CONSOLE
(A) THA 		8-98192-891-0 02 1 1110-1211 ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1212- ● ● ●
50 CLIP; CONSOLE
(A) THA 		8-98192-891-0 02 1 1212- ●
74 BULB; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> 12V 5W THA 		8-94124-595-0 02 1 1109-1109 ●
74 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W THA 		8-94124-595-0 02 1 1109-1109 ●
74 BULB; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> 12V 5W THA 		8-94124-595-0 02 1 1110-1211 ● ●
74 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W THA 		8-94124-595-0 02 1 1110-1211 ●
74 BULB; CONSOLE
12V 5W THA 		8-94124-595-0 02 1 1110-1211 ●
74 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W THA 		8-94124-595-0 02 1 1212- ● ● ●
74 BULB; CONSOLE
12V 5W THA 		8-94124-595-0 02 1 1212- ●
217 CONSOLE; HEADER
INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> BLACK THA 		8-97423-928-5 01 1 1212- ● ●
217 CONSOLE; HEADER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> GRAY THA 		8-97416-690-3 01 1 1109-1109 ●
217 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY THA 		8-97416-690-3 01 1 1109-1109 ●
217 CONSOLE; HEADER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> GRAY THA 		8-97416-690-5 01 1 1110- ● ●
217 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY THA 		8-97416-690-5 01 1 1110- ●
217 CONSOLE; HEADER
GRAY THA 		8-97416-690-5 01 1 1110- ●
237 LENS; HEADER CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> (A) THA 		8-98192-893-0 01 1 1109-1109 ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-893-0 01 1 1109-1109 ●
237 LENS; HEADER CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> (A) THA 		8-98192-893-0 01 1 1110-1211 ● ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-893-0 01 1 1110-1211 ●
237 LENS; HEADER CONSOLE
(A) THA 		8-98192-893-0 01 1 1110-1211 ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-893-0 01 1 1212- ● ● ●
237 LENS; HEADER CONSOLE
(A) THA 		8-98192-893-0 01 1 1212- ●
237 LENS; HEADER CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> (B) THA 		8-98192-894-0 01 1 1109-1109 ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) THA 		8-98192-894-0 01 1 1109-1109 ●
237 LENS; HEADER CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> (B) THA 		8-98192-894-0 01 1 1110-1211 ● ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) THA 		8-98192-894-0 01 1 1110-1211 ●
237 LENS; HEADER CONSOLE
(B) THA 		8-98192-894-0 01 1 1110-1211 ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) THA 		8-98192-894-0 01 1 1212- ● ● ●
237 LENS; HEADER CONSOLE
(B) THA 		8-98192-894-0 01 1 1212- ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> THA 		8-98192-890-0 01 1 1109-1109 ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-98192-890-0 01 1 1109-1109 ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> THA 		8-98192-890-0 01 1 1110-1211 ● ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-98192-890-0 01 1 1110-1211 ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
THA 		8-98192-890-0 01 1 1110-1211 ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-98192-890-0 01 1 1212- ● ● ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
THA 		8-98192-890-0 01 1 1212- ●

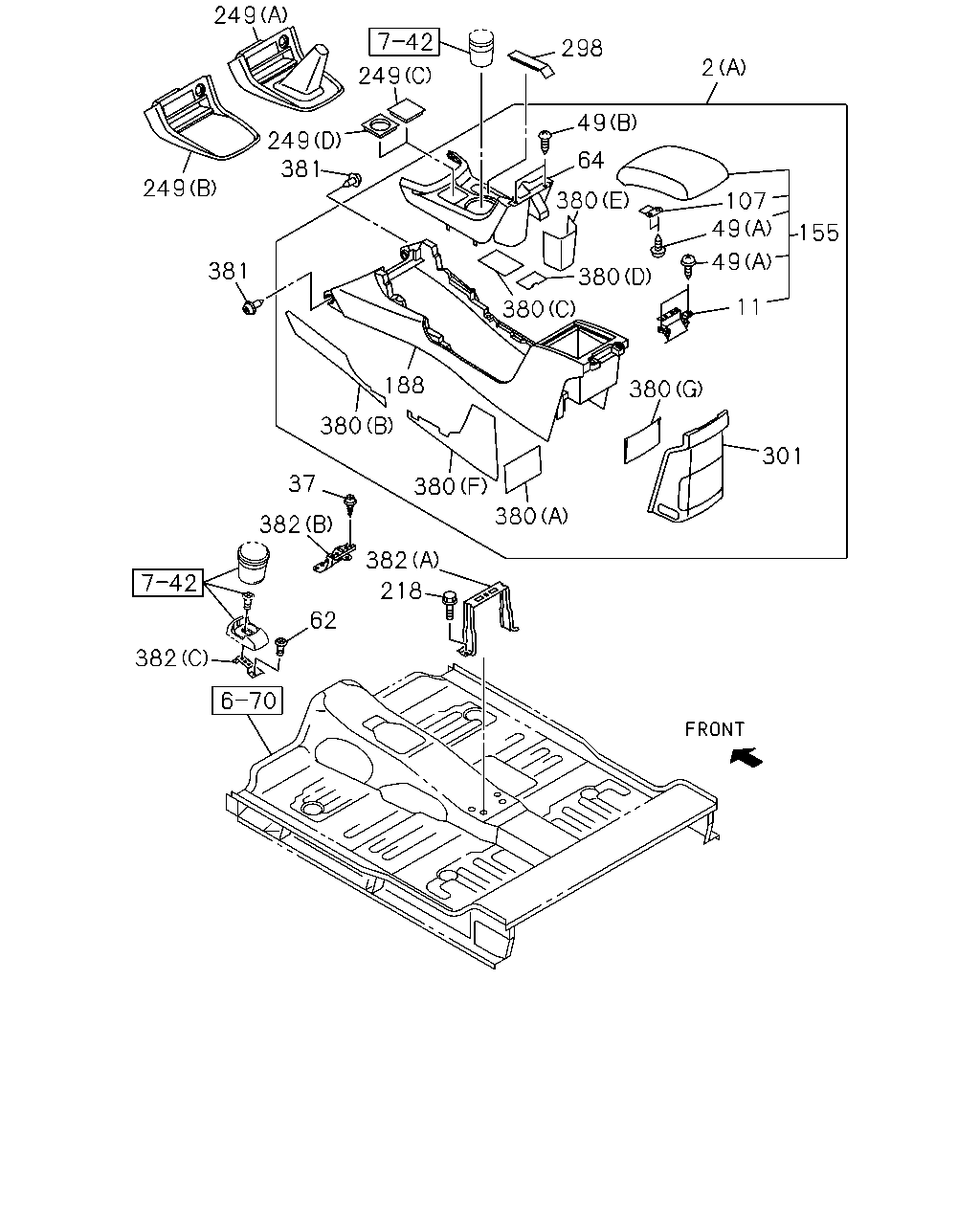

çizim 147267
301 380 11 155 49 49 107 2 49 298 249 64 249 249 249 381 188 380 380 380 380 380 380 37 382 382 218 62 382 381
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 CONSOLE; CENTER
(B) BLACK THA 		8-97416-633-4 01 1 1110- ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07> (A) BLACK THA 		8-97416-652-9 01 1 1109-1109 ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> (A) BLACK THA 		8-97416-652-9 01 1 1109-1109 ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07> (A) BLACK THA 		8-97416-652-9 01 1 1110-1211 ● ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> (A) BLACK THA 		8-97416-652-9 01 1 1110-1211 ●
2 CONSOLE; CENTER
(A) BLACK THA 		8-97416-652-9 01 1 1110-1211 ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> (A) BLACK THA 		8-97416-652-9 01 1 1212- ●
2 CONSOLE; CENTER
(A) BLACK THA 		8-97416-652-9 01 1 1212- ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1109-1109 ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1109-1109 ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1110-1211 ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1110-1211 ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (A) BLACK THA 		8-97416-654-9 01 1 1212-1212 ●
2 CONSOLE; CENTER
(A) BLACK THA 		8-97416-654-9 01 1 1212-1212 ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1212-1212 ●
2 CONSOLE; CENTER
(A) BLACK THA 		8-97416-654-9 01 1 1301- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1301- ●
11 HINGE; CONSOLE LID
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-090-0 01 1 1109-1109 ●
11 HINGE; CONSOLE LID
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-090-0 01 1 1109-1109 ●
11 HINGE; CONSOLE LID
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-090-0 01 1 1110-1211 ● ●
11 HINGE; CONSOLE LID
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-090-0 01 1 1110-1211 ●
11 HINGE; CONSOLE LID
BLACK THA 		8-97423-090-0 01 1 1110-1211 ●
11 HINGE; CONSOLE LID
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA 		8-97423-090-0 01 1 1212-1212 ●
11 HINGE; CONSOLE LID
BLACK THA 		8-97423-090-0 01 1 1212-1212 ● ●
11 HINGE; CONSOLE LID
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-090-0 01 1 1212-1212 ●
11 HINGE; CONSOLE LID
CUSTOM FRONT CONSOLE<D07> BLACK THA 		8-97423-090-0 01 1 1212-1212 ●
11 HINGE; CONSOLE LID
BLACK THA 		8-97423-090-0 01 1 1301- ● ● ●
11 HINGE; CONSOLE LID
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-090-0 01 1 1301- ●
37 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M5X16 TAPPING W/PL WASHER IMA 		0-74165-516-0 03 1 1109-1109 ● ●
37 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M5X16 TAPPING W/PL WASHER IMA 		0-74165-516-0 03 1 1110-1211 ● ● ●
37 SCREW; CONSOLE
M5X16 TAPPING W/PL WASHER IMA 		0-74165-516-0 03 1 1110-1211 ●
37 SCREW; CONSOLE
M5X16 TAPPING W/PL WASHER IMA 		0-74165-516-0 03 1 1212- ● ● ●
37 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M5X16 TAPPING W/PL WASHER IMA 		0-74165-516-0 03 1 1212- ●
49 SCREW; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (A) M5X16 THA 		8-98197-847-0 06 1 1212-1212 ●
49 SCREW; CONSOLE
(A) M5X16 THA 		8-98197-847-0 06 1 1212-1212 ● ●
49 SCREW; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (A) M5X16 THA 		8-98197-847-0 06 1 1212-1212 ●
49 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07> (A) M5X16 THA 		8-98197-847-0 06 1 1212-1212 ●
49 SCREW; CONSOLE
(A) M5X16 THA 		8-98197-847-0 06 1 1301- ● ● ●
49 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) M5X16 THA 		8-98197-847-0 06 1 1301- ●
49 SCREW; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) M4X14 THA 		8-98234-823-0 02 1 1212-1212 ●
49 SCREW; CONSOLE
(B) M4X14 THA 		8-98234-823-0 02 1 1212-1212 ● ●
49 SCREW; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (B) M4X14 THA 		8-98234-823-0 02 1 1212-1212 ●
49 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07> (B) M4X14 THA 		8-98234-823-0 02 1 1212-1212 ●
49 SCREW; CONSOLE
(B) M4X14 THA 		8-98234-823-0 02 1 1301- ● ● ●
49 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) M4X14 THA 		8-98234-823-0 02 1 1301- ●
62 SCREW; BRKT
M5X10 TAPPING THA 		0-71240-510-0 02 1 1110-1301 ●
62 SCREW; BRKT
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> M5X10 TAPPING THA 		0-71240-510-0 02 1 1302- ●
62 SCREW; BRKT
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M5X10 TAPPING THA 		0-71240-510-0 02 1 1302- ●
64 BEZEL; CENTER CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-087-3 01 1 1109-1109 ●
64 BEZEL; CENTER CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-087-3 01 1 1109-1109 ●
64 BEZEL; CENTER CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-087-3 01 1 1110-1211 ● ●
64 BEZEL; CENTER CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-087-3 01 1 1110-1211 ●
64 BEZEL; CENTER CONSOLE
BLACK THA 		8-97423-087-3 01 1 1110-1211 ●
64 BEZEL; CENTER CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA 		8-97423-087-3 01 1 1212-1212 ●
64 BEZEL; CENTER CONSOLE
BLACK THA 		8-97423-087-3 01 1 1212-1212 ● ●
64 BEZEL; CENTER CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-087-3 01 1 1212-1212 ●
64 BEZEL; CENTER CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK THA 		8-97423-087-3 01 1 1212-1212 ●
64 BEZEL; CENTER CONSOLE
BLACK THA 		8-97423-087-3 01 1 1301- ● ● ●
64 BEZEL; CENTER CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-087-3 01 1 1301- ●
107 LOCK; LID,RR CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-089-0 01 1 1109-1109 ●
107 LOCK; LID,RR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-089-0 01 1 1109-1109 ●
107 LOCK; LID,RR CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-089-0 01 1 1110-1211 ● ●
107 LOCK; LID,RR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-089-0 01 1 1110-1211 ●
107 LOCK; LID,RR CONSOLE
BLACK THA 		8-97423-089-0 01 1 1110-1211 ●
107 LOCK; LID,RR CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA 		8-97423-089-0 01 1 1212-1212 ●
107 LOCK; LID,RR CONSOLE
BLACK THA 		8-97423-089-0 01 1 1212-1212 ● ●
107 LOCK; LID,RR CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-089-0 01 1 1212-1212 ●
107 LOCK; LID,RR CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK THA 		8-97423-089-0 01 1 1212-1212 ●
107 LOCK; LID,RR CONSOLE
BLACK THA 		8-97423-089-0 01 1 1301- ● ● ●
107 LOCK; LID,RR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-089-0 01 1 1301- ●
155 LID; PARCEL BOX
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-088-1 01 1 1109-1109 ●
155 LID; PARCEL BOX
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-088-1 01 1 1109-1109 ●
155 LID; PARCEL BOX
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-088-1 01 1 1110-1211 ● ●
155 LID; PARCEL BOX
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-088-1 01 1 1110-1211 ●
155 LID; PARCEL BOX
BLACK THA 		8-97423-088-1 01 1 1110-1211 ●
155 LID; PARCEL BOX
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA 		8-97423-088-1 01 1 1212-1212 ●
155 LID; PARCEL BOX
BLACK THA 		8-97423-088-1 01 1 1212-1212 ● ●
155 LID; PARCEL BOX
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-088-1 01 1 1212-1212 ●
155 LID; PARCEL BOX
CUSTOM FRONT CONSOLE<D07> BLACK THA 		8-97423-088-1 01 1 1212-1212 ●
155 LID; PARCEL BOX
BLACK THA 		8-97423-088-1 01 1 1301- ● ● ●
155 LID; PARCEL BOX
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-088-1 01 1 1301- ●
188 CONSOLE; RR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-086-3 01 1 1109-1109 ●
188 CONSOLE; RR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-086-3 01 1 1109-1109 ●
188 CONSOLE; RR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-086-3 01 1 1110-1211 ● ●
188 CONSOLE; RR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-086-3 01 1 1110-1211 ●
188 CONSOLE; RR
BLACK THA 		8-97423-086-3 01 1 1110-1211 ●
188 CONSOLE; RR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA 		8-97423-086-3 01 1 1212-1212 ●
188 CONSOLE; RR
BLACK THA 		8-97423-086-3 01 1 1212-1212 ● ●
188 CONSOLE; RR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-086-3 01 1 1212-1212 ●
188 CONSOLE; RR
CUSTOM FRONT CONSOLE<D07> BLACK THA 		8-97423-086-3 01 1 1212-1212 ●
188 CONSOLE; RR
BLACK THA 		8-97423-086-3 01 1 1301- ● ● ●
188 CONSOLE; RR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-086-3 01 1 1301- ●
218 BOLT; BRKT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE THA 		8-98014-141-0 02 1 1109-1109 ● ●
218 BOLT; BRKT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE THA 		8-98014-141-0 02 1 1110-1211 ● ● ●
218 BOLT; BRKT
M6X12.5 FLANGE THA 		8-98014-141-0 02 1 1110-1211 ●
218 BOLT; BRKT
M6X12.5 FLANGE THA 		8-98014-141-0 02 1 1212- ● ● ●
218 BOLT; BRKT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE THA 		8-98014-141-0 02 1 1212- ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (B) BLACK THA 		8-97417-418-1 01 1 1212- ● ● ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (B) BLACK THA 		8-97423-943-1 01 1 1212- ● ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA 		8-97423-944-1 01 1 1212- ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (A) BLACK THA 		8-97417-414-2 01 1 1212- ● ● ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (A) THA 		8-97423-941-2 01 1 1212- ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (A) THA 		8-97423-941-2 01 1 1212- ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> (A) BLACK THA 		8-97423-942-2 01 1 1212- ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> (A) BLACK THA 		8-97423-942-2 01 1 1212- ●
249 COVER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (E) BLACK THA 		8-97416-614-2 01 1 1110-1211 ●
249 COVER
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (E) BLACK THA 		8-97416-614-2 01 1 1110-1211 ●
249 COVER
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (E) BLACK THA 		8-97416-614-2 01 1 1212- ● ●

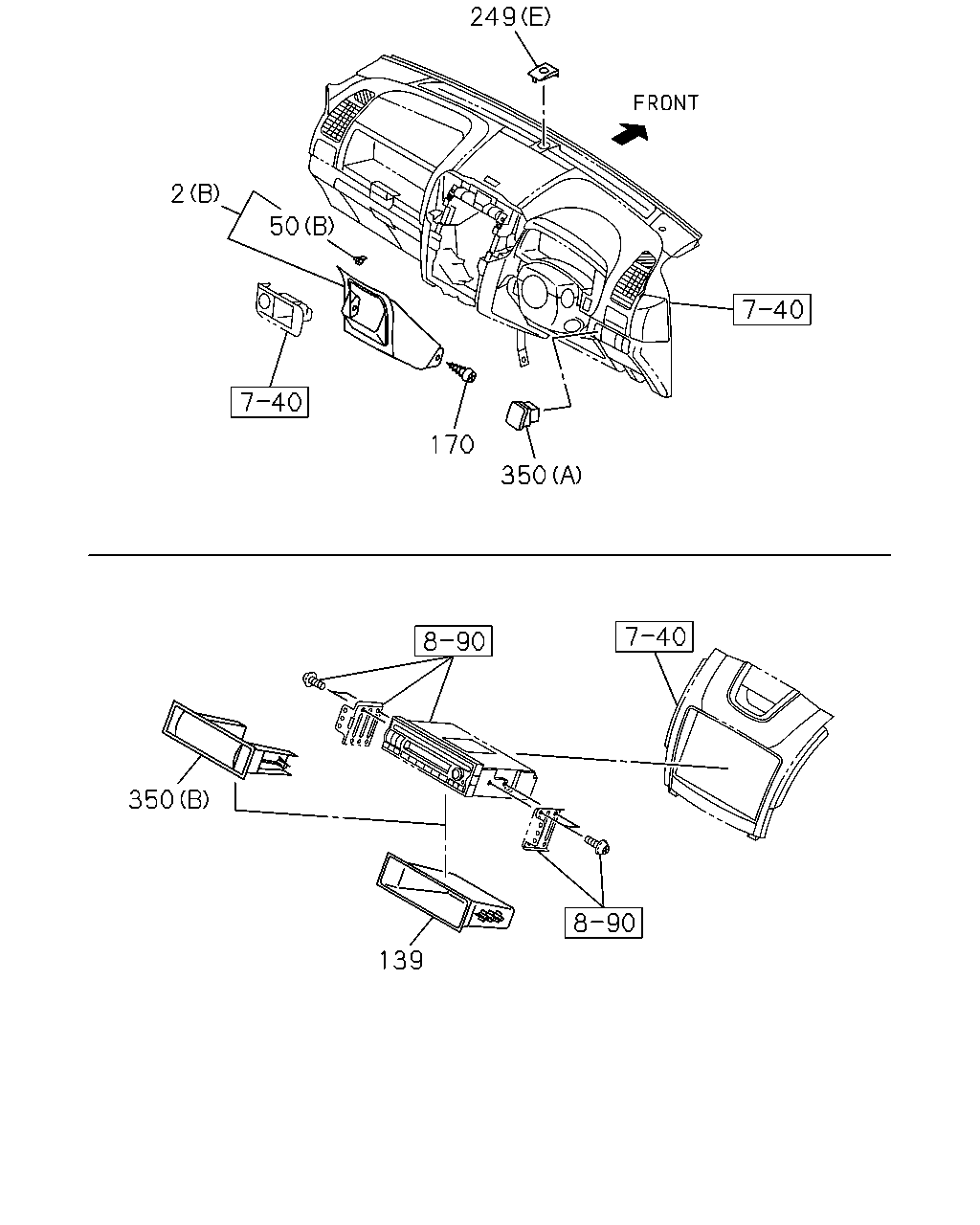

249 COVER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (E) BLACK THA 		8-97416-613-2 01 1 1109-1109 ●
249 COVER
(E) BLACK THA 		8-97416-613-2 01 1 1109-1109 ●
249 COVER
(E) BLACK THA 		8-97416-613-2 01 1 1110-1211 ● ●
249 COVER
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (E) BLACK THA 		8-97416-613-2 01 1 1110-1211 ●
249 COVER
COOLER W/FRESH AIR<C65> (E) BLACK THA 		8-97416-613-2 01 1 1110-1211 ● ●
249 COVER
(E) BLACK THA 		8-97416-613-2 01 1 1212- ● ●
249 COVER
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (E) BLACK THA 		8-97416-613-2 01 1 1212- ●
249 COVER
COOLER W/FRESH AIR<C65> (E) BLACK THA 		8-97416-613-2 01 1 1212- ● ●
249 COVER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK THA 		8-97416-660-1 01 1 1109-1109 ●
249 COVER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK THA 		8-97416-660-1 01 1 1110-1211 ● ●
249 COVER
(C) BLACK THA 		8-97416-660-1 01 1 1212- ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK THA 		8-97416-660-1 01 1 1212- ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB> (B) BLACK THA 		8-97417-153-1 01 1 1109-1109 ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB> (B) BLACK THA 		8-97417-153-1 01 1 1110-1211 ● ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK THA 		8-97417-153-1 01 1 1212- ● ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK THA 		8-97417-152-1 01 1 1109-1109 ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK THA 		8-97417-152-1 01 1 1110-1211 ● ● ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD,C LOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA 		8-97417-152-1 01 1 1212- ● ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97417-151-2 01 1 1109-1109 ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97417-151-2 01 1 1110- ● ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97417-150-2 01 1 1109-1109 ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97417-150-2 01 1 1110- ● ● ● ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK THA 		8-97416-659-2 01 1 1109-1109 ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK THA 		8-97416-659-2 01 1 1110-1211 ●
249 COVER
(D) BLACK THA 		8-97416-659-2 01 1 1110-1211 ●
249 COVER
(D) BLACK THA 		8-97416-659-2 01 1 1212- ● ●
298 BEZEL; HAND BRAKE,CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97416-651-2 01 1 1109-1109 ●
298 BEZEL; HAND BRAKE,CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97416-651-2 01 1 1109-1109 ●
298 BEZEL; HAND BRAKE,CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97416-651-2 01 1 1110-1211 ● ●
298 BEZEL; HAND BRAKE,CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97416-651-2 01 1 1110-1211 ●
298 BEZEL; HAND BRAKE,CONSOLE
BLACK THA 		8-97416-651-2 01 1 1110-1211 ●
298 BEZEL; HAND BRAKE,CONSOLE
BLACK THA 		8-97416-651-2 01 1 1212- ● ● ●
298 BEZEL; HAND BRAKE,CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97416-651-2 01 1 1212- ●
301 BEZEL; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07> BLACK THA 		8-97423-091-2 01 1 1109-1109 ●
301 BEZEL; CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK THA 		8-97423-091-2 01 1 1109-1109 ●
301 BEZEL; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07> BLACK THA 		8-97423-091-2 01 1 1110-1211 ● ●
301 BEZEL; CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK THA 		8-97423-091-2 01 1 1110-1211 ●
301 BEZEL; CONSOLE
BLACK THA 		8-97423-091-2 01 1 1110-1211 ●
301 BEZEL; CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK THA 		8-97423-091-2 01 1 1212- ●
301 BEZEL; CONSOLE
BLACK THA 		8-97423-091-2 01 1 1212- ●
301 BEZEL; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-092-2 01 1 1109-1109 ●
301 BEZEL; CONSOLE
FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-092-2 01 1 1109-1109 ●
301 BEZEL; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-092-2 01 1 1110-1211 ● ●
301 BEZEL; CONSOLE
FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-092-2 01 1 1110-1211 ●
301 BEZEL; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> BLACK THA 		8-97423-092-2 01 1 1212-1212 ●
301 BEZEL; CONSOLE
BLACK THA 		8-97423-092-2 01 1 1212-1212 ●
301 BEZEL; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-092-2 01 1 1212-1212 ●
301 BEZEL; CONSOLE
BLACK THA 		8-97423-092-2 01 1 1301- ● ●
301 BEZEL; CONSOLE
FRONT CONSOLE W/LID<D55> BLACK THA 		8-97423-092-2 01 1 1301- ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07> (G) THA 		8-98234-824-0 01 1 1212- ●
380 INSULATOR; CONSOLE
(G) THA 		8-98234-824-0 01 1 1212- ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (F) THA 		8-98234-826-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(F) THA 		8-98234-826-0 01 1 1212-1212 ● ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (F) THA 		8-98234-826-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07> (F) THA 		8-98234-826-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(F) THA 		8-98234-826-0 01 1 1301- ● ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (F) THA 		8-98234-826-0 01 1 1301- ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (A) THA 		8-98234-827-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(A) THA 		8-98234-827-0 01 1 1212-1212 ● ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (A) THA 		8-98234-827-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07> (A) THA 		8-98234-827-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(A) THA 		8-98234-827-0 01 1 1301- ● ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) THA 		8-98234-827-0 01 1 1301- ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) THA 		8-98234-828-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(B) THA 		8-98234-828-0 01 1 1212-1212 ● ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (B) THA 		8-98234-828-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07> (B) THA 		8-98234-828-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(B) THA 		8-98234-828-0 01 1 1301- ● ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) THA 		8-98234-828-0 01 1 1301- ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (D) THA 		8-98234-829-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(D) THA 		8-98234-829-0 01 1 1212-1212 ● ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (D) THA 		8-98234-829-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07> (D) THA 		8-98234-829-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(D) THA 		8-98234-829-0 01 1 1301- ● ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) THA 		8-98234-829-0 01 1 1301- ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (C) THA 		8-98234-830-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(C) THA 		8-98234-830-0 01 1 1212-1212 ● ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (C) THA 		8-98234-830-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07> (C) THA 		8-98234-830-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(C) THA 		8-98234-830-0 01 1 1301- ● ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) THA 		8-98234-830-0 01 1 1301- ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (E) THA 		8-98234-831-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(E) THA 		8-98234-831-0 01 1 1212-1212 ● ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (E) THA 		8-98234-831-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07> (E) THA 		8-98234-831-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(E) THA 		8-98234-831-0 01 1 1301- ● ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (E) THA 		8-98234-831-0 01 1 1301- ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (G) THA 		8-98234-825-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(G) THA 		8-98234-825-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (G) THA 		8-98234-825-0 01 1 1212-1212 ●
380 INSULATOR; CONSOLE
(G) THA 		8-98234-825-0 01 1 1301- ● ●
380 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (G) THA 		8-98234-825-0 01 1 1301- ●
381 RETAINER; FLOOR CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97360-070-0 02 1 1109-1109 ●
381 RETAINER; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97360-070-0 02 1 1109-1109 ●
381 RETAINER; FLOOR CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97360-070-0 02 1 1110-1211 ● ●
381 RETAINER; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97360-070-0 02 1 1110-1211 ●
381 RETAINER; FLOOR CONSOLE
BLACK THA 		8-97360-070-0 02 1 1110-1211 ●
381 RETAINER; FLOOR CONSOLE
BLACK THA 		8-97360-070-0 02 1 1212- ● ● ●
381 RETAINER; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK THA 		8-97360-070-0 02 1 1212- ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) THA 		8-98102-973-3 01 1 1109-1109 ● ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) THA 		8-98102-973-3 01 1 1110-1211 ● ● ●
382 BRACKET; FLOOR CONSOLE
(A) THA 		8-98102-973-3 01 1 1110-1211 ●
382 BRACKET; FLOOR CONSOLE
(A) THA 		8-98102-973-3 01 1 1212- ● ● ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) THA 		8-98102-973-3 01 1 1212- ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) THA 		8-98112-864-4 01 1 1109-1109 ● ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) THA 		8-98112-864-4 01 1 1110-1211 ● ● ●
382 BRACKET; FLOOR CONSOLE
(B) THA 		8-98112-864-4 01 1 1110-1211 ●
382 BRACKET; FLOOR CONSOLE
(B) THA 		8-98112-864-4 01 1 1212- ● ● ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) THA 		8-98112-864-4 01 1 1212- ●
382 BRACKET; FLOOR CONSOLE
(C) THA 		8-98123-599-2 01 1 1110-1301 ●
382 BRACKET; FLOOR CONSOLE
4JK1-TCS ENG<LKZ>,4JK1-TCX ENG<LR0> (C) THA 		8-98123-599-2 01 1 1302- ●
382 BRACKET; FLOOR CONSOLE
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) THA 		8-98123-599-2 01 1 1302- ●
çizim 147295
139 350 350 170 2 249 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 CONSOLE; CENTER
(B) BLACK THA 		8-97416-633-4 01 1 1110- ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07> (A) BLACK THA 		8-97416-652-9 01 1 1109-1109 ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> (A) BLACK THA 		8-97416-652-9 01 1 1109-1109 ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07> (A) BLACK THA 		8-97416-652-9 01 1 1110-1211 ● ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> (A) BLACK THA 		8-97416-652-9 01 1 1110-1211 ●
2 CONSOLE; CENTER
(A) BLACK THA 		8-97416-652-9 01 1 1110-1211 ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> (A) BLACK THA 		8-97416-652-9 01 1 1212- ●
2 CONSOLE; CENTER
(A) BLACK THA 		8-97416-652-9 01 1 1212- ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1109-1109 ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1109-1109 ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1110-1211 ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1110-1211 ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (A) BLACK THA 		8-97416-654-9 01 1 1212-1212 ●
2 CONSOLE; CENTER
(A) BLACK THA 		8-97416-654-9 01 1 1212-1212 ●
2 CONSOLE; CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1212-1212 ●
2 CONSOLE; CENTER
(A) BLACK THA 		8-97416-654-9 01 1 1301- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97416-654-9 01 1 1301- ●
50 CLIP; CONSOLE
(B) THA 		8-98164-677-0 02 1 1110- ●
50 CLIP; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1109-1109 ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1109-1109 ●
50 CLIP; CONSOLE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1110-1211 ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1110-1211 ●
50 CLIP; CONSOLE
(A) THA 		8-98192-891-0 02 1 1110-1211 ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-891-0 02 1 1212- ● ● ●
50 CLIP; CONSOLE
(A) THA 		8-98192-891-0 02 1 1212- ●
139 BOX; CONSOLE,UPR
RADIO AM/FM W/CD,W/CLOCK<U1C> BLACK THA 		8-97416-619-0 01 1 1109-1109 ● ●
139 BOX; CONSOLE,UPR
RADIO AM/FM W/CD,W/CLOCK<U1C> BLACK THA 		8-97416-619-0 01 1 1110- ● ● ●
139 BOX; CONSOLE,UPR
BLACK THA 		8-97416-619-0 01 1 1110- ●
170 RETAINER; CONSOLE BOX
BLACK THA 		8-97416-699-0 02 1 1110- ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (B) BLACK THA 		8-97417-418-1 01 1 1212- ● ● ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (B) BLACK THA 		8-97423-943-1 01 1 1212- ● ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA 		8-97423-944-1 01 1 1212- ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (A) BLACK THA 		8-97417-414-2 01 1 1212- ● ● ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (A) THA 		8-97423-941-2 01 1 1212- ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (A) THA 		8-97423-941-2 01 1 1212- ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> (A) BLACK THA 		8-97423-942-2 01 1 1212- ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR UPR & LWR DARK GRAY<154> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> (A) BLACK THA 		8-97423-942-2 01 1 1212- ●
249 COVER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (E) BLACK THA 		8-97416-614-2 01 1 1110-1211 ●
249 COVER
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (E) BLACK THA 		8-97416-614-2 01 1 1110-1211 ●
249 COVER
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (E) BLACK THA 		8-97416-614-2 01 1 1212- ● ●
249 COVER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (E) BLACK THA 		8-97416-613-2 01 1 1109-1109 ●
249 COVER
(E) BLACK THA 		8-97416-613-2 01 1 1109-1109 ●
249 COVER
(E) BLACK THA 		8-97416-613-2 01 1 1110-1211 ● ●
249 COVER
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (E) BLACK THA 		8-97416-613-2 01 1 1110-1211 ●
249 COVER
COOLER W/FRESH AIR<C65> (E) BLACK THA 		8-97416-613-2 01 1 1110-1211 ● ●
249 COVER
(E) BLACK THA 		8-97416-613-2 01 1 1212- ● ●
249 COVER
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (E) BLACK THA 		8-97416-613-2 01 1 1212- ●
249 COVER
COOLER W/FRESH AIR<C65> (E) BLACK THA 		8-97416-613-2 01 1 1212- ● ●
249 COVER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK THA 		8-97416-660-1 01 1 1109-1109 ●
249 COVER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK THA 		8-97416-660-1 01 1 1110-1211 ● ●
249 COVER
(C) BLACK THA 		8-97416-660-1 01 1 1212- ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK THA 		8-97416-660-1 01 1 1212- ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB> (B) BLACK THA 		8-97417-153-1 01 1 1109-1109 ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR DELUXE<RBB> (B) BLACK THA 		8-97417-153-1 01 1 1110-1211 ● ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK THA 		8-97417-153-1 01 1 1212- ● ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK THA 		8-97417-152-1 01 1 1109-1109 ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK THA 		8-97417-152-1 01 1 1110-1211 ● ● ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD,C LOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA 		8-97417-152-1 01 1 1212- ● ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97417-151-2 01 1 1109-1109 ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR DELUXE<RBB> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97417-151-2 01 1 1110- ● ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97417-150-2 01 1 1109-1109 ● ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR CUSTOM<RBD> INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK THA 		8-97417-150-2 01 1 1110- ● ● ● ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK THA 		8-97416-659-2 01 1 1109-1109 ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK THA 		8-97416-659-2 01 1 1110-1211 ●
249 COVER
(D) BLACK THA 		8-97416-659-2 01 1 1110-1211 ●
249 COVER
(D) BLACK THA 		8-97416-659-2 01 1 1212- ● ●
350 COVER; CONSOLE
INTERIOR BASIC<RBA> RADIO DELETE<UL5> (B) BLACK THA 		8-97416-806-0 01 1 1110- ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1109-1109 ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1109-1109 ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1109-1109 ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1109-1109 ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1110-1111 ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1110-1111 ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1110-1111 ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1110-1111 ● ● ●
350 COVER; CONSOLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA 		8-98103-424-2 01 1 1110-1111 ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 02 1 1109-1109 ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 02 1 1110-1111 ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1112- ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1112- ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1112- ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1112- ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1112- ● ● ● ● ●
350 COVER; CONSOLE
(A) THA 		8-98103-424-2 01 1 1112- ● ● ●
350 COVER; CONSOLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA 		8-98103-424-2 01 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
